PR MERLIN PR-2473 User manual

1/28
c
MERLIN
PR-2473
The user manual contains important information about the safe installation and use of a projector. Please read
and follow these instructions carefully and keep the manual in a safe place for future reference.
PR LIGHTING LTD.
http://www.pr-lighting.com

2/28
INDEX
1. SAFETY AND WARNINGS
2. INSTUCTIONS
●CLEANING AND MAINTENANCE
●LUBRICATION
●TROUBLESHOOTING
3. APPEARANCE
4. INSTALLATION
●RIGGING
●POWER CONNECTIONS
●DMX CONTROL CONNECTIONS
●DMX TERMINATOR
●ALIGNMENT/INSTALLATION/REPLACEMENT OF A LAMP
●GOBO/COLOR FILTER REPLACEMENT
5. SETUP AND CONFIGURATION
●FRONT PANEL OPERATION
●DMX START ADDRESS
●DMX WIRELSESS CONTROL
●STAND-ALONE MODE

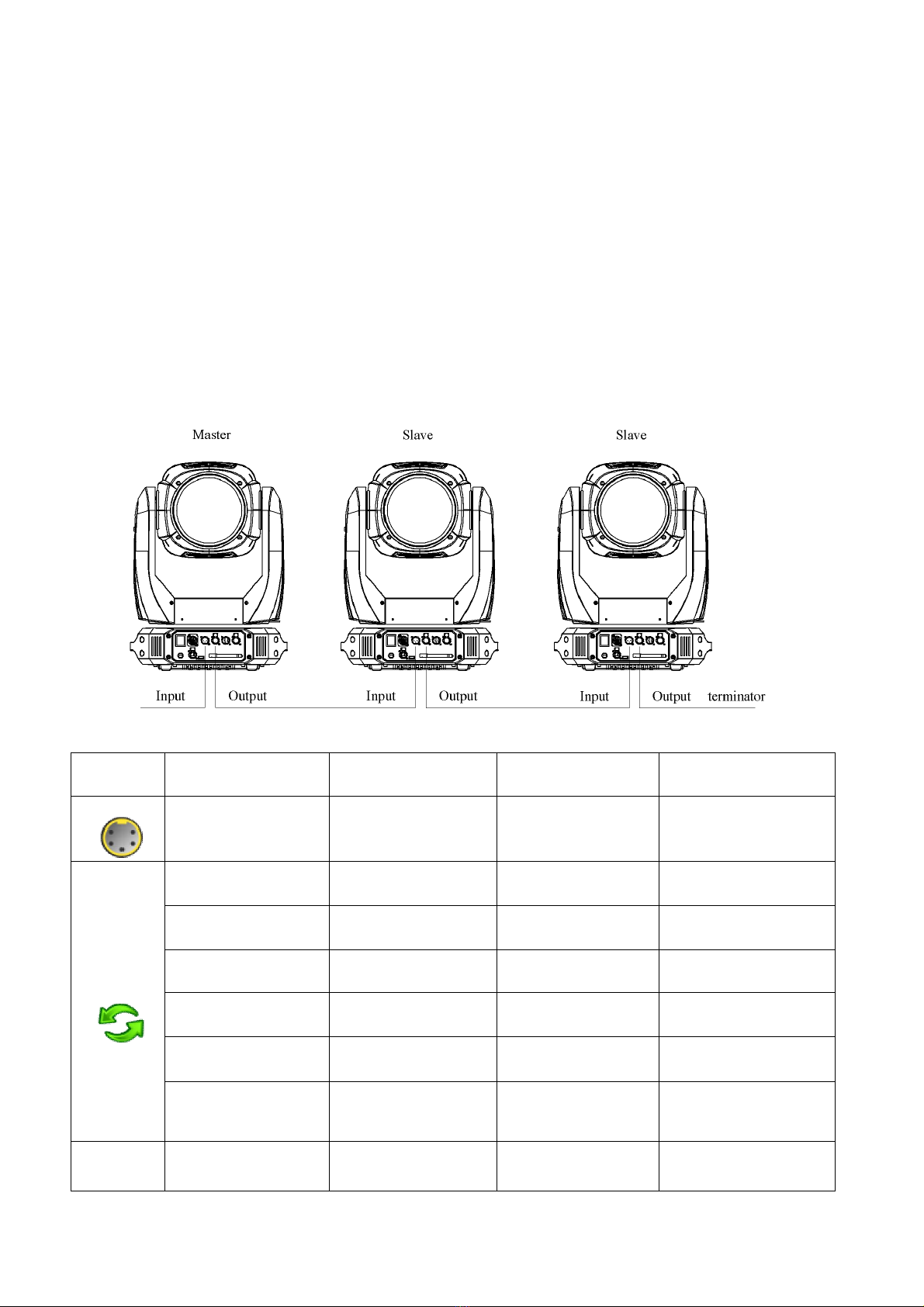

●MASTER/SLAVE MODE
6.OPERATION MENU
7. DMX PROTOCOL
8. LOGOS OF THE TOUCH SCREEN
9. ERROR MESSAGES
10.TECHNICAL DATA
11.CIRCUIT DIAGRAM AND PCB CONNECTIONS
●CIRCUIT DIAGRAM
●PCB CONNECTIONS
12.COMPONENT ORDER CODES
3
4
4
4
4
5
5
5
6
7
7
8
8
9
9
9
9
10
10
10
16
19
20
21
25
25
26
27
ACCESSORIES
The following items are supplied with the projector and please check:
Name
Quantity
Unit
Remark
G clamp
2
Pcs
XLR
Connectors
1
Set
with plug
and socket
Safety cord
1
Pc
User
manual
1
Pc
Ω clamps
2
Pcs
Optional
Please note that as part of our ongoing commitment to continuous product development, specifications are subject to change without notice.
Whilst every care is taken in the preparation of the manual we reserve the right to change specifications in the course of product
improvement. The publishers cannot be held responsible for the accuracy of the information herein, or any consequence arising from
them.
Every unit is tested completely and packed properly by the manufacturer. Please make sure the packing and / or the unit are in good
condition before installation and use. Should there be any damage caused by transportation, consult your dealer and do not use the unit.
Any damage caused by improper use will not be assumed by the manufacturer and / or dealer.
Any future technical change in the user manual won’t be with any notice.
Note: For the products made by Guangzhou PR lighting Ltd, the warranty for the whole product is one year starting from the delivery date
but the light source is not within the warranty.

3/28
1. SAFETY AND WARNINGS
NOTE
Before a projector’s installation, power-on, operation and maintenance, please carefully read
the safety information hereinafter!
The following safety signs are used in the user manual.
Warning
User
Manua
Electrical
shock
Goggles Protective
Gloves
Flames
High
Temperature
When unpacking , check if there is transportation damage before using the projector. Should there be any damage
caused by transportation, consult your dealer and do not use it.
●The manufacture is not responsible for loss caused by the user not following the manual or changing the projector
as he/she likes.
●Please be noted that the damage caused by changing the projector at will is not warranted..
● Do not hesitate to contact the dealer or the manufacturer if any questions or advice.
● The projector is for indoor use only, IP20.
● Use only in dry locations. Keep this unit away from rain and moisture, excessive heat, humidity and dust. Do not
allow contact with water or any other liquids.
●The projector should be kept away from high temperature, fire, electrical surge, vibration and strong light while
being operated.
●The projector is only intended for installation, operation and maintenance by qualified personnel. And the
operation must strictly follow the procedures in the manual.
●No repairable parts in the projector and do not open covers for maintenance by yourself.
●Don’t look straightly into the light sources especially for epileptics, otherwise eyes will be burned.
●Do not connect this device to any type of dimmer pack.
●After lamp switched on, the minimum distance between the projector and illuminated surface is 18m.
●lens and other optical parts shall be replaced immediately if they have deformed or been damaged, otherwise the
light output will be compromised.
●Before operation, please confirm that all covers(housing) are on and screws tightened. It’s forbidden to use a
projector while covers(housing)are off.
●Keep the lamp clean and do not touch it with bare hands.
●While operating it, wear protective items.
●Any electrical connection must be carried out by a qualified person .
●Before installation, please confirm the voltage supplied matches what is required for the projector.
●Each projector must be properly earthed and installed as per related electrical standards.
●Do not use power cord with its insulator damaged and connect the power cord with other cables.
●If the projector is not used or under cleaning,, please hold the plug and unplug it. Do not unplug it forcefully
or by pulling the power cable.
●All power cords must confirm to related safety and regulations.
●While being operated, the projector should not be under rains or in humidity.
●Do not switch on and off the projector constantly in very short intervals, otherwise the light source’s and other
electrical parts’ life will be shortened .
●There are safety cord holes at the bottom of the base of a projector. In view of safety, please run the safety
cord supplied through the safety cord holes for safety support.
●Before any installation, maintenance and cleaning work, please ensure the projector is disconnected from

4/28
power mains.
●After running for 30minutes, the temperature of the housing of the projector is 45℃.After stable operation ,
its temperature is90℃.
●While the lamp is stricken for the first time, there will be smoke and strange smell. It’s normal and does not
mean the projector has some defects.
●Do not mount the projector directly on inflammable surface..
●Do not project the beam straightly on combustible items and the minimum distance between the
projector and illuminated items is 18m.
●A projector should be installed with good ventilation and the minimum distance between the projector
and walls is 50cm. At the same time, please ensure the fans and air inlets and outlets are workable.
2. INSTRUCTIONS
●CLEANING AND MAINTENANCE
If a projector can’t start. Please check if the fuse is blown up. If it does, replace it with a new fuse with same ratings. And the
projector has over-temperature protective device. If the temperature is too high, the protective device will be triggered to shut the
projector off. When it happens, please check if the fans run normally or fan shield is blocked by dust. After the issue is solved,
restart the projector.
The accumulation of oil, smoke and dust on the lens will compromise the light output. Cleaning a projector is very necessary to
ensure a reliable use of it. Cooling fans need to be cleaned every 15days. Internal lens, reflector and hot mirror need to be cleaned
periodically to optimize light output.
Cleaning frequency is to be decided by operations and its environment. Use soft cloth and normal detergent for glass for cleaning
work. It’s advised external optical system be cleaned every 20days and internal optical systems every 30/60days. Keep lens clean
and do not touch optical parts with bare hands.
●Before any maintenance and cleaning, please ensure the project is off the power.
●Only qualified person is allowed to do maintenance.
●During maintenance and before maintenance, the projector must be off power.
●To avoid internal damage, sun light or other light mustn’t penetrate into the projector via front lens
whether it runs or not.
●Do not use alcohol or other organic solvent to clean the housing to avoid damage.
●Do not use any solvent with chemical elements to clean color filters or hot mirror.
●LUBRICATION
To ensure smooth movement of gobos and zoom and focus lens, it’s advised rotators’ bearings and 4 slide rails for zoom and
focus lens be lubricated every 2 months. High quality and high temperature lubricant/grease is advised.
●TROUBLESHOOTING
PROBLEM ACTION
The projector doesn’t switch on  Check the fuse on the power socket.
 Check the lamp.
The lamp is on but the projector doesn’t respond
to the controller
 Make sure that the fixture’s start address is right
 Replace or repair the XLR signal cable.
The projector functions intermittently  Make sure the fan is working well or fans and their shields are not blocked
Beam appears dim, Low in brightness  Make sure the lamp is within its lifespan.
 Remove dust or grease from the lenses.
The project image appears to have a halo  Carefully clean the lamp, optical lenses and other components.
Heavily Defective Beam  Check if lens are in good condition(not cracked).
 Clean dust or grease on the lens.

5/28

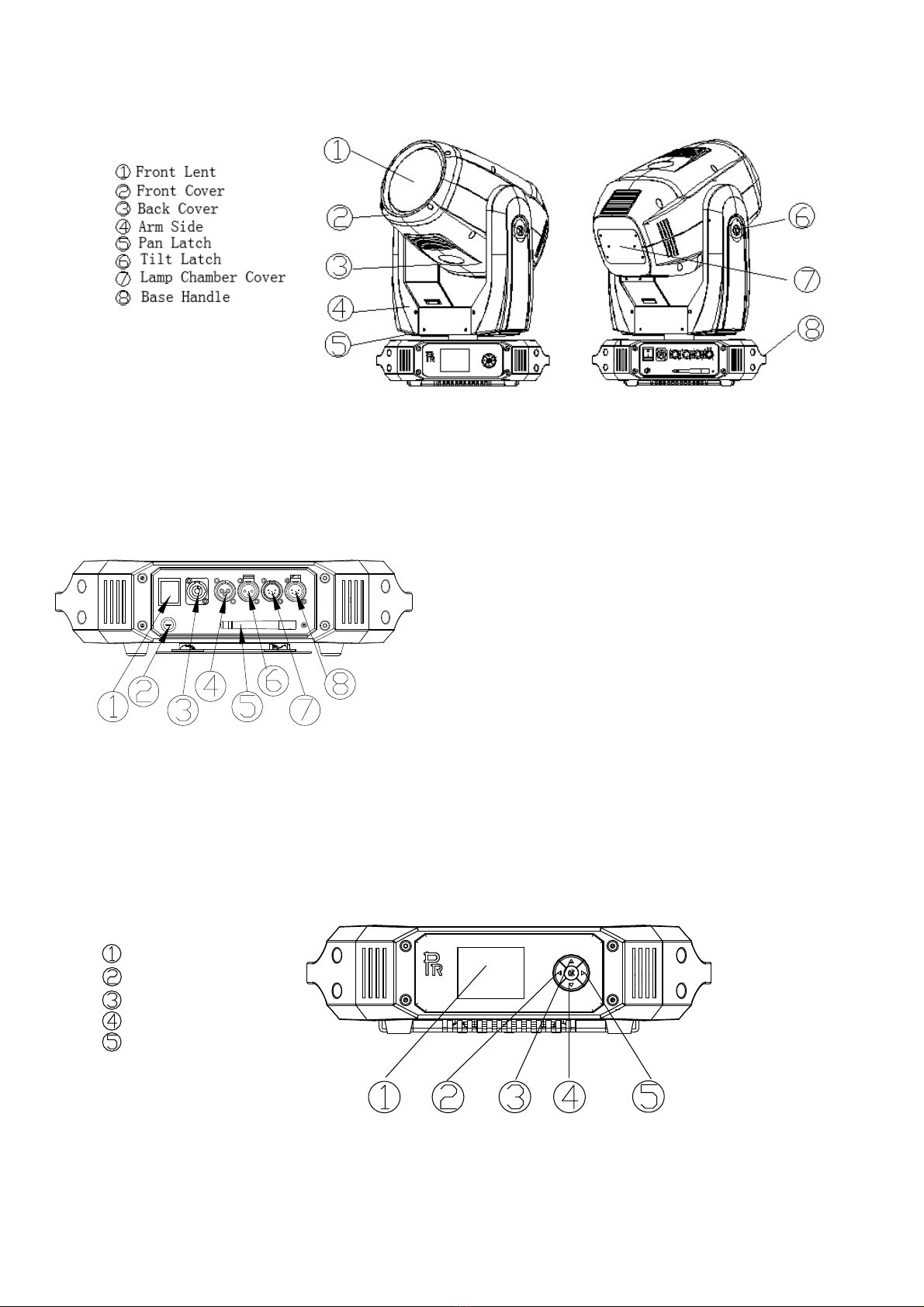

3. APPEARANCE
While transportation, the head should be locked-Tilt Latch(6) and Pan Latch(5) should be at locking positions.
Before the use of the projector, unlock both.
Rear Panel of the Base
1. Power Switch
2. Fuse Holder
3. Power Socket
4. 3-Pin XLR Socket(Male)
5. Wireless Antenna
6. 3-Pin XLR Socket(Female)
7. 5-Pin XLR Socket(Male)
8. 5-Pin XLR Socket(Female)
Front Panel of the Base
Touch Screen
Escape/Left Key
Up key
Down Key
Right Key

6/28
4. INSTALLATION

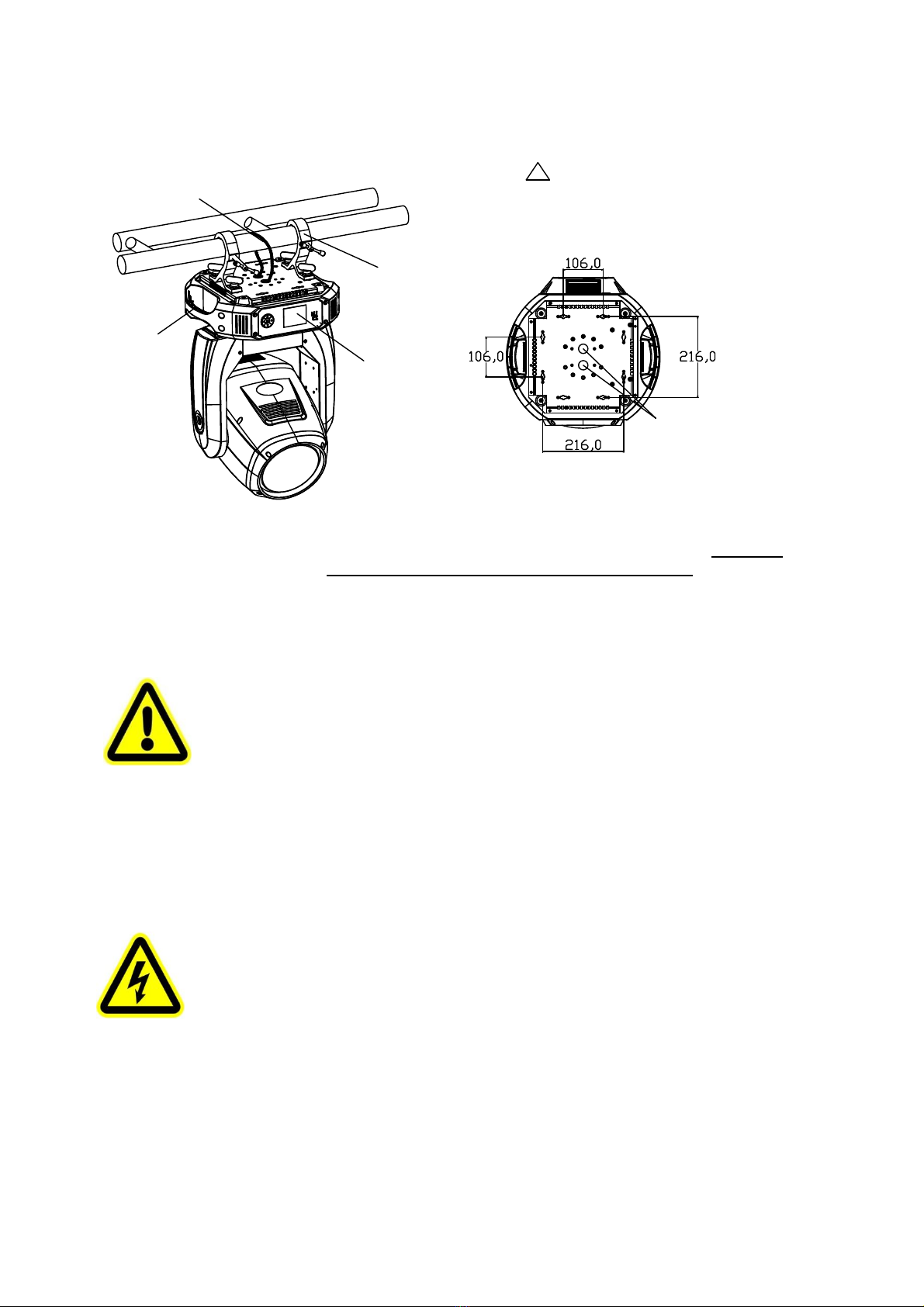

● RIGGING
Before moving a projector, Please lock Pan and Tilt. Before its operation, please unlock them. It’s forbidden to run a
projector with power while it is locked.
Take 2 clamps and the safety cord out from the package and mount 2 clamps on the underside of fixture with 2 retainers attached
to each clamp. Hang the fixture on the structure and fasten the screws attached to each clamp. (See the WARNING on the
underside of the base as shown above) To pass the SAFETY CORD through the HOLES for safety! Always ensure that the
projector is firmly anchored to avoid vibration and slipping whilst functioning. Always ensure that the structure that you are going
to mount the projector to is secure and strong enough to support the weight of a Phantom.
WARNING:
●The projector MUST be lifted or carried by the HANDLES instead of clamps.
●.For safety the safety cord should afford 10 times the Projector’s weight.
● POWER CONNECTION
Connect the power cord as follows:
L (live) =brown
E (earth) =yellow/green
N (neutral) =blue
Before power connection, please ensure the power supplied must match what the nameplate says. It is recommended that each
projector be connected with power separately so that they may be individually switched on and off.
●The earth wire(yellow/green) must be connected to the ground. And electrical connection must be in
accordance with the standards concerned.
●If any questions about the electrical installation, do not continue but consult a qualified electrician.
safety cord holes
Warning
Please run the safety
cord through the two
holes for safety
!
Handle
Safety Cord
Clamp
Control Menu

7/28

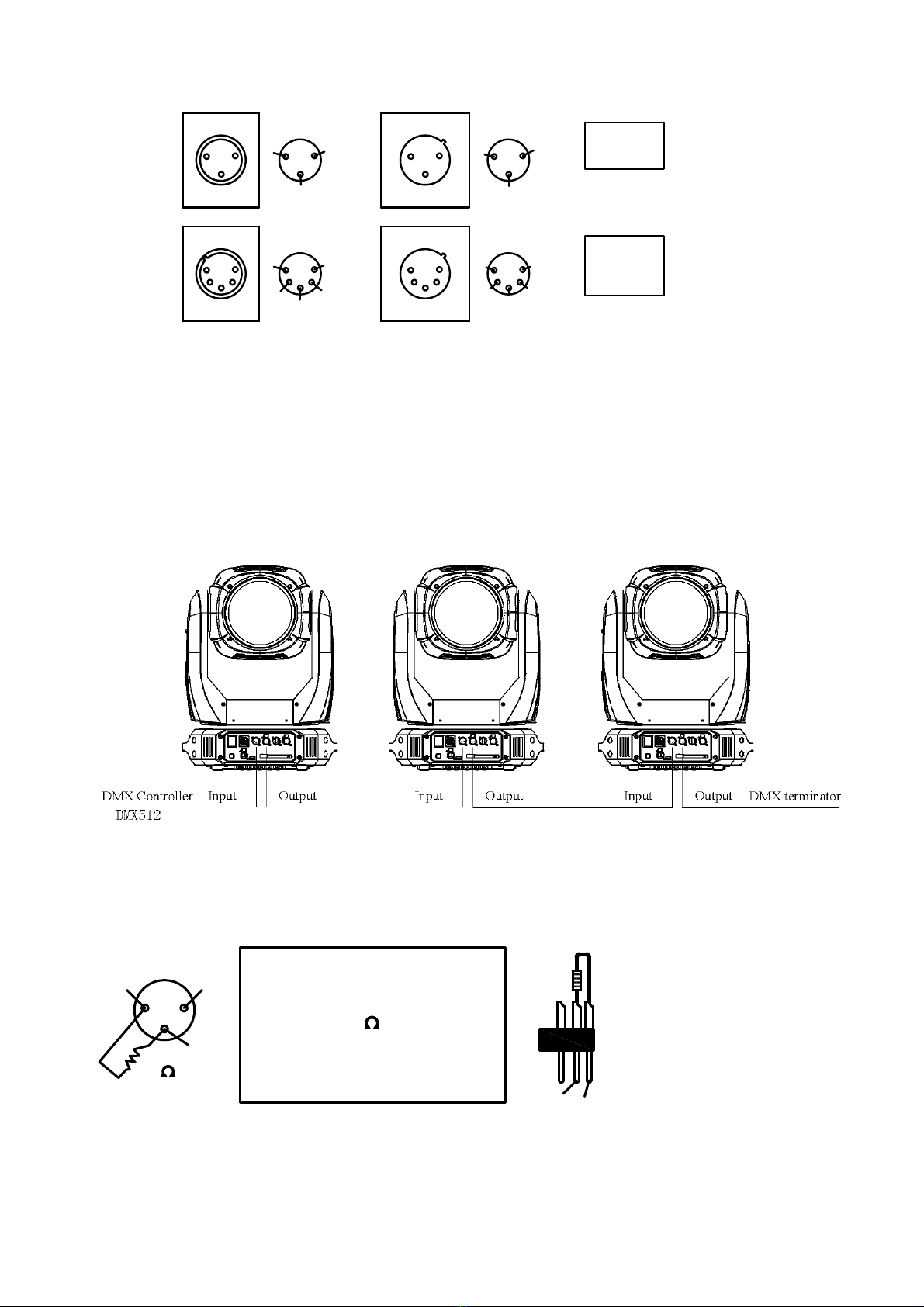

●DMX CONTROL CONNECTION:
Connection between controller and projector and between one projector and another must be made with a twin-screened cable, with
each wire having at least a 0.5mm in diameter. Connection to and from the projector is via cannon 5 pin (which are included with the
projector) or 5 pin XLR plugs and sockets. The XLR's are connected as shown in the figure above.
Note: care should be taken to ensure that none of the pins touch the metallic body of the plug or each other. XLR plugs and sockets
mustn’t be connected in any way other than mentioned in the above figure. The projector accepts digital control signals in protocol
DMX512 (1990).
Connect the controller’s DMX output to the first fixture’s DMX input, and connect the first fixture’s DMX output to the second
fixture’s DMX input and connect the rest fixtures in the same way. Eventually connect the last fixture’s DMX output to a DMX
terminator as shown in the figure below.
●DMX TERMINATOR
In the Controller mode, at the last fixture in the chain, the DMX output has to be connected with a DMX terminator. This prevents
electrical noise from disturbing and corrupting the DMX control signals.
The DMX terminator is simply an XLR connector with a 120 (ohm) resistor connected across pins 2 and 3, which is then plugged
into the output socket on the last projector in the chain. The connections are illustrated below.

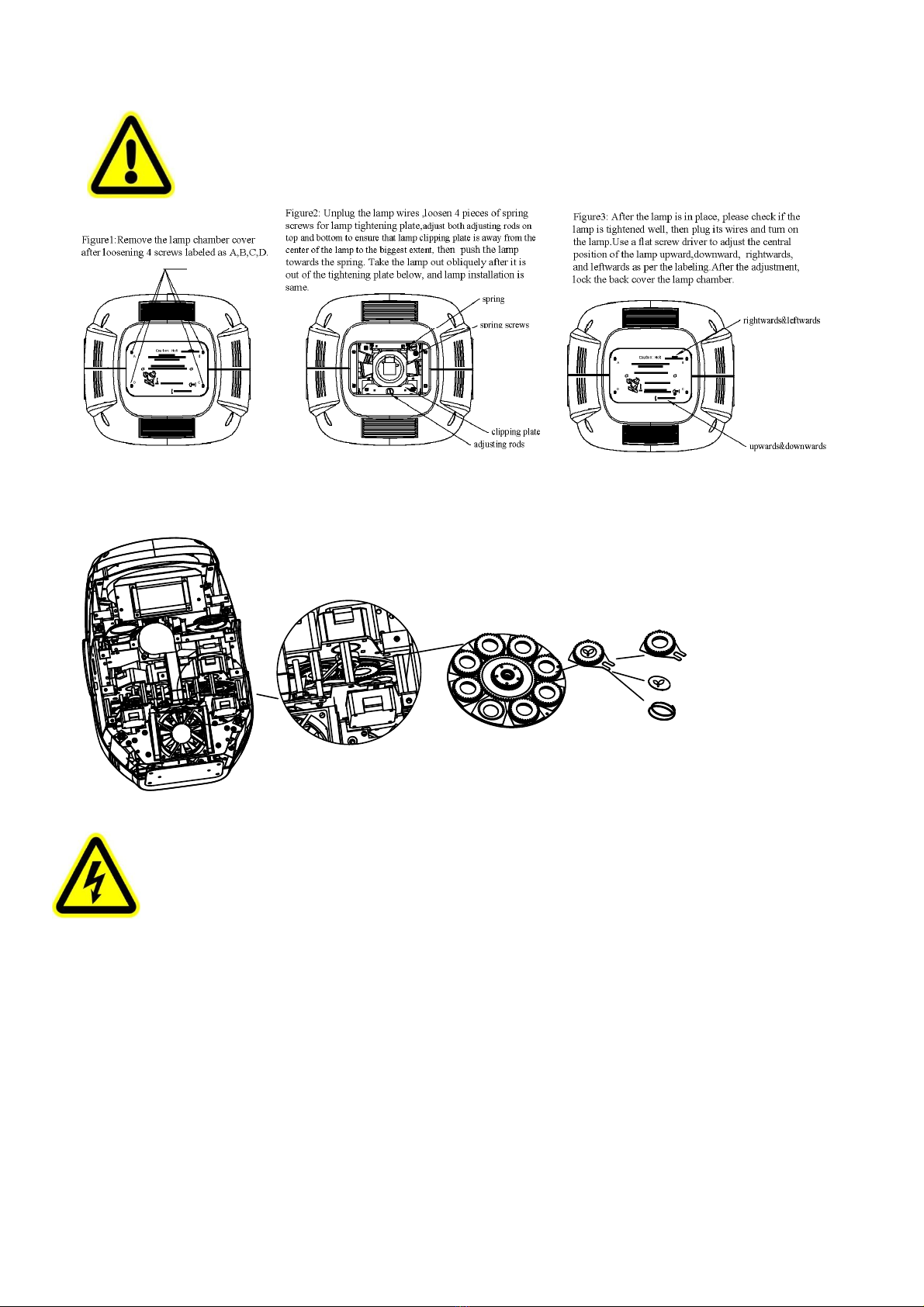

● ALIGNMENT/INSTALLATION/REPLACEMENT OF A LAMP
Lock the yoke before fitting/replacing the lamp. Just as Shown by Figure 1, after opening the cover at the rear of the projector by
loosening 4 fastfit screws, you can open the head.
To adjust the lamp as per Figure 2.
Take out the lamp as per the figure 3.
4 N/C
N/C5
PIN FUNCTION
GND1
3 DATA+
DATA-2
DMX 512
DMX 512
2 DATA-
DATA+3
1 GND
FUNCTION
PIN
五芯
三芯
DMX OUT DMX IN
DMX IN
DMX OUT
1
2
3
1
2
3
4
5
12
3
5
4
3
2
1
21
3
120
DMX TERMINATOR
CONNECTION
Connect a 120 (OHM) resistor
across pins 2 and 3 in an XLR plug
and insert into the DMX out socket
on the last unit in the chain.
PIN 3
PIN 2
3 pins
5 pins

8/28
Before removing the lamp, unplug its power wires. After the lamp in, plug its power wires.
●Don’t touch the internal surface of the reflector and the burner of the lamp with bare hands so as not to impair
the beam output. While lamp’s installation, do not damage the metal wire around the burner.
●Please read "Instructions " enclosed with the lamp.
●Do not operate the projector while adjusting the lamp.
●GOBO REPLACEMENT
DANGER!
Before replacement of gobos, the projector must be off the power completely.
Rotating Gobo Wheel
Rotating gobo replacement: Open the head cover, and push the rotator of
which its gobo needs to be replaced, out of the rotating gobo wheel.
After the rotator is sliding out of the wheel, pull it gently. After
the gobo replaced, insert the rotator into the wheel and ensure it is
secured and not loose.
Gobo Pressure Spring
Rotator
Gobo

9/28
5. SETUP AND CONFIGURATION
●FRONT PANEL OPERATION
The projector configuration can be set conveniently via push buttons and color touch screen.
To browse through or change the projector ’s settings, touch the white area of the touch screen or press OK button for more than
3s(Only powered by the battery, pressing the OK button) to unlock the screen , then press ► key to enter the projector ’s function
menus. Each main menu has its sub-menus. And each menu stands for special function. For the details, please see the following 6th
point ”Operation Menu”.:
1. At the page to set the fixture’s functions, press ◄,►,▲,▼ keys or their respective icons to select the functions desired.
2. While at 2nd,3rd and 4th level of menus, the◄ key is for ESCAPE, but ► key won’t work, and OK key is used for ENTER.
Press OK key to save the changes or enter into the sub menus. Press ▲or ▼ keys to change the numbers(minus or plus).
Or touch the option needed for change.
Shortcut keys: After the Function Menu is entered into, there are all options for the functions on the top of the screen. On the
right there are 4 shortcut keys like ←,→ Lamp Control and English/Chinese.
● DMX START ADDRESS
Each projector must be given a DMX start address so that the correct projector responds to the correct control signals. This DMX start
address is the channel number from which the projector starts to “listen” to the digital control information being sent out from the
controller. The projector has 3DMX modes. There are standard mode ,short mode and extended mode. For example standard mode
has 30 channels, so set the No. 1 projector’s address 001, No. 2 projector’s address 031, No. 3 projector’s address 061,No. 4
projector’s address 091, and so on.
Switch on the Projector . Press OK key more than 3 seconds to unlock panel, then press ► key to enter into the fixture’s operation
menus.
Select DMX Address icon and press OK key or touch the icon directly on the display and select DMX address at the 2nd level menu
for the address setting.
Press▲ or ▼ keys or touch<、>displayed for the DMX address desired.
Press OK key to confirm.
Press the◄ key to go back to the upper level menu.
.
●DMX WIRELESS CONTROL
The projector has wireless control function with wireless receiver module and antenna for remote control.
The setup of it is below:
1. Press OK for more than 3s to unlock the control panel, then press ► key to enter into the operation menu and select
“Config Settings”.
2. Select “Wireless First” or “Wireless Only” from the menu of “Signal Select”.
Only after the projector is linked with a transmitter, can it receive wireless signal sent by the transmitter. If unlinking it,
Press “Enter” for the menu of Un-link Wireless under the upper level menu of Config Settigns , then the fixture is unlinked

10/28
with the wireless transmitter.
●STAND-ALONE MODE
Operate the projector without connecting with a controller, enable the master mode through the operation panel, the
projector will run in Stand-Alone mode automatically.
DMX address can be set at any number within 512.
●MASTER/SLAVE MODE
Many projectors can run synchronously in the Master/Slave mode by linking them with each other. First,
connect the first fixture’s DMX output to the second fixture’s DMX input using XLR-XLR control cable and then connect the second
fixture’s DMX output to the third fixture’s DMX input, and so on until all projector are connected in this way. Eventually connect the
last fixture’s DMX output to a DMX terminator. Set 1st projector as the master and others are Slaves.
Start Addresses of all Slaves are 001; Operation mode of the Master can be set any mode for a Master’ and Slaves’ operation mode can
be set accordingly.
After Powered on, the group will run in Master/Slave Mode.
6. OPERATION MENU
1st LEVEL 2nd LEVEL 3rd LEVEL 4th LEVEL 5th LEVEL
Address
DMX Address 1-512
Reset
Total Reset Really Reset?
Confirm or Cancel
Pan&Tilt Reset Really Reset?
Confirm or Cancel
Colour System Reset Really Reset?
Confirm or Cancel
Gobo Reset Really Reset?
Confirm or Cancel
Dimmer/Shutter reset Really Reset?
Confirm or Cancel
Zo. Fo. Fr. Pr. Reset Really Reset?
Confirm or Cancel
DMX Channel Mode
Short Mode

11/28
Config Settings
Standard Mode
Extended Mode
View Selected Mode
Ch
.
01 Strobe
Ch.02 Dimmer
Ch.03 CYM Macro
Ch.04 Cyan
Ch.05 Yellow
Ch.06 Magenta
Ch.07 CTO
Ch.08 Color Wheel
Ch.09 Fixed Gobo Wheel
Ch.10 Rot. Gobo Wheel1
Ch.11 Rot. Gobo1 Rotation
Ch.12 Effect Wheel
Ch.13 Effect Wheel Rotation
Ch.14 Prism1
Ch.15 Prism1 Rotation
Ch.16 Prism2
Ch.17 Prism2 Rotation
Ch.18 Focus
Ch.19 Zoom
Ch.20 Pan
Ch.21 Tilt
Ch.22 Power/Special Fun.
Ch.23 Lamp Fan
Ch.24 Lamp Fan2
Ch.25 Ceramic Fan
Lamp Control
Lamp Control OFF/ ON
On By Power On OFF/ ON
Control By DMX OFF/ ON
Lamp Half Power OFF/ ON
Signal Select
XLR Only
XLR First
Wireless Only
Wireless First
Wireless In/XLR Out
Loss of DMX
Normal time out
Hold Last Value
Display Config
Display Mode
Off After Delay
On Always
Display Invert
Invert OFF
Invert ON

12/28
Invert Auto
Language Setting English\Chinese
Touch Calibration
Temperature Unit
Celsius Degree
Fahrenheit Degree
Un-Link Wireless Really Un-Link?
Confirm or Cancel
Defaults Restore Defaults?
Confirm or Cancel
Option Settings
Pan/Tilt Settings
Pan DMX Invert OFF/ ON
Tilt DMX Invert OFF/ ON
Pan Tilt Swap OFF/ ON
XY Feedback OFF/ ON
Pan/Tilt mode Speed/Time
Note: "Speed Mode" means
Pan and Tilt will move from
Point A to Point B at their
respective maximum
speeds."Time Mode" means
both Pan and Tilt will arrive at
designated point at the same
time. It's advised Time Mode be
used if the projector runs circles
or in oblique lines.
Invert Settings
Dimmer Invert OFF/ ON
Zoom Invert OFF/ ON
CYM Invert OFF/ ON
Defaults Restore Defaults?
Confirm or Cancel
Information
View DMX Values
Channel Value
Strobe XXX
Dimmer XXX
CYM Macro XXX
Cyan XXX
Yellow XXX
Magenta XXX
CTO XXX
Color Wheel XXX
Fixed Gobo Wheel XXX
Rot. Gobo Wheel1 XXX
Rot. Gobo1 Rotation XXX
Effect Wheel XXX
Effect Wheel Rotation XXX
Prism1 XXX
Prism1 Rotation XXX
Prism2 XXX
Prism2 Rotation XXX

13/28
Focus XXX
Zoom XXX
Pan XXX
Tilt XXX
Power/Special Fun. XXX
Lamp Fan XXX
Lamp Fan2 XXX
Ceramic Fan XXX
Lamp Hours XXX H
Reset Lamp Hours
Total Hours ××××H
Temperature
Display Board=×××C
Pan & Tilt board=×××C
Driver Board1=×××C
Driver Board 2=×××C
Driver Board 3=×××C
Head Sensor=×××C
Software Version
PCB Sys Boot
Display Board xxx xxx
Pan & Tilt board xxx xxx
Driver Board1 xxx xxx
Driver Board 2 xxx xxx
Driver Board 3 xxx xxx
Electronic SN XXXXXX
RDM Device Label XR 440 B BWS
ANSI E1.20 RDM
Fan Status
Fan Speed Status
Lamp Fan xxx on/off
Lamp Fan2 xxx on/off
Ceramic Fan xxx on/off
CYM Fan xxx on/off
Head Fan xxx on/off
Head Fan2 xxx on/off
Basic Fan xxx on/off
Acceleration Sensor
X Axis: XXX
Y Axis: XXX
Z Axis: XXX
Service
Manual Effect Control
Strobe
XXX
Dimmer XXX
Dimmer Fine XXX
CYM Macro XXX
Cyan XXX
Cyan Fine XXX
Yellow XXX
Yellow Fine XXX
Magenta XXX
Magenta Fine XXX
CTO XXX
CTO Fine XXX
Color Wheel XXX
Color Wheel
Fine XXX
Fixed Gobo Wheel XXX
Rot. Gobo Wheel 1 XXX
Rot. Gobo1Rotation XXX
Rot. Gobo1Rotation F. XXX
Effect Wheel XXX
Effect Wheel Rotation XXX
Prism 1 XXX
Prism 1 Rotation XXX
Prism 2XXX
Prism 2 Rotation
XXX

14/28
Focus XXX
Focus Fine XXX
Zoom XXX
Zoom Fine XXX
Pan XXX
Pan Fine XXX
Tile XXX
Tilt Fine XXX
Pan & Tilt Speed &Time
XXX
Power/ Special Fun.
XXX
Lamp Fan
XXX
Lamp Fan2
XXX
Ceramic Fan
XXX
Position Calibrations XXX
…
Operation
Mode
DMX Mode Change Operation Mode?
Confirm or Cancel
Master Mode
Preset Memory Change Operation Mode?
Confirm or Cancel
User Memory 1 Change Operation Mode?
Confirm or Cancel
User Memory 2 Change Operation Mode?
Confirm or Cancel
Stand-Alone Mode
Preset Memory Change Operation Mode?
Confirm or Cancel
User Memory 1 Change Operation Mode?
Confirm or Cancel
User Memory 2 Change Operation Mode?
Confirm or Cancel
Static Scene Change Operation Mode?
Confirm or Cancel
User
Memories
Edit User Memory
Edit User Memory 1
/
Edit User Memory 2
（1~200Scenes）
Scene XX
（1~200 Scenes）
Strobe XXX
Dimmer XXX
Dimmer Fine XXX
CYM Macro XXX
Cyan XXX
Cyan Fine XXX
Yellow XXX
Yellow Fine XXX
Magenta XXX
Magenta Fine XXX
CTO XXX
CTO Fine XXX
Color Wheel XXX
Color Wheel Fine XXX
Fixed Gobo Wheel
XXX
Rot. Gobo Wheel 1 XXX
Rot. Gobo1Rotation XXX
Rot. Gobo1Rotation F. XXX
Effect Wheel XXX

15/28
Effect Wheel Rotation XXX
Prism 1 XXX
Prism 1 Rotation XXX
Prism 2XXX
Prism 2 Rotation XXX
Focus XXX
Focus
Fine XXX
Zoom XXX
Zoom Fine XXX
Pan XXX
Pan Fine XXX
Tile XXX
Tilt Fine XXX
Pan & Tilt Speed &Time XXX
Power/ Special Fun.
XXX
Delay Time XXX
Delay Unit XXX
Link to Step XXX
Edit Static Scene
Strobe XXX
Dimmer XXX
Dimmer Fine XXX
CYM Macro XXX
Cyan XXX
Cyan Fine XXX
Yellow XXX
Yellow Fine XXX
Magenta XXX
Magenta Fine XXX
CTO XXX
CTO Fine
XXX
Color Wheel XXX
Color Wheel Fine XXX
Fixed Gobo Wheel XXX
Rot. Gobo Wheel 1 XXX
Rot. Gobo1Rotation XXX
Rot. Gobo1Rotation F. XXX
Effect Wheel XXX
Effect Wheel Rotation XXX
Prism 1 XXX
Prism 1 Rotation
XXX
Prism 2XXX
Prism 2 Rotation XXX
Focus XXX
Focus Fine XXX
Zoom XXX
Zoom Fine XXX
Pan XXX
Pan Fine XXX
Tile XXX
Tilt Fine XXX
Pan & Tilt Speed &Time
XXX
Power/ Special Fun.
XXX
Delay Time
XXX
Delay Unit XXX
Link to Step XXX
Init User Memory
Reset User Memory 1 Reset User Memory?
Confirm or Cancel
Reset User Memory 2 Reset User Memory?
Confirm or Cancel
Reset Static Scene Reset Static Scene?
Confirm or Cancel

16/28
7. DMX PROTOCOL
Short
mode
Standard
mode
Extended
Mode FUNCTION DMX DESCRIPTION
1 1 1 Strobe
000-010 Close
011-025 Open
026-225 Strobe speed from slow to fast
226-246 Random strobe from slow to fast
247-255 Open
2
2
2
Dimmer 000-005 Close
006-255 Linear dimming（0-100%）
3
3
Dimmer Fine 000-255 Dimmer in 16 bit
3 4 4 CYM Macro
000-016 White
017-035 Yellow+ Magenta=Red
036-054 Yellow
055-073 Yellow +Cyan=Green
074-092 Cyan
093-111 Cyan + Magenta= Violet
112-128 Magenta
129-255 CYM color mixing from slow to fast
4 5 5 Cyan 000-255 Cyan (linear 0~100%)
6 Cyan Fine 000-255 Cyan in 16 Bit
5 6 7 Yellow 000-255 Yellow (linear 0~100%)
8 Yellow Fine 000-255 Yellow in 16 Bit
6 7 9 Magenta 000-255 Magenta (linear 0~100%)
10 Magenta Fine 000-255 Magenta in 16 Bit
7 8 11 CTO 000-005 White
006-255 CTO (linear 0~100%)
12 CTO Fine 000-255 CTO in 16 Bit
8 9 13 Color Wheel
0-63 Indexing(0-360degrees)
64-68 Color1(Red)
69-73 Color2(Light Green)
74-78 Color3(Blue)
79-83 Color4(Cyan)
84-88 Color5(Yellow)
89-93 Color6(Magetna)
94-98 Color7（Orange）
99-103 Color8(Green)
104-108 Color9(Dark Blue)
109-113 Color10(UV)
114-118 Color11(Light Yellow)
119-123 Color12(Dark Yellow)
124-127 White
128-191 Rotation ,Clockwise from slow to fast
192-255 Rotation ,Anti-Clockwise from fast to slow
10 14 Color wheel Fine 0-255 Color Wheel in 16 Bit

17/28
9 11 15
Fixed Gobo
Wheel
0-19 White
20-25 Gobo1
26-31 Gobo2
32-37 Gobo3
38-43 Gobo4
44-49 Gobo5
50-55 Gobo6
56-61 Gobo7
62-67 Gobo8
68-73 Gobo9
74-79 Gobo10
80-85 Gobo11
86-91 Gobo12
92-97 Gobo13
98-103 Gobo14
104-109 Gobo15
110-115 Gobo16
116-121 Gobo17
122-127 Gobo18
128-155 Clockwise rotation from slow to fast
156-183 Anti Clockwise rotation from slow to fast
184-187 Shake effect 1 from slow to fast
188-191 Shake effect 2 from slow to fast
192-195 Shake effect 3 from slow to fast
196-199 Shake effect 4 from slow to fast
200-203 Shake effect 5 from slow to fast
204-207 Shake effect 6 from slow to fast
208-211 Shake effect 7 from slow to fast
212-215 Shake effect 8 from slow to fast
216-219 Shake effect 9 from slow to fast
220-223 Shake effect 10 from slow to fast
224-227 Shake effect 11 from slow to fast
228-231 Shake effect 12 from slow to fast
232-235 Shake effect 13 from slow to fast
236-239 Shake effect 14 from slow to fast
240-243 Shake effect 15 from slow to fast
244-247 Shake effect 16 from slow to fast
248-251 Shake effect 17 from slow to fast
252-255 Shake effect 18 from slow to fast
10 12 16 Rotating Gobo
Wheel l
0-15 White
16-31 Gobo 1
32-47 Gobo 2
48-63 Gobo 3
64-79 Gobo 4

18/28
80-95 Gobo 5
96-111 Gobo 6
112-127 Gobo 7
128-156 Rotation （clockwise From slow to Fast）
157-185 Reverse Rotation（anti-clockwise From slow
to Fast
）
186-195 Shake of Gobo 1 from slow to fast
196-215 Shake of Gobo 2 from slow to fast
216-225 Shake of Gobo 3 from slow to fast
226-235 Shake of Gobo 4 from slow to fast
236-245 Shake of Gobo 5 from slow to fast
236-245 Shake of Gobo 6 from slow to fast
246-255 Shake of Gobo 7 from slow to fast
11 13 17 Gobo Rotation
000-128 Gobo Indexing(0~360degrees)
129-188 Rotation （Clockwise From slow to Fast）
189-195 Stop
196-255 Rotation （Anti-Clockwise From slow to Fast）
14 18
Gobo Rotation
Fine 000-255 Gobo Rotation in 16 Bit
12 15 19 Graphic Effect
Wheel
000-020 NO
021-255 Effect Wheel In
13
16 20
Graphic Effect
Wheel Rotation
0-127 Rotation from slow to fast
128-255 Reverse Rotation from slow to fast
14 17 21 Prism Group1
000-016 Open
017-127 Prism1
128-255 Prism2
15 18 22 Prism Group1
Rotation
000-128 Prism Indexing
129-191 Rotation(Clockwise from slow to fast)
192 Stop
193-255 Rotation(Anti- Clockwise from slow to fast)
16 19 23 Prism Group2
000-016 White
017-127 Prism3
128-255 Frost In
17 20 24 Prism Group2
Rotation
000-128 Prism Indexing
129-191 Rotation(Clockwise from slow to fast)
192 Stop
193-255 Rotation(Anti- Clockwise from slow to fast)
18 21 25 Focus 000-255 Linear Focus
22 26 Focus Fine 000-255 Focus in 16 bit precision
19 23 27 Zoom 000-255 Linear Zoom
24 28 Zoom Fine 000-255 Zoom in 16 bit precision
20 25 29 Pan 000-255 Pan(0°~540°)
26 30 Pan Fine 000-255 Pan in 16 bit precision
21 27 31 Tilt 000-255 Tilt(0°~270°)

19/28
28 32 Tilt Fine 000-255 Tilt in 16 bit precision
29 33 Pan & Tilt Speeds
000-255 Pan & Tilt Speed from Fast to Slow
22 30 34 Control
000-019 Reserved
The following functions will be activated after the DMX value
has been held for more than 5s. And the following settings are
void if the lamp is off.
020-024 Display On
025-029 Display Off
030-034 Reserved
035-039 Lamp Half Power
040-044 Lamp Full Power
045-089 Reserved
090-094 Pan & Tilt Speed Mode
095-099 Pan & Tilt Time Mode
100-129 Reserved
130-139 Lamp On
140-149 Pan & Tilt Reset
150-159 Color System Reset
160-169 Gobo Wheel Reset
170-179 Dimmer/Shutter Reset
180-189 Zoom/Frost/Focus/Prism Reset
190-199 Reserved
200-209 Total Reset
210-229 Reserved
230-239 Lamp Off
240-255 Reserved
1. The projector can’t be turned on within 1 minute after the lamp-off.
2. Fan error can cause lamp-off.
3. Note: "Speed Mode" means Pan and Tilt will move from Point A to Point B at their respective maximum speeds."Time
Mode" means both Pan and Tilt will arrive at designated point at the same time. It's advised Time Mode be used if the
projector runs circles or in oblique lines.
8. LOGOS OF THE TOUCH SCREEN
Lamp Control
Option Settings
Chinese/English
Information
Error Messages
Service
Address
Operation Mode
Reset
User Memories
Config Settings

20/28
9.Error messages
The system can detect some errors during the reset, if displayed, touch the logo to view the error.
The error messages are as follows:
Name Type Correction
Pan Timeout/magnet Sensor/Encoder Check if wiring, positioning parts and motors are normal
Tilt Timeout/magnet Sensor/Encoder Check if wiring, positioning parts and motors are normal
Cyan Timeout Check if wiring, positioning parts and motors are normal
Yellow Timeout Check if wiring, positioning parts and motors are normal
Magenta Timeout Check if wiring, positioning parts and motors are normal
CT Timeout Check if wiring, positioning parts and motors are normal
Color Wheel Timeout Check if wiring, positioning parts and motors are normal
Fixed gobo wheel Timeout Check if wiring, positioning parts and motors are normal
Rot. Gobo Wheel 1 Timeout Check if wiring, positioning parts and motors are normal
Rot. Gobo1Rotation Timeout Check if wiring, positioning parts and motors are normal
Dimmer Timeout Check if wiring, positioning parts and motors are normal
Prism 1 Timeout Check if wiring, positioning parts and motors are normal
Prism 1 Rotation Timeout Check if wiring, positioning parts and motors are normal
Prism 2 Timeout Check if wiring, positioning parts and motors are normal
Prism 2 Rotation Timeout Check if wiring, positioning parts and motors are normal
Focus Timeout Check if wiring, positioning parts and motors are normal
Zoom Timeout Check if wiring, positioning parts and motors are normal
Effect Wheel Timeout Check if wiring, positioning parts and motors are normal
Effect Wheel
Rotation Timeout Check if wiring, positioning parts and motors are normal
Ceramic Fan Error Check if fan and its wiring are normal
CMY Fan Error Check if fan and its wiring are normal
Head Fan Error Check if fan and its wiring are normal
Head Fan 2 Error Check if fan and its wiring are normal
Basic Fan Error Check if fan and its wiring are normal
Pan and Tilt Board Error Check signal wire
Driver Board 1 Error Check signal wire
Driver Board2 Error Check signal wire
Driver Board 3 Error Check signal wire
Acceleration Sensor Error Check signal wire
Lamp on Timeout Check if he lamp is damaged
Lamp Life Timeout Warning
Lamp Off[Fan
Error] Error Check if all fans are normal
Lapsed Time Timeout
Time IC Error
Lapsed time X days
Use hours Setting successfully
