Pream-I-Air EH1230 User manual

User Guide EH1230
EH1230
8500BTU/h Class A
Portable Air Conditioner
• 2 cooling and 2 fan speed settings
• 24-hour timer
• Built-in Dehumidification function
• Adjustable louvre
• Easy to install - no external unit required.
Page 1

User Guide EH1230
IMPORTANT
Installer and Users please note:
These instructions should be read carefully and left with the
user of the product for future reference.
INSTALLATION.
Install the EH1230 on floor
approximately 36cm (14")
from a wall. Ensure that the
air inlets (on the sides) and
the air outlets (on the top)
cannot be covered.
Expand a small section of the exhaust tube, and screw it
clockwise into the it the
end of the exhaust port
of the unit. Place the
other end of the
exhaust tube into the
adaptor and through the
nearest open window.
Keep the length of the
exhaust tube to a
minimum. Use the
Page 2

User Guide EH1230
foam strip provided to block the rest of the window opening.
This is essential for efficient cooling.
The correct installation of the exhaust tube is shown below:
If the exhaust tube needs bending, do not bend too sharply,
or more than is required.
Do not vent the exhuast tube into a ceiling void. The exhaust
air may be very humid and can damage ceiling tiles.
Connect the air conditioner to the nearest 13A mains socket
using the built-in cable. Do not connect using an extension
lead, unless the extension lead is rated at least 6 Amps, and
is fully unwound.
Do not install the air conditioner in a damp environment (such
as a laundry room). The air conditioner is for indoor use only.
Do not install in direct sunlight (to avoid discolouration of the
Page 3

User Guide EH1230
case).
Do not install close to a source of heat.
The EH1230 is not suitable if the ambient temperature is
below 18°C or above 35°C.
Installing the carbon filter:
1. Remove the filter frame from the unit.
2. Remove the carbon filter from its plastic bag
3. Insert the carbon filter into the back of the unit.
4. Re-fit the filter frame.
Page 4

User Guide EH1230
OPERATION
This appliance is not intended for use by persons (including
children) with reduced physical, sensory or mental
capabilities, or lack of experience and knowledge, unless
they have been given supervision or instruction concerning
use of the appliance by a person responsible for their safety.
Children should be supervised to ensure that they do not play
with the appliance.
Switch the unit on at the mains socket, then press ON/OFF
button (6). The unit will then start. The display (11) will show
the ambient temperature in degrees Celsius.
The unit will start in the Automatic mode with the trianglew
symbol (7) illuminated.Press TEMP+ (3) or TEMP- (4) to set
the desired room temperature.
If the desired room temperature is below ambient
temperature, the unit will automatically select cooling mode
and the "snowflake" indicator (8) will be illuminated, and the
"COMP" indicator (15) will also illuminate to indicate that the
compressor is running. The fan speed will also be selected
Page 5

User Guide EH1230
automatically. The fan speed indicators (13) or (14) will
indicate whether slow of fast fan speed is in operation.
If the desired room temperature is above the ambient
temperature then no cooling will take place. The fan will run
at its slow speed. "Fan only mode" indicator (9) and "slow fan
speed" indicator (13) will be illuminated. The "compressor"
indicator will not be illuminated. This model will not act as a
heater.
Manual Override (fan only):
Using the MODE switch (1) it is possible to select "fan-only"
mode (press the MODE switch until the fan indicator (9) is
illuminated on its own.
It is then possible to select the fan speed using the SPEED
switch (5). Indicators (13) and (14) show whether slow or fast
fan speed is selected.
In this mode no cooling takes place, and the temperature
settings have no effect. The display (11) shows the ambient
temperature.
Manual Override (cooling):
Press the mode switch until the "snowflake" indicator (8) is
illuminated on its own. Use the UP (3) and DOWN (4) buttons
to select the desired temperature. If the desired temperature
is below the room temperature then the compressor will run
(indicator (15) will light) and cooling will take place.
It is then possible to select the fan speed using the SPEED
switch (5). Indicators (13) and (14) show whether slow or fast
fan speed is selected.
When the temperature reaches the desired temperature the
compressor will switch off, and the fan will continue to run at
the selected fan speed. Page 6

User Guide EH1230
In cooling mode, some water may be collected.
If this happens the water indicator
(16) will illuminated and the unit will
stop. If this happens, switch off the
power and place a tray underneath
the unit. Unscrew the drain cover
and remove the rubber plug.
Collect the water in the tray and
pour away.
Dehumidifying:
The EH1230 can be used for dehumidification provided that
the ambient temperature is
above 19°C. Keep the windows
and doors closed to increase the
efficiency of the dehumidifying
operation.
Do not use the exhaust tube.
Remove the drain cover and
rubber bung, and connect a
permanent drain tube to the
water outlet.
Repeatedly press the MODE button (1), until the "snowflake"
indicator (8) illuminates. Select the preferred fan speed using
the SPEED switch (5). Indicators (13) and (14) show whether
slow or fast fan speed is selected.
In dehumidification mode, cold air will be produced at the
front of the unit, and warm air at the back, but the overall
room temperature will be unaffected.
Page 7

User Guide EH1230
Timer
The built-in timer can be used to set the unit to run for a
certain length of time before automatically switching off.
Press the timer button (2) and set the number of hours of
operation using the + and - buttons. The maximum setting is
12 hours. When the timer is in operation, the timer indicator
(10) will be illuminated. To cancel the timer, press the timer
button (2) again until, the timer indicator (10) goes out.
The unit will then run for the set number of hours then switch
off.

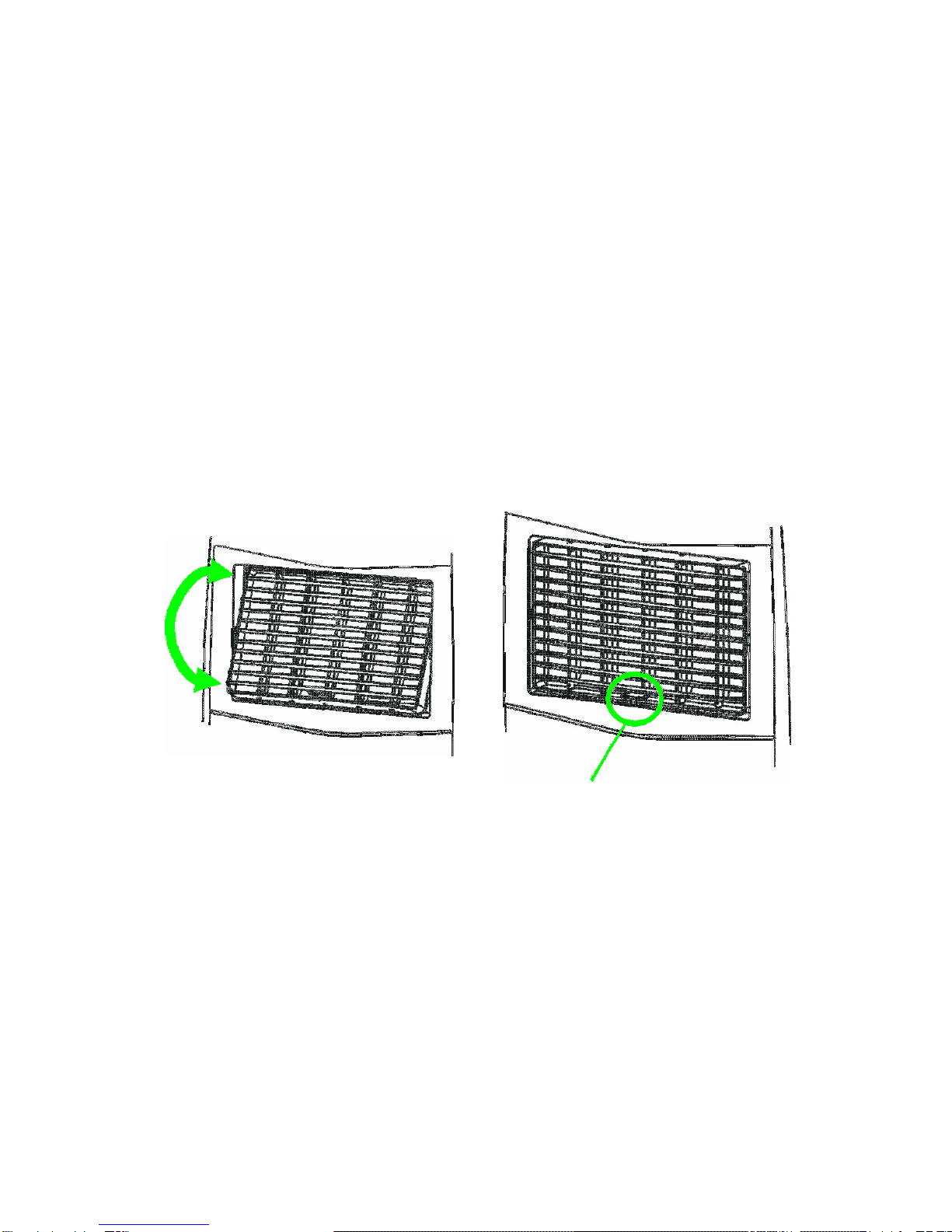

Regulating air direction.
The air vent can be tilted up and down, and moved from side
to side using the tab to control the air direction.
Using the remote control.
The remote control has six buttons. These replicate the
operations of the buttons on the main unit.
Page 8

User Guide EH1230
Maintenance
Disconnect the unit from the mains supply before carrying out
any maintenance.
Cleaning:
Clean the outer casing with a damp cloth with a little mild
detergent such as washing-up liquid. Do not use abrasives,
or solvents other than water.
Cleaning the air filter:
Remove the filters from the unit, and remove the
accumulated dust using a vacuum cleaner, then rinse in
hand-hot water and allow to dry.
Never operate the unit without its filters.
Storage
Before putting the unit into storage remove the bung from the
water drain; then operate the unit for half a day in "fan only"
mode.
Switch off the unit, and disconnect from the mains supply,
wrap the cable neatly, place the unit in a plastic bag and
store in a dry place until next required.
Page 9

User Guide EH1230
Fault Finding.
• No operation (no LEDs lit on control panel)
Press ON/OFF switch to make sure the unit is switched on.
Check mains supply.
Check fuse in mains plug.
If the "water full" indicator is flashing - empty the water.
• Poor cooling efficiency
Check that the air inlet is not obstructed
Check that the air outlet is not obstructed
Check that the air filters are not dirty
Check that the operating temperature is correctly set.
Increase the fan speed.
Is there something in the room producing a lot of heat?
Shut curtains to reduce solar gain.
• Noise and vibration.
Some noise and vibration is normal.
Check that the unit is placed on a flat, level floor
• Unit starts and stops frequently.
Make sure that the air exhaust tube is installed correctly, and
the bends are not too tight.
Page 10

User Guide EH1230
Technical specification
Cooling Capacity 8500BTU/h
2.7kW
Power Supply 230V ~ 50Hz
Power Consumption 920W
Operating Current: 4.3A
Humidity removal capacity 24 litres/day
Airflow: 300m3/h
Refrigerant R410a
Refrigerant load 290g
Fan speeds 2
Timer 1 to 24 hours
Working temperature: 18°C to 35°C
Exhaust pipe diameter:130mm
Exhaust pipe length: 1.8m
Net weight: 23kg
Gross weight: 32kg
Dimensions: 305 × 380 × 750mm
Disposal and Recycling
You must not dispose of this appliance with domestic
hosehold waste.
Most local authorities have specific collection system for
appliances and disposal is free of charge to the end-user.
When replacing an existing appliance with a similar new
appliance your retailer may take the old appliance for
disposal.
Page 11

User Guide EH1230
Service Warranty
Prem-i-Air guarantees the product free from defects in
materials and workmanship for a period of one year.
Should this unit be operated under conditions other than
those recommended, at voltages other than the voltage
indicated on the unit, or any attempts made to service or
modify the unit, then the warranty will be rendered void.
The product you buy may sometimes differ slightly from
illustrations. This warranty is in addition to, and does not
affect, your statutory rights.
If you have any problems with this product, please call our
Help Desk on [phone].
