PREMIER MAN FF243 User manual

Assembly Instructions - Please keep for future reference
Width - 61.2cm
4 Cube Storage Unit
Important - Please read these instructions fully before starting assembly
If you need help or have damaged or missing parts, call the Customer Helpline: 01709 534123
Please turn to back page for important information when contacting Customer Helpline.
Dimensions
Depth - 29.5cm
Height - 61.2cm
Rev E - 15/02/2017
011 xx 3555
MADE IN
GREAT BRITAIN

Important - Please read these instructions fully before starting assembly
Safety and Care Advice
Check you have all the
components and tools listed on
pages 2 and 3.
Remove all fittings from the
plastic bags and seperate them
into their groups.
Keep children and animals
away from the work area, small
parts could choke if swallowed.
Make sure you have enough
space to layout the parts before
starting.
Do not stand or put weight on
the product, this could cause
damage.
Assemble the item as close
to its final position (in the same
room) as possible.
Assemble on a soft level
surface to avoid damaging the
unit or your floor.
Parts of the assembly will be
easier with 2 people.
We do not
recommend the
use of power
drill/drivers for
inserting screws,
as this could damage the unit.
Only use hand screwdrivers.
Care and maintenance
Always lift furniture when
moving it (do not drag)
otherwise the joints may be
damaged.
From time to time check that
there are no loose screws on
this unit.
This product should not be
discarded with household
waste. Take to your local
authority waste disposal centre.
1
Dust surfaces with a soft, dry,
lint free cloth.
More stubborn marks can be
removed using a damp
(not wet) cloth. Wipe the
surface dry immediately
using a soft lint free cloth.
Do not use detergents, abrasive
cleaning products or cleaning
products that contain ammonia,
solvents or silicone as these
may damage the surface finish.
To protect the furniture,
position the furniture out of
direct sunlight and away from
direct heat sources such as
radiators and fires.
Do not place the furniture in
excessively dry and humid
conditions.
Do not place hot or cold
objects on the surface, always
use protective mats to avoid
marking the furniture.
Clean spills up immediately
Dispose of all packaging
carefully and responsibly
when assembly complete.
Do Not dispose of packaging
until assembly complete.

Please check you have all the panels listed below
Components -Panels
2
Important - Thick lines indicate finished edges
Top / Bottom x2 (58.0x29.3cm)
9096 End Panel x2 (61.2 x 29.5cm) 9103
Shelf (58.0x29.3cm)
9097
Divider x2 (28.2x29.3cm)
9098
Back Panel x2 (30.8x29.5cm)
9101

3
70 80 90 100 110 120
010 20 30 40 50 60
mm
130 140 150 160 170
Ruler - Use this ruler to help correctly identify the screws

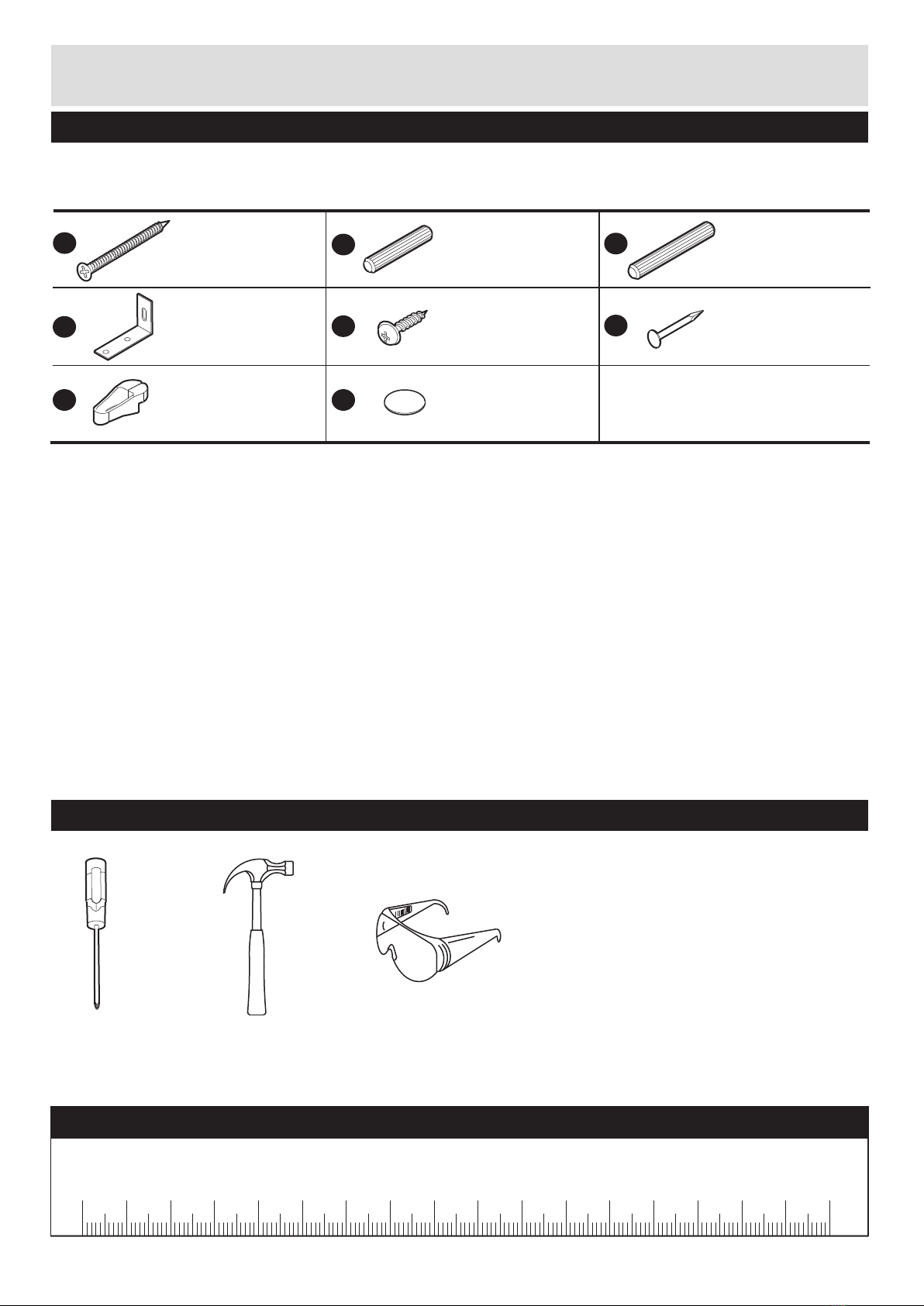

Please check you have all the fittings listed below
Components - Fittings
Note: The quantities below are the correct amount to complete the assembly, In some case more
fittings may be supplied than are required.
Tools required
If you have damaged or missing components, call the
Customer Helpline: 01709 534123 Please turn to back page
for important information when contacting Customer Helpline.
ABC
E
D
G H
F
Dowel 50mm x 2
Code 770003550
45mm screw x 8
Code 690001075
Dowel 30mm x 8
Code 770001006
L bracket x 1
Code 760001901
12mm screw x 2
Code 690001099
Eye protection
(when using a
hammer)
Large Cross
Headed
Screwdriver
Small Hammer
Panel pin x 16
Code 760001012
Panel Pin Locator
Code 684004501 Cover cap x 8

Exploded View
4
9096
9096
9103
9103
9097
9098
9098
9101
9101

B
B

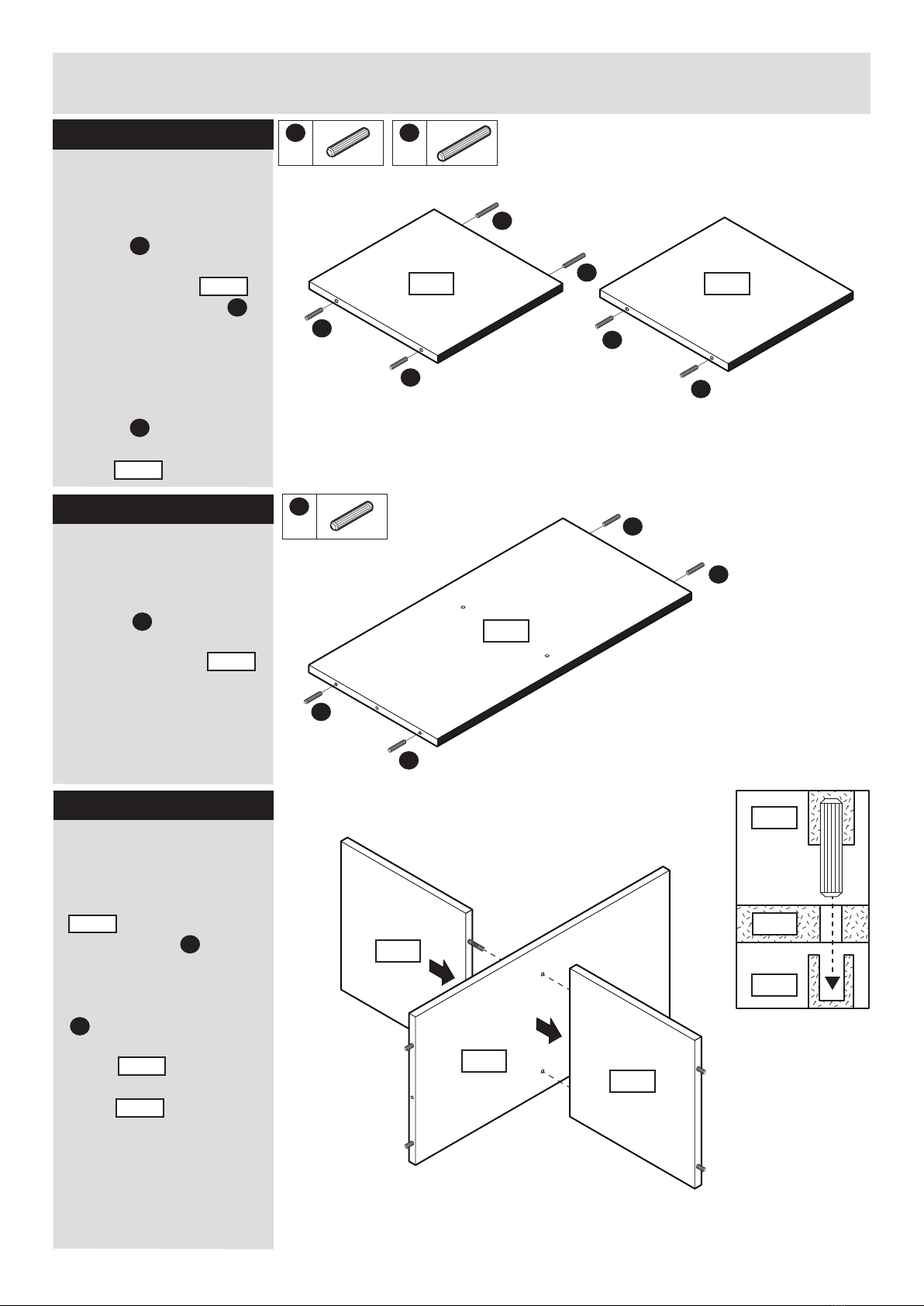

Step 1
Assembly Instructions
5
B
B
B
B
B
B
x4
Fitting dowels to the
divider panel.
50mm30mm
Step 2
B
Fitting dowels to the
shelf panel.
Insert 2 of the 30mm
dowels into the pre-
drilled holes in one end of
the divider panel
and 2 50mm dowels
into the pre-drilled holes
in the other end of the
same panel.
Insert 2 of the 30mm
dowels into only one
end of the other divider
panel .
Insert 2 of the 30mm
dowels into the pre-
drilled holes in both ends
of the shelf panel .
9098
9097
9098
Step 3
Connect shelf panel
and divider panels.
FINISHED EDGES TO THE FLOOR
Locate the divider panel
which has the 2
50mm dowels inserted
into the pre-drilled holes.
Slide the 50mm dowels
through the pre-
drilled holes in the shelf
panel and connect
to the remaining divider
panel .
B
B
B
B
x4 30mm
C
C
C
C
C
C
x2
9098
9098
9098
9098
9097
9097
9097
9098
9098
9098
9098
9097

Assembly Instructions
6

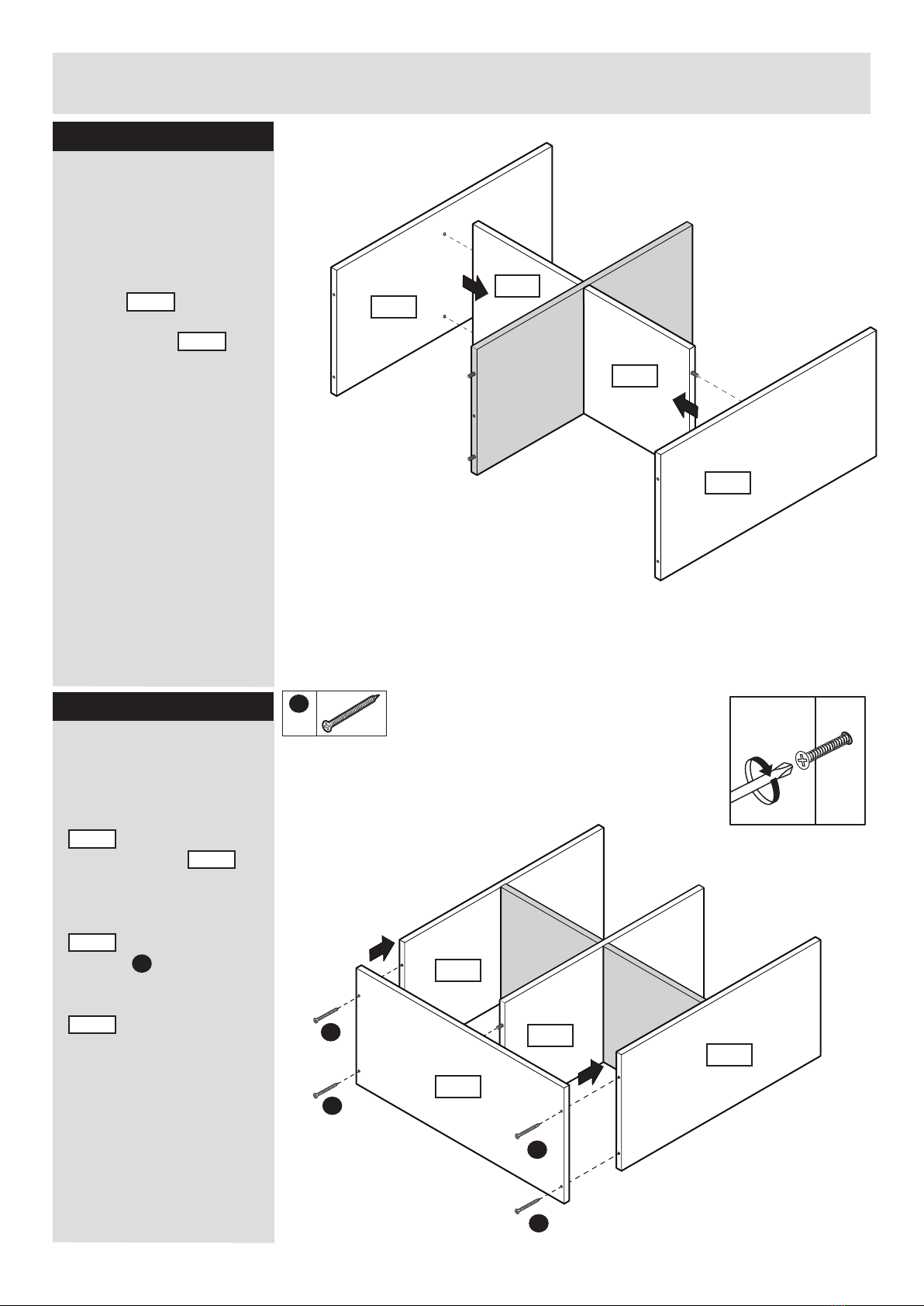

Step 4
Connect top/bottom
panels to the dividers
panels.
Insert the dowels (already
inserted in the divider
panels) into the pre-
drilled holes in the top/
bottom panel .
Step 5
Fasten one of the end
panels to the shelf and
top/bottom panels.
Connect the end panel
to the dowels in
the shelf panel
(already inserted).
Secure the end panel
in place by using
screws and screwing
into the pre-drilled holes
in the top/bottom panels
.
9098
9098
9096
9096
9096
9097
9096
9103
9096
9098
9103
9103
9097
9096
A
A
A
A
A
A
x4

Assembly Instructions
7

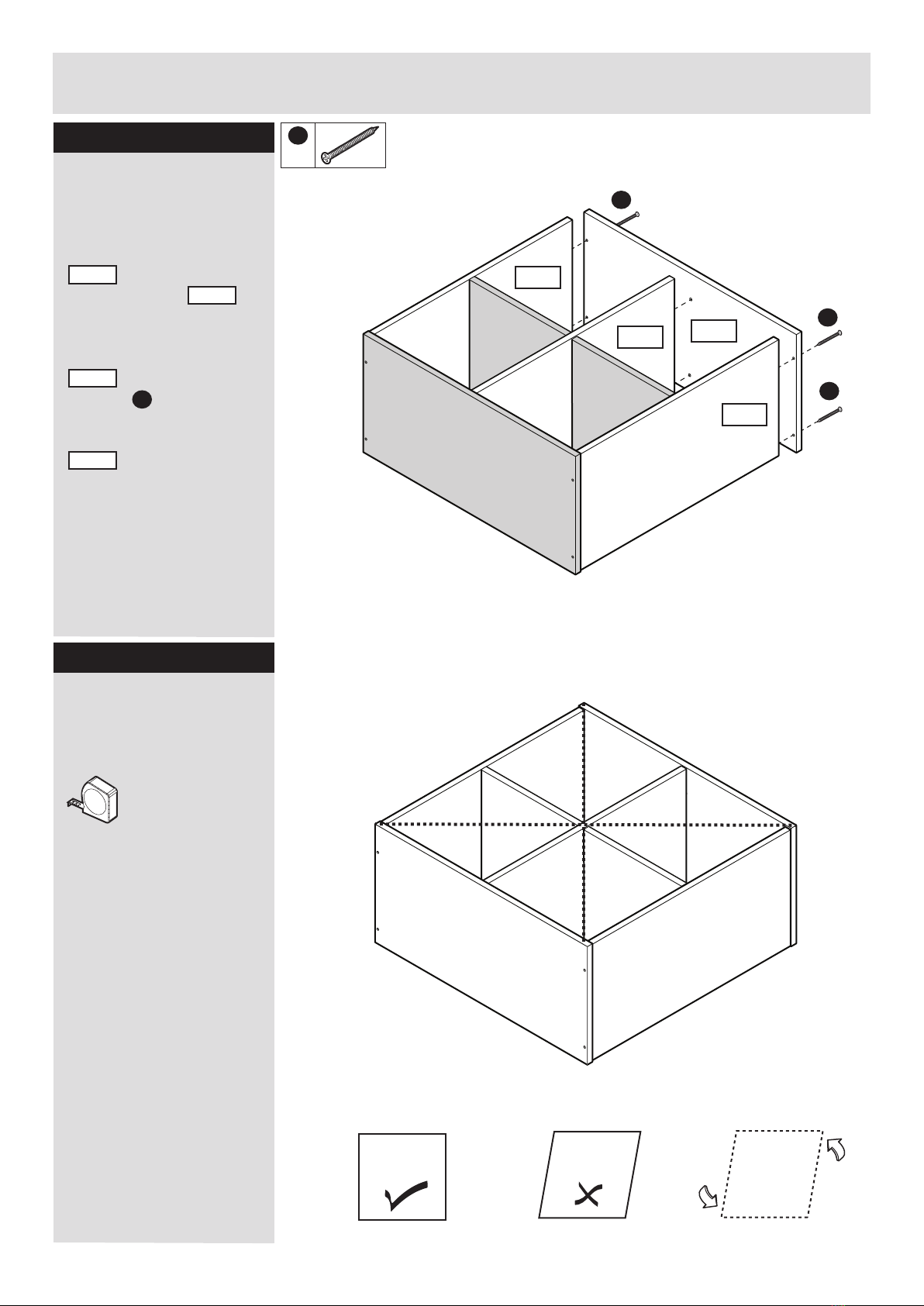

Step 6
Step 7
9096
9097 9103
9096
Fasten the other end
panel to the shelf and
top/bottom panels.
Connect the end panel
to the dowels in
the shelf panel
(already inserted).
Secure the end panel
in place by using
screws and screwing
into the pre-drilled holes
in the top/bottom panels
.
9103
9103
9097
9096
A
A
A
A
A
x4
Squaring the unit up.
IMPORTANT!
Ensure a tape
m measure is used
to squure unit up!
Before securing the back
it is necessary to square
up the unit.
You can do this by
measuring between
XX - XX and YY - YY
ensuring these are the
same (DIAG 1).
If they are not (DIAG 2)
Apply slight pressure as
indicated (DIAG 3) until
they are the same.
DIAG 1 DIAG 2 DIAG 3
XX
XX
YY
YY
XX
XX
YY
YY
XX
XX
YY
YY
YY
XX
YY
XX

Assembly Instructions
8

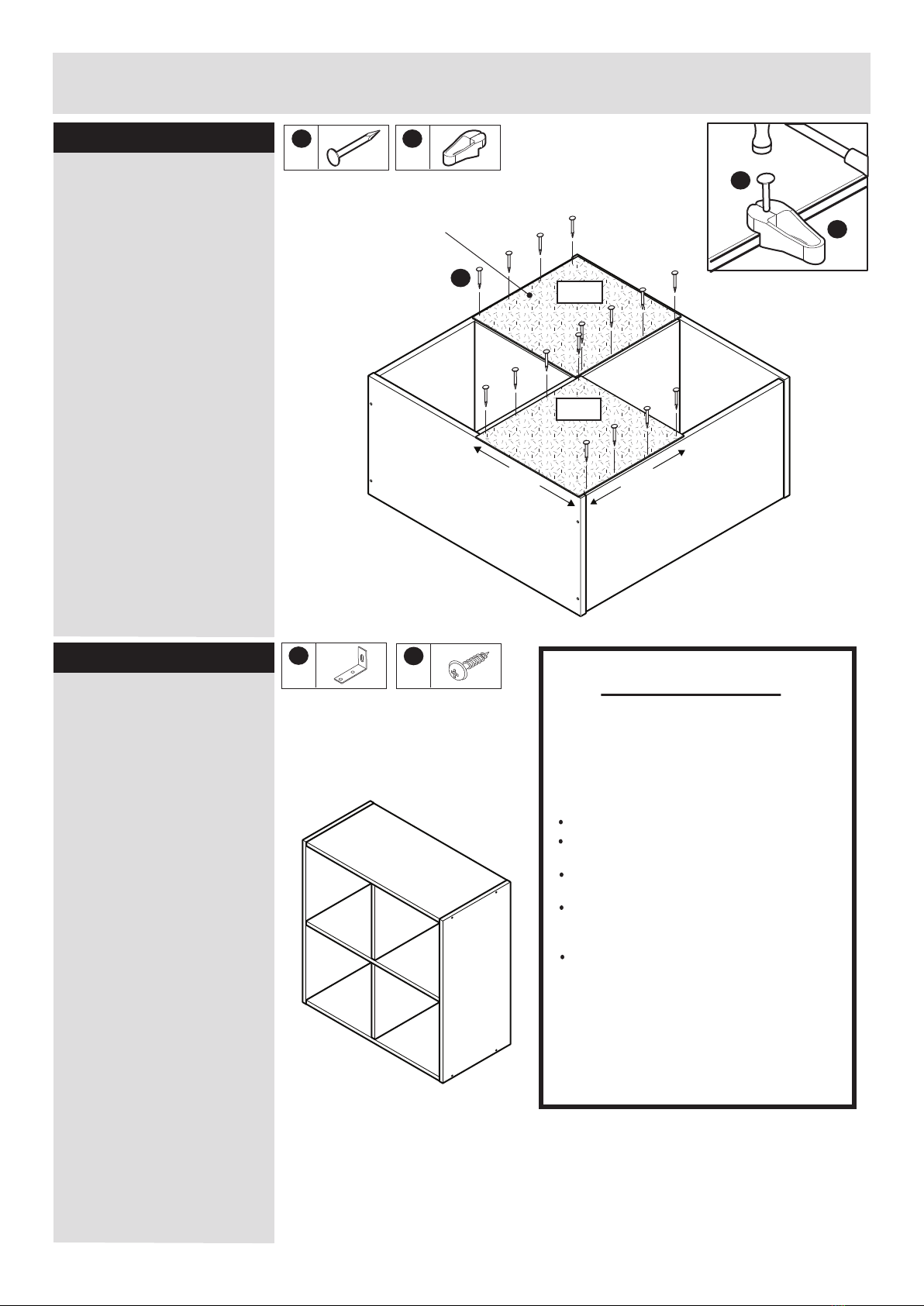

Step 8
Step 9
We recommend that this
unit is fixed to a suitable
wall to prevent possible
overbalancing. We have
included a fixing bracket
for this. No fixing screws
are provided as they will
need to suit the wall
type, and the length of
screw will depend on
the distance from the
back of the unit to the
wall. Please ensure
fixings used are
appropriate to your wall
type. Locate the bracket
to the top panel or to the
end panel as close to
top as possible. We do
not specify exact
location for the bracket,
this is left to the
customer’s discretion.
Fixing to wall
D
x1
E
x2
Attach the 2 back
panels.
G
G
x16
F
F
F
x1
Use the panel pin guide
when locating the panel
pins. This will hold the
panel pins vertical and
ensure the correct
distance from the edge.
Ensure that you measure
the backpanel and
attach the longest
side as shown.
Ensure that the distance
from the edge of the back
panels to the edge of the
top / bottom / end panels
is equal on every back
panel.
Stand the unit upright.
29.5cm
30.8cm
9101
9101
Plain chipboard surface
IN ORDER TO PREVENT OVERTURNING
THIS PRODUCT MUST BE USED WITH
THE WALL ATTACHMENT DEVICE
PROVIDED
Serious or fatal crushing injuries can occur from
furniture tipping over. To help prevent topple over:
An attachment device is provided with your
product. However you will need to source
suitable fixings for your wall type. If in doubt,
please consult a qualified trades person.
Alwasy ensure the wall to be drilled is free
from hidden electrical wires, water and gas
pipes.
Use the wall attachment device provided.
Never allow children to climb or hang on
drawers, doors or shelves.
Place heaviest items in the lower drawers
or shelves.
Unless specifically designed to accomodate,
do not set TV’s or other heavy objects on
top of this product.
Never open more than one drawer at a time.
WARNING

Assembly Instructions
9
Step 8
Use the cover caps
to conseal exposed
fittings.
Using the 8 cover caps
provided, conceal the
exposed screws by
placing these caps over
them.
H
H
x8
H
H
H
H

Assembly Instructions

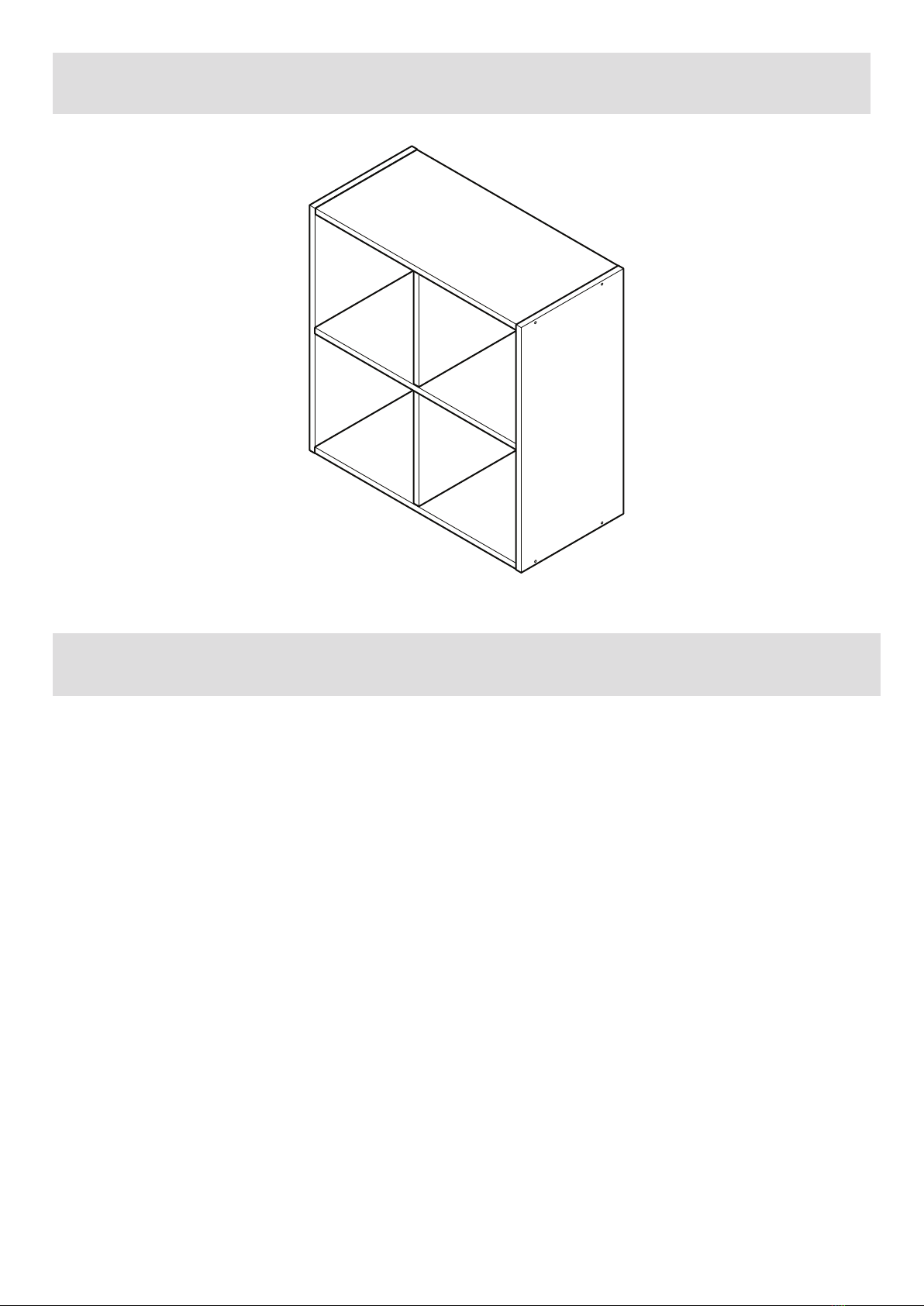

Congratulations! Your unit is complete.
Important Information
If you need help or have damaged or missing parts, call the Customer Helpline:
01709 534123 8am - 4.30pm (Monday toThursday)
8am - 2.30pm (Fridays)
Please have the following information to hand:
>> Unit Description
>> Product Code
>> Product Colour
>> Place of Purchase
>> Catalogue Ref. No.
>> Item Code
>> Assembly Instructions
You can also e-mail your requests to us at:
[e-mail]
Alternatively, you can write to us at: Customer Service Department, Addspace Furniture Limited,
Braithwell Way, Hellaby Industrial Estate, Hellaby, Rotherham, South Yorkshire, S66 8QY.
We do have an answer machine should you contact us out of office hours, so in addition to
the above information could you leave your name, address, daytime telephone number and
the nature of your call on the answerphone. All calls will be actioned asap.
(by contacting the customer service line your statutory rights are not affected)
