Premise CW2 Series User manual

1
INSTALLATION INSTRUCTIONS
IMPORTANT
Before assembling your fixture,
please make sure that you carefully
read through this instruction sheet.
Ensure your fixture is installed by a
qualified licensed electrician.
Note: The important safeguards and
instructions that appear in this sheet
are not meant to cover all possible
conditions and situations that may
occur. It must be understood that
common sense, caution, and care
are factors that cannot be built into
any product. These factors must be
supplied by the person(s) caring for
and operating the fixture.
CW2 SERIES
COMMERCIALWRAPAROUND
CW2-404-1
For use with:
WHAT’S IN THE BOX
•LED Fixture
•Small Pin Cross Machine Screws x 2 (AA)
•Wire Nuts x 3 (BB)
•Pointed Pin Cross Wood Screws x 4 (CC)
•Wall Anchors x 4 (DD)
WHAT YOU’LL NEED
•Screwdriver / Drill
•Wire Cutters
•Wiring supplies as specified by Electric Code
•Read all safety precautions and installation instructions carefully before
installing
•Do not handle any energized fixture or attempt to energize any fixture with wet
hands or while standing on a wet or damp surface or in water
•Ensure that the fixture is mounted onto a structurally sound surface that will
support the fixture
•The fixture is designed for use in a 100-277VAC, 60Hz fused circuit. Do not use in
a dimming circuit
•Do not install on a radiant-heating type ceiling
FAILING TO FOLLOW THESE INSTRUCTIONS MAY LEAD TO A POTENTIALLY FATAL
ELECTRICAL SHOCK OR PROPERTY DAMAGE
WARNING
PREMISE LED Inc.
80-86 Carrier Drive
Toronto, ON Canada
M9W 5R1
PREMISELED.COM
2
FIXTURE COMPONENTS
The LED Wraparound consists of three components: the housing (A) diffuser (C), and end
pieces (D).
HOW TO INSTALL THE WRAPAROUND
1. Insert the two Small Pin Cross Machine
Screws (AA) into the junction box. Do not
tighten.
2. Remove the diffuser (C) Do this by
removing the two screws attached to an
end piece (D), then sliding the diffuser out.
3. Connect the ground wire from the
junction box to the yellow/green ground
wire of the fixture, the white wire to the
white, and the black wire to the black.
For each, place Wire Nuts (BB) over the
connected wires and twist clockwise until
tight.
D
D
A
C
D
A
C
3
HOW TO INSTALL CONTINUED
4. Attach the fixture housing (A) to the
junction box by aligning the holes on the
housing with the the two Small Pin Cross
Machine Screws (AA) on the junction box
from Step 1.
5. Turn the housing (A) clockwise to lock
the fixture in place, then tighten the Small
Pin Cross Machine Screws (AA) to secure.
6. With the fixture secured, insert the
Pointed Pin Cross Wood Screws (CC)
through the housing (A) and fasten the
screws into the ceiling. Repeat for all 4
screws.
7. Reinstall the diffuser (C) by sliding the
diffuser back into place. Reattach end
piece (D) using their two screws.
8. Installation is now complete.

This manual suits for next models

1

Other Premise Light Fixture manuals

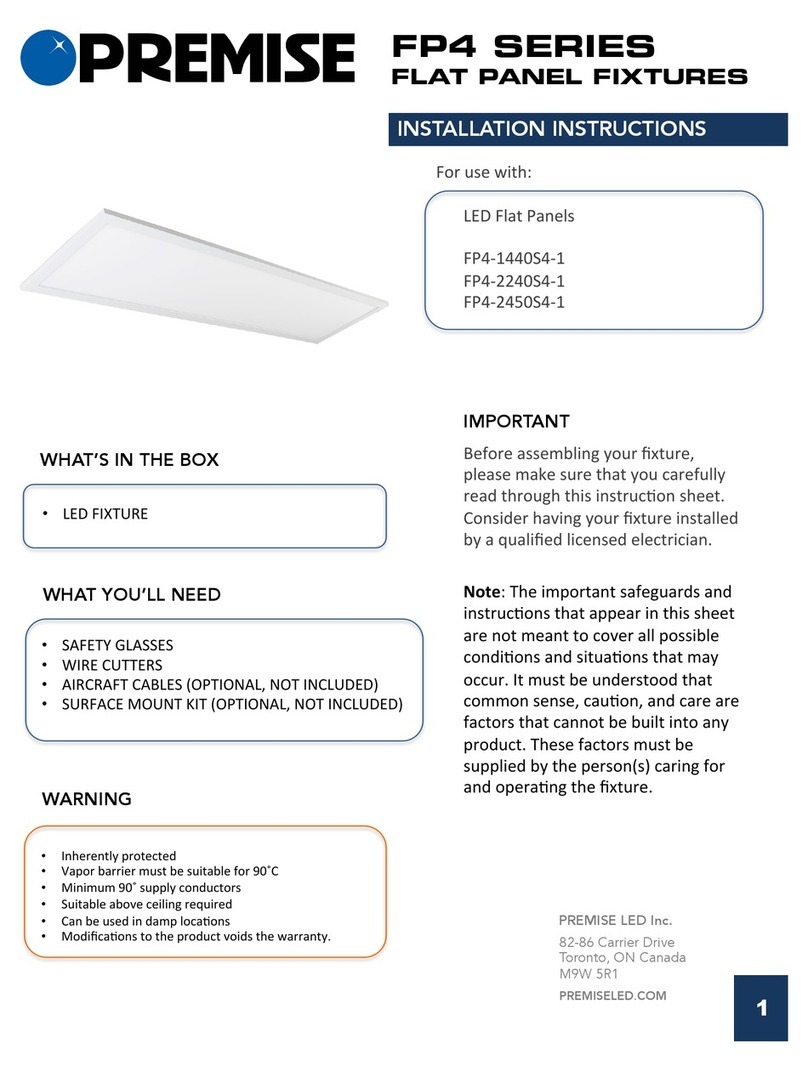

Premise FP4 Series User manual

Premise

Premise FP4 Series User manual

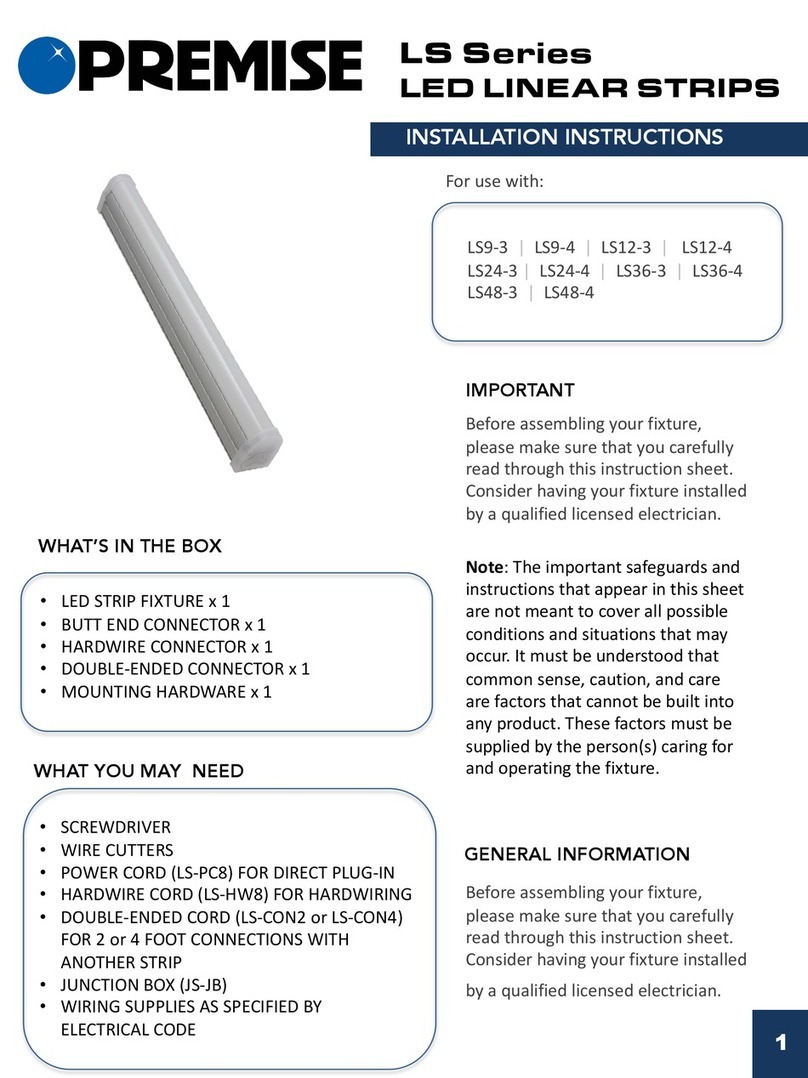

Premise LS Series User manual

Premise

Premise LS Series User manual

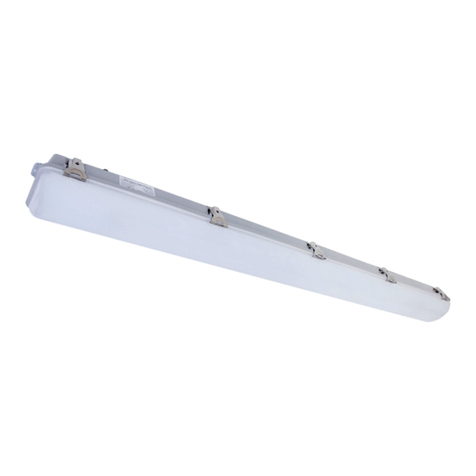

Premise VP2 Series User manual
