Pressalit SELECT R4952 User manual

SELECT wash basin lifter
Operation and maintenance manual
R4952

2
The guarantee covers faults or defects in material or manufacture within a period of 3 years. Pro-
ducts are subject to minor technical modifications and design deviations. E. & O.E.
Symbols used in this manual.............................................. 3
General safety ........................................................... 4
Intended use ............................................................ 7
Intended operator profile .............................................. 7
Operating environment ................................................ 7
Assembly and installation ................................................ 8
Versions ................................................................ 9
Operating instructions ..................................................10
Safety stop function.....................................................11
To remove limescale..................................................12
Maintenance...........................................................13
Service inspection ...................................................13
Technical data..........................................................14
Trouble-shooting .......................................................15
Technical data..........................................................15
Disposal and recycling ..................................................16
Content
Original instructions

3
Symbols used in this manual
The following symbols are used in this manual as well as the associated
documentation supplied with the product.
!WARNING
WARNING indicates a potentially hazardous situation which, if not
avoided, could result in death or serious injury.
!CAUTION
CAUTION indicates a potentially hazardous situation which, if not avoided,
may result in minor or moderate injury. It may also be used to alert against
unsafe practices.
IMPORTANT
IMPORTANT indicates important information about handling and use of
the product.
NOTICE
NOTICE is used to address practices not related to personal safety.
Hand injury
warning
Electricity or potentially
dangerous voltage.

4
!CAUTION
• Please comply with these instructions to avoid the product becoming
damaged or destroyed.
• Do not perform repairs, disassembly, or assembly operations,
extensions, re-adjustments or modifications to this product. These
must be carried out by Pressalit or by persons authorized by Pressalit
only.
• Never allow children to operate this product unless under supervision.
The product is not intended for play.
• Never use the product if it is defective or damaged. Do not use a
defective product before it has been repaired.
General safety
!WARNING
• Read and understand the manual completely before use. Keep the
manual close to the unit.
• Comply with this manual to avoid accidents involving serious personal
injury.
• Never use or handle this product in other ways than are specified in
this manual, as this can put your safety at risk and cause damage to the
product.
• Make sure that everyone who is to install or use the product and its
systems has the necessary information and access to this manual.
NOTICE
• The information in this manual is based on correct fitting of the
product in accordance with our Assembly instruction.
• Pressalit cannot be held liable if the product is used in any way which
differs from that described in the guide.
• We reserve the right to amend this manual without prior notice.

5
Pressalit A/S • Pressalitvej 1 • DK - 8680 Ry • T: [phone]
E-mail: [email protected] • Web: www.pressalit.com
!
DD-MM-YYY
RZZZZYYYXXX(X)
XXX V
XX-XX Hz
XXX kg
XXX lbs
XXX kg
XXX lbs
XXX kg
XXX lbs
IPXX
XX W
2
min
18
min
①
②
③
④
⑭
⑮
⑯
⑰
⑨ ⑩ ⑪ ⑫ ⑬
⑤ ⑥ ⑦ ⑧
①Production date
②Article number
③Maximum user weight
④Safe working load
⑤Frequency
⑥Mains voltage

6
⑦Maximum power consumption
⑧IP class
⑨Duty cycle The motor on height-adjustable products can be used
for a maximum of 2 minutes of continuous operation, followed by
18 minutes pause.
⑩Name and address of manufacturer
⑪Type B applied part Part of the product in normal use necessarily
comes into physical contact with the patient to perform its function
The product complies with requirements of IEC 60601-1 to provide
protection against electric shock.
⑫Consult the manual for use for important cautionary information
such as warnings and precautions.
⑬Consult manual for use
⑭Product weight
⑮Do not dispose as unsorted municipal waste. The product should
be collected separately and returned to the designated recycling
service.
⑯This product does not contain any of the hazardous substances
mentioned in the Council Directive 2011/65/EC on RoHS.
⑰This product is CE-marked in accordance with the European
Medical Device Directive 93/42/EEC, including amendments
incorporated in Directive 2007/47/EEC. It also complies with all
relevant requirements in the Council Directive 2006/42/EC (of 17
May 2006) on machinery and with Council Directive 2011/65/EC (of
8 June 2011) on RoHS. A declaration of conformity can be found at
www.pressalitcare.com.

7
Intended use
This product is intended for optimum ergonomics at a wash basin, for both
seated and standing users with disabilities.
Intended operator profile
The product can be used by all - adults, children, young and old.
Operating environment
For indoor use in a wet environment, such as a bathroom or wash room.
The product is intended to be used at room temperature, in a stand-alone
environment, in private homes, nursing homes and hospitals under normal
working conditions.
!CAUTION
Never place objects underneath the wash basin.
Product label placement 1.
1

8
Assembly and installation
For assembly and installation, please refer to the assembly instruction
supplied with the product.
XXX
[phone]
[phone]
[e-mail]
www.pressalitcare.com
Telephone:
Telefax:
E-mail:
Web:
Pressalit Care
Pressalitvej 1
DK 8680 Ry
Danmark
Monteringsvejledning
DK
Montageanleitung
DE
Mounting instruction
EN
Notice de montage
FR
Montage-voorschrift
NL
Monteringsanvisning
SV
Monteringsveiledning
NO
Subject to alteration without further notice · Ret til ændringer forbeholdes · Recht auf Änderungen sind vorbehalten
Nous nous réservons le droit d’apportertoutes modifications pour l’amélioration de nous produits sans préavis · Wijzigingen voorbehouden
Rätten till ändringar förbehålles · Vi forbeholder oss rett til endringer · Salvo variaciones
Instrucciones de montaje
ES
R4952

9

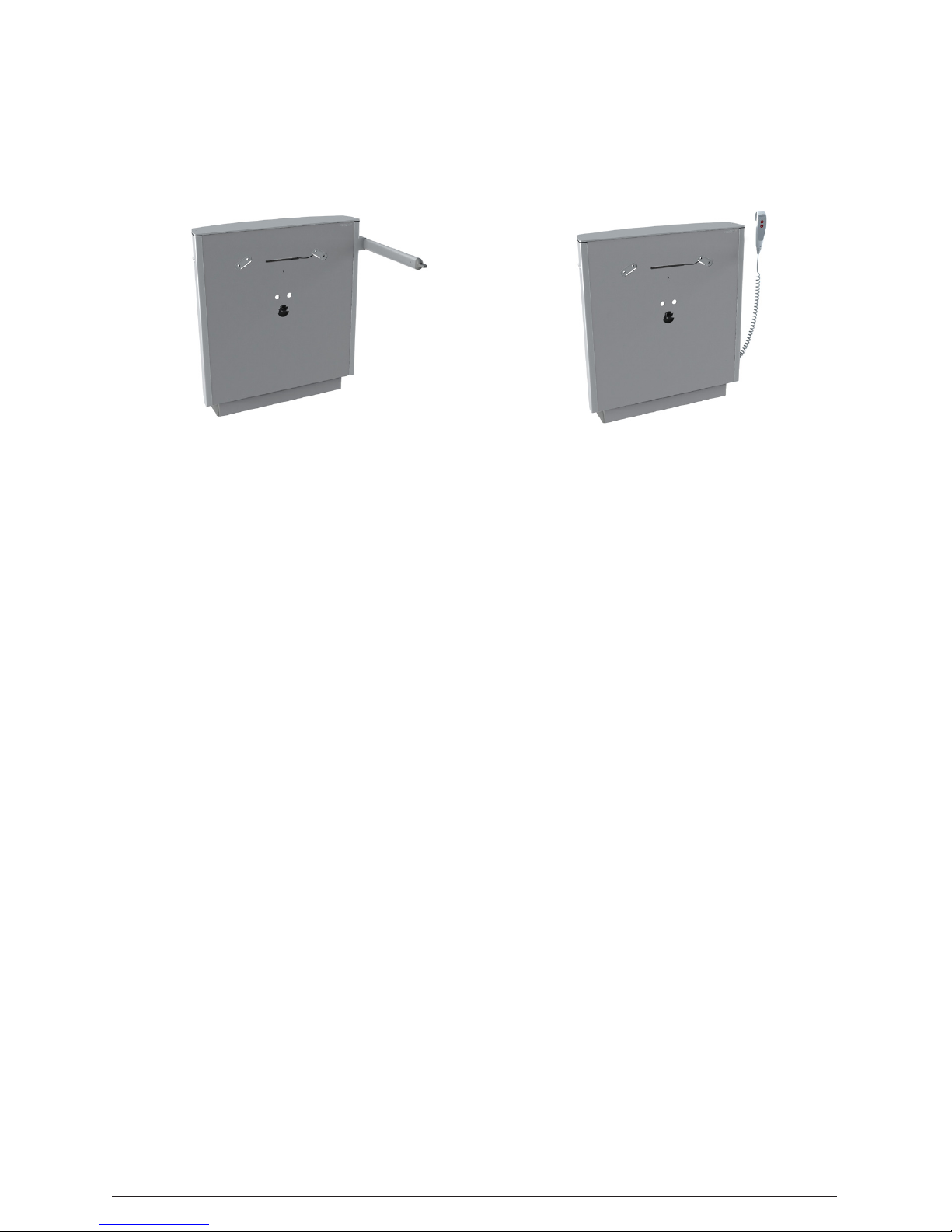

Versions
The wash basin lifter comes in one standard version, but the
configuration can be modified with accessories like the hand
control.
R4952 T4204

10
Operating instructions
T4204
The height adjustment is controlled by the wired hand
control unit.
Press and hold the Up button 1to raise the wash
basin, and press and hold the Down button 2to lower
it. When the button is released, the motion stops.
R4952
The height is adjusted by the
lever control.
Press and hold the lever up
to raise the wash basin, and
press and hold the lever down
to lower the basin. When the
lever is released, the motion
stops.
1
2
The wash basin lifter can
be adjusted 300 mm up and
down.
Max load is 150 kg.
Take care to
avoid injury to
hands when in the
vicinity of moving
mechanical parts.

11
Safety stop function
The wash basin lifter is equipped with a safety stop function.
If the wash basin comes in
contact with an object when it is
being lowered, the motor stops
immediately. The wash basin lifter
can be used again as soon as the
obstruction has been removed.

12
To remove limescale
To remove limescale marks on the aluminium parts, use 3 parts of 30%
household vinegar to 7 parts water and afterwards wipe the parts with a cloth
wrung out in clean water.
In countries with relatively high levels of lime in the water supply, it may be
necessary to remove limescale deposits from the aluminium parts using a
de-scaling agent such as acetic acid. Test this first on a area that is not visible
when the wash basin lifter is in use.
!CAUTION
Always read the material safety data sheet (MSDS) and supplied
instructions for the cleaning, disinfecting or de-scaling agent and comply
with instructions for safe use, dilution, rinsing, drying, handling and
storage of the agent.

13
Maintenance
Expected service life of the wash basin lifter is 10 years, provided that
maintenance is carried out as described below:
It is recommended on a weekly basis to
run the motors on the product to their
maximum positions by raising the product
to its full height, and then lowering it to its
lowest position, so that the internal parts
are lubricated.
It is recommended that service inspection
is done once a year.
Service inspection
Take the wash basin to its highest position.
Disconnect mains before
removing the covers.
Remove the lower front cover 1. You do not
need any tools, as the cover has a click lock.
Check all electrical connections for the
control box 2.
Lubricate the inner square tubes 3with
WD-40 or equivalent. You have to reach up
under the upper front cover to reach the
tubes.
Reconnect mains.
Lower the wash basin to its lowest position,
and then run it to the top position again to
distribute the lubricant.
Reattach the lower front cover.
1
2
3
3

14
Technical data
Max load 150 kg
Materials Powder-laquered stainless steel
Aluminium
Plastics
Dimensions
(width x height x depth)
666 mm x 750 mm x 170 mm
Weight 28.5 kg
IP class IPX6
Power specifications
Max consumption 75 W
Voltage Mains connection: 230V/120V/100V
Frequency 50/60 Hz
Current 3.7 A

15
Trouble-shooting
Symptom Cause Action
The product will not
work, even though
the controls is used
correctly.
Fault in power supply. Check that all wires and
plugs are intact and
correctly connected.
Contact Pressalit A/S or
your local dealer.
The product runs up
and down unevenly.
The inner square
tubes are not properly
lubricated.
Oil the inner square
tubes as described under
”Maintenance”.
Contact Pressalit Care or your dealer if the problem cannot be remedied.
Do not attempt to repair the product yourself, as this will invalidate the
guarantee.

16
Disposal and recycling
The unit contains reusable materials. There are no known hazards or risks
associated with disposal of the product. All components can be discarded
after having been cleaned and disinfected.
When disposing of the product, we recommend that it be disassembled and
broken down into different waste groups for recycling or combustion.
The following table provides information on the recycling and handling of the
product.
Recyclable
components Material
Aluminium Aluminium is theoretically 100% recyclable without
any loss of its natural qualities. It requires only 5% of
the energy used to produce primary aluminium. The
quality of recycled aluminium is so high that it can
be used again and again, even in the case of anodised
products as the anodised layer is a natural part of the
aluminium.
Steel Steel can be recycled by being melted down and
included as a secondary material in the production of
new steel.
Polystyrene Use plastic sorting and recycling systems where they
are locally available, otherwise incinerating plastic
has the added benefit of generating energy which can
be used for, for example, combined heat and power
production.

Visit our website to find your local dealer and get further information about Pres-
salit Care and our solutions for bathrooms and kitchens.
Pressalit A/S
Pressalitvej 1
8680 Ry
Denmark
Tel. : [phone]
Fax : [phone]
E-mail : [e-mail]
www.pressalit.com
V5318 Version 1.0 11/2016
