Presto GEOSYSTEMS GEOWEB User manual

nsimplified
INSTALLATION GUIDE
nTendons & ATRA®Tendon Clips
GEOWEB®Slope Protection System

Prepare subgrade. Remove debris, rocks.
Thread tendons through cell
wall slots per design.
Expand sections down the slope.
Secure tendoned GEOWEB sections at the top of the slope with
the specified anchor system. See Options A, B, C.
Expanded GEOWEB section.
“Deadman” pipe Earth anchors ATRA®Anchors
A B C
1
3
6 7
4
2
Install ATRA Tendon Clips per design. Wrap tendon with ATRA Tendon Clips as shown.
5a
5
Install geotextile with overlaps (per manufacturer’s
recommendations if required)
Water Flow
TIP: Install at
top of slope
with GEOWEB
sections partially
expanded
several sections
at a time.
1
4
2
3
INSTALLATION GUIDE
simplified version
GEOWEB®Slope Protection System
nTendons & ATRA®Tendon Clips

8Connect GEOWEB®sections with ATRA®Keys.
Place infill from the top of the slope. Use equipment suitable for infill placement. See options A, B, C.
10
9Anchor the bottom (toe)
of the slope.
See
option A
or B.
A
B
B
B
2
A1A
A
B
Connect side to side (A)
and end to end (B).
Topsoil & Erosion
Control Blanket
Aggregate
Concrete
A
B
C
Water Flow
Water Flow
IMPORTANT NOTE:
The simplified installation guide provided by Presto Geosystems is intended as a general guideline
only. The contractor should follow contract plans and specifications and refer to detailed installation
guidelines for more information: See www.prestogeo.com/installation
Detailed installation guidelines at: www.prestogeo.com/installation

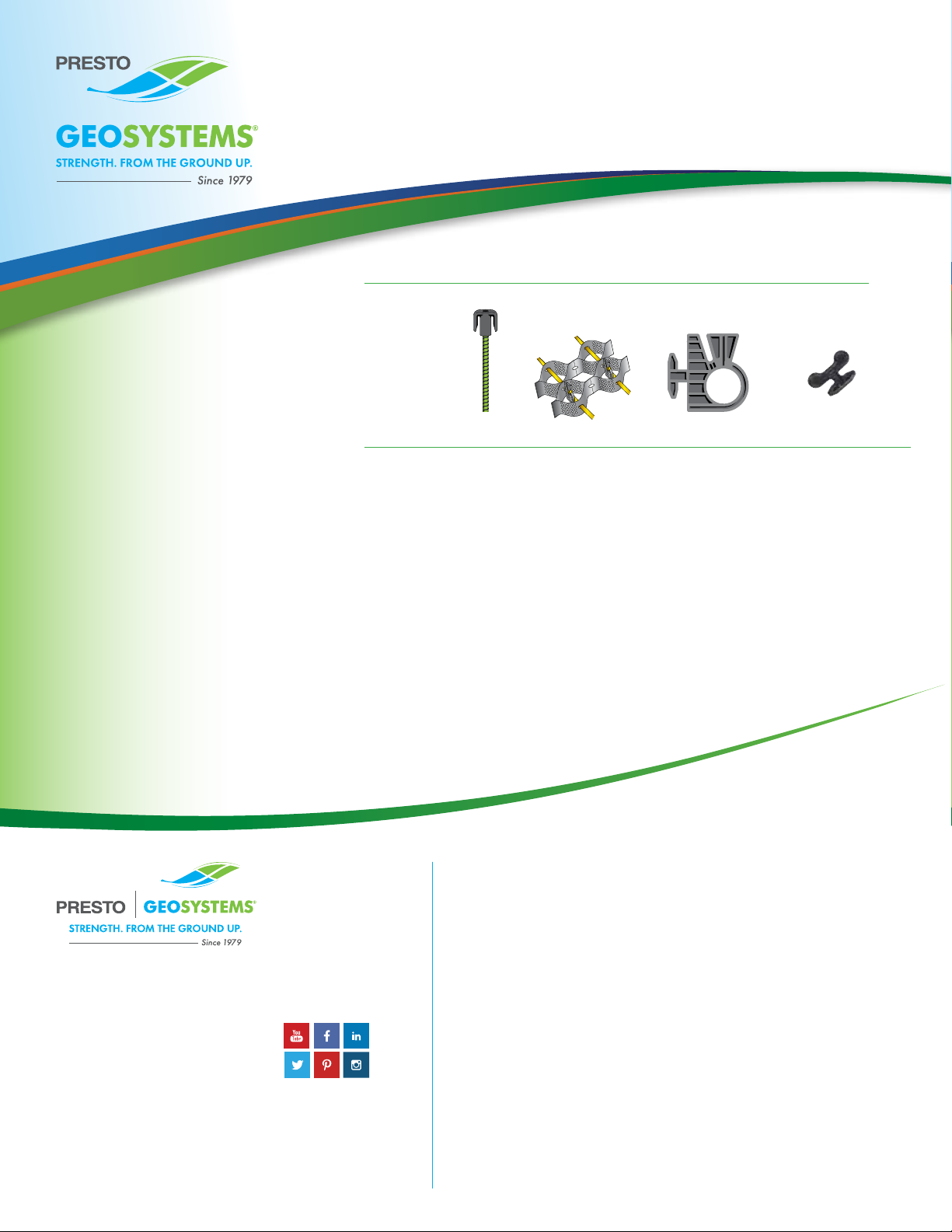

ATRA®ANCHOR ATRA KEYATRA TENDON CLIP
TENDONS
MATERIAL LIST
LIMITED WARRANTY
