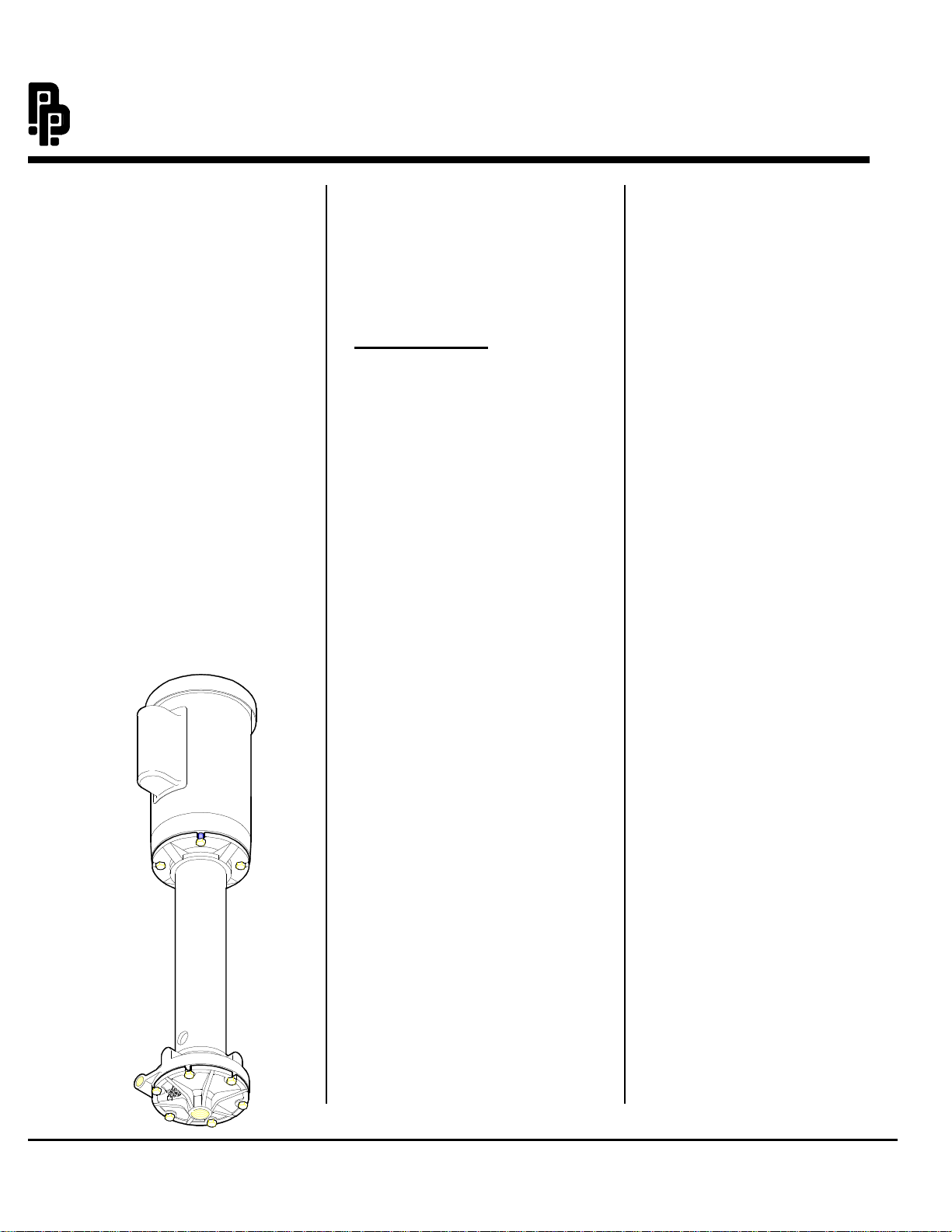

PRICE PUMP LT Vertical Installation guide

Model LT Vertical Page 1of 8 I&O IN162LTV 10/20/99
w21775 8th Street East wP.O. Box Q wSonoma, CA USA 95476-0329 w(707) 938-8441 wFax [phone]
IN-162LT-V
PRICE® PUMP
Installation,
Operating, and
Maintenance
Manual
Type LT Vertical
Caution:
Before installing,
repairing or performing
maintenance on this
pump, read these
instructions completely.
Installation
Electrical
WARNING!
Ground motor before
connecting to electrical
power supply! Failure
to ground motor can
cause severe or fatal
electrical shock hazard!
Do not ground to gas
supply line!
Disconnect power to
motor before working on
motor or pump!
Match voltage to
nameplate voltage on
motor. Incorrect voltage
can cause fire or seriously
damage motor, voiding
warranty.
Vertical Close Coupled
Motor Pumps
Special Mounting
Requirements
Vertical pumps must use
the Price Pump Company
vertical mounting plate to
support column. The
mounting plate must be
securely bolted to a rigid
surface.
Direction of Rotation
Note: Motor shaft rotation
is viewed from the suction
end of pump. A rotational
arrow is shown on the front
of the pump volute casing.
Incorrect rotation can
cause pump damage,
failure or reduced
performance, voiding
warranty. It is best to
check rotation by
momentarily energizing or
jogging the motor prior to
filling pump with liquid.
I & O Manual

Model LT Vertical Page 2of 8 I&O IN162LTV 10/20/99
w21775 8th Street East wP.O. Box Q wSonoma, CA USA 95476-0329 w(707) 938-8441 wFax [phone]
Warning! Do not
operate pump without
liquid for more than a
few seconds, as
damage will result to
bushing.
PLUMBING
All piping should be
supported independently of
the pump. Piping should not
exert any stress on the pump
connections.
Suction piping must be
designed to prevent air from
being trapped in high spots in
the piping. This condition
may cause the pump to vapor
lock as the air bubble moves
into the pump.
1. Discharge Piping.
For flow and discharge head
control it is advisable to
install a valve (globe, ball, or
other adjustable and non-leak
type) in the discharge line
close to the pump. The valve
may be closed during system
repairs to prevent backflow.
By installing a check valve in
the discharge line backflow
can also be prevented during
maintenance or during
periods of pump stoppage.
2. Vertical Pumps
Care must be taken when
attaching piping to the
discharge of vertically
mounted pumps to avoid
piping stress (axial or radial
force) on the discharge port.
Such force will push the
pump out of vertical
alignment, causing premature
failure. No piping stress can
be allowed against the
discharge connection.
Vertically mounted pumps
must have impeller
submerged at start-up. Also,
inlet of pump must be
submerged far enough to
prevent vortexing and the
resulting entrance of air into
the pump. Where conditions
limit how far pump can be
submerged tank baffles
should be used to prevent
vortex formation. The use of
a standpipe (vertical pipe
connected to pump suction)
will allow liquid to be drawn
down below level of the
impeller during operation.
Note, however, that pump
must be submerged during
start-up in order to gain
prime.
OPERATION
Priming. All centrifugal
pumps must be filled with
liquid prior to start up. For
the pump illustrated in this
manual completely fill the
volute and suction lines prior
to operation. It is suggested
that during initial start up the
discharge valve be closed and
then opened as the motor
develops full rpm’s. If pump
does not build up pressure as
motor speed increases, shut
down and reprime pump.
Make sure that liquid flow
into pump is not restricted
(see “Troubleshooting”).
Note: A centrifugal pump’s
flow and head (pressure) will
vary with the amount of
resistance (friction and flow
restrictions) in the discharge
line. As a valve on the
discharge line opens the flow
and motor amp draw will
increase and head will drop.
As a valve on the discharge is
closed the flow and amp draw
will decrease and the head
will increase. If resistance in
the discharge line is not
sufficient the pump will
operate at a condition of
maximum (or “choked”)
flow, also sometimes called
“end of performance curve.”

Model LT Vertical Page 3of 8 I&O IN162LTV 10/20/99
w21775 8th Street East wP.O. Box Q wSonoma, CA USA 95476-0329 w(707) 938-8441 wFax [phone]
Maximum horsepower is
required to operate at this
point and motor overload
may result. If excessive amp
draw and motor overload is
recurring, reduce the system
flow by installing a valve on
the discharge line and
restricting flow.
Alternatively, reduce pump
head by trimming impeller to
a smaller diameter. Consult
local Price Pump dealer for
assistance.
CAUTION
Disconnect power to pump
before servicing to avoid
dangerous or fatal electrical
shock hazards.
If pump has been used to
pump hazardous materials
be certain that all materials
have been removed prior to
working on the pump.
Inverting pump with liquid
in it could cause liquid to
get into motor bearings and
cause damage. Before
disassembling be certain all
liquid is removed from the
pump.
TROUBLESHOOTING
1. Pump fails to build
pressure:
Check for:
a. Pump not primed.
b. Incorrect rotation.
c. Driver speed too low.
d. Suction line restricted.
e. Driver failure.
f. Plugged or damaged
impeller.
g. Pump or impeller
undersized.
h. Pump cavitation.
i. Impeller rubbing volute.
2. Pump fails to provide
enough flow.
Check for:
a. System resistance too
high.
b. Pump undersized.
c. Pump not primed.
d. Driver speed too low.
e. Poor suction conditions
f. Impeller rubbing volute
due to improper
installation.
g. Pump cavitation.
h. Plugged or damaged
impeller.
3. Excessive noise or
vibration during
operation.
Check for:
a. Motor bearing failing.
b. Pump cavitating.
c. Impeller rubbing volute.
d. Shaft alignment.
e. Pump bushing worn.
4. Pump gradually loses
pressure and head.
Check for:
a. Increasing temperature
causing cavitation or
liquid vaporization.
b. Driver failure.
c. Suction lift too high.
d. Air entering suction
line.
5. Motor/pump
overheating.
Check for:
a. Excessive flow and amp
draw. (Throttle
discharge)
b. Low voltage or
frequency.
c. Flow too low with
resulting heat rise.
d. Bearing failure.
e. System temperature too
high.

Model LT Vertical Page 4of 8 I&O IN162LTV 10/20/99
w21775 8th Street East wP.O. Box Q wSonoma, CA USA 95476-0329 w(707) 938-8441 wFax [phone]
TYPE LT Vertical MAINTENANCE AND REPAIR I&O IN162LTV
Before attempting any repairs under warranty, contact Distributor to obtain factory authorization.
Repairs carried out without authorization may void warranty. Many causes of pump system failure are
due to improper system design. Refer to the Trouble Shooting List in this manual before carrying out
pump inspection. CCW = Counter Clockwise CW = Clockwise
DISASSEMBLY
1. Disconnect power source to
motor.
2. Disconnect electrical
connections tagging wires
carefully to preserve correct
rotation. Loosen motor base.
3. Remove pump and motor
assembly to repair area.
Observe position of all parts
prior to disassembly.
4. Remove bolts and remove
volute cover from pump.
5. Remove impeller locknut and
impeller. Unscrew CCW. A
small pair of c-clamp vise grips
may be clamped to the pump
shaft to prevent rotation while
unscrewing impeller locknut.
Avoid damaging the set screws
of the shaft with the vise grips.
7. Remove four motor bolts and
remove column from motor.
8. Loosen setscrews in pump
shaft and remove shaft from
motor. Note: New setscrews
must be used when shaft is
reinstalled.
9. Remove allen cap bolts in
bushing plate assembly and
remove bushing plate
assembly. Note: New bushing
should be used when
rebuilding pump.
REASSEMBLY
1. Clean pump and motor shaft
thoroughly.
2. Assure that the shaft is not
grooved and that there is no
evidence of pitting or fretting
where the bushing rides. If the
shaft is grooved, fretted or
worn, replace it.
3. Install the pump shaft onto the
motor shaft. Ensure all debris
and burrs are removed from the
motor shaft.
4. Install bushing and plate into
column. Tighten three allen
cap screws securely (Note:
Non-galling thread compound
must be used on the allen cap
bolts).
5. Install column onto motor
being careful not to damage
bushing.
6. Install motor bolts and tighten.
7. Install impeller and impeller
locknut. Ensure shoulder of
shaft is protruding above
bushing before installing
impeller.
a. Screw impeller onto pump
shaft CW. Hold pump shaft
with c-clamp vise grips and
thread locknut on CW until
snug. Note: Serviceable loctite
must be used on the impeller
locknut.
8. Install new volute gasket and
mount volute cover. Secure
with bolts and tighten evenly.
9. Set impeller clearance. Slide
pump shaft towards volute
cover until impeller touches
volute cover. Back the
impeller and shaft away from
the volute cover approximately
.020" and tighten both pump
shaft setscrews at this time.
Note: Ensure both setscrews
are securely tightened.
10. Invert pump and rotate pump
shaft by hand to ensure
impeller does not rub against
volute cover.
11. Return pump to installation,
reconnect electric connections.
12. Start pump momentarily to
observe shaft rotation. If
rotation corresponds to the
rotation arrow, pump may be
put into service. If rotation is
incorrect, switch any two leads
on 3-phase motors. Check
wiring diagram of motor for
single phase rotation.
13. Start pump allowing adequate
time to purge all air from
system. Observe any gauges,
flow meters, etc., to see of
pump performs properly.

Model LT Vertical Page 5of 8 I&O IN162LTV 10/20/99
w21775 8th Street East wP.O. Box Q wSonoma, CA USA 95476-0329 w(707) 938-8441 wFax [phone]
A. Volute Cover 0313
B. Gasket 0318
C. Impeller 0315-3.34
D. Bushing:
Graphitar (Std) 0672
Flurogold (Opt) 0691
E. Bushing Plate 0747
F. Lockscrew (3 Rqd) 0256
G. Column Assembly:
7 1/2” 0453
13” 0454
20” 0455
H. Shaft w/ Setscrews:
7 1/2” 0316-3
13” 0316-5
20” 0316-7
I. Volute Bolts (6 rqd) 0917
J. Motor Bolts (4 rqd) 0376
K. Impeller Locknut 0897
L. Mounting Plate (Opt)
Steel
Stainless Steel
M. Motors:
1/8HP,1800, 1/60/115/230, TEFC 1608
1/3HP, 3600, 1/60/115/230, DP 1438
1/3HP, 3600, /50/60/100/200/115/230, TEFC 1439
1/3HP, 3600, 3/50/60/220/440/230/460, TEFC 1440
1/3HP, 3600, 1/50/60/115/230, X-P 1441
1/3HP, 3600, 3/50/60/220/440/230/460, X-P 1442
LT25V PARTS LIST
Effective: July 1, 1992

Model LT Vertical Page 6of 8 I&O IN162LTV 10/20/99
w21775 8th Street East wP.O. Box Q wSonoma, CA USA 95476-0329 w(707) 938-8441 wFax [phone]
LT25 VERTICAL
OUTLINE DRAWING
Effective: January 1, 1993

Model LT Vertical Page 7of 8 I&O IN162LTV 10/20/99
w21775 8th Street East wP.O. Box Q wSonoma, CA USA 95476-0329 w(707) 938-8441 wFax [phone]
GENERAL TERMS OF SALE FOR PRODUCTS Effective: January 1, 1993
1. GENERAL
A. Seller's price is based on these sales terms and (i) this
document together with any additional writings signed by
Seller shall represent the final, complete and exclusive
statement of the agreement between the parties and may not
be modified, supplemented, explained or waived by parol
evidence, Buyer's purchase order, a course of dealing,
Seller's performance or delivery, or in any other way except
in writing signed by an authorized representative of Seller,
and (ii) these terms are intended to cover all activity of
Seller and Buyer hereunder, including sales and use of
products, parts and work and all related matters (references
to products include parts and references to work include
construction, installation and start-up). Any reference by
Seller to Buyer's specifications and similar requirements are
only to describe the products and work covered hereby and
no warranties or other terms therein shall have any force of
effect. Catalogs, circulars and similar pamphlets of the
Seller are issued for general information purposes only and
shall not be deemed to modify the provisions hereof.
B. The agreement formed hereby and the language herein
shall be construed and enforced under the Uniform
Commercial Code as in effect in the State of California on
the date hereof.
2. TAXES
Any sales, use or other similar type taxes imposed on this
sale or on this transaction are not included in the price.
Such taxes shall be billed separately to the Buyer. Seller
will accept a valid exemption certificate from the Buyer if
applicable; however, if an exemption certificate previously
accepted is not recognized by the governmental taxing
authority involved and the Seller is required to pay the tax
covered by such exemption certificate. Buyer agrees to
promptly reimburse Seller for the taxes paid.
3. PERFORMANCE, INSPECTION AND
ACCEPTANCE
A. Unless Seller specifically assumes installation,
construction or start-up responsibility, all products shall be
finally inspected and accepted within thirty (30) days after
arrival at point of delivery. Products not covered by the
foregoing and all work shall be finally inspected and
accepted with thirty (30) days after completion of the
applicable work by Seller. All claims whatsoever by Buyer
(including claims for shortages) excepting only those
provided for under the WARRANTY AND LIMITATION
OF LIABILITY and PATENTS Clauses hereof must be
asserted in writing by Buyer within said thirty (30) day
period or they are waived. If this contract involves partial
performance, all such claims must be asserted within said
thirty (30) day period for each partial performance. There
shall be no revocation of acceptance. Rejection may be
only for defects substantially impairing the value of products
or work and Buyer's remedy for lesser defects shall be those
provided for under the WARRANTY AND LIMITATION
OF LIABILITY Clause.
B. Seller shall not be responsible for non-performance or
for delays in performance occasioned by any causes beyond
Seller's reasonable control, including, but not limited to,
labor difficulties, delays of vendors or carriers, fires,
governmental actions, or shortages of material, components,
labor, or manufacturing facilities. Any delays so occasioned
shall affect a corresponding extension of Seller's
performance dates which are, in any event, understood to be
approximate. In no event shall Buyer be entitled to
incidental or consequential damages for late performance or
for a failure to perform. Seller reserves the right to make
partial shipments and to ship products, parts or work which
may be completed prior to the scheduled performance date.
C. In the event that Seller has agreed to mount motors,
turbines, gears, or other products which are not
manufactured by Seller and which are not an integral part of
Seller's manufactured product, and a delay in the delivery of
such products to Seller occurs that will cause a delay in
Seller's performance date, Seller reserves the right to ship its
product upon completion of manufacture and to refund an
equitable portion of the amount originally included in the
purchase price for mounting without incurring liability for
non-performance.
D. Seller reserves to itself the right to change its
specifications, drawings and standards if such changes will
not impair the performance of its products, and parts, and
further that such products, and parts, will meet any of
Buyer's specifications and other specific product
requirements which are a part of this agreement.
E. The manufacture and inspection of products and parts
shall be to Seller's Engineering and Quality Assurance
standards plus such other inspections, tests of
documentation as are specifically agreed to by Seller.
Requirements for any additional inspection, tests,
documentation, or Buyer witness of manufacture, test,
and/or inspection shall be subject to additional charges.
4. TITLE AND RISK OF LOSS
Title and risk of loss shall pass to buyer upon delivery of
products at the designated Ex Works place (Incoterms 1990)
unless other wise agreed by the parties.
5. EROSION AND CORROSION
It is specifically understood that products and parts sold
hereunder are not warranted for operation with erosive or
corrosive fluids. No product or part shall be deemed to be
defective by reason of failure to resist erosive or corrosive
action of any fluid and Buyer shall have no claim
whatsoever against Seller therefore.
6. WARRANTY AND LIMITATION OF LIABILITY.
A. Seller warrants only that its product and parts, when
shipped, and its work (including installation, construction
and start-up), when performed will meet all applicable
specifications and other specific product and work
requirements (including those of performance), if any, of this
agreement, and will be free from defects in materials and
workmanship. With respect to products, parts and work not
manufactured or performed by Seller, Seller's only
obligation shall be to assign to Buyer, to the extent possible,
whatever warranty Seller requires from the manufacturer.
All claims for defective products or parts under this
warranty must be made in writing immediately upon
discovery and, in any event, within one (1) year after initial
start-up or eighteen (18) months after shipment, whichever
first occurs, and all claims for defective work must be made
in writing immediately upon discovery and in any event,
within one (1) year of completion thereof by Seller.
Defective items must be held for Seller's inspection and
returned to the original f.o.b. point upon request. THE
FOREGOING IS EXPRESSLY IN LIEU OF ALL OTHER
WARRANTIES WHATSOEVER, EXPRESS, IMPLIED
AND STATUTORY, INCLUDING WITHOUT
LIMITATION, THE IMPLIED, WARRANTIES OF
MERCHANTABILITY AND FITNESS.
B. Upon Buyer's submission of a claim as provided above
and its substantiation, Seller shall at its option either (i)
repair or replace its product, part or work at the original
place of delivery, or (ii) refund an equitable portion of the
purchase price.
C. THE FOREGOING IS SELLER'S ONLY
OBLIGATION AND BUYER'S EXCLUSIVE REMEDY
FOR BREACH OF WARRANTY AND, EXCEPT FOR
GROSS NEGLIGENCE, WILLFUL MISCONDUCT, AND
REMEDIES PERMITTED UNDER THE
PERFORMANCE, INSPECTION AND ACCEPTANCE
AND THE PATENTS CLAUSES HEREOF, THE
FOREGOING IS BUYER EXCLUSIVE REMEDY
AGAINST SELLER FOR ALL CLAIMS ARISING
HEREUNDER OR RELATING HERETO WHETHER
SUCH CLAIMS ARE BASED ON BREACH OF
CONTRACT. TORT (INCLUDING NEGLIGENCE) OR
OTHER THEORIES. BUYER'S FAILURE TO SUBMIT
A CLAIM AS PROVIDED ABOVE SHALL
SPECIFICALLY WAIVE ALL CLAIMS FOR DAMAGES
OR OTHER RELIEF, INCLUDING BUT NOT LIMITED
TO CLAIMS BASED ON LATENT DEFECTS. IN NO
EVENT SHALL BUYER BE ENTITLED TO INDIRECT,
SPECIAL, INCIDENTAL OR CONSEQUENTIAL
DAMAGES, NOR FOR DAMAGES FOR LOSS OF USE,
LOST PROFITS OR REVENUE, INTEREST, LOST
GOODWILL, WORK OR PRODUCTION STOPPAGE,
IMPAIRMENT OF OTHER GOODS, INCREASED
EXPENSES OF OPERATION, OR THE COST OF
PURCHASING REPLACEMENT POWER OR OTHER
SERVICES BECAUSE OF SERVICE INTERRUPTIONS.
FURTHERMORE, IN NO EVENT SHALL SELLER'S
TOTAL LIABILITY FOR DAMAGES OF BUYER
EXCEED THE PURCHASE PRICE OF THE PRODUCTS
OR PARTS MANUFACTURED BY SELLER AND
UPON WHICH SUCH LIABILITY IS BASED. ANY
ACTION ARISING HERE-UNDER OR RELATED
HERETO, WHETHER BASED ON BREACH OF
CONTRACT, TORT (INCLUDING NEGLIGENCE) OR
OTHER THEORIES, MUST BE COMMENCED WITHIN
ONE (1) YEAR AFTER THE CAUSE OF ACTION
ACCRUES OR IT SHALL BE BARRED.
7. PATENTS
Seller agrees to assume the defense of any suit for
infringement of any patents brought against Buyer to the
extent of such suit charges infringement of an apparatus or
product claim by Seller's product in an of itself, provided (i)
said product is built entirely to Seller's design, (ii) Buyer
notifies Seller in writing of the filing of such suit within ten
(10) days after the service of process thereof, and (iii)
Seller is given complete control of the defense of such suit,
including the right to defend, settle and make changes in the
product for the purpose of avoiding infringement of any
process or method claims, unless infringement of such
claims is the result of following specific instruction
furnished by Seller.
8. EXTENT OF SUPPLY
Only products and listed in Seller's proposal are included in
this agreement. It must not be assumed that Seller has
included anything beyond same.
9. MANUFACTURING SOURCES
To maintain delivery schedules, Seller reserves the right to
have all or any part of the Buyer's order manufactured at any
of Seller's or its licensee's plants on a world-wide basis.
(Terms3-/93Bob )

Model LT Vertical Page 8of 8 I&O IN162LTV 10/20/99
w21775 8th Street East wP.O. Box Q wSonoma, CA USA 95476-0329 w(707) 938-8441 wFax [phone]
Thank You for Choosing Price Pumps
Visit our Web Site at
http://www.PricePump.com
