Buchi V-600 User manual

Vacuum Pump V-600
Operation Manual
11593885A en

Imprint
Product Identification:
Operation Manual (Original) Vacuum Pump V-600
11593885
Publication date: 05.2016
BÜCHI Labortechnik AG
Meierseggstrasse 40
Postfach
CH-9230 Flawil 1
E-Mail: [email protected]
BUCHI reserves the right to make changes to the manual as deemed necessary in the light of experi-
ence, especially with respect to structure, illustrations and technical detail.
This manual is copyrighted. Information from it may not be reproduced, distributed, or used for competi-
tive purposes, nor made available to third parties. The manufacture of any component with the aid of this
manual without prior written agreement is also prohibited.

BÜCHI Labortechnik AG Contents
Operation Manual Vacuum Pump V-600 iii
Contents
1 About this document...........................................................................................................6
1.1 Warning notices in this document........................................................................................................ 6
1.2 Symbols............................................................................................................................................... 6
1.2.1 Warning symbols .....................................................................................................................6
1.2.2 Mandatory directive symbols ...................................................................................................7
1.2.3 Other symbols..........................................................................................................................7
1.3 Available languages............................................................................................................................. 7
1.4 Trademarks.......................................................................................................................................... 7
2 Safety....................................................................................................................................8
2.1 Intended use........................................................................................................................................ 8
2.2 Use other than that intended ............................................................................................................... 8
2.3 Staff qualification ................................................................................................................................. 8
2.4 Residual risks ...................................................................................................................................... 9
2.4.1 Dangerous vapors.................................................................................................................... 9
2.4.2 Faults during operation ............................................................................................................9
2.4.3 Hot surfaces.............................................................................................................................9
2.5 Personal protective equipment .......................................................................................................... 10
2.6 Modifications...................................................................................................................................... 10
3 Product description...........................................................................................................11
3.1 Description of function ....................................................................................................................... 11
3.2 Configuration ..................................................................................................................................... 11
3.2.1 Front view ..............................................................................................................................11
3.2.2 Rear view ...............................................................................................................................12
3.2.3 Connections ........................................................................................................................... 13
3.2.4 Internal view...........................................................................................................................15
3.2.5 Type plate ..............................................................................................................................16
3.3 Specifications supplied ...................................................................................................................... 16
3.4 Technical data ................................................................................................................................... 17
3.4.1 Vacuum Pump V-600.............................................................................................................17
3.4.2 Ambient conditions.................................................................................................................17
3.4.3 Materials ................................................................................................................................17
4 Transport and storage ......................................................................................................18
4.1 Transport ........................................................................................................................................... 18
4.2 Storage .............................................................................................................................................. 18

Contents BÜCHI Labortechnik AG
iv Operation Manual Vacuum Pump V-600
5 Installation..........................................................................................................................19
5.1 Important considerations prior to commissioning .............................................................................. 19
5.2 Installation site................................................................................................................................... 20
5.3 Securing against earthquakes ........................................................................................................... 21
5.4 Connecting laboratory equipment...................................................................................................... 22
5.5 Connecting the silencer ..................................................................................................................... 23
5.5.1 Connecting silencer directly to V-600 ....................................................................................23
5.5.2 Connecting the silencer to the outlet of the secondary condenser ........................................24
5.6 Connecting a Woulff bottle................................................................................................................. 25
5.6.1 Connecting the Vacubox via a Woulff bottle ..........................................................................25
5.7 Connecting a secondary condenser .................................................................................................. 27
5.8 Connecting a secondary cold trap ..................................................................................................... 28
5.9 Fitting an Interface I-300.................................................................................................................... 29
5.10 Fitting a VacuBox............................................................................................................................... 30
5.11 Connecting the vacuum pump to the power supply........................................................................... 31
5.12 Connecting communication cables to the V-600 ............................................................................... 32
5.13 Assembling the BUCHI distillation system......................................................................................... 33
5.13.1 Overview: setting up communication connections................................................................. 34
5.13.2 Overview: setting up coolant tubing connections...................................................................35
5.13.3 Overview: setting up vacuum tubing connections..................................................................36
5.14 Operating the Vacuum Pump V-600 with 2 Rotavapor systems........................................................ 37
6 Operation............................................................................................................................39
6.1 Operating V-600 without Interface I-300/I-300 Pro............................................................................ 39
6.2 Operating V-600 with Interface I-300/I-300 Pro................................................................................. 39
7 Cleaning and servicing .....................................................................................................40
7.1 Cleaning............................................................................................................................................. 40
7.1.1 Important considerations when cleaning................................................................................ 40
7.1.2 Cleaning the pump.................................................................................................................40
7.1.3 Cleaning the casing ...............................................................................................................41
7.1.4 Cleaning glass components...................................................................................................41
7.1.5 Cleaning internal pump tubing ...............................................................................................41
7.1.6 Cleaning the diaphragm.........................................................................................................42
7.2 Servicing............................................................................................................................................ 42
7.2.1 Notes on servicing .................................................................................................................42
7.2.2 Dismantling and reassembling pump head............................................................................43
7.2.3 Replacing the diaphragm....................................................................................................... 47
7.2.4 Replacing the non-return valve.............................................................................................. 48
7.2.5 Replacing connecting tubes...................................................................................................50
7.2.6 Replacing O-rings ..................................................................................................................53
7.2.7 Removing non-return valve from elbow connector ................................................................54
7.2.8 Fitting GL14 union nut with tube seal..................................................................................... 55
8 Help with faults ..................................................................................................................56
8.1 Faults, possible causes and remedies............................................................................................... 56
8.2 Customer service............................................................................................................................... 57
9 Taking out of service and disposal..................................................................................58
9.1 Taking out of service.......................................................................................................................... 58
9.2 Disposal............................................................................................................................................. 58

BÜCHI Labortechnik AG Contents
Operation Manual Vacuum Pump V-600 v
10 Appendix ............................................................................................................................59
10.1 Solvent table...................................................................................................................................... 59
10.2 Spare parts and accessories ............................................................................................................. 61
10.3 Health and safety approval................................................................................................................ 62
10.4 Health and safety............................................................................................................................... 63

1 | About this document BÜCHI Labortechnik AG
6/65 Operation Manual Vacuum Pump V-600
1 About this document
These operating instructions describe the Vacuum Pump V-600 at the time supplied.
They are an integral part of the product and contain important information that is nec-
essary for safe operation and maintenance.
These operating instructions apply to all variants of the Vacuum Pump V-600 and are
intended primarily for laboratory staff.
uTo ensure safe and trouble-free operation, read these operating instructions be-
fore starting up the device and follow the guidance they contain.
uKeep the operating instructions somewhere near to the device.
uPass on the operating instructions to any subsequent owner or user.
BÜCHI Labortechnik AG accepts no liability whatsoever for any faults or damage that
result from the failure to follow these operating instructions.
uIf you still have any questions after reading these operating instructions, please
contact BÜCHI Labortechnik AG Customer Service. Contact details for your local
agents can be found on the back cover of these operating instructions or on the In-
ternet at http://www.buchi.com.
1.1 Warning notices in this document
Warning notices warn you of dangers that can occur when handling the device. There
are four danger levels, each identifiable by the signal word used.
Signal word Meaning
DANGER Indicates a danger with a high level of risk which could result in
death or serious injury if not prevented.
WARNING Indicates a danger with a medium level of risk which could result in
death or serious injury if not prevented.
CAUTION Indicates a danger with a low level of risk which could result in mi-
nor or medium-severity injury if not prevented.
IMPORTANT Indicates a danger that could result in damage to property.
1.2 Symbols
The following symbols may be displayed in this instruction manual or on the device:
1.2.1 Warning symbols
Symbol Meaning Symbol Meaning
General warning Corrosive substance
Dangerous electrical voltage Flammable substance
Biological hazard Potentially explosive atmos-
phere
Breakable items Dangerous gases

BÜCHI Labortechnik AG About this document | 1
Operation Manual Vacuum Pump V-600 7/65
Symbol Meaning Symbol Meaning
Hot surface Health-harming or irritant
substances
Risk of hand injury Strong magnetism
1.2.2 Mandatory directive symbols
Symbol Meaning Symbol Meaning
Wear safety goggles Wear protective clothing
Wear protective gloves Heavy load, do not lift with-
out assistance
1.2.3 Other symbols
NOTE
This symbol draws attention to useful and important information.
RThis character draws attention to a requirement that must be met before the in-
structions below are carried out.
uThis character indicates an instruction that must be carried out by the user.
5This character indicates the result of a correctly carried out instruction.
1.3 Available languages
These operating instructions were originally produced in German and have been
translated into several other languages. The translations are available on the en-
closed CD or can be obtained as a PDF file via http://www.buchi.com.
1.4 Trademarks
Product names and registered or unregistered trademarks that are used in this in-
struction manual are used only for identification and remain the property of the owner
in each case.
For example, Rotavapor® is a registered trademark of BÜCHI Labortechnik AG.

2 | Safety BÜCHI Labortechnik AG
8/65 Operation Manual Vacuum Pump V-600
2 Safety
2.1 Intended use
The Vacuum Pump V-600 has been designed and built as an item of laboratory
equipment. Its intended use is the evacuation of laboratory apparatus. This is done by
means of a PTFE-diaphragm pump – with or without regulation by a vacuum con-
troller.
PTFE-diaphragm pumps are used primarily for the following applications:
Evacuating distillation apparatus, in particular rotary evaporators (Rotavapor®)
Vacuum filtration
Vacuum-drying cabinets
Drying kilns
2.2 Use other than that intended
Use of any kind other than that referred to and any application that does not comply
with the technical specifications constitutes use other than that intended. The opera-
tor alone is liable for any damage brought about by use of the device in a manner
other than that intended.
In particular, the following applications are not permissible:
Use in areas which require explosion-safe apparatus.
Pumping of liquids and solid particles.
Processing samples which could be caused to explode or ignite by impact, friction,
heat or sparks (e.g. explosives).
Use for analysis (e.g. Kjeldahl).
Generation of positive pressure (pressurizing a system).
Operation at ambient temperatures >40 °C.
2.3 Staff qualification
Unqualified persons are unable to identify risks and are therefore exposed to greater
dangers.
The device may only be operated by suitably qualified laboratory staff.
These operating instructions are aimed at the following target groups:
Users
Users are persons that meet the following criteria:
They have been instructed in the use of the device.
They are familiar with the contents of these operating instructions and the applica-
ble safety regulations and apply them.
They are able on the basis of their training or professional experience to assess
the risks associated with the use of the device.

BÜCHI Labortechnik AG Safety | 2
Operation Manual Vacuum Pump V-600 9/65
Operator
The operator (generally the laboratory manager) is responsible for the following as-
pects:
The device must be correctly installed, commissioned, operated and serviced.
Only suitably qualified staff may be assigned the task of performing the operations
described in these operating instructions.
The staff must comply with the locally applicable requirements and regulations for
safe and hazard-conscious working practices.
Safety-related incidents that occur while using the device should be reported to the
manufacturer ([email protected]).
BUCHI service technicians
Service technicians authorized by BUCHI have attended special training courses and
are authorized by BÜCHI Labortechnik AG to carry out special servicing and repair
measures.
2.4 Residual risks
The device has been developed and manufactured using the latest technological ad-
vances. Nevertheless, risks to persons, property or the environment can arise if the
device is used incorrectly.
Appropriate warnings in this manual serve to alert the user to these residual dangers.
2.4.1 Dangerous vapors
Distillation can produce dangerous vapors that are capable of causing life-threatening
toxic effects.
uDo not inhale any vapors produced during distillation.
uEnsure that vapors are removed by a suitable fume hood.
uOnly use the device in well ventilated areas.
uIf vapors escape from joints or connections, check the seals concerned and re-
place them if necessary.
uDo not distill any unknown fluids.
uObserve the safety data sheets for all fluids used.
2.4.2 Faults during operation
If a device is damaged, sharp edges or exposed electrical wires can cause injuries.
uRegularly check device for visible damage.
uIf faults occur, switch off the device immediately, unplug the power cord and in-
form the operator.
uDo not continue to use devices that are damaged.
2.4.3 Hot surfaces
The surfaces of the device can become very hot. If touched they can cause skin
burns.
uDo not touch hot surfaces or else wear suitable protective gloves.

2 | Safety BÜCHI Labortechnik AG
10/65 Operation Manual Vacuum Pump V-600
2.5 Personal protective equipment
Depending on the application, hazards due to heat and/or corrosive chemicals may
arise.
uAlways wear appropriate personal protective equipment such as safety goggles,
protective clothing and gloves.
uMake sure that the personal protective equipment meets the requirements of the
safety data sheets for all chemicals used.
2.6 Modifications
Unauthorized modifications may impair safety and lead to accidents.
uUse only genuine BUCHI accessories, spare parts and consumables.
uTechnical modifications to the device or accessories should only be carried out
with the prior written approval of BÜCHI Labortechnik AG and only by authorized
BUCHI technicians.
BUCHI accepts no liability whatsoever for damage arising as a result of unauthorized
modifications.

BÜCHI Labortechnik AG Product description | 3
Operation Manual Vacuum Pump V-600 11/65
3 Product description
3.1 Description of function
The Vacuum Pump V-600 is intended for evacuating laboratory apparatus to a termi-
nal vacuum of 1.5mbar (±1mbar). It can be operated either as a standalone device
or combined with optional accessories (see Chapter3.3 "Specifications supplied",
page16).
Once switched on, the Vacuum Pump V-600 runs in continuous mode unless it is
connected to the Interface I-300/I-300 Pro unit. In unregulated continuous mode, the
pump runs at a maximum speed of 1500 rpm and generates a terminal vacuum of
1.5mbar (±1mbar). The time required for evacuation depends on the size (volume)
of the vessel.
When operating as a standalone unit, the Vacuum Pump V-600 automatically
switches to energy saving mode after 1 hour of operation. In energy saving mode, the
Vacuum Pump V-600 runs at 80% of maximum speed but still generates the same
terminal vacuum of 1.5mbar (±1mbar). After 2 hours of operation, the speed re-
duces to 50% of maximum while still maintaining the same terminal vacuum.
3.2 Configuration
3.2.1 Front view
1
1
4
3
3
2

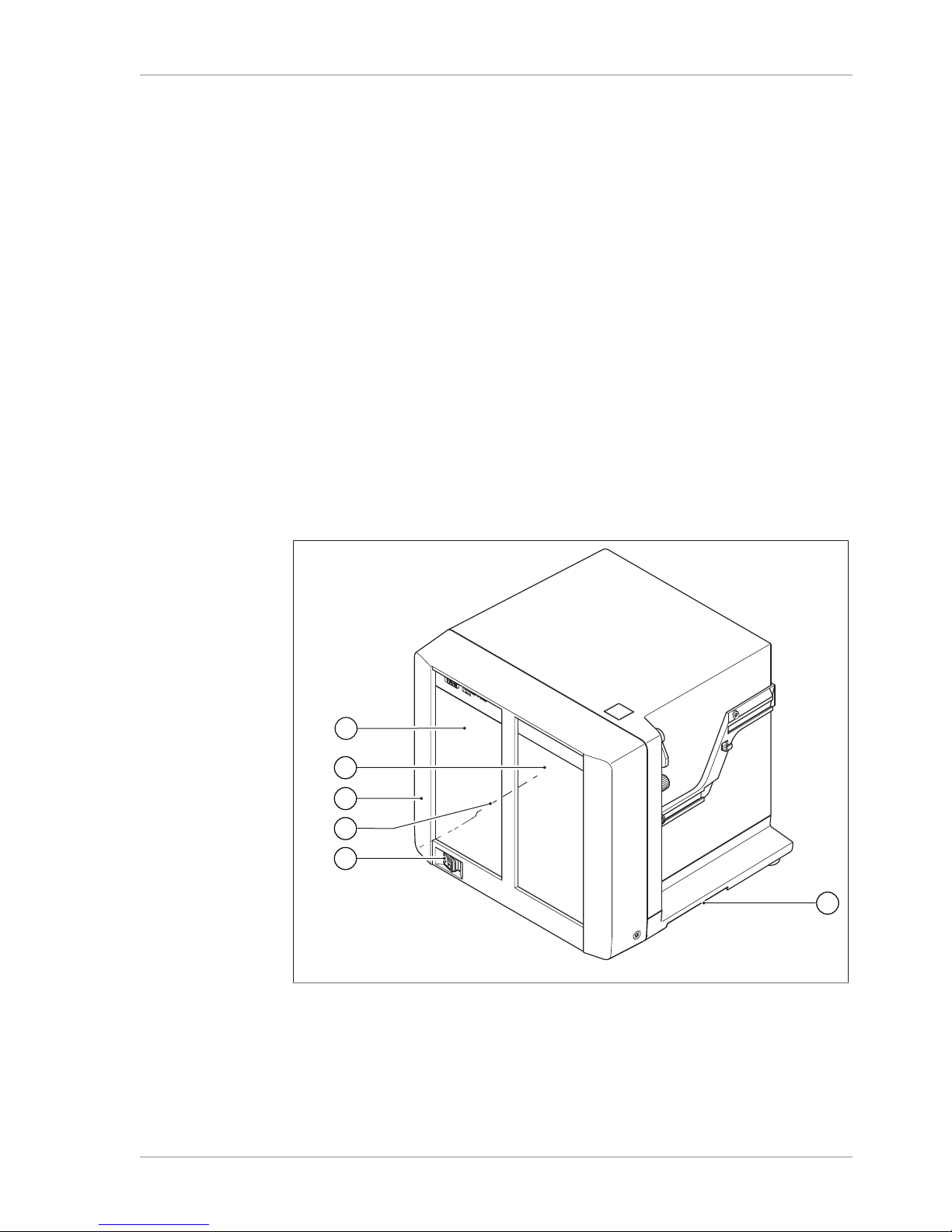

Fig.1: Design of V-600
1 Inspection window 3 Recessed grip
2 Casing front 4 On/Off master switch

3 | Product description BÜCHI Labortechnik AG
12/65 Operation Manual Vacuum Pump V-600
3.2.2 Rear view
1
2
4
3
5
6
7
8
9
Fig.2: Rear view of V-600
1 Gas ballast 5 Ventilation slots
2 Pump outlet 6 Connection panel for communication
cables (see Chapter5.12 "Connect-
ing communication cables to the
V-600", page32)
3 Pump intake (vacuum) 7 Lashing eye (for securing against fall-
ing during earthquakes)
4 Mounting rail for accessory compo-
nents
8 Power supply connection
9 Type plate

BÜCHI Labortechnik AG Product description | 3
Operation Manual Vacuum Pump V-600 13/65
3.2.3 Connections
2
1
3
Fig.3: Connections on the V-600
1 Connection for alternative pump con-
troller (CTRL)
3 Standard BUCHI communication
ports (COM)
2 Fill level sensor connection (LEVEL)
Standard BUCHI communication port (COM)
The standard BUCHI communication port is used to connect the Interface I-300/I-300
Pro to the Vacuum Pump V-600. For more information, see Chapter5.13.1 "Over-
view: setting up communication connections", page34.
Connection for alternative pump controllers (CTRL)
The CTRL socket offers the following options:
Digital ON/OFF control of the pump via legacy devices (V-850 / V-855,
V-800 / V-805) or via the VacuBox.
Operation of two Rotavapor systems with only one Vacuum Pump V-600, see
Chapter5.14 "Operating the Vacuum Pump V-600 with 2 Rotavapor systems",
page37.
Control of pump speed by different-make products with analog 0–10 V signal.

3 | Product description BÜCHI Labortechnik AG
14/65 Operation Manual Vacuum Pump V-600

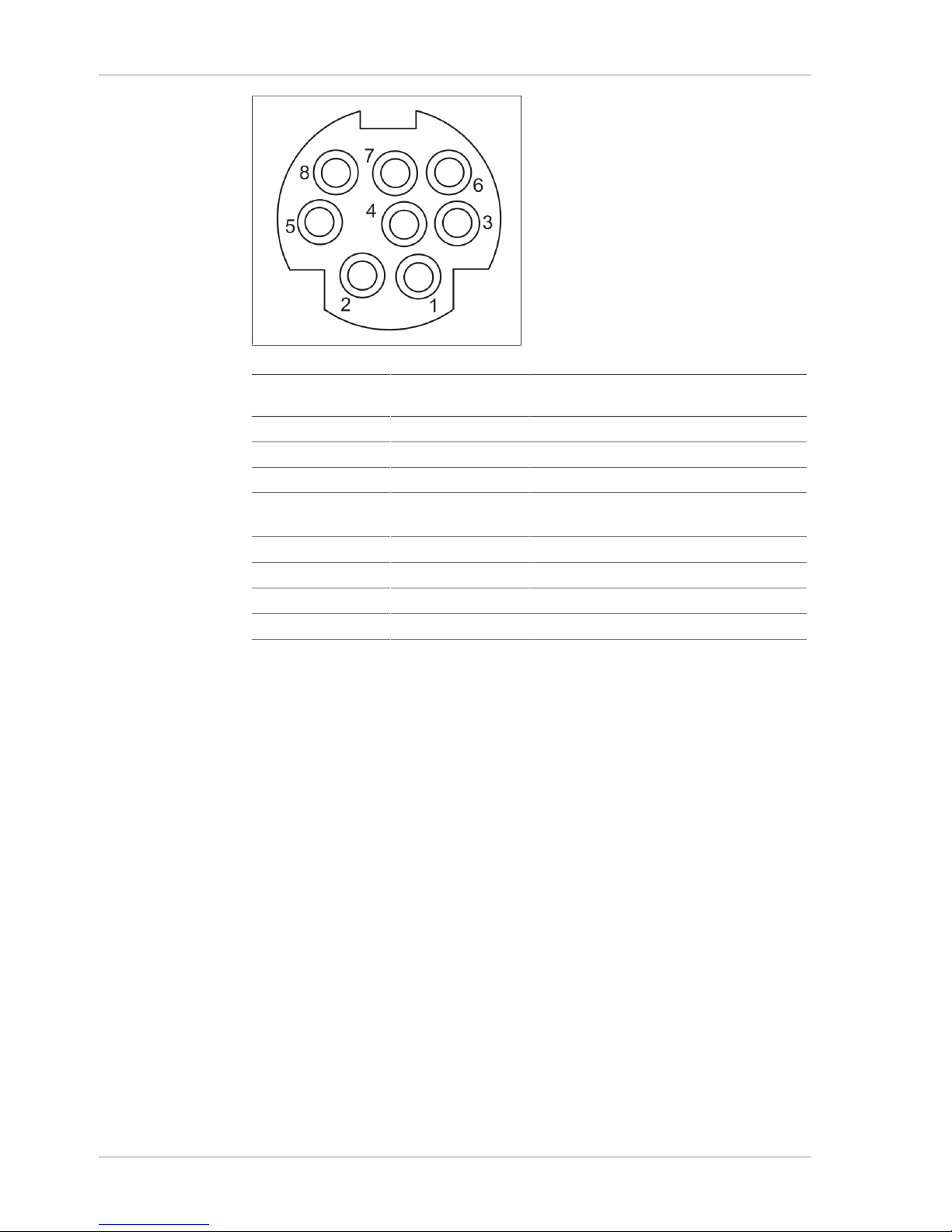

Fig.4: 8-pin MiniDin pin assignment, view of socket
Pin
8-pin notation
Symbol Description
1 DGND Digital ground
2 Detection DIGIN Digital input detection
3 nc not connected
4 AIN 0 – 10 V Analog Input 0 – 10 V (max. -0.2 V ... 12
V)
5 nc not connected
6 nc not connected
7 Detection AIN Analog input detection
8 DIGIN PWM Digital input ON/OFF
Connection for fill level sensor (LEVEL)
A fill-level sensor can be connected to the Vacuum Pump V-600 as an option. The fill-
level sensor measures the fill level of the receiving flask if a secondary condenser or
a secondary cold trap is connected to the V-600. If the relevant level is exceeded in
the receiving flask, a message appears on the display of the Interface I-300/I-300 Pro.

BÜCHI Labortechnik AG Product description | 3
Operation Manual Vacuum Pump V-600 15/65
3.2.4 Internal view
1
2
3
8
9
7
6
5
4
2

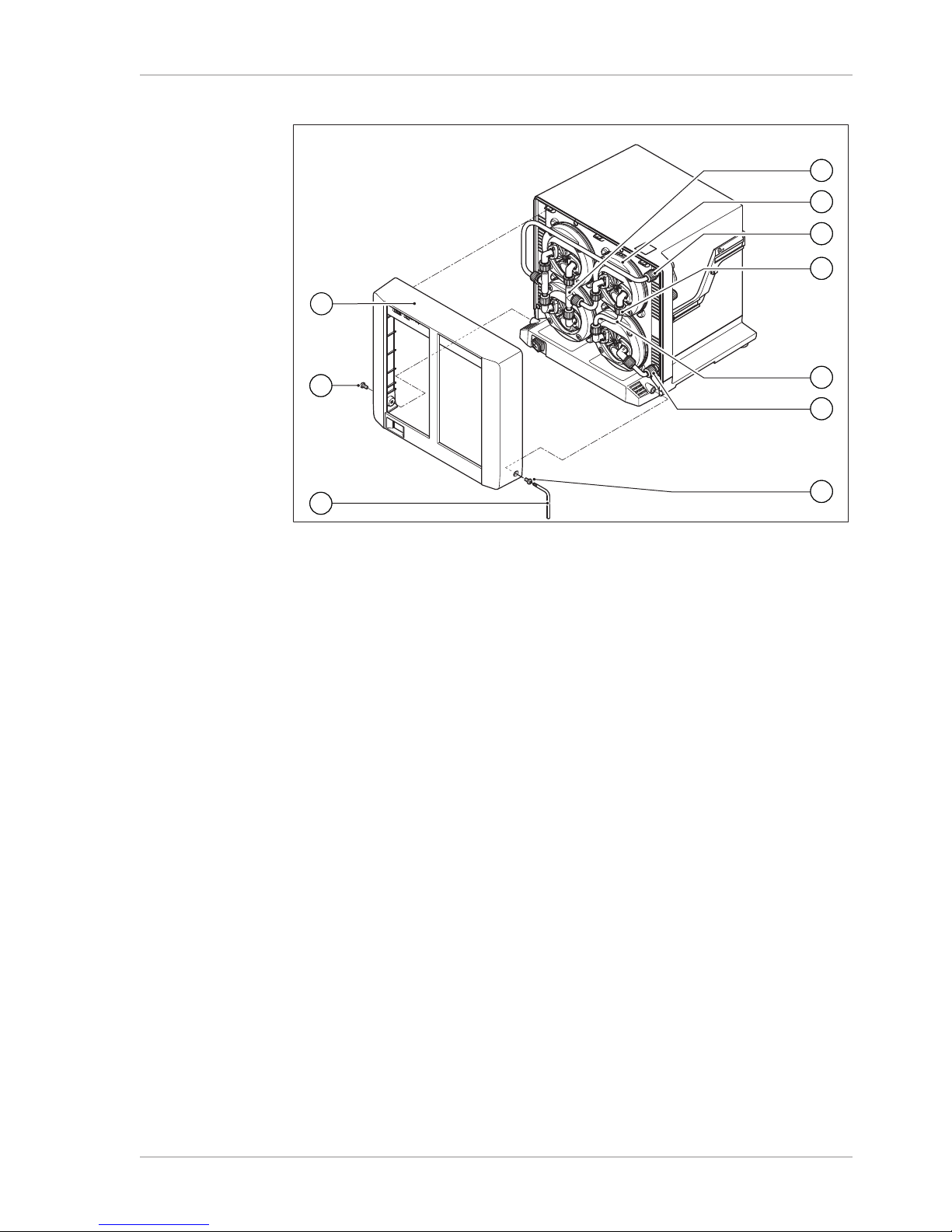

Fig.5: Internal view of V-600 showing pump heads
1 Casing front 6 Connection (pump intake)
2 Fixing screws for casing front 7 GL14 union nut
3 Torx key 8 Pump-head connecting tube
4 T-piece 9 Connection (pump outlet)
5 Pump head fixing ring

3 | Product description BÜCHI Labortechnik AG
16/65 Operation Manual Vacuum Pump V-600

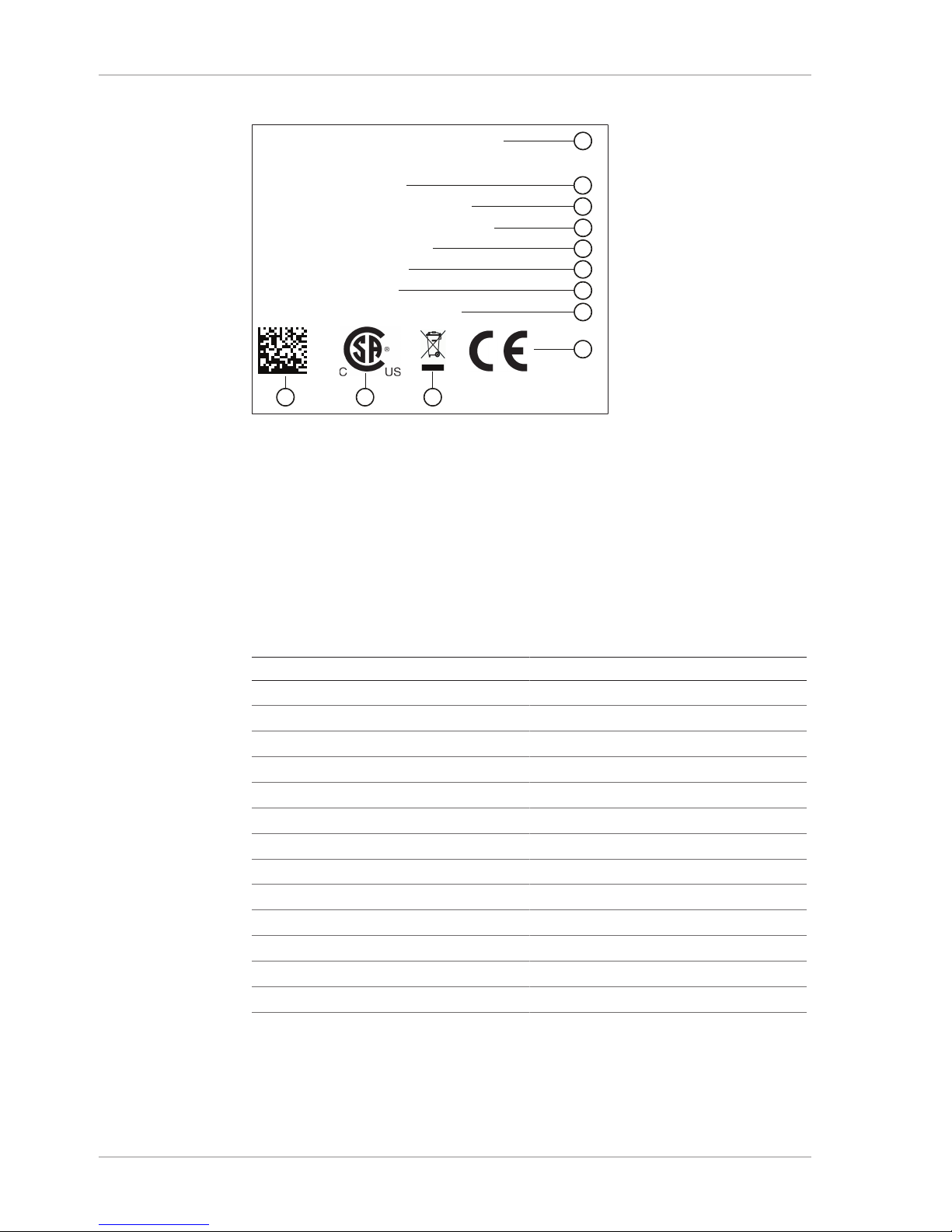

3.2.5 Type plate
BÜCHI Labortechnik AG
CH-9230 Flawil/Switzerland
Type: V-600
SN: 1000000000
Volt: 100 – 240 VAC
Frequ.: 50/60 Hz
Power: 360 W
Built: 2016
Made in Switzerland
3
7
2
1
5
4
6
8
9
1011
9
Fig.6: Type plate (example)
1 Company name and address 7 Year of manufacture
2 Device name 8 Country of manufacture
3 Serial number 9 Approvals
4 Power supply voltage 10 Symbol for "Do not dispose of as
household waste"
5 Frequency 11 Product code
6 Power consumption
3.3 Specifications supplied
V-600
Vacuum Pump V-600 1
Vacuum tubing (2 m) 1
Power cord 1
Silencer 1
Tubing connections (set) 1
Interface I-300 *
Woulff bottle *
Secondary cold trap *
Secondary condenser *
Communication cables 1
Diaphragm grips 1
Torx key Tx10 1
Torx key Tx25 1
The components marked * are optional.

BÜCHI Labortechnik AG Product description | 3
Operation Manual Vacuum Pump V-600 17/65
3.4 Technical data
3.4.1 Vacuum Pump V-600
Dimensions (W x H x D) 330 x 321 x 291 mm
Weight 13.9 kg
Power supply voltage 100 − 240 VAC, 50/60 Hz
Power consumption 360 W
Power consumption in energy saving
mode (80%)
190 W
Power consumption in energy saving
mode (50%)
120 W
Terminal vacuum (absolute) 1.5 mbar (± 1 mbar)
Vacuum capacity (to DIN) 3.1 m3/h
Vacuum connection GL14
Noise level 40 - 64 dBA (depending on Operating
mode)
Overvoltage category II
Pollution degree 2
Enclosure rating IP21
Approvals CE/CSA/CUS
Maximum speed 1500 rpm
3.4.2 Ambient conditions
Max. altitude above sea level 2000 m
Ambient temperature 5 – 35 °C
Maximum relative humidity 80 % for temperatures up to 31 °C
decreasing linearly to 50 % at 40 °C
The Vacuum Pump V-600 may only be used in indoor areas.
3.4.3 Materials
Component Material
Pump heads PEEK
Drive unit body Aluminum
Casing PBT
Diaphragms EPDM/PTFE
Valve plate PEEK
Valve body PEEK
Pump-head connecting tube FEP
Vacuum tubing Norprene
Non-return valve O-rings FKM

4 | Transport and storage BÜCHI Labortechnik AG
18/65 Operation Manual Vacuum Pump V-600
4 Transport and storage
4.1 Transport
IMPORTANT
Risk of breakage due to incorrect transportation
uMake sure that all parts of the device are safely packed in such a way as to pre-
vent breakage, ideally in the original box.
uAvoid sharp movements during transit.
uAfter transportation, check the device for damage.
uDamage that has occurred in transit should be reported to the carrier.
uKeep packing for future transportation.
4.2 Storage
uMake sure that the ambient conditions are complied with (see Chapter3.4 "Tech-
nical data", page17).
uWherever possible, store the device in its original packaging.
uAfter storage, check the device, all glass components, seals and tubing for dam-
age and replace if necessary.

BÜCHI Labortechnik AG Installation | 5
Operation Manual Vacuum Pump V-600 19/65
5 Installation
5.1 Important considerations prior to commissioning
WARNING
Risk of irritation of mucous membranes and poisoning from inhalation
of hazardous gases and vapors.
In the process of evacuation it is possible that hazardous substances may be pumped
out at the same time and released into the atmosphere. In addition, it is possible for
such substances to collect as condensation at leaking connections.
uOperate the pump inside a fume hood.
uDirect vapors from the pump outlet into the fume hood.
uIf necessary, wear a face mask and safety goggles.
uIf necessary, only handle pump and accessories with protective gloves.
WARNING
Risk of fire or explosion from flammable solvent vapors.
In the process of evacuation, it is possible for solvent vapors to get into the inside of
the pump and catch fire or explode due to the electric current.
uFollow the guidance notes for the solvents used.
uConnect a Woulff bottle upstream of the pump intake.
uOperate the pump inside a fume hood.
CAUTION
Health risks when handling corrosive substances.
uWhen working with strong acids or caustic solutions, always wear personal protec-
tive equipment (safety goggles, protective clothing, protective gloves).

5 | Installation BÜCHI Labortechnik AG
20/65 Operation Manual Vacuum Pump V-600
5.2 Installation site
IMPORTANT
Risk of property damage from falling equipment (e.g. in an earthquake)
uSecure the Vacuum Pump against falling by means of the lashing eye on the rear
of the device, see Chapter3.2.2 "Rear view", page12.
The installation site must meet the following requirements:
Firm and level surface: at least 330 mm x 330 mm (W x D)
Height: at least 300 mm
Set up inside a fume hood or
feed the pump outlet into the fume hood
Sufficient clearance on all sides of the device (approx. 10 cm) in order to ensure air
circulation
Clear air outlet at the rear (ventilation slots must be kept clear)
The V-600 is intended for use in laboratory environments. See Chapter3.4.2 "Ambi-
ent conditions", page17.
