Gasoline Water Pump
Owner’s Manual
Max Tool Customer Service
[email protected] or call 1-800-629-3325 (option 3)
Monday -Thursday 6am to 7pm, Friday - Saturday 6am to 3pm. PST
Product Support (Product: information, application & warranty questions)
[email protected]
or call 1-800-629-3325 (option 3)
Monday -Thursday 6am to 7pm, Friday - Saturday 6am to 3pm. PST

2
This manual provides information regarding the operation and maintenance of these products. We have
made every effort to ensure the accuracy of the information in this manual. We reserve the right to
change this product at any time without prior notice.
Please keep this manual available to all users during the entire life of the gasoline water pump.
CONTENTS
ĉ. General Safeguards ĂĂĂĂĂĂĂĂĂĂĂĂĂĂĂĂĂ1
Ċ. Location of Component Parts ĂĂĂĂĂĂĂĂĂĂĂĂĂ3
ċ. Operation before Starting Up ĂĂĂĂĂĂĂĂĂĂĂĂĂ4
Č. Starting of Engine ĂĂĂĂĂĂĂĂĂĂĂĂĂĂĂĂĂĂ9
č
. Use in Highland Areas
ĂĂĂĂĂĂĂĂĂĂĂĂĂĂĂĂ11
Ď. Operation of Water Pump ĂĂĂĂĂĂĂĂĂĂĂĂĂĂ12
ď. Shutting Down the Engine ĂĂĂĂĂĂĂĂĂĂĂĂĂĂ13
Đ. Maintenance ĂĂĂĂĂĂĂĂĂĂĂĂĂĂĂĂĂĂĂĂ14
đ. Transportation and Storage ĂĂĂĂĂĂĂĂĂĂĂĂĂĂ19
Ē. Troubleshooting
ĂĂĂĂĂĂĂĂĂĂĂĂĂĂĂĂĂĂĂ
21
ē. Specifications ĂĂĂĂĂĂĂĂĂĂĂĂĂĂĂĂĂĂĂĂ23

3
ĉ. General Safeguards
Safety Precautions
Before starting the engine, perform inspections according to the
procedures described on pre-
operation inspections to avoid
accidents and damage to your machine.
For safety, never attempt using this GEP (gasoline engine
powered)
water pump to deliver inflammable or corrosive liquids
(such as gasoline and acids). Likewise, corrosive mediums,
seawater, chemical solvents, alkaline liquids (such as used gasoline,
liquor and honey) should be avoided.
Place the water pump on a solid, l
evel position surface to avoid
tilting or turnover that may give rise to spilling of fuel.
To prevent fire hazards, keep the pump well ventilated during
operation and maintain a distance of at least l meter between the
machine and the wall or other machine
s. Keep away from
inflammable substances.
Do not allow children and pets to enter the working area as this
may increase the chance of their getting burned by hot surfaces of
the operating parts.
Know how to stop the water pump quickly how to operate the
co
ntrols. Do not use the pump against the prescribed operating
rules.
WARNING˖Safety Precautions
The gasoline fuel is highly inflammable and may explode under
certain conditions.
Do the fueling with the engine shut down and in a well-
ventilated
Please read this operation manual to have a
thorough understanding of the content there
before use the product. Failure to do so may
lead to personal injury or mechanical damage.

4
environment. No smoking is allowed and no open fire or sparks
allowed to exist in areas where fueling is carried out or the fuel is
stored.
Do not allow the fuel to overflow the fuel tank. Be sure to recap
the tank and tighten it after refueling.
When fueling, take care not to spill the gasoline about as the
gasoline vapor may easily get ignited to cause a fire hazard. Be sure
to remove the spilled gasoline as by wiping before starting the
engine.
Do not run the engine indoors or in a poorly ventilated space as
the exhaust gas produced by the running engine contains toxic
carbon monoxide that may cause the loss of personal
consciousness or even death.

5

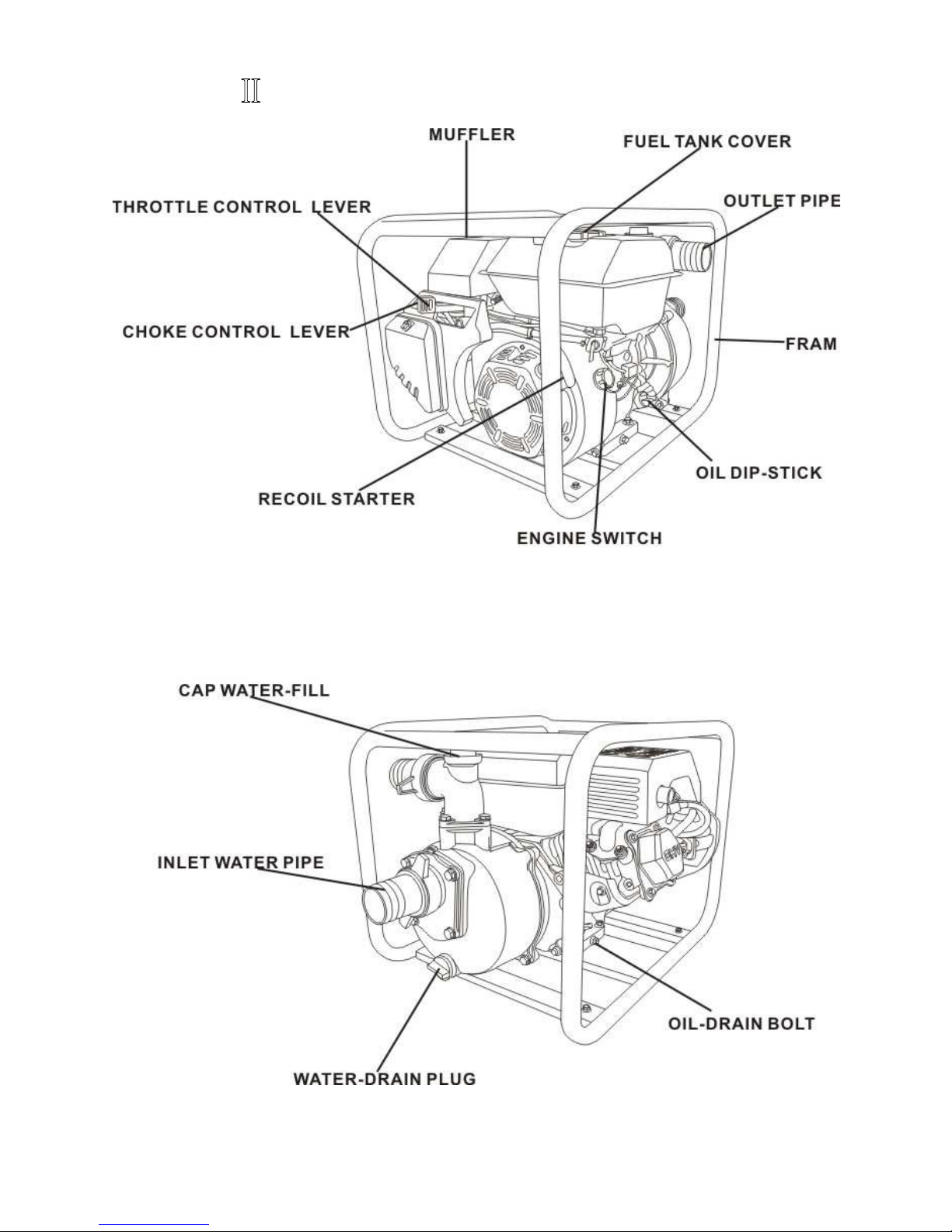

Ċ. Location of Component Parts

6
ċ. Operation before Starting Up
1. Connecting the water inlet

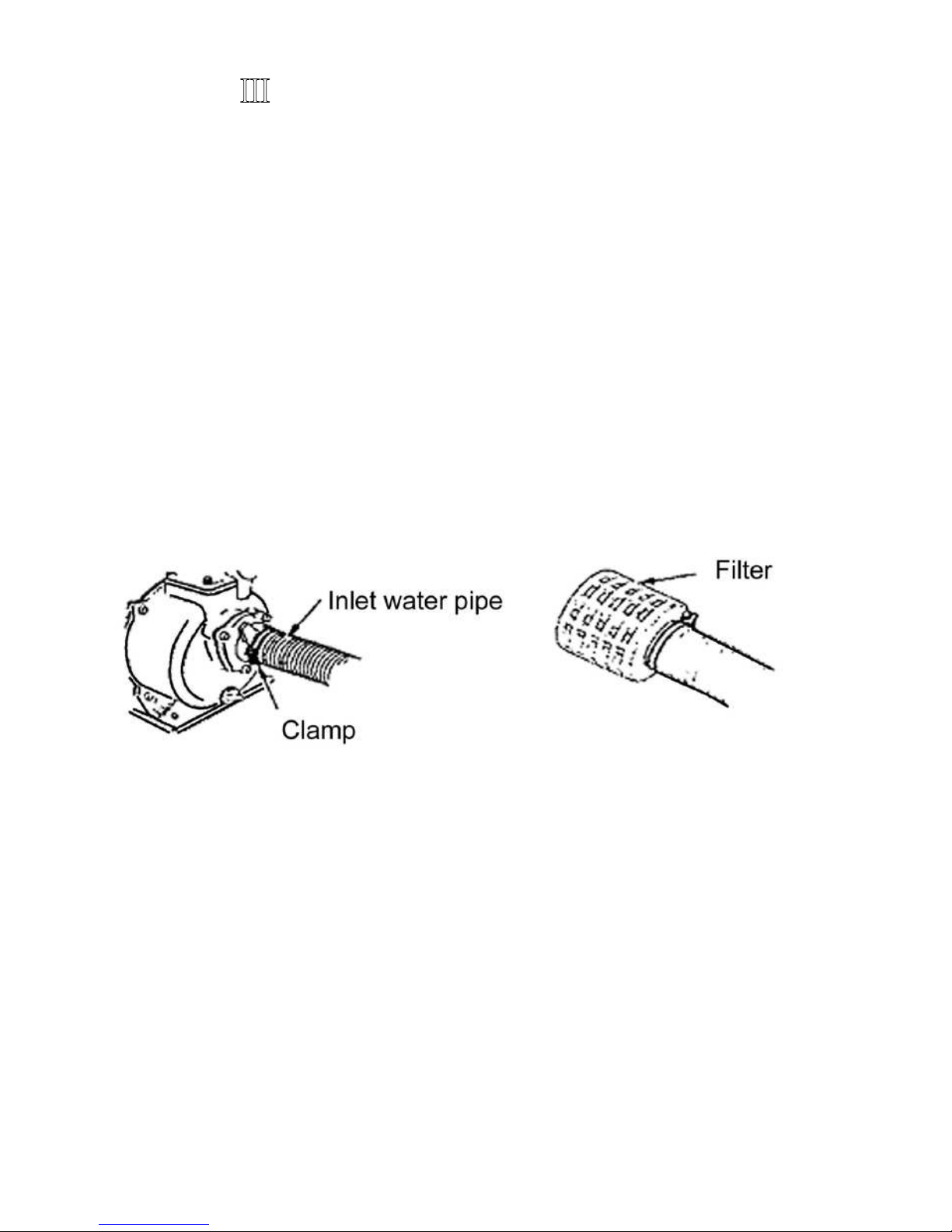

Connect the
water inlet with a commercially available hose,
connector and fastener clip. The inlet hose must be a continuous
non-
foldable structure with a length not more than required and
should be placed near to the source of water so as to achieve the
pump should be fitted to the end of the hose with the hose connector
as shown in the figure below.
CAUTION: Before pumping water, attach the filter to the end of the
hose to filter out foreign matters in the water, the presence of which
may cause clogging and damage to the wane wheel.
NOTE: The hose connector and fastener clip should be securely
fastened to prevent air leaks and reduction in suction power. A loose
hose will reduce the pump performance and self
-suction capacity.

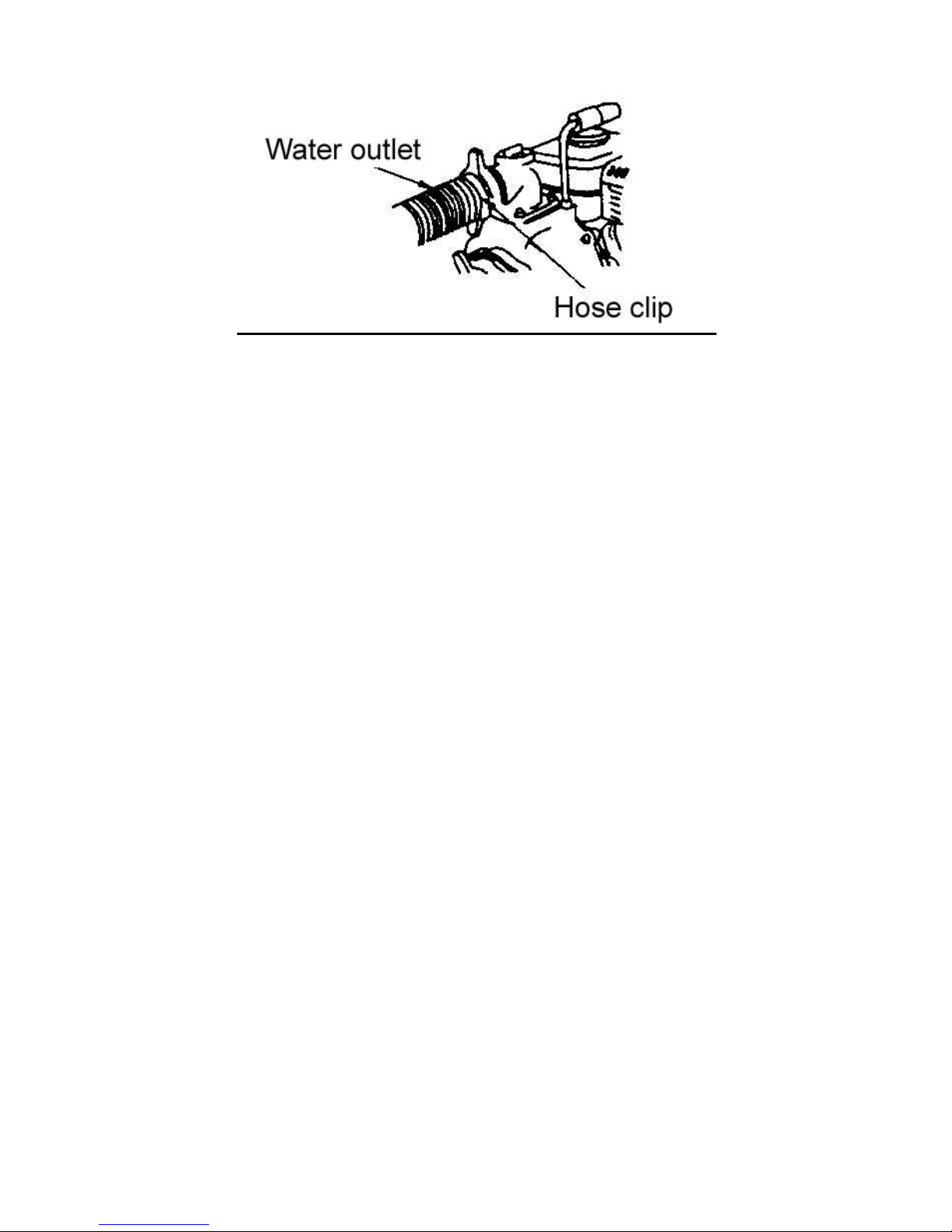

2. Connecting the water outlet
Connect the water outlet with a commercially available hose, hose
connector and fastener clip. Large diameter hoses are the most
effective while small ones will increase the flow resistance and
reduce the output power of the pump.

7
NOTE:
Be sure to the fastener clip is securely fastened to prevent
the
outlet hose from coming off under high water pressure.
3.Checking the oil level
CAUTION:
g
The oil is one of the major factors affecting engine performance
and life. Do not use dirty oil or vegetable oil.
g
Be sure to check the oil level with the engine shut down and
placed on a level surface.
Please use the SE15-40, 4-stroke engine oil as recommended.
Please use the type of oil with a proper viscosity according to the
local average temperature.
Oil shortage alarm system (OSAS) (installation position)
The OSAS is designed to avoid damage of the engine due to the
shortage of oil in the crankcase. The system will automatically shut
down the engine just before the crankcase oil level drops down to
th
e minimum line of safety (with the engine switch staying in the ON
position).
If the engine is shut down and cannot be started again, check the
oil level before initiating further troubleshooting procedures.

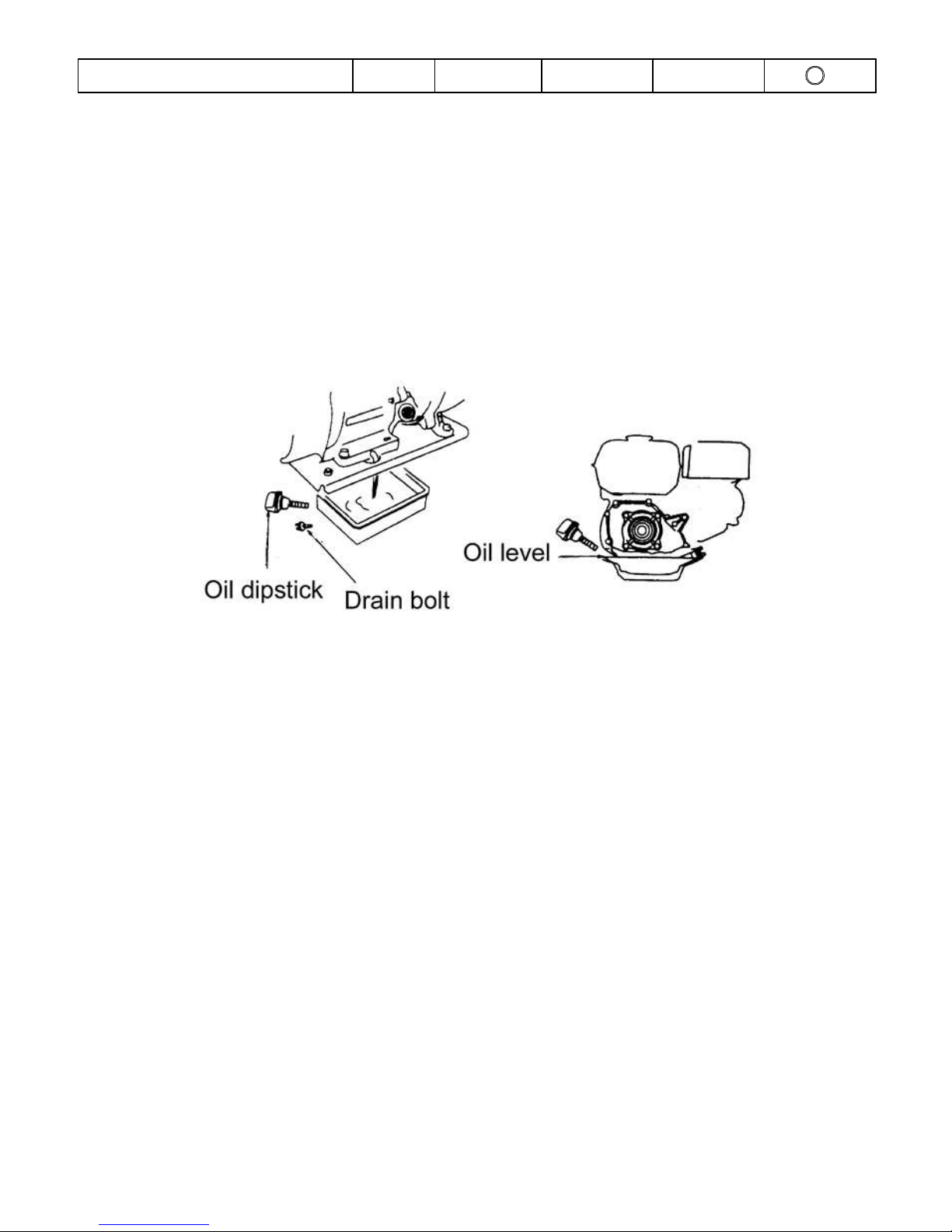

Remove the oil dipstick and wipe it dry.
Insert
the dipstick into the oil filler but not screw it in.
Replenish the crankcase with the recommended type of oil until

8
the oil level comes up to the upper most position of the refilled if the
existing oil level is found too low.
CAUTON:
gRunning the engine at a low oil level will cause damage to it.
4. Checking the fuel level
Uncap the fuel tank and check the fuel level. Pouring gasoline if
the fuel level is found too low.
Please use the type of gasoline recommended by the Dealer
(Using the low lead content or lead-
free gasoline type is good for
minimizing carbon deposits inside the combustion chamber).
Do not use a mixture of gasoline and oil or dirty gasoline to
prevent dirt, dust or water from entering the fuel tank.
CAUTION:
gThe
gasoline fuel is highly inflammable and may explode under
certain conditions.
gDo the fueling with the engine shut down and in a well-
ventilated
environment. No smoking is allowed and no open fire or sparks
allowed to exist in areas where fueling is carried out or
the fuel is
stored.
g
Do not allow the fuel to overflow the fuel tank. Be sure to recap
the tank and tighten it after refueling.

9
g
When fueling, take care not to spill the gasoline about as the
gasoline vapor may easily get ignited to cause a fire hazard
. Be sure
to remove the spilled gasoline as by wiping before starting the
engine.
g
Avoid frequent or extensive exposure of the skin to gasoline or
breathing in the gasoline vapor. Keep the gasoline out of the reach of
children.
gFuel tank capacity: 1.0 gallons (US. 3.6 liters)

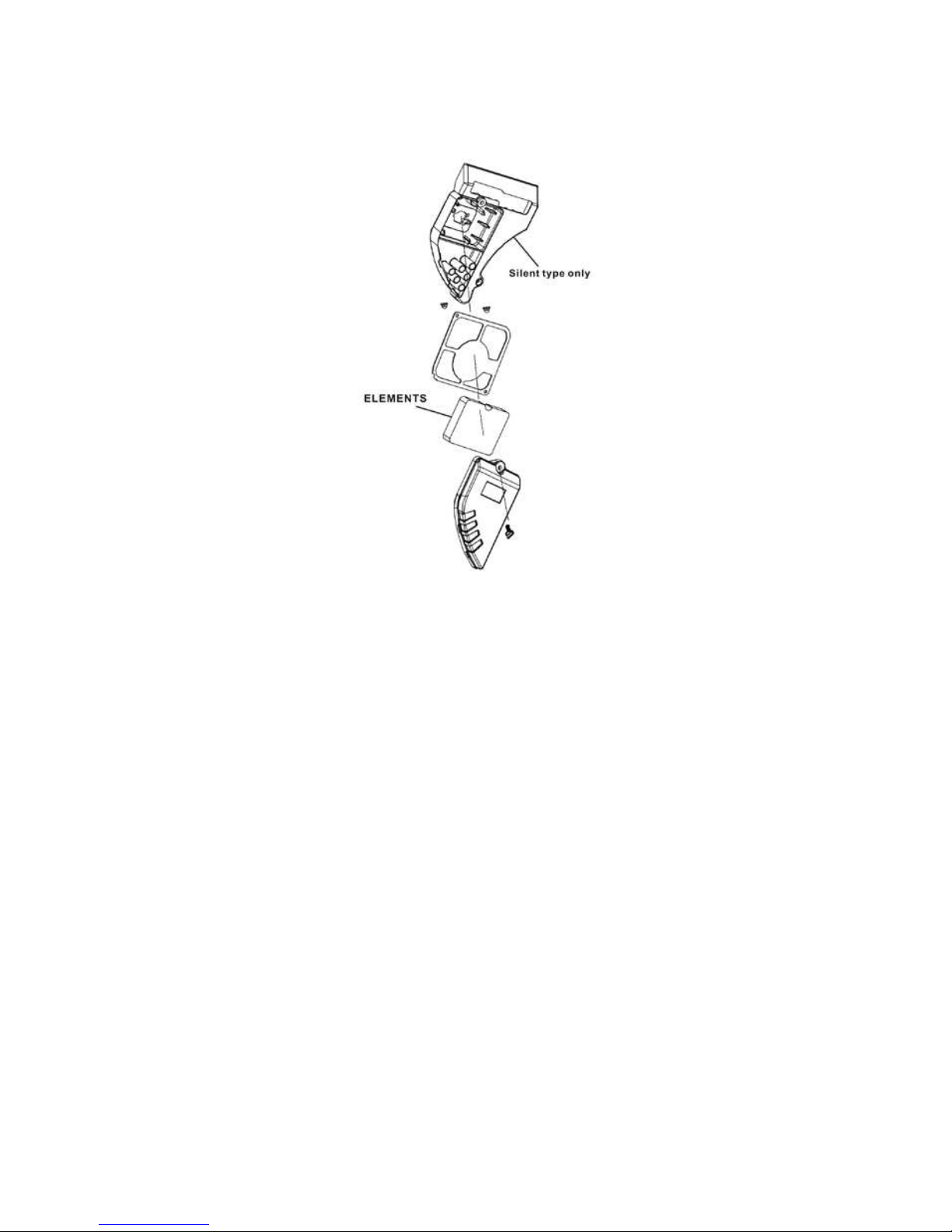

5. Checking the air cleaner filter element
Screw the wing nut and remove the washer and cleaner cover.
Check the filter element to see if it is too dirty and clean it if
necessary.
CAUTION:
Do not run the eng
ine without the air cleaner as this may quicken
engine wear if dirt or dust is sucked into the engine through the
carburetor.

10
6. Checking and filling the pump with cooling water
The pump must be filled with water before it is put to operation.
CAUTION:
g
Do not attempt running the pump without cooling water or the
pump will get overheated. Extensive running without cooling water
may also damage the air tightness of the pump. If the pump is found
running dry, stop the engine and pouring in water wh
en it cools
down.

11
Č. Starting engine
1. Turn on the fuel tap (by setting it to the ON position).
2. Close the choke.
NOTE:
g
The choke is not required when starting the engine warm or the
ambient temperature is rather high, (i.e. keep the choke open when
starting the engine).
3. Set the engine switch to the ON position.
4. Turn the throttle control lever slowly to the left.

12

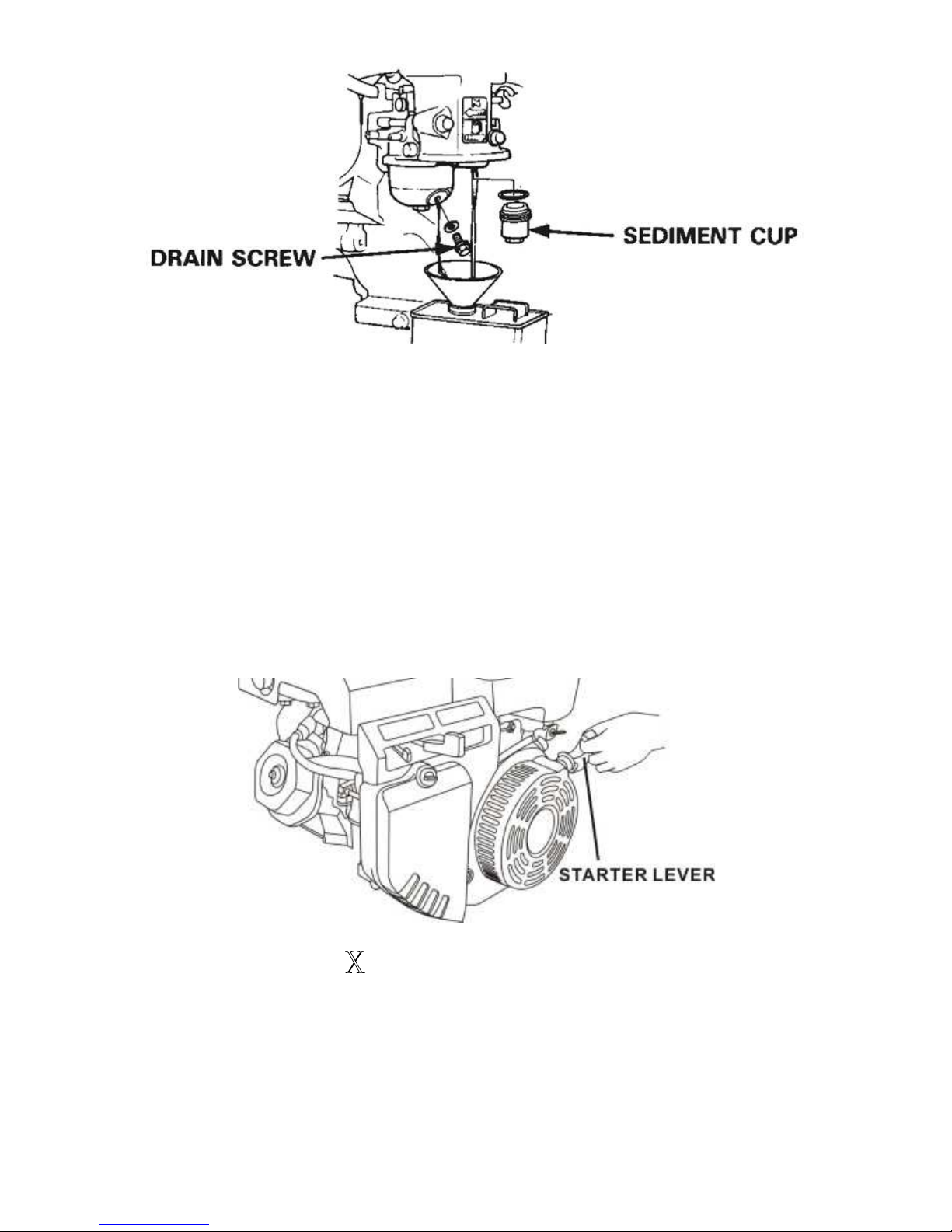

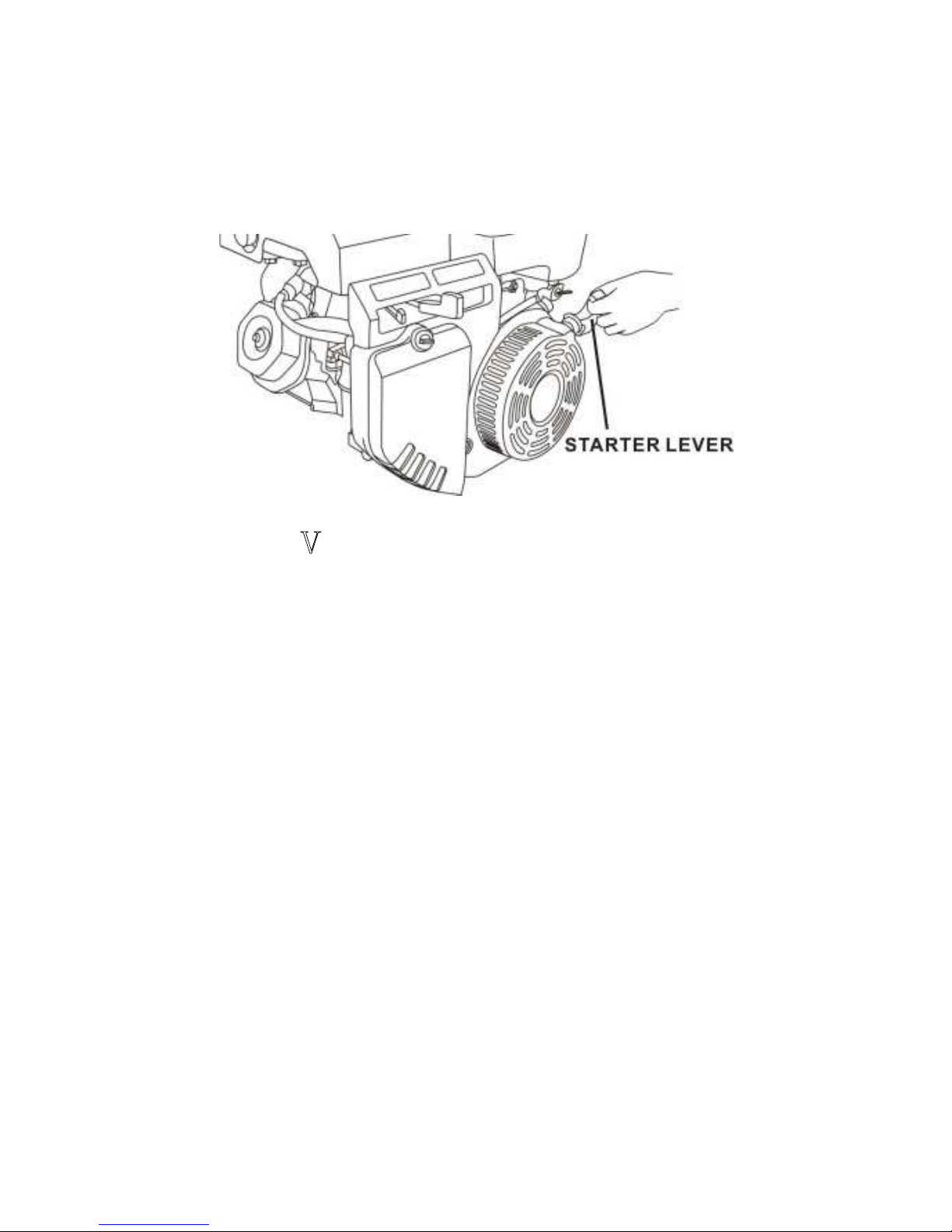

5. Gently pull up the starter lever until a resistance is felt and then
quickly pull it up.
CAUTION:
gDo not allow the starter lever t
o retract quickly into the engine. Let
it go back gently to avoid damaging the starter.
č.Use in Highland Areas
Operation in Highland Conditions
In highland areas (with a high ASL elevation), the air-
fuel mixture
produced by a standard carburetor will be too thick and result in a
reduced engine performance and soared fuel consumption. For
operation in highland areas, the engine performance may be
increased by using a smaller diameter carburetor nozzle and
readjusting the carburetor idle speed. If the water pump is frequently
used in areas with a ASL elevation of more than 1800 meters (6000
feet), ask the local dealer to replace or readjust the carburetor
beforehand. Even if the engine is fitted with a carburetor nozzle of an
appropriate size, the engine power will still go down by about 3.5%
each time when the ASL elevation goes up by 305 m
eters (1000
feet). If no replacement or readjustment is ever made of the
carburetor, the highland effect of the engine output power will be
even more obvious.
CAUTION:

13
g
Using the water pump in areas where the ASL elevation is lower
than suitable for th
e carburetor nozzle will lead to a decreased
engine performance and overheating of the engine and even cause
serious damage to the engine due to an extremely thin air-
fuel
mixture. Ď. Operation of the Water Pump
1. Gradually open the choke after the engine warms up.
2. Set the throttle to the predetermined RPM.
ď. Shutting Down the Engine
1. Set the throttle control lever to the right end.

14
2. Set the engine switch to the OFF position.
3. Turn off the fuel tap (by setting to the OFF position).
NOTE:
g
To shut down the engine in an emergency, simply set the engine
switch to the OFF position.
Đ. Maintenance
Periodic inspections and fine
-
tuning are simply indispensable to
kee
p the water pump working with high performance and regular
maintenance may also lengthen the pump life. Supplied in the table
on the next page are intervals at which the schedules maintenance
jobs are to be done.
WARNING:
gBefore any maintenance attem
pt, be sure to shut down the
engine. If the maintenance job has to be done with the engine at
work, it should take place in a well-
ventilated space as the exhaust
gas contains toxic carbon monoxide that causes the loss of personal
consciousness or even death.

15
CAUTION:
g
In cases when the pump is used to suck up seawater, be sure to
flush it with fresh water immediately after use to minimize corrosion
and remove deposits.
g
Always use the original parts and relevant tools supplied with the
machine to carry out maintenance. Failure to do this may cause
damage to the pump.
NOTE:
Ł
Inspection and maintenance should take place more frequently
if the pump is used in a dirty environment.
ł
Leave the following inspection and maintenance jobs to the
authorized dealers unless you, the user, have the relevant tools and
necessary DIY skills. In the latter case, refer to service manual.
Table of Maintenance Schedules
Normal
maintenance
Item
period
Each
time
Per
month
or 20
hours
Per
month
or 50
hours
Per
month
or 100
hours
Per
month
or 300
hours
Check engine oil
lever
ƻ
Replace engine oil
lever
ƻ
ƻ
Air cleaner check
ƻ
Air cleaner for clean
Spark plug
ƻ
ƻ*
Fuel supply
Replace per every two years
Wane wheel
ƻ*
Pump case cover
ƻ*

16
Water inlet
ƻ*
Note: “*” items will be maintained with
the help of dealers from
general power machinery Co., Ltd.
1. Replacing the engine oil
Oil drains easily and quickly while the engine is warm.
1. Remove the oil dipstick and drain bolt to let out the oil.
2. Screw the drain bolt back in place and t
ighten it.
3. Pour in clean oil until the desired level is reached.
Oil sump capacity: 0.6 liters
Clean the hands with soap if stained with the engine oil.
NOTE: Be sure to keep the environment clean when disposing
used engine oil. We suggest you
collect the waste oil in a container
to be sent to a waste disposal site or a recycling service center of
spill it in the garbage or on the ground.
2. Maintaining the air cleaner
A dirty air cleaner will let less air into the carburetor. To prevent
c
arburetor malfunctions, be sure to maintain the air cleaner
periodically. More frequent maintenance of the air cleaner will be
necessary if the pump is working in an extremely dirty environment.
DO not clean the air cleaner with a low ignition point solvent
because it may get enflamed or even explode under certain

17
circumstances.
CAUTION: Do not use the water pump without an air cleaner. The
dirt or dust if sucked into the engine may quicken engine wear.
1) Unscrew the wing nut and remove the air cle
aner cover and
filter element.
2) Clean the filter element with a detergent solution inflammable or
with a high ignition point and let it dry thoroughly after cleaning.
3) Immerse the filter element into clean oil and then squeeze out
the excessive amount of oil.
4) Put the filter element as well as the air cleaner back in place.
3. Maintaining the spark plug
The recommended type of spark plug is NHSP LD P6RTCU.
To ensure normal operation of the engine, the spark plug should
have a correct gap
and should remain free of carbon deposits.
1) Remove the plug cap.
The muffler may be very hot if the engine is still running. Take care
not to touch the muffler.
2) Check the spark plug visually. Discard the spark plug if it is

18
obviously worn out or
the insulation ring on it is broken or cracked.
Clean the spark plug with a brush when put it back in place.
3) Check the plug gap with a feeler gauge.
Vary the gap by moving the side electrode.
Normal plug gap: 0.70~0.80mm
4) Check the plug O-r
ing for normal condition. Screw it in with the
plug wrench to protect the plug thread.
NOTE:
g
In the case of screwing in a new spark plug, tighten it by an
additional 1/2 screw turn after the plug reaches and pushes on the
O-ring, while in the case of a
used spark plug, an additional 1/2~1/4
screw turn is necessary.
CAUTION:
g
Make sure the spark plug is properly tightened. Improper

19
tightening may cause the engine to be overheated or damaged.
Never use spark plugs with an incorrect thermal value range.
đ. Transportation and Storage
CAUTION:
g
To avoid causing a fire hazard, let the engine cool down before
transportation or indoor storage of the pump.
g
Before transporting the pump, set the fuel tap to the OFF position
and place the pump body in a le
vel position to prevent the fuel from
spilling out. The spilled gasoline or the gasoline vapor may get
ignited.
Note and do the following before storing pump for an extended
period of time:
1) Make sure the storage area is free of moisture or dust.
2) Ch\lean the inside of the pump.
The pump may get clogged if it is used to suck up water containing
such matters as earth, sand or heavy fragments.
Before storing, clean the pump by sucking up clean water or
otherwise the wane wheel may be damaged whe
n the pump is put to
use again. After cleaning, unscrew the water drain plug to drain off
the water from inside the pump casing as much as possible. Then
screw the drain plug back into place.
3) Drain off the fuel.
a. Turn off the fuel tap (OFF positio
n), unscrew the drain screw
from the carburetor float chamber to drain off the fuel from inside the
carburetor and collect the gasoline in a suitable container.
b. Turn on the fuel tap (ON position) and collect the gasoline in a
suitable container.
c. Screw the carburetor fuel drain screw back into place.

20
4) Replace the engine oil.
5) Screw off the spark plug, pour a spoonful of clean oil into the
cylinder, turn the engine alternatively for several times to allow
uniform distribution of oil, and then screw in the spark plug again.
6) Pull up the starter lever until a resistance is felt. Stop pull for a
while and pull it up again until the triangle mark on the starter wheel
gets into collimation with the screw hole in the starter (as shown the
sk
etch below). In this position, both the inlet valve and outlet valve is
closed to prevent corrosion inside the engine.
7) Cover up the pump to keep out dust.
Ē. Troubleshooting
Engine unable to get started:
1) Is there enough fuel?
2) Is the fuel
tap turned on?
