®Solar LED Light Kit Operating Manual
Thank you for choosing the Primus LED SOLAR LIGHT KIT. This kit is designed to provide
bright & efficient lighting using the power of the sun. Please read this manual carefully before
use to ensure correct, safe & effective product operation. Please keep this manual in a safe
place for future reference.
PRIMUS
®
Solar LED Light Kit
Operating Manual
www.primusaustralia.com.au Sales: 1300 555 197
Part No.
522278

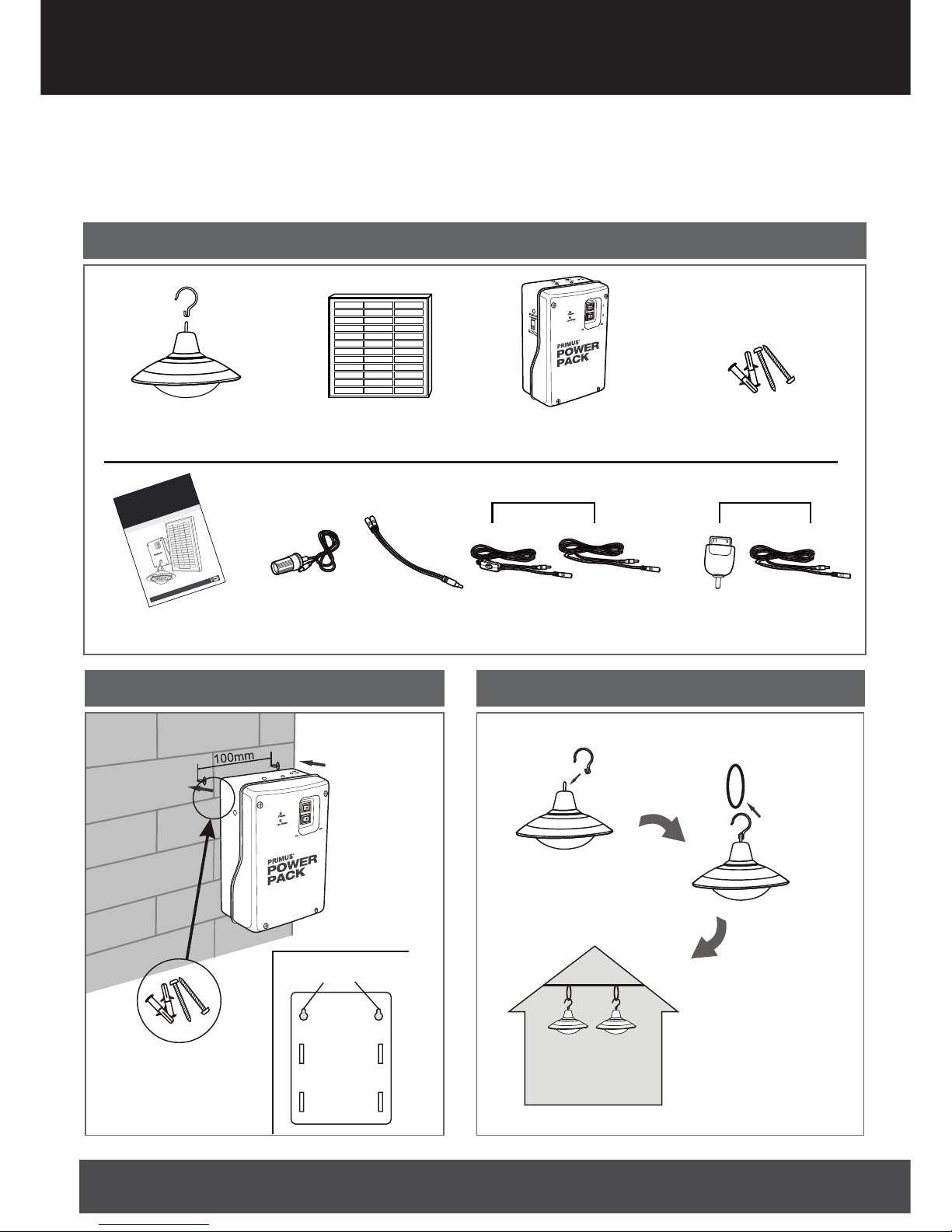

System Components
Controller Installation Lamp Installation
LED Lamp (4pcs)
Manual
PV Module
Cigarette Lighter
Adaptor (1pc)
Power Pack
Back View
Mounting Hole
The power pack is not weather
proof and must be located in a
safe & secure location free
from rain & moisture. If being
mounted take care that it is
located on a strong surface.
The LED lights & cables are
water resistant and should
not be left exposed to rain
for extended periods of time.
Power cables should not be
extended beyond the
manufacturers specifications
as voltage drop will result in
reduced light output and
potential damage to the
system.
3pcs 4pcs
Extension CableAdaptor Phone Charging kit
4pcs 1 set
(7 kinds)
Mounting
Accessories
1pc
www.primusaustralia.com.au • Sales: 1300 555 197

STEP 3
STEP 2
Assembly Instructions – Please follow these carefully
DC socket for PV Module
PV Module
Amber LED
IMPORTANT - Before first use the Power Pack must be fully charged - charging time will be between 8 to 10 hours
of direct sunlight, theAMBER indicator flashing identifies that the battery has reached full charge.
To activate battery pack, press on/off button.
STEP 1
Check that the Power Pack
switches are in the “ON”
position, locate the solar
panel in direct sunlight up
to 5m from the Power Pack
and connect to the DC input
on the side.
Flashing AMBER indicator
identifies fully charged battery.
Charging
Position/hang the LED lights up to 7m from the power
pack, connect using the extension leads and turn on.
All lights can be controlled direct from the Power Pack
or individually operated via the inline switch to each light.
Assembly of system A B CD/E
DC sockets for
LED lamp
DC sockets for 6V DC
mobile phone
Mobile phone
(not included)
Switch for A,B
On/Off Switch
Switch for C,D/E
Red LED
THE POWER PACK FEATURES TWO INDICATING LEDs
Amber LED: Illuminated (Solid) = Power Pack is charging
Amber LED: Flashing = Power Pack is fully charged
RED LED: Illuminated (Solid) = Power Pack voltage is low
and should be turned off
RED LED: OFF = Power Pack voltage has reached
12.4 +/-0.1 VDC
INDICATORS
MOBILE PHONE
CHARGING – CHECK
PHONE MANUFACTURERS
CHARGING REQUIREMENTS
PRIORTO CONNECTINGTO
THE POWER PACK
Red LED

www.primusaustralia.com.au • Sales: 1300 555 197
Q: Will direct shade affect the power output of the solar panel?
A: Yes, locate the panel in direct sunlight for maximum output.
Q: Will my solar panel work in cloudy conditions?
A: Yes, the solar panel will work in low light conditions however the
power output will be reduced as there is less energy collected.
Q: Should I clean my solar panel?
A: Yes, removing dust, dirt, bird droppings, etc with warm soapy
water will assist with the solar panels energy collecting
performance
Q: How do I clean the power pack?
A: Use a mix of warm soapy water, do not use bleach or harsh
cleaning chemicals and carefully wipe down all surfaces
avoiding water entering the power pack.
Q: Can I replace the LED’s?
A: No, the LED light has a life expectance of 8,000 hours of
continuous operation.
Suggestions for safe and secure use
Failure to follow these complete instructions and the
suggestions below may cause system damage and/
or personal Injury.
• This controller is only designed for 12V solar charging.
• The built-in electronic circuit protector keeps the controller away
from overcharging, overflowing, overloading and short-circuit.
• Sealed, maintenance free VLRA batteries are highly
recommended.
• The controller will heat up during use, place in a well-ventilated
location and avoid contact with the controller surface.
• Keep the ventilation holes on the controller free of dust
and debris.
• The battery may produce flammable gases, please keep
away from spark or open flame, ensure the battery is kept in
a well-ventilated location.
• Fully charge the battery at least once a month.
• Do not contact or short circuit the terminals or wires.
• Please use insulated tools during operation, keep both hands
dry and do not stand on the wet ground.
• Please follow the security recommendations from the battery
manufacturer. Contact the distributor or the installation
personnel if there is any doubt.
General Disclaimer
In no event shall the manufacturer be liable for any damage or personal
injury caused by non-compliance to the operating instructions and safety
suggestions in this brochure. The manufacturer will not bear any
responsibility for misuse, damage, injury, incorrect installation and/or
system design as such.
Frequently asked questions
NORMAL VOLTAGE 12V
MAX. CHARGING CURRENT/LOAD CURRENT ≤1A
CURRENT NATURAL LOSS ≤5mA
SOLAR MODULE
STC Power 5W
Operating Voltage (Vmp) 17V
Operating Current (Imp) 0.29A
Open Circuit Voltage (Voc) 21.6V
Short Circuit Voltage (Ics) 0.34A
BATTERY Battery Type Maintenance Free
Lead - acid battery
Capacity 12V/5.0AH
DC LAMP
Light Source 12 Super
Bright LED
Rate Power 0.6W
Rate Voltage 12V
Rate Current 50mA
Luminosity 50Lum
CHARGING TIME
(SOLAR) Approx. 8 to 10 hours in full sunlight when the battery is fully discharged
OPERATING TIME 1 lamp 66 Hours
4 lamps 16 Hours
OPERATING TEMPERATURE RANGE -10~60°C
(-40~122°F)
SPECIFICATIONS
Please note:Specifications may change without notice
Troubleshooting and maintenance
TROUBLES POSSIBLE CAUSES CORRECTIVE MEASURES
ORANGE LED
IS NOT
ILLUMINATED
WHEN SOLAR
PANEL IS
CONNECTED
POWER PACK ON/OFF
BUTTON IS NOT SET PRESS BUTTON TO “ON” POSITION
SOLAR PANEL IS
NOT CONNECTED
CORRECTLY CONNECT TO POWER PACK
SOLAR PANEL NOT
EXPOSED TO THE SUN LOCATE IN DIRECT SUN LIGHT
LED LIGHTS
WILL NOT
OPERATE
POWER PACK ON/OFF
BUTTON IS NOT SET PRESS BUTTON TO “ON” POSITION
RED LED IS
ON / POWER PACK
IS FLAT
CHECK CONNECTIONS
AND SWITCHES ARE IN
ON POSITION
CHARGE POWER PACK
LED LIGHTS
OPERATE FOR
A SHORT
TIME ONLY
RED LED IS ON -
POWER PACK IS LOW
IN VOLTAGE
LOCATE SOLAR PANEL IN
DIRECT SUNLIGHT FOR
MINIMUM OF 8 HOURS
CHECK CONNECTIONS
AND SWITCHES
POWER PACK
WILL NOT
CHARGE
POWER PACK ON/OFF
BUTTON IS NOT SET PRESS BUTTON TO “ON” POSITION
CHECK POWER
PACK CONDITION IF FAULTY - REPLACE BATTERY
CHECK SOLAR
PANEL OUTPUT IF FAULTY - CONTACT MANUFACTURER
