PrintDry FD1603 User manual

- 1 -
Version: 2016-11
MODEL: FD1603
POWER SUPPLY: 110-120VAC, 60Hz or 220-240VAC, 50Hz
POWER CONSUMPTION: 250W
BEFORE OPERATING THE FILAMENT DRYER, PLEASE READ, UNDERSTAND AND
FOLLOW THESE INSTRUCTIONS. BE SURE TO SAVE THIS BOOKLET FOR
FUTURE REFERENCE.
Instruction Manual
Filament Dryer

- 2 -
When using an electrical device, basic safety precautions should always be
followed, including the following:
Read all instructions before using the PrintDry filament dryer (hereinafter
referred as the "dryer").
Always use a heat resistant surface.
DO NOT touch hot surfaces.
To protect against electrical hazards, DO NOT immerse cord, plugs, or the
dryer in water or any other liquid. DO NOT switch the dryer ON if surfaces
are wet.
Do not allow children to use this dryer, close supervision is necessary when
the dryer is used near children.
Unplug from outlet when not in use and before cleaning. Allow to cool
before putting on or taking off parts.
DO NOT operate the dryer with a damaged cord or plug or after the dryer
malfunctions, or has been damaged in any manner. Return the dryer to the
manufacturer for examination, repair or adjustment. See Warranty section.
The use of accessories/attachments not recommended may cause hazards.
DO NOT use outdoors.
DO NOT let cord hang over edge of table or counter, or touch hot surfaces.
DO NOT place on or near a hot gas or electric burner, or in a heated oven.
DO NOT block the air vents.
DO NOT use for other purposes other than the intended use.
To disconnect, turn the power switch to ‘OFF’, then unplug from the wall
outlet.
DO NOT pour liquids into the dryer.
DO NOT operate near combustible or pressurized spray cans.
DO NOT use the dryer for longer than 40 continuous hours. After a
maximum of 40 hours in use, turn OFF the dryer, unplug and allow it to cool.
1. IMPORTANT SAFEGUARDS

- 3 -
Leave minimum 30mm (1.25") open space all around the exterior of dryer.
The use of unauthorized accessories may cause injuries.
Store the dryer in a dry and clean place. Do not drop, knock, or shake the
dryer. Rough handling can break the internal circuit board and diminish
product performance.
Do not open the dryer base as this may cause damage or malfunction.
There is no user-serviceable part inside the dryer base.
Failure to use and maintain the dryer in accordance with the instructions
outlined in this manual will void the warranty.
Thank you for choosing PrintDry filament dryer.
PrintDry filament dryer offers an easy and quick way to remove moisture from
filaments for better quality of 3D printing. It works with both 1.75mm and 3mm
filaments of any material. Please visit our website at www.printdry.com for
additional information.
POLARIZED PLUG
The dryer has a polarized plug (one blade is wider than the other). To reduce the
risk of electric shock, this plug will fit in a polarized outlet only one way. If the
plug does not fit fully in the outlet, reverse the plug. If it still does not fit, contact
a qualified electrician. Do not modify the plug in anyway.
2. INTRODUCTION

- 4 -

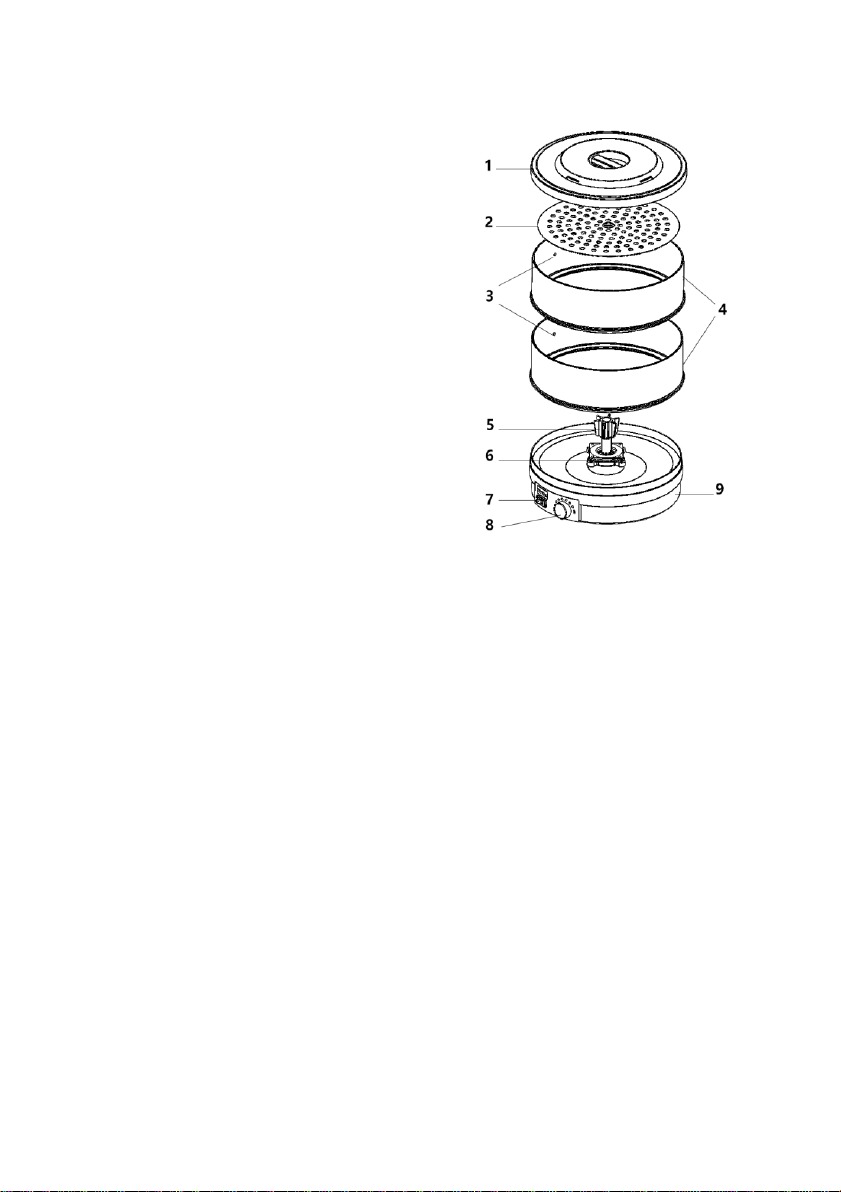

DESCRIPTION OF PARTS
1 Vented see-through top lid
2 Metal tray plate
3 Filament passing holes
4 Two cylindrical trays
5 Centering piece
6 Filament feeder
7 On/Off switch
8 Temperature control knob
9 Dryer base unit
Accessories (not shown):
spool clips, desiccant packs
BEFORE FISRT USE
Unpack and remove all parts and packaging materials from the carton.
DO NOT plug in the power cord before reading the instructions.
Wipe the base with a slightly damp cloth. NEVER IMMERSE THE BASE
IN WATER OR ANY OTHER LIQUID.
HOW TO USE
PrintDry filament dryer offers two functions –Dry and Feed+Dry:
Dry
1 Before using the dryer read this Instruction Booklet.
2 Put a filament spool on the feeder and lock it with the centering piece.
3 Use 1 cylindrical tray and the lid if drying 1 spool only.
4 Use 2 cylindrical trays, the metal tray plate and the lid if drying multiple
spools.
5 Place the dryer base unit on a flat, smooth heat-proof surface. Plug into
wall outlet, press ON/OFF switch to ‘I’ (On) and select the appropriate
temperature for the filament as indicated in this manual.

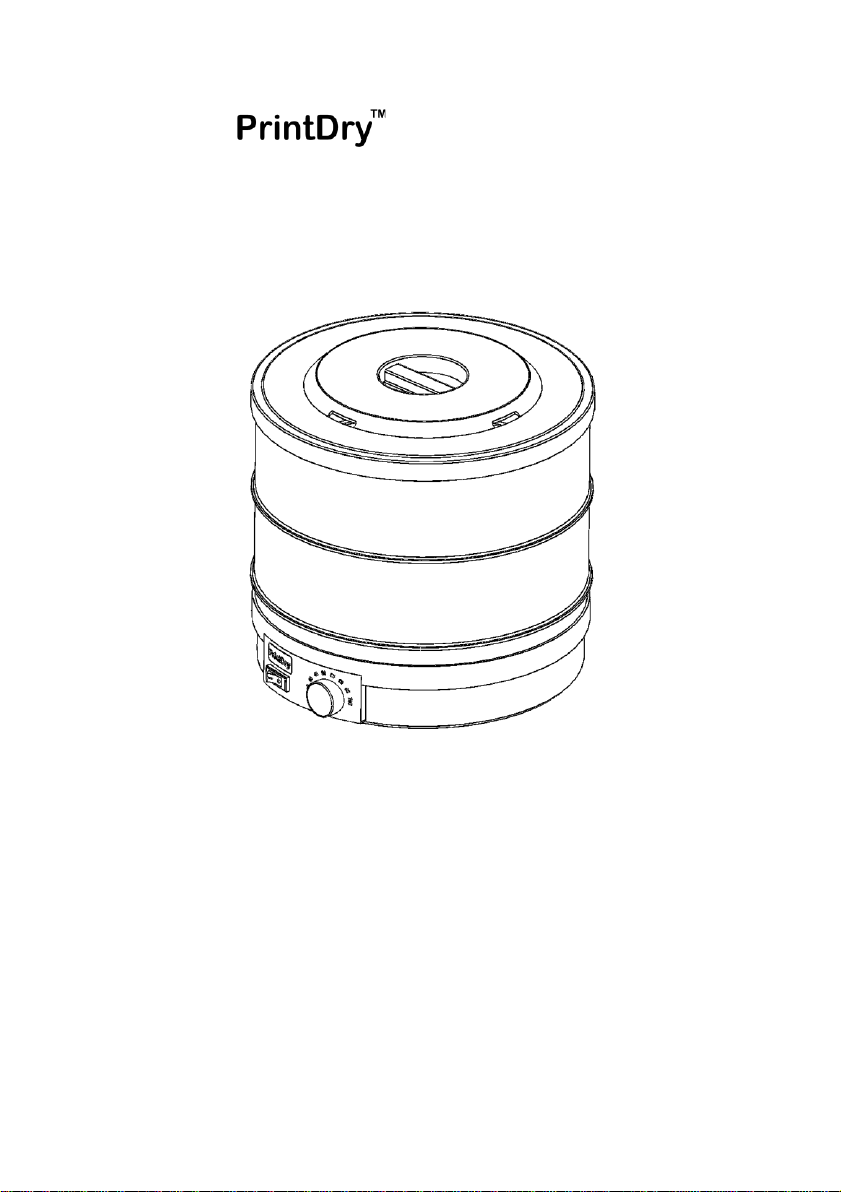

Fig. 1 PrintDry Filament Dryer

- 5 -
6 When drying is completed, remove filament spools and store them in
air-tight containers or plastic bags with desiccants packs together.
7 Press the On/Off Switch to the ‘O’ (Off) and unplug from the wall outlet.
8 Follow the instructions in the ‘Care and Maintenance’ section.
Feed + Dry
1 Follow steps 1, 2, 3 or 1, 2, 4 in the previous section.
2 Pass the filament through the hole in the lower cylindrical tray and feed
it into your 3D printer, it is very important to adjust the dryer’s position
for a smooth feeding.
3 Follow steps 5-8 in the previous section.
RECOMMENDED DRYING TIME
No.
Materials
Dryer Temp
Drying Time
1
PLA
45°C
>4h
2
ABS
60°C
>2h
3
PETG
70°C
>2h
4
Nylon
70°C
> 12 h
5
Desiccants
70°C
>3h
These recommendations are made under the following conditions.
*Ambient RH:50% *Ambient Temp:22°C *500g filament spool *Original filament
Actual drying time for a filament may vary under different conditions. If a
filament has been in storage for a long time, it is very likely it already absorbed a
lot of moisture and it takes much longer (at least double the time listed above) to
dry a moist filament. In addition to drying the filament prior to 3D printing,
drying the filament while printing is always recommended.

- 6 -
FILAMENT STORAGE
In order to protect the filament from absorbing moisture, always store filaments
in air-tight containers or re-sealable bags with some desiccant packs inside.
HELPFUL HINTS
It is recommended to put four spool clips evenly on the filament spool, as
shown below, to avoid the filament from becoming loose, falling off the
spool and getting stuck in the feeder. This is especially important for a
new full spool.
For more efficient drying, it is recommended to use a D-spool.
To feed a multiple-extruder printer, an upper-deck feeder is recommended.
CARE AND MAINTENANCE
Press the switch to the OFF position.
Unplug from wall outlet.
If needed, wash the base with a soft, slightly damp cloth or sponge.
DO NOT allow water or any other liquid to get into the Base.
Make sure the Trays and Lid are completely dry before replacing them on
the Base and storing.
Any other servicing should be performed by an authorized service
representative.
Fig.2 Spool clips
Fig.3 D-spool
Fig.4 Upper-deck Feeder

- 7 -
Model
FD1603
Power Supply
110-120VAC, 50Hz or 220-240VAC, 60Hz
250 Watts
Dryer Temp. Range
35-70°C ( 95-160°F)
Weight
3.8 Kg (8.5 lbs)
Dimensions
37(W) x 37(L) x 36(H) cm (15x15x15")
Max. Drying Time
40 Hours (Continuously)
Spool Dimensions
Outside Diameter 100-250mm (4-10")
Height 25-125mm (1-5")
Mount Hole Diameter 19-58mm (3/4-2.3")
Max. Weight 1 Kg (2.2 lbs)
PrintDry filament dryer is warranted to be free from defect in material and
workmanship for a period of ONE year under normal use after its original
purchase date. This warranty extends only to the original retail purchaser. If
the device should become defective within the warranty period, please contact
us for repair or replacement. We reserve the right to replace a defective product
with the most comparable product currently available. The entire liability for any
defective product shall in no event exceed the purchase price for the defective
product.
The warranty DOES NOT cover products damaged by the following:
Misuse, accident, abuse or alteration
Serviced by unauthorized persons
3. SPECIFICATIONS
4. WARRANTY

- 8 -
Use with unauthorized accessories
Damage occurs in shipping
Connect to incorrect current and voltage
Any other conditions beyond our control
TO THE EXTENT PERMITTED BY LAW, PRINTDRY SHALL NOT BE
RESPONSIBLE FOR ANY DIRECT OR INDIRECT DAMAGES RESULTING
FROM THE USE OR MISUSE OF THE DEVICE INCLUDING ANY GENERAL,
INCIDENTAL, SPECIAL, OR CONSEQUENTIAL DAMAGES. ALL IMPLIED
REPRESENTATIONS, WARRANTIES OR CONDITIONS INCLUDING BUT
NOT LIMITED TO ANY IMPLIED REPRESENTATIONS, WARRANTIES OR
CONDITIONS OF FITNESS AND MERCHANTABILITY ARE LIMITED IN
DURATION TO ONE YEAR FROM THE DATE OF ORIGINAL PURCHASE.
This warranty gives you specific legal rights, and you may also have other rights
that vary depending on your state, province or other jurisdiction. Some
jurisdictions do not allow the exclusion or limitation of incidental or consequential
damages, or limitations on how long an implied warranty lasts, so the above
limitations and exclusions may not apply to you. This warranty does not
include the cost of returning shipping.
For product updates and more information about PrintDry filament dryers,
please visit us at: www.printdry.com or email us: [e-mail]
5. CUSTOMER SUPPORT
