Prismatibro Prisma Light Eliott 4 Series User manual

MOUNTING AND INSTALLATION
MANUAL
4-XX

2Prisma Light | prismatibro.se
PRODUCT DESCRIPTION Prisma Light Eliott is a Swedish-made luminaire,
street lighting, with LED technology.
Optional: pole tting and cable.
APPLICATION Outdoors: Highways, feeder roads, residential streets,
pedestrian and bicycle paths, parking lots,
industrial areas and jogging tracks.
MOUNTING HEIGHT Recommendation: 3-15 meters
WEIGHT 5,4 kg excluding tting
DIMENSIONS
Length 565 mm
Width 230 mm
Height with bird spikes Flat glass: 221 mm • Curved glass: 261 mm
Height with plug Flat glass: 152 mm • Curved glass: 192 mm
Height, plane case Flat glass: 120 mm • Curved glass: 160 mm
WIND LOAD Plane case, at glass 0.058 m2
PRODUCT INFORMATION

3
prismatibro.se | Prisma Light
0°
Arm
Item code
353-0021
Mounting
The pole tting is mounted on the pole, and the 2 bolts are tightened.
Tightening torque for the bolts: 8 Nm +/- 2Nm
MECHANICAL INSTALLATION

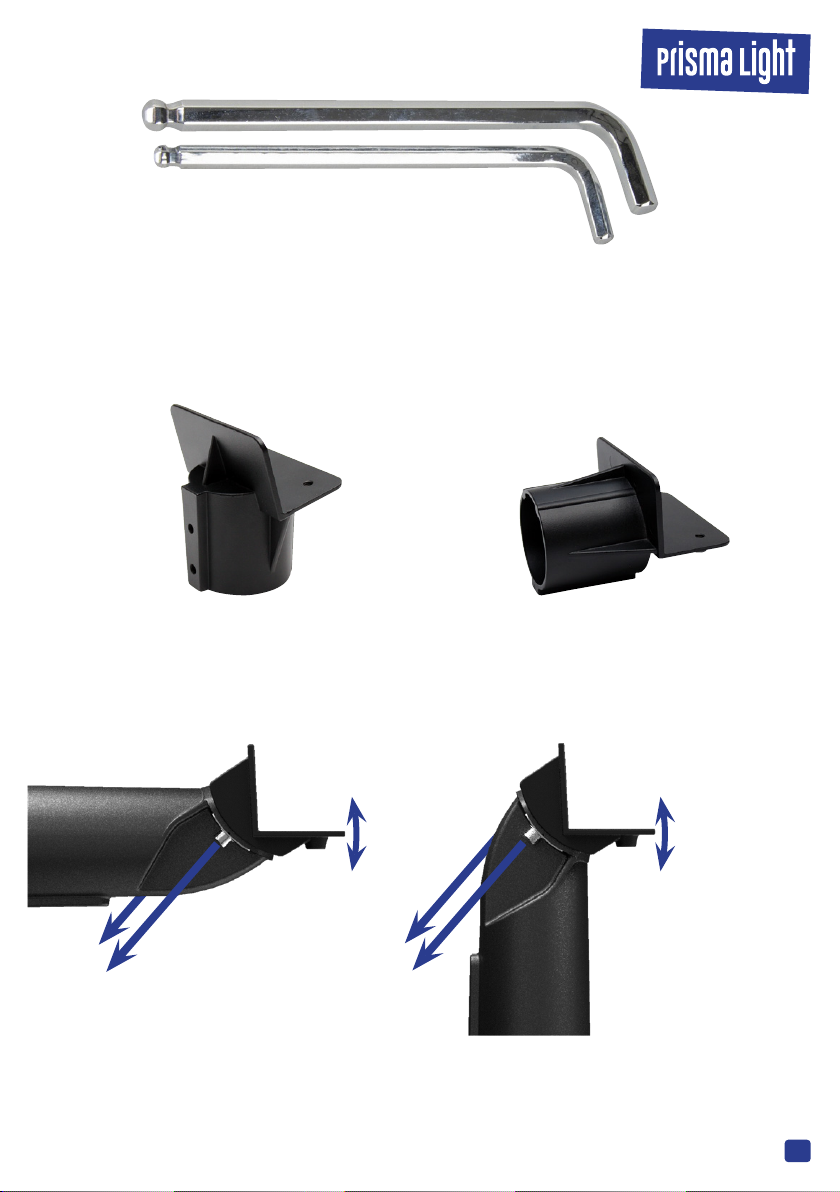

Tools
Hex key, size 6: Pole tting – Luminaire housing
Hex key, size 4: Pole tting – Pole
Pole fittings
The luminaire can be mounted on a straight pole or on a pole with an arm.
There are two dierent pole ttings, and the chosen pole tting is already installed
when the luminaire is delivered. One is adjustable. One has a xed position/angle.
See images below.
Fixed
position
Adjustable
Adjustable/reversible to t both a straight pole and a pole with an arm.
Prepared for the desired position - top or arm - as requested when ordering.
Therefore, there are two item codes for the same item.
±10 °±10 °
12 °
Straight Pole
Item code
353-0011
Item code
353-0004
Item code
353-0003

4Prisma Light | prismatibro.se
ELECTRICAL INSTALLATION
• Prisma Light Eliott Remote
• Prisma Light Eliott Citygrid
• Prisma Light Eliott DALI
• Prisma Light Eliott Zhaga
The luminaire must not be installed or disassembled while under voltage.
Connection voltage Prisma Light Eliott 4-X: 200-240 V AC, 50 Hz
Power consumption Prisma Light Eliott 4-X: 5-70 W depending on the model
Insulation class
Luminaire CLASS II
Driver CLASS II Insulation class between DALI and 230V circuit:
Inventronics - Double insulated
The luminaire is connected to the wiring inside the pole
1. Secure the luminaire to the pole.
2. Connect the cable to the fuse holder.
3. Ensure proper grounding. Insucient grounding can
result in uncontrolled voltages in the system.
4. Turn on the power.

5
prismatibro.se | Prisma Light
Prisma Light Remote
COMMISSIONING
• Turn on the power for the luminaire.
Prisma Light Eliott shall now illuminate
with the factory-set, customer-desired,
power/function. • Prisma Light Eliott is
equipped with a circuit board with
built-in IR communication.
sma
USAGE
• Settings are made using a
Prisma Light Remote.
The manual:
Prisma Light Control Manual can
be downloaded at
www.prismatibro.se
Scan or click on
the QR code.
Prisma Light Citygrid
COMMISSIONING
• Turn on the power.
When the power is turned on, the luminaire will ash to perform a self-calibration.
Before it is congured by the customer - read control installation manual - the
luminaire will illuminate at 40% in the absence of presence and 50% in the presence.
In this mode, it does not communicate with other luminaires.
Prisma Light DALI
COMMISSIONING
• Switch on the power to the luminaire.
Prisma Light Eliott should now illuminate with the factory-set,
on/o customer-desired power/function.
Prisma Light Zhaga
COMMISSIONING
• Switch on the power to the luminaire.
Prisma Light Eliott should now illuminate with the
factory-set, on/o customer-desired power/function.
COMMISSIONING & USAGE
STYRNING
MANUAL

6Prisma Light | prismatibro.se

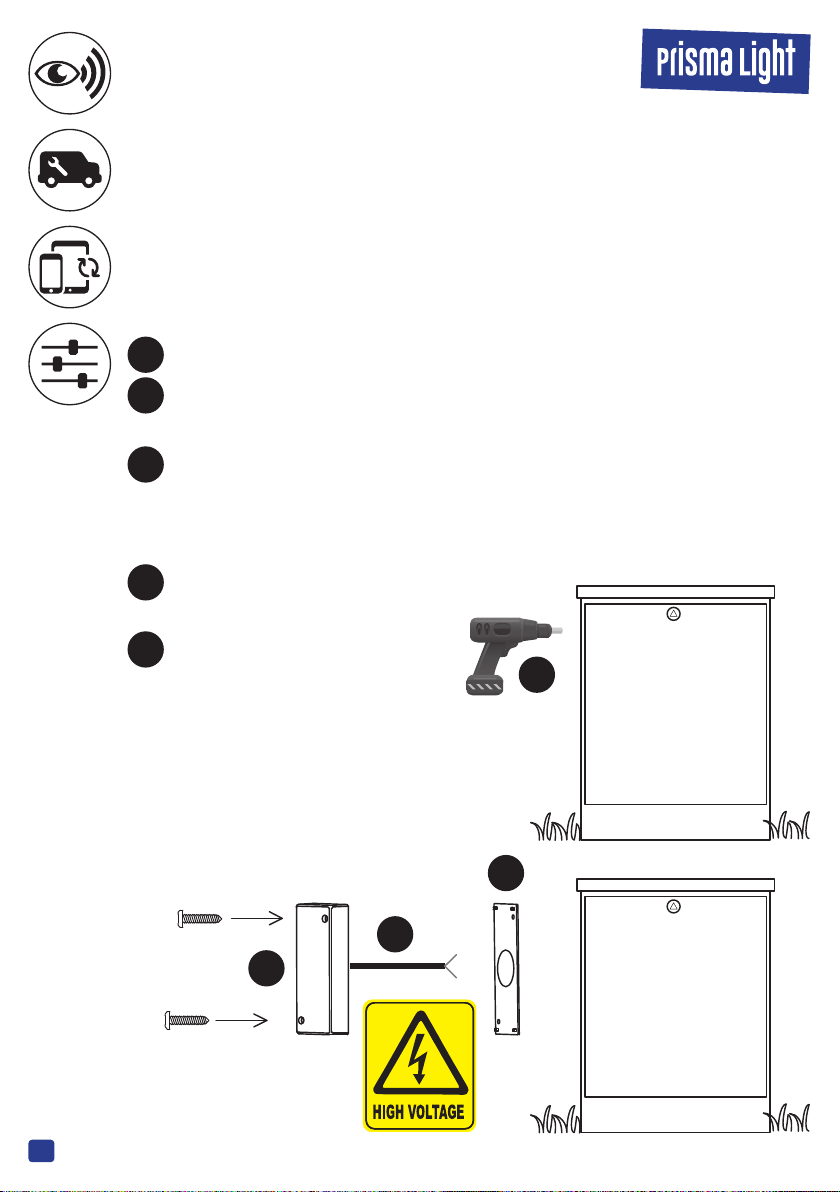

GATEWAY INSTALLATION
Lighting Control Panel
The gateway should be installed within 30 meters from the nearest
Citygrid device - which can be a node, a node with a sensor, or built into
a luminaire.
The gateway will communicate wirelessly with the luminaires in the same site.
*The installer should consult the lighting control panel manufacturer for
accurate instructions regarding drilling holes in the lighting control panel.
1Drill a hole for the power cable, Ø 20 mm**.
2Rubber gasket:
Place the rubber gasket on the back of the gateway.
3Attach the power cable to the back of the gateway:
Press down and rotate the locking ring clockwise until it
clicks into place.
The click conrms the locking.
4Mount the gateway on the
lighting control panel.
5Connect the gateway to the
power grid, either with a
constant power supply or
through the lighting circuit.
1
4
3
2

7
prismatibro.se | Prisma Light
GATEWAY INSTALLATION GATEWAY INSTALLATION
Lighting Pole
The gateway should be installed within 30 meters from the nearest
Citygrid device, which can be a node, a node with a sensor, or built
into a luminaire.
The gateway will communicate wirelessly with luminaires within the same
site.
1Drill a hole with a diameter of 20 mm for the power cable
in the lighting pole at the desired height.
2Use the backplate of the gateway as a template for hole placement.
Use a 3.5 mm drill.
3Mount the backplate using
the provided screw.
4Attach the power cable to the back of the gateway.
Press down and twist the locking ring clockwise until it clicks into place.
The click conrms the lock.
5Install the gateway.
6Connect the gateway to the power supply, either with a
constant power source or through the lighting supply.
1
2
5
43

In case of any issues, the luminaire should be
returned in its entirety for repair or replacement
by PrismaTibro.
For full warranty terms and conditions, please visit
the website www.prismatibro.se or call 0504-400 40
or send an email to [email protected].
This document and many other documents
can be downloaded from:
www.prismatibro.se
Scan or click the
QR code for direct
access.
The light source in the luminaire should only be replaced by qualied
personnel. The circuit board with diodes is not accessible without
disassembling the entire luminaire. Opening the optical part risks
compromising the IP rating. If there are any issues, the luminaire should
be returned in its entirety for repair or replacement by PrismaTibro.
Prisma Light Eliott can be rinsed with water under low pressure but not
with a high-pressure washer.
SERVICE & MAINTENANCE
TROUBLESHOOTING
WARRANTY
RECYCLING & PACKAGING MATERIALS
DOWNLOADABLE DOCUMENTS
Packaging materials are reusable and/or recyclable.
PrismaTibro AB is aliated with El-Kretsen for recycling.
Scan or click
the QR code
for direct access.
230605-01
