Prizer Hoods RHKC User manual

IMPORTANT SAFETY INSTRUCTIONS
PLEASE READ COMPLETE INSTRUCTIONS BEFORE PROCEEDING.
INSTALLATION MUST COMPLY WITH ALL LCOAL CODES.
IMPORTANT: Save these instructions for the Local Electrical Inspector’s use.
INSTALLER: Please leave these instructions with this unit for the owner.
OWNER: Please retain these instructions for future reference.
SAFETY Turn power circuit OFF at the service panel and lock panel door
WARNING: before wiring this unit.
1
CAUTION - TO REDUCE THE
RISK OF FIRE, ELECTRIC
SHOCK, OR INJURY TO PEOPLE,
OBSERVE THE FOLLOWING:
1.
2.
3.
CAUTION: FOR GENER AL
VENTILATION USE ONLY. DO NOT
USE TO EXHAUST HAZARDOUS OR
EXPLOSIVE MATERIALS OR VAPOR.
Use this rangehood only in the
manner intended by the
manufacturer. If you have any
questions, contact the
manufacturer - Prizer Hoods.
Before servicing or cleaning the
unit, switch power o at service
panel and lock the service
disconnecting means to prevent
power from being switched on
accidentally. When the service
disconnecting means cannot be
locked, attach a tag to the service
panel to indicate power has been
switched o for maintenance.
Install this rangehood only with
remote fan models rated
maximum 12.8A or in-hood fans
manufactured by Prizer Hoods,
models CFM300, CFM600,
CFM1200.
CAUTION - TO REDUCE THE
RISK OF A RANGETOP GREASE
FIRE:
1.
2.
3.
4.
Never leave cooktop surface
unattended while on high
setting.
Boilovers cause smoke and greasy
spillovers may ignite. Heat oils
slowly on low or medium
settings.
Hood fan should always be ON
when cooking on high heat or
when ambeing foods (i.e.
Crepes Suzette, Cherries Jubilee,
Peppercorn Beef Flambe.)
Clean in-hood fans frequently.
Do not allow grease to
accumulate on fan or bae
lters.
Always use cookware appropriate
for the size of the surface element.
CAUTION - TO REDUCE THE
RISK OF INJURY TO PEOPLE, IN
THE EVENT OF A RANGETOP
GREASE FIRE, OBSERVE THE
FOLLOWING:
1.
2.
3.
4.
5.
SMOTHER FLAMES with a
tight-tting lid, cookie sheet, or
other metal tray. Immediately
turn the gas burner OFF.
PREVENT BURNS. If gas
ames do not extinguish
immediately; EVACUATE
AND CALL THE FIRE
DEPARTMENT.
NEVER PICK UP A FLAMING
PAN as you may sustain burns.
NEVER USE WATER, wet
dish-cloths or towels as a violent
steam explosion will occur.
Use re extinguisher ONLY if:
•
•
•
•
You know you have a class
ABC extinguisher, and you
already know how to operate it.
e re is small and contained
in the area where it started.
e re department is being
called.
You can ght the re with your
back to an exit.

READ AND SAVE
SAFETY PROCEDURES FOR INSTALLING
YOUR NEW PRIZER HOOD (continued)
UPON RECEIVING YOUR HOOD...
2
CAUTION - TO REDUCE THE
RISK OF FIRE, ELECTRIC
SHOCK, OR INJURY TO PEOPLE,
OBSERVE THE FOLLOWING:
CAUTION - FOR GENERAL
VENTILATION USE ONLY. DO
NOT USE TO EXHAUST
HAZARDOUS OR EXPLOSIVE
MATERIALS OR VAPORS.
A.
B.
Installation work and electrical
wiring must be done by a
qualied installer in accordance
with all applicable codes and
standards, including re rated
construction.
Sucient air is needed for proper
combustion and gas exhaustion
through the ue (duct cover) of
fuel burning cooktop to prevent
backdrafting. Follow the
equipment manufacturer’s
e high degree of craftsmanship in the construction
and nish of your hood requires careful handling to
ensure proper installation.
Do not remove your hood from its carton until you are
ready to hang it.
Do not store your hood anywhere other than within the
carton. If it is necessary to remove your hood from the
carton, place it on a blanket or padded area that will
protect your hood from scratches or indentations.
Do not lift the hood by its utensil rail. Place your ngers
under the lower reveal of the hood. Grasp rmly and
lift.
•
•
•
•
Wearing cotton gloves are preferred. ey will protect
the surface from ne scratches and eliminate
ngerprints.
Remove all rings, watches, belt buckles, and jackets
(snaps-zippers) to prevent scratches on the hood.
If applicable, do not remove the cotton annel from your
hood until the installation process is complete. It will be
necessary to remove only a small portion on the
back-side for a wall mounted hood in order to position in
place.
Located within the hood cavity (behind the bae lters)
are component parts and halogen bulbs.
•
•
•
•
C.
D.
E.
guidelines and safety standards
such as those published by the
National Fire Protection
Association (NFPA), and the
American Society for Heating,
Refrigeration and Air
Conditioning Engineers
(ASHRAE), and the local code
authorities.
When cutting/drilling into a wall
or ceiling, avoid damage to
electrical wiring and other
hidden utilities.
In-hood or in-line fans must be
vented to the outdoors.
If a ventilation unit is to be
installed over a tub or shower, it
must be marked as appropriate
for the application and be
connected to a GFCI (Ground
Fault Circuit Interrupter) -
protected branch circuit.
F.
G.
H.
I.
NEVER place a control switch
where it can be reached from a
tub or shower.
CAUTION - TO REDUCE THE
RISK OF FIRE WITHIN WALLS
OR ROOFS, USE ONLY METAL
DUCTWORK.
Install this hood in accordance
with all requirements specied by
the manufacturer of your
cooktop/range.
Install this hood using required
clearance from cooking surface to
combustible material specied in
cooktop installation instructions.

Figure 3 Optional Duct Cover Assembly
ELECTRICAL
SUPPLY
KNOCKOUT
ALTERNATIVE
ELECTRICAL
SUPPLY
KNOCKOUT
1/8" X 2"
SELF-TAPPING
HEX SCREW (6)
(OPTIONAL)
1/8" X 1/2"
SELF-TAPPING
SHEET METAL SCREW (12)
1/8" X 2"
SELF-TAPPING
HEX SCREW (4)
MINIMUM 4 REQUIRED
INTO HOUSING FRAME WORK
DRILL WHERE REQUIRED
Figure 1 Recirculating Hood Kit - Chimney (RHKC) Figure 2 Recirculating Hood Kit - Professional (RHKP)
CHIMNEY STYLE WITH DUCT COVER
PROFESSIONAL STYLE
CHIMNEY STYLE
ALTERNATIVE
ELECTRICAL
OUTLET
1/8" X 1/2"
SELF-TAPPING
SHEET METAL
SCREW (16)
1/8" X 2"
SELF-TAPPING
HEX SCREW (4)
(OPTIONAL)
ELECTRICAL
OUTLET
KNOCKOUT
All Recirculating Hood Kits contain the following parts:
PART# DESCRIPTION QTY.
80109 Instruction Book 1
40140 Screw #8 x 1/2" pan self-tapping 12
40143 Screw #10 x 2"self-tapping 4
10180 Grill removal “S” hooks 2
In addition to above parts, charcoal lters with the following
dimensions are also included:
RHKC 30"
50176 Filter, Charcoal (RCRS050 3.75" x 9.281" x .531") 2
RHKC 36" to 54"
50109 Filter, Charcoal (RCR0302 3.75" x 13.25" x .375") 2
RHKP 30"
50175 Filter, Charcoal (RCRS100 3.906" x 22.28" x .531") 2
RHKP 36" to 54"
50110 Filter, Charcoal (RCR0301 3.906" x 28.28" x .531") 2
ELECTRICAL
SUPPLY
KNOCKOUT
ALTERNATIVE
ELECTRICAL
SUPPLY
KNOCKOUT
1/8" X 2"
SELF-TAPPING
SHEET METAL SCREW (6)
1/8" X 1/2"
SELF-TAPPING
SHEET METAL SCREW (12)
1/8" X 2"
SELF-TAPPING
HEX SCREW (4)
MINIMUM 4 REQUIRED
INTO HOUSING FRAME
WORK
DRILL WHERE REQUIRED
1/8" X 2"
SELF-TAPPING
HEX SCREW (4)
(OPTIONAL)
Figure 1. Figure 2.
Figure 3.
3

CHARCOAL FILTER REPLACEMENT
1. Charcoal lters should be replaced every 3 to 4 months.
2. “S” hooks are provided to remove the grill. Use even pressure on the two vertical bars to pull the grill from kit.
3 Using the “U” shaped nger rings attached to the charcoal lter, pull forward to release unit.
4. To install a new lter, place top edge of charcoal lter next to tension clips and slip inside framework to secure.
5. To re-install grill, have louvers facing “up”, press “in” using even pressure on each end until grill latches and is secure.

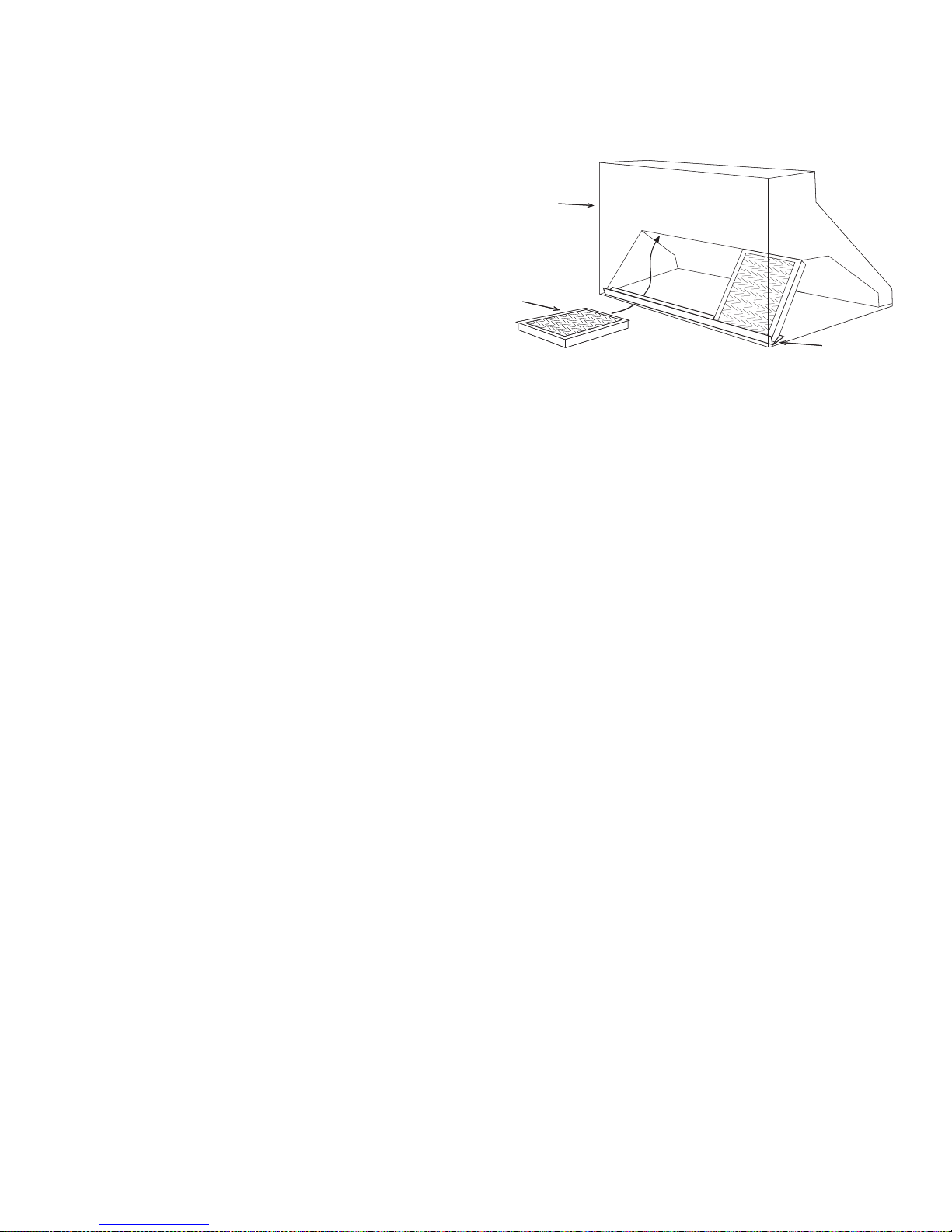

"S" HOOKS
STAINLESS
GRILL
CHARCOAL
FILTER
4
RECIRCULATING HOOD KIT MOUNTED ON INCLINE WALL HOOD
