Pro Audio Trade DMX RGB 2 User manual

LASER SHOW SYSTEM
DMX RGB 2
MANUAL

2
CONTENTS
1INTRODUCTION ..............................................................................................................................................3
2WHAT’S INCLUDED? ........................................................................................................................................3
3UNPACKING INSTRUCTIONS ............................................................................................................................3
4GENERAL INFORMATION.................................................................................................................................3
5SAFETY NOTES ................................................................................................................................................4
6USAGE ............................................................................................................................................................6
7RIGGING.........................................................................................................................................................6
8OPERATION.....................................................................................................................................................6
8.1 INSTRUCTIONS FOR POWERING ON THE LASER SYSTEM ......................................................................................6
8.2 FRONT & REAR PANEL........................................................................................................................................... 7
8.3 PRODUCT SPECIFICATION .....................................................................................................................................7
9LED FUNCTION SETTING..................................................................................................................................7
9.1 INSTRUCTION DMX 12 CHANNELS........................................................................................................................ 8
9.2 INSTRUCTION FOR DMX 23 CHANNELS.................................................................................................................9
10 TECHNICAL INFORMATION: MAINTENANCE AND SERVICE.............................................................................. 12
10.1 GENERAL CLEANING INSTRUCTIONS: TO BE DONE BY USER...........................................................................12
10.2 LASER BEAM ALIGNMENT: TO BE DONE BY USER OR MANUFACTURER .........................................................12
11 INSTRUCTIONS FOR BEAM ALIGNMENT......................................................................................................... 12
12 SERVICE........................................................................................................................................................ 13

3
1INTRODUCTION
Thank you for purchasing the DMX RGB 2! To optimize the performance of your laser, please read
these operating instructions carefully and familiarize yourself with the basic operations of this
system. These instructions contain important safety information regarding the use and maintenance
of this system as well. Please keep this manual with the unit, for future reference. If you sell this
product to another user, be sure that they also receive this document.
Notice
⚫We are constantly striving to improve the quality of our products. As such, the content of this
manual may be changed without notice.
⚫We have tried our best to guarantee the accuracy of this manual. If you have any questions or
find any errors, please contact us directly to help address this.
2WHAT’S INCLUDED?
NAME
PCS
Remark
Laser projector
1
Power cord
1
Keys for projector key switch
2
2-pin interlock bypass plug
1
Plug into the interlock socket on the projector, in order to
be able to activate the laser.
User guide
1
3UNPACKING INSTRUCTIONS
⚫Open the package and carefully unpack everything inside.
⚫Ensure all parts are present and in good condition.
⚫Do not use any equipment that appears to be damaged.
⚫If any parts are missing or damaged, then please immediately notify your carrier or local
distributor.
4GENERAL INFORMATION
The following chapters explain important information about lasers in general, basic laser safety
and some tips about how to use this device correctly. Please read this information as it contains
critical information you must be aware of, prior to using this system.

4
5SAFETY NOTES
WARNING! This projector is a Class 4 laser product. It must never be used for audience-scanning
applications. The output beam of the projector must always be at least 3 meters above the floor
in the audience. See the USAGE section for further information.
Please read the following notes carefully! They include important safety information about the
installation, usage, and maintenance of this product.
⚫Keep this manual for future consultation. If you sell this product to another user, be sure that
they also receive this document.
⚫Always make sure that the voltage of the outlet to which you are connecting this product is
within the range stated on the decal or rear panel of the product.
⚫This product is not designed for use outdoors in adverse weather conditions. To prevent risk
of fire or shock, do not expose this product to rain or moisture.
⚫Always disconnect this product from the power source before cleaning it or replacing the fuse.
⚫Make sure to replace the fuse with another of the same type and rating.
⚫If mounting it overhead, always secure this product to a fastening device using a safety chain
or cable.
⚫In the event of a serious operating problem, stop using the projector immediately. Never try
to repair the unit except in a controlled environment under trained supervision. Repairs
carried out by unskilled people can lead to damage or malfunction of the unit, as well as
exposure to dangerous laser light.
⚫Never connect this product to a dimmer pack.
⚫Make sure the power cord is not crimped or damaged.
⚫Never disconnect the power cord by pulling or tugging on the cord.
⚫Never carry a product from the power cord or any moving part. Always use the hanging/
mounting bracket or the handles.
⚫Always avoid eye or skin exposure to direct or scattered light from this product.
⚫Lasers can be hazardous and have unique safety considerations. Permanent eye injury and
blindness is possible if lasers are used incorrectly. Pay close attention to each safety REMARK
and WARNING statement in this manual. Read all instructions carefully BEFORE operating this
device.
⚫Never intentionally expose yourself or others to direct laser light.
⚫This laser product can potentially cause instant eye injury or blindness if laser light directly
strikes the eyes.
⚫It is illegal and dangerous to shine this laser into audience areas, where the audience or other
personnel could get direct laser beams or bright reflections into their eyes.
⚫No service allowed by customer. There are no user serviceable parts inside the unit. Do not
attempt any repairs yourself.
⚫Service is only to be handled by the factory or authorized factory trained technicians.
⚫Product is not to be modified by the customer.
⚫Caution: use of controls or adjustments or performance of procedures other than those
specified herein may result in hazardous radiation exposure.
Laser light is different from any other light sources with which you may be familiar. The light from
this product can cause eye and skin injury if not set up and used properly. Laser light is thousands
of times more concentrated than light from any other kind of light source. This concentration of

5
light can cause instant eye injuries, primarily by burning the retina (the light sensitive portion at the
back of the eye). Even if you cannot feel “heat” from a laser beam, it can still potentially injure or
blind you or your audience. Even very small amounts of laser light are potentially hazardous even at
long distances. Laser eye injuries can happen quicker than you can blink. It is incorrect to think that
because these laser entertainment products use high speed scanned laser beams, that an individual
laser beam is safe for eye exposure. It is also incorrect to assume that because the laser light is
moving, it is safe. This is not true.
Since eye injuries can occur instantly, it is critical to prevent the possibility of any direct eye exposure.
It is not legal to aim this laser projector into areas where people can be exposed. This is true even if
it is aimed below people’s faces, such as on a dance floor.
⚫Do not operate the laser without first reading and understanding all safety and technical data
in this manual.
⚫Always set up and install all laser effects so that all laser light is at least 3 meters (9,8 feet) above
the floor on which people can stand. See the USAGE section later in this manual.
⚫After set up, and prior to public use, test the laser to ensure proper function. Do not use if any
defect is detected.
⚫Laser Light - Avoid Eye or Skin Exposure to Direct or Scattered Light.
⚫Do not point lasers at people or animals.
⚫Never look into the laser aperture or laser beams.
⚫Do not point lasers in areas where people can potentially be exposed, such as balconies, etc.
⚫Do not point lasers at highly reflective surfaces, such as windows, mirrors, and shiny metal
objects. Even laser reflections can be hazardous.
⚫Never point un-terminated laser beams into the sky.
⚫Do not expose the output optic (aperture) to cleaning chemicals.
⚫Do not use the laser if the housing is damaged, open, or if the optics appear damaged in any
way.
⚫Never leave this device running unattended.
⚫This product must always be operated by a skilled and well-trained operator who is familiar
with the data included in this manual.
⚫The legal requirements for using laser entertainment products vary from country to country.
The user is responsible for the legal requirements at the location/ country of use.
⚫Always use appropriate lighting safety cables when hanging this projector overhead.
⚫Class 4 Laser Projector - Avoid Eye and Skin Exposure to Direct or Scattered Light!
⚫This Laser Product is designated as Class 4 during all procedures of operation.

6
6USAGE
This product is for overhead mounting only. For safety purposes, this projector should be mounted
on steady elevated platforms or sturdy overhead supports using suitable hanging clamps. In all cases,
you must use safety cables.

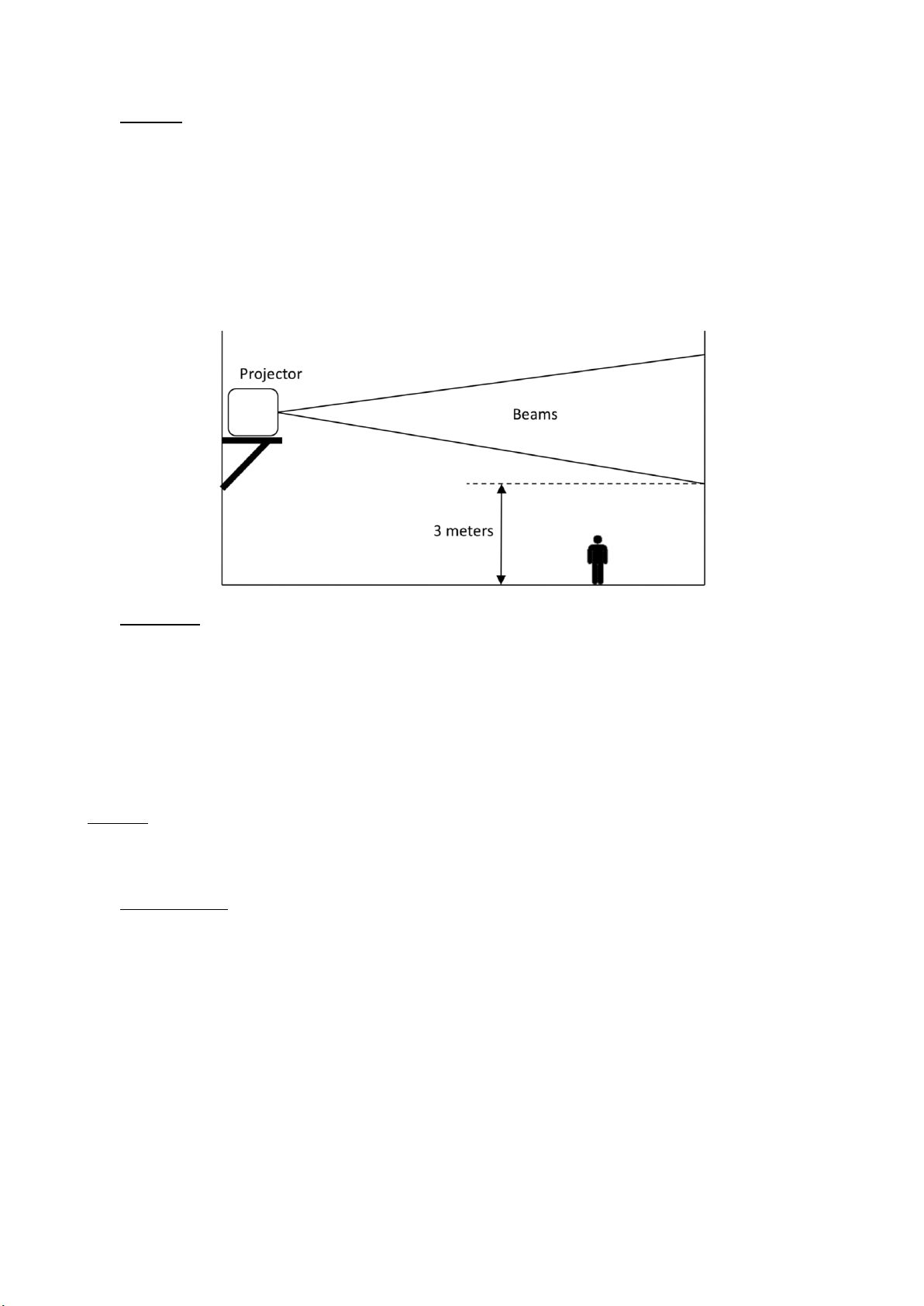

International laser safety regulations require that laser products must be operated in the fashion
illustrated below, with a minimum of 3 meters (9,8 ft.) of vertical separation between the floor and
the lowest laser light vertically. Additionally, 2,5 meters of horizontal separation is required
between laser light and audience or other public spaces.
7RIGGING
⚫Be sure that the structure onto which you are mounting this product can support its weight.
⚫Mount the product securely. You can do this with a screw, a nut, and a bolt. You may also use
a mounting clamp if rigging this product onto a truss. The U-shaped support bracket has three
mounting holes which may be used to secure the clamps to the projector.
⚫When mounting this product overhead, always use a safety cable.
⚫Always consider ease of access to the unit before deciding on a location for this product.
Caution: use of controls or adjustments or performance of procedures other than those specified
herein may result in hazardous radiation exposure.
This laser product is designated as Class 4 during all procedures of operation.
8OPERATION
8.1 INSTRUCTIONS FOR POWERING ON THE LASER SYSTEM
1. Connect the power cable.
2. Connect the 2-pin interlock bypass plug to the rear of the projector. (Or if you have E-STOP BOX,
connect the box to the projector, pull up the red switch and turn on the key switch).
3. Turn on the key switch on the projector to allow laser output.
4. Choose the running programs on LED screen (see following detailed instructions of the LED
control system), it can run with auto, sound or DMX.
5. Or if you connect the ILDA cable to the projector, then it’s under laser software control, for
example Pangolin Quickshow. Select the pattern on software. Notice: please choose “Allow laser
output” in software.

7

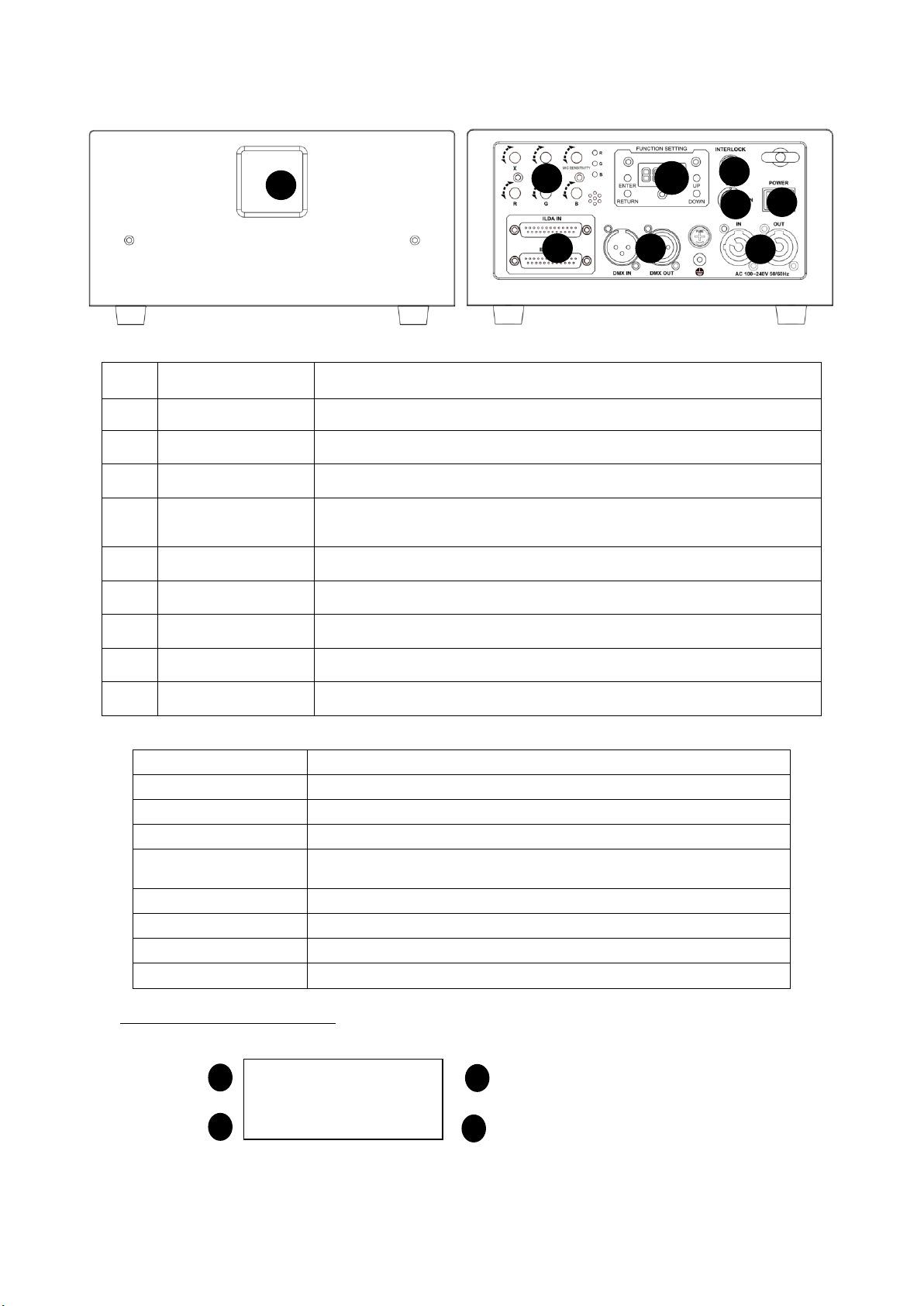

8.2 FRONT & REAR PANEL
NO.
Name
Function
1
Laser aperture
Laser output, do not look directly into this aperture
2
Function knob
X Y invert & size; Sound sensitivity; R G B brightness adjustment
3
LED setting panel
LED display with function setting buttons
4
Interlock
Laser output is available only when the interlock is connected.
It could be used to connect a laser emergency switch.
5
Key switch
Key switch for laser output
6
Power
Power on/off
7
DB25 IN&OUT
DB25 interface in and out for ILDA mode
8
DMX in & out
3 pin XLR interface for DMX
9
Power in/out
AC100~240V power input and output socket
8.3 PRODUCT SPECIFICATION
Total Laser power
2W
Laser source
400mW Red 638nm; 500mW Green 520nm; 1100mW Blue 455nm
Voltage
AC 100~240V, 50/60Hz, T3A
Power rate
200W
Unit Dimensions
238*192.5*114mm (without the bracket)
Net Weight
4.2KG
Scanner system
25Kpps, 60° scanning angle maximum
Working temperature
10~35℃
Cooling system
Fan cooling
9LED FUNCTION SETTING
ENTER UP
RETURN DOWN
Press UP or DOWN to choose functions in the same menu.
Press ENTER button to enter next menu.
6
6
5
5
1
5
5
2
1
5
5
3
4
3
2
1
5
5
7
8
9
LED DISPLAY

8
Press RETURN button to exit previous menu.
When you turn on the laser for the first time, it’ll take some seconds to auto load the built-in show.
First Menu
Second Menu
Third Menu
A001
Address 001~512
AUTO
AU01
SOUD
SO01
TEST
SCAN
SC10 ~ SC40 (Press UP or DOWN to choose scanner
speed from 10K to 40K. Pls be careful on this setting
as it will destroy the scanner if it’s set higher than the
unit scanner speed.)
COLO
CO01~CO12 (press UP or DOWN to choose colors)
(CO01~CO07 represents 7 single color; CO08 is RGY;
CO09 is RBP, CO10 is GBC; CO11 is RGB; CO12 is
WYCP)
SET
SETA (LED screen backlight)
ON (Always ON)
5S (ON for 5 seconds)
SETB (One beam safety setting)
OFF (One beam protect OFF)
ON (One beam protect ON)
SETC (Master unit setting)
OFF
ON
SETD (Set DMX channel mode)
12CH
23CH
DEFA
YES
NO
9.1 INSTRUCTION DMX 12 CHANNELS
CH1
LASER OFF
0~41
LASER OFF
Auto Activate
42~83
DMX mode, CH2~CH13 valid
84~167
Build-in graphics auto running mode
Sound
Activate
168~251
Build-in graphics sound activated mode
252~255
DMX mode, CH2~CH12 valid under sound activate
CH2
Pattern select
0~255
Selecting built-in patterns (every 2 values for one pattern)
CH3
Rotation
1~127
Manual rotation
128~159
30°rotation speed select
160~191
180°rotation speed select
192~223
Auto clockwise rotation (from slow to fast)
224~255
Auto counter-clockwise rotation (from slow to fast)
CH4
Horizontal
rolling
1~127
Manual rolling
128~159
Rolling speed select
160~191
192~223
224~255
CH5
Vertical
rolling
1~127
Manual rolling
128~159
Rolling speed select

9
9.2 INSTRUCTION FOR DMX 23 CHANNELS
160~191
192~223
224~255
CH6
Horizontal
moving
1~127
Manual moving
128~159
Moving speed select
160~191
192~223
224~255
CH7
Vertical
moving
1~127
Manual moving
128~159
Moving speed select
160~191
192~223
224~255
CH8
Pattern size
1~127
Select pattern size (the biggest size according to CH9
selection)
Zooming
128~159
Auto zooming (-) from slow to fast
160~191
Auto zooming (+) from slow to fast
192~223
Zooming (+/-) speed select
224~255
CH9
Pattern size
1~255
Select pattern size
CH10
Drawing
1~127
Drawing speed select
128~255
CH11
Display dot
1~127
Scanning speed select
128~255
CH12
Color setting
0~7
Original color
8~63
Select every single color
64~95
Select color changing effects and speed
96~127
128~159
Select flowing color effect & speed
160~191
192~223
224~255
Select color drawing effect & speed
CH1
LASER OFF
0~41
LASER OFF
Auto
Activate
42~83
DMX mode, CH2~CH23 valid
84~167
Build-in graphics auto running mode
Sound
Activate
168~251
Build-in graphics sound activated mode
252~255
DMX mode, CH2~CH25 valid under sound activate
CH2
Pattern A
select
0~255
Selecting built-in patterns (every 2 values for one pattern)
CH3
Pattern A
Rotation
1~127
Manual rotation
128~159
30°rotation speed select
160~191
180°rotation speed select

10
192~223
Auto clockwise rotation (from slow to fast)
224~255
Auto counter-clockwise rotation (from slow to fast)
CH4
Pattern A
horizontal
rolling
1~127
Manual rolling
128~159
Rolling speed select
160~191
192~223
224~255
CH5
Pattern A
vertical
rolling
1~127
Manual rolling
128~159
Rolling speed select
160~191
192~223
224~255
CH6
Pattern A
horizontal
moving
1~127
Manual moving
128~159
Moving speed select
160~191
192~223
224~255
CH7
Pattern A
vertical
moving
1~127
Manual moving
128~159
Moving speed select
160~191
192~223
224~255
CH8
Pattern A
size
1~127
Select pattern size (the biggest size according to CH9 selection)
Zooming
128~159
Auto zooming (-) from slow to fast
160~191
Auto zooming (+) from slow to fast
192~223
Zooming (+/-) speed select
224~255
CH9
Pattern A
size
1~255
Select pattern A size
CH10
Pattern A
Drawing
1~127
Drawing speed select
128~255
CH11
Pattern A
Display dot
1~127
Scanning speed select
128~255
CH12
Pattern A
Color setting
0~7
Original color
8~63
Select every single color
64~95
Select color changing effects and speed
96~127
128~159
Select flowing color effect & speed
160~191
192~223
224~255
Select color drawing effect & speed
CH13
Pattern B
select
0~255
Selecting built-in patterns (every 2 values for one pattern)
CH14
Pattern B
1~127
Manual rotation

11
Rotation
128~159
30°rotation speed select
160~191
180°rotation speed select
192~223
Auto clockwise rotation (from slow to fast)
224~255
Auto counter-clockwise rotation (from slow to fast)
CH15
Pattern B
horizontal
rolling
1~127
Manual rolling
128~159
Rolling speed select
160~191
192~223
224~255
CH16
Pattern B
vertical
rolling
1~127
Manual rolling
128~159
Rolling speed select
160~191
192~223
224~255
CH17
Pattern B
horizontal
moving
1~127
Manual moving
128~159
Moving speed select
160~191
192~223
224~255
CH18
Pattern B
vertical
moving
1~127
Manual moving
128~159
Moving speed select
160~191
192~223
224~255
CH19
Pattern B
size
1~127
Select pattern size (the biggest size according to CH21
selection)
Zooming
128~159
Auto zooming (-) from slow to fast
160~191
Auto zooming (+) from slow to fast
192~223
Zooming (+/-) speed select
224~255
CH20
Pattern B
size
1~255
Select pattern B size
CH21
Pattern B
Drawing
1~127
Drawing speed select
128~255
CH22
Pattern B
Display dot
1~127
Scanning speed select
128~255
CH23
Pattern B
Color setting
0~7
Original color
8~63
Select every single color
64~95
Select color changing effects and speed
96~127
128~159
Select flowing color effect & speed
160~191
192~223
224~255
Select color drawing effect & speed

12
10 TECHNICAL INFORMATION: MAINTENANCE AND SERVICE
10.1 GENERAL CLEANING INSTRUCTIONS: TO BE DONE BY USER
Due to fog residue, smoke, and dust cleaning the external body of the projector should be carried
out periodically to optimize light output. Cleaning frequency depends on the environment in which
the fixture operates (smoke, fog residue, dust, dew). In heavy club use we recommend cleaning on
a monthly basis. Periodic cleaning will ensure longevity, and crisp output.
⚫Unplug the product from power.
⚫Wait until the product is cold.
⚫Use a soft damp cloth to wipe down the outside projector casing.
⚫Use compressed air and a brush to wipe down the cooling vents and fan grill(s).
⚫Clean the glass panel (laser aperture) with glass cleaner and a soft cloth when dirty.
⚫Gently polish the glass surface until it is free of haze and lint.
⚫Always be sure to dry all parts completely before plugging the unit back in.
10.2 LASER BEAM ALIGNMENT: TO BE DONE BY USER OR MANUFACTURER
!
This procedure should be conducted only in a controlled environment and with
extreme caution. When aligning the beams, it is recommended to wear sufficient
laser safety protection and to avoid accidental exposure to Class 4 laser radiation.
There is all-in-one RGB laser module inside this laser projector. The module has one of each primary
colors of red, green and blue. The goal is to have all 3 colors overlay each other as perfectly as
possible. The easiest way to test and achieve alignment is to project a large circle onto a suitable
surface (fire safe surface). It is recommended to have as much distance between the projector and
the terminating wall as possible. It is also recommended to perform the alignment using the least
amount of power that enables all the laser modules.
11 INSTRUCTIONS FOR BEAM ALIGNMENT
1. Stand behind the projector and point the laser towards a large flat safe surface.
2. Slowly and carefully remove the top cover and set it aside. It will not be used during this
procedure.
3. Remove the front panel 4 hex button bolts.
4. While standing behind the laser, power up the system as normal.
5. Project a large white circle onto a laser safe surface. Use the least amount of power that enables
all the laser modules.
6. Using a hex key, reach down into the laser from above; adjust the alignment hex button screws
on the combining optics until all the beams overlay each other perfectly.
7. Once the alignment is satisfactory then power down the system.
8. Replace the top and front panel and replace the hex button bolts.

13
12 SERVICE
There are no user serviceable parts inside this unit. Do not attempt any repairs yourself; doing so
will void your manufactures warranty. In the unlikely event your unit may require service please
contact us directly or your local distributor, who will help you with a repair or replacement. We
will not accept any liability for any resulting damages caused by the non-observance of this
manual or any unauthorized modification to this unit.
