Profile MP9900 Quick start guide

AM/FM HIGH POWER FLIP DOWN DETACHABLE FACE
CD/USB/MMC/MP3 PLAYER
MP9900
INSTALLATION INSTRUCTIONS / OWNER S MANUAL
,

1
INTRODUCTION
Congratulations on your purchase of a Profile state-of-the-art single disc MP3/CD
and MMC/USB player. Your selection of a Profile car audio product indicates a true
appreciation of fine musical reproduction. Whether adding to an existing system or
including your Profile MP3/CD player in a new system, you are certain to notice
immediate performance benefits.
FEATURES
50W x 4 Power Output ESP (Electronic Shock Protection)
Dual RCA Line Outputs(Front & Rear)
ISO/DIN Mounting
Aux. Inputs (RCA & Front Jack)
Blinking Security L.E.D.
30 Station Memory
Full Electronic Function Controls
Disc Scan, Random & Repeat Play
KEEP YOUR SALES RECEIPT
Take this time to attach your sales receipt to the manual and put in a safe place.
In case of any reason this product may need warranty service, your receipt will
be necessary to establish purchase date.
IMPORTANT! Before making any connections, disconnect the car s battery
until the installation is completed to avoid possible damage to the electrical
system.
Serial # Purchase Date
,
Remote Control
Power Level Meter
4 Band Preset Equalizer
Clock
Loud Function
Flip Down Detachable Face MP3 Playback (USB & MMC Connections)

2
SAFETY PRECAUTIONS
Secure the CD player
When installing your CD player in the vehicle, make sure it is mounted properly in the dash,
using an after market installation kit if needed. When using the supplied mounting sleeve,
it is a must that you also use the supplied back brace to support the back of the CD
player.
Use caution when mounting the CD player.
Remember there are many electrical wires, vacuum lines, brake lines and air bag deployment
wires. Make sure you know where they are when mounting the CD player to avoid puncturing
lines, and shorting wires.
Use high grade wire connectors.
To ensure maximum power transfer and secure safe connections, it is recommended to use
high grade barrel or crimp cap connectors.
Do not run any wires underneath the vehicle.
Exposed wires can be cut or damaged. It is best to run all wires through the vehicle under the
carpet and/or side panels. This enables to a cleaner installation and less risk of damage.
Run signal wires away from electrical wires
To avoid possibility of induced noise from the car's electrical system (i.e. popping noises or
engine noise), run signal wires away from the car's electrical wiring.
Make all ground wires as short as possible and terminated at the same point.
In order to reduce the chance of ground loops (i.e. engine noise), make the grounded wire as
short as possible to reduce the wire's resistance. Also, when using multiple components, make
sure all units are grounded at the same point.
Avoid sharp edges when running the wires.
To avoid the possibility of power, signal or speaker shorts, be careful not to allow the amplifier
wires to come in contact with sharp edges. Use a grommet to protect the wire when running
through the fire wall .
.
MP9900

3
CARE AND MAINTENANCE
Cleaning the CD player
When cleaning the vehicle, be sure not to get any water in or on the CD player. Clean only
the exterior surface of the unit with a dry, clean soft towel using no chemical solvents.
Operating in extreme temperatures
Sometimes the unit will not operate in extreme, hot or cold temperatures. If this is the case,
wait until the temperature in the vehicle is normal, then resume operation.
Protect your CDs.
When not using the disc player, it is recommended that you remove the CD.
Do not leave an ejected disc sitting on the edge of the disc player for long periods of time.
The disc will warp under direct sunlight. Always put each disc in its case to protect them
during times of non-use.
CD operation.
Never attempt to force anything other than a compact disc in the disc slot. This disc player
is a precision instrument that could be damaged by a foreign object.
Disc skip
When driving down a very rough road, the disc may skip. This will not scratch or damage the disc.
Removing and protecting detachable face plate.
The face plate of the unit may be removed as a theft deterrent. After removing the face
plate, use the case provided to keep the face plate from getting damaged.
PROTECTIVE CASE
( FIG.2)
Press the OPEN button to flip down the face plate (Fig 1). Then hold the right side of the
face plate and pull it out from the unit (Fig.2)
Store the face plate in the protective case provided for safe keeping (Fig.3).
OPEN BUTTON
( FIG.1) ( FIG.3)
FACE PLATE
FACE PLATE

4
DISC CARE AND PLAY:
Before playing, clean the disc with a clean, lint-free cloth.
Wipe the disc in the direction of the arrow.
Do not use solvents such as benzine or thinners. Commercially available
cleaners or anti static spray will damage the unit.
Insert a disc with the labeled surface up.
Do not try to insert another disc when one has already been inserted.
Doing so may damage the unit.
Label
surface up
Handle the disc by its edge to keep the disc clean and do not touch
the surface.
Do not stick paper or tape on the disc.
Do not expose the disc to direct sunlight which can cause the disc to warp.
Always store the disc in its case for protection. Scratched up discs will
produce poor sound performance and cause CD player to skip.
MP9900

5
ELECTRICAL AND SIGNAL CONNECTIONS
FOUR SPEAKER SYSTEM
Before making the following connections, take time to look over the vehicle's wiring and
determine the location and wires you will be connecting to. If you do not wish to cut or tap
into the vehicles existing factory wiring, there are wiring kits available at your car audio
retailer that will allow you to plug directly into the factory wiring harness. Make sure to
test all wires before connecting to the CD Player.
!Connect Black wire to chassis ground.
!Connect the Yellow memory backup wire to a constant +12 volt power source wire.
!Connect the Red power wire to a switched +12 volt power source wire. (The power
wire that is energized when the key is in the accessory position).
!Blue wire is connected only if a power antenna or an amplifier is used in the
system. This wire supplies +12 volt output when the CD Player is turned on,
which activates most power antenna relays or amplifier turn on circuits.
CONNECTOR A
1.
2.
3.
4. Yellow - Memory +12V (15A)
5. Blue - Auto Antenna
6.
7. Red - Power B+ (Switched +12V)
8. Black - Ground
CONNECTOR B
1. Violet
2. Violet/Black
3. Gray
4. Gray/Black
5. White
6. White/Black
7. Green
8. Green/Black
FUSE 15 A
ISO SOCKET
REAR RCA LINE OUT
R CH RED
R CH RED
R CH RED L CH WHITE
L CH WHITE
L CH WHITE
GRAY
FRONT RCA LINE OUT
AUX RCA LINE IN
ANTENNA IN
BLACK
BROWN
R
L
R
R
L
L
Low level (RCA) signal output
for connection to amplifier or
signal processors.
Rear Right Speaker (+)
Rear Right Speaker (-)
Front Right Speaker (+)
Front Right Speaker (-)
Front Left Speaker (+)
Front Left Speaker (-)
Rear Left Speaker (+)
Rear Left Speaker (-)
ISO SOCKET

6MP9900
TWO SPEAKER SYSTEM
Low level (RCA) signal output
for connection to amplifier or
signal processors.
CAUTION! Tape unused wires so they do not short against other wires or
chassis ground.
CONNECTOR A
1.
2.
3.
4. Yellow - Memory +12V (15A)
5. Blue - Auto Antenna
6.
7. Red - Power B+ (Switched +12V)
8. Black - Ground
CONNECTOR B
1. Violet
2. Violet/Black
3. Gray
4. Gray/Black
5. White
6. White/Black
7. Green
8. Green/Black
FUSE 15 A
ISO SOCKET
REAR RCA LINE OUT
R CH RED
R CH RED
R CH RED L CH WHITE
L CH WHITE
L CH WHITE
GRAY
FRONT RCA LINE OUT
AUX RCA LINE IN
ANTENNA IN
BLACK
BROWN
R
L
R
R
L
L
- Not Used
- Not Used
Front Right Speaker (+)
Front Right Speaker (-)
Front Left Speaker (+)
Front Left Speaker (-)
- Not Used
- Not Used
ISO SOCKET

7
MOUNTING THE CD PLAYER
There are two different ways to mount the CD Player. In most Japanese vehicles you can
use the factory mounting brackets, taking advantage of the ISO/DIN opening. If your vehicle
does not have ISO/DIN opening, you can mount the CD Player using the supplied DIN sleeve
and rear support bracket. When considering your mounting location, make sure the unit will
be leveled. If you cannot mount the CD Player level, due to your vehicles design, make sure
there is no more than a 30 degree tilt. Keeping this in mind will assure proper CD play and
overall reliability.
DIN SLEEVE MOUNTING
Insert the mounting sleeve into a
standard DIN cutout in the dash
kit, dashboard or Console.
Bend the mounting tabs of the sleeve
with a screwdriver to secure the bracket
firmly in place.
Insert the CD Player in the
mounting sleeve until it locks.

8MP9900
Attach the back brace to the CD
player using the supplied hardware.
Then attach the other end of the
brace to a firm mounting surface
(i.e. Dash brace, fire wall, e.t.c.)
This will brace the back of the CD
player to ensure solid mounting to
prevent theft and provide optimal
CD play.
To Attach the Face Plate:
1 Hold the center of the face plate with the
plate facing down.
2 Insert the plate faced down to the bottom portion
of the unit opening until both left and right side snap in.
3 Then push up the face plate until it clicks into
proper position.
Once the CD player is secured, fit the trim
ring over outside edge of the radio until it
snaps into place.
FACE PLATE
2

9
ISO/DIN MOUNTING
If you own a Japanese vehicle, you can use the standard ISO/DIN mounting screw holes on
the side of the CD player to attach to the existing factory mounting bracket, without using
the provided DIN sleeve.
Remove the factory ISO/DIN mounting bracket from the car along with the factory radio.
Remove the factory radio from the bracket by unscrewing the two Phillips screws on each
side of the radio paying close attention to their screw positions and saving the screws to
mount the CD player.
Remove the sleeve from the CD player by using the keys provided. Also remove the
detachable face and rectangular trim ring from the CD player.
Mount the CD player to the factory ISO/DIN bracket using the screws that you removed
from the factory radio.
Connect the wire harness and antenna cable to the back of the CD player. Then mount the
factory ISO-DIN bracket to the car.
Note: It is not necessary to attach the outer rectangular trim ring for ISO/DIN mounting
method.
REMOVING THE CD PLAYER
To remove the CD player from an ISO/DIN mount, follow the above mounting procedure
in reverse order.
To remove the CD player from a sleeve mount, use the pair of keys provided.

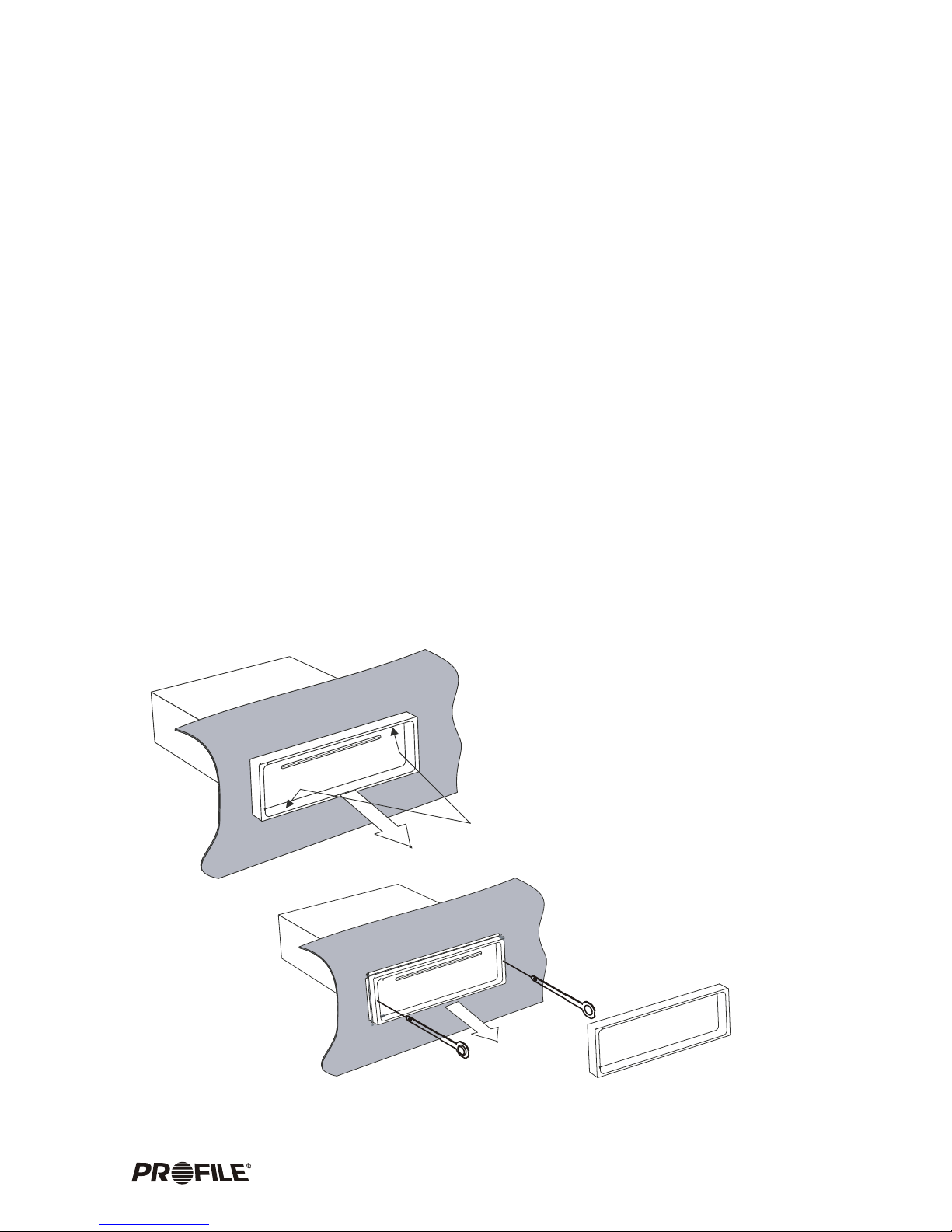

Remove the rectangular trim ring by
applying pressure outward with your
finger tips, then gently pull out away
from the dash.
Insert the provided removal key into an opening slot on each side of the CD player.
Push the keys inward until they unlock the sleeve from the unit. Then pull the CD player
out away from the dash.
PLACE FINGER TIPS HERE
!
!
!
!
!
!
!

10

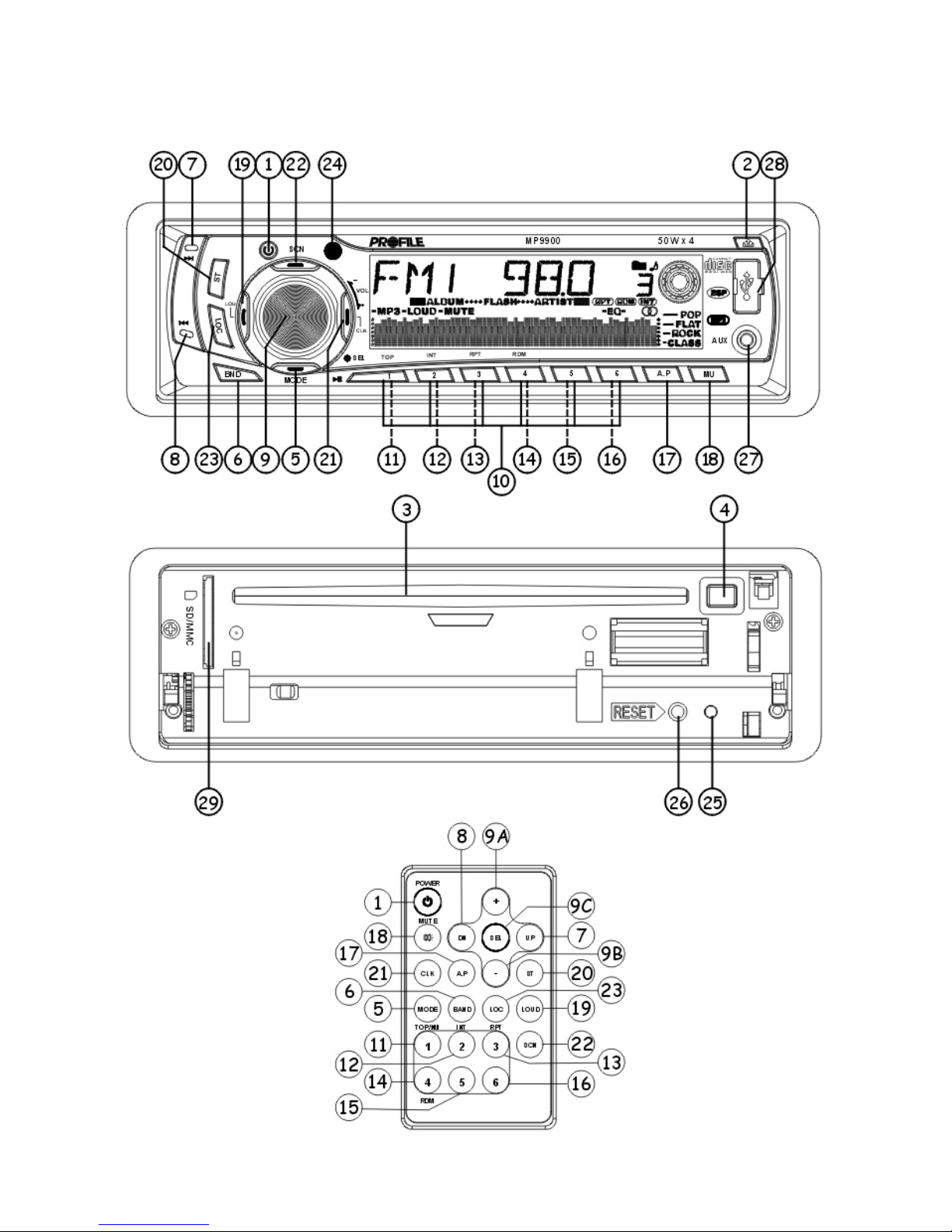

LOCATION AND FUNCTION OF CONTROLS
MP9900

1
2 OPEN
Press the OPEN( ) button toflip down theface plate. Thiswill allow youto insert
or eject aCD and alsoremove the faceplate.
3 DISC PLAY
To play adisc, press theOPEN button toflip down theface plate exposingthe
disc inserting slot.Gently insert thedisc into theslot with thelabel side facing
up. The discwill automatically beloaded into theunit and startplaying the first
track of thedisc. The digitaldisplay will indicatethe track number.
4 EJECT DISC
To remove adisc once inserted,press the OPEN( ) buttonto flip downthe face
plate and pressthe EJECT( )button located tothe right ofthe CD insertingslot.
Once the discis ejected, theunit switches toradio mode.
5 MODE
Press the MODEbutton to changeamong TUNER(radio), CD(if disc isloaded),
CARD (if MMC/SDcard is inserted),USB (if USBis inserted), andAUX (auxiliary
- front jackor rear RCA)input playing mode.
TUNER CD CARD USB AUX
6 BAND & MP3 TRACK SEARCH
1) Under radiomode press theBND 6 buttonto change amongthree FM bands
and two AMbands.
FM 1 FM 2 F M 3 AM 1 AM 2
2) During MP3play mode inCD, CARD orUSB, you canquickly find aspecific MP3
title by number.To access thisfeature, press theBND 6 buttonand the
“TRK 000” will be displayedwith hundreds digit“0”flashing(if total numberof
tracks is between10 and 99,it will display“TRK 00”with tens digit“0”flashing).
Then Rotate theVOL 9 knobto select thenumber for thatdigit and pushthe
BND 6 buttonto go onto the nextdigit down. Afteryou’re done settingthe
last digit, pushthe SEL 9 button to playthe select numberedtrack.
POWER
To turn “ON” the unit, pressany button exceptthe OPEN button.
To turn “OFF” the unit, pressthe POWER ( ) button formore than 2seconds.
11

12
7 8 RADIO TUNE & DISC TRACK UP/DOWN,DISC FAST FORWARD/REWIND
Under radio mode,press the 7 or 8 buttonmomentarily and repeatedlyto
change the frequencynumber up ordown by one step. Press andhold the 7 or
8 button formore than 2seconds to seekto the next or previous clearstation.
In CD, CARDor USB playmode, press the 7 or 8 button momentarily and
repeatedly to moveto the nextor previous track.
In CD, CARDor USB playmode, press and hold the 7 or 8 buttonto fast
forward or fastreverse through thesong. The music play resumes whenthe
button is released.
9 VOLUME UP/DOWN & FUNCTION SELECT
1) Rotate theVOL 9 knobin clockwise directionto increase the system’s volume
and in counterclockwise direction todecrease the system’s volume.
Note: For remotecontrol, press the button to increasethe volume and press
the button todecrease the volume.
2) Push theSEL 9 buttonto display differentfunctions for adjustments. Push
the SEL buttonmomentarily and repeatedlyto move the display from Volume,
Bass, Treble, Balance,and Fader functions.Rotate the VOL 9 knob toadjust
the selected mode.When the modehas not been adjusted for several seconds,
display and modereturns to normalradio or MP3/CD operation.
VOL BASS TRE BAL FAD
(Volume) (Bass) (Treble) (Balance) (Fader)
VOLUME - Pushthe SEL 9 button once. Adjustthe volume byrotating the VOL
9 knob.
BASS - Pushthe SEL 9 button twice. Adjustthe bass levelby rotating the VOL
9 knob.
TREBLE - Pushthe SEL 9 button three times.Adjust the treble level by rotating
the VOL 9 knob.
BALANCE - Pushthe SEL 9 button four times.Adjust the soundbalance between
left and rightspeakers by rotatingthe VOL 9 knob.
FADER - Pushthe SEL 9 button five times.Adjust the soundbalance between
front and rearspeakers by rotatingthe VOL 9 knob.
3) Push theSEL 9 buttonfor more than2 seconds todisplay additional setof
functions for adjustments,such as Beep,Preset EQ, LastVolume, and Clock
Format.
MP9900
+
-

13
Beep - Theunit is equippedwith BEEP ON,BEEP OFF functions.Push the SEL 9
button for morethan 2 secondsto display BEEPON/OFF. Then rotate the
VOL 9 knobto choose betweenBEEP ON andBEEP OFF modes.
BEEP ON mode:The beep soundis generated whenany button ispressed.
BEEP OFF mode:The beep sound is disabled.
EQ - Theunit is equippedwith 4 presetequalization modes. Pushthe SEL 9 button
for more than2 seconds todisplay the BEEPfunction. Push theSEL 9 button
again momentarily todisplay USER SET.Then rotate theVOL 9 knobin the
clockwise direction tochoose from oneof 4 presetEQ’s in thefollowing order.
EQ off settingis at USERSET position.
When using presetEQ modes youwill not haveaccess to Bassand Treble
settings.
Push the SEL 9 button formore than 2seconds to displaythe BEEP
function. Push theSEL 9 buttonfour times repeatedlyto display
CLK 12/24. Thenrotate the VOL 9 knob tochoose between CLK12
and CLK 24modes.
10 PRESET STATIONS
For each bandthere are 6numbered buttons tostore stations intomemory and
recall them. Selecta band (ifneeded) as explainedin 6 .Tune to a radio station
that you wishto store. Select,press, and holda preset numberedbutton for 2
seconds until youhear a beepindicating that thestation has beenstored in memory.
To recall apreset station, simplypush the numberedpreset button.
USER SET FLAT CLASSIC ROCK POP
(off)
Set Volume -A certain volumelevel can beset to comeon when theunit is turned
on or canbe set to come on atthe same lastlevel before theunit was
turned off. Pushthe SEL 9 button for morethan 2 secondsto display
the BEEP function.Push the SEL 9 button twicerepeatedly to display
VOL LAST/DEFA. Rotatethe VOL 9 knob to choosebetween VOL
LAST and VOLDEFA. To setthe volume toa certain level,push the
SEL 9 buttonmomentarily when VOLDEFA is displayed.Then rotate
the VOL 9 knob to adjustto certain volumelevel when AVOLis
displayed.
Clock Format -You can chooseto select 12or 24 hourclock format.

14
11 DISC, CARD, USB TOP/PAUSE
During CD, CARDor USB playmode, press theTOP/ 11 buttonto pause
disc, CARD orUSB play. Pressagain to resumenormal play.
During CD, CARDor USB playmode, press theTOP/ 11 buttonfor more than2
seconds to goback to thetop of thedisc, CARD orUSB and play the first track.
12 DISC, CARD, USB SCAN
During CD, CARDor USB playmode, press theINT 12 buttonto scan andplay the
first 10 secondsof each track.When wish tolisten to thewhole track duringintro
mode, press thebutton again toturn off scan.
13 REPEAT PLAY
During CD, CARDor USB playmode, press theRPT 13 button to continuously
play the currenttrack. Press itagain to cancelthe repeat feature.
During MP3 playmode form disc,CARD or USB,press the RPT 13 button twice
continuously to playall tracks inthe current folderrepeatedly.
14 RANDOM PLAY
During CD, CARDor USB playmode, press theRDM 14 buttonto play alltracks
in random sequence.Press it againto cancel randomplay.
15 SKIP 10 TRACKS DOWN
During MP3 playmode, press thepreset number 5 15 button toskip 10 tracks
backwards.
16 SKIP 10 TRACKS UP
During MP3 playmode, press thepreset number 6 16 button toskip 10 tracks
forward.
MP9900
17 PRESET SCANNING & AUTOMATIC STORING
1) Preset Scanning:
In radio mode,press the A.P 17 button momentarilyto activate thepreset
scanning function. Onceactivated, the unitstarts scanning all 6 preset memory
stations in eachFM or AMband for few seconds at atime while thepreset memory
number flashes onthe LCD. Whenwish to listen to one ofthe preset stations
during the scan,press the A.P 17 button againwhile that station is being scanned.
2) Automatic Storing:
In radio mode,press and hold the A.P 17 button for morethan 2 secondsto
activate the automaticstoring function. Onceactivated, the unitstarts
searching for first6 strong signaledstations for thatband and storesthem
into the presetmemory. For otherFM or AMbands, it’ll briefly displayeach
preset stations.

15
18 MUTE
Press the MU 18 button tomute the system.
Press a secondtime to resumelistening.
19 LOUD
Press the LOU 19 button onceto enhance thebass effect.
Press again tocancel the loudnessfunction.
20 MONO/STEREO
Monaural (Mono) orStereo mode canbe selected forFM tuner’s reception. For
best quality sound,Stereo mode shouldbe selected. However,Mono mode canbe
selected to helpthe reception ofdistant radio stations.Press the ST 20 button
to select betweenMono and Stereomodes.
21 CLOCK
Press the CLK 21 button todisplay the timeon the LCDfor 5 seconds.To adjust
the time, pressand hold theCLK button untilthe time flashesand rotate the VOL
9 knob inthe clockwise directionto adjust theminutes and counterclockwise
direction to adjustthe hours.
22 RADIO SCAN
Pressing the SCN 22 button, theunit will scanand search forthe next strong
station while playingeach station for5 seconds withthe current stationflashing
on the LCD.Pressing the SCN 22 button againwill stop theradio scan.
23 LOCAL/DX
The LOC 23 button is usedto control thesensitivity of theFM radio tunerwhile
searching for astation. When theradio is poweredon, the localmode is offby
default. Press theLOC 23 buttonto turn onthe local modeonly to receivethe
strongest stations.
24 INFRARED REMOTE CONTROL SENSOR
25 SECURITY LED
Designed as atheft deterrent, thered LED willflash when theface plate is
removed.
26 RESET
The reset buttonshould be pressedwhen installation iscomplete and alsowhen
all buttons donot operate.

16
27 AUXILIARY INPUT JACK
You can connecta portable playerthrough the AUX 27 input jack.Press the
MODE 5 buttonto select theAUX input mode.
Note: You can achievebetter audio performancewhen portable deviceis connected
using the auxiliaryRCA inputs onthe back ofthe unit.
Under AUX inputmode, only onetype of auxiliary input (front jack or rear
RCA) can beused at onetime and not both.
28 USB PORT
You can connectand play musicfiles from a USB memory stickthrough the USB
28 port. Oncethe memory stickis inserted, thesystem will automatically
change to USBmode and playthe first song.The USB portshould be coveredwith
the rubber capwhen not inuse.
Note: Never remove aUSB memory stickor a devicewhile the musicis being played.
Always switch toa different modeby pressing MODE 5 button. Ifnot, it
may damage theUSB stick and/orcause the unit to lock up.
29 MMC/SD CARD SLOT
You can connectand play musicfiles from anMMC/SD card throughthe MMC/SD
29 slot. Oncethe card isinserted, the systemwill automatically changeto CARD
mode and playthe first song.
Note: Never remove anMMC/SD card whilethe music isbeing played.
Always switch toa different modeby pressing MODE 5 button.
If not, itmay damage theMMC/SD card and/orcause the unitto lock up.
MP9900

17
Before using the remote control, the insulating patch must be removed. This
patch was installed to insulate the battery from draining until ready to use.
BATTERY INFORMATION:
Lithium Battery: CR2025 3V
Battery Life: Approximately 6 months.
Replacing the Battery from the Remote Control:
1) Turn over the remote control so the rear side of the remote is facing up.
2) Remove the battery holder by pressing the locking tab with your thumb
and pulling it out.
3) Replace the battery with the same type and the “+” side facing up.
4) Gently push in the holder until securely locked into place.
WARNING:
Do not recharge, disassemble or dispose of in fire.
Battery leakage may cause damage to the unit.
To avoid the risk of accident, keep batteries out of reach of children.
MAINTENANCE OF REMOTE CONTROL
+ side up
B
A

18
TROUBLE SHOOTING THE SYSTEM
The following chart will help in solving most problems that may occur. Should any problem
persist after you have made these checks, please consult your nearest Profile retailer.
Before going through this check list, refer back to the wiring and operating procedures.
SYMPTOM CAUSE SOLUTION
The vehicle's ignition switch
is not on.
Turn the ignition switch to the accessory
position. If there is still no power, check the
fuses at the vehicle's fuse block or the
radio's fuse leads.
The fuse is blown. Replace the fuse with another fuse of the
same recommended value
There is a disc already in
the player.
Remove the disc in the player, then put in
the new one.
You are trying to put the
compact disc in upside down.
Insert the compact disc with the label facing
up.
The compact disc is
extremely dirty or
defective.
Clean the compact disc with a compact disc
cleaning solution or replace the defective
compact disc.
The temperature in the car
is too hot.
Cool the inside of the vehicle, then try again.
Condensation build-up on the
inside of the unit.
Leave the disc player off and turn the
vehicle's air conditioner on to remove the
condensation build-up inside the unit.
The volume control is all the
way down.
Adjust the volume control.
The speakers are bad. Test the speakers to determine if they need
replacing.
The function
buttons do
not work.
The built-in microprocessor
is operating incorrectly.
Remove the disc, then re-insert it. Press the
reset 26 button.
No Power
Disc cannot
be loaded or
ejected.
No sound.
New installation. Press the RESET button.
E 1~ E 10 The unit cannot be operated because of trouble. Press the "RESET"
26 button. If the indicator still appears after pressing the "RESET"
26 button, your unit needs repair. Please refer to the warranty section
of this manual for details on getting the unit serviced.
ERROR CODES
26
MP9900

19
SYMPTOM CAUSE SOLUTION
The installation angle is
greater than 30 degrees
Adjust the angle of the unit to less than 30
degrees
The disc player is installed
incorrectly
Check to see if the unit is fastened securely
with the back brace supporting the rear of
the unit.
The compact disc is
extremely dirty or defective
disc.
Clean the compact disc with a compact disc
cleaning solution or replace the defective
compact disc.
Condensation build-up on the
inside of the unit.
Leave the disc player off and turn the
vehicle's air conditioner on to remove the
condensation build-up inside the unit.
The antenna is not
connected or the antenna is
bad.
Check the antenna and connection to insure
proper performance.
The signals in your listening
area are weak.
Select stations manually and make sure the
tuner is in the distant stereo mode.
The radio
does not
work. The
Radio station
automatic
selection
does not
work.
The compact
disc skips.
