Profile MP9700 Service manual

AM/FM HIGH POWER FLIP DOWN DETACHABLE FACE
MP3/CD PLAYER
MP9700
INSTALLATION INSTRUCTIONS / OWNER S MANUAL
,

1
INTRODUCTION
Congratulations on your purchase of a Profile state-of-the-art single disc MP3/CD
player. Your selection of a Profile car audio product indicates a true appreciation
of fine musical reproduction. Whether adding to an existing system or including
your Profile MP3/CD player in a new system, you are certain to notice immediate
performance benefits.
FEATURES
50W x 4 Power Output ESP (Electronic Shock Protection)
Dual RCA Line Output(Front & Rear)
ISO/DIN Mounting
Aux. RCA Input
Blinking Security L.E.D.
30 Station Memory
Full Electronic Function Controls
Disc Scan, Random & Repeat Play
KEEP YOUR SALES RECEIPT
Take this time to attach your sales receipt to the manual and put in a safe place.
In case of any reason this product may need warranty service, your receipt will
be necessary to establish purchase date.
IMPORTANT! Before making any connections, disconnect the car s battery
until the installation is completed to avoid possible damage to the electrical
system.
Serial # Purchase Date
,
Remote Control
Power Level Meter
4 Band Preset Equalizer
Clock
Loud Function
Flip Down Detachable Face MP3 Playback

2
SAFETY PRECAUTIONS
Secure the CD player
When installing your CD player in the vehicle, make sure it is mounted properly in the dash,
using an after market installation kit if needed. When using the supplied mounting sleeve,
it is a must that you also use the supplied back brace to support the back of the CD
player.
Use caution when mounting the CD player.
Remember there are many electrical wires, vacuum lines, brake lines and air bag deployment
wires. Make sure you know where they are when mounting the CD player to avoid puncturing
lines, and shorting wires.
Use high grade wire connectors.
To ensure maximum power transfer and secure safe connections, it is recommended to use
high grade barrel or crimp cap connectors.
Do not run any wires underneath the vehicle.
Exposed wires can be cut or damaged. It is best to run all wires through the vehicle under the
carpet and/or side panels. This enables to a cleaner installation and less risk of damage.
Run signal wires away from electrical wires
To avoid possibility of induced noise from the car's electrical system (i.e. popping noises or
engine noise), run signal wires away from the car's electrical wiring.
Make all ground wires as short as possible and terminated at the same point.
In order to reduce the chance of ground loops (i.e. engine noise), make the grounded wire as
short as possible to reduce the wire's resistance. Also, when using multiple components, make
sure all units are grounded at the same point.
Avoid sharp edges when running the wires.
To avoid the possibility of power, signal or speaker shorts, be careful not to allow the amplifier
wires to come in contact with sharp edges. Use a grommet to protect the wire when running
through the fire wall .
.
MP9700

3
CARE AND MAINTENANCE
Cleaning the CD player
When cleaning the vehicle, be sure not to get any water in or on the CD player. Clean only
the exterior surface of the unit with a dry, clean soft towel using no chemical solvents.
Operating in extreme temperatures
Sometimes the unit will not operate in extreme, hot or cold temperatures. If this is the case,
wait until the temperature in the vehicle is normal, then resume operation.
Protect your CDs.
When not using the disc player, it is recommended that you remove the CD.
Do not leave an ejected disc sitting on the edge of the disc player for long periods of time.
The disc will warp under direct sunlight. Always put each disc in its case to protect them
during times of non-use.
CD operation.
Never attempt to force anything other than a compact disc in the disc slot. This disc player
is a precision instrument that could be damaged by a foreign object.
Disc skip
When driving down a very rough road, the disc may skip. This will not scratch or damage the disc.
Removing and protecting detachable face plate.
The face plate of the unit may be removed as a theft deterrent. After removing the face
plate, use the case provided to keep the face plate from getting damaged.
PROTECTIVE CASE
( FIG.2)
Press the OPEN button to flip down the face plate (Fig 1). Then slightly push the face plate
towards the left side before pulling it out from the unit (Fig.2)
Store the face plate in the protective case provided for safe keeping (Fig.3).
OPEN BUTTON
( FIG.1) ( FIG.3)
FACE PLATE
FACE PLATE

4
DISC CARE AND PLAY:
Before playing, clean the disc with a clean, lint-free cloth.
Wipe the disc in the direction of the arrow.
Do not use solvents such as benzine or thinners. Commercially available
cleaners or anti static spray will damage the unit.
Insert a disc with the labeled surface up.
Do not try to insert another disc when one has already been inserted.
Doing so may damage the unit.
Label
surface up
Handle the disc by its edge to keep the disc clean and do not touch
the surface.
Do not stick paper or tape on the disc.
Do not expose the disc to direct sunlight which can cause the disc to warp.
Always store the disc in its case for protection. Scratched up discs will
produce poor sound performance and cause CD player to skip.
MP9700

5
ELECTRICAL AND SIGNAL CONNECTIONS
FOUR SPEAKER SYSTEM
++
++++
++
YELLOW
ANTENNA CONNECTOR
MEMORY +12V
BLACK(GND)
RED (B+)
FRONT RIGHT
SPEAKER
BLUE AUTO ANTENNA
WHITE
WHITE/BLACK
GREEN/BLACK VIOLET/BLACK
GRAY/BLACK
GRAY
VIOLET
GREEN
15A Fuse
FILTER
BOX
0.5A Fuse
BATTERY
+12V
+-
SWITCHED +12V
(ON WITH IGNITION)
Low level signal output for
connection to amplifier or
signal processors.
R
L
R
L
R CH RED
L CH WHITE
R CH RED
L CH WHITE
BLACK
GRAY
FRONT RCA OUTPUT
REAR RCA OUTPUT
REAR RIGHT
SPEAKER
FRONT LEFT
SPEAKER
REAR LEFT
SPEAKER
FUSE
0.5 A
R
L
R CH RED
L CH WHITE BROWN
AUX RCA INPUT
Before making the following connections, take time to look over the vehicle's wiring and
determine the location and wires you will be connecting to. If you do not wish to cut or tap
into the vehicles existing factory wiring, there are wiring kits available at your car audio
retailer that will allow you to plug directly into the factory wiring harness. Make sure to
test all wires before connecting to the CD Player.
!Connect Black wire to chassis ground.
!Connect the Yellow memory backup wire to a Constant +12 Volt power source wire.
!Connect the Red ignition wire to a switched +12 Volt power source wire. (The power
wire that is energized when the key is in the accessory position).
!The blue wire is connected only if a power antenna or an amplifier is used in the
system. This wire supplies +12 Volt output when the CD Player is turned on,
which activates most power antenna relays or amplifier turn on circuits.

6
CAUTION! Tape unused wires so they do not short against other wires or
chassis ground.
TWO SPEAKER SYSTEM
NOT USED
NOT USED
NOT USED
NOT USED
++++
YELLOW
ANTENNA CONNECTOR
MEMORY +12V
BLACK(GND)
RED (B+)
FRONT RIGHT
SPEAKER
BLUE AUTO ANTENNA
WHITE
WHITE/BLACK GRAY/BLACK
GRAY
BATTERY
+12V
+-
SWITCHED +12V
(ON WITH IGNITION)
Low level signal output for
connection to amplifier or
signal processors.
R
L
R
L
R CH RED
L CH WHITE
R CH RED
L CH WHITE
BLACK
GRAY
FRONT RCA OUTPUT
REAR RCA OUTPUT
FRONT LEFT
SPEAKER
FUSE
0.5 A
15A Fuse
FILTER
BOX
0.5A Fuse
R
L
R CH RED
L CH WHITE BROWN
AUX RCA INPUT
MP9700

7
MOUNTING THE CD PLAYER
There are two different ways to mount the CD Player. In most Japanese vehicles you can
use the factory mounting brackets, taking advantage of the ISO/DIN opening. If your vehicle
does not have ISO/DIN opening, you can mount the CD Player using the supplied DIN sleeve
and rear support bracket. When considering your mounting location, make sure the unit will
be leveled. If you cannot mount the CD Player level, due to your vehicles design, make sure
there is no more than a 30 degree tilt. Keeping this in mind will assure proper CD play and
overall reliability.
DIN SLEEVE MOUNTING
Insert the mounting sleeve into a
standard DIN cutout in the dash
kit, dashboard or Console.
Bend the mounting tabs of the sleeve
with a screwdriver to secure the bracket
firmly in place.
Insert the CD Player in the
mounting sleeve until it locks.

8MP9700
Attach the back brace to the CD
player using the supplied hardware.
Then attach the other end of the
brace to a firm mounting surface
(i.e. Dash brace, fire wall, e.t.c.)
This will brace the back of the CD
player to ensure solid mounting to
prevent theft and provide optimal
CD play.
To Attach the Face Plate:
Basically, the face plate should be attached
to the unit in the reverse order of removal.
1 Hold the right side of the plate with the
plate facing down.
First attach the left side of the plate to the
unit by inserting the hole into the left holder.
2 Then slightly push the plate to the left
before attaching the right side hole into the
right holder.
3 Finally push up the face plate until click sound is heard.
Once the CD player is secured, fit the trim
ring over outside edge of the radio until it
snaps into place.
FACE PLATE

9
ISO/DIN MOUNTING
If you own a Japanese vehicle, you can use the standard ISO/DIN mounting screw holes on
the side of the CD player to attach to the existing factory mounting bracket, without using
the provided DIN sleeve.
Remove the factory radio from the bracket by unscrewing the two Phillips screws on each
side of the radio paying close attention to their screw positions and saving the screws to
mount the CD player.
Remove the two spring clips from each side of the CD player by removing the screws.
These clips are not used in ISO/DIN mounting method and must be removed to expose the
ISO/DIN mounting holes.
Also remove the detachable face and rectangular trim ring from the CD player and mount
the CD player to the factory ISO/DIN bracket using the screws that you removed from
the factory radio.
Connect the wire harness and antenna plug to the back of the CD player. Then mount the
factory ISO-DIN bracket to the car.
Note: It is not necessary to attach the outer rectangular trim ring for ISO/DIN mounting
method. REMOVING THE CD PLAYER
To remove the CD player from an ISO/DIN mount, follow the above mounting procedure
in reverse order.
To remove the CD player from a sleeve mount, use the pair of keys provided.
Remove the rectangular trim ring by
applying pressure with your finger
tips, then gently pull out away from
the dash.
Insert the provided removal key into the opening on each side of the CD player.
Push the keys inward until they snap in place. Firmly grab the keys and slowly
pull the CD player out away from the dash.
PLACE FINGER TIPS HERE
!
!
!
!
!
!
Remove the factory ISO/DIN mounting bracket from the car along with the factory radio.

10
LOCATION AND FUNCTION OF CONTROLS
MP9700

1 POWER
To turnONthe unit, press any button except the OPEN button.
To turnOFFthe unit, press the PWRbutton for more than 2 seconds.
2 OPEN
Press the OPENbutton to flipdown the faceplate. This willallow you toinsert
or eject aCD and alsoremove the faceplate.
3 DISC PLAY
To play adisc, press theOPEN button toflip down theface plate exposingthe
disc inserting slot.Gently insert the disc into the slot with thelabel side facing
up. The discwill automatically be loaded into the unit and startplaying the first
track of thedisc. The digital display will indicate the track number.
If the disccontains mixed format of CD andMP3 songs, undera default modethe
unit will firstplay all CD formatted songs andthen play MP3formatted songs.
To play theMP3 songs first, press the BND 7 button formore than 2 seconds.
4 EJECT DISC
To remove adisc once inserted, press the OPENbutton to flipdown the faceplate
and press the( ) button located on the left hand sideof the CDinserting slot.
Once the discis ejected, the unit switches to radio mode.
5 VOLUME UP/DOWN
Rotate the VOLknob in clockwise direction to increasethe system svolume
and in counterclockwise direction to decrease the systems volume.
Note: For remotecontrol, press the button to increasethe volume andpress
the button todecrease the volume.
6 MODE
Press the MODbutton to change among tuner (radio),MP3/CD (if discis loaded),
and auxiliary inputplaying mode.
Radio MP3/CD AUX.
7 BAND
Under radio modepress the BNDbutton to change among three FM bands and
two AM bands.
FM 1 FM 2 F M 3 AM 1 AM 2
In MP3 playmode, pressing the BND button willdisplay the currentFolder name.
,
,
11
+
-

12
10 PRESET STATIONS
There are 6numbered buttons to store into memoryand recall stationsfor each
band. Select aband (if needed) as explained in 7 . Tuneto a radiostation that
you wish tostore. Select, press, and hold apreset numbered buttonfor 2 seconds
until you heara beep indicating that the stationhas been storedin memory. To
recall a presetstation, simply push the numbered presetbutton.
11 FUNCTION SELECT
SEL button allowsyou to display different functions for adjustments. Press the
SEL button momentarilyand repeatedly to move the display from Volume, Bass,
Treble, Balance, andFader functions. Use the VOL knob 5 to adjustthe selected
mode. When themode has not been adjusted for several seconds, displayand mode
returns to normalradio or MP3/CD operation.
VOL BAS TRE BAL FAD
(Volume) (Bass) (Treble) (Balance) (Fader)
VOLUME - Pressthe SEL button once. Adjust the volume using theVOL knob 5 .
BASS - Pressthe SEL button twice. Adjust the bass level usingthe VOL knob 5 .
TREBLE - Pressthe SEL button three times. Adjust the treble levelusing the VOL
knob 5 .
BALANCE - Pressthe SEL button four times. Adjust the sound balancebetween
left and rightspeakers using the VOL knob 5 .
,
,
,
,
Under CD &MP3 mixed-formatted disc playback mode, pressing the BND 7 button
for more than2 seconds will change from playingthe CD formattedsongs to MP3
formatted songs andvice versa.
Under a defaultmode, the unit will first play all the CDformatted songs andthan
play the MP3formatted songs.
8 9 RADIO TUNE & DISC TRACK UP/DOWN,DISC FAST FORWARD/REWIND
Under radio mode,press the 8 or 9 buttonmomentarily and repeatedlyto
change the frequencynumber up ordown one step.Under SEEK 1mode, press and
hold the 8 or 9 buttonfor more than2 seconds toseek to thenext or previous
clear station. UnderSEEK 2 mode,press and holdthe 8 or 9 button tospeedily
change stations upor down. Changingstations will stoponce the buttonis released.
( Please referto SEEK onpage 13 onhow to setthe seek mode between SEEK 1
and SEEK 2.)
In MP3/CD playmode, press the 8 or 9 button momentarily andrepeatedly
to move tothe next orprevious track.
In MP3/CD playmode, press andhold the 8 or 9 buttonto fast forwardor
fast reverse throughthe song. Thedisc resumes playingwhen the buttonis released.
MP9700
I
I
I
I
I
I
I
I
I
I

13
ND
BEEP - Theunit is equipped with BEEP 2 , BEEP ALL,BEEPOFF functions. Press the
ND
SEL button formore 2 seconds to display BEEP2 . Then usethe VOL knob
ND
5 to chooseamong BEEP 2 , BEEP ALLor BEEP OFFmodes.
ND
Beep 2 mode: The beepsound is only generated when any one of 6memory
preset buttons 10 , APS button 18 or SELbutton 11 is
pressed for morethan 2 seconds.
BEEP ALL mode:The beep sound is generated when any buttons is pressed.
BEEP OFF mode:The beep sound is disabled.
SEEK- The unitis equipped with two types of seeks, SEEK 1and SEEK 2,for radio
stations. Press theSEL button for more than 2 seconds to displaythe BEEP
function. Press theSEL button again momentarily to display SEEK 1 or2.
Then use theVOL knob 5 to switch betweenSEEK 1 andSEEK 2. (This
adjustment is onlyavailable during radio operation)
SEEK 1 mode:Pressing 8 or 9 button for more than 2 seconds will seek
up or downto the next strong station during radio operation.
SEEK 2 mode:Pressing 8 or 9 button continuously will speedily change
station up ordown until the button is released.
DSP - Theunit is equipped with 4 preset equalization modes. Pressthe SEL button
for more than2 seconds to display the BEEPfunction. Press theSEL button
twice momentarily todisplay DSP OFF. Then use the VOL knob 5 in the
clockwise direction tochoose one of 4 preset EQ s in thefollowing order.
When using presetEQ modes you will not haveaccess to Bassand Treble
settings.
,
DSP OFF FLAT POP ROCK
SET VOL -A certain volume level can beset to comeon when theunit is turned
on or canbe set tocome on atthe same lastlevel before the unit was
turned off. Pressthe SEL button for more than2 seconds todisplay
the BEEP function.Press the SEL button three timesmomentarily to
display VOL LAST/ADJ.Use the VOL knob 5 to choose between VOL
LAST and VOLADJ. To set the volume toa certain level,press the SEL
button momentarily whenVOL ADJ is displayed. Then use the VOL knob
5 to adjustto certain volume level when A-VOLis displayed.
CLASSIC
FADER - Pressthe SEL button five times. Adjust the sound balancebetween front
and rear speakersusing the VOL knob 5 .
Press the SELbutton for more than 2 secondsto display additionalset of functions
ND
for adjustments, suchas BEEP 2 /All/OFF, SEEK 1/ 2, DSP,Volume Last/Adjust,
and ESP 40/ESP 10.
I
I
I
I

14
12 MP3/CD TOP/PAUSE
In MP3/ CDplay mode, press the TOP 12button to pauseMP3/CD play.
Press again toresume normal play.
In MP3/CD playmode, press the TOP 12 buttonfor more than2 seconds togo
back to thetop of the disc and playthe first track.
13 MP3/CD SCAN
In MP3/ CDplay mode, pressthe INT 13 button to playthe first 10seconds of
each track. Whenwish to listento the wholetrack during intromode, press the
button again toturn off intro.
In MP3 playmode, press theINT 13 buttonfor more than2 seconds to play the
first 10 secondsof each trackin the currentfolder.
14 REPEAT PLAY
In MP3/CD playmode, press the RPT 14 button to continuously play the current
track. Press itagain to cancel the repeat feature.
In MP3 playmode, press the RPT 14 button for more than2 seconds tocontinuously
play all thetracks in the current folder . Press it againto cancel therepeat feature.
15 RANDOM PLAY
In MP3 /CDplay mode, pressthe RDM 15 button to playall tracks ofthe disc in
random sequence. Pressit again tocancel random play.
16 SKIP 10 TRACKS DOWN
In MP3 playmode, press the DN-10 16 button to skip 10 tracks backwards
17 SKIP 10 TRACKS UP
In MP3 playmode, press the UP-10 17 button to skip 10 tracks forward.
In MP3 playmode, press the RDM 15 button for more than2 seconds torandomly
play the tracksin the current folder. Press again to cancel randomplay.
ESP- The unitis equipped with two durations for electronic shock protection, 40
and 10 seconds.The default setting is at 40 seconds of anti-shock protection.
Using 10 secondESP will slightly improve the audio performance, while 40
seconds ESP willbe effective when the vehicle is driven on a rough road.
To change thesetting, press the SEL button for more than 2seconds to
display the BEEPfunction. Then press the SEL button four times momentarily
to display ESP40/ESP 10. Use the VOL knob 5 to choosebetween ESP 40
and ESP 10.
MP9700

15
18 AUTOMATIC STORING, PRESET SCANNING, & MP3 TRACK SEARCH
1) Automatic Storing:
In radio mode,press and holdthe APS 18 button for morethan 2 secondsto
activate the automaticstoring function. Onceactivated, the unitstarts searching
for first 6strong signaled stations and stores them into the preset memory.
It ll thenbriefly display each preset stations before tuning to preset station
number 1.
,
3) MP3 Track Search:
In MP3 mode,you can access 3 different types of track searchmodes for MP3
titles- Track NumberSearch, First Character Search, and Folder Search.
a) The TrackNumber Search will allow you to quickly find aspecific MP3 title
by number. To access this feature, press the APS 18 button once andMP3
T000will be displayed with the ones digit0flashing. Rotate the VOL
5 knob toselect and enter the number atthe flashing digitthen press the
SEL 11 buttonto confirm.
Then the0on the tens digit will be flashing for you to choose using the VOL
5 knob followedby the SEL 11 button asconfirmation.
Lastly, the0on the hundreds digit will be flashing for you to choose using
the VOL 5 knob followed bythe SEL 11 button as confirmation.After pushing
the last SEL 11 button, theunit will findand play theentered track number.
b) The FirstCharacter Search willallow you toquickly find anMP3 title byname.
To access this feature, press the APS 18 button twice andA--will be dis-
played followed byfew beginning letters of the first title beginning with the
letterA. If there are no titles beginning with the letterA, the display
will show A--NONE. Then use the VOL 5 knob to go through the letters
in the orderof A~Z and0~9. If thereare more thanone title startingwith a
same letter, youcan use the 8 or 9 buttons to selectthe title. Oncethe
desired MP3 titleis found, press the SEL 11 button to playthe selected title.
c) The FolderSearch will allow you to quicklyfind an MP3title under a specific
group Folder. Tofind the Foldersand the titlesunderneath, press theAPS 18
button three timesto display thefirst folder anduse VOL 5 knob to searchand
select a desiredFolder (If thereare no rootFolder in thedisc, the LCDwill
displayROOT) Once the Folder has been selected, use the 8 or 9
buttons to selectthe title and finally press theSEL 11 buttonto play it.
2) Preset Scanning:
In radio mode,press the APS 18 button momentarilyto activate thepreset
scanning function. Onceactivated, the unit starts scanning all6 preset memory
stations for fewseconds at atime while thepreset memory numberflashes on
the LCD. Itll then briefly display each presetstations before tuningto preset
station number 1.When wish tolisten to oneof the presetstations during the
scan, press theAPS 18 buttonagain while thatstation is beingscanned.
,
I
I
I
I

16
Note: During MP3play mode, pressing the BND 7 button will display the current
Folder name.
23 RADIO SCAN (Only from Remote)
Pressing the SCANbutton from the remote control, the unit will scanand search
for the nextstrong station while playing each station for 5 secondswith station
number flashing. Pressingthe SCAN button again will stop the radio scan.
24 LOCAL/DX
This button isused to control the sensitivity of the FM radio tuner while searching
for a station.When the radio is powered on, the local mode is off bydefault. Press
the LO/DX buttonto turn on the local mode only to receive the strongest stations.
25 INFRARED REMOTE CONTROL SENSOR
26 SECURITY LED
Designed as atheft deterrent, the red LED willflash when theunit is turned off
and face plateremoved.
27 RESET
The reset buttonshould be pressed when installation iscomplete and alsowhen
all buttons donot operate.
21 MONO/STEREO
Monaural (Mono) orStereo mode can be selected forFM tuner sreception. For
best quality sound,stereo mode should be selected. However,Mono mode canbe
selected to helpthe reception of distant radio stations.Press the STbutton to
select between Monoand Stereo modes.
22 CLOCK
Press the CLKbutton to display the time on the LCD for5 seconds. Toadjust the
time, press andhold the CLK button until the time flashes androtate the VOL 5
knob in theclockwise direction to adjust the hours and counter clockwisedirec-
tion to adjustthe minutes.
19 MUTE
Press the MUbutton to silence the system.
Press a secondtime to resume listening.
20 LOUDNESS
Press the LOUDbutton once to enhance the basseffect.
Press again tocancel the loudness function.
MP9700

17
Before using the remote control, the insulating patch must be removed. This
patch was installed to insulate the battery from draining until ready to use.
BATTERY INFORMATION:
Lithium Battery: CR2025 3V
Battery Life: Approximately 6 months.
Replacing the Battery from the Remote Control:
1) Turn over the remote control so the rear side of the remote is facing up.
2) Remove the battery holder by pressing the locking tab with your thumb
and pulling it out.
3) Replace the battery with the same type and the +side facing up.
4) Gently push in the holder until securely locked into place.
WARNING:
Do not recharge, disassemble or dispose of in fire.
Battery leakage may cause damage to the unit.
To avoid the risk of accident, keep batteries out of reach of children.
MAINTENANCE OF REMOTE CONTROL

18
TROUBLE SHOOTING THE SYSTEM
The following chart will help in solving most problems that may occur. Should any problem
persist after you have made these checks, please consult your nearest Profile retailer.
Before going through this check list, refer back to the wiring and operating procedures.
SYMPTOM CAUSE SOLUTION
The vehicle's ignition switch
is not on.
Turn the ignition switch to the accessory
position. If there is still no power, check the
fuses at the vehicle's fuse block or the
radio's fuse leads.
The fuse is blown. Replace the fuse with another fuse of the
same recommended value
There is a disc already in
the player.
Remove the disc in the player, then put in
the new one.
You are trying to put the
compact disc in upside down.
Insert the compact disc with the label facing
up.
The compact disc is
extremely dirty or
defective.
Clean the compact disc with a compact disc
cleaning solution or replace the defective
compact disc.
The temperature in the car
is too hot.
Cool the inside of the vehicle, then try again.
Condensation build-up on the
inside of the unit.
Leave the disc player off and turn the
vehicle's air conditioner on to remove the
condensation build-up inside the unit.
The volume control is all the
way down.
Adjust the volume control.
The speakers are bad. Test the speakers to determine if they need
replacing.
The function
buttons do
not work.
The built-in microprocessor
is operating incorrectly.
Remove the disc, then re-insert it. Press the
reset button .
No Power
Disc cannot
be loaded or
ejected.
No sound.
New installation. Press the RESET button.
E 1~ E 10 The unit cannot be operated because of trouble. Press the "RESET"
button . If the indicator still appears after pressing the "RESET"
button , your unit needs repair. Please refer to the warranty section
of this manual for details on getting the unit serviced.
ERROR CODES
27
27
27
27
MP9700

19
SYMPTOM CAUSE SOLUTION
The installation angle is
greater than 30 degrees
Adjust the angle of the unit to less than 30
degrees
The disc player is installed
incorrectly
Check to see if the unit is fastened securely
with the back brace supporting the rear of
the unit.
The compact disc is
extremely dirty or defective
disc.
Clean the compact disc with a compact disc
cleaning solution or replace the defective
compact disc.
Condensation build-up on the
inside of the unit.
Leave the disc player off and turn the
vehicle's air conditioner on to remove the
condensation build-up inside the unit.
The antenna is not
connected or the antenna is
bad.
Check the antenna and connection to insure
proper performance.
The signals in your listening
area are weak.
Select stations manually and make sure the
tuner is in the distant stereo mode.
The radio
does not
work. The
Radio station
automatic
selection
does not
work.
The compact
disc skips.
Table of contents
Other Profile Car Receiver manuals

Profile

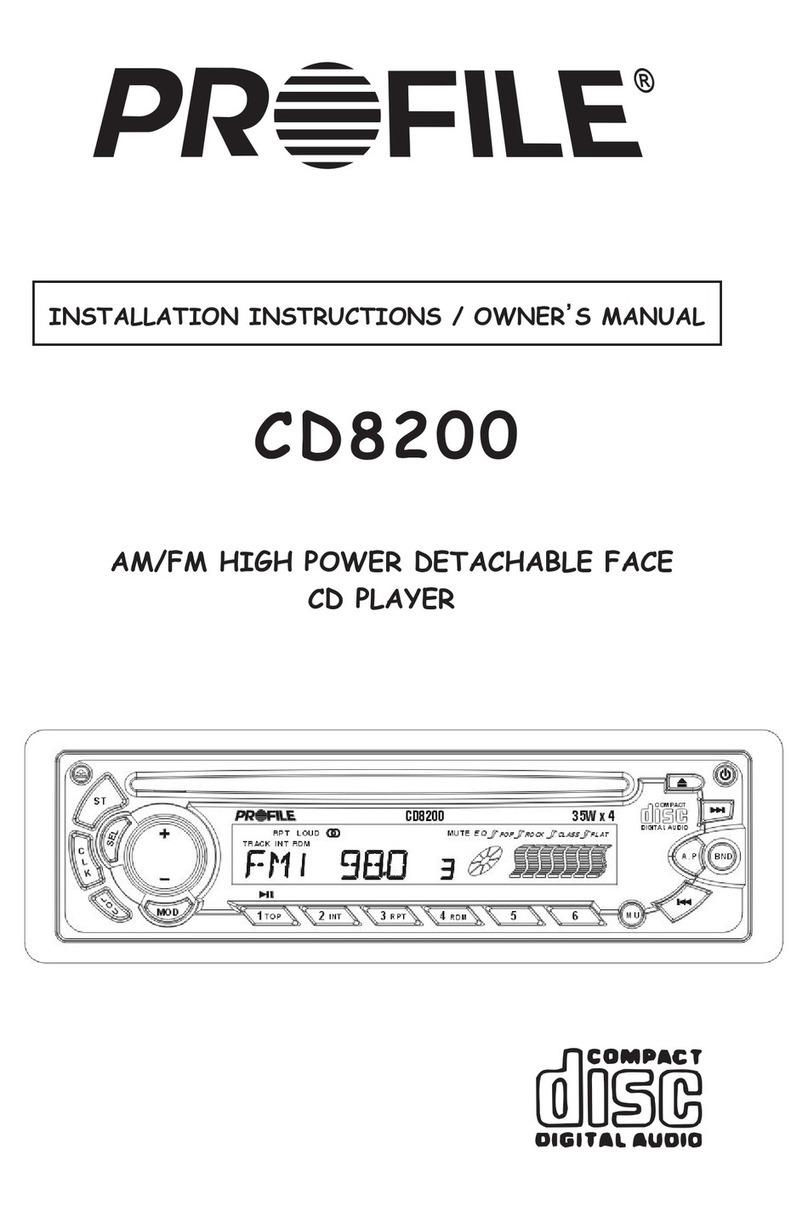

Profile CD8200 Service manual

Profile

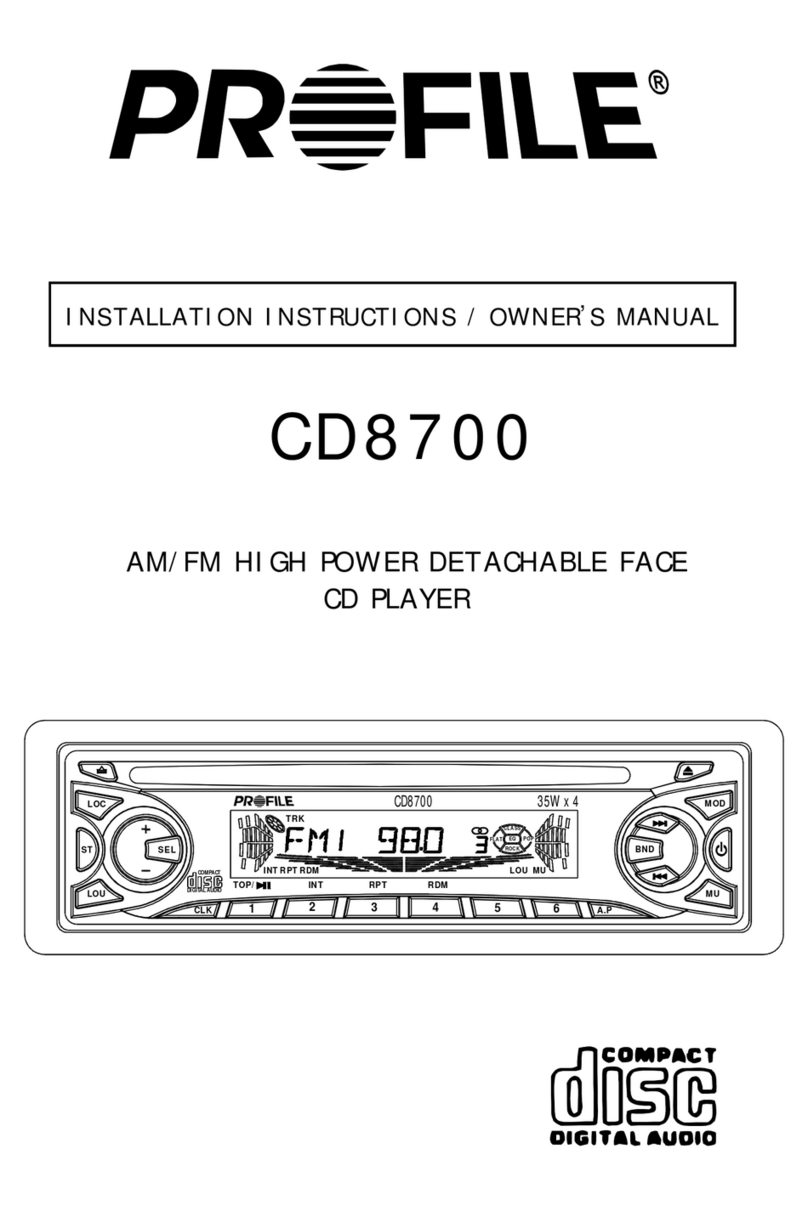

Profile CD8700 Service manual

Profile
Profile PCD920 Service manual

Profile
Profile CD7400 Service manual

Profile

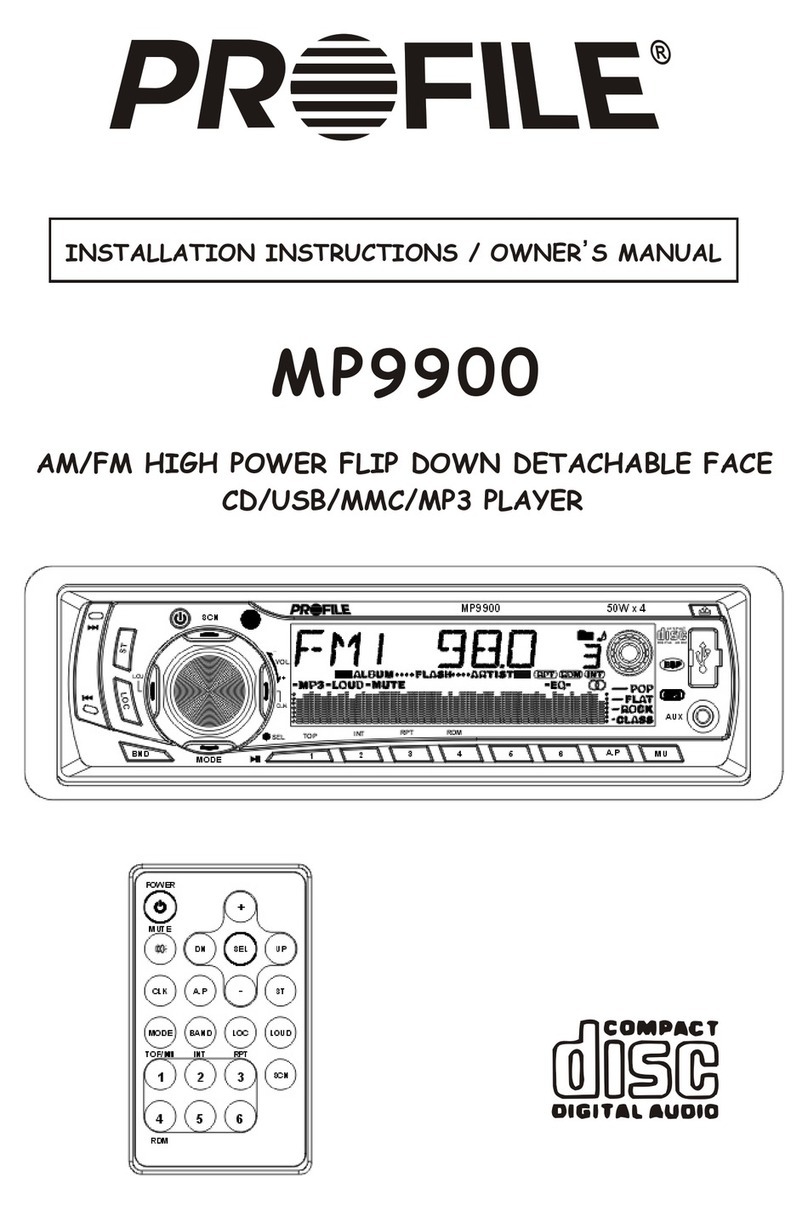

Profile MP9900 Quick start guide

Profile

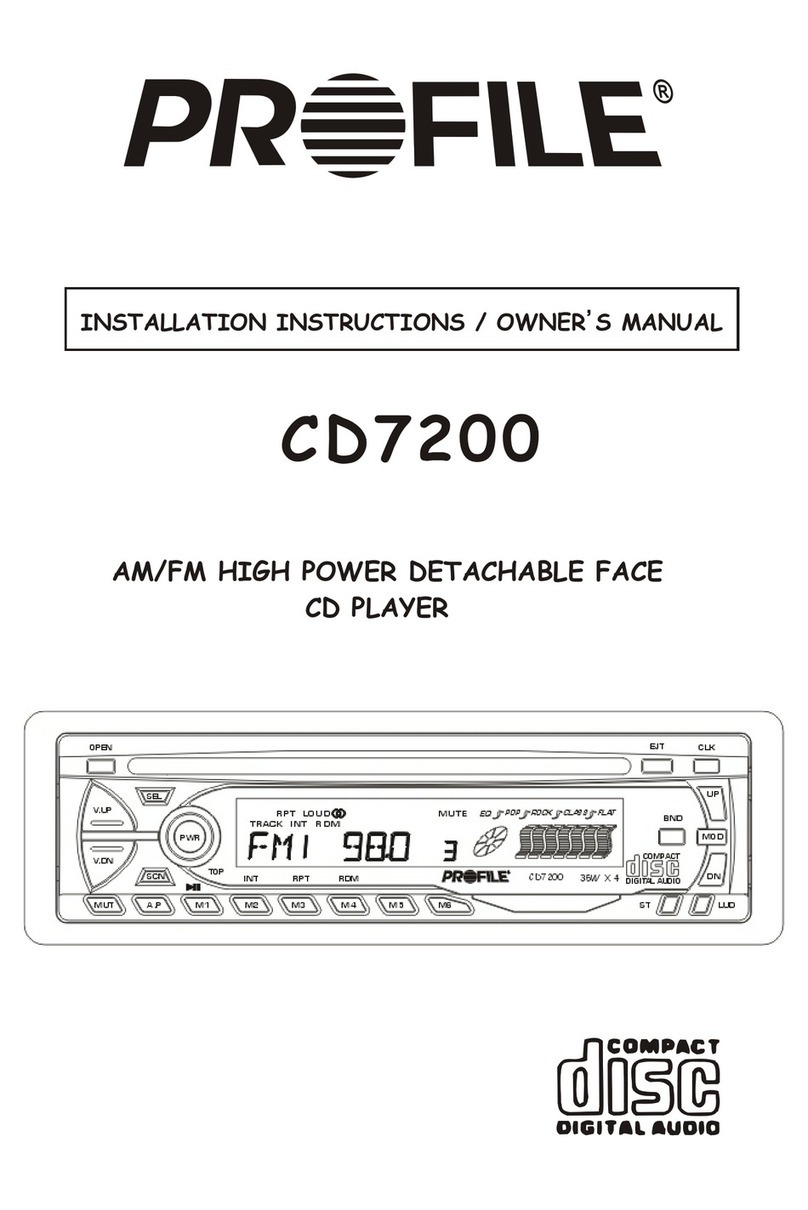

Profile CD7200 Service manual

Profile
Profile CD6500 Service manual

Profile

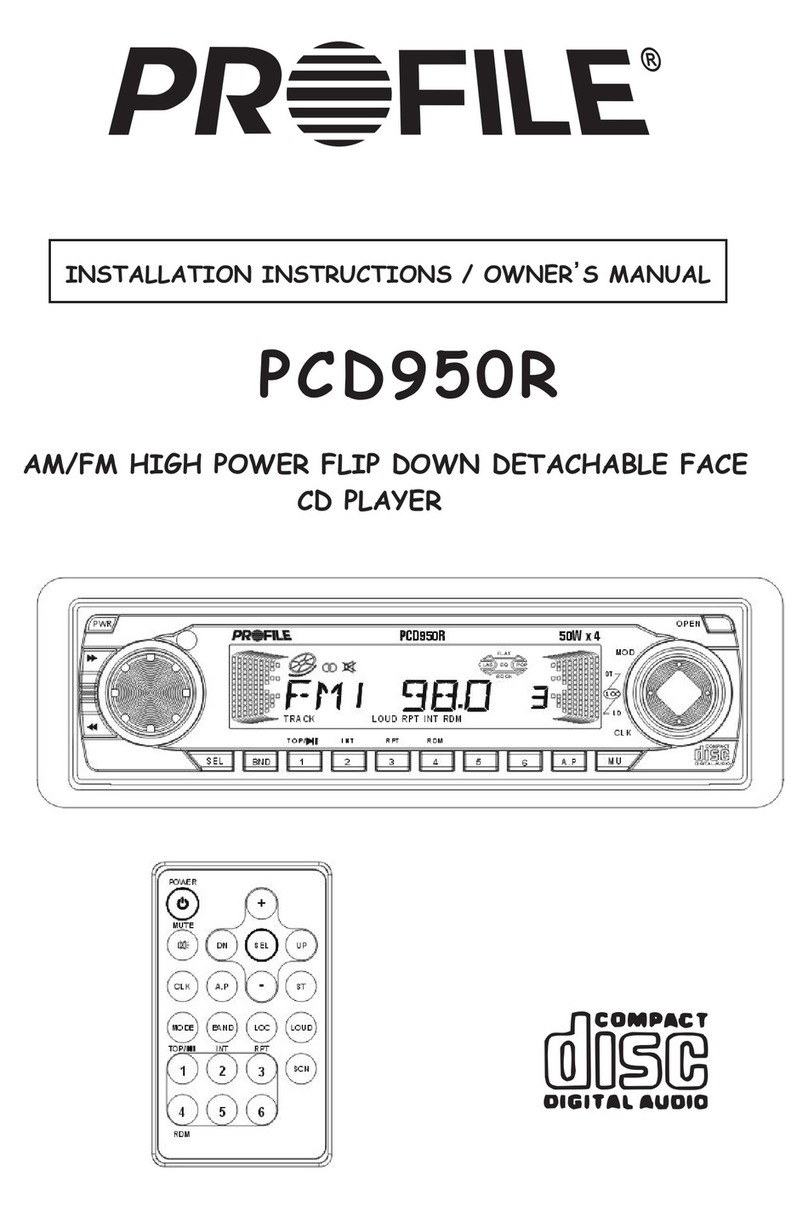

Profile PCD950R Service manual

Profile

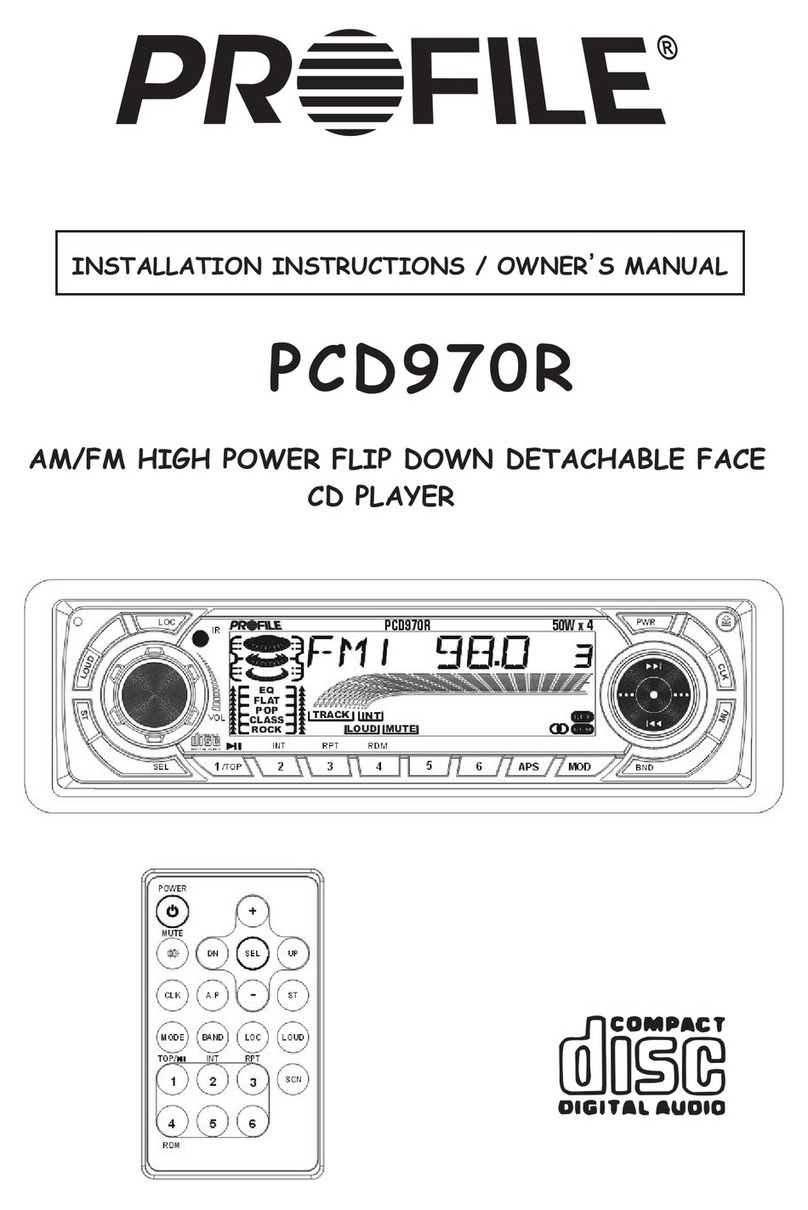

Profile PCD970R Service manual
