Profire Energy PF3106-00 User manual

PF3100 Network Expansion Card Product Manual R 1.0
PROFIRE
1.855.776.3473
[e-mail] Page 1 of 9
PROFIRE PF3100 Network Expansion Card
PF3106-00
The PROFIRE PF3100 Network Expansion Card provides additional ports for extra modules,
routes network traffic, and provides power to the connected network nodes.

PF3100 Network Expansion Card Product Manual
PROFIRE
1.855.776.3473
[e-mail] Page 2 of 9
1. Introduction ...............................................................................................................................................3
2. Certifications..............................................................................................................................................3
3. Card Information........................................................................................................................................4
4. Mounting Instructions ................................................................................................................................6
5. Enclosure Specifications..............................................................................................................................6
6. Instructions for Use ....................................................................................................................................7
7. Wiring Diagram ..........................................................................................................................................7
8. Preventative Maintenance & Inspection......................................................................................................8
9. Important Safety Information .....................................................................................................................8
10. PROFIRE Contact Information......................................................................................................................9

PF3100 Network Expansion Card Product Manual
PROFIRE
1.855.776.3473
[e-mail] Page 3 of 9
1. Introduction
Functional Description
The PROFIRE PF3100 Network Expansion Card acts as a network switch. This card provides additional ports for
extra modules, helps route network traffic, and provides power to the network.
Model Types
Model
Number
Name
Description
PF3106-00A
Network Switch
Module
5-port Network Switch standalone - polyester painted
steel enclosure.
2. Certifications
PROFIRE strives to ensure that certifications are updated as quickly as they become available for all of our
products.
Network Expansion Card –Hazardous Location Rating
Certification: Class I, DIV 2, GRP A, B, C, D; T4.
CSA 22.2 No. 60730-2-5, UL 60730-2-5.
The board includes the following symbols:
Caution: possibility of electric shock.
Caution: documentation must be consulted in all cases where this symbol is marked.

PF3100 Network Expansion Card Product Manual
PROFIRE
1.855.776.3473
[e-mail] Page 4 of 9
3. Card Information
Card Specifications
The ambient temperature rating for the Network Expansion Card is -40°C (-40°F) to +60°C (+140°F).

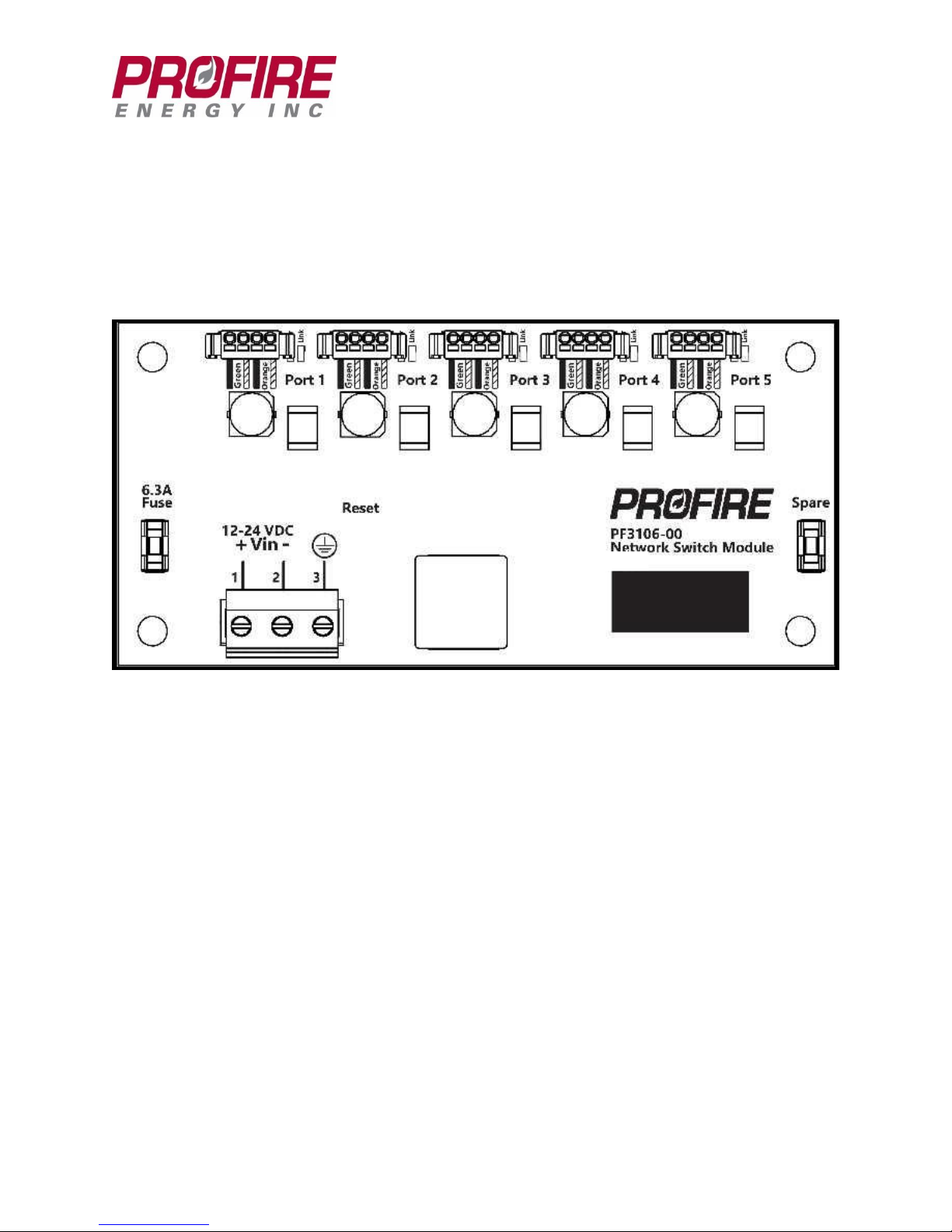

Card Diagram

PF3100 Network Expansion Card Product Manual
PROFIRE
1.855.776.3473
[e-mail] Page 5 of 9
Terminal Specifications
Terminal
I/O
Safety
Rated
Description
Electrical Ratings
Name
No.
Voltage
Current
Power 12-24 VDC Vin +
1
I
N/A
12/24 VDC Power Input
12-24 VDC
6.3A Max
Common 12-24 VDC Vin -
2
GND
N/A
Ground back to DC source
12-24 VDC
6.3A Max
EGND
3
GND
N/A
Earth ground and enclosure ground
N/A
N/A
Port Name
Port
Number
I/O
Safety
Rated
Description
Electrical Ratings
Voltage
Current
Port 1
1
I/O
N/A
The PFRN IO connect ports are
used for IO modules to
communicate with the BMS card.
36 VDC
1A Max
Port 2
2
I/O
N/A
The PFRN IO connect ports are
used for IO modules to
communicate with the BMS card.
36 VDC
1A Max
Port 3
3
I/O
N/A
The PFRN IO connect ports are
used for IO modules to
communicate with the BMS card.
36 VDC
1A Max
Port 4
4
I/O
N/A
The PFRN IO connect ports are
used for IO modules to
communicate with the BMS card.
36 VDC
1A Max
Port 5
5
I/O
N/A
The PFRN IO connect ports are
used for IO modules to
communicate with the BMS card.
36 VDC
1A Max
Terminal Descriptions
Power, Common
12/24 VDC Power Input. Common ground back to DC source.
EGND
Earth ground and enclosure ground.

PF3100 Network Expansion Card Product Manual
PROFIRE
1.855.776.3473
[e-mail] Page 6 of 9
4. Mounting Instructions

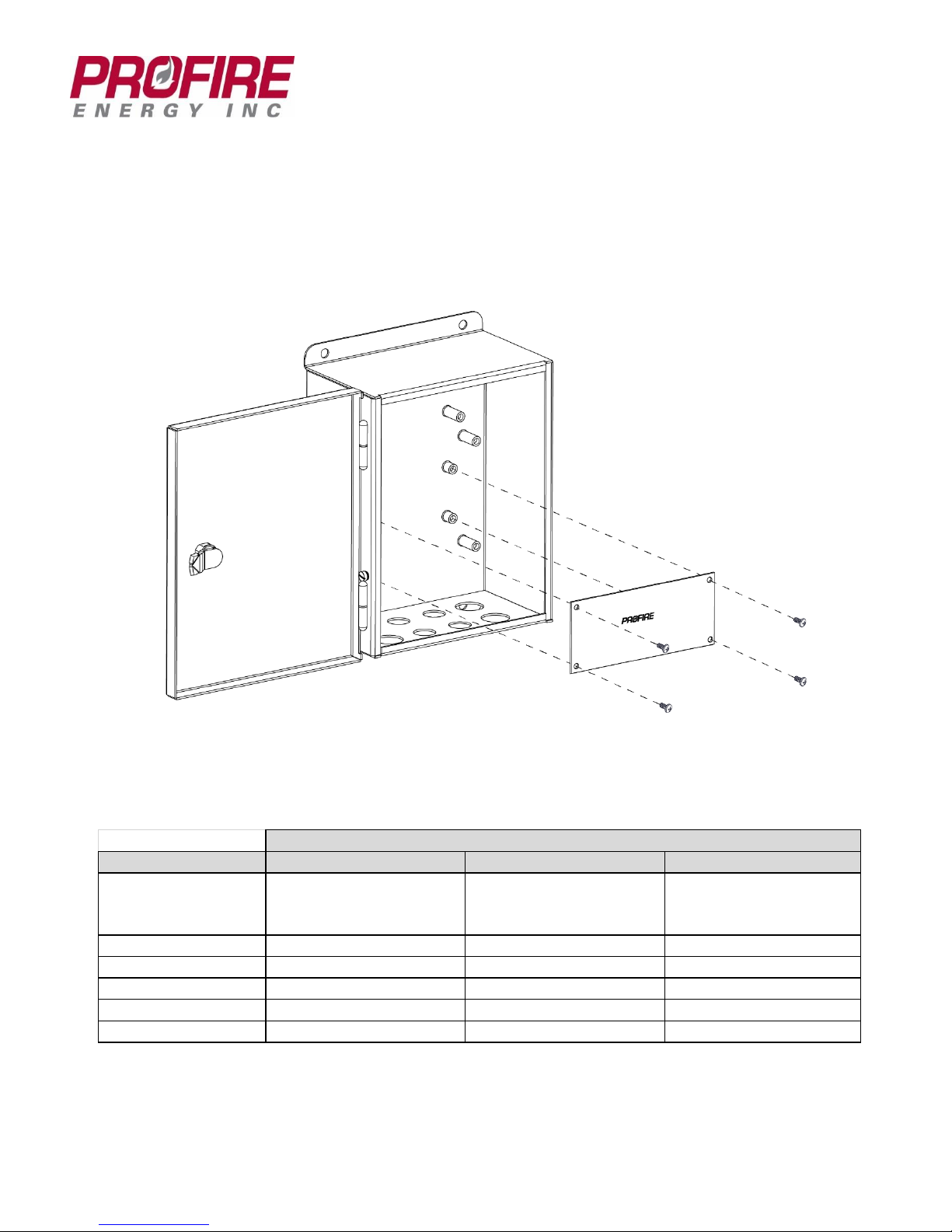

Mounting the Card in the Enclosure
1. Install four (4) #10-32 screws through the UV Pilot card (as indicated in the image below) and attach them to
the upper set of enclosure stand-offs. Please note the board orientation.
2. Torque to 26 in*lb.
5. Enclosure Specifications
The Network card can be mounted in a fire-proof enclosure that is safe for the area of operation (e.g. –
hazardous/non-hazardous.) The UIX, CTX, and AUX enclosures described below are examples:
Specifications UIX CTX AUX
Dimensions
Height 30.9cm (12.15 inches)
Width 23.4cm (9.23 inches)
Depth 13.4cm (5.28 inches)
Height 30.9cm (12.15 inches)
Width 23.4cm (9.23 inches)
Depth 13.4cm (5.28 inches)
Height 30.9cm (12.15 inches)
Width 23.4cm (9.23 inches)
Depth 13.4cm (5.28 inches)
Hazloc Rating Class I Div 2, IP66 Class I Div 2, IP66 Class I Div 2, IP66
Mounting Channel Bar or Direct Mount Channel Bar or Direct Mount Channel Bar or Direct Mount
Enclosure Construction Poly Painted Steel Poly Painted Steel Poly Painted Steel
Operating Temperature -40°C (-40°F) to 60°C (140°F) -40°C (-40°F) to 60°C (140°F) -40°C (-40°F) to 60°C (140°F)
Storage Temperature -40°C (-40°F) to 60°C (140°F) -40°C (-40°F) to 60°C (140°F) -40°C (-40°F) to 60°C (140°F)
Enclosure Type

PF3100 Network Expansion Card Product Manual
PROFIRE
1.855.776.3473
[e-mail] Page 7 of 9
6. Instructions for Use
The Network card is used to help route network traffic and provides power to the network.
Operation
Operating controls and their uses are described in the “Terminal Descriptions”section.
7. Wiring Diagram
Wiring Specifications
12-30 AWG can be used for all connections. External fuses must be installed according to the local electrical code.
Wire gauge size must also be selected in accordance with local electrical codes.

PF3100 Network Expansion Card Product Manual
PROFIRE
1.855.776.3473
[e-mail] Page 8 of 9
8. Preventative Maintenance & Inspection
In order to ensure that the Network Expansion card works correctly and efficiently, the following maintenance
and inspection procedures should be followed:
➢Ensure that all wires are connected correctly.
➢Minimize copper wire exposure.
➢Check for corrosion and ensure that no wires are frayed or worn, and all insulation is intact.
➢Confirm no moisture or condensation is apparent on the board or in the enclosure.
➢Ensure that the board does not show any sign of mechanical damage (e.g. –damage from an impact such
as dropping an item).
➢Ensure that the board does not show any sign of electrical damage (components should not be burnt or
damaged in any way).
➢Confirm that the temperature of the board is within ambient temperature operating limits.
➢Check that the enclosure is secured and that the device is not subject to excessive vibration.
➢Routine inspections of all equipment should be performed. If any abnormality is found, corrective actions
should be taken. If the abnormality cannot be corrected, contact PROFIRE.
➢A qualified technician should perform any tests necessary to confirm that the equipment is still in a safe
condition.
Cleaning
If the card becomes dirty it can be cleaned with compressed air. Do NOT use solvents, cleaners, or liquids to clean
the board. Caution must be exercised when cleaning the board in order to prevent damage from ESD
(electrostatic discharge).
Replacement Parts
Please contact PROFIRE should any replacement parts be required.
9. Important Safety Information
Before installing the PF3100 Network Expansion Card, please review the list of warnings below. Product use in a
manner not specified by PROFIRE is not recommended. Failure to observe the following warnings may result in
death, electrocution, property damage, product damage, product damage, government fines, or malfunction of
the product itself.
WARNING: Explosion Hazard
➢Do not disconnect while circuit is live unless area is known to be non-hazardous or equivalent.
➢Substitution of components may impair suitability for specified zones.
➢Do not service unless the area is known to be non-hazardous.
➢Do not open when energized.
➢Installation and use must conform to the directions in this guide.
➢System must be properly connected to earth-ground.

PF3100 Network Expansion Card Product Manual
PROFIRE
1.855.776.3473
[e-mail] Page 9 of 9
Installation Warnings
➢Ensure that the PF3100 enclosures are securely closed each time after opening the enclosure. This protects
the internal circuitry from moisture damage and other environmental concerns. Moisture damage is not
covered by the product warranty.
➢Do not connect wires or handle the device when powered.
➢Properly fuse the board according to local codes.
➢Do not disassemble or modify the board in any way. The board is not field reparable and must be sent back
to PROFIRE for replacement if damaged.
10. PROFIRE Contact Information
If you have any concerns or questions about this product, please contact PROFIRE as follows:
U.S.
1.801.796.5127
321 South, 1250 West Suite 1
Lindon, UT
84042, USA
[e-mail]
CANADA
1.780.960.5278
Box 3313, Bay 12, 55 Alberta Ave
Spruce Grove, AB
T7X 3A6, Canada
[e-mail]
http://www.profireenergy.com/
