Prokit's Industries PT-5721 User manual

PT-5721
Mini Grinder Set
User’s Manual
1st Edition,2010
©2010 Copy Right by Prokit’s Industrial Co., Ltd.
PT-5721 User’s Manual
www.prokits.com.tw 1
Important!
Please carefully read the instruction in this manual as well as the general
safety instruction before using this appliance, keep these manuals handy.
THE VARIOUS ACCESSORIES SHOULD NOT BE LEFT WITHIN THE
REACH OF CHILDREN,AVOID CAUSING DANGER.
Technical characteristics
Voltage 7.2VDC
Max. diameter 1/8
No load speed 5000~18000rpm
Battery pack 7.2V 1000mAh Type: Lithium Battery
Charging time 3-5 hours
Adaptor
Input 230V~50Hz or 120V ~60Hz
Output DC9V 300mA
To Replace Accessories
Depress

PT-5721 User’s Manual
www.prokits.com.tw 2
To use the different accessories, press the shaft locking button located to
the rear of chuck, unscrew it by hand, fit the chosen accessories and hand
tighten the chuck again.
Safety Instructions
IMPORTANT! When using electrical tools, the following safety Instructions
should be observed to prevent the risk of electric shock, personal injury and
fire. Read and observe these instructions carefully before using the tool.
1. Keep work area clean
Cluttered benches invite injuries.
2. Consider work area environment
Do not expose power tools to rain. Do not use power tools in damp or
wet locations.
Keep work area well lit. Do not use power tools near flammable liquids
or gases.
3. Guard against electric shock
Prevent body contact with grounded surfaces (e.g. pipes, radiators,
ranges, refrigerators, etc.).
4. Keep children away
Do not let visitors contact tool or extension cord. All visitors should be
kept away from work area. Please keep children away the tool and
Brass collet 2 Ø2.4 (in the machine) Ø3.2
High speed Drills 2 3/32 Ø2.4
High speed Drill 1 1/8 Ø3.2
Engraving bits 2 Ø2.4
Diamond bits 2 Ø3.2
nylon brush 1 Ø2.4
nylon brush 1 Ø3.2
Grinding stone 2 Ø2.4
Grinding stone 2 Ø3.2
Sanding band 1 Ø2.4
PT-5721 User’s Manual
www.prokits.com.tw 3
work area.
5. Store tools
When not in use, tools should be stored in a dry, high, or locked-up
place, out of the reach of children.
6. Do not force tool
It will do a better job and operate more safely at the rate for which it
was intended.
7. Use right tool
Do not force small tools or attachments to do the job of a heavy duty
tool. Do not use tools for other than their intended purpose; for example,
do not use a circular saw for cutting tree limbs or logs.
8. Dress properly
Do not wear loose clothing or jewelry. They can be caught in moving
parts. Rubber gloves and non-skid footwear is recommended when
working outdoors. Wear protective hair covering to contain hair.
9. Use safety glasses
Also, use a dust mask during pulverizing operations and wear ear
protection. If the noise level. Exceeds 70dB(A), ear protection is
obligatory. Indicated noise levels may be exceeded depending on the
working environment and the material to be treated.
10. Use dust extraction
If dust extraction and collection devices are present on the tool, make
sure that they will be used properly.
11. Do not abuse cord
Never carry tool by cord or yank it to disconnect it from wall outlet.
Keep cord from heat, oil and sharp edges.
12. Secure work
Use clamps or a vise to hold the workpiece. It is safe and it frees both
hands to operate tool.
13. Do not overreach
Keep proper footing and balance at all times.
14. Maintain tools with care
Keep tools sharp and clean for better and safe performance. Follow
instructions for lubricating and changing accessories. Inspect tool
periodically and, if damaged, have them repaired by an authorized
service facility. Inspect extension cords periodically and replace if
damaged. Keep handles dry, clean and free from oil and grease.
15. Disconnect tools
Disconnect tools when not in use, before servicing, and when changing
accessories such as blades, bits and cutters.
16. Stay alert
Watch what you are doing. Use common sense. Do not operate tool
when you are tired.
17. Check damaged parts

PT-5721 User’s Manual
www.prokits.com.tw 4
Before further use of the tool, a guard or other part that is damaged
should be carefully checked to determine that it will operate properly
and perform its intended function. Check for alignment of moving parts,
binding of moving parts, breakage of parts, mounting, and any other
conditions that may affect its operation. Do not use tool if the power
switch is on but the machine does not work.
18. Warning
The use of any other accessories or attachment other than
recommended in the instruction manual may present a risk of personal
injury.
19. Have your tool repaired by an expert
This electric appliance is built accordance with the relevant safety rules.
Repair of electric appliances must only be carried out by experts
otherwise it may cause considerable danger for the user.
20. Store these instructions for future reference.
Assembly and operation
Mounting an accessory
Keep the spindle lock button depressed. Loosen the collet nut. Insert the
shaft of the accessory into the collet and tighten the collet nut. Release the
spindle lock button in order to remove the accessory, proceed in reverse
order.
Replacing the collet
Keep the spindle lock button depressed. Loosen the collet nut. Remove the
collet nut and the old collet. Place the new collet in. Replace the collet nut
and tighten the collet nut. Release the spindle lock button.
CAUTION! Always Unplug the tool and switch off before replacing the collet;
Choose a low speed at first for working; never press the lock button while
the machine is running
Polishing. A polishing wheel is set for polishing metal and plastic
workpieces. A mandrel is used for mounting a polishing wheel. Place the
mandrel in the collet nut. Place a polishing wheel on the screw.
Rouging. A router bit is used for grooving and for routing figures in plastic,
wooden and metal workpieces. Place a router bit in the collet nut.
Grinding and sanding. A grinding stone in used for grinding metal, plastic,
wooden and the stone workpieces, A sanding band is used for sanding
wooden and plastic workpieces. Place a grinding stone or sanding band
with mandrel in the collet nut. A sanding band must be replaced when
PT-5721 User’s Manual
www.prokits.com.tw 5
showing signs of wear. Remove the old sanding band from the mandrel.
Place the new sanding band on the mandrel
Clamp all tools as short as possible, Shafts, which stick out too far will
easily bend causing the machine to vibrate.
Maintenance
Caution:
Pull out the plug before maintenance
Keep the machine clean
Keep the air vent unimpeded
Do not use the sharp material to clean the machine
Do not let liquid enter into the machine to prevent it from rust
Have your power tool serviced by a qualified repair person using only
identical re-placement parts. This will ensure that the safety of the power
tool is maintained.
Rechargeable battery and charger safety recommendations
Do not expose the battery and charger to moisture. Do not operate in the
open stand. When the machine is not in use or cleaning, maintenance,
please unplug the charger from the power source. To protect the battery,
avoid high impact to casing, and do not squeeze too hard. Protect the
battery from excessive heat and cold. If any part is damaged, do not open
and try to repair, it should be sent to specialized service center by
professional repair technicians.
When charging the battery ambient temperature should be kept between
10 ℃to 40 ℃. If fully charged battery is used, the ambient temperature is
best kept between 10 ℃to 50 ℃. When the battery is no longer in use, put
it in a relatively dry environment between 10 ℃to 30 ℃, the most
appropriate.
Do not put machine with other liquid materials together, as the battery will
be easy to get wet and could burn or explode causing damage.
Do not put batteries into water or fire, it may cause an explosion. When
ready to discard spent battery, please bring to a qualified battery recycling
/disposal point. Batteries should never be disposed of with normal
household or industrial trash.

PT-5721 User’s Manual
www.prokits.com.tw 6
PT-57217.2V 充電式鋰電池電磨組
操作手冊
注意!
使用設備前，請仔細閱讀本手冊中的說明以及一般的安全指示。熟練掌握操
作規範，各種配件應該放置在兒童觸及不到的地方，避免造成危險。

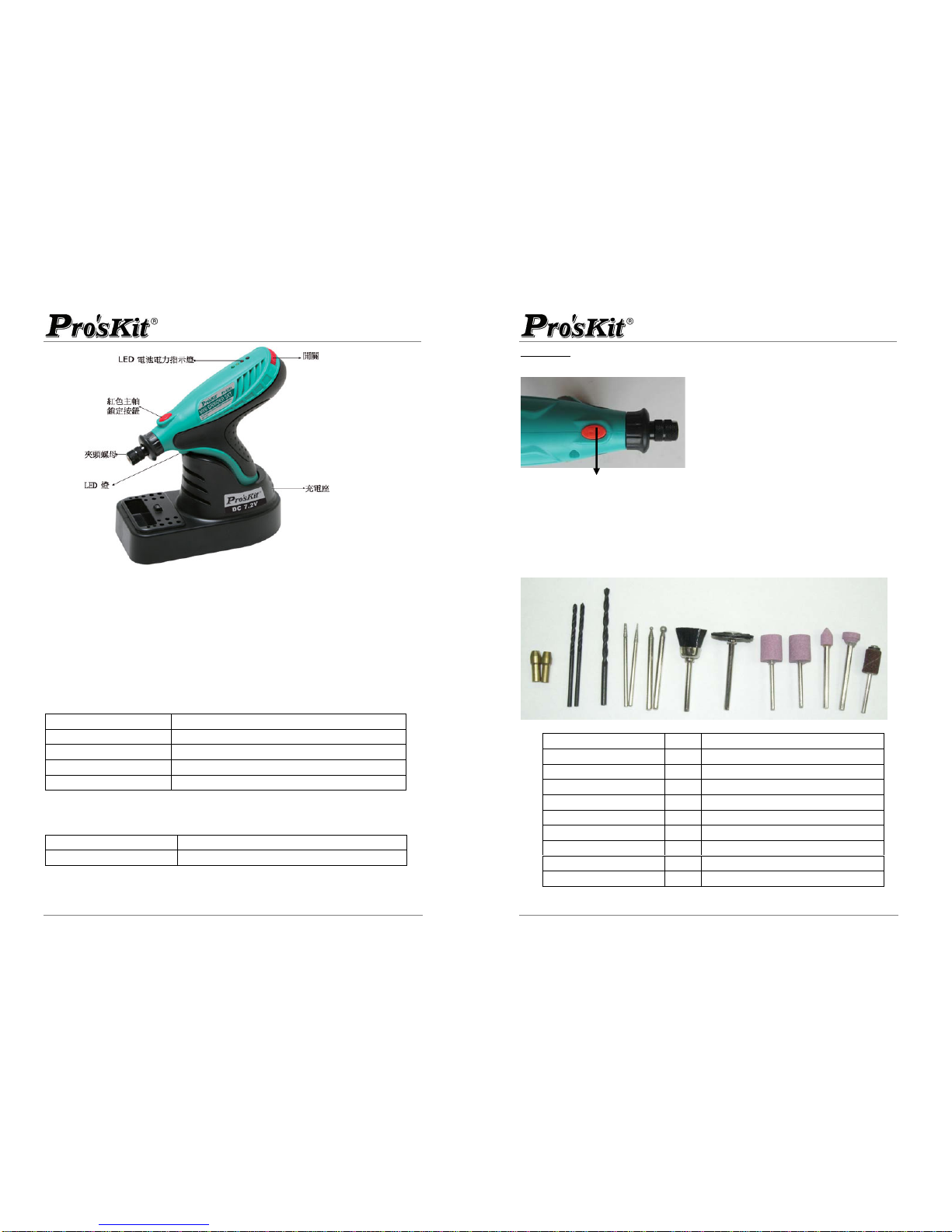

技術參數
額定電壓 DC 7.2V
空載轉速 5000-18000rpm
鑽頭尺寸 1/8
電池包 7.2V 1000mAh 類型: 鋰電池
充電時間 3-5 小時
變壓器
輸入 230V~50Hz 或者 120V ~60Hz
輸出 DC9V 300mA
PT-5721 User’s Manual
www.prokits.com.tw 7
更換配件
壓下鎖定按鈕
更換配件時，按下紅色主軸鎖定按鈕，鬆開夾頭螺母的主軸旋鈕，插入選擇
的配件，按下紅色主軸鎖定按鈕旋緊夾頭螺母。
配件圖
夾頭 2 Ø2.4(裝入本體) Ø3.2
鑽頭 2 3/32 Ø2.4
鑽頭 1 1/8 Ø3.2
金剛石磨頭 2 Ø2.4
金剛石磨頭 2 Ø3.2
杯狀尼龍刷 1 Ø2.4
盤狀尼龍刷 1 Ø3.2
氧化鋁大磨頭 2 Ø2.4
氧化鋁小磨頭 2 Ø3.2
小砂圈 1 Ø2.4

PT-5721 User’s Manual
www.prokits.com.tw 8
安全事項
注意！當使用電動工具時，應遵守以下安全指示，以防止觸電及造成人身傷
害和火災事故。
仔細閱讀及遵守這些指示：
1. 保持工作環境整潔
髒亂的環境容易導致人事傷害。
2. 考慮工作區環境
不要在雨中使用電動工具；不要在潮濕的地方使用，保持工作區的乾燥；
不要在接近易燃氣體或者液體的地方使用。
3. 警惕觸電
防止身體接觸接地物表面（如水管、散熱器、冰箱等）
4. 遠離兒童
不要讓無關者接觸工具及延長電源線，所有無關者應該遠離工作區。妥
善儲存工具不使用時，工具應當被放在乾燥，高處或者帶鎖的地方，避
免兒童觸及。
5. 不要違規操作
根據機器本身的工作原理，以適當的速度操作時，機器使用更為安全和
容易。
6. 適當使用工具
不要使用小型工具去操作違背其使用範圍的工作，例如：不使用圓鋸切
割樹枝或圓木。
7. 穿著得體
不要穿著過於寬鬆或者佩戴首飾，在操作中可能被勾住。在戶外，推薦
使用防滑類鞋、橡膠手套及戴上束發頭罩。
8. 使用安全眼鏡
在操作中需佩戴除塵口罩和耳塞，如果噪音超出 70 分貝，須帶護耳套。
測量噪音水準可以取決於工作環境及工作物件的質。
9. 使用除塵裝置
如果在工具上裝有除塵或者收集裝置，必須確保這些裝置運用得當。
10. 不可用電源線來提工具
不可直接拉電源線把插頭由插座上拔下，不可提拉電源線移動工具或充
電座，不要讓電源線接觸熱源、油和尖銳物。
11. 安全作業
將工件夾在臺鉗上，可以更安全，並騰出雙手工作。
12. 不要勉力而為：確保作業時站穩，保持身體平衡。
13. 工具的維護及日常護理（見後頁說明）
14. 斷開電源：
PT-5721 User’s Manual
www.prokits.com.tw 9
停止使用或者更換配件，如刀片、批頭等時，要妥善切斷開關。
15. 保持警覺
工作期間，時刻保持清醒意識，不要在過度勞累時操作。
16. 檢查部件
每次使用工具前，應當仔細檢查各部件，必要時更換，確保其將正常運
行和發揮預定功能。若開關啟動後不作動，請不要繼續嘗試使用工具。
17. 警告
擅自使用說明書介紹以外的任何配件，都可能造成人身傷害。
18. 維修、維護
此電器是按照有關安全規則製造的，修理電器僅限於授權的專業人員進
行，否則會造成人身傷害。
裝配及操作
一、安裝配件：
① 按下紅色主軸鎖定按鈕鬆開夾頭螺母
② 把配件杆插入夾頭中
③ 鎖緊夾頭
④ 釋放紅色主軸鎖定按鈕
移除配件時，按照步驟倒序進行。
二、更換夾頭
① 按住紅色主軸鎖定按鈕
② 放鬆夾頭螺母
③ 移除舊夾頭螺母及夾頭
④ 放入新夾頭
⑤ 裝上夾頭螺母
⑥ 擰緊夾頭螺母
⑦ 放開紅色主軸鎖定按鈕
注意！
替換夾頭時，務必要關閉開關。
開始工作時，要先把轉速調低，在工具旋轉時，嚴禁按下鎖定按鈕。
三、功能說明：
拋光：拋光輪用於拋光金屬和塑膠件。
刻鑿：雕刻頭可用來在金屬、木材和塑膠，工作上進行刻銑和切割。
打磨和打砂：可用磨頭或砂圈在金屬、木材和塑膠上進行打磨或砂光。
砂圈在磨損後可進行更換。

PT-5721 User’s Manual
www.prokits.com.tw 10
注意：裝卡時，儘量把磨頭靠近夾頭，軸外露越長，轉動時偏擺越大。
維護保養
1.保持每次充電確實完成。
2.保存工具通風良好，避免受潮。
3.清潔時不用刺激性物品。
4.防止液體和灰塵進入機身。
5.選用合格的配件。
充電電池及充電器的安全建議
防止電池及充電座受潮，避免在戶外使用充電座。當機器未使用時或是清潔、
維修前，請從電源上拔掉充電器並保護好電池，避免高空掉落後碰到堅硬的
物體表面，同時不要受到外在力的擠壓，保護電池遠離過度的熱與冷.
如果發現有零件損壞，不要擅自打開及嘗試維修，而是應該送到專門的維修
中心由專業的技術人員進行修理。
電池充電時周圍的環境溫度應該保持在 10℃到 40℃之間，充好電的電池被使
用時周圍環境温度最好保持在 10℃到 50℃之間，當電池不再使用時，最好把
它放在一個比較乾燥温度 10℃到 30℃之間最為適宜。
不要把機器和其他液狀材料放在一起，那樣會使電池受潮短路，電池會因為
過熱開始燃燒或是爆炸.
不要把電池放入水和火中，會引起爆炸。不管電池是否還能使用，都不應該
被丟棄，根據電池使用規則，應該妥善收存再交由專門收集廢電池的機構做
廢棄物處理。
PT-5721 User’s Manual
www.prokits.com.tw 11
Certificate Number: TW98/12323QA
