Prolife NA10 User manual

MESH NEBULIZER
Небулайзер
электронно-сетчатый
Prolife NA10
RU Руководство по эксплуатации
EN Instruction Manual

2
Mesh Nebulizer Prolife NA10 EN
CONTENTS
1 Introduction .........................................................................................................................................4
fore-using
2 Safety precautions ............................................................................................................................5
3 Product features ...............................................................................................................................6
4 Components ........................................................................................................................................7
5 Component names and functions .......................................................................................8
Usage
6 How to assemble the nebulizer................................................................................................9
7 How to connect to the power supply ..............................................................................10
8 How to fill the medication .......................................................................................................12
9 How to operate the nebulizer ...............................................................................................14
Cleaning
10 How to clean after using............................................................................................................ 17
11 How to replace the medication chamber ......................................................................20
How to carry
12 How to carry the nebulizer ...................................................................................................... 21
Troubleshooting
13 Troubleshooting...............................................................................................................................22

3
EN
IMPORTANT CAUTION
•As with any mechanical device, this product may become unusable
due to an electrical outage, battery depletion, or mechanical failure. We
recommend that you have spare batteries and a backup device available
to you.
Specications
14 Specifications.....................................................................................................................................26
15 Technical data ..................................................................................................................................28
16 Accessories / optional part ......................................................................................................29
17 Note.........................................................................................................................................................30
18 Appendix A: EMC information ...............................................................................................32
19 Guidance and manufacturer’s declaration – electromagnetic
immunity – for device that is not LIFE-SUPPORTING ........................................... 35

4
INTRODUCTION
MESH NEBULIZER Prolife NA10
Intended Use:
Legally certified medical experts, such as doctor, nurse and therapist, or health-
care personnel or patient under the guidance of qualified medical experts.
The user should also be capable of understanding general operation of Prolife
NA10 and the content of instruction manual.
Intended User:
Adult and pediatric patients suffer from asthma, Chronic Obstructive Pulmonary
Disease (COPD) such as emphysema and chronic bronchitis, or other respiratory
diseases that are characterized by obstruction to air flow.
Environment
This product is intended for use in a medical facility, such as Hospital, clinic and
doctor’s office, in a room of general household, and in open-air environment with
a roof.
Durable period
Durable periods are as follows, provided the product is used to nebulize saline 3
times a day for 10 minutes each time at room temperature (23°C). Durable period
may vary depending on usage environment.
A nebulizer is a type of medical apparatus. Please follow a doctor’s instructions on
choosing the correct type, dose, and regimen of medication.
The nebulization characteristics of the unit differ by the properties of medication.
The nebulization rate may vary with using different medicine.
1
•Thank you for purchasing this product. To ensure safe and correct use of this
product, please read the instruction manual carefully before using.
•Please keep the instruction manual at a proper place for future reference.
•This is a single patient device. Do not allow multiple patients to use the same
device.
•These parts of mouthpiece and masks can be reused after disinfecting treat-
ment (please refer how to disinfect in page 19).

5
EN
SAFETY PRECAUTIONS
To ensure safe and correct use of this product, please read the instruction manual
carefully before using.
WARNING
•Please follow a doctor’s instructions on choosing the correct type, dose,
and regimen of medicine.
•Do not place any liquid in the medication chamber that is not prescribed
by a physician.
•This is a single patient device. Do not allow multiple patients to use the
same device.
•If you are using the nebulizer for the first time after purchasing it or you have
not used it for a long time, please clean the nebulizer parts. (Please see page
16–17).
•After each use, please clean the medication chamber, and mouthpiece with
distilled water. Dry the cleaned parts immediately and store in a clean place.
(Please see page 16–17).
•The inhalation mask must be cleaned with distilled water and dried prior
to first use.
•These parts of mouth piece and masks can be reused after disinfecting
treatment ( please refer how to disinfection page 19).
•Do not plug or unplug the AC adapter with wet hands.
CAUTION
•If device does not shut off automatically when medication is depleted
and gives off a high frequency sound, press the «START/STOP" button to
turn the power off immediately to avoid the mesh breaking. Please go to
page 22 for troubleshooting.
•Please clean the nebulizer parts carefully after each use. Otherwise it may
not function.
•Water is not applicable for use. If you fill water in the medication cham-
ber, the nebulizer cannot be turned on. The distilled water can be used for
cleaning the medication chamber under «clean process».
•Please do not allow Q-tips or any foreign objects to come in contact with
the mesh of the medication chamber. Otherwise the unit may not func-
tion.
•Do not drop the nebulizer. Avoid severely impacting the nebulizer. Other-
wise it may not function.
2

6
•Do not use the AC adapter other than the one specifically designed for this
product.
•Do not mix different types of batteries.
•Do not store or carry a nebulizer with liquid medication or water
remaining in it.
•Do not immerse the nebulizer main unit and AC adapter in water.
•Keep the device out of the reach of infants and children. Children should
use only under adult’s supervision.
PRODUCT FEATURES
1. Pocket-sized and easy to carry.
2. Low power consumption and low residual medication volume.
3. The nebulizer can function properly for a short time after being rotated to
any angle. When the nebulizer is rotated such that the medication does
not contact the mesh, it can nebulize properly for about 15 seconds.
(Time varies depending on specific medication types).
3

7
EN

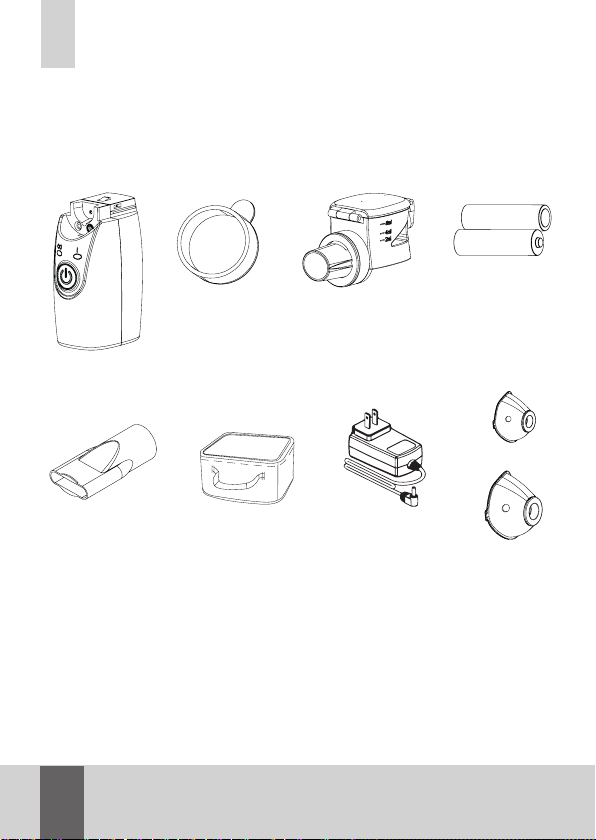

COMPONENTS
The package contains the following components. If you find any components
missing, please immediately contact the retailer from which you purchased the
product.
1. Main unit
7. AC adapter
(optional)
5. Mouthpiece
(Large multi-use)
8. Inhalation masks
4
2. Main unit cover 3. Medication chamber 4. Alkaline
batteries
AA 1,5Vx 2
(Optional)
6. Carrying pouch
(Small multi-use )

8
COMPONENT NAMES AND FUNCTIONS
5
Mesh
Low power indicator
Medication
chamber
Electrode
START/STOP
button
Power indicator /
No medication
detection indicator
Battery cover
Mian unit
(Botton view) PUSH button
AC adapter
inlet (DC 5V)
(Rear view)

9
EN
Please clean and dry the nebulizer’s parts before using (see pages 17–19).
•Please ensure that the medication chamber is attached correctly; otherwise, it may
result in a bad connection and the nebulizer may not function properly.
•Please keep the electrodes of main unit and medication chamber clean;
otherwise, the nebulizer may not function properly.
HOW TO ASSEMBLE THE NEBULIZER
1. Attach the medication chamber
to the main unit:
•Attach the medication chamber
while it gives off a sound «Click».
2. Attach the mouthpiece:
•Please securely attach the
mouthpiece to main unit.
6
3. Attach the inhalation mask:
•Inhalation mask for children is S size
•Inhalation mask for adults is L size.
•Attach the mask.
Mouthpiece

10
7HOW TO CONNECT TO THE POWER SUPPLY
This product can use either batteries or an AC adapter (optional) as its power
supply.
How to install batteries.
Please open the battery cover and insert 2 «AA» alkaline batteries.
Battery life and replacement.
•Up to 3.0 hour if used continuously. (Use 2 «AA» (LR6)
alkaline batteries) 6 days if used 3 times daily, 10 minutes
per time.
•If the low-power indicator with orange color was
lit to flash 2Hz , it means battery is almost run out.
but Nebulizer still can be used around 30 minutes
continuously.
•If the low-power indicator with orange color was lit
constantly (orange color), it means that extremely
1. Open the battery cover. 2. Insert the batteries so that the
polarities are oriented correctly,
as indicated.
3. Close the battery
cover.

11
EN

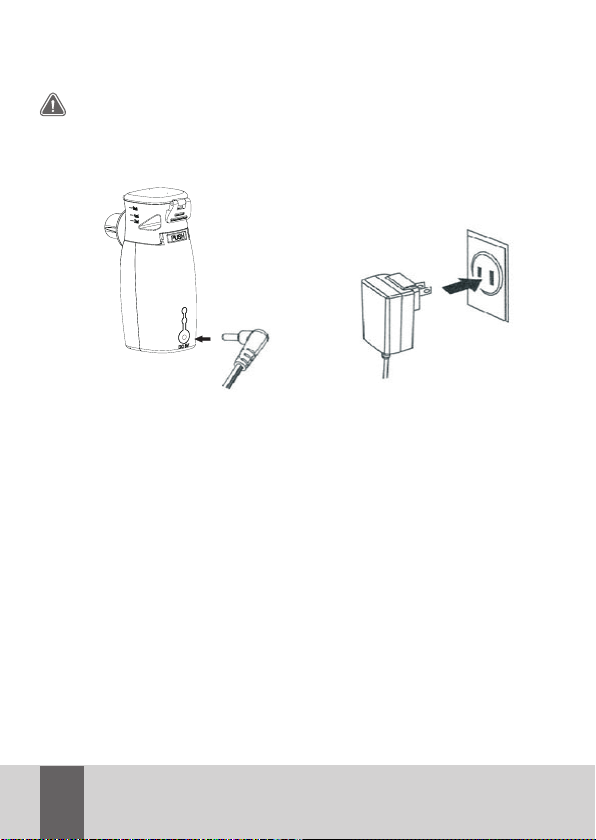

How to use the AC adapter.
1. Plug the AC adapter’s DC connector
into the main unit’s power supply inlet.
low power caused the nebulizer not to work. Please immediately replace
with new alkaline batteries.
ATTENTION
•Do not mix different types of batteries.
•Battery life may be different depending on type of the batteries used.
General Recommendations.
•Please purchase the AC adapter specifically designed for this product.
Do not purchase and use AC adapters of other brands.
•Please unplug the AC adapter after using. Do not leave it connected to
the power supply for a long time.
2. Plug the AC adapter into an
electric outlet.

12
HOW TO FILL THE MEDICATION
Please remove the main unit cover, mask adapter, and mouthpiece and inhala-
tion mask first.
8
1. Remove the medication chamber from the main unit.
•Press the PUSH button on the rear side of the main unit and push the
medication chamber toward the front side of the main unit.
ATTENTION
•To avoid damaging the
nebulizer, please ensure
the PUSH button is pressed
down before pushing the
medication chamber forward.
•To avoid rupturing the mesh,
please do not poke it with your
finger or other objects.
2. Fill the medication:
•Fill the medication as shown in the figure. (Recommended fill volume:
Approx. 8 ml maximum / 0.5 ml minimum).
•Please close the cover of the medication chamber.
ATTENTION
•To prevent the medication
leaking from the chamber,
ensure the cover is closed
securely.
•The filling process should be
done while the chamber is
detached from the main unit.
Push forward
Press

13
EN
3. Re-attach the medication chamber to the main unit:
•Attach the medication chamber while it gives off a sound «Click».
ATTENTION
•Make sure the medication
chamber is attached correct-
ly or the bad connection may
result in malfunction.
•To ensure the nebulizer will
function properly, keep the
electrodes of the main unit and
the medication chamber clean.
4. Attach the mouthpiece:
•Please securely attach the
Mouthpiece to main unit.
5. Attach the inhalation mask:
•Inhalation mask for children
is S size.
•Inhalation mask for adults
is L size.
•Attach the mask.
Mouthpiece

14
You can also fill a 0.9 % Sodium Chloride (Table salt) solution in the medication
chamber and then press «START/STOP» button for a function test after reassem-
bly and before use. If the nebulizer can not spay out, please go to page 22 for
troubleshooting.

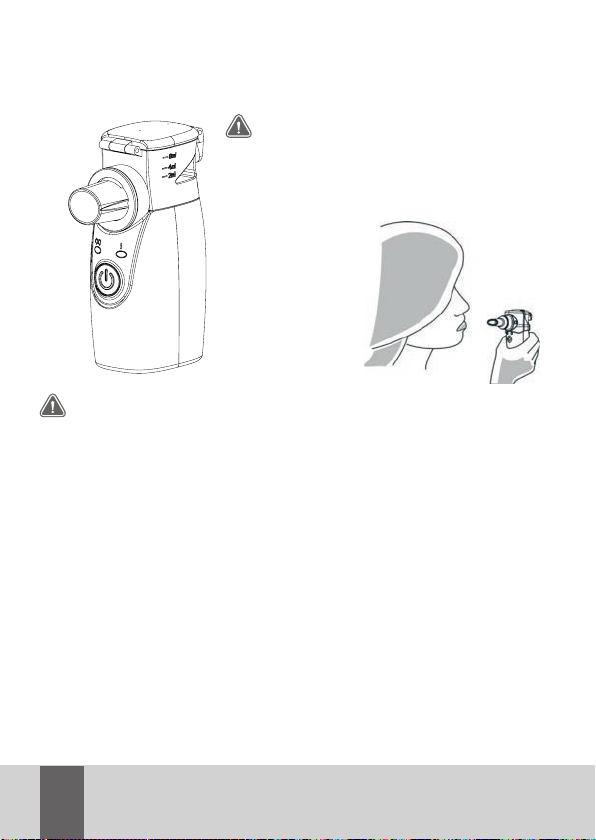

HOW TO OPERATE THE NEBULIZER
9

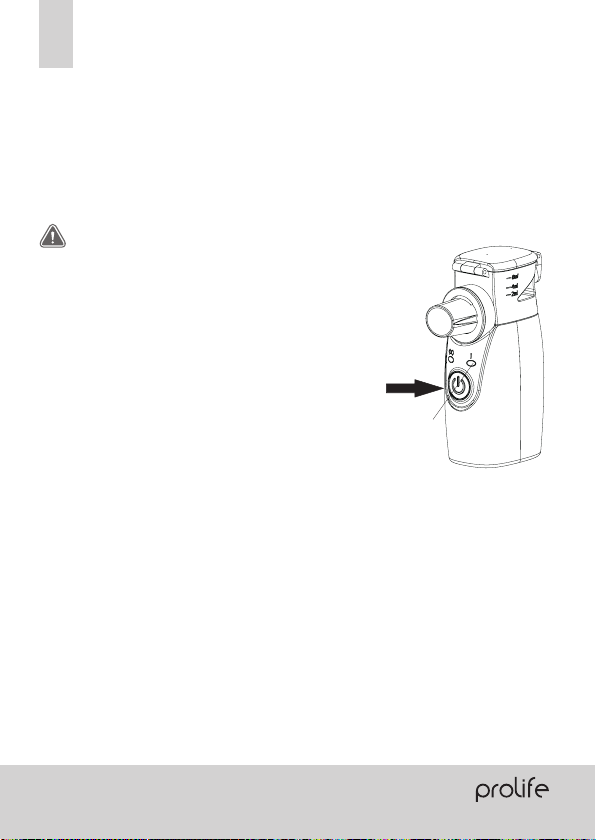

1. Turn on the power:
Press the «START/STOP» button, and the power indicator (green) will light
constantly. And medication chamber will be lit with blue color constantly.
ATTENTION
•If there is no medication inside the
medication chamber, and the power
is turned on, the nebulizer’s power
indicator (green) will be turned on
around 0.5 second, then the power
indicator will be changed to orange
color immediately. After around 8
seconds, then turned-off medication
chamber light and shut-off power
automatically.
•In the operation while medica-
tion was depleted: the power indica-
tor will be changed to orange color
immediately and turned-off medica-
tion chamber light, then shut off auto-
matically.
Power
indicator
Press
•The longest nebulization time: 30 minutes.
•Pure water is not applicable for use. If you fill pure water in the medica-
tion chamber, the nebulizer can not be functioned well.

15
EN
2. Inhalation:
Hold the nebulizer in your hand stably and start inhalation.
ATTENTION
•Do not cover the vent when you inhale.
Otherwise, that will decrease the nebuliza-
tion rate.
ATTENTION
•If the device detects no medication in medication chamber, it will shut
off automatically.
•If the device does not shut off automatically when medication deplet-
ed, press the «START/STOP» button to turn the power off immediately to
avoid the mesh breaking. Please go to page 22 for troubleshooting.
•During the treatment, you may adjust the nebulizer to any angle.
However, make sure the medication stays in contact with the mesh;
otherwise, the nebulizer will shut off automatically after approximately
15 seconds.
•When the medication is about to be depleted, it is recommended that
you tilt the nebulizer (the buttons side) slightly toward you. This allows
the remaining medication to contact the mesh to nebulization.
•Do not shake the nebulizer strongly in the usage. Otherwise, the nebu-
lizer may shut off automatically.
•Provide close supervision when the nebulizer is used by children.

16
4. Turn o the power:
•The nebulizer shuts off automatically
after the medication is depleted.
•If you wish to halt the treatment, press
the «START/STOP» button to turn the
power off. The power indicator light will
go out.
•If the AC adapter is being used, please
unplug from the wall outlet after turning
off the power.
•The unit will turn off the power automati-
cally when the medication is depleted. Power
indicator
Press

17
EN
HOW TO CLEAN AFTER USING
After each use, make sure to clean the nebulizer instantly with the mineral water before
storing or carrying.
10
1. Clean the remaining medication:
•Open the cover of the medication chamber and discard the remaining
medication.
•Pour a small amount of mineral water into the medication chamber and
close the cover.
•Press and hold 3 seconds «START/STOP» button ,the power indicator
LED (orange) will be flashed and medication chamber will be lit on blue
color , then go to «cleaning process» to nebulize the water for 2 minutes
to remove the residual medication in the medication chamber until the
mineral water depleted.
ATTENTION
•If the device give off the high frequency sound and the mineral water is
depleted, please release the «START/STOP» button to turn the power off.
Otherwise, the mesh of the medication chamber may be broken.
•Please clean the remaining medication after each use. Otherwise, the
mesh of the medication chamber may become blocked.

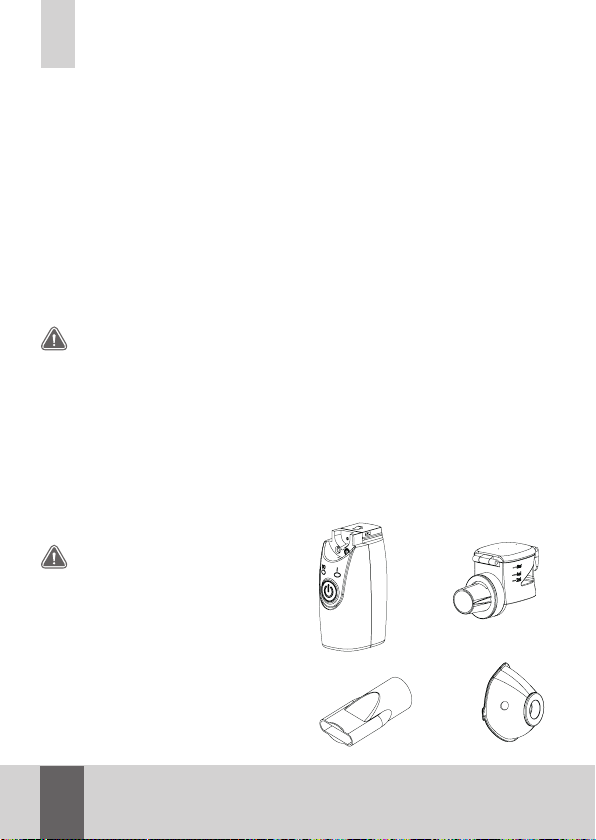

2. Dismantle the nebulizer:
•Remove the medication chamber, and inhalation mask or mouthpiece
from the nebulizer.
ATTENTION
•The inhalation mask in first use
must be cleaned with distilled
water and dried. These parts
can be reused after disinfecting
treatment (please refer how to
Disinfect in page 19).

18

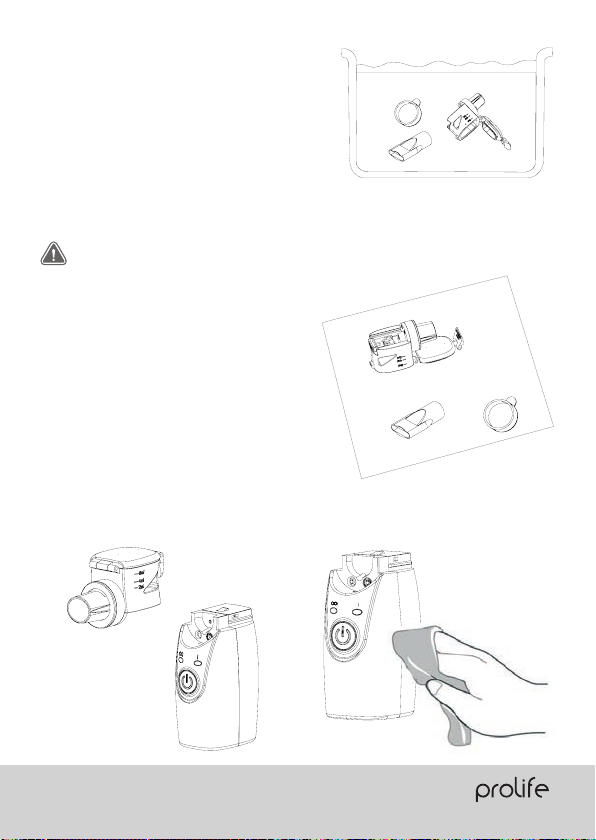

3. Clean the parts with sucient
amounts of distilled water:
•Clean the medication chamber,
mouthpiece, inhalation mask with
distilled water.
4. Dry the cleaned parts thoroughly:
•After the parts are cleaned, dry with new gauze and air dry thoroughly.
ATTENTION
•Please do not dry with cotton or
cloths of other materials; other-
wise, dust or cloth fiber may be
left on the mesh, causing the
nebulizer to malfunction.
•Please do not allow Q-tips or
foreign objects in contact with
the mesh of the medication
chamber.

19
EN
5. Wipe o the main unit with new gauze:
•Dab a piece of gauze with water and lightly wipe off. the stains from the
main unit. Then, use new gauze to dry.
•Please clean the electrodes on the main unit and medication chamber.
This ensures a normal electrical conduction and hence a normal nebu-
lization.
ATTENTION
•Please clean the electrodes on the main unit and medication chamber.
This ensures a normal electrical conduction and hence a normal nebu-
lization.
6. Attach the medication chamber and put on the main unit cover.
Store all parts in a clean place.
7. Disinfecting.
ATTENTION
•In the case of infectious illnesses, the device must be disinfected every
day or all attachments must be sterilized. You can also use alcohol or
other common alcohol-based disinfectant sprays. Make sure that no
disinfectant residues are left behind on the attachments to ensure safe
inhalation when next used.

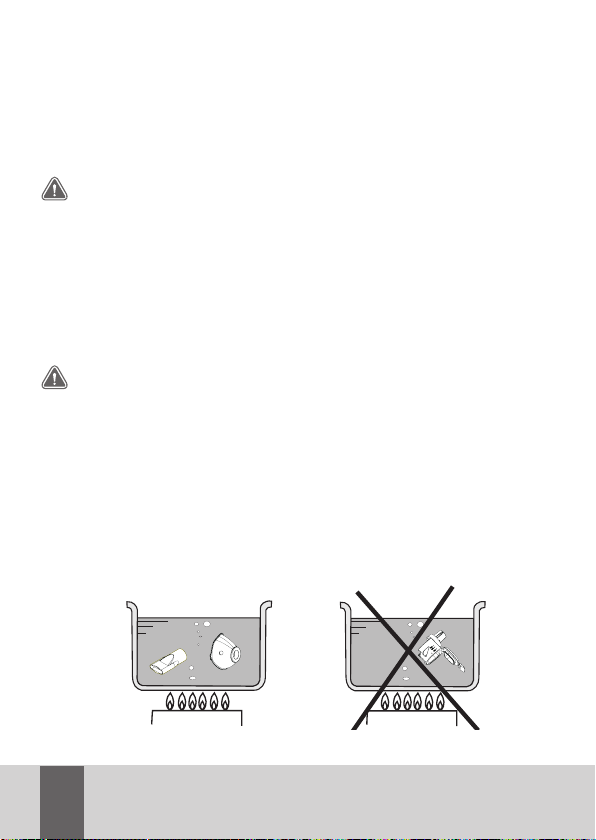

•Disinfect mouthpiece, and
mask by boiling at 100°C for
3 minutes.
•Please be careful, don’t boil the
medication chamber, or damage
may occur.
•Dry completely.

20
The medication chamber is a maintenance part and does not carry any warran-
ty. Under normal conditions, the lifetime of the medication chamber is approxi-
mately 6 months (three times usage per day or 45 minutes per day). However, the
nebulization performance may start deteriorating in less than 6 months depend-
ing on the way you use it or the use of certain types of medication. If the nebulizer
can not nebulize or the nebulization rate decreases significantly after clean, you
must replace the medication chamber with a new one. (If you want to purchase
a medication chamber, please contact the retailer from which you purchased the
product or any nearby retailers).
1. Remove the medication chamber from the nebulizer:
Press the PUSH button on the rear side of the main unit, and push the medi-
cation chamber toward the front side of the main unit.
HOW TO REPLACE THE MEDICATION CHAMBER
11
2. Re-attach the medication chamber to the nebulizer
Attach the medication chamber correctly as shown in the figure.
ATTENTION
•Please ensure that the medication chamber is attached correctly; other-
wise, it may result in a bad connection and cause the nebulizer to not
function properly.
ATTENTION
•To avoid damaging the nebulizer,
please ensure the PUSH button is
pressed down before pushing the
medication chamber forward.
•To avoid rupturing the mesh, please
do not poke it with your finger or
other foreign object.
Push forward
Prees
•Please keep the electrodes
of the main unit and medi-
cation chamber clean; other-
wise, the nebulizer may not
function properly.
•Please clean the medication
chamber before using.
