ProLights LumiPix XB050 User manual

USER MANUAL
REV.01-10/22 English version
LumiPix XB100
IP65 RGB+WW pixel-controlled linear
LED xture
LumiPix XB050

Thank you for choosing PROLIGHTS
Please note that every PROLIGHTS product has been designed in Italy to meet quality and performance requirements
for professionals and designed and manufactured for the use and application as shown in this document.
Any other use, if not expressly indicated, could compromise the good condition/operation of the product and/or be
a source of danger.
This product is meant for professional use. Therefore, commercial use of this equipment is subject to the respectively
applicable national accident prevention rules and regulations.
Features, specications and appearance are subject to change without notice. Music & Lights S.r.l. and all afliated
companies disclaim liability for any injury, damage, direct or indirect loss, consequential or economic loss or any other
loss occasioned by the use of, inability to use or reliance on the information contained in this document.
Product user manual can be downloaded from the website www.prolights.it , or can be inquired to the ofcial
PROLIGHTS distributors of your territory (https://www.prolights.it/sales_network.html).
Scanning the below QR Code, you will access the download area of the product page, where you can nd a broad
set of always updated technical documentation: specications, user manual, technical drawings, photometrics,
personalities, xture rmware updates.
The PROLIGHTS Logo, PROLIGHTS names and all other trademark in this document pertaining to PROLIGHTS services
or PROLIGHTS product are trademarks OWNED or licensed by Music & Lights S.r.l., its afliates, and subsidiaries.
PROLIGHTS is a registered trademark by Music & Lights S.r.l. All right reserved. Music & Lights – Via A. Olivetti, snc -
04026 - Minturno (LT) ITALY.
Visit the download area
of the product page
LUMIPIXXB100LUMIPIXXB050

01PROLIGHTS - LumiPix XB050 / LumiPix XB100
INDEX
SAFETY INFORMATION 02
1 - PACKAGING 05
PACKAGE CONTENT..................................................................................................... 05
OPTIONAL ACCESSORIES............................................................................................. 05

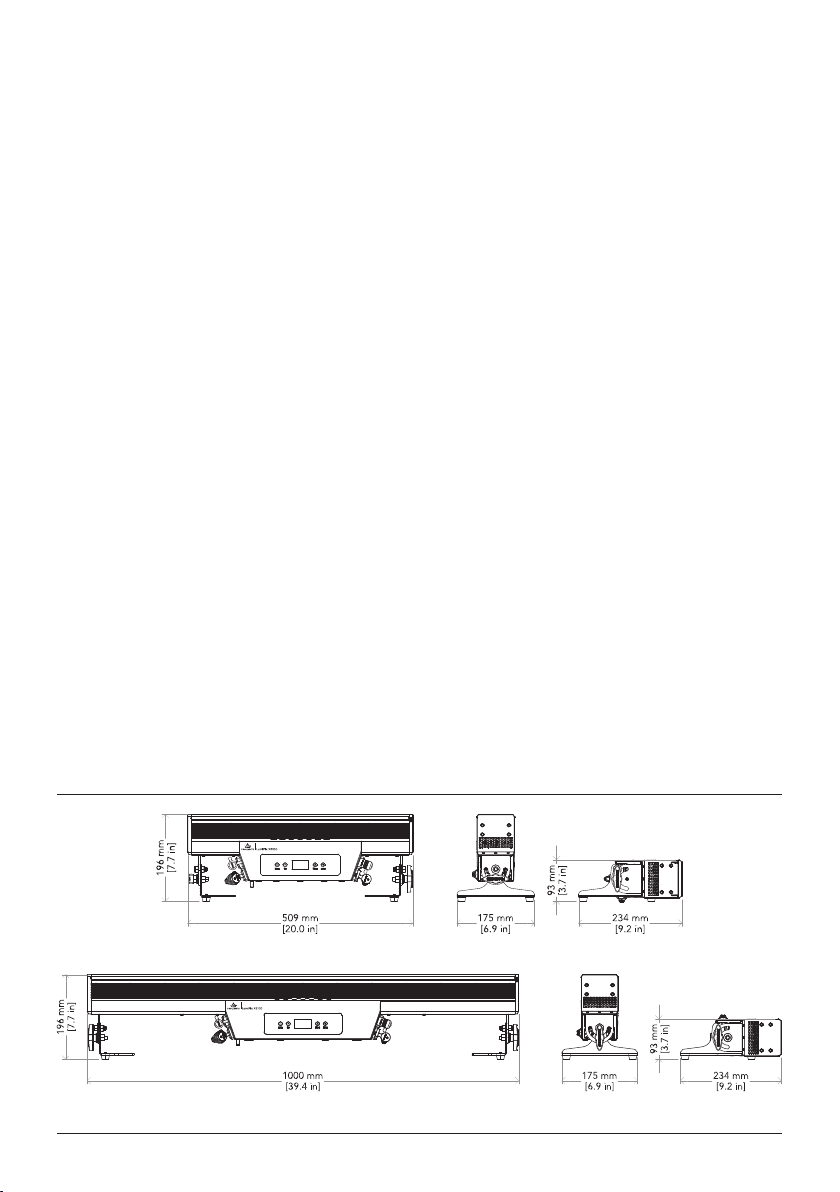

2 - TECHNICAL DRAWING 05
3 - INSTALLATION 06
MOUNTING.................................................................................................................... 06
4 - CONNECTION TO THE MAINS SUPPLY 07
5 - START UP 07
CONNECT AND DISCONNECT POWER FROM THE PRODUCT.................................. 07
6 - PRODUCT OVERVIEW 08
7 - DMX CONNECTION 09
CONNECTION OF THE CONTROL SIGNAL: DMX LINE .............................................. 09
INSTRUCTIONS FOR A RELIABLE DMX CONNECTION ............................................... 09
CONNECTION DAISY CHAIN........................................................................................ 09
CONNECTION OF THE DMX LINE................................................................................ 09
CONSTRUCTION OF THE DMX TERMINATION ........................................................... 10
DMX ADDRESSING ........................................................................................................ 10
ETHERNET CONNECTION ............................................................................................ 10
ETHERNET OPERATION ................................................................................................ 10
ETHERNET TO DMX OPERATIONS ............................................................................... 11
OPERATION AS A WIRELESS TRANSMITTER................................................................ 11
IN TO WDMX ................................................................................................................. 11
OPERATION AS A WIRELESS RECEIVER........................................................................ 12
WDMX TO DMX (RX)...................................................................................................... 12
8 - CONTROL PANEL 13
DISPLAY AND BUTTONS LAYOUT................................................................................. 13
9 - MENU STRUCTURE 14
10 - SHORTCUT 19
11 - RDM FUNCTIONS 20
12 - DMX CHARTS 24
13 - ACCESSORIES INSTALLATION 78
BARNDOOR (CODE LPXB050BD / LPXB100BD - OPTIONAL)...................................... 78
60° EGGCRATE (CODE LPXB050EC60 / LPXB050EC100 - OPTIONAL)........................ 79
LIGHT DIFFUSION FILTER (CODE LPXB050FILT20/40/60 / LPXB100FILT20/40/60 -
OPTIONAL)..................................................................................................................... 80
14 - TEST OF IP65 RATING 81
15 - MAINTENANCE 82
MAINTENANCE AND CLEANING THE PRODUCT........................................................ 82
VISUAL CHECK OF PRODUCT HOUSING ..................................................................... 82
TROUBLESHOOTING..................................................................................................... 83

PROLIGHTS - LumiPix XB050 / LumiPix XB10002
SAFETY INFORMATION
WARNING!
• Please read carefully the instruction reported in this section before installing, powering,
operating or servicing the product and observe the indications also for its future handling.
This unit is not for household and residential use, only professional applications.
Connection to mains supply
• The Connection to the mains supply must be carried out by a qualied electrical
installer.
• Use only AC supplies 100-240V 50-60 Hz, the xture must be electrically connected
to ground (earth).
• Select the cable cross section in according with the maximum current draw of the
product and the possible number of products connected at the same power line.
• The AC mains power distribution circuit must be equipped with magnetic+residual
current circuit breaker protection.
• Do not connect it to a dimmer system; doing so may damage the product.
Protection and Warning against electrical shock
• Do not remove any cover from the product, always disconnect the product from AC
power before servicing.
• Ensure that the xture is electrically connected to ground (earth). And use only a
source of AC power that complies with local building and electrical codes and has
both overload and ground-fault (earth-fault) protection.
• Before using the xture, check that all power distribution equipment and cables are
in perfect condition and rated for the current requirements of all connected devices.
• Isolate the xture from power immediately if the power plug or any seal, cover, cable, or
other components are damaged, defective, deformed or showing signs of overheating.
• Do not reapply power until repairs have been completed.
• Refer any service operation not described in this manual to PROLIGHTS Service team
or an authorized PROLIGHTS service center.
Installation
• Make sure that all visible parts of the product are in good visible condition before its
use or installation.
• Make sure the point of anchorage is stable before positioning the projector.
• When suspending the xture above ground level, secure it against failure of primary
attachments by attaching a safety cable that is approved as a safety attachment for
the weight of the xture to the attachment point on the main frame of the product. ln
case the safety cable, enter in action, it needs to be replaced with a new one.
• Install the product only in well ventilated places.
• For non temporary installations, ensure that the xture is securely fastened to a load-
bearing surface with suitable corrosionresistant hardware.
• For a temporary installation with clamps, ensure that the quarter-turn fastener and/or
screws are turned fully, and secured with a suitable safety cable.
0.5 m Minimum distance of illuminated objects
• The projector needs to be positioned so that the objects hit by the beam of light are
at least 0,5 meters (1,64 ft) from the lens of the projector.
T 45°C
a
Max operating ambient temperature (Ta)
• Do not operate the xture if the ambient temperature (Ta) exceeds 45 °C (113 °F).

03PROLIGHTS - LumiPix XB050 / LumiPix XB100
T
-20°
C
aMinimum operating ambient temperature (Ta)
• Do not operate the xture if the ambient temperature (Ta) is below -20 °C (-4 °F).
Protection from burns and re
• The exterior of the xture becomes hot during use. Avoid contact by persons and
materials.
• Ensure that there is free and unobstructed airow around the xture.
• Keep ammable materials well away from the xture.
• Do not expose the front glass to sunlight or any other strong light source from any an-
gle. Lenses can focus the sun’s rays inside the xture, creating a potential re hazard.
• Do not attempt to bypass thermostatic switches or fuses.
IP65
Outdoor (temporary) use
• This product is rated with an IP (Ingress protection) for temporary outdoor use when
used and serviced according to the instruction contained in this document.
• Never use the xture in places subject to vibrations or bumps.
• Make certain that no inammable liquids, water or metal objects enter the xture.
• Excessive dust, smoke uid, and particle build up degrades performance, causes
overheating and will damage the xture.
• Damages caused by inadequate cleaning or maintenance are not covered by the
product warranty.
T
66°
C
c
Temperature of the external surface
• The surface of the xture can reach up to 66 °C (150 °F) during operation. Avoid
contact with people and materials.
Maintenance
• Warning! Disconnect the xture from AC mains power and allow to cool for at least
10 minutes before handling.
• Only technicians who are authorized by PROLIGHTS or Authorised service partners
are permitted to open the xture.
• Users may carry out external cleaning, following the warnings and instructions pro-
vided, but any service operation not described in this manual must be referred to a
qualied service technician.
• Important! Excessive dust, smoke uid, and particle build up degrades performance,
causes overheating and will damage the xture. Damages caused by inadequate
cleaning or maintenance is not covered by the product warranty.
Photobiological safety
• This device emits potentially dangerous optical radiation and is identied in the cat-
egory of Risk Group 2 according to EN 62471.
Do not stare at the operating light source
• Do not look directly at the LED source during operation. It can be harmful to the eyes
and skin.
• During Installation, operation and maintenance, be prepared for the xture to light
and move suddenly when connected to power.
• The LUMIPIXX050 should be positioned so that prolonged staring into the luminaire
at a distance closer than 10,50 m (34,45 ft) is not expected.
• The LUMIPIXX100 should be positioned so that prolonged staring into the luminaire
at a distance closer than 14,12 m (46,32 ft) is not expected.

PROLIGHTS - LumiPix XB050 / LumiPix XB10004
Minimun
distance
Risk
Group 2
Risk
Group 1
0.2 m
0.7 ft
10,50 m
34,45 ft
Minimun
distance
Risk
Group 2
Risk
Group 1
0.2 m
0.7 ft
14,12 m
46,32 ft
Disposal
• This product is supplied in compliance with European Directive 2012/19/EU – Waste
Electrical and Electronic Equipment. (WEEE). To preserve the environment please
dispose/ recycle this product at the end of its life according to the local regulation.
The products to which this manual refers comply with:
• 2014/35/EU - Safety of electrical equipment supplied at low voltage (LVD);
• 2014/30/EU - Electromagnetic Compatibility (EMC);
• 2011/65/EU - Restriction of the use of certain hazardous substances (RoHS);
• 2014/53/EU - Radio Equipment Directive (RED).
The products to which this manual refers comply with:
• UL 1573 + CSA C22.2 No. 166 - Stage and Studio Luminaires and Connector Strips.
• UL 1012 + CSA C22.2 No. 107.1 - Standard for power units other than class 2.
FCC Compliance:
• This device complies with Part 15 of the FCC Rules. Operation is subject to the fol-
lowing two conditions:
1. This device may not cause harmful interference, and
2. This device must accept any interference received, including interference that may
cause undesired operation.
Other approvals
• The product meets the safety requirements of the certification procedures of the
market in which it is placed and sold.

05PROLIGHTS - LumiPix XB050 / LumiPix XB100
1 - PACKAGING
PACKAGE CONTENT
• 1x LUMIPIXXB050 / LUMIPIXXB100.
• 1x 1,5 meters power cable (BARE END - SEETRONIC IP65 power connector).
• 2x side oor brackets.
• User Manual.
• 1 x OS27: quick-Lock omega bracket, M10 hole.
OPTIONAL ACCESSORIES
• FCLLUMIPIXXB: Flight case for 4 pcs LUMIPIXXB100 or 8 pcs LUMIPIXXB050.
• LPXB050BD: Barndoor to adjust the light beam for LUMIPIXXB050.
• LPXB050EC60: 60° egg crate for LUMIPIXXB050.
• LPXB050FILT20: light diffusion lter for LUMIPIXXB050, 20°.
• LPXB050FILT40: light diffusion lter for LUMIPIXXB050, 40°.
• LPXB050FILT60: light diffusion lter for LUMIPIXXB050, 60°.
• LPXB100BD: barndoor to adjust the light beam for LUMIPIXXB100.
• LPXB100EC60: 60° egg crate for LUMIPIXXB100.
• LPXB100FILT20: light diffusion lter for LUMIPIXXB100, 20°.
• LUMIPIXXB100: light diffusion lter for LUMIPIXXB100, 40°.
• LPXB100FILT60: light diffusion lter for LUMIPIXXB100, 60°.
• C6002A/B: slim aluminum clamp, 200kg loading, 48-51mm tubes, M10 bolt, silver/black.
• OS27: quick-Lock omega bracket, M10 hole.
• WSBBR512G5: blackBox R-512 G5 receiver 512Ch, 2.45GHz & 5.8GHz, DMX/RDM optional.
• WSBBF1G6: blackBox F-1 G6 transrec, 512ch, 2.45GHz, DMX&RDM,Bluetooth,G3,G4,G4S, G5, CRMX.
• WSBBF1G5: blackBox F-1 G5 transmitter, 2,45GHz & 5.2/5,8 GHz, DMX/RDM, 512Ch.
• TOUR53415L03: dmx cable HC5340. CANC5MXX XLR 5p->CANC5FXX XLR (f) 5p, L.3m.
• 958225L03: 3x2.5mm TH07 Cable, 16A 3p PwCon MXW, 16A 3p PwCon FXW, L. 3m.
• 9513FXWL03: ass. 3x2.5mm TH07 cable, 16A 3p 230V CEE plug, MENAC3FXW socket, L.3 m.
• 9533FXWL03: ass. 3x2.5mm TH07 cable, SHUKO plug, MENAC3FXW socket, L.3m.
• RSR0630A/B: steel security cable for hanging bodies, inox steel shackle, L=60 cm, silver/black.
• WSBBR512G6: blackBox R-512 G6 receiver 512Ch, 2.45GHz,DMX&RDM,Bluetooth,G3,G4,G4S,G5,CRMX.
• UPBOX1UP5: rmware uploader kit, USB IN, 5pin XLR DMX OUT, USB OUT.
Fig. 01
Weight: 7,5 kg - 16,53 lbs
Weight: 3,8 kg - 8,38 lbs
2 - TECHNICAL DRAWING

PROLIGHTS - LumiPix XB050 / LumiPix XB10006
Fig. 02
3 - INSTALLATION
MOUNTING
Check that the supporting structure can safely bear the weight of all installed xtures, clamps, cables,
auxiliary equipment, etc. and complies with locally applicable regulations.
When suspending the xture above ground level, secure it against failure of primary attachments by
attaching a safety wire that is approved as a safety attachment for the weight of the xture to an anchor
point on the product main frame.
Do not use removable parts or weak anchors for secondary attachment.
Warning! When clamping the xture to a truss or other structure at any angle, use clamps of half-cou-
pler type. Do not use any type of clamp that does not completely encircle the structure when fastened.
RSR0630A/B
Steel security cable
107 mm
4,21 in

07PROLIGHTS - LumiPix XB050 / LumiPix XB100
5 - START UP
CONNECT AND DISCONNECT POWER FROM THE PRODUCT
To apply and disconnect power to the product:
• Check that the product is installed and secured as indicated in the Safety Informations, and that
personal safety will not be put at risk when the xture lights up.
• Connect the power connector into the Mains input socket (100-240 VAC-50/60 Hz).
• The product is then ready for its operations and can be controlled through the available input sig-
nals on board.
• To disconnect power from the product, disconnect the Mains from the socket.
4 - CONNECTION TO THE MAINS SUPPLY
WARNING: For protection from electric shock, the xture must be earthed!
The product is equipped with auto-switching power supply that automatically adjusts to any 50-60Hz
AC power source from 100-240 Volts.
If you need to install a power plug on the power cable to allow connection to power outlets, install a
grounding-type (earthed) plug, following the plug manufacturer’s instructions. If you have any doubts
about proper installation, consult a qualied electrician.
The max power consumption is 150W (LUMIPIXXB050) / 260W (LUMIPIXXB100).
Core (EU) Core (US) Connection Plug terminal marking
Brown Black Live L
Blue White Neutral N
Yellow+green Green Earth

PROLIGHTS - LumiPix XB050 / LumiPix XB10008
3
7
6
5
3
2
1
2
8
4
10
11
7
9
4
5
6 - PRODUCT OVERVIEW
1. USER INTERFACE with display and buttons for access to the control panel functions.
2. Holes to attach Quick-lock.
3. SAFETY EYE to attach safety cable.
4. GORE VALVE.
5. SIDE FLOOR BRACKETS.
6. DMX IN (5-p XLR): 1 = GND, 2 = sign-, 3 = sign+, 4 N/C, 5 N/C.
7. ETHERCON CONNECTORS IN / OUT signal.
8. POWER IN: for connection to the Mains 100-240V~/50-60Hz.
9. ANTENNA.
10.POWER OUT: power output for connection of multiple units in series.
11.DMX OUT (5-p XLR): 1 = GND, 2 = sign-, 3 = sign+, 4 N/C, 5 N/C.
Fig. 03

09PROLIGHTS - LumiPix XB050 / LumiPix XB100
7 - DMX CONNECTION
CONNECTION OF THE CONTROL SIGNAL: DMX LINE
The product has XLR sockets for DMX input and output.

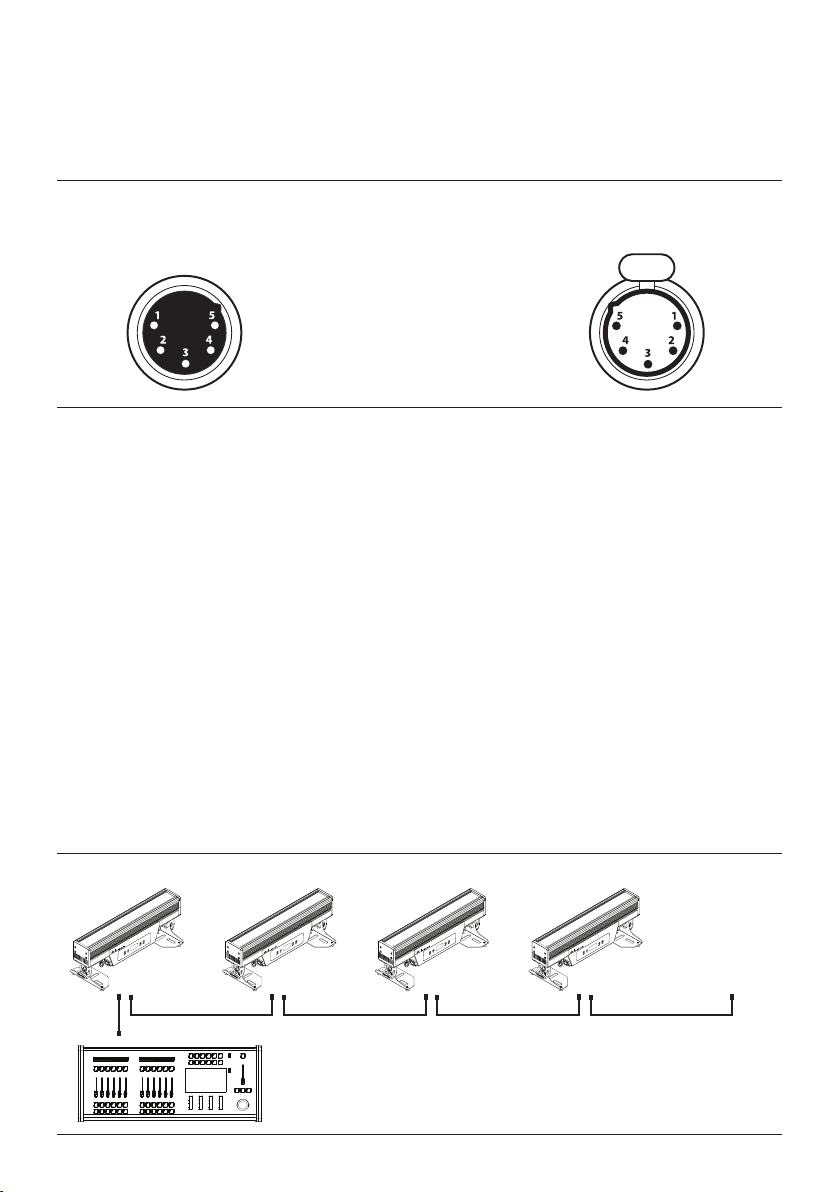

The default pin-out on both socket is as the following diagram:
Fig. 04
Pin1 : GND - Shield
Pin2 : - Signal
Pin3 : + Signal
Pin4 : N/C
Pin5 : N/C
DMX - OUTPUT
XLR socket
DMX - INPUT
XLR plug
INSTRUCTIONS FOR A RELIABLE DMX CONNECTION
Use shielded twisted-pair cable designed for RS-485 devices: standard microphone cable cannot trans-
mit control data reliably over long runs. 24 AWG cable is suitable for runs up to 300 meters (1000 ft).
Heavier gauge cable and/or an amplier is recommended for longer runs.
To split the data link into branches, use splitter-ampliers in the connection line.
Do not overload the link. Up to 32 devices may be connected on a serial link.
CONNECTION DAISY CHAIN
Connect the DMX data output from the DMX source to the product DMX input (male connector XLR)
socket.
Run the data link from the product XLR output (female connector XLR) socket to the DMX input of the
next xture.
Terminate the data link by connecting a 120 Ohm signal termination. If a splitter is used, terminate
each branch of the link.
Install a DMX termination plug on the last xture on the link.
CONNECTION OF THE DMX LINE
DMX connection employs standard XLR connectors. Use shielded pair-twisted cables with 120Ω im-
pedance and low capacity.
The following diagram shows the connection mode:
Fig. 05 - Example 25 DMX channels conguration
. . . . . . . . . . . .
DMX Address: 33 DMX Address: 108DMX Address: 58 DMX Address: 83
. . . . . . . . . . . .
DMX512 Controller
DMX IN DMX IN DMX IN DMX INDMX OUT DMX OUT DMX OUT DMX OUT

PROLIGHTS - LumiPix XB050 / LumiPix XB10010
DMX ADDRESSING
In order to start controlling the product via DMX, the rst step is to select a DMX address, also known
as the start channel, this is the rst channel used to receive instructions from a DMX controller. If you
wish to control the product individually, it is necessary to assign a different starting address channel to
each xture.
The number of channels occupied from the product depends on the DMX mode selected, so always
verify the DMX Mode in the MENU before start addressing.
If you assign two xtures the same address, they will be executing the same behaviour. Selecting the
same address to multiple xtures can be useful for diagnostic purposes and symmetrical control.
DMX addressing is limited to make it impossible to set the DMX address so high that you are left with-
out enough control channels for the product.
To set the xture’s DMX address:
1. Press ENTER to open the main menu.
2. Reach the addressing menu, then select the DMX ADDRESS settings.
3. Select the address from 1 to 512 using the navigation arrows/buttons and conrm by pressing
ENTER.
4. Press Menu to exit and return to the Home screen.
ETHERNET CONNECTION
The products is provided with two 8-pin RJ-45 sockets for Ethernet input/output for a simple daisy
chain connection to the network.
The product can be controlled with ArtNet (or others available) communication protocol.
Use a network cable category 5 (with four “twisted” wire pairs) and standard RJ-45 plugs.
ETHERNET OPERATION
Please refer to the section MENU STRUCTURE contained in this document for detailed informations
about the parameters of setting on the xture (Protocol, Net, Subnet, Universe, Start Channel and IP
Address, Ethernet to DMX No/Yes).
• About the IP addresses is recommended to set 002.xxx.xxx.xxx or 010.xxx.xxx.xxx.
• The submask net is xed at 255.0.0.0.
CONSTRUCTION OF THE DMX TERMINATION
The termination is prepared by soldering a 120Ω 1/4 W resistor between pins 2 and 3 of the male XLR
connector, as shown in gure.
Fig. 06
Example:
5 pin XLR connector
4

11PROLIGHTS - LumiPix XB050 / LumiPix XB100
ETHERNET TO DMX OPERATIONS
Please refer to the section MENU STRUCTURE contained in this document for detailed informations
This function allow a product receiving an ethernet signal protocol to re-transmit the incoming signal
onto a wired DMX line through its onboard XLR-out connector.
• An Ethernet protocol (Artnet, sACN or others available) has to be enabled from Ethernet menu
at rst xture. Please make sure that wireless receiver is switched to OFF if you use Ethernet
comunication.
• Enable the option Ethernet To DMX from the Ethernet menu at the rst product (connected to the
Ethernet) in the signal chain, next products have standard DMX setting.
• Connect the Ethernet input of the rst product in the data chain with the network. Connect the
DMX output of this product with the input of the next product until all products are connected to
the DMX chain.
• Caution: At the last product, the DMX chain has to be terminated with a terminator. Solder a 120 Ω
resistor between Signal (–) and Signal (+) into a XLR-plug and connect it in the DMX-output of the
last product.
OPERATION AS A WIRELESS TRANSMITTER
LUMIPIXXB050/100 can be used as wireless transmitter to transmit DMX signal to different wireless
receivers. To use LUMIPIXXB050/100 as wireless transmitter, please follow the procedure below:
1. Push ENTER button untill you show CONNECT on display, then press ENTER button to conrm.
2. Use UP/DOWN buttons for select WIRELESS, then press ENTER to conrm.
3. Push ENTER button on WDMX ON/OFF function and enable it to ON.
4. Select WDMX mode and set it on Transmitter (please note that WDMX mode will be available only
if WDMX ON/OFF is set to ON).
5. Ensure that the receiver units are not connected to any other transmitter. Please refer to "Reset the
receiver" paragraph.
6. Enable TX LINK to ON to link transmitter to receivers (please note that TX LINK will be available only
if WDMX mode is set to Transmitter).
• The transmitter scans for all unlinked receivers for a period of about 5 seconds.
• If the connection fails, check the position of the receiver.
• The wireless icon on the receiver display indicates the received signal strength.
Unlinking the transmitter
Follow the procedure below to unlink the transmitter from all receivers connected with the unit.
1. Push ENTER button untill you show CONNECT on display, then press ENTER button to conrm.
2. Use UP/DOWN buttons for select Wireless, then press ENTER to conrm.
3. Enable TX UNLINK to ON 8 (please note that TX UNLINK will be available only if WDMX mode is
set to Transmitter).
• All connected receivers will be unlinked.
IN TO WDMX
This function enable or disable the transmission throught wireless of the DMX signal from the transmit-
ter side to the receiver.
Any incoming signal (ArtNet, sACN or DMX) is retransmitted throught wireless.
If the LUMIPIXXB050/100 protocol selected is ArtNet / sACN, the WDMX module will retransmit the
DMX values contained in the ArtNet / sACN signal received from the LUMIPIXXB050/100.
NOTE: Artnet and sACN have higher priority on DMX if they are connected to transmitter.

PROLIGHTS - LumiPix XB050 / LumiPix XB10012
OPERATION AS A WIRELESS RECEIVER
LUMIPIXXB050/100 can be used as wireless receiver connected to a wireless transmitter.
To use LUMIPIXXB050/100 as wireless receiver, please follow the procedure below:
1. Push ENTER button untill you show CONNECT on display, then press ENTER button to conrm.
2. Use UP/DOWN buttons for select Wireless, then press ENTER to conrm.
3. Push ENTER button on WDMX ON/OFF function and enable it to ON.
4. Select WDMX mode and set it on Receiver (please note that WDMX mode will be available only if
WDMX ON/OFF is set to ON).
5. Enable RX RESET to ON to reset the receiver (please note that RX RESET will be available only if
WDMX mode is set to Receiver).
6. On the transmitter, enable TX LINK to ON to link transmitter to the receivers.
7. If the connection is successful and DMX input is available the display the display on the receiver unit
will shows the DMX address. If DMX signal is not available, the display will shows "No signal" but
keeps the transmitter linked.
8. If the connection fails, check the position of the receiver.
9. The wireless icon on the receiver display indicates the received signal strength.
Reset the receiver
Follow the procedure below to reset the receiver.
1. Push MENU button untill you show CONNECT on display, then press ENTER button to conrm.
2. Use UP/DOWN buttons for select Wireless, then press ENTER to conrm.
3. Enable RX RESET to ON.
• The wireless icon on the receiver display indicates the received signal strength.
WDMX TO DMX (RX)
This function enable or disable the retransmission of the wireless DMX signal received throught the
DMX port on the receiver side.

13PROLIGHTS - LumiPix XB050 / LumiPix XB100
Fig. 07
8 - CONTROL PANEL
The product has a display and buttons for access to the control panel functions.
DISPLAY AND BUTTONS LAYOUT
The product has a display and buttons for access to the control panel functions:
Used to access the menu tree or to return a previous menu window.
Browse upwards through the menu list and increases the numeric value
displayed.
Browse downwards through the menu list and decreases the numeric
value displayed.
Used to conrm the current menu or conrm the current function value
or option within a menu.

PROLIGHTS - LumiPix XB050 / LumiPix XB10014
9 - MENU STRUCTURE
The following chart describes the MENU tree of the product, the terms shown in BOLD indicates the
default settings.
1 CONNECT DMX ADDRESS FIXTURE DMX 1-512 Set DMX Address for Main
xture.
WDMX
ARTNET
SACN
PIXELS FOLLOW FIXTURE 1-512 Set DMX Address for Pixel
Engine.
DMX
WDMX
sACN
ARTNET
KLINGNET
sACN+ARTNET
sACN+KLINGNET
ARTNET+KLINGNET
DMX MODE FIXTURE UNO SOURCE
EMULATION
REFER TO STATIC
MODE INTO
STANDALONE
Set DMX mode for xture
Engine.
COLOR
TEMPERATURE
2800K
3200K
3500K
4000K
4500K
5000K
5600K
6000K
6500K
7000K
7500K
8000K
8500K
9000K
9500K
10000K
COLOR MACRO SEE TABLE OF
COLOR MACRO
MANUAL
COLORS
RED <000-255>
GREEN <000-255>
BLUE <000-255>
WARM WHITE <000-255>
DUO SAME SETTINGS OF "UNO"
BASIC RGBW
RGB
CMY
HSI
STANDARD RGBW
RGB
CMY
HSI
EXTENDED RGBW
RGB
CMY
HSI
FX FX CINE
FX TOUR
FX EXTENDED
XY
DIRECT 8 BIT
DIRECT 16 BIT
THEATER 4Ch
5Ch1
5Ch2
6Ch
10Ch

15PROLIGHTS - LumiPix XB050 / LumiPix XB100
15Ch
17Ch
21Ch
PIXEL 1 Pix
(LUMIPIXXB050) 3 Pix
9 Pix
PIXEL 1 Pix
(LUMIPIXXB100) 3 Pix
6 Pix
18 Pix
FILM 1M12CH
2M20CH
PIXELS OFF Set DMX mode for Pixel
Engine.
(LUMIPIXXB050) 9PX
EXTENDED
PIXELS OFF
(LUMIPIXXB100) 18PX
EXTENDED
WIRELESS WDMX ON/OFF ON Enable/Disable the wire-
less card.
OFF
WDMX MODE TRANSMITTER Choose whether to set
the wireless card as
Transmitter or Receiver.
WDMX mode is unlocked
only if WDMX ON / OFF
is ON.
RECEIVER
TX LINK ON TX link unlock when the
unit is set as a transmitter.
OFF
TX UNLINK
ON Disconnect the transmit-
ter from all receivers.
TX unlink unlocks only if
WDMX mode is on trans-
mitter.
OFF
RX RESET
ON Total reset of the receiver.
RX reset unlocks only if
WDMX mode is receiver.
OFF
In To WDMX (TX)
ON Enable/Disable the
transmission of the dmx
from the transmitter to the
receiver via wdmx.
OFF
WDMX To DMX (RX)
ON Enable/Disable the re-
transmission of the DMX
from the receiver to the
other units connected by
cable to the receiver itself.
OFF
ETHERNET
SETTINGS
ARTNET SETTINGS FIXTURE IP ADDRESS xxx.xxx.xxx.xxx Settings for ArtNet
protocol use.
NET 0-127
SUBNET 0-15
SUBNET MASK
UNIVERSE 0-15
PIXELS IP ADDRESS xxx.xxx.xxx.xxx
NET 0-127
SUBNET 0-15
SUBNET MASK
UNIVERSE 0-15
sACN SETTINGS FIXTURE IP ADDRESS xxx.xxx.xxx.xxx Settings for sACN
protocol use.
UNIVERSE 1-16
MERGE MODE
OFF
HTP
LTP
PIXELS IP ADDRESS xxx.xxx.xxx.xxx
UNIVERSE 1-16
MERGE MODE
OFF
HTP
LTP
Ethernet to WDMX ON Enable / Disable DMX retras-
mission from sACN/ ArtNet
signal to WDMX (TX mode).
OFF
Ethernet to DMX ON Enable / Disable DMX retr-
asmission from sACN/ Art-
Net signal to DMX out port.
OFF

PROLIGHTS - LumiPix XB050 / LumiPix XB10016
2SETUP SCREEN Backlight ON Select the timing after
that display will switch
automatically off when
unactive.
10S
20S
30S
FLIP DISPLAY ON Allows you to rotate the
display by 180°.
OFF
KEY LOCK ON Lock the buttons on the con-
trol panel by a password.
Press following combinations
(password) in order to ac-
cess to the user menu : UP,
DOWN, UP, DOWN, ENTER.
OFF
DISPLAY VALUE RAW DATA Choose how to show datas
on Stand Alone Modes.
In percentage mode values
will be shown as 0-100%.
In Raw Data mode values
will be shown as 0-255.
PERCENTAGE
TEMPERATURE
UNIT °C Allows you to choose Tem- perature unit showed in
home screen.
°F
USER
SETTINGS
PRESET 1 TO 5 RECALL
SAVE
MOVE
SET AS DEFAULT
TRANSFER CON-
FIGURATION
WITHOUT DMX
ADDRESS
To transfer the same menu
settings of one xtures to
all the other in the daisy
chain, including or not the
dmx address.
WITH DMX
ADDRESS
3AD-
VANCED
CALIBRATION ON Enable/Disable Spektra
Calibration
OFF
DIMMER
CURVE
LINEAR Choose dimmer curve.
S-CURVE
SQUARE LAW
INVERSE SQUARE
LAW
HIGH RES@LOW
DIMMER
SPEED
AUTO Set Dimmer Speed.
This parameter denes in-
terpolation of DMX
Changes for main functions.
Off turns off interpolation
FAST
MEDIUM
SLOW
DIMMER
END FADE OFF@END Set Dimmer End behaviour. Snap Off will make xture
snap when dimming out to 0.
Fade Off will make xture
fade when dimming out to 0.
This selection affects only
004-000 DMX value be-
haviour.
SNAP OFF@END
LED
FREQUENCY
600Hz Select PWM frequency.
1200Hz
2000Hz
4000Hz
6000Hz
10kHz
12kHz
15kHz
20kHz
25kHz
36kHz
40kHz
DMX FAULT HOLD
BLACKOUT
STAND ALONE
EMERGENCY
INVERT
MAPPING
ON
OFF

17PROLIGHTS - LumiPix XB050 / LumiPix XB100
FAN MODE CONSTANT
OUTPUT
AUTO / HIGH /
SILENT 1 / SILENT
2 / OFF
Select the product Fan mode
for Standard mode.
Constant Output: xture will
decrease immediatly light
output. Note: xture will lower
light output in case of Silent1,
Silent2 and OFF.
Dynamic Output: xture will
have variable light output in
order to keep a safe running
temperature.
DYNAMIC OUTPUT
AUTO / HIGH /
SILENT 1 / SILENT
2 / OFF
TUNGSTEN
EMULATION
OFF
AUTO
FAST
MEDIUM
SLOW
FACTORY
RELOAD STANDARD ON - OFF Reload xture with Stand- ard settings.
USER PRESET ON - OFF Reload xture with User
Preset.
4INFORMA-
TION DEVICE TIME FIXTURE HOURS <99999H>
CURRENT HOURS <99999H>
SOURCE HOURS <99999H>
AC POWER ON
CYCLE <300>
MAINTENANCE
TIME
ELAPSED TIME
ALERT PERIOD 10 - 1000
TEMPERATURE Show temperature for
each LED PCB.
WIRELESS
QUALITY
CHANNEL
VALUE
ERROR
MESSAGE
Refer to Troubleshooting
section for Error details.
FIXTURE
MODEL
DEVICE LABEL
SOFTWARE
VERSION <V1.0> Show software version for each PCB.
RDM UID 15D00228**** View the UID of the prod-
uct (RDM control).
5STAND
ALONE MASTER/SLAVE MASTER DMX Allow you to link and oper- ating in synk multiple units
without a DMX console.
Choose a unit to perform
as the Master.
Master No DMX: xture is
not broadcasting signal
MASTER NO DMX
SLAVE
CINE FX Party Effect
Candle
Clouds Passing
Club Lights
Color Chase
Cop Car
Fire
Fireworks
Strobe
Lightning
Paparazzi
Pulsing
Television
Explosion
Fluorescent Flicker
Process Effect
Welding
TOUR FX FX 1-23 PATTERN SPEED
PATTERN FADE
F.G. INTENSITY
F.G. STROBE
F.G. RED
F.G. GREEN
F.G. BLUE

PROLIGHTS - LumiPix XB050 / LumiPix XB10018
F.G. WARM WHITE
F.G. INTENSITY
F.G. STROBE
F.G. RED
F.G. GREEN
F.G. BLUE
F.G. WARM WHITE
SOURCE EMU-
LATION
DIMMER 0 - 255
INCANDESCENT
Tungsten Bulb
Incandescent
Halogen
Antique Bulb
Warm Antique Bulb
Christmas Lights
Night Light
Infrared Heat Lamp
Grow light
FLUORESCENT
CFL Soft White
CFL Bright White
CFL Cool White
CFL Daylight
Cool White 1
Cool White 2
Cool White 3
Warm White
CFL Blacklight
DISCHARGE
HMI
High Pressure
Sodium
Low Pressure Sodium
Mercury Vapor
Metal Halide
Ceramic
Carbon Arc
Xenon
OTHER
Candle
Gas Fire
Sun Direct
Sun Overcast
Sun Blue Hour
Mobile Phone
Computer Monitor
Electroluminescence
Blow Torch
Road Flare
Amber Caution
Green Traffic Light
Yellow Traffic Light
Red Traffic Light
Blue Glow Stick
Green Glow Stick
Red Glow Stick
Yellow Glow Stick
Pink Glow Stick
Violet Glow Stick
CCT Dimmer, CCT, Tint
HSI Hue, Saturation,
Intensity
FIXED COLORS
R
G
B
W
RG
RB
RW
GB
GW
BW
RGB
RGW
RBW
GBW
RGBW
Select of the following pre-
dened color combination
and its Dimmer value.
After enabled this mode,
the unit will be automati-
cally assigned as Master.
