Promax CG28 SERIES User manual

®
TWO-SIDED
GRILLS
MODEL
CG28, GR28 SERIES
Installation and
Operation
Instructions
2M-Z9667 Rev. E 1/17/2013
GR28SPTI
GR28IT
®
®
®
®

2
2
These symbols are intended to alert the user to the presence of
important operating and maintenance instructions in the manual
accompanying the appliance.
RETAIN THIS MANUAL FOR FUTURE REFERENCE
NOTICE
Using any part other than genuine Star factory supplied parts relieves the
manufacturer of all liability.
Star reserves the right to change specications and product design without
notice. Such revisions do not entitle the buyer to corresponding changes,
improvements, additions or replacements for previously purchased
equipment.
Due to periodic changes in designs, methods, procedures, policies and
regulations, the specications contained in this sheet are subject to change
without notice. While Star International Holdings Inc., Company exercises
good faith efforts to provide information that is accurate, we are not
responsible for errors or omissions in information provided or conclusions
reached as a result of using the specications. By using the information
provided, the user assumes all risks in connection with such use.
MAINTENANCE AND REPAIRS
Contact your local authorized service agent for service or required maintenance.
Please record the model number, serial number, voltage and purchase date in the area below and have it ready when
you call to ensure a faster service.
SAFETY SYMBOL
Model No.
Serial No.
Voltage
Purchase Date
Business 8:00 am to 4:30 p.m. Central Standard Time
Hours:
Telephone: [phone]
Fax: [phone]
E-mail [email protected]
[email protected]
W[email protected]
Website: www.star-mfg.com
Service Help Desk
Authorized Service Agent Listing
Reference the listing provided with the unit
or
for an updated listing go to:
Website: www.star-mfg.com
E-mail [email protected]
Mailing Address: Star International Holdings Inc., Company
10 Sunnen Drive
St. Louis, MO 63143
U.S.A

3
GR28I-240V-Smooth Iron Platens without Timers
GR28I-240VC-Smooth Iron Platens without Timers, Canadian
GR28IT-240V-Smooth Iron Platens with 2 Timers
GR28IT-240VC-Smooth Iron Platens with 2 Timers, Canadian
GR28ITGS-240V-Iron Platens, 1 Grooved & 1 Smooth Top, Smooth Bottom with 2 Timers
GR28ITGS-240VC-Iron Platens, 1 Grooved & 1 Smooth Top, Smooth Bottom with 2 Timers, Canadian
GR28SPTI-240V-Smooth Iron Platens with 2 Timers
GR28IEA-240V-Smooth Iron Plattens with Electronic Controls
CG28I-240V-Grooved Iron Platens without Timers
CG28I-240VC-Grooved Iron Platens without Timers, Canadian
CG28IT-240V-Grooved Iron Platens with 2 Timers
CG28IT-240VC-Grooved Iron Platens with 2 Timers, Canadian
CG28IGT-240V-Iron Platens, Grooved Top and Smooth Bottom without Timers
CG28IGT-240VC-Iron Platens, Grooved Top and Smooth Bottom without Timers, Canadian
CG28ITGT-240V-Iron Platens, Grooved Top and Smooth Bottom with 2 Timers
CG28ITGT-240VC Iron Platens, Grooved Top and Smooth Bottom with 2 Timers, Canadian
CG28SPTI-240V-Grooved Iron Platens with 2 Timers
CG28IEA-240V-Grooved Iron Platens with Electornic Controls
CG28IEGTA240V-Grooved Iron Bottom Platen, Smooth Top Platens, with Electronic Controls
PRODUCT IDENTIFICATION
Star Manufacturing International, Inc. Two Sided Grills
Models:

4
GENERAL INSTALLATION DATA
This equipment is designed and sold for commercial use only by personnel trained and experienced
in its operation and is not sold for consumer use in and around the home nor for use directly by the
general public in food service locations.
Before using your new equipment, read and understand all the instructions & labels associated with
the unit prior to putting it into operation. Make sure all people associated with its use understand the
units operation & safety before they use the unit.
All shipping containers should be checked for freight damage both visible and concealed.
This unit has been tested and carefully packaged to insure delivery of your unit in perfect
condition. If equipment is received in damaged condition, either apparent or concealed, a
claim must be made with the delivering carrier.
Concealed damage or loss - if damage or loss is not apparent until after equipment is
unpacked, a request for inspection of concealed damage must be made with carrier within
15 days. Be certain to retain all contents plus external and internal packaging materials for
inspection. The carrier will make an inspection and will supply necessary claim forms.
Ventilation and Clearances
The installation of any components such as a vent hood, grease extractors, and/or re
extinguishing systems, must conform to their applicable nationally recognized installation
standards and/or local building codes.
Electrical Connection
Before making any electrical connection be sure to read data plate which is located at the
bottom of the unit.
Electrical Grounding Instructions
This unit is equipped with a 3-prong (grounding) plug for your protection against shock
hazard and must be plugged directly into a properly grounded 3-prong receptacle.
DO NOT CUT OR REMOVE THIS PLUG OR GROUNDING PRONG FROM THE PLUG.
CONNECT/PLUG UNIT INTO DEDICATED A.C LINE ONLY SPECIFIED ON THE DATA PLATE
OF THE UNIT.
CAUTION
WARNING
WARNING
ELECTRICAL SPECIFICATIONS
Model No. Volts Rated Wattage Amps NEMA Plug
GR28I 240 7200 30 L6-30P
GR28IT 240 7200 30 L6-30P
GR28ITGS 240 7200 30 L6-30P
GR28SPTI 240 7100 30 L6-30P
CG28I 240 7200 30 L6-30P
CG28IT 240 7200 30 L6-30P
CG28IGT 240 7200 30 L6-30P
CG28ITGT 240 7200 30 L6-30P
CG28SPTI 240 7100 30 L6-30P

5
Initial Start Up
Level unit using the adjustable feet under the unit (approximately 1/2" adjustment).
Before using the unit for the rst time, clean and heat for approximately 30 minutes. The grill may
emit a small amount of smoke as the cooking surfaces reach 300-350°F. Do not be alarmed, as
the smoke is caused by oils associated with the manufacturing process and will stop when the grill
reaches 400°F.
Seasoning The Cooking Surfaces
First Time Seasoning
Follow your company/corporate guidelines for seasoning cooking surfaces or
1. Bring the grill to 300°F and leave it on while doing the next three steps.
2. Brush the cooking surfaces with a release agent. If using an aerosol agent,
rst apply into a cup and then brush onto cooking surface.
3. Let sit for 20 minutes, and then wipe clean using a warm damp cloth.
Daily Seasoning
The grill should not require much seasoning while in use. In most cases, brush a light coating of the
baking release agent in the morning and occasionally throughout the day will be enough to prevent
any sticking. It is not necessary to spray before grilling each item.
MANUAL CONTROL OPERATION
Setting The Temperature
The thermostat control knob is used to set the temperature to your requirements. The maximum set
point is 550°F (288°C), the minimum set point is 175°F (79°C). See Knob Settings.
Setting The Timer (Timer Models Only)
(9 MIN. 59 SEC. MAX)
The timer may be factory pre-set. If changes are required follow these simple steps:
1. To increase time, press and hold the (UP) button.
The Start/Stop button can now be used to increase the cooking time.
2. To decrease time, press and hold the (DOWN) button.
The Start/Stop button can now be used to decrease cooking time.
Knob Setting
Knob Position Approx. Temp
1-2 175°F / 79°C
3 200°F / 93°C
4 250°F / 121°C
5 300°F / 148°C
6 350°F / 176°C
7 400°F / 204°C
8 450°F / 232°C
9 500°F / 260°C
10 550°F / 287°C
On/off Rocker Switch
(Timer Models Only)
The switch turns the unit on and off. The switch has three positions:
With the switch in this position, both top and bottom platens will heat.
With the switch in this position, neither platen will heat.
With the switch in this position only bottom platen will heat.

6
Daily Operation
Always allow 30 minutes of preheat time before loading the unit with product. Failure to allow
sufcient preheat time will result in unsatisfactory cooking of the rst load.
Check the power cord to insure that it is plugged into a proper outlet.
Check that the switch and thermostat control are turned on.
Set the unit's ON/OFF rocker switch to desired position.
Set the thermostat control knob to desired temperature.
Operating Hints And Safety
Disconnect power to the unit with the switch at the end of each day of operation.
Do not leave the unit in operation without an attendant.
Turn thermostat down to 200°F (93°C) during idle periods. It will take only a few minutes to regain
operating temperature.
Use spatula to push excess grease into grease drawer after each load of food is cooked. This will
reduce smoking of hot grease and carbonizing.
Do not leave the unit at high temperature when not in use or during idle periods. This will cause food
particles and grease lm to carbonize.
"Season" cooking surfaces with non-salted vegetable oil to reduce product sticking.
Monthly Lubrication/Inspection
Apply two (2) drops of non-toxic mineral or vegetable oil to counter balance shoulder rivets and plastic
spacers.
Check and clean brass rollers to make sure they are rolling and not sliding on the cam
surfaces of the counterbalance.
Check the bolts, screws and nuts, tighten if necessary.
Cleaning
Begin cleaning procedure by using the operating procedures within your organization, or follow the
steps below:
1. If particles adhere to the cooking surface during the day, scrape them off with a spatula.
NOTE: It is best not to let food cook onto the grill, as food build-up on the grill will increase
sticking and smoking. In addition, carbon may build up on the grill surface and reduce the
cooking efciency.
Carbon Buildup: A black matter that forms on or near the cooking surface. Generally this is a
combination of: releasing agents, oils, food particles etc. ,that have cooked to the surface. After a
period of time without cleaning, this will reduce performance and material may start aking off. When
that happens, follow the "Carbon Cleaning" procedures.
2. At the end of the day, wipe down all surfaces with a warm, damp cloth and mild detergent, then
dry.
Carbon Cleaning
When carbon build up occurs, use a carbon removal agent (safe for aluminum surfaces) according
to the instructions provided with the cleaner. When this process is complete, you must re-season the
grill according to your company/corporate guidelines, or the seasoning instructions in this manual.
DO NOT IMMERSE OR LET THE UNIT STAND IN WATER.

7
DO NOT HOSE DOWN THE UNIT OR THE TABLE/COUNTER IF THE UNIT IS ON THE TABLE/
COUNTER.
KEEP AWAY FROM RUNNING WATER.
DO NOT USE SHARP OBJECTS TO REMOVE CARBON BUILD-UP.
DO NOT USE ICE ON THE COOKING SURFACE!
BEFORE CLEANING MAKE SURE POWER IS TURNED OFF, UNIT IS UNPLUGGED AND IS
NOT TOO HOT.
While holding top lid with one hand, apply only cleaners which are safe for aluminum
and iron surfaces. Wipe with clean sponge or towel until unit is clean.
DO NOT SPLASH FRONT CONTROL PANEL!
DO NOT SPLASH FLEX CONDUIT CONNECTING TOPAND BOTTOM OF THE UNIT.
Remove and empty to clean grease catcher drawer as required using mild detergent and water.
WARNING
Do not use ice or cold water to clean the cooking surfaces when the unit is hot.
The surfaces are cast aluminum or cast iron and may crack or deform under the shock of
rapid temperature change.
Operation Troubleshooting
1. Unit not heating.
A. Check if unit is plugged in correct receptacle.
B. Check incoming power line.
C. Check that the switch is in correct position.
D. Check that thermostat is set to proper temperature.
2. Top platen not heating.
A. Check that the ON/OFF switch is in correct position.
3. Counterbalance roller not rolling.
A. Clean rollers.
If unit still does not operate contact the factory or one of its representatives or a local service company
for service or required maintenance.
CAUTION

8
ELECTRONIC CONTROL OPERATION
Preset Times And Temperatures
If adjustments are required, please refer to the time or temperature programming section in this
manual.
°F/°C CONVERSION
To change the temperature display from °F to °C or from °C to °F, hold the TEMP button while the
unit is turned off. While holding the TEMP button, turn the unit on. The display will be the changed
temperature mode. To change back, repeat the procedure.
Operating Instructions
1. Turn the unitonbyplacingtheswitch in theON position. TheHEATON indicator, program number
and display will ash indicating the unit is heating. When the preset temperature is reached, the
heating light, display and program light indicator will stop ashing followed by 3 beeps. (Initial
startup heating time is approximately 30 minutes).
2. Place product on the bottom cooking surface of the unit and close the lids.
3. Press the PROGRAM button and let the displayed time count down to "0" at which time the unit
will beep. To turn off the beeper, press the PROGRAM button again.
4. Raise the lid until it engages into the rst detent and remove food. Using a spatula, scrape residue
into the grease catcher tray.
NOTE: Metal utensils may be used, however, using nonmetal utensils will prolong the life of the
cooking surface.
5. Turn the unit off when it is not in use.
Temperature/timer Controller Operation Specications
Startup:
1. The preset time will ash until the preset temperature is reached.
2. Whenthecontrolreachesthepresettemperature,timedisplay,theHEATONindicatorandprogram
indicator will stop ashing and the alarm will beep three times.
Temperature:
1. To view the actual temperature, press and hold the TEMP button. The display will read "Lo" if the
temperature is below 135°C (273°F) and "Hi" if the temperature is above 300°C (573°F).
To Program Time and Temperature:
1. Press and hold TEMP (actual temperature displays).
2. WhileholdingTEMP,press and holdanyprogrambuttononthe leftforonesecond. TheLEDabove
the program number will light and the display will read "_ _ _ _." Enter the four-digit security code
sequence:4,3, 2,1.Thesecurity codewillnot showon thedisplay. Once thecorrect sequencehas
been entered, the preset time will be displayed and the LED for that program will begin to ash.
3. Set the time with the "+ or -" buttons.
4. Press the TEMP button to save the time.
5. The preset temperature will now be displayed.
6. Set the desired temperature for this program using the "+ or -" buttons.
7. Press the TEMP button to save the temperature and to exit the programming mode for this
program. The LED will stop ashing but will remain lit.
8. Press any other program button within 15 seconds to continue programming without
re-entering the security code.
9. While programming a program (LED is ashing), if no input is received for 15 seconds the unit will
revert to normal operation and the security code must be re-entered.
NOTE: Temperature settings are done with the Left side buttons only. The time settings
programmed on the left buttons will also be programmed onto the Right side. See the next
section to make time changes to the Right side only. Each programming change must be
saved by pressing the TEMP button!

9
Right Side (Timer only):
1. To change the time on right, press and hold the TEMP button, then press and hold any
program button on the right for one second. The LED above the program button will light
and the right display will read "_ _ _ _." Enter the four-digit security code sequence: 4, 3,
2, 1. The security code will not show on display. Once the correct sequence has been entered,
the preset time will be displayed and the LED for that program will begin to ash.
2. Set the time with the "+ or -" buttons.
3. Press the TEMP button to save the time.
4. TheLEDwillstopashingbutwillremainlit.
5. Press any other program button within 15 seconds to continue programming without re-
entering the security code.
6. Whileprogrammingaprogram(LEDisashing),ifnoinputisreceivedfor15secondsthe
unit will revert to normal operation and the security code must be re-entered.
Operation:
1. Pressing any program button (1-4) will start the timer countdown and display the remaining preset
time. The LED for the appropriate program will be lit during the countdown and will remain lit until
another program is selected.
2. When the display reaches "00:00", the buzzer will sound and the digits will ash.
3. Press the program button to silence the buzzer and return the readout to programmed time.
4. The right and left sides will operate independently of each other. Both timers can be in operation
at the same time. The "00:00" display will show which side is timed out.
NOTE: Metal utensils may be used, however, using nonmetal utensils will prolong the life
of the cooking surface.
5. Turn the unit off when it is not in use.

10
2M-4497-2 6/1312
The foregoing warranty is in lieu of any and all other warranties expressed or implied and constitutes the entire warranty.
FOR ASSISTANCE
Should you need any assistance regarding the Operation or Maintenance of any Star equipment; write, phone, fax or email our Service Department.
In all correspondence mention the Model number and the Serial number of your unit, and the voltage or type of gas you are using.
ALL:
*Pop-Up Toasters
*Butter Dispensers
*Pretzel Merchandisers
(Model 16PD-A Only)
*Pastry Display Cabinets
*Nacho Chip Merchandisers
*Accessories of any kind
*Sneeze Guards
*Pizza Ovens
(Model PO12 Only)
*Heat Lamps
*Pumps-Manual
Visit our Website at: www.star-mfg.com Email: [email protected]
THOROUGHLY INSPECT YOUR UNIT ON ARRIVAL
This unit has been tested for proper operation before leaving our plant to insure delivery of your unit in perfect condition. However, there are instances in which
the unit may be damaged in transit. In the event you discover any type of damage to your product upon receipt, you must immediately contact the transportation
company who delivered the item to you and initiate your claim with same. If this procedure is not followed, it may affect the warranty status of the unit.
LIMITED EQUIPMENT WARRANTY
All workmanship and material in Star products have a one (1) year limited warranty on parts & labor in the United States and Canada. Such warranty is limited
to the original purchaser only and shall be effective from the date the equipment is placed in service. Star's obligation under this warranty is limited to the repair
of defects without charge, by the factory authorized service agency or one of its sub-agencies. Models that are considered portable (see below) should be taken
to the closest Star service agency, transportation prepaid.
>Star will not assume any responsibility for loss of revenue.
>On all shipments outside the United States and Canada, see International Warranty.
*The warranty period for the Ultra-Max, Hot Plates, Griddles, Charbroilers is (3) years parts & labor.
*The warranty period for the Star-Max, Charbroilers, Griddles, Hot Plates, Fryers & Finishing Oven is (2) years parts & labor.
*The warranty period for the JetStar six (6) ounce & Super JetStar eight (8) ounce series popcorn machines is two (2) years.
*The warranty period for the Chrome-Max Griddles is ve (5) years on the griddle surface. See detailed warranty provided with unit.
*The warranty period for Teon/Dura-Tec coatings is one year under normal use and reasonable care. This warranty does not apply if damage occurs to
Teon/Dura-Tec coatings from improper cleaning, maintenance, use of metallic utensils, or abrasive cleaners, abrasive pads, product identiers and
point-of-sale attachments, or any other non-food object tha comes in continuous contact with the roller coating. This warranty does not apply to the
“non-stick” properties of such materials.
>This warranty does not apply to "Special Products" but to regular catalog items only. Star's warranty on "Special Products" is six (6) months on parts
and ninety (90) days on labor.
>This warranty does not apply to any item that is disassembled or tampered with for any purpose other than repair by a Star Authorized Service Center or
the Service Center's sub-agency.
>This warranty does not apply if damage occurs from improper installation, misuse, wrong voltage, wrong gas or operated contrary to the Installation and
Operating instructions.
>This warranty is not valid on Conveyor Ovens unless a "start-up/check-out" has been performed by a Factory Authorized Technician.
PARTS WARRANTY
Parts that are sold to repair out of warranty equipment are warranted for ninety (90) days. The part only is warranted, the labor to replace the part is NOT warranted.
SERVICES NOT COVERED BY WARRANTY
PORTABLE EQUIPMENT
Star will not honor service bills that include travel time and mileage charges for servicing any products considered "Portable" including items listed below.
These products should be taken to the Service Agency for repair:
1. Travel time and mileage rendered beyond the 50 mile radius limit
2. Mileage and travel time on portable equipment (see below)
3. Labor to replace such items that can be replaced easily during a daily cleaning
routine, ie; removable kettles on fryers, knobs, grease drawers on griddles, etc.
4. Installation of equipment
5. Damages due to improper installation
6. Damages from abuse or misuse
7. Operated contrary to the Operating and Installation Instructions
8. Cleaning of equipment
9. Seasoning of griddle plates
10. Voltage conversions
11. Gas conversions
12. Pilot light adjustment
13. Miscellaneous adjustments
14. Thermostat calibration and by-pass adjustment
15. Resetting of circuit breakers or safety controls or reset buttons
16. Replacement of bulbs
17. Replacement of fuses
18. Repair of damage created during transit, delivery, &
installation OR created by acts of God
*The Model 510FD, 510FF Fryer.
*The Model 526TOAToaster Oven.
*The Model J4R, 4 oz. Popcorn Machine.
*The Model 518CMA & 526CMACheese Melter.
*The Model 12MC & 15MC & 18MCP Hot Food Merchandisers.
*The Model 12NCPW & 15NCPW Nacho Chip/Popcorn Warmer.
*All Hot Dog Equipment except Roller Grills & Drawer Bun Warmers.
*All Nacho Cheese Warmers except Model 11WLASeries Nacho Cheese Warmer.
*All Condiment Dispensers except the Model HPD & SPD Series Dispenser.
*All Specialty Food Warmers except Model 130R, 11RW Series, and 11WSA Series.
*All QCS/RCS Series Toasters except Model QCS3 & RCS3 Series.
*All Fast Steamer Models except Direct Connect Series.

11
(ELEMENTO MAS BAJO)
BOTTOM ELEMENT
(ELEMENTO MAS ALTO)
TOP ELEMENT
WIRE NO PART NO.
(HILO NO.) (PARTE NO.)
QTY.
(CANTIDAD)
4 D9-GR0058 1
2,5 D9-GR0059 1 1,8 D9-GR0060 1
3,6,7 D9-GR0064 1
10 D9-GR0057 1
9 D9-GR0065 1
11 D9-GR0106 1 12 D9-GR0107 1
(ELEMENTO MAS ALTO)
TOP ELEMENT
(ELEMENTO MAS BAJO)
BOTTOM ELEMENT

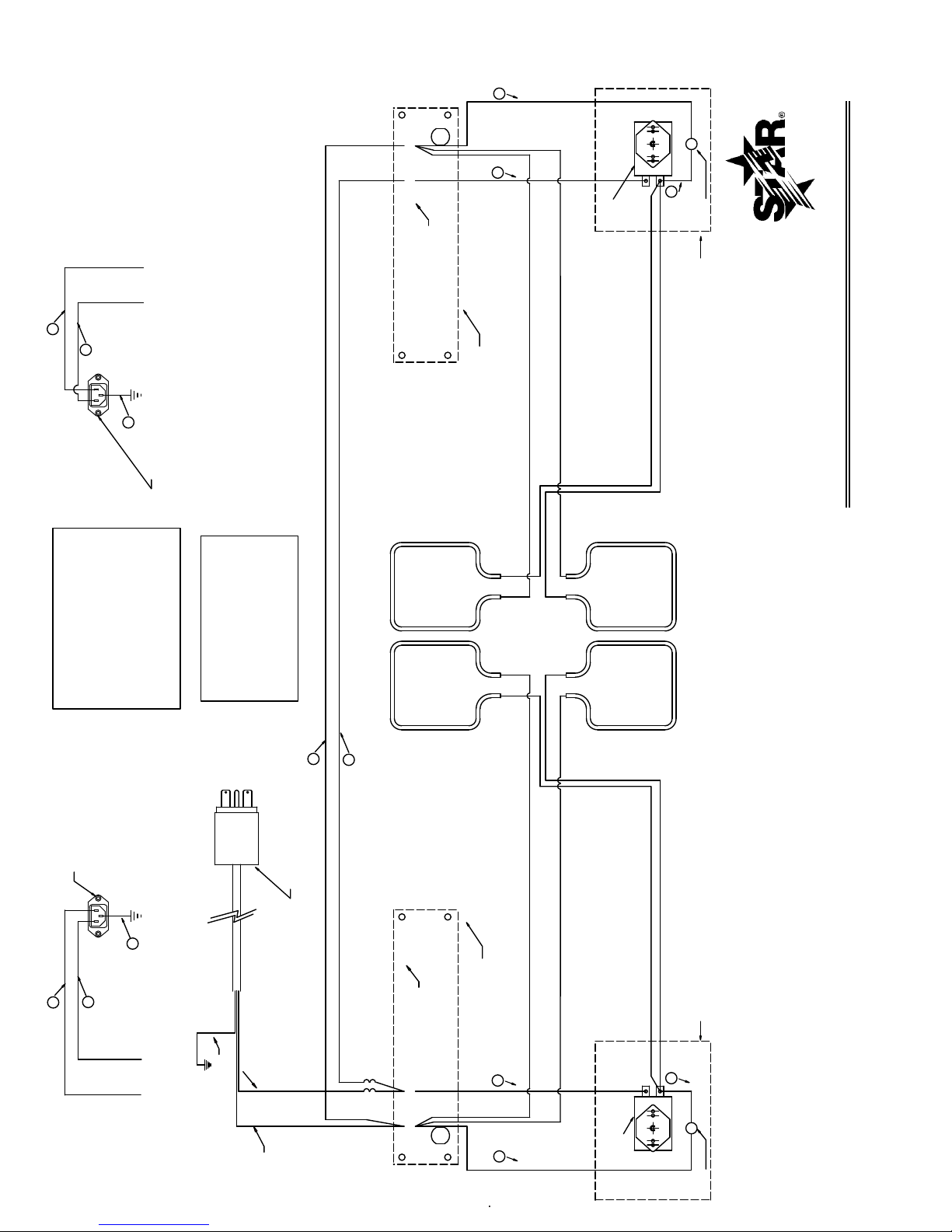

MATERIAL DR. CK. DATE
FINISH MODEL NO.
TITLE
PART NO.
STAR MFG. INTERNATIONAL, INC.
10 SUNNEN DRIVE ST. LOUIS, MO 63143
LIMITS UNLESS OTHERWISE NOTED
FRACTIONS 1/64 DECIMALS .005
-SK-1709
7-05-99 WIRE DIAGRAM 240V 7200W UL W/TIMER
GR/CG28IT-240V CG28ITGT-240V

12
(ELEMENTO MAS BAJO)
BOTTOM ELEMENT
(ELEMENTO MASALTO)
TOP ELEMENT
T-STAT
FRONT CONTROL PANEL
PILOT LIGHT
(BLOQUE TERMINAL)
TERM BLOCK
REAR PANEL
13
2
TOP ELEMENT
(ELEMENTO MASALTO)
BOTTOM ELEMENT
(ELEMENTO MAS BAJO)
(BLANCO)
GREEN
(VERDE)
NEMA L6-30 P PLUG
WHITE
15
14
REAR PANEL
(BLOQUE TERMINAL)
TERM BLOCK
T-STAT
PILOT LIGHT
FRONT CONTROL PANEL
31
2
(NEGRO)
BLACK
18
20 230V UNITS
INLET IEC 320 16A
19
18
INLET IEC 320 16A
20
19
240V UNITS
N
L
G
N
L
G
WIRE NO PART NO.
(HILO NO.) (PARTE NO.)
QTY.
(CANTIDAD)
1D9-GR0103 1 2D9-GR0104 1 3D9-GR0105 1 14 D9-GR0106 1 15 D9-GR0107 1
3,6,7 D9-GR0064 1 1,8 D9-GR0060 1 2,5 D9-GR0059 1
WIRE NO PART NO.
(HILO NO.) (PARTE NO.)
20 D9-GR0252 2 19 D9-GR0251 2 18 D9-GR0250 2 9D9-GR0065 1 10 D9-GR0057 1 4D9-GR0058 1
(CANTIDAD)
QTY.
MODEL:
GR-CG28I-230/240V
THIS DRAWING CONTAINS INFORMATION CONFIDENTIAL TO STAR MFG. INT'L. INC.
NO REPRODUCTION OR DISCLOSURE OF ITS CONTENTS IS PERMITTED.
STAR MANUFACTURING INTERNATIONAL INC.
SK1710 Rev B
8/09/2004

13
4
8
6 2
1 0
BA
C
D
SENSOR - RIGHT
(SENSORIO)
BOTTOM ELEMENT
(ELEMENTO MAS BAJO)
TOP ELEMENT
RIGHT
(ELEMENT MAS ALTO)
GREEN / YELLOW
STRIPE
BROWN
BLUE
BS 1363A PLUG (13 AMP)
E4
E3 E1
E5E6
13
2
15
16
13 14
65
3
4
21
4
10
9
10
9
8
77
8
11
12
11 12
14
15
13
16
REAR OF CONTROLLER
E2
E11
E12
SENSOR - LEFT
(SENSORIO)
TOP ELEMENT
LEFT
(ELEMENT MAS ALTO)
TRANSFORMER
(TRANSFORMADOR)
RELAY (RELE)
TERMINAL BLOCK
(BLOQUE TERMINAL)
FOR REFERENCE
WIRING DIAGRAM IS SHOWN AS UNIT IS ASSEMBLED
WITH THE BOTTOM PLATE REMOVED. THE TOP
DESCRIPTIONS ARE THEIR POSITIONS WHEN UPRIGHT.
1 0
84
6 2
SWITCH
(INTERRUPTOR)
5
6
E7
INLET IEC 320 16A
230V UNITS
18
19
20 G
L
N
4
8
6 2
1 0
BA
C
D
SENSOR - RIGHT
(SENSORIO)
BOTTOM ELEMENT
(ELEMENTO MAS BAJO)
TOP ELEMENT
RIGHT
(ELEMENT MAS ALTO)
E4
E3 E1
E5E6
13
2
15
16
13 14
65
3
4
21
4
10
9
10
9
8
77
8
11
12
11 12
14
15
13
16
REAR OF CONTROLLER
E2
E11
E12
SENSOR - LEFT
(SENSORIO)
TOP ELEMENT
LEFT
(ELEMENT MAS ALTO)
TRANSFORMER
(TRANSFORMADOR)
RELAY (RELE)
TERMINAL BLOCK
(BLOQUE TERMINAL)
1 0
84
6 2
SWITCH
(INTERRUPTOR)
5
6
E7
MODEL:
GR-CG28SPTI-230/240V
THIS DRAWING CONTAINS INFORMATION CONFIDENTIAL TO STAR MFG. INT'L. INC.
NO REPRODUCTION OR DISCLOSURE OF ITS CONTENTS IS PERMITTED.
STAR MANUFACTURING INTERNATIONAL INC.
SK2169 Rev -
1/20/2006

14

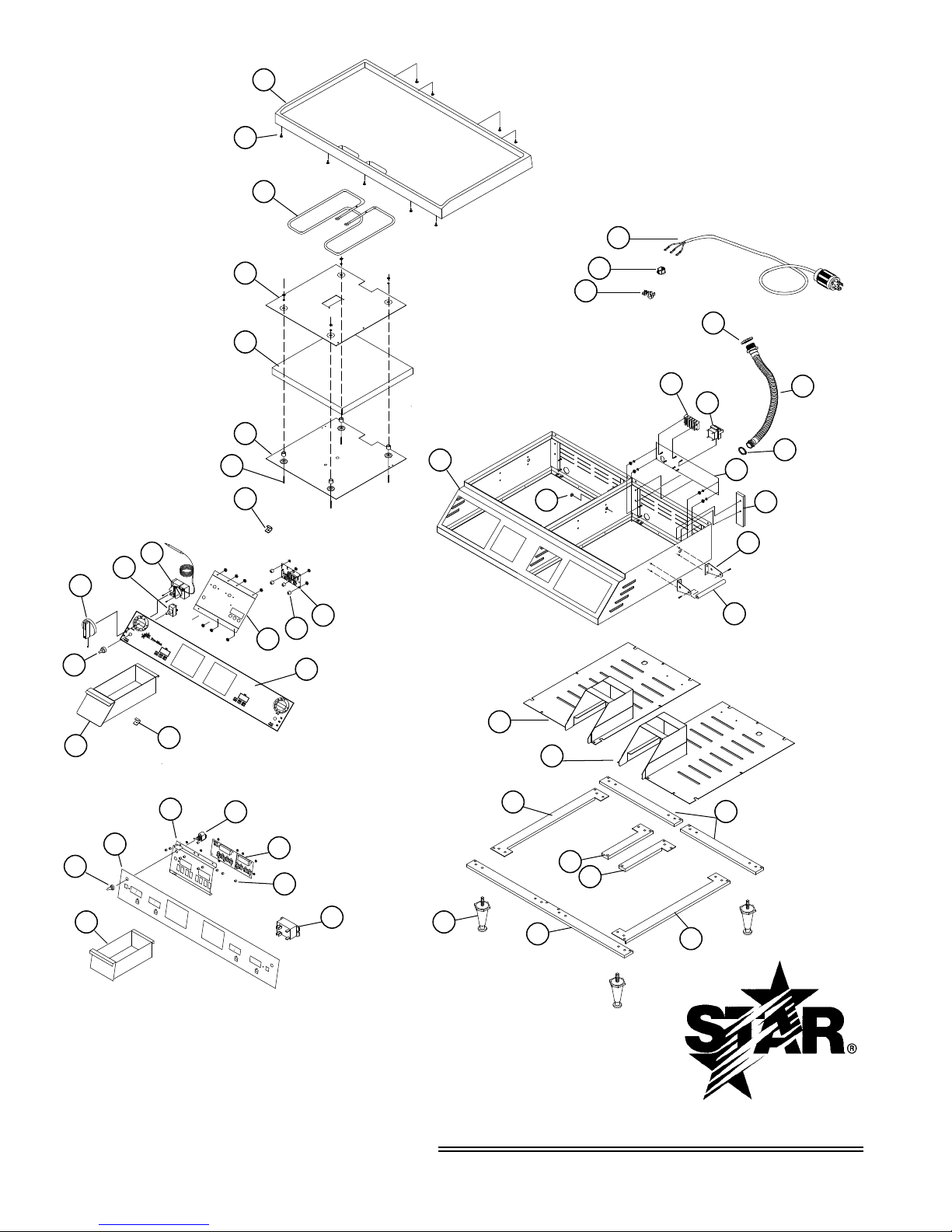

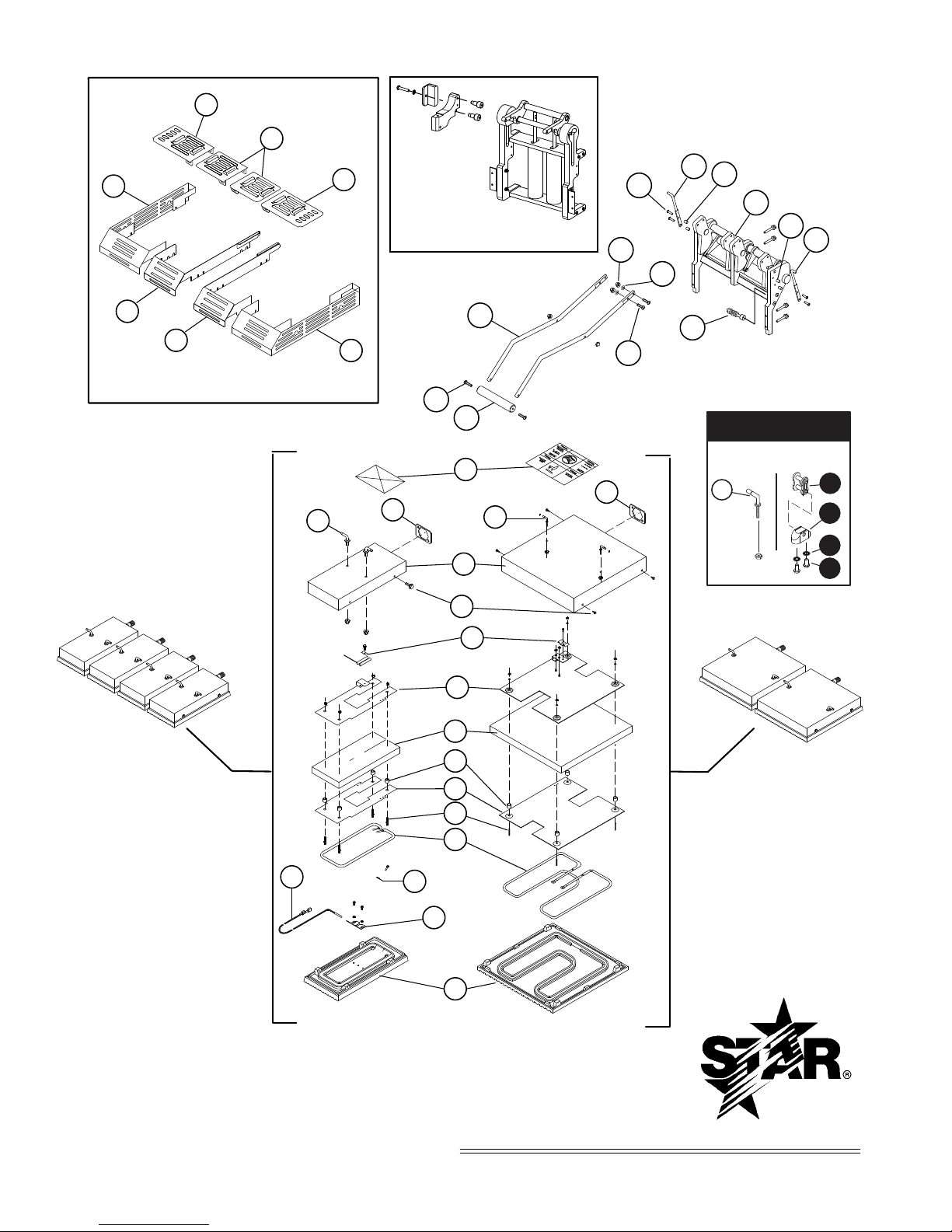

STAR MANUFACTURING INTERNATIONAL, INC.
SK2183 REV. B 9-14-2011
MODEL: CG/GR28_TOP HOUSING ASSY
CERTAIN INSTANCES MAY NOT BE AVAILABLE OR
MAY VARY SLIGHTLY FROM ILLUSTRATION SHOWN.
ILLUSTRATIVE PURPOSES ONLY AND IN
SOME ITEMS ARE INCLUDED FOR
No reproduction or disclosure of its
to Star Manufacturing International, Inc.
This drawing contains information confidential
contents is permitted.
14
13
15
12
11
10
2
3
1
4
5
1
1A
Part of
Item 26
17
16
Do not hose down.
base stand in water.
DANGER
DO NOT TOUCH
HOT SURFACE.
running water.
Keep away from
estancada sobre agua
odejar que la base este
Favorde no sumergir
No rocia con
manguera.
Maintengase lejos de
corriente de agua.
PRECAUCION
SUPERIFICIE
FAVOR NO TOCAR
CALIENTE
PELIGRO
Do not immerse or let
CAUTION
18 17
19
20
21
18
22
23
24
25
26
27
29
28
30
SPTI MODELS ONLY
See Detail Afor “B-Style”
7
9
9A
8
6
7A
8A
SPTI
Counter Balance Shown
SPTI
73
HOUSING ARM
CONNECTION
B
Version
Earlier
Version
77
17
76
75
74

15
IMPORTANT: WHEN ORDERING, SPECIFY VOLTAGE OR TYPE DESIRED PAGE
INCLUDE MODEL AND SERIAL NUMBER OF
Some items are included for illustrative purposes only and in certain instances may not be available.
Number
Per
Unit Description Model
Part
Number
Key
Number
Star Manufacturing International, Inc.
1A D9-GR0324 2 TOP CENTER BURN GUARD ASSY SPTI, IEA
1 D9-GR-0189 2 TOP ENDS BURN GUARD ASSY SPTI, IEA
2 D9-GR0335 1 BURN GUARD ASSY LEFT SPTI, IEA
3 D9-GR0334 1 BURN GUARD ASSY RIGHT SPTI, IEA
4 D9-GR0332 1 BURN GUARD CENTER ASSY RIGHT SPTI, IEA
5 D9-GR0333 1 BURN GUARD CENTER ASSY LEFT SPTI, IEA
6 2C-1512 4 SCREW 10-24X3/8 RH
2C-1512 8 SCREW 10-24X3/8 RH SPTI, IEA
7A 2V-Z9517 2 ROD - TOP HOUSING CENTER STOP SPTI, IEA
7 2V-Z3079 2 PIN ASSY - TOP HOUSING STOP
2V-Z3252 2 PIN ASSY - TOP HOUSING STOP SPTI, IEA
8A 2C-1810 8 WASHER, 3/16” SPTI, IEA
8 2A-Y6142 4 SLEEVE HANDLE SPTI, IEA
9 2R-Z2896 2 COUNTER BALANCE (Not Shown)
2R-Z3345 2 COUNTER BALANCE, SPLIT-TOP SPTI, IEA (Shown)
9A PS-GR134 4 ROLLER BEARING KIT COUNTER BALANCE REPAIR KIT
10 2C-40637 8 NUT 1/4”-20ACORN STL MS
11 2C-08-07-0262 8 WASHER 1/4” INT STL NP
12 2C-Z2992 8 BOLT 1/4” 20X1 PHP STL NP
13 2B-Z9515 8 ARM, 14” SPTI, IEA
2B-Z2987 4 ARM, 14”
14 2V-Z2989 2 HANDLE, 14”
2V-Z3152 4 HANDLE, 7” SPTI, IEA
15 2C-Z2992 4 BOLT 1/4” 20X1 PHP STL NP
16 2M-Z2620 2 LABEL, CAUTION
2M-Z5623 4 LABEL, CAUTION, BI-LINGUAL SPTI, IEA
17 2C-Z2820 4 PIN, TOP HOUSING
2C-Z3200 8 PIN, TOP HOUSING SPTI, IEA
18 2A-Z3827 2 CONDUIT STAMPING PLATE
19 D9-GR0181 4 TOP HOUSING 7”, CONDUIT ASSY SPTI, IEA
D9-GR0202 2 TOP HOUSING 14”, CONDUIT ASSY
20 B9-04-WB-0046 4 CLAMP WIRE SUPPORT SPTI, IEA
D9-04-GR-0166 2 WIRE MOUNT
21 D9-GR0079 2 TOP RETAINING PLATE 14”
D9-GR0182 4 TOP RETAINING PLATE 7” SPTI, IEA
22 D9-Z2133 4 INSULATION 7” SPTI, IEA
D9-Z2888 2 INSULATION 14”
23 2A-Z6604 16 SPACER - INSULATED PLATE
24 D9-Z2075 2 TOP ELEMENT PLATE 14”
D9-Z9513 4 TOP ELEMENT PLATE 7” SPTI, IEA
25 2C-08-07-0285 8 SCREW 10-24 X 3/4 X 3/8
26 PS-Z2391 2 TOP ELEMENT, 1800W
PS-Z3810 4 TOP ELEMENT, 500W SPTI, IEA
27 PS-GR0352 1 KIT, 2F-Z1948 TOP CASTING - SMOOTH GR28ITGS
PS-GR0352 2 KIT, 2F-Z1948 TOP CASTING - SMOOTH GR28I, GR28IT,
PS-GR0353 1 KIT, 2F-Z1950 TOP CASTING - GROOVED GR28ITGS
PS-GR0353 2 KIT, 2F-Z1950 TOP CASTING - GROOVED CG28IGT, CG28ITGT, CG28I, CG28IT
2F-Z8349 4 TOP CASTING - SMOOTH GR28SPTI
2F-Z7967 4 CASTING, IRON, TOP, GR -SPT CG28SPTI
28 D9-Z3903 4 BRACKET, PROBE MOUNT SPTI, IEA
29 2C-Z3350 4 HALF CLAMP - .188 DIA. SPTI, IEA
30 2E-Z3278 4 RTD-PROBE - 48” LONG WIRE SPTI, IEA
73 2C-Z5883 AR 10-24 X 1/2 FZASCREW
74 2C-1512 AR SCREW 10-24X3/8 RHP STL NP B SERIES UNITS
75 2C-6260 AR WASHER #10 INT STL NP B SERIES UNITS
76 2V-Z11388 AR LINKASSY BASE, TOP HOUSING B SERIES UNITS
77 2A-Z11676 AR CHAIN LINK, 50SS B SERIES UNITS
1
3
PARTS LIST January 17, 2013, Rev. E
GR/CG28I, GR/CG28IT, GR28ITGS, CG28IGT, CG28ITGT, GR/CG28SPTI
MODEL

16
MODEL:GR28 - CG28 - BASE
STAR MANUFACTURING INTERNATIONAL INC.
SK2182 Rev. A 4/15/10
25
START
ON
TIME/ TEMP
STOP
HEAT
TEMP
START
STOP
TIME/ TEMP
START
STOP
TIME/ TEMP
START
STOP
TIME/ TEMP
ON
HEAT TEMP
ELECTRONIC CONTROL
MANUAL CONTROL
ON ( I )
POWER
OFF ( O )
TIME
STOP
START
TIME
STOP
START
ON ( I )
OFF ( O )
POWER
Pro-Max
31
33
34
35
36
37
32
37
38
39
40
41
42
43
45 46 44
47
48
49
50
56
59 58
57
60
61
62
66
63
67
65
64
68
66 70
65
69
72
63
64
71
68
CERTAIN INSTANCES MAY NOT BE AVAILABLE OR
MAY VARY SLIGHTLY FROM ILLUSTRATION SHOWN.
ILLUSTRATIVE PURPOSES ONLY AND IN
SOME ITEMS ARE INCLUDED FOR
No reproduction or disclosure of its
to Star Manufacturing International, Inc.
This drawing contains information confidential
contents is permitted.
51
53
54
55
56

17
Number
Per
Unit
Part
Number
Key
Number
31 PS-GR0365 1 KIT, 2F-Z1962 BOTTOM CASTING - SMOOTH GR28I, GR28IT, CG28IGT, CG28ITGT,
GR28ITGS
PS-GR0366 1 KIT, 2F-Z1963 BOTTOM CASTING - GROOVED CG28I, CG28IT
32 2C-08-07-0117 8 SCREW 10-24X3/4 FZA
2C-08-07-0285 32 SCREW 10-24X3/4X3/8, 2 HEX DBL END STL SPTI, IEA
33 2N-Z2392 2 ELEMENT, BOTTOM 1800W
2N-Z9520 2 ELEMENT, BOTTOM 2150W SPTI, IEA
34 D9-Z2618 2 BOTTOM ELEMENT RET. PLATE
D9-Z8082 2 BOTTOM ELEMENT RET. PLATE SPTI, IEA
35 D9-Z2888 2 INSULATION 14”
36 D9-Z2619 2 BOTTOM INSULATION RET. PLATE
D9-Z8082 2 BOTTOM ELEMENT RET. PLATE SPTI, IEA
37 2A-Z3026 2 HALF CLIP
38 D9-GR0098 1 BODYASSY 28”
D9-GR0320 1 BODYASSY 28” SPTI
D9-GR0580 1 BODYASSY 28” IEA
39 2K-Y1139 1 BUSHING, HEYCO
40 2K-3485 1 BUSHING, HEYCO 240V
41 2P-Z2911 2 PLUG, DOUBLE “D”
42 2E-Z11879 1 CORD, SET 6/3 6-50P 240C/240VC
2E-Z2922 1 CORD STO 10/3NEMAL6-30P 240V
D9-GR0577 1 CORD STO 10/3-72" OPEN CG28ITGTBKSA, CG28ITGT-KSA
43 2C-Z3780 4 CONDUIT RETAINER
44 2E-Z2898 2 CONDUITASSY PTFE
45 2E-Z2894 2 TERMINAL BLOCK
46 2E-05-07-0350 2 TRANSFORMER 230V/10V;6VA
47 2E-Z3768 4 CONDUIT LOCKNUT
48 D9-GR0054 1 REAR LINER ASSY - BOTTOM CORD SET
D9-GR0156 2 REAR LINER ASSY SPTI
D9-GR0180 1 REAR LINER ASSY - REAR CORD SET 240V
D9-GR0317 1 REAR LINER ASSY - REAR CORD SET 240VC
49 D9-GR0032 4 TORQUE BOX ASSY
50 D9-Z3071 4 HANDLE BRACKET
51 2V-Z3072 2 SIDE HANDLE
53 D9-GR0519 1 BASE ASSY/GREASE CAB - LEFT
D9-GR0528 1 BASE ASSY/GREASE CAB - LEFT SPTI, IEA
54 D9-GR0521 1 BASE ASSY/GREASE CAB - RIGHT
D9-GR0527 1 BASE ASSY/GREASE CAB - RIGHT SPTI, IEA
55 2V-Z3027 2 LEG SUPPORT - CROSS
56 D9-Z9516 2 SIDE LEG SUPPORT
57 2V-Z9504 1 CROSS SUPPORT 28”
58 D9-Z3030 1 LEG SUPPORT L.H.
59 D9-Z3029 1 LEG SUPPORT R.H.
60 2A-Z0314 4 FOOT, 4" DIE CAST
2A-Z12946 4 BASE, FOOT NON-SKID
61 2E-Z3335 4 RELAY DBL POLE-SNGL THR SPTI
62 2J-Z6323 2 TIME/TEMPERATURE CONTROL SPTI, IEA
63 2E-Z3808 2 SWITCH TOGGLE SPTI, IEA
2E-Z6863 2 SWITCH, 3 POSITION, CG28IT(ser. no. less than CGB29481 use PS-GR0225)
CG28ITGT (serial no. less than CGB25137 use PS-GR0225)
PS-GR0225 1 SWITCH KIT
64 2I-05-07-0013 2 SWITCH BOOT
IMPORTANT: WHEN ORDERING, SPECIFY VOLTAGE OR TYPE DESIRED PAGE
INCLUDE MODEL AND SERIAL NUMBER OF
Some items are included for illustrative purposes only and in certain instances may not be available.
2
3
Star Manufacturing International, Inc.
Description Model
PARTS LIST January 17, 2013, Rev. E
GR/CG28I, GR/CG28IT, GR28ITGS, CG28IGT, CG28ITGT, GR/CG28SPTI
MODEL

18
IMPORTANT: WHEN ORDERING, SPECIFY VOLTAGE OR TYPE DESIRED PAGE
INCLUDE MODEL AND SERIAL NUMBER OF
65 2M-Z3045 1 OVERLAY w/TIMER, Rocker Switch CG/GR28IT
2M-Z7431 1 OVERLAY w/TIMER, Toggle Switch CG/GR28IT
2M-Z3088 1 OVERLAY w/PILOT LIGHT CG/GR28I
2M-Z9107 1 OVERLAY w/TIMER SPTI
66 2K-Z1971 8 SPACER
2K-Z1971 14 SPACER SPTI, IEA
67 D9-GR0151 2 FACEPLATE ASSEMBLY SPTI, IEA
68 D9-GR0518 2 GREASE DRWRASSY, FLAT FRONT SPTI
D9-GR0517 2 GREASE DRAWER ASSY
69 D9-GR0099 1 FACE PLATE - LEFT w/TIMER
D9-GR0114 1 FACE PLATE - RIGHT w/TIMER
D9-GR0118 1 FACE PLATE - RIGHT w/PILOT LIGHT
69 D9-GR0119 1 FACE PLATE - LEFT w/PILOT LIGHT
70 2J-Z1836 2 TIMER CONTROL
71 2R-Z4621 2 KNOB - THERMOSTAT
72 2T-6447 2 THERMOSTAT
73 2C-Z5883 AR 10-24 x 1/2 FZASCREW
NI 2J-Z2329 2 PILOT LIGHT 240V (NOT SHOWN)
Number
Per
Unit
Part
Number
Key
Number
Some items are included for illustrative purposes only and in certain instances may not be available.
3
3
Star Manufacturing International, Inc.
Description Model
PARTS LIST January 17, 2013, Rev. E
GR/CG28I, GR/CG28IT, GR28ITGS, CG28IGT, CG28ITGT, GR/CG28SPTI
MODEL

STAR MANUFACTURING INTERNATIONAL, INC.
PS-GR0536, PS-GR0537, PS-GR0538
PS-GR0560, PS-GR0561
Rev. D 1/15/14SK2507
MODEL: SG HINGE MECHANISM
13 14
2
1
3
25
22 23 24
6
5
7
8
9
10
11
12
13
15
16
17
14
18
19
20
14
21
Top Housing

PARTS LIST September 23, 2013
HINGE MECHANISM TWO SIDED GRILLS
Fig No Part No Description Qty Application
12A-Z15740 SPRING GUIDE MTG ROD, 14” 1ALL SINGLE 14” UNITS 2A-Z11404 SPRING GUIDE MOUTING ROD SPLIT TOP
2A-Z16413 MOUNTING ROD 10” UNITS
22A-Z15739 ASSEMBLY CROSSBAR, 14” 1ALL SINGLE 14” UNITS 2V-Z12452 ARM GUIDEASSY., ST SPLIT TOP
2A-Z16415 ASSEMBLY CROSSBAR, 10” 10” UNITS
3 2C-Z11807 E-RING 5/8 AR ALL
5 D9-GR0515 BASICASSY, STOP 1 ALL
6 2V-Z12612 ROD, SPRING GUIDE 1 SPLITTOP
2 ALLSINGLE
72V-Z11400 SPRING SUPPORT, TOP 1ALLSINGLE 14” UNITS 2A-Z11406 SPRING SUPPORT, TOP, SPT SPLIT TOP
2V-Z14936 SPRING SUPPORT, TOP-10” ALL SINGLE 10” UNITS
8
2P-Z11408 SPRING, 14”AL 2 SMOOTH & GROOVEDALUMINUM
1SMOOTH IRON
2P-Z11409 SPRING, COMPRESSION, SPT SPLITALUMINUM
2P-Z13941 SPRING COMPRESSION, 14” GR IRON 2GROOVED IRON
2P-Z15100 SPRING,COMPRESSION, 10” IRON 10” IRON
2P-Z15137 SPRING,COMPRESSION, 10”AL 10”ALUMINUM
9 2A-Z11397 SPRING PISTON STOP 1 SPLITTOP
2 ALLSINGLE
10 2C-Z17917 WASHER, FLT, 9/32ID X 1 1 SPLIT TOP
2 ALLSINGLE
11 2C-Z2670 NUT 1/4-20 W/LOCKWASHER 1 SPLIT TOP
NUT 1/4-20 W/LOCKWASHER 2 ALL SINGLE
12 2V-Z11399 SPRING TUBE 1 SPLITTOP
2 ALLSINGLE
13 2C-9704 SCREW 10-24X1 STLHEX NP 8 SPLITTOP
14 2C-20204-07 WASHER S/S #10 LOCK INT 12 ALL
15 2F-Z11383 LEFT SUPPORT 1 ALL
16 2V-Z11401 SPRING SUPPORT, BOTTOM 1ALL SINGLE 14” UNITS
2A-Z11407 SPLITTOP
2V-Z14937 SPRING SUPPORT, BOTTOM-10” ALL SINGLE 10” UNITS
17 2C-200230 NUT 10-24 HEX SS 4 ALL
18 2F-Z11384 RIGHT SUPPORT 1 ALL
19 D9-Z11387 SUPPORT MOUNTING BRACKET 2 ALLSINGLE
D9-Z11883 SPLITTOP
20 2C-Z11821 SCREW 10-24X1-1/4 HHD 4 ALL
21 PS-GR0574 SER. KIT BRKTAYS, STE (2 BRK, 4 CAMS) ALL SPLITTOP
PS-GR0571 SER. KIT BRKTAYS, STD (2 BRK, 4 CAMS NON SPLIT TOP
22 2A-Z12620 SPACER BLOCK 2 ALL
23 2C-6260 #10 INTERNALTOOTH LOCK WASHER 2 ALL
24 2C-1516 #10-24 UNC X 1.00 LG RHP SCREW 2 ALL
NI 61-Q2686 LOCTITTHREADLOCKER 242 AR
ITEM 25 DOES NOT INCLUDE ITEMS 20 THRU 24
25
PS-GR0536 KIT, HINGE SPING 14 SPLT 2 SPLIT TOP
PS-GR0537 KIT, HINGE SPRING, 14” ALUMINUM 1 14” ALUMINUM
PS-GR0538 KIT, HINGE SPRING, 14” SMOOTH IRON 1 14” IRON SMOOTH
PS-GR0639 KIT, HINGE & SPRING, 14GR IRON 1 14” IRON GROOVED
PS-GR0560 KIT, HINGE & SPRING, 10 ALUM 1 10” ALUMINUM
PS-GR0561 KIT, HINGE & SPRING, 10 IRON 1 10” IRON
SG HINGE SERVICE KITS
PS-GR0570 SER. KIT CROSSBAR, 14” STD
PS-GR0571 SER. KIT BRACKETS, SG MODELS
PS-GR0592 SERVICE KIT, ROLLER MOUNT BRACKETS (LEFT & RIGHT) STE MODELS
