promethean Activesound One User manual

Promethean
Activsound One
Instruction Manual

Table of Contents
CE Declaration…………………………………….
Safety Instructions………………………………….
Explanation of Symbols……………………………
Product Specifications…...………………………...
Operating Controls…………………………………
Changing the Battery……………………………….
Charging the Battery……………………………….
Controlling the Volume……………………………
Using the Microphone as a Transmitter……………
Installation………………………………………….
About the Coaxial Cables…………………………..
Setting the Frequency………………………………
Installing the Bracket……………………………….
Fuse Part Numbers ………………………………...
Teacher’s Check List……………………………….
Troubleshooting…………………………………….
Special Instructions for European Countries……….
WEEE Fitting………………………………………
Page 3-4
Page 5-7
Page 8
Page 9
Page 10-18
Page 19
Page 20
Page 21
Page 22
Page 23-30
Page 31-32
Page 33
Page 34-36
Page 37
Page 38
Page 39-40
Page 41-42
Page 43

3
CE Declaration
English
We declare under our sole responsibility that the product to which this declara-
tion relates is in conformity with the standards or other normative documents
following the provisions of Directives 2006/95/EC and 2004/108/EC.
German
Wir erklären in alleiniger Verantwortung, daß das Produkt, auf das sich diese
Erklärung bezieht, mit der folgenden Normen oder normativen Dokumenten
übereinstimmt. Gemäß den Bestimmungen der Richtlinie 2006/95/EC und
2004/108/EC.
French
Nous déclarons sous note seule responsabilité que le produit auquel se rèfére las
présente déclaration est conforme aux normes ou autres documents normatifs
conformé ment aux dispositions des directives 2006/95/EC and 2004/108/EC.
Spanish
Nosotros declaramos bajo nuestra única responsabilidad que el producto a que
hace referencia esta declaración está conforme con las normas u otros docu-
mentos normativos siguiendo las estipulaciones de las directivas 2006/95/CE y
2004/108/CE.
Italian
Noi dichiariamo sotto nostra esclusiva responsabilità che il prodotto a cui si
riferisce la presente dichiarazione risulta confrome ai seguenti standard o altri
documenti normativi confromi alle disposizioni delle direttive 2006/95/CE e
2004/108/CE.
Dutch
Wij verklaren als enige aansprakelijke, dat het product waarop deze verklaring
betrekking heeft, voldoet aan de volgende normen of andere normatieve
documenten, overeenkomstig de bepalingen van Richtlijnen 2006/95/EC en
2004/108/EC.
Danish
Vi erklærer os eneansvarlige for, at dette produkt, som denne deklaration
omhandler, er i overensstemmelse med standarder eller andre normative
dokumenter i følge bestemmelserne i direktivene 2006/95/EC og 2004/108/EC.

4
CE Declaration
Swedish
Vi deklarerar härmed värt fulla ansvar för att den produkt till vilken denna
deklaration hänvisar är i överensstämmelse med standarddokument, eller andra
normativa dokument som framställs i direktiv nr. 2006/95/EC och 2004/108/
EC.
Finnish
Ilmoitamme yksinomaisella vastuullamme, että tuote, jota tämä ilmoitus
koskee, noudattaa seuraavia standardeja tai muita ohjeellisia asiakirjoja, jotka
noudattavat direktiivien 2006/95/EC ja 2004/108/EC säädöksiä.
Norwegian
Vi erklærer oss alene ansvarlige for at produktet som denne erklaeringen
gjelder for, er i overensstemmelse med følgende normer eller andre
normgivende dokumenter som følger bestemmelsene i direktivene 2006/95/EC
og 2004/108/EC.

5
Important Safety Instructions
1) Read these instructions.
2) Keep these instructions.
3) Heed all warnings.
4) Follow all instructions.
5) Do not use this apparatus near water.
6) Clean only with dry cloth.
7) Do not block any ventilation openings. Install in accordance with the manufacturer‘s
instructions.
8) Do not use near any heat sources such as radiators, heat registers, stoves, or other
apparatus (including amplifiers) that produce heat.
9) Do not defeat the safety purpose of the polarized or grounding-type plug. A polar-
ized plug has two blades with one wider than the other. A grounding-type plug has
two blades and a third grounding prong. The wide blade or the third prong are pro-
vided for your safety. If the provided plug does not fit into your outlet, consult an elec-
trician for replacement of the obsolete outlet.
10) Protect the power cord from being walked on or pinched particularly at plugs, con-
venience receptacles and the points where they exit from the apparatus.
11) Only use attachments/accessories specified by the manufacturer.
12) Use only with the cart, stand, tripod, bracket, or table specified by the manufac-
turer, or sold with the apparatus. When a cart is used, use caution when moving the
cart/apparatus combination to avoid injury from tip-overs.
13) Unplug this apparatus during lightning storms or when unused for long periods of
time.
14) Refer all servicing to qualified service personnel. Servicing is required when the
apparatus has been damaged in any way, such as power-supply cord or plug is dam-
aged, liquid has been spilled or objects fallen into the apparatus, the apparatus has been
exposed to rain or moisture, does not operate normally, or has been dropped.

6
Safety Instructions
CAUTION:
• These servicing instructions are for use by qualified service personnel
only. To reduce the risk of electrical shock, do not perform any servic-
ing other than that contained in the operating instructions unless you
are qualified to do so.
WARNING:
• To reduce the risk of fire or electric shock, do not expose this re-
ceiver/amplifier to rain or moisture.
• The apparatus should not be exposed to dripping or splashing water.
Objects filled with liquids should not be placed on or next to the appa-
ratus.

7
Safety Instructions
NOTE:
This equipment has been tested and found to comply with
the limits for a Class A digital device, pursuant to part 15 of
the FCC Rules. These limits are designed to provide reason-
able protection against harmful interference when the equip-
ment is operated in a commercial environment. This equip-
ment generates, uses, and can radiate radio frequency en-
ergy and, if not installed and used in accordance with the
instruction manual, may cause harmful interference to radio
communications. Operation of this equipment in a residen-
tial area is likely to cause harmful interference in which
case the user will be required to correct the interference at
his own expense.

8
Explanation of Symbols
120 Vac. A.C. Power Only
50 to 60 Hz Rated Mains Frequency
Explanation of Symbols
The date or a dating code not exceeding any three consecutive months of
manufacture. The dating code shall be in an established alphanumeric code
affirmed by the manufacturer. The coding system shall have a minimum 10
year repetition cycle.

External sensor
Cable length 50’ (optional 7” cable for remote
mounting)
Power powered by receiver
Size 4.5” Dia x 2.25” D
(114 mm Dia x 57 mm D)
Weight 5.6 oz (113.4g)
9
Teardrop transmitter
Sub-carrier frequencies 4 selectable frequencies from 2.0 MHz to 4.0 MHz
Integrated microphone Uni-directional electret
Battery type 2-"AA" alkaline (2 x 1.5V)
2-"AA" rechargeable Ni-MH (2 x 1.2V)
Battery life 6 to 8 hours
Size 4.0" H x 6.0" W x 2.0" D
(102 mm H x 152 mm W x 51 mm D)
Weight 5.6 oz. (158.75g) with alkaline batteries
Handheld transmitter
Sub-carrier frequencies 4 selectable frequencies from 2.0 MHz to 4.0 MHz
Integrated microphone Uni-directional electret
Battery type 2-"AA" alkaline (2 x 1.5V)
2-"AA" rechargeable Ni-MH (2 x 1.2V)
Battery life 6 to 8 hours
Size 9.5" H x 1.5" Dia
(241 mm H x 38 mm Dia)
Weight 9.1 oz (258g) with alkaline batteries
Product Specifications

10

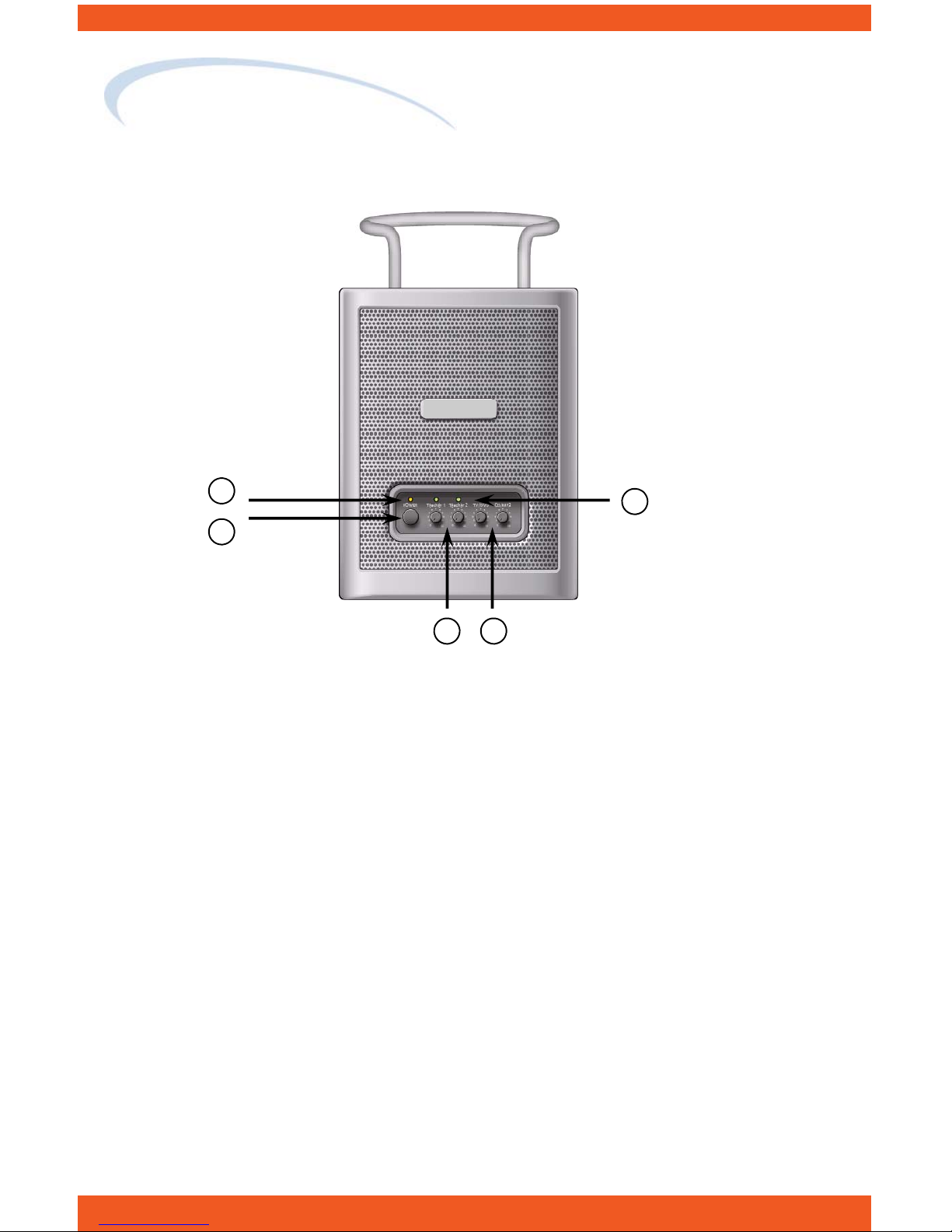

Operating Controls
Infrared Portable Amplifier
Front View
(1)Power switch. Turns the power on/off.
(2)Power Indicator. Lights “green” when the power is turned ON.
(3)Infrared Microphone Volume Control [Teacher 1 and 2]. This control is
used to adjust the level of the infrared microphone.
(4)Infrared Signal Indicator [Teacher 1 and 2]. Lights “green” when the infra-
red wireless receiver is receiving a signal.
(5) Auxiliary Input volume Control [TV/DVD and CD/MP3]. This control ad-
justs the volume of the auxiliary inputs connected to the input terminals (8)
●AC adapter. Use the “3A-621DA24” AC Adapter provided to supply power
to the Infrared Portable Amplifier.
2
1
3 5
4

11
Operating Controls
Infrared Portable Amplifier
Rear View
(6) DC power terminal. The AC adapter provided supplies 24 V DC power.
(7) Sensor input terminal. Connection via F-connector and coaxial cable for the
infrared wireless sensors. It also supplies power to the sensors (24 V).
(8) Input terminal [TV/DVD and CD/MP3]. Connections for TV/DVD, and CD/
MP3.
(9) Line output terminal. Provides a line level output for connection of personal FM
system, recording devices, or video conferencing systems. All input signals, includ-
ing microphones and auxiliary inputs are mixed and provided at the line output ter-
minal.
(10) Line Output Volume Control. This control is used to adjust the level of line
output signal.
(A) Mount for cable clamp – Used to AC adapter cable.
6
A
7 8
10
9

12
(1) Infrared sensor cover
Receives infrared signal – Power supplied by the receiver.
(2) Sensor connection terminal
Provides connection to the sensor input terminal of the infrared wireless receiver
via F-connectors and coaxial cable. Power for the sensor is supplied from the receiver
through the coaxial cable.
(3) Frequency selection switch ［1/2, 3/4 ] (Must be set on 1/2)
Switches between [1/2]: 1ch and 2ch or [3/4]: 3ch and 4ch by changing the recep-
tion frequency.
(4) Power indicator
* Lights "green" when the frequency switch is set to [A], 1 and 2 ch.
* Lights "orange" when the frequency switch is set to [B], 3 and 4 ch.
(5) Anchor strap
Attached to the coaxial cable to prevent the sensor from falling.
1 3 4
2
5
Operating Controls EDS-07
Rear View
Front View

13
(1) Infrared Sensor Connections ［F-connector］
Connect Infrared Sensors via F-connector and coaxial cable.
(2) Infrared Receiver Connection ［F-connector］
Mixed infrared sensor output provides signals from the vari-
ous infrared sensors. Connect to the sensor input terminal of the
infrared wireless receiver via F-connectors and coaxial cable.
Operating Controls AE-DCF
Rear View
Front View
1
2
The optional Sensor Coupler allows multiple EDS-07 Infrared sensors to be
connected at the same time to expand the coverage area.

14

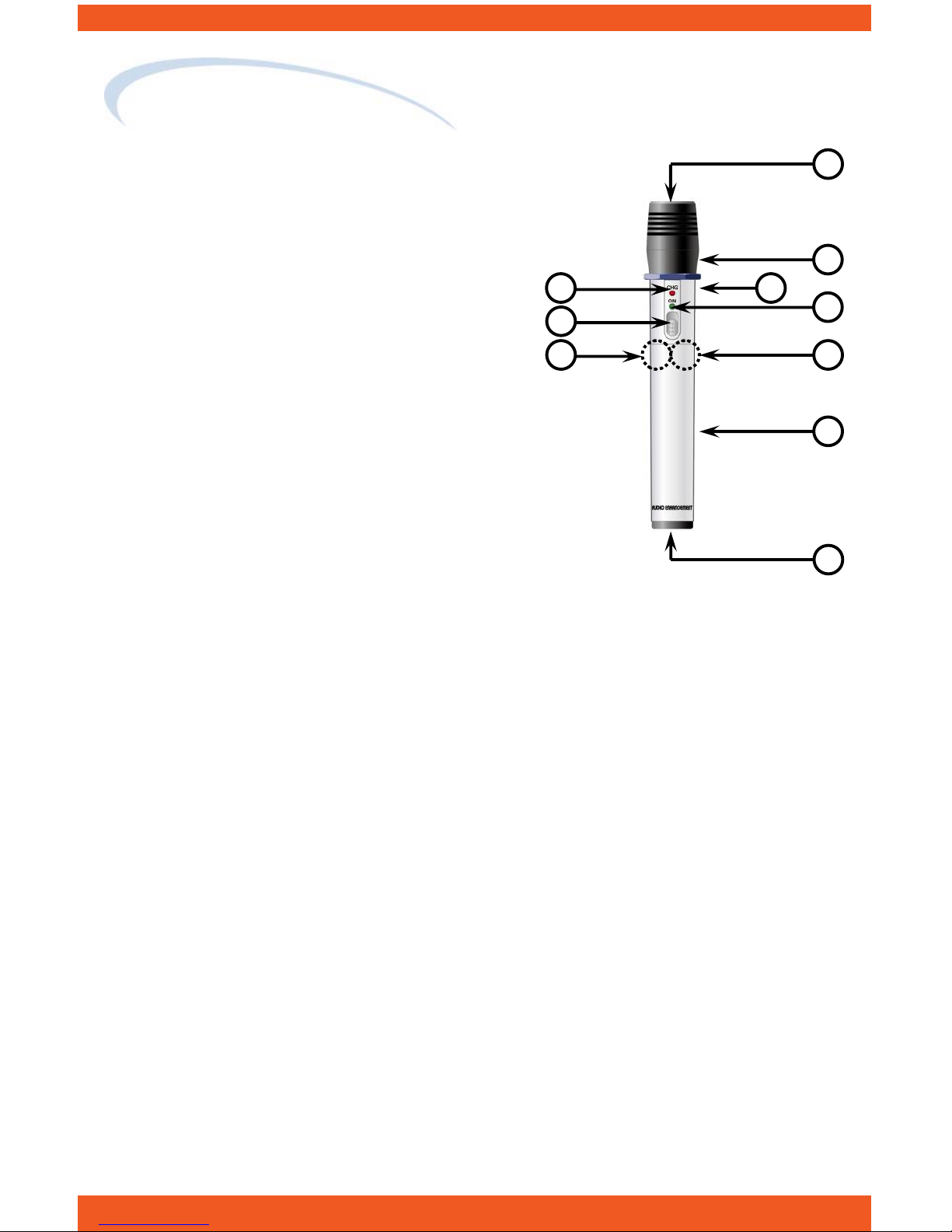

(1) Power switch– turns the power on/off.
(2) Power indicator –lights "green" when the power is turned
ON.
(3) Microphone (audio pickup) - speak into this
part of the microphone.
(4) Infrared signal emitter — the infrared signals
are broadcast from infrared signal emitter.
(5) Battery case— turn the battery case to the left
to remove it. Two NiMH batteries are required.
(6) Charging terminal—charging input for charging the
batteries with the AC Adapter or the battery charger
(7) Charging indicator—The charging indicator provides a
"red" light to indicate the following conditions when the infra
red microphone is being charged.
◎Off : The correct re-chargeable batteries are not
installed.
◎Flashing slowly : Charging. (Flashing: 0.80 seconds
on/0.16 seconds off)
◎On : Charging is finished.
◎Flashing quickly : Indicates an abnormality.
(Flashing: 0.16 seconds on/0.16 seconds off)
(8) External Auxiliary input terminal (on the side) - Used to connect a CD or MP3
player or other device. Allows the user to wirelessly connect a source to the system.
(9) Volume for external input (inside the battery case) - Signals from the external
input terminal are adjustable with the volume
(10) Frequency switch (inside the battery case) - Set the frequency of the infrared
wireless microphone to the desired channel.
◎“1” = 1ch “2” = 2ch “3” = 3ch “4” = 4ch
Typcially set to ”2” for Student Microphone.
●Uses two Panasonic NiMH AA rechargeable batteries.
●Use the specialized battery charger or the AC adapter for charging the NiMH bat-
teries. Charging time is approximately seven hours but may vary depending on the
conditions of the battery.
1
9
7
3
4
8
2
10
5
6
Operating Controls AEH-07

15
(1) Power switch: Turns the power on/off.
(2) Power indicator—Lights green when the power is turned ON.
(3) Microphone (audio pickup)—Speak into this part of the microphone.
(4) Infrared signal emitter—The infrared signals are broadcast from infrared signal emitter.
(5) Battery case (on the back)—Turn the battery case to the left to remove it. Two NiMH batteries are
required.
(6) Charging terminal—Charging input for charging the batteries with the AC Adapter or the battery
charger
(7) Charging indicator—The charging indicator provides a "red" light to indicate the following con-
ditions when the infrared microphone is being charged.
◎Off : The correct re-chargeable batteries are not installed.
◎Flashing slowly : Charging. (Flashing: 0.80 seconds on/0.16 seconds off)
◎On : Charging is finished.
◎Flashing quickly : Indicates an abnormality.
(Flashing: 0.16 seconds on/0.16 seconds off)
(8) External Auxiliary input terminal (on the side)
Used to connect a CD or MP3 player or other device. Allows the user to wirelessly connect a
source to the system.

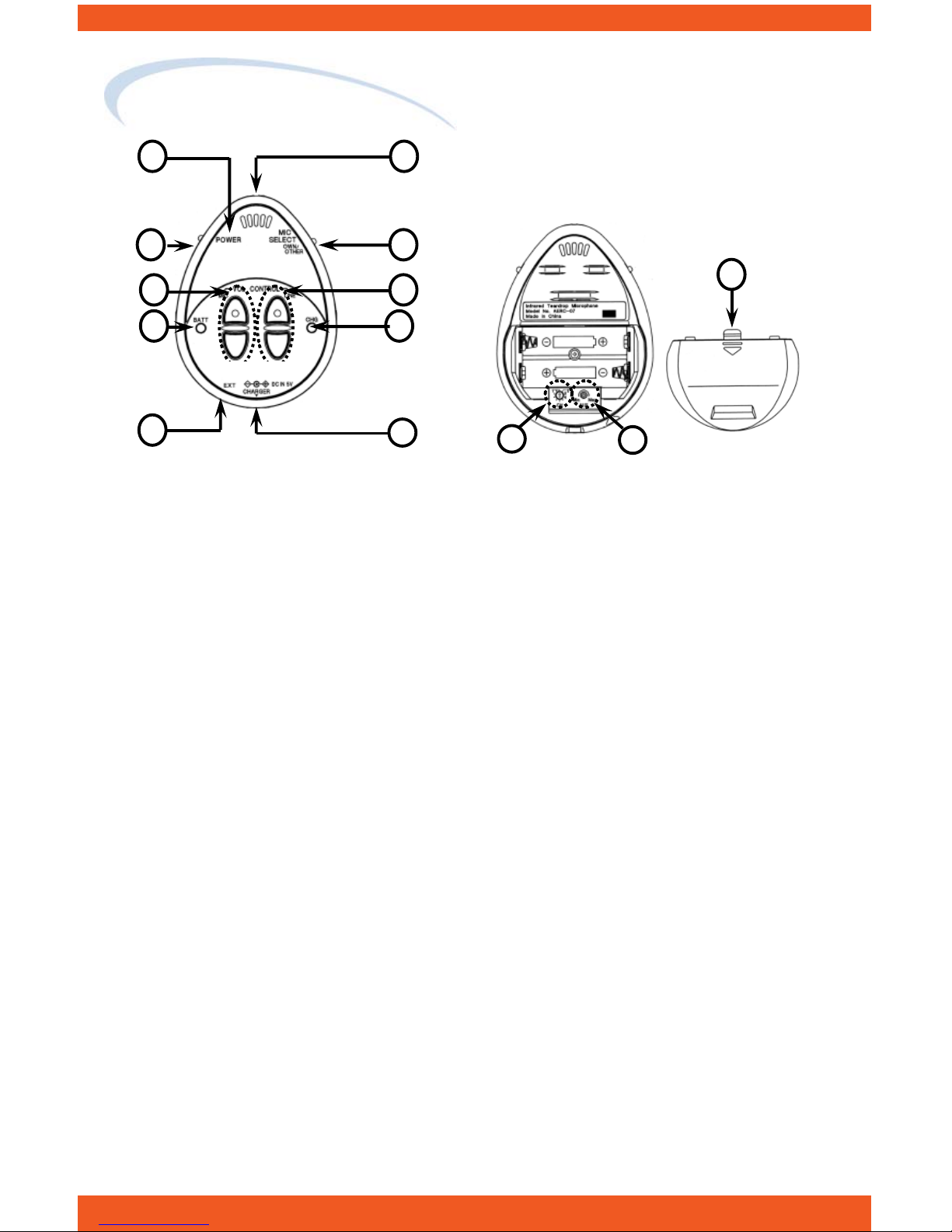

Operating Controls AERC-07
3
Front View
4
1
12
2
8 6
5
7
13
11
9
10
Rear View

16
(9) Volume for external input (inside the battery case)
Signals from the external input terminal are adjustable with the volume.
(10) Frequency switch (inside the battery case)
Set the frequency of the infrared wireless microphone to the desired channel.
◎“1” = 1ch “2” = 2ch “3” = 3ch “4” = 4ch
Typically set to Ch. 1 as primary Teacher Microphone.
(11) Volume controller selector switch ［MIC SELECT］
Select either [OWN] to control the microphone's volume directly or [OTHER] to control
another microphone's volume when the microphone's UP/DOWN volume switch is pressed down.
(12) Microphone infrared volume control
Adjust the audio level of the infrared wireless receiver in 2 dB steps in a range of +6 dB to -16
dB.
◎Increase volume level when the △switch is pressed.
◎Decrease volume level when the ▽switch is pressed.
(13) Auxiliary input infrared volume control
Adjusts the audio level of the infrared wireless receiver in 2 dB steps in a range of +6 dB to -
16 dB. This control adjusts the overall level of the mixed auxiliary inputs.
◎Increase volume level when the △switch is pressed.
◎Decrease volume level when the ▽switch is pressed.
●Uses two Panasonic NIMH AA rechargeable batteries.
●Use the specialized battery charger or the AC adapter for charging the NiMH batteries.
Charging time is approximately seven hours but may vary depending on the conditions of the
battery.
Operating Controls AERC-07
Front View
4
1
12
2
8 6
5
7
13
11
9
10
Rear View
3

17

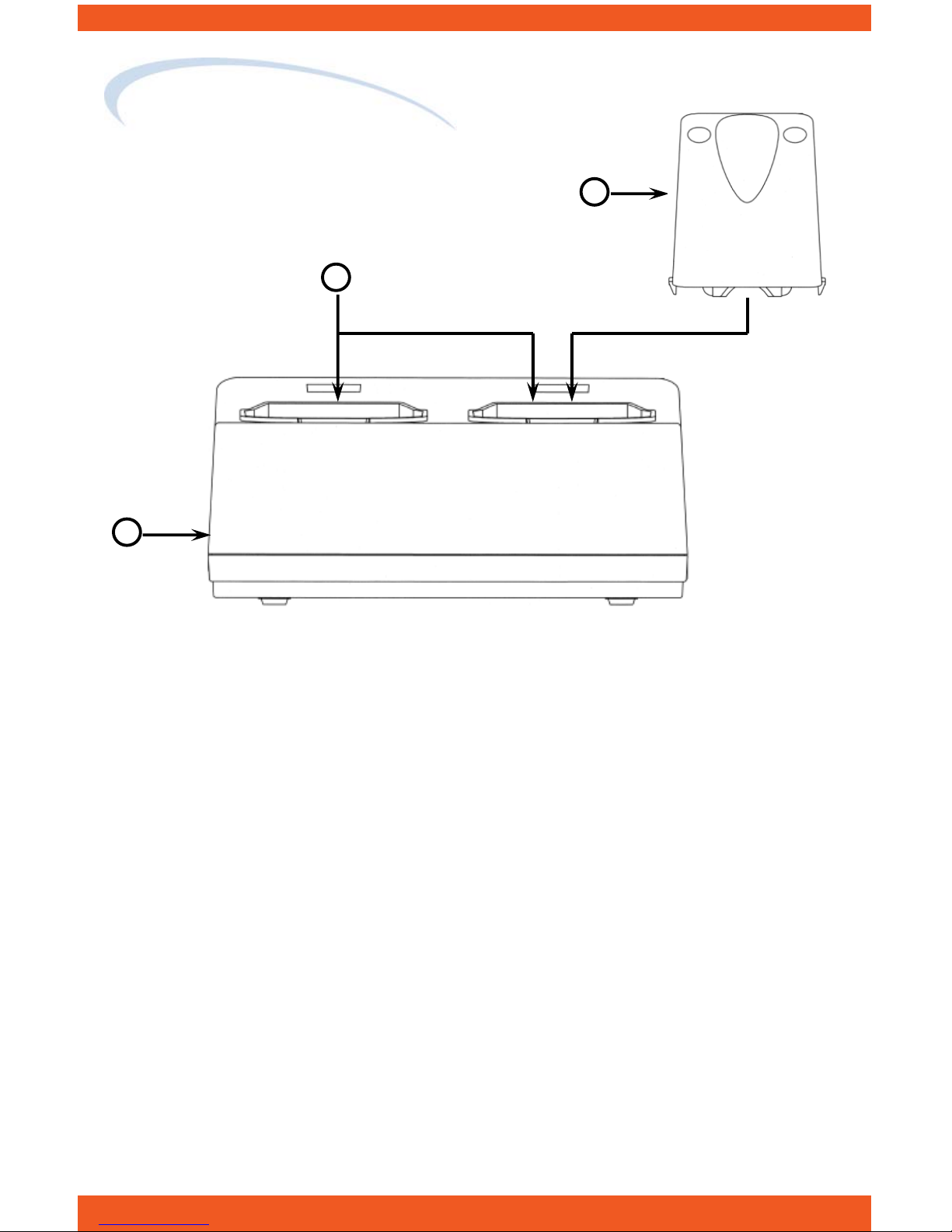

(1) DC power supply terminal
(2) Charging slot
Infrared wireless microphone can be charged by inserting it here.
◎To charge the hand-held microphone "AEH-07" attach the adapter (3) and then
insert the microphone.
◎Insert the Teardrop Microphone "AERC-07" directly to charge.
(3) Adapter
Inserted in the charging slot (2) to charge the Hand-held Microphone "AEH-07".
●Uses two Panasonic NiMH AA rechargeable batteries.
●Use the specialized battery charger or the AC adapter for charging the NiMH
batteries. Charging time is approximately seven hours but may vary depending on the
conditions of the battery.
1
2
3
Operating Controls
CS-07

18
Example: AEH-07 Example: AERC-07

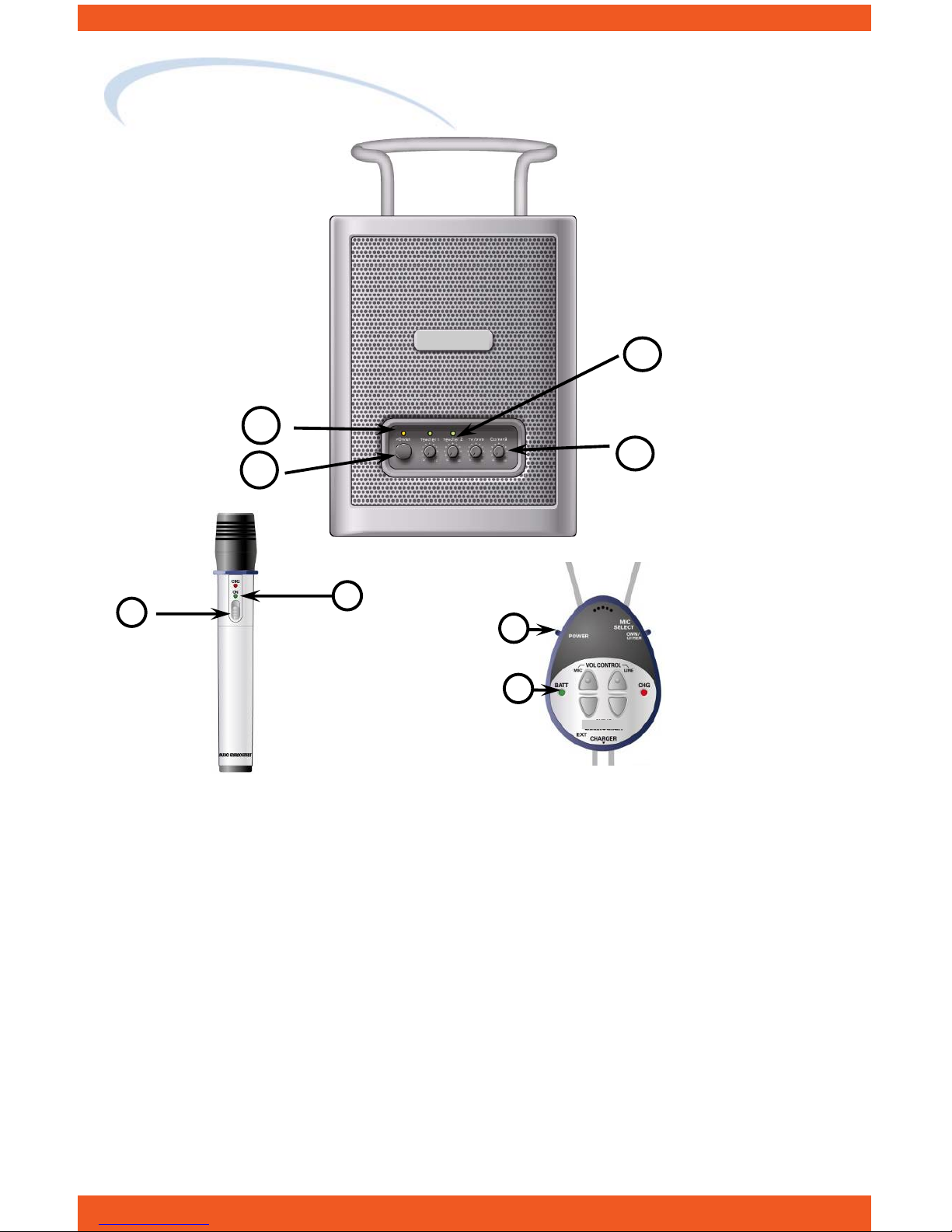

1. Turn the power switch on the Infrared Portable Amplifier to “ON”.
(2) The power indicator lights “green”.
2. Turn the power switch on the infrared wireless microphone to “ON”.
(2) The power indicator on the microphone lights “green”.
3. Adjust the volume of the system
1. Adjust the level of the appropriate infrared microphone (3).
2. Adjust the level of the appropriate auxiliary input (5) to desired playback level.
◎Do not bring your ear close to the Infrared Portable Amplifier while operating. When the
loud sound occurs unexpectedly, it might cause accident, injury or hearing loss.
◎Turn the off the power of the infrared wireless microphone and the receiver
when you are done using them.
1 2
2
1
Operating Procedure
1
2
3
5

19
1. Turn “off” the power switch (1).
Check that the power indicator (2) has gone out.
2. Check that the power indicator (2) has gone out.
For the [AEH-07], turn the battery case to the left to remove it.
For the [AERC-07], pull the cover of the battery case, on the back of the micro-
phone, in the direction of the arrow to remove it.
3. Insert the battery.
Use two NiMH batteries and be sure to check their polarity.
4. Put it back together.
Replace the battery case (5).
●The microphones use two Panasonic NiMH batteries.
Changing the Battery
1 2
4
4
2
1

20

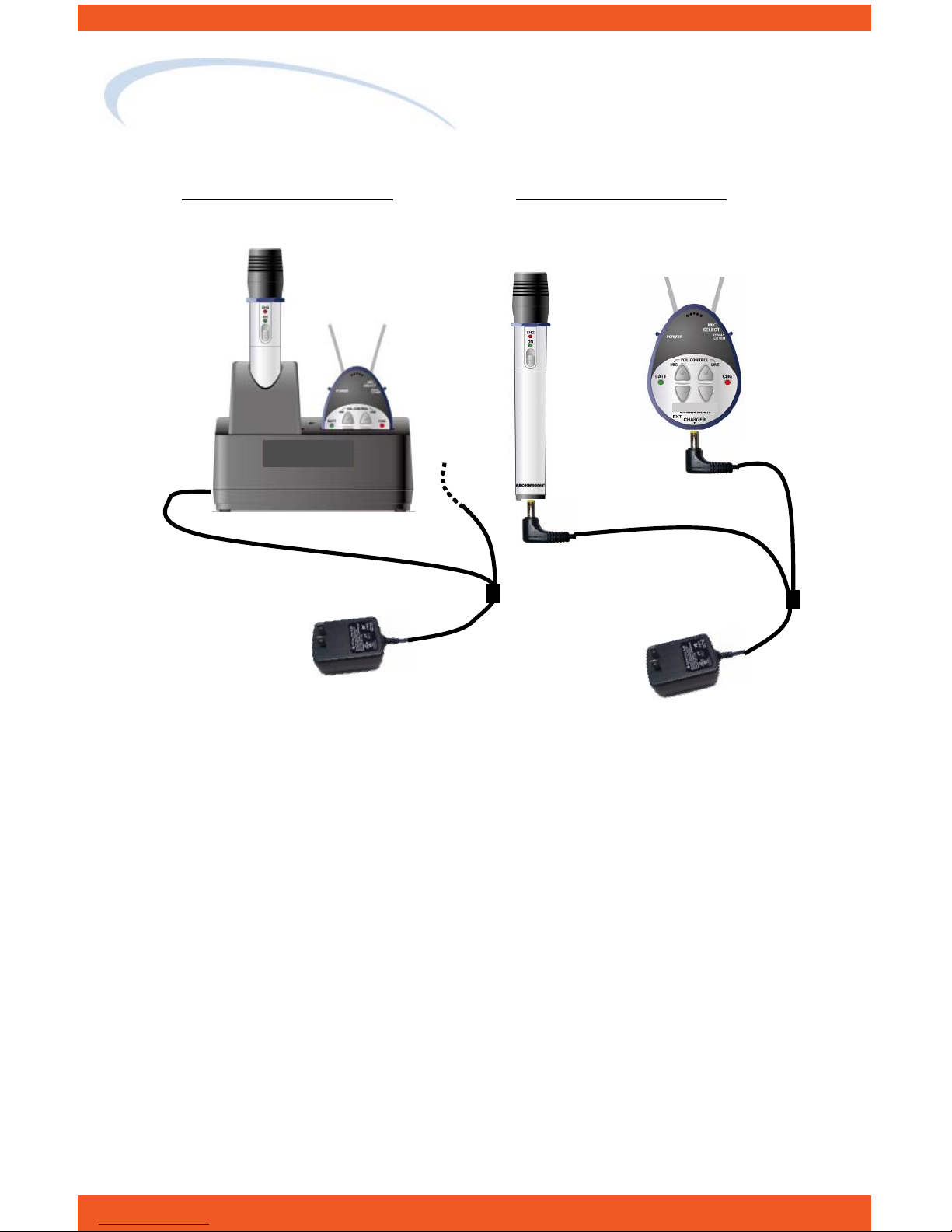

Charging example (2)Charging example (1)
AC adapter AEBC-07
(NSA18EU-050200) for
the Charger Stand
AC adapter AEBC-07
(NSA18EU-050200)
for the battery charger
There are two ways to charge the batteries shown below.
Use the battery charger or plug the AC adapter directly into the microphone.
●Charge the batteries with the battery charger. (Charging example (1) above)
◎Charge the batteries by inserting the infrared wireless microphone into the bat-
tery charger provided specifically for the infrared wireless microphone.
・ To charge the handheld microphone "AEH-07" attach the adapter (3) and then
insert the microphone.
・ Insert the Teardrop Microphone "AERC-07" directly into the charger to
charge it.
●Insert directly into the AC adapter. (Charging example (2) above)
◎Charge the infrared wireless microphone by inserting the DC plug of the AC
adapter provided for charging the batteries.
●Uses two Panasonic NiMH AA rechargeable batteries.
●Use the specialized battery charger or the AC adapter for charging the NiMH
batteries. Charging time is approximately seven hours but may vary depending on the con-
ditions of the battery.
Charging the Battery
AC 120V
50 - 60 HZ
