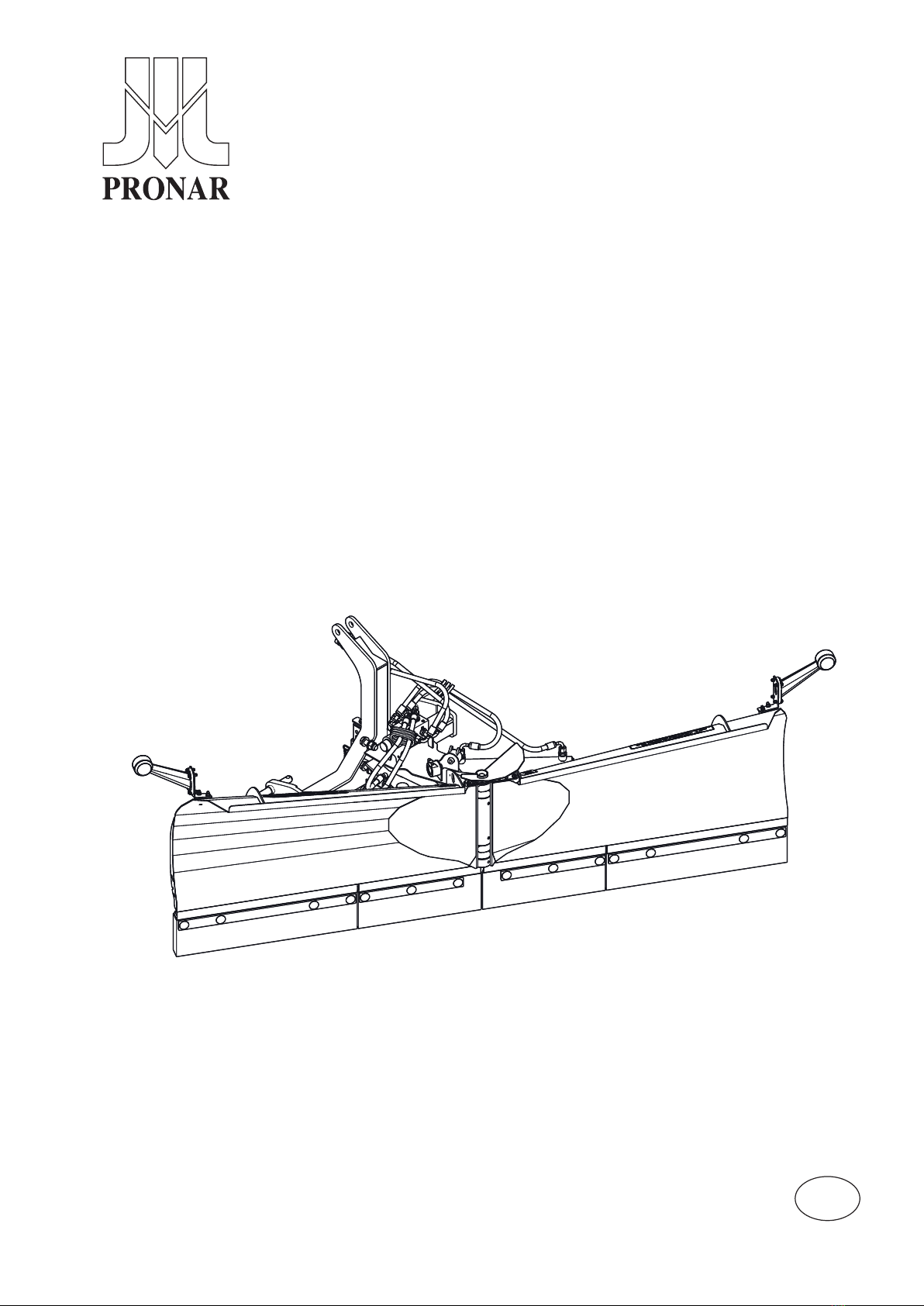

PRONAR PUV-1800M User manual

EDITION: 1B-11-2017
PUBLICATION NO.: 569N-00000000UM
EN
OPERATOR'S MANUAL
SNOW PLOUGH
PRONAR PUV-1800M / PUV-2000M
TRANSLATION OF THE ORIGINAL COPY OF THE MANUAL
Generalagent/Importör:
Tillverkare:
Lassinanttis Maskin AB
E-post: [email protected]
Internet:www.lassinanttis-maskin.se
Tel: [phone]
982 37 Gällivare
Curteliusvägen 22
17-210 NAREW, UL. MICKIEWICZA 101A, PODLASKIE LÄN
PRONAR Sp. z o.o.

INTRODUCTION

Introduction
2PRONAR PUV-1800M / PUV-2000M
1.1 INTRODUCTION
Information contained herein is current
at date of publication. As a result of im-
provements, some numerical values and
illustrations contained in this publication
may not correspond to the factual spec-
ication of the machine supplied to the
user. The manufacturer reserves the right
to introduce design changes in machines
produced that facilitate operation and im-
prove the quality of their work, without
making minor amendments to this Opera-
tor's Manual.
This Operator's Manual is an integral part
of the machine's documentation. Before
using the machine, the user must carefully
read this Operator's Manual and observe
all recommendations. This guarantees
safe operation and ensures failure-free
work of the machine. The machine is de-
signed to meet obligatory standards, doc-
uments and legal regulations currently in
force.
If the information contained in the Oper-
ator's Manual needs clarication then the
user should refer for assistance to the sale
point where the machine was purchased
or to the Manufacturer.
It is recommended that the serial numbers
of the machine and major subassemblies
are inscribed in the spaces below after
purchase of the machine.
B.2.2.569.01.1.EN
Machine serial number

3PRONAR PUV-1800M / PUV-2000M
Introduction
1.2 SYMBOLS APPEARING IN THIS OPERATOR'S MANUAL
DANGER
Information, descriptions of danger and
precautions as well as recommendations
and prohibitions associated with the safety
of use are marked in the text with the sign
DANGER. Failure to observe the instructions
may endanger the machine operator's or
other person's health or life.
ATTENTION
Particularly important information and in-
structions, the observance of which is
essential, are distinguished in the text by
the sign ATTENTION. Failure to observe the
instructions may lead to damage to the
machine as a result of improper operation,
adjustment or use.
TIP
Additional tips included in the Operator's
Manual describe useful advice for the ma-
chine operation and are marked with the
sign TIP.
In order to focus the user's attention on
the need to perform maintenance, the rel-
evant section of the Operator's Manual is
marked with the clock pictogram.
DIRECTIONS USED IN THIS OPERA-
TOR'S MANUAL
Left side – side to the left hand of the op-
erator facing in the direction of machine's
forward travel.
Right side – side to the right hand of the
operator facing in the direction of ma-
chine's forward travel.
Rotation to the right – clockwise rotation
of a mechanism (the operator is facing the
mechanism).
Rotation to the left – counterclockwise ro-
tation of a mechanism (the operator is fac-
ing the mechanism).
B.2.2.569.02.1.EN
ATTENTION
DANGER
TIP

Introduction
4PRONAR PUV-1800M / PUV-2000M

PRONAR PUV-1800M / PUV-2000M
TABLE OF
CONTENTS
INTRODUCTION
1.1 INTRODUCTION 2
1.2 SYMBOLS APPEARING IN THIS
OPERATOR'S MANUAL 3
BASIC INFORMATION
1.1 IDENTIFICATION 1.2
1.2 PROPER USE 1.3
1.3 EQUIPMENT 1.5
1.4 TERMS & CONDITIONS OF
WARRANTY 1.6
1.5 TRANSPORT 1.7
1.6 ENVIRONMENTAL HAZARDS 1.10
1.7 WITHDRAWAL FROM USE 1.11
SAFETY ADVICE
2.1 PRINCIPLES OF SAFETY WHEN
USING THE MACHINE 2.2
2.2 SAFETY WHEN HITCHING THE
MACHINE 2.3
2.3 SAFETY RULES WHEN MAINTAINING
THE HYDRAULIC SYSTEM 2.4
2.4 SAFETY DURING TRANSPORT
TRAVEL 2.5
2.5 MAINTENANCE 2.6
2.6 SAFETY DURING SNOW PLOUGH
OPERATION 2.8
2.7 RESIDUAL RISK 2.9
2.8 INFORMATION AND WARNING
DECALS 2.10
DESIGN AND OPERATION
3.1 TECHNICAL SPECIFICATION 3.2
3.2 GENERAL DESIGN 3.4
3.3 HYDRAULIC SYSTEM 3.5
3.4 ELECTRICAL SYSTEM 3.9
CORRECT USE
4.1 PREPARING FOR WORK 4.2
4.2 TECHNICAL INSPECTION 4.4
4.3 HITCHING TO VEHICLE 4.5
4.4 SNOW PLOUGH OPERATION 4.8
4.5 DRIVING ON PUBLIC ROADS 4.12
4.6 UNHITCHING THE MACHINE
FROM CARRYING VEHICLE 4.13
MAINTENANCE
5.1 CHECKING AND REPLACEMENT
OF COLLECTING BLADES 5.2
5.2 REPLACEMENT OF FENDERS 5.6
5.3 SLIDES REPLACEMENT 5.7
5.4 ADJUSTMENT OF COLLECTING
BLADE SPRINGS 5.8
5.5 HYDRAULIC SYSTEM
MAINTENANCE 5.10
5.6 ELECTRICAL SYSTEM
MAINTENANCE 5.12
5.7 LUBRICATION 5.13
5.8 STORAGE 5.15
5.9 INSPECTION OF TIGHTENING
TORQUE OF NUT AND BOLT
CONNECTIONS 5.16
5.10 TROUBLESHOOTING 5.17

PRONAR PUV-1800M / PUV-2000M

BASIC INFORMATION
SECTION 1

Section 1 Basic information
1.2 PRONAR PUV-1800M / PUV-2000M
1.1 IDENTIFICATION
The snow ploughs are marked with data
plate and serial number. The serial number
is stamped into the data plate and on the
left snow plough wing under the data plate.
When buying the machine check that the
serial numbers on the machine agree with
the number written in the Warranty Book,
in the sales documents and in the Opera-
tor's Manual.
The meanings of the individual elds
found on the data plate are presented in
the table below:
A - machine name,
B - machine type/symbol,
C – serial number,
D – year of manufacture,
E – gross weight [kg],
F – Quality Control stamp,
G – machine name, name extension.
E.2.2.569.01.1.EN

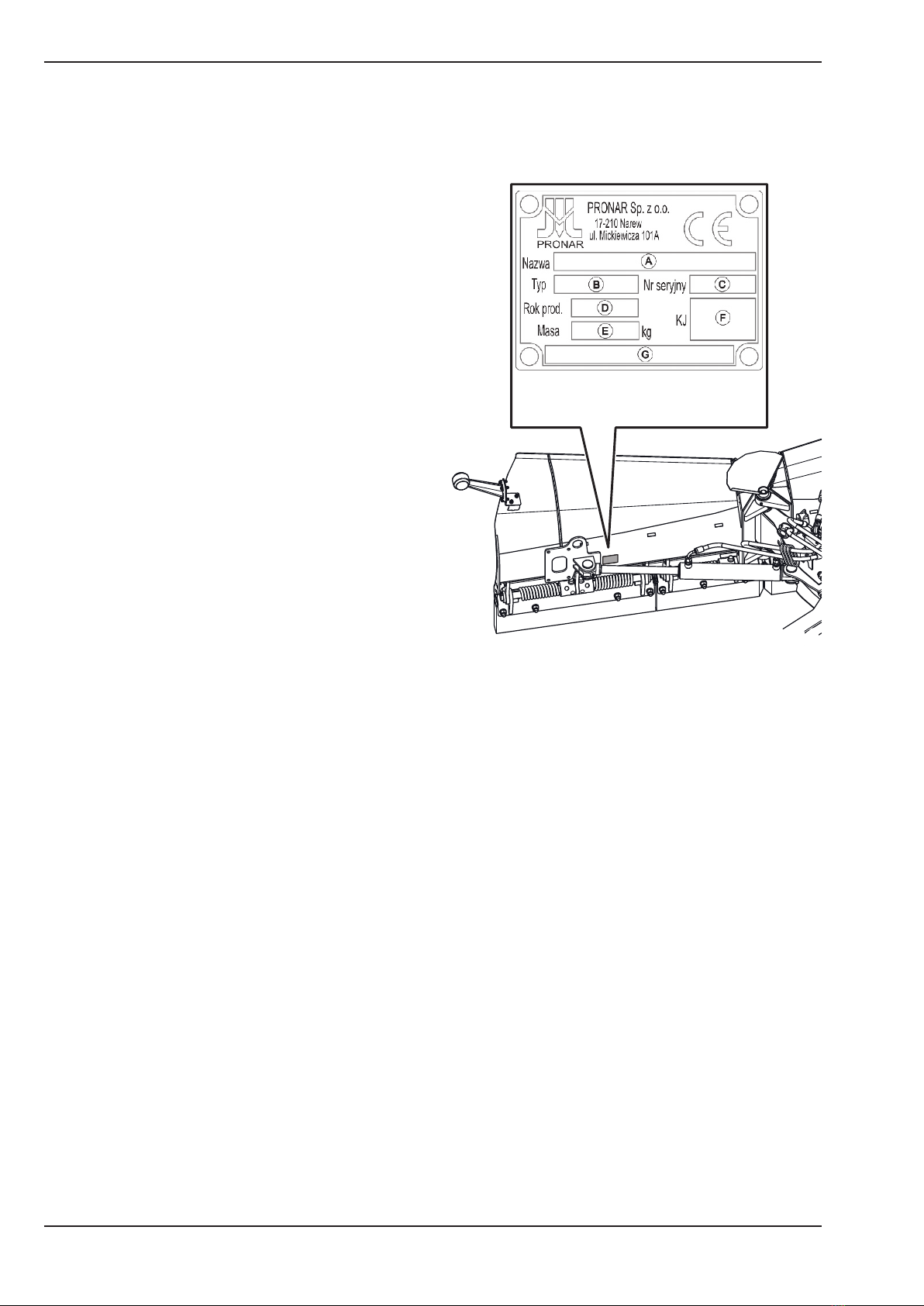

Figure 1.1 Location of the data plate and
serial number
569-E.01-1
XX0001

Section 1
1.3PRONAR PUV-1800M / PUV-2000M
Basic information
1.2 PROPER USE
The snow ploughs are constructed ac-
cording to current safety requirements and
engineering standards.
The snow ploughs are designed for clearing
road surfaces, squares, parking spaces
and all other hard road and footpath sur-
faces such as asphalt, concrete paving
blocks, paving, concrete. The use of the
machine for other purposes should be
regarded as improper. Depending on
their equipment, the snow ploughs can
be mounted on agricultural tractors, front
loaders and other slow-moving vehicles
that meet the requirements set out in Table
1.1.
Transporting people, animals or other
materials is prohibited and regarded as
contrary to the intended purpose. During
the machine operation, comply with all
road trafc regulations and transport reg-
ulations in force in the given country. Any
breach of these regulations is regarded by
the Manufacturer as the use contrary to
the intended purpose of the machine.
Using it as intended involves all actions
connected with the safe and proper op-
eration and maintenance of the machine.
Due to the above, the user is obliged to:
• carefully read the Operator's Manual
and comply with its recommendations,
• understand the machine's operating
principle and how to operate it safely
and correctly,
• adhere to the established mainte-
nance and adjustment plans,
• comply with general safety regula-
tions while working,
• prevent accidents,
• comply with the road trafc regula-
tions and transport regulations in
force in the given country, in which
the machine is used,
• carefully read the carrying vehicle's
operator's manual and comply with
its recommendations.
The machine may only be used by persons,
who:
• are familiar with the contents of this
publication and with the contents
of the carrying vehicle Operator's
Manual,
• have been trained in the snow plough
ATTENTION
The machine must not be used for purposes other
than those for which it is intended, in particular:
• levelling of roads, terrain;
• for transporting people and animals,
• for transporting whatever materials or objects.

Section 1 Basic information
1.4 PRONAR PUV-1800M / PUV-2000M
operation and work safety,
• have the required authorisation
to drive carrying vehicles and are
familiar with the road trafc regula-
tions and transport regulations.
E.2.2.569.02.1.EN
Contents Unit Requirements
Linkage
Front three point linkage - Category 0/I according to ISO 730-1
Hydraulic system
Hydraulic oil
Nominal pressure of the system
Hydraulic sockets
-
MPa
-
HL32
16 ÷ 20*
socket-plug or plug-plug
ISO 7241-1 type of one hydraulic
section,
- located on the carrying vehicle's
front
(depending on the snow plough ver-
sion)
Electrical system
Power supply of solenoid valve and clear-
ance lights
Electrical system voltage
-
V
cigarette lighter socket
(in the operator cab)
12
Other requirements
Power range
Beacon light
hp (kW)
-
30 ÷ 50 (22 ÷ 37)*
orange light**
*- optimum values are given; declared performance and durability of the machine are not
guaranteed for other values.
** - not included in the snow plough equipment
Table 1.1 Requirements for carrying vehicle

Section 1
1.5PRONAR PUV-1800M / PUV-2000M
Basic information
1.3 EQUIPMENT
The snow plough equipment includes:
• Operator's Manual,
• Warranty Book.
Equipment versions:
• vertical rubber snow plough blades
(set at the angle of 90° to the ground,
with or without bumpers),
• steel snow plough blades (set at the
angle of 60° to the ground, with or
without bumpers),
• vertical steel snow plough blades (set
at the angle of 90° to the ground, with
or without bumpers),
• perforated steel snow plough blades
(set at the angle of 60° to the ground,
with or without bumpers),
• hydraulic system without shock
absorbers,
• hydraulic system with shock
absorbers,
• independent control (individual
control of each wing),
• independent-simultaneous control
(individual control of each wing or si-
multaneous control),
• hydraulic system equipped with hy-
draulic socket and plug,
• hydraulic system equipped with two
hydraulic conduit connectors,
• slides, support wheels or without
support elements,
• rigid linkages,
• swinging linkages,
• without clearance lights,
• cigarette lighter socket - two-terminal
network (to duplicate the cigarette
lighter socket in the operator's cab).
E.2.2.569.03.1.EN

Section 1 Basic information
1.6 PRONAR PUV-1800M / PUV-2000M
1.4 TERMS & CONDITIONS OF WARRANTY
PRONAR Sp. z o.o. Narew guarantees the
reliable operation of the machine when it
is used according to its intended purpose
as described in the Operator's Manual.
Defects discovered during the warranty
period will be removed by the Warranty
Service. The repair period is specied in
the Warranty Book.
The warranty does not cover those parts
and sub-assemblies of the machine which
are subject to wear in normal usage con-
ditions, regardless of the warranty period.
Consumables include the following parts/
sub-assemblies:
• collecting blades, blade fenders
• supporting wheels, slides,
• fuses.
The warranty service only applies to such
cases as: mechanical damage which is not
the user's fault, factory defects of parts,
etc.
In the event of damage arising from:
• mechanical damage which is the
user's fault, road accidents,
• inappropriate use, adjustment or
maintenance, use of the machine for
purposes other than those for which
it is intended,
• use of damaged machine,
• repairs carried out by unauthorised
persons, repairs carried out
improperly,
• making unauthorised alterations to
machine design,
the user will lose the right to warranty
service.
The user is obliged to report immediately
on noticing any wear in the paint coating
or traces of corrosion, and to have the
faults rectied whether they are covered
by the warranty or not.Detailed guarantee
regulations are contained in the Warranty
Book attached to each machine.
Modications of the machine without the
written consent of the Manufacturer are
prohibited. In particular, do NOT weld,
drill holes in, cut or heat the main struc-
tural elements of the machine, which have
a direct impact on the machine operation
safety.
E.2.2.569.04.1.EN
TIP
Demand that the seller carefully and precisely fills
out the Warranty Book and guarantee repair
coupons. A missing date of purchase or sale point
stamp may make the user ineligible for any warran-
ty repair or refund.

Section 1
1.7PRONAR PUV-1800M / PUV-2000M
Basic information
1.5 TRANSPORT
The machine is prepared for sale com-
pletely assembled and does not require
packing. Packing is only required for the
machine's technical documentation and
any extra ttings.
Delivery is either by transport on a ve-
hicle or independently. Transport of the
machine connected to carrying vehicle is
permissible provided that the driver famil-
iarises himself with the Operator's Manual
and particularly with safety information
and principles of connection and transport
on public roads. Do NOT drive the carrying
vehicle with machine connected when vis-
ibility is limited.

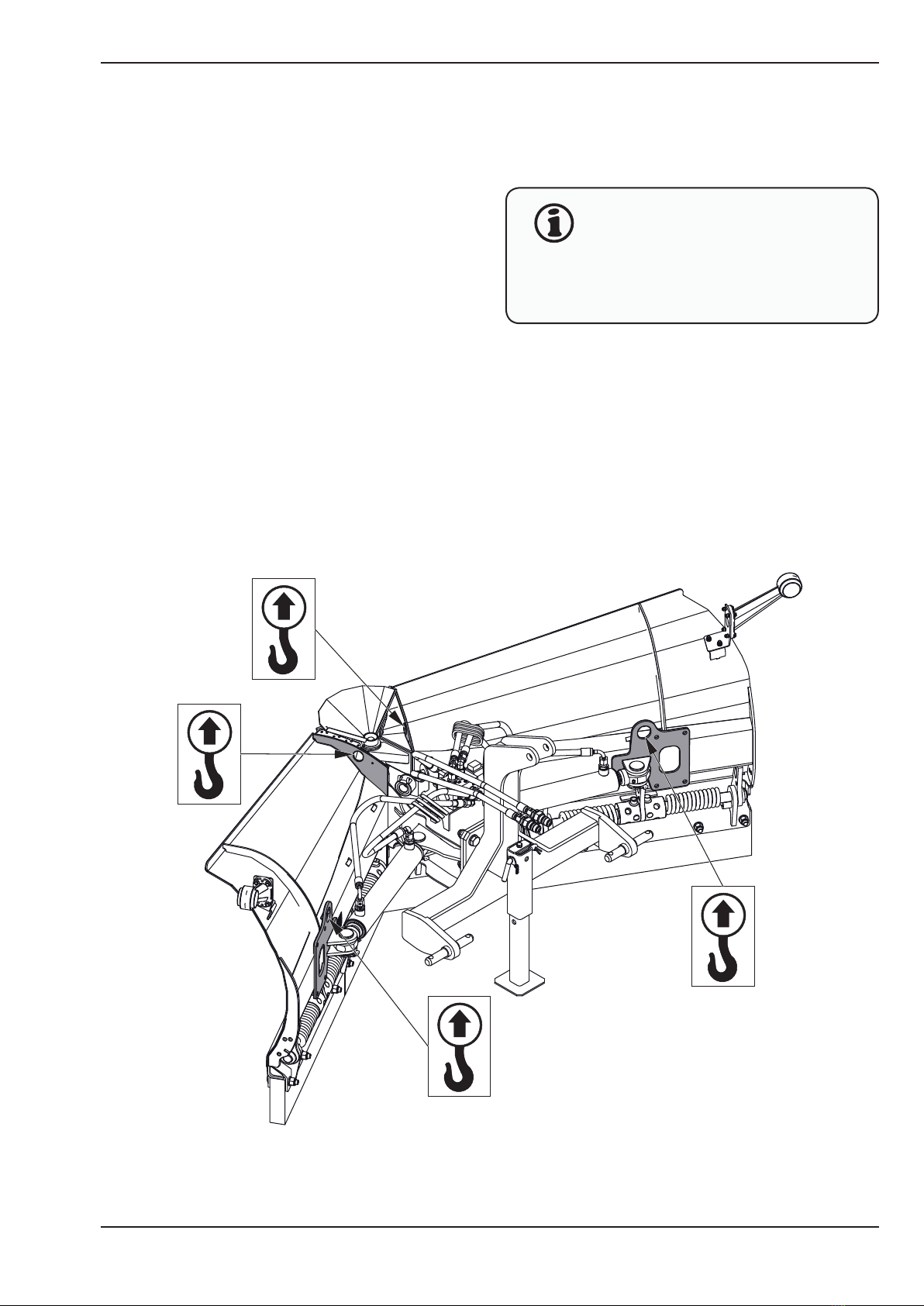

TIP
When rising the machine by the transport lugs, the
wings should be folded to the rear (Figure 1.2)
Figure 1.2 Transport lugs
569-E.02-1

Section 1 Basic information
1.8 PRONAR PUV-1800M / PUV-2000M
During road transport the machine should
be rmly secured on the load platform by
means of certied belts or chains tted with
a tightening mechanism During transport,
the snow plough should be set in "arrow"
position.
When loading and unloading the machine,
comply with the general principles of work-
place health and safety for reloading work.
Persons operating reloading equipment
must have the qualications required to
operate these machines.
Dimension Unit PUV-1800M PUV-2000M
Amm 330 320
Bmm 330 325
ATTENTION
Do NOT secure lifting slings or any types of secur-
ing elements to hydraulic cylinders.
Nobody may be in the manoeuvring zone during
transferring the machine to other form of transport.
Table 1.2 Centre of gravity.
Figure 1.3 Centre of gravity
The machine without additional equipment. three-point linkage cat. 0/I (rigid)
AB
569-E.03-1

Section 1
1.9PRONAR PUV-1800M / PUV-2000M
Basic information
The machine should be attached to lifting
equipment in places specially designed
for this purpose (Figure 1.2), i.e. by the
lugs on the right wing and the left wing.
Suspension points are identied with infor-
mation decals. When lifting the machine
take particular care due to the possibility
of tipping over the machine and the risk
of injuries from protruding parts. During
the loading work particular care should be
taken not to damage paint coating.
E.2.2.569.05.1.EN
ATTENTION
When transporting independently, the user must
carefully read this Operator's Manual and observe
all recommendations. When being transported on
a motor vehicle the machine must be mounted on
the vehicle's platform in accordance with the trans-
port safety requirements. The driver of the vehicle
should take particular care while transporting the
machine. This is due to the vehicle's centre of grav-
ity shifting upwards when loaded with the machine.
ATTENTION
Depending on the machine equipment, location of
centre of gravity varies in the range of ±100 mm.

Section 1 Basic information
1.10 PRONAR PUV-1800M / PUV-2000M
1.6 ENVIRONMENTAL HAZARDS
A hydraulic oil leak constitutes a direct
threat to the natural environment owing to
its limited biodegradability. While carrying
out maintenance and repair work, which
involves the risk of an oil leak, this work
should take place on an oil resistant oor or
surface. In the event of oil leaking into the
environment, rst of all contain the source
of the leak, and then collect the leaked
oil using available means. Remaining oil
should be collected using sorbents, or by
mixing the oil with sand, sawdust or other
absorbent materials. The oil contamina-
tions, once gath ered up, should be kept in
a sealed, marked, hydrocarbon resistant
container, and then passed on to the ap-
propriate oil waste recycling centre. The
container should be kept away from heat
sources, ammable materials and food.
Oil which has been used up or is unsuitable
for further use owing to loss of its prop-
erties should be stored in its original pack-
aging in the conditions described above.
E.2.2.569.06.1.EN
