Prospera PL050 bYoung™ Duo Bike
User Manual
This user manual provides detailed installation and use information. Please read this manual
carefully before installation and operation. Keep this manual for future reference.
Warning
If you have heart or other severe illness, please consult your doctor before using this bike.
Use instruction
1. Set up your bike in kitchen, living room, patio or a place in the house that you have a
view. A brief check on parts, such as bolts, screws are all tightened.
2. Wear comfortable clothes for the bike exercise.
3. Select a comfortable chair to sit down and start to exercise.
Some tips for consideration: Allow two feet space around the bike when you exercise.
Place a mat under the bike to prevent scratches on your hardwood floor or carpet.
Before exercise, warm up your arms and legs.
User maximum weight is limited to 250 pounds.
Child shall be supervised if s/he uses the Duo Bike.
Maintenance
If you exercise regularly with the Duo bike, please check bolts, screws, stoppers and washers
are firmly locked or tightened, each month.
Cleaning
Wipe it clean.
LCD shows
TIME 00:00---99:59MIN
COUNT 0---999(In Total)
CALORIE(CAL) 0---999 KCAL
CIRCLE/MIN 0---999 PER your new Duo Bike MIN
The gray push button allows you to select time lapse, count, calories burned and RPM circle
per minute. The little triangle pointer indicates which mode you are at.
To reset, press and hold the button until the display shows zero.
About the LCD display:
1. TIME: Press and hold the button until
the pointer indicates the function TIME,
which displays total workout time.
Display
2. COUNT: Press the button until the pointer indicates
total circles accumulated of exercises.
3. CAL (CALORIES): Press the button until the pointer
indicates calorie burned during exercise.
4. STEP / MIN: Press the MODE button until the pointer
indicates the STEP / MIN which displays speed
during exercise. Pointer
5. Scan: The display mode changes automatically every 4 seconds.
Button (SLECT/RESET)
Item No:
Part Name
Specification
QTY
01
Handle bar assembly
1
02
Socket head bolts
M8*16
5
03
Flat washer
ф8
7
04
Locknut
M8
5
05
Adjusting knob
M8
2
06
Gasket
M8
2
07
Monitor
1
08
Arc frame
1
09
Pedal assembly
1
10
Socket head bolts
M8*55
2
11
Cap nut
M8
2
12
Fixed foot bracket
1
13
Socket head bolts
M10*85
2
14
Flat washer
ф10
2
15
Locknut
M10
2
16
Base
1
17
Powder spacer bush
2
18
Safety pin
M8
1
19
Long body frame A
1
20
Safety pin
M10
1
21
Short body frame B
1
22
Multi Wrench
13-17#
1
23
Ellen wrench
6MM
1
24
Ellen wrench
5MM
1
Installation Instructions
There are total 5 steps to assemble the Duo
Bike
Step 5:
Assemble Handle
Step 4:
Assemble
Magnet Sensor
Details
Step1 Assemble Base
1.1-Assemble the Fixed foot bracket (12) on the base(16), and fix it by using the M10*85
head bolts(13),the flat washer(14) and the M10 locknut(15). Use the Allen Wrench to
hold one side and tighten it by the multi wrench. (See figures 1 and 2)
1.2-Assemble the long body frame A (19) on the base(16), and fix it by using the M10*85
head bolts(13), Powder spacer bushes (17), the flat washer(14) and the M10 locknut(15).
Use the Allen Wrench to hold one side and tighten it by the multi wrench.
(See figures 1 and 2)
Step 2:
Assemble Frame
Step 3:
Assemble Pedal
Step 1:
Assemble Base
Figure 1 Figure 2
Step2 Assemble Frame
2.1- Place the short body frame A (21) on the long body frame B(19) and tighten the screws of
(02/03/04) with the Allen Wrench and the multi wrench. (See figures 3 and 4)
Figure 3 Figure 4
2.2 - Connect the long body frame (19) with Fixed foot bracket (12) by using safety pin(18).
(See figures 5)
2.3- Connect the acr frame (08) with Fixed foot bracket (12) by using safety pin(18).
(See figures 6)
Figure 5 Figure 6
Figure 7
Step 3 Assemble Pedal
Figure 8
Step4 Assemble Magnet Cable
4.1- Connect the cable with sensor for the calorie counter simply, joining it with the DUO BIKE
(P1)and the end of it (P2) in the pedal(P3), pressing it gently.
P2
3.1- Connect the pedal assembly(09) with Fixed foot
bracket(12) and fix it by using the M8*55 Socket
head bolts(10), ф8 flat washer(03) and the M8 cap
nut(11). Use the Allen Wrench to hold one side and
tighten it by multi wrench. (See figure7).
2.4- Join the upper end of acr frame(08) to Short
body frame B (21) and fix it by using M8 adjusting
knobs(05) and gaskets (06).
(See figure 7)
Step5 Assemble Handle
5.1- Place the handle bar(1) in the correct position on the base, put the bolts(2), ф8 flat
washers(3) and M8 locknuts(4) in their respective holes. Use Allen Wrench and multi wrench
to tighten the bolts. (See figures 9 and 10).
Figure 9 Figure 10
Your Duo Bike is ready to use!

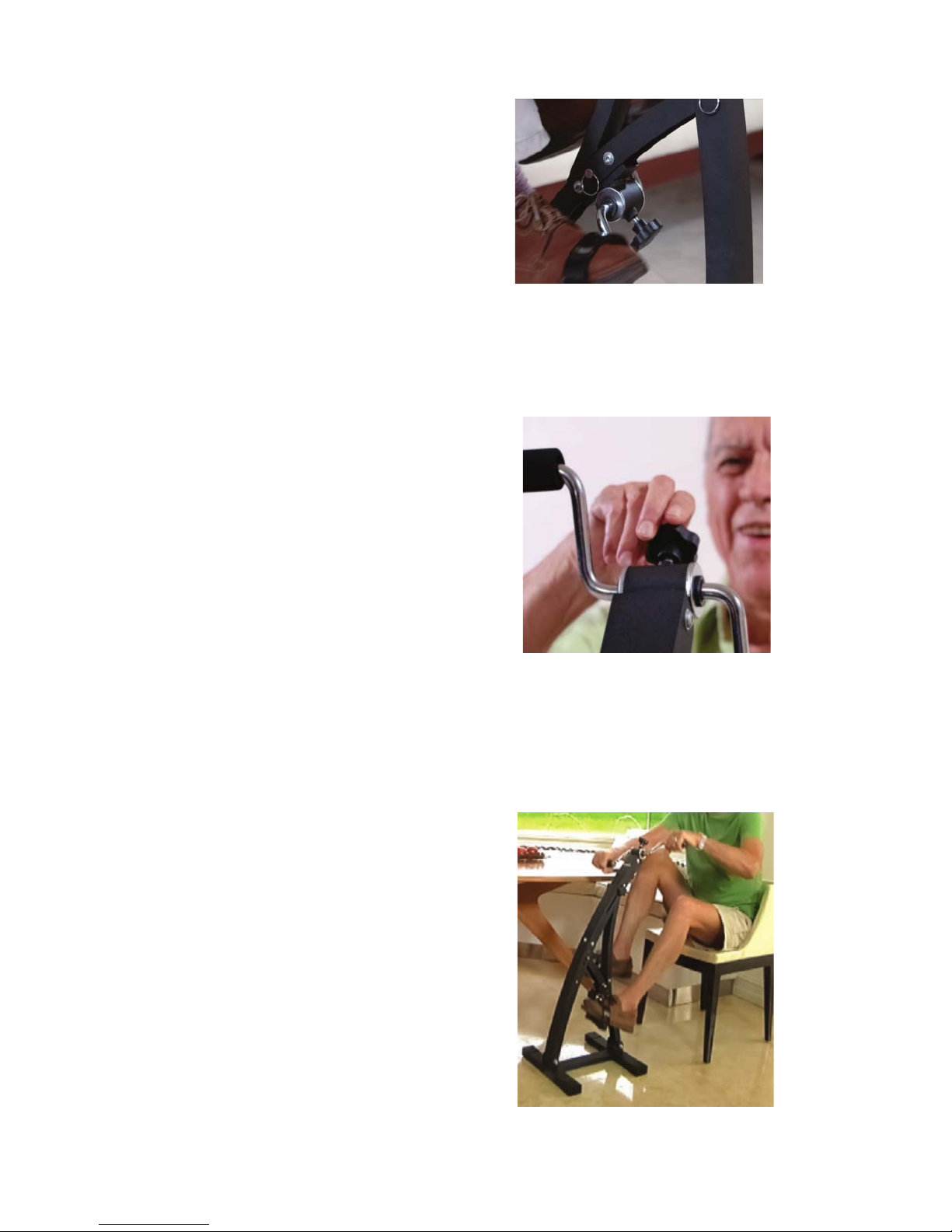

How to Use
1- Choose a comfortable chair to sit down.
2- Adjust the resistance of the pedals by turning
the adjusting screw. Figure 1
3- Adjust resistance and work out intensity by
turning the adjusting knob. Figure 2
4- Start exercise by pushing your legs and
arms to rotate the handle and pedals at
the same time. (Figure 3)
5- Exercise and tone your arms and legs muscles
at home.
Consumer Limited Manufacturer’s Warranty
Prospera warrants the Covered Product to be free of all defects in material and workmanship for 90 days
from date of purchase. This warranty extends to the original buyer (only or and each successive buyer
within the warranty period). Labor and parts are included during warranty period. Consumers are required
to provide model number and dated proof of purchase (sales receipt) when contacting Prospera for the
warranty service. This warranty is valid for all US customers in the 48 continental states, and two non-
continental states: Alaska and Hawaii.
Within the period of this warranty, Prospera will repair or replace, free of charge, any part proving
defective in material and workmanship. All warranty repairs and service must be performed by Prospera
authorized technician and service facility.
All expenses related to replacing or repairing a defective part under this warranty shall be assumed by
Prospera. In except for the following expenses, which shall be assumed by the buyer:
Warranty exclusions:
This warranty does not apply to any costs, repairs, or services for the following:
1. Repairs necessitated by use other than normal home use.
2. Damaged resulting from misuse, abuse, accidents, alternation or improper installation.
3. Corrective work necessitated by repairs made by anyone other than Prospera authorized service
technicians.
Non-warranty service is provided on a “per incident” basis. Consumer will verify that the product has
failed and provide information for servicing the unit. All applicable repairs, parts, shipping, handling,
local tax and “per incident” fees will be charged for non-warranty repairs and support calls.
For warranty service, please call 925-292-5978, M-F, 9:00am to 4:00pm, Pacific Standard Time. Or send
email to sales@prosperacorp.com. Consumer may also mail service request to this address:
Prospera Corporation
Warranty Service
448 Commerce Way
Livermore, CA 94551
www.prosperacorp.com
