Protege pumps B12 User manual

Solar Powered Water Fountain

Pumps

User Manual

[Revision 3.0 May 2017]

READ THIS MANUAL CAREFULLY BEFORE USE – FAILURE TO DO SO MAY RESULT IN INJURY, PROPERTY

DAMAGE AND MAY VOID WARRANTY. • KEEP THIS MANUAL FOR FUTURE REFERENCE. • Products covered by

this manual may vary in appearance, assembly, inclusions, specifications, description and packaging.

Solar Powered Water Fountain Pumps

Safety

•Any alteration to the product or changing of the components voids warranty.

•Do not connect the pump and/or battery unit to an AC power supply – it is designed ONLY for

DC power.

•Operate the pump in water only.

•Maximum water temperature = 40°C (104°F).

•Keep the pump and all components away from flammable liquids.

•Do not leave the battery unit in poor or hazardous environments. This includes excessive heat

or cold, heavy rain or direct sunlight.

•Do not strike the solar panel.

•Do not allow the pump to run dry.

Battery and Charging Safety - Battery Equipped Models

•Use only with the batteries and battery charger specified by the manufacturer.

•Do not open the battery – danger of short-circuiting.

•Do not attempt to destroy or disassemble battery pack or remove any of its components.

•Do not touch the battery terminals with metal objects and/or body parts as short-circuit and/or

personal injury may result.

•Explosion hazard – protect the battery against heat; for example, direct sunlight and fire.

•Explosion hazard – do not short-circuit the battery.

•Poison hazard – battery leakage (liquid ejection). Under abusive conditions, liquid may be

ejected from the battery – avoid contact. If contact accidentally occurs, flush with water. If liquid

contacts eyes, flush with clean water for at least 10 minutes, then seek immediate medical

attention. Liquid ejected from the battery may cause irritation or burns.

•Battery recycling and disposing. All batteries must be recycled or disposed of properly.

•Dispose of non-serviceable batteries in an environmentally responsible manner.

Solar Powered Water Fountain Pumps

Table of Contents

Safety...................................................................................................................................................2

Parts Identification and Installation.................................................................................................4

B12.............................................................................................................................................................4

B20.............................................................................................................................................................4

N03 ............................................................................................................................................................5

N10 ............................................................................................................................................................5

N20 ............................................................................................................................................................6

Installation..................................................................................................................................................6

Connecting the Battery – Battery Equipped Models ............................................................................6

Controls – Battery Equipped Models ...................................................................................................7

Cleaning and Maintenance ...............................................................................................................8

Replacing the Battery – Battery Equipped Models.....................................................................................8

Troubleshooting.................................................................................................................................9

Specifications.....................................................................................................................................9

Solar Powered Water Fountain Pumps

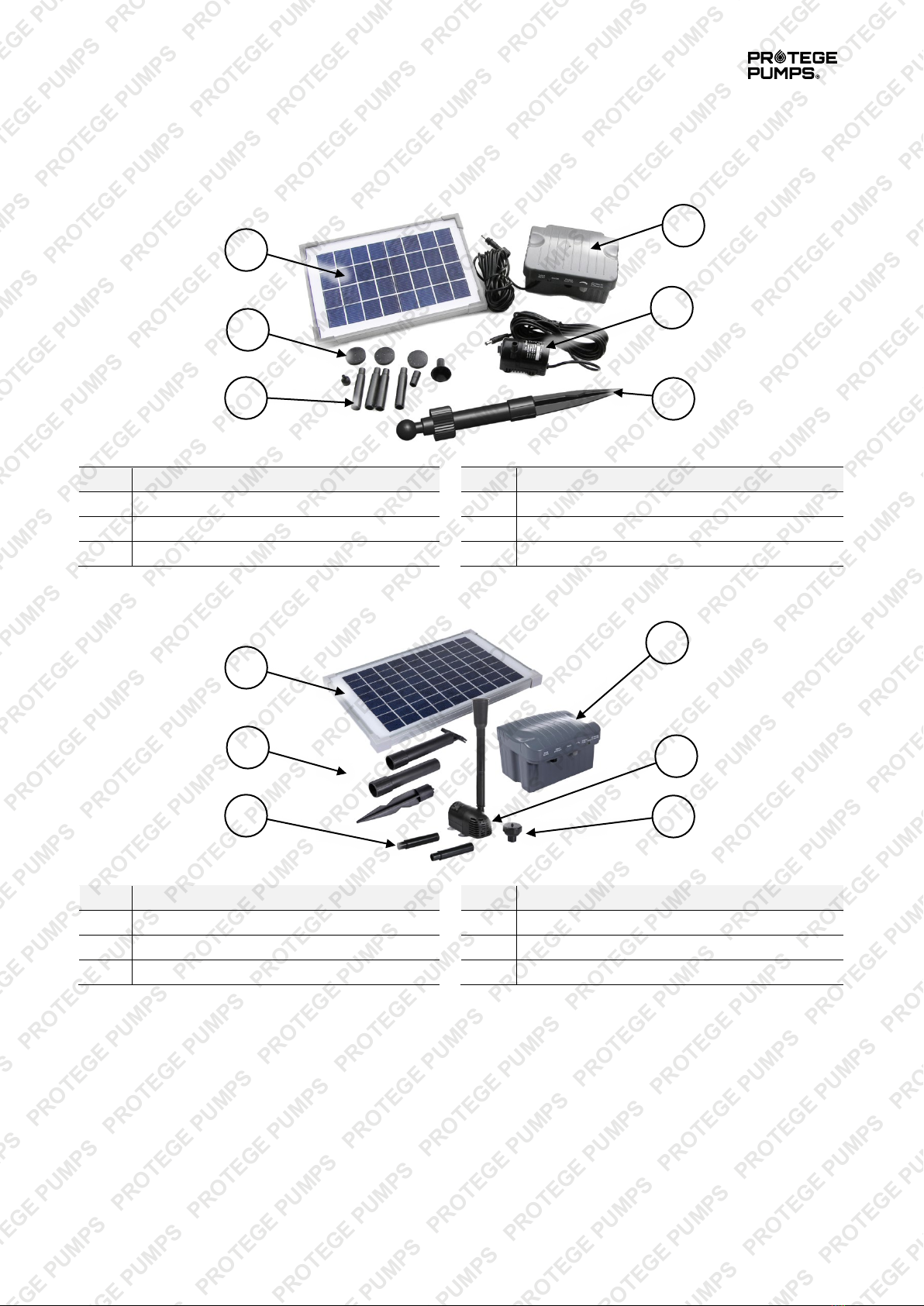

Parts Identification and Installation

B12

No. Name No. Name

1 Solar Panel 4 Fountain Nozzle

2 Pump 5 Extension Tube (4)

3 Battery Unit 6 Mounting Stake

B20

No.

Name

No.

Name

Solar Panel

Fountain Nozzle

Pump

Extension Tube (4)

Battery Unit

Mounting Stake

PROTEGE PUMPS PROTEGE PUMPS PROTEGE PUMPS PROTEGE PUMPS PROTEGE PUMPS PROTEGE PUMPS PROTEGE PUMPS PROTEGE PUMPS PROTEGE PUMPS PROTEGE PUMPS PROTEGE PUMPS PROTEGE PUMPS PROTEGE PUMPS PROTEGE PUMPS PROTEGE PUMPS PROTEGE PUMPS PROTEGE PUMPS PROTEGE PUMPS PROTEGE PUMPS PROTEGE PUMPS PROTEGE PUMPS PROTEGE PUMPS PROTEGE PUMPS PROTEGE PUMPS

Solar Powered Water Fountain Pumps

N03

No.

Name

No.

Name

Solar Panel

Extension Tube (4)

Pump

Mounting Stake

Fountain Nozzle

N10

No.

Name

No.

Name

Solar Panel

Extension Tube (4)

Pump

Mounting Stake

Fountain Nozzle

Solar Powered Water Fountain Pumps

N20

No.

Name

No.

Name

Solar Panel

Extension Tube (4)

Pump

Mounting Stake

Fountain Nozzle

Installation

The solar powered fountain pump is designed for outdoor or indoor use. The solar module needs to be

facing the sun as much as possible. The performance of the pump may be affected by sunlight intensity and

the orientation of the solar module.

For battery equipped models:

The solar module also charges the battery unit, which in turn powers the pump. Because a battery is used,

the pump can operate without sunlight for as long as the battery has sufficient charge.

NOTE: Always keep the pump submerged when it is operating.

1. Unpack all components.

2. For battery equipped models, connect the "Input" cable of the battery unit to the socket on the back of

solar module, and tighten the securing ring.

3. Place the solar panel in a sunny area and use the ground spike to hold the solar panel in position. Adjust

the angle of the solar panel to face the sun.

4. Connect the pump cable to the solar panel and tighten the securing ring. For battery equipped models,

connect the pump cable to the battery unit "Output" socket, and tighten the securing ring.

5. Place the pump near the bottom of the pond etc. It is best to keep the pump off the pond base to avoid

drawing pond waste or debris into it, which may lead to blockages. Use a brick or similar object to raise

the pump off the bottom surface.

6. For a "water fountain" feature:

a. Fit the extension tubes to the pump outlet. Use as many tubes as required so that the outlet just

clears the water surface.

b. Attach a fountain nozzle to the top of the pump outlet tube. There may be several fountain nozzle

types, each providing a different fountain effect.

For a "waterfall" feature:

a. Using suitable tubing, connect the pump outlet to the inlet of a suitable water decoration (not

supplied).

7. For battery equipped models, place the “ON/OFF” switch on the battery unit in the “ON” position.

Connecting the Battery – Battery Equipped Models

Before use, it is necessary to connect the battery inside the battery unit. The battery is not connected at the

factory for shipping reasons.

1. Open the cover of the battery box by removing the

4 screws on the underside of the unit.

Solar Powered Water Fountain Pumps

2. Connect the red or brown wire to the red (+) positive battery terminal.

3. Re-install the cover and tighten the screws.

Controls – Battery Equipped Models

The battery unit contains the operating controls and system indicator.

NOTE: The system indicator LED may show red and the pump may not work when first used, as the battery

may have no charge. The battery will begin charging as soon as the solar panel is producing power. Once

enough charge is available, the LED becomes green and the pump begins operating. • The battery is always

being charged by the solar panel (when it requires charging), even when the system is switched OFF. • If the

battery becomes fully discharged (for example, pump allowed to run overnight), switch the pump OFF and

allow the battery to charge for at least 6 hours before using the pump again.

Control

Description

System LED

The system indicator LED is next to the System ON/OFF switch, and shows the following

status:

•Green – Battery charged and the pump is operating.

•Red – Battery requires charging. The pump automatically stops operating when the

battery level reaches a low voltage.

•Flash Red / Green – Battery charging and almost at a level where the pump can

operate (approximately 2 hours more charging required).

Used to adjust pump output. Lower outputs (rotate control left) produce gentler water

effects and increased operating time. Higher outputs (rotate control right) produce

stronger water effects, however, decreases operating time.

System

ON/OFF

Used to switch the pump on and off:

•On – (the System LED must be green to use this control) The pump begins operating.

•Off – The pump stops operating.

Timer

ON/OFF

Used to switch between operating modes (the System LED must be green to use this

control):

•On – The pump operates for 10 minutes per hour. This mode is designed for energy

saving, such as cloudy days or at night.

•Off – The pump operates continuously. The pump automatically stops operating when

the battery level reaches a low voltage.

System

On/Off

Solar Powered Water Fountain Pumps

Cleaning and Maintenance

If the pump starts losing power or stops working, it may indicate a build-up of dirt. Clean the pump regularly

to maintain best performance, as follows:

1. Disconnect the pump.

2. Press on the bottom of the filter housing and pull the filter housing from the pump.

3. Rotate the impeller cover left (anti-clockwise), then carefully pull it from the pump.

4. Remove the impeller from the pump.

5. Wash all parts, including tubing and fountain nozzle etc, to remove any dirt and debris.

6. Assemble the pump in reverse sequence.

Replacing the Battery – Battery Equipped Models

1. Open the cover of the battery box by removing the 4 screws on the underside of the unit.

2. Disconnect the wires from the battery terminals.

3. Remove the old battery.

4. Install the new battery.

5. Connect the red or brown wire to the positive (+)

battery terminal and the remaining wire to the

negative (-) terminal.

6. Re-install the cover and tighten the screws.

Solar Powered Water Fountain Pumps

Troubleshooting

The pump does not operate even though the solar panel is receiving direct sunlight.

Possible Fault Action

No connection Ensure that the solar panel and pump are connected correctly to the battery unit.

Pump blocked Clean the pump and all tubing.

Timer switch in ON position (battery

equipped models)

Check that the system is not in "timer" mode – place the Timer switch to the OFF position.

Battery not charged (battery equipped

models)

Check the system indicator LED – if it is red, the battery is in a low voltage state; if it is

flashing red and green, the battery is charging but not yet able to run the pump. Switch the

pump OFF and allow the battery to charge for at least 6 hours before using the pump again.

Battery no longer serviceable (battery

equipped models)

Replace the battery. Battery life is approximately 1.5 years of average use.

Specifications

Operating Voltage B12: 6 to 9VDC

B20: 12 to 24VDC

N03: 6VDC

N10: 12VDC

N20: 24VDC

Motor Brushless

Solar Powered Water Fountain Pumps

Some experts believe the incorrect or prolonged use of almost any product could cause

serious injury or death. For information that may reduce your risk of serious injury or

death, consult the points below and additionally, the information available at

www.datastreamserver.com/safety

•Consult all documentation, packaging and product

labelling before use. Note that some products feature

online documentation which should be printed and kept

with the product.

•Check product for loose / broken / damaged / missing

parts, wear or leaks (if applicable) before each use.

Never use a product with loose / broken / damaged /

missing parts, wear or leaks (if applicable).

•Products must be inspected and serviced (if applicable)

by a qualified specialist every 6 months assuming

average residential use by a person of average weight

and strength, above average technical aptitude, on a

property matching average metropolitan specification.

Intended use outside these guidelines could indicate the

product is not suitable for intended use or may require

more regular inspection or servicing.

•Ensure all possible users of the product have completed

an industry recognized training course before being

given access to the product.

•The product has been supplied by a general merchandise retailer that

may not be familiar with your specific application or your description of

the application. Be sure to attain third-party approval for your

application from a qualified specialist before use regardless of prior

assurances by the retailer or its representatives.

•This product is not intended for use where fail-safe operation is

required. As with any product (take an automobile, aircraft, computer

or ball point pen for example), there is always a small chance of

technical issues that needs to be repaired or may require replacement

of the product or a part. If the possibility of such failure and the

associated time it takes to rectify could in any situation inconvenience

the user, business or employee then the product is not suitable for

your requirements. This product is not for use where incorrect

operation or a failure of any kind, including but not limited to a

condition requiring product return, replacement, service by a technician

or replacement of parts could cause a financial loss, loss of employee

time or an inconvenience requiring compensation.

•If this item has been purchased in error after considering the points

above, simply contact the retailer directly for details of their returns

policy, if required.

diagrams or images may be reproduced or transmitted in any form or by any means, electronic or

mechanical, including photocopying, scanning or recording, or any information storage and retrieval system,

without express permission or consent from the publisher.

This manual suits for next models

Table of contents

Other Protege Pumps Water Pump manuals

Protege Pumps

Protege Pumps P6000 User manual

Protege Pumps

Protege Pumps PMPPWCPROB4C0 User manual

Popular Water Pump manuals by other brands

Rheem

Rheem Raypak RPVSP1 Installation and operation manual

Giant

Giant SP100HT Operating instructions/ repair and service manual

Intex

Intex Quick-Fill AP639 owner's manual

Wilo

Wilo Varios PICO-STG Installation and operating instructions

Alpine

Alpine VORTEX PEG1800 owner's manual

MagnaTex

MagnaTex MP Series Installation, operation and maintenance manual

Wilo

Wilo Star-Z Installation and operating instructions

anko

anko VSL Series operating manual

Noria

Noria ECO:100 Installation & operation

Buhler

Buhler P2.ATEX Series Assembly, installation and operation instructions

ARO

ARO TWO-BALL PUMP 650475-X Operator's manual

EINHELL

EINHELL NGP 1300 N operating instructions

vacuubrand

vacuubrand MV 10C VARIO select Instructions for use

World Chemical

World Chemical SUBMERSE instruction manual

Pentair

Pentair FP5112 Installation & operation manual

Atlas Copco

Atlas Copco GVS 16A Instruction book

Everbilt

Everbilt DPJC125 Use and care guide

DEMA

DEMA Flex Flow quick start guide

Protege Pumps B12 User manual

Popular Water Pump manuals by other brands
