VECOAX ULTRA BT SERIES MANUAL

PRODUCT OVERVIEW

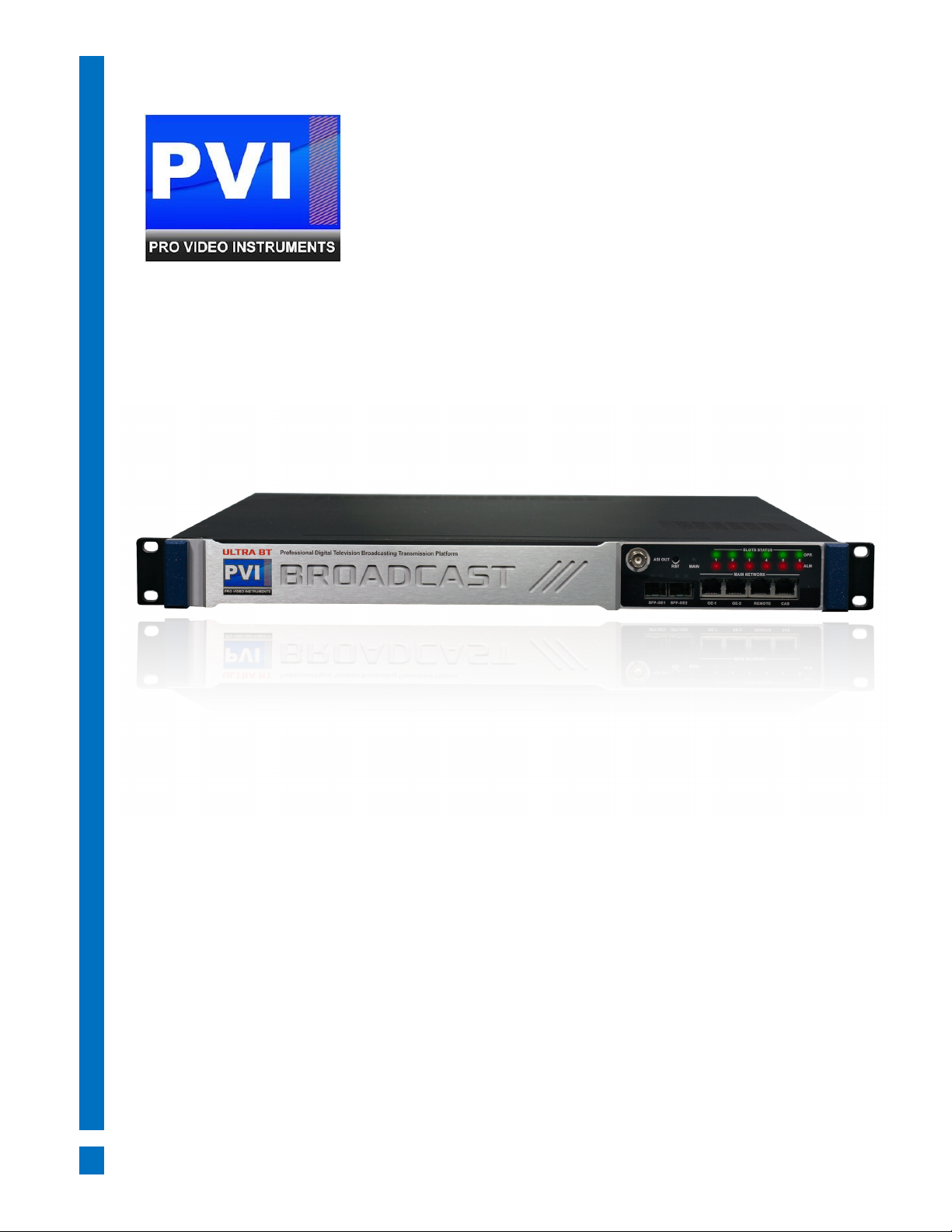

VECOAX ULTRA BT encoder modulator i the new generation of intelligent

headend proce ing equipment. Thi 1-U ca e come with 6 independent module

lot . Each module can be configured individually ba ed on the application

including encoding, decoding, tran -coding, multiplexing, de crambling and

modulating proce ing and the combination of all the e function . It upport

multiple input and output interface and ignal format . With it powerful

performance and low co t, VECOAX ULTRA BT i e pecially adequate for the new

generation CATV y tem.

KEY FEATURES

Support flexible combination of different type of module

Support up to 6 module

Support 1 ASI output (Copy a MPTS2 through front panel GE2)

Support 2 GE output, 512 SPTS (UDP, RTSP/RTP) output from GE1,

8 MPTS (UDP, RTP) output from GE2, Unica t/Multica t, RJ45/SFP interface

Support Web management, Update via web

Redundancy Power Supply (Optional)

SPECIFICATIONS

Ba e Unit Parameter Dimen ion (W×L×H): 482mm×410mm×44mm

Environment: 0~45°C (work); -20~80°C (Storage）

Power requirement: AC 110V± 10%, 50/60Hz, AC 220 ± 10%, 50/60Hz

MODULE SPECIFICATIONS

4 ASI/IP MULTIPLEXING MODULE

MODULE SPECIFICATIONS:

ASI input /output : 4 ASI bi-direction, BNC 75Ω

IP input /output : 2 Ethernet Port (100/1000M)

Stream connector input

Re-multiplexing: PID remapping, PCR correction, generate PSI/ SI table

automatically

Stream In: maximum 4 ASI input, 256×2 IP input

Stream Out: maximum 4 ASI output, 4 IP output

5 ASI MULTIPLEXING MODULE

MODULE SPECIFICATIONS:

ASI input /output : 5 ASI bi-direction, BNC 75Ω

Stream connector input

Stream in: maximum 5 ASI input

Re-multiplexing: PID remapping, PCR correction, generate PSI/ SI table

automatically

Stream out: maximum 5 ASI output

4 CVBS ENCODING MODULE

MODULE SPECIFICATIONS:

Input: 4 CVBS video, 4 Stereo Audio (DB9 to RCA)

VIDEO ENCODING:

Video format: MPEG-2, MPEG4 AVC/H.264

Image format: PAL, NTSC SD ignal

RESOLUTION:

PAL:720*576/352*288/320*240/320*180/176*144/160*120/160*90@50Hz

NTSC: 720*480/352*288/320*240/320*180/176*144/160*120/160*90@59.94Hz

Rate Control: CBR/VBR

GOP tructure: IBBPB

Video bitrate: 0.5~5Mbp

AUDIO ENCODING:

Audio format: MPEG1 Audio Layer 2, LC-AAC, HE-AAC V2

Sampling rate: 48 KHz

Re olution: 24-bit

Bit-rate: 48-384Kbp each channel

Support Logo, Caption, and QR Code in ertion

8CH CVBS ENCODING MODULE

MODULE SPECIFICATIONS:

Input: 8 CVBS video, 8 Stereo Audio (DB15 to RCA)

VIDEO ENCODING:

Video format: MPEG4 AVC/H.264

Image format: PAL, NTSC SD ignal

Re olution: 720×576i, 720×480i

Rate Control: CBR/VBR

GOP tructure: IPP

Video bitrate: 1~7Mbp each channel

AUDIO ENCODING:

Audio format: MPEG-1 Layer 2

Sampling rate: 48 KHz

Re olution: 24-bit

Bit-rate: 64/128/192/224/256/320/384Kbp each channel

Support Logo, Caption, and QR Code in ertion

2 HDMI ENCODING/TRANSCODING MODULE

MODULE SPECIFICATIONS:

Input: 2*HDMI, 2*BNC for CC (Clo ed Caption) input and tream connector

VIDEO ENCODING:

Video format: MPEG2 & MPEG4 AVC/H.264

Input re olution:

1920*1080_60P, 1920*1080_50P, 1920*1080_60i, 1920*1080_50i,

1280*720_60p, 1280*720_50P, 720*480_60i, 720*576_50i

Rate control mode: CBR/VBR

A pect ratio: 16:9, 4:3

Video bitrate: 0.8~19Mbp for MPEG-2 /H.264 encoding

Support CC (clo ed caption)

AUDIO ENCODING:

Audio format: MPEG1 Layer II, MPEG2-AAC, MPEG4-AAC,

Dolby Digital AC3 (2.0) encoding (Optional); AC3 (2.0/5.1) pa -through

Sampling rate: 48 KHz

Audio bitrate: 64Kbp -320kbp each channel

VIDEO TRANSCODING:

2*MPEG2 HD → 2*MPEG2/H.264 HD; 2*MPEG2 HD → 2*MPEG2/H.264 SD;

2* H.264 HD → 2*MPEG2/H.264 HD; 2* H.264 HD → 2*MPEG2/H.264 SD;

4 *MPEG2 SD → 4 *MPEG2/H.264 SD; 4* H.264 SD → 4 *MPEG2/H.264 SD

AUDIO TRANSCODING:

MPEG-1 Layer 2, AAC and AC3

2 HD-SDI Encoding/Transcoding Module

MODULE SPECIFICATIONS:

Input: 2*HD-SDI and tream connector

VIDEO ENCODING:

Video format: MPEG2 & MPEG4 AVC/H.264

Input re olution:

1920*1080_60P, 1920*1080_50P, 1920*1080_60i, 1920*1080_50i,

1280*720_60p, 1280*720_50P, 720*480_60i, 720*576_50i

Rate control mode: CBR/VBR

A pect ratio: 16:9, 4:3

Video bitrate: 0.8~19Mbp for MPEG-2 /H.264 encoding;

Support CC (clo ed caption)

AUDIO ENCODING:

Audio format:

MPEG1 Layer II, MPEG2-AAC, MPEG4-AAC,

Dolby Digital AC3 (2.0) encoding (Optional), AC3 (2.0/5.1) pa -through

Sampling rate: 48 KHz

Audio bitrate: 64Kbp -320kbp each channel

VIDEO TRANSCODING:

2*MPEG2 HD → 2*MPEG2/H.264 HD; 2*MPEG2 HD → 2*MPEG2/H.264 SD;

2* H.264 HD → 2*MPEG2/H.264 HD; 2* H.264 HD → 2*MPEG2/H.264 SD;

4 *MPEG2 SD → 4 *MPEG2/H.264 SD; 4* H.264 SD → 4 *MPEG2/H.264 SD

AUDIO TRANSCODING:

MPEG-1 Layer 2, AAC and AC3

4 HDMI MPEG 4 ENCODING MODULE

MODULE SPECIFICATIONS:

Input: 4*HDMI

VIDEO ENCODING:

Video format: MPEG-4 AVC/H.264

Input re olution:

1920×1080_60P, 1920×1080_50P, 1920×1080_60i, 1920×1080_50i,

1280×720_60P, 1280×720_50P, 720×576_50i, 720×480_60i

GOP tructure: IBBP

Video bitrate: 0.8Mbp ~19Mbp each channel

Rate Control: CBR/VBR

AUDIO ENCODING:

Audio format: MPEG1 Layer II, (MPEG-2 AAC, MPEG-4 AAC Optional), AC3 pa -

through

Sampling rate: 48 KHz

Re olution: 24-bit

Audio bitrate: 64Kbp ~320Kbp each channel

Audio Gain Control: 0-400

4 HDMI/SDI ENCODING MODULE

MODULE SPECIFICATIONS:

Input: 4*HDMI/4*SDI

VIDEO ENCODING:

Video format: MPEG-4 AVC/H.264

Input re olution: 1920×1080_60P, 1920×1080_60i, 1920×1080_50P,

1920×1080_50i,1280×720_60P, 1280×720_50P, 720×576_50i, 720×480_60i,

Output re olution: 1920×1080_30P, 1920×1080_25P, 1280×720_30P,

1280×720_25P, 720×576_25P,720×480_30P,

GOP tructure: IP…P (P Frame adju tment, without B Frame)

Video Bit-rate: 1Mbp ~13Mbp each channel

Rate Control: CBR/VBR

AUDIO ENCODING:

Audio format: MPEG1 Layer II, upport audio gain adju tment

Sampling rate: 48 KHz

Re olution: 24-bit

Audio Bit-rate: 64kbp ,128Kbp ,192kbp ,224kbp ,256kbp ,320kbp ,384kbp

Support Logo, Caption, and QR Code in ertion

2 IP TRANSCODING MODULE

MODULE SPECIFICATIONS:

Input: Stream connector

Re olution: 480i, 576i, 720P@50, 720P@60, 1080i@50, 1080i@60, 1080P@50,

1080P@60

VIDEO TRANSCODING:

2*MPEG-2/ H.264/ AVS/AVS+ HD/SD → 2* H.264 HD/SD

Video Bit-rate: 1~19.5Mbp each channel

Rate Mode: CBR/VBR

GOP Strut: IBBP, IPPP, IBP

AUDIO TRANSCODING:

MPEG-1 Layer II, LC/HE-AAC, AC3, DRA→ MPEG-1 Layer II, LC/HE-AAC

Audio bitrate: 64/96/128/192/256/320/384Kbp

Audio Gain Control: 0-100

16/32 QAM MODULATING MODULE

MODULE SPECIFICATIONS:

Data input: 512×2 IP input over UDP/RTP, 2 GE Port (RJ45/SFP), and Stream

connector

Data output: 16 or 32 IP output over UDP/RTP/RTSP, unica t/multica t, 2 GE

Port (RJ45/SFP)

Tran Rate: Max 840Mbp /GE Port

RF output (F type): 16/32 channel of multiplexing, crambling and modulation.

MULTIPLEXING:

Maximum PID Remapping: 180 output pid per channel for DX316, 256 output

pid per channel for DX332

Function: PID remapping (automatically or manually), Accurate PCR adju ting,

generate PSI/SI table automatically

SCRAMBLING:

Maximum imul-crypt CA: 4

Standard: ETR289, ETSI 101 197, ETSI 103 197

Connection: Local/remote connection

MODULATION:

Standard: EN300 429/ITU-T J.83A/B (DVB-C)

MER: ≥40dB

RF frequency: 50~960MHz, 1 KHz tep

RF output level: -20~+10dBm (87~117 dBµV), 0.1dB tep for all carrier

Symbol Rate: 5.0M p ~7.0M p , 1k p tepping

Con tellation: 16/32/64/128/256QAM

DX316 Output: 16 non-adjacent carrier output within 192M bandwidth

DX332 Output: 32 non-adjacent carrier output within 384M bandwidth

8 DVB-T/ISDBT MODULATING MODULE

MODULE SPECIFICATIONS:

Data input: Stream connector

256 IP input over UDP/RTP, 2GE Port (RJ45/SFP) ——

Data output: 8 IP output over UDP/RTP/RTSP, unica t/multica t, 2 GE Port

(RJ45/SFP)

Tran Rate: Max 840Mbp /GE Port

RF Output (F type): 8 non-adjacent carrier output within 192M bandwidth

MULTIPLEXING:

Channel Number: 8 multiplexing channel

Maximum PID Remapping: 180 output PIDS per channel

Function: PID remapping (automatically or manually), Accurate PCR adju ting,

generate PSI/ SI table automatically

MODULATION: (8*DVB-T)

Standard: ETSI EN300 744 MER: ≥40dB

RF Frequency: 50~960MHz, 1 KHz tep

Con tellation: QPSK/16QAM/64QAM Bandwidth: 6/7/8 MHz

Tran mode: 2K/4K/8K FEC: 1/2, 2/3, 3/4, 5/6, 7/8

RF Output Level: -20~+10dBm (for all carrier ), 0.5dB tep

6 ISDB-TB MODULATING MODULE

MODULE SPECIFICATIONS:

Data input: 32×6 IP input over UDP/RTP, 2 GE Port (RJ45/SFP) and tream

connector

Data output: 6 IP output over UDP/RTP/RTSP, unica t/multica t, 2 GE Port

(RJ45/SFP)

Tran Rate: Max 840Mbp /GE Port

RF output (F type): 6 channel of multiplexing and modualtion.

MULTIPLEXING:

Maximum PID Remapping: 180 output pid per channel

Function: PID remapping (automatically or manually), Accurate PCR adju ting,

generate PSI/ SI table automatically

MODULATION:

Standard: ARIB STD-B31

Bandwidth: 6M Con tellation: QPSK, 16QAM, 64QAM

Guard Interval: 1/32, 1/16, 1/8, 1/4 Tran mi ion Mode: 2K, 4K, and 8K

Code rate: 1/2, 2/3, 3/4, 5/6, 7/8 MER: ≥40dB

RF frequency: 50~960MHz, 1 KHz tep

RF output level: -20dBm~+10dBm (87~117dBµV), 0.1dB tepping

4 RF TUNER MODULE

MODULE SPECIFICATIONS:

Stream in: 4 Tuner input, F Type

Standard: DX904: DVB-S/S2; DX914: DVB-C; DX944: DVB-T/T2

DVB-S DVB-S2

Input Frequency: 950-2150MHz 950-2150MHz

Symbol Rate: QPSK 1~45 M p QPSK/8PSK 1~45 M p ,

16APSK 1~45 M p ,

32APSK1~32 M p

(16APSK&32APSK are optional as required)

FEC Demodulation:1/2, 2/3,3/4,5/6,7/8 1/2, 2/3,3/4,5/6,7/8,4/5,5/6,8/9,

9/10

Signal Strength: -65 ~ -25dBm

DVB-C Standard: J.83A (DVB-C), J.83B, J.83C

Input Frequency: 30-1000MHz

Con tellation: 16/32/64/128/256 QAM

DVB-T/T2: Standard: DVB-T/T2

Input Frequency: 30 MHz~1000 MHz

Bandwidth: 6M, 7M, 8M

PLP Index:0,1,2,3(for DVB-T2)

MULTIPLEXING:

Maximum PID Remapping: 256 input

Function: PID remapping (automatically/ manually), Accurate PCR adju t
