ProjectionLink User & Installation Guide 1
Chapter 1:
What is ProjectionLink?
ProjectionLink is Proxima’s revolutionary new solution to
numerous stray cables to simplify projector installations and
connectivity. It’s the first single-wire solution that connects
your computer and video sources with an installed projector.
Utilizing Category 5 (CAT-5) unshielded, twisted pair cabling,
installing and configuring your installed projector is as easy as
pulling a network cable.

2 ProjectionLink User & Installation Guide
The Projection Link System
ProjectionLink includes two components: a Transmitter
(PL-300T) and a Receiver (PL-300R). The Transmitter is con-
nected to your computer or other source and the Receiver is
connected to your projector.
This Installation Guide shows you how to configure Projec-
tionLink. This Installation Guide does not explain how to
install ceiling mount projectors or how to pull cable, etc. Use
the suggestions in this Installation Guide to help configure
your projector with the ProjectionLink system.
The ProjectionLink Transmitter (PL-300T) should be located
somewhere in your conference room or boardroom. The
Transmitter allows you to connect multiple input sources to
your projector via CAT-5 cabling. Typically, the Transmitter is
located under your conference table or inside a podium at the
front of a room. This is the connection point for your input
devices (computers, video, and audio devices) and your
installed projector.

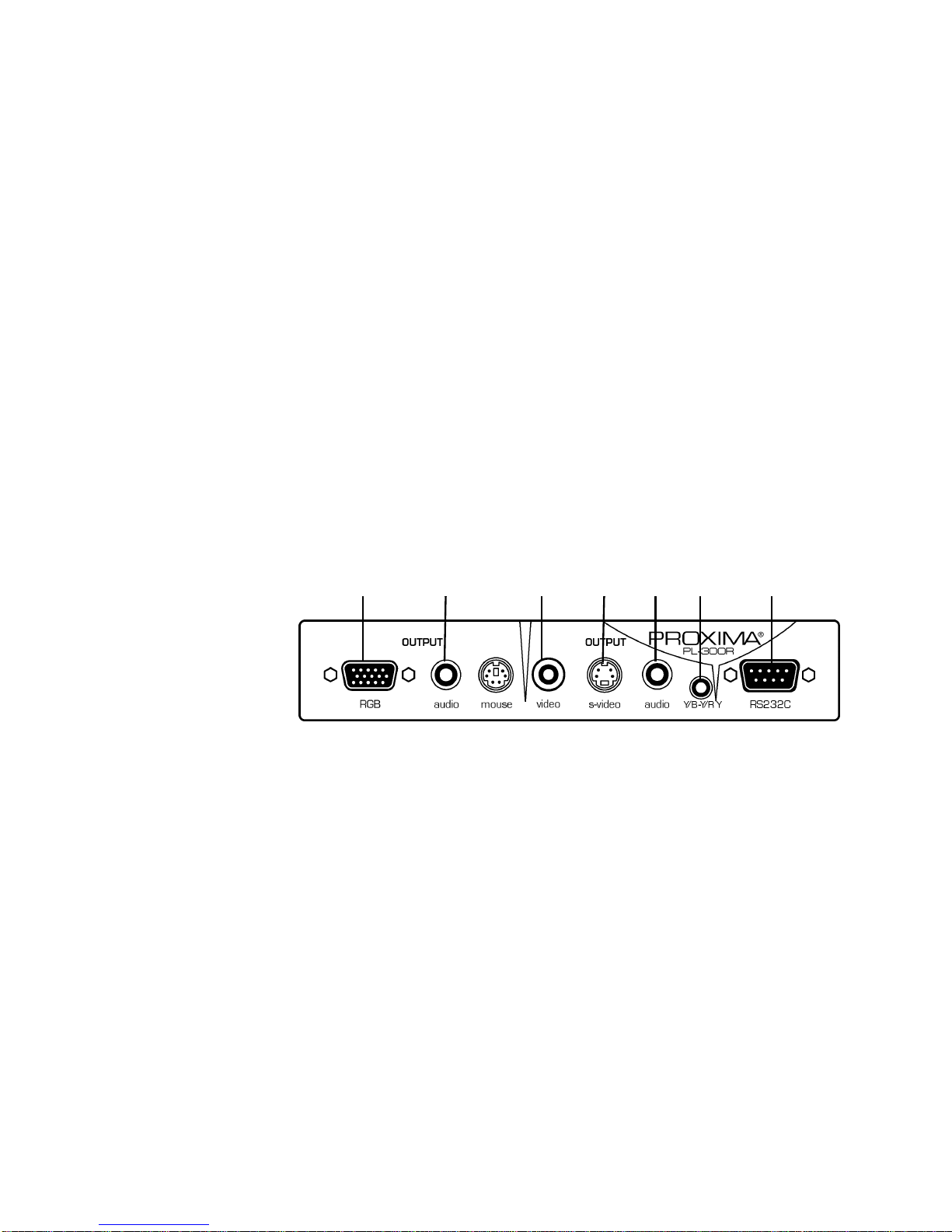

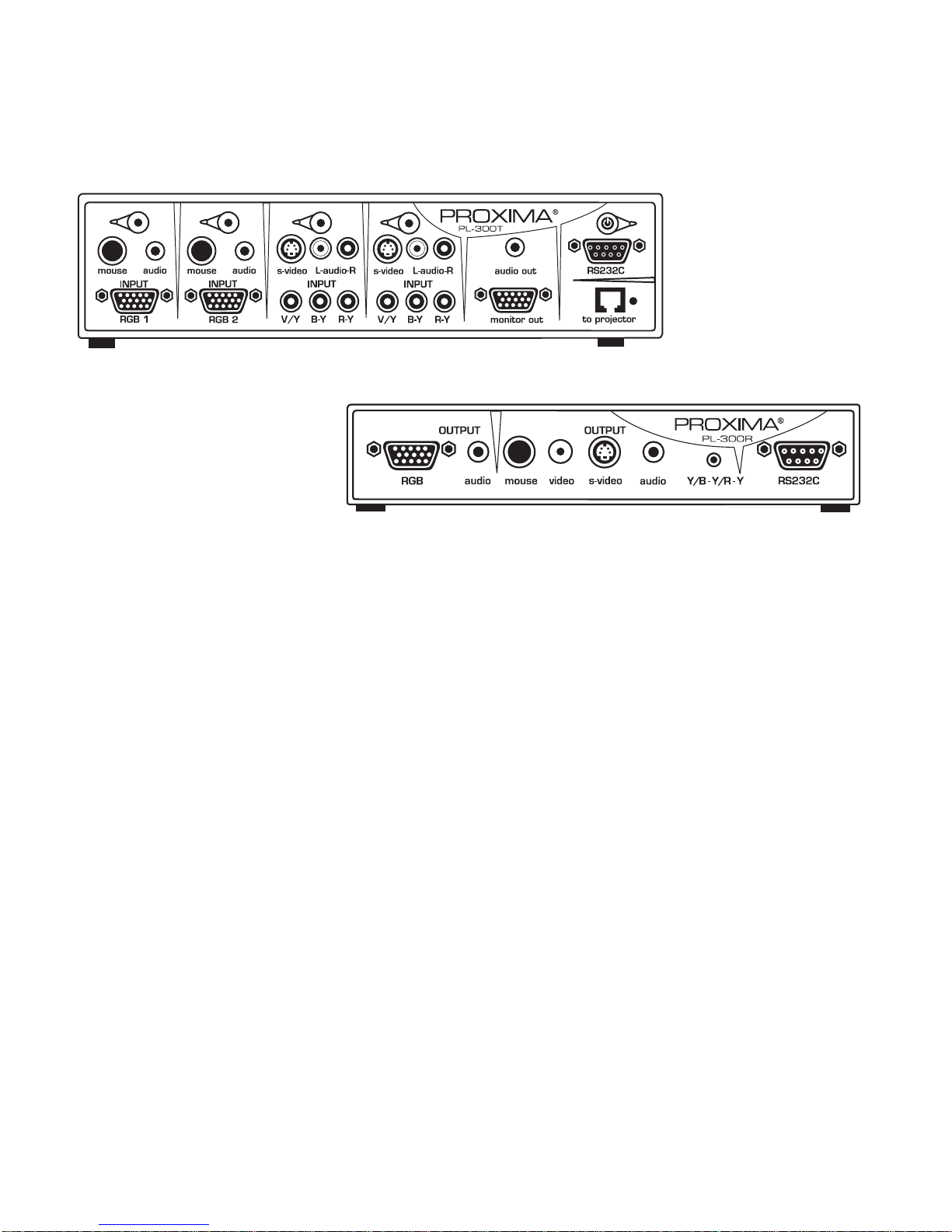

Transmitter
TransmitterTransmitter
Transmitter
Receiver
ReceiverReceiver
Receiver

What is ProjectionLink?
ProjectionLink User & Installation Guide 3
ProjectionLink Operational
Summary
ProjectionLink can be controlled by either manually selecting
the input on the Transmitter (Push Button Operation) or
selecting the input on the Projector’s Remote. Depending on
the projector connected to ProjectionLink, you may have
limited operational functionality. The tables contained in
“Appendix D: Operational Summary” on page 53 summarize
ProjectionLink’s operational functionality when connected
with various Proxima projectors.

Understanding the ProjectionLink System
4 ProjectionLink User & Installation Guide
Understanding the
ProjectionLink System
The ProjectionLink system offers many advantages over previ-
ous mounted projection systems. It also has a few limitations
you should be aware of. The following tables lists some fea-
tures the ProjectionLink system can and cannot do:
Your ProjectionLink system
will:
Your ProjectionLink system
will not:
Eliminate the need for expensive
coaxial cables and amplifiers
Facilitate high-bandwidth appli-
cations (greater than 140 MHz)
Conveniently switch between
presentation devices (e.g., com-
puter to video)
Replace a matrix switcher
Reduce installation time Replace a distribution amplifier
Allow RS-232 control from
external control systems such as
Crestron or AMX/Panja
Encode or decode video signals
Easily connect your installed
projector to your presentation
devices
Accept multiple video signals on
each video input
Increase the number of com-
puter and/or video inputs on
your projector
Support Picture-in-Picture since
only one video signal at a time is
sent to the projector
Accept HDTV component (Y,
Pb, Pr) video

What is ProjectionLink?
ProjectionLink User & Installation Guide 5
What’s in the PL-300/PL-
300E Accessories Box?

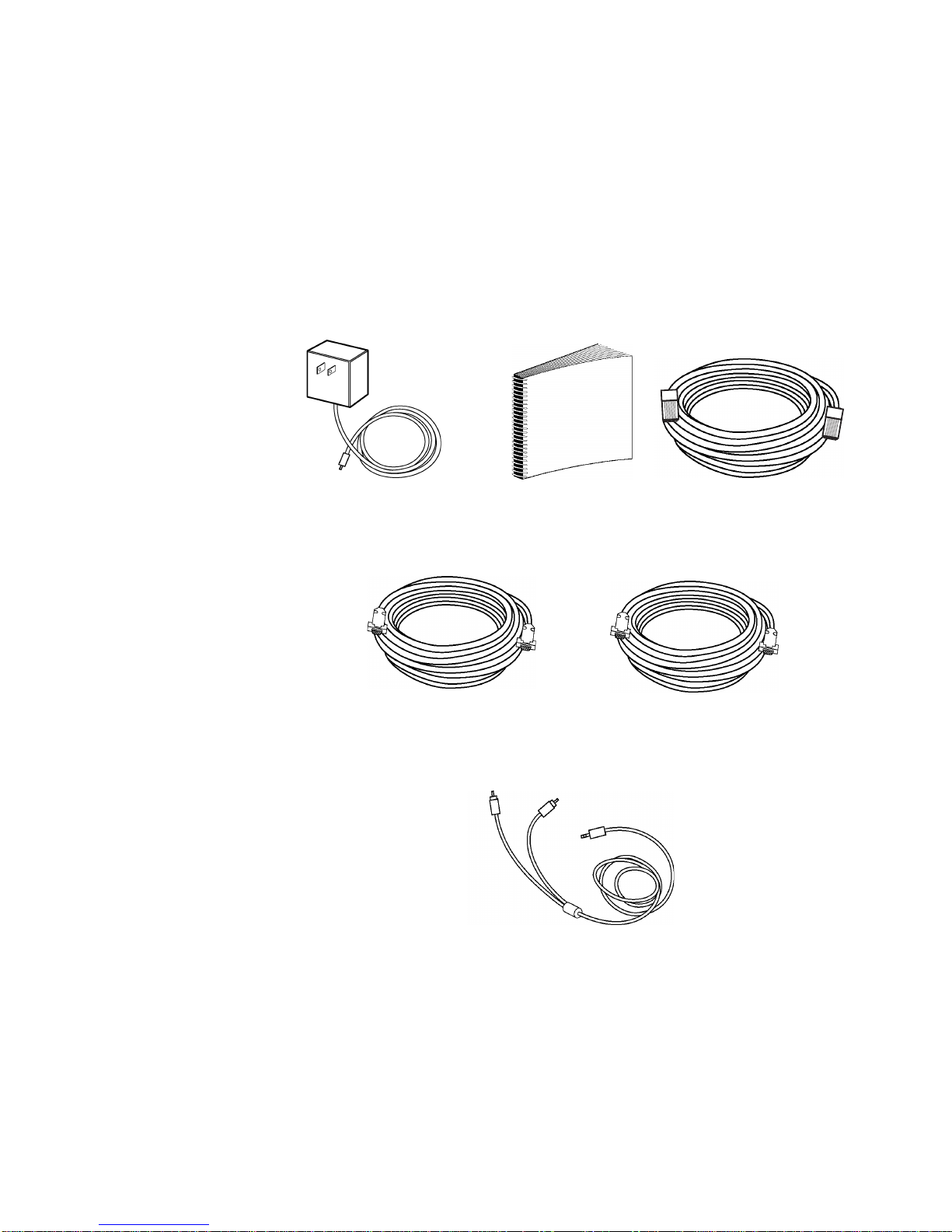

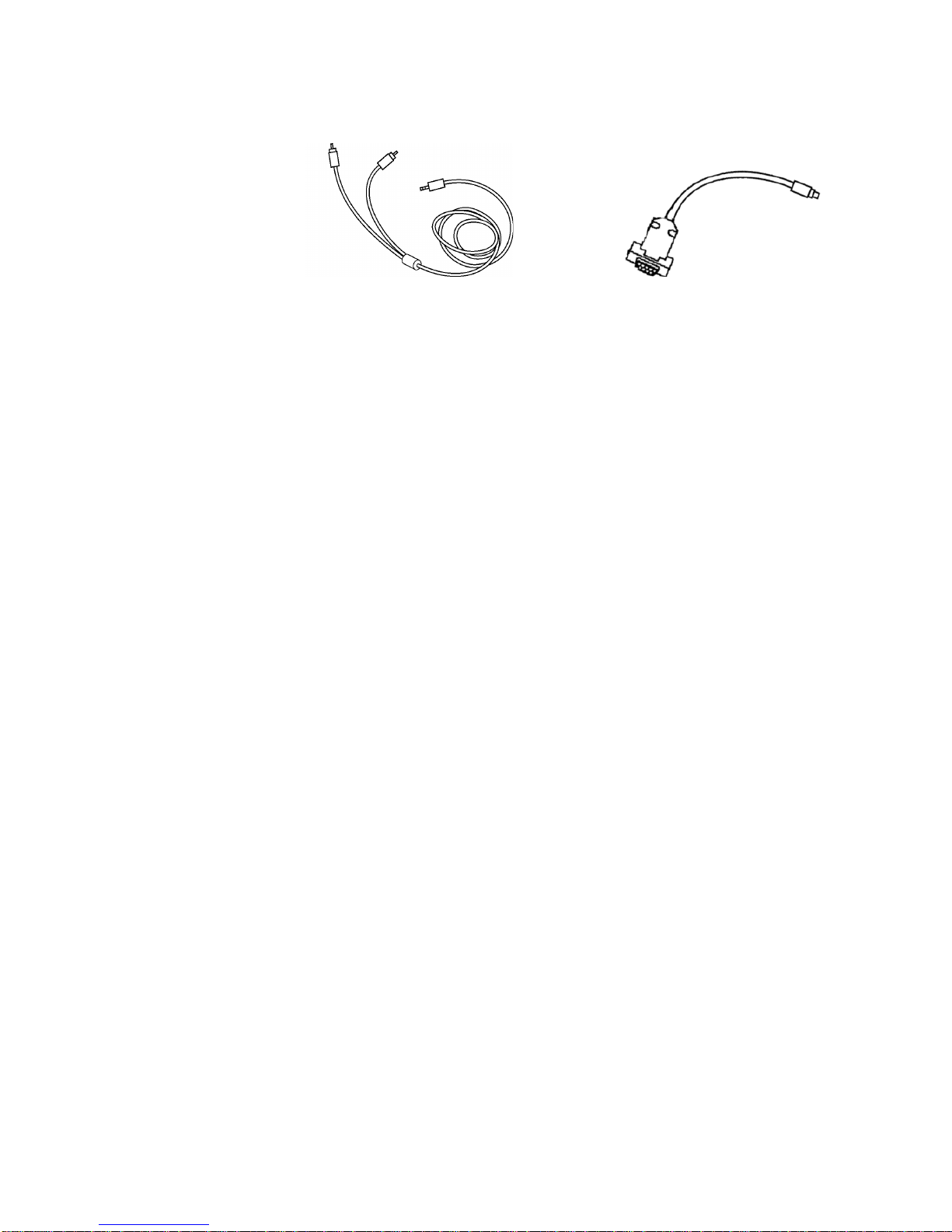

Make sure that all of the items with the associated part number
(P/N) listed below are included in your packaging:
VGA Cable
VGA CableVGA Cable
VGA Cable
Two-meter
Two-meterTwo-meter
Two-meter
Mini-jack Cable
Mini-jack CableMini-jack Cable
Mini-jack Cable S-video Cable
S-video CableS-video Cable
S-video Cable
Tw o -m e t er
Tw o -m e t erTw o -m e t er
Tw o -m e t er
Tw o- m e t er
Tw o- m e t erTw o- m e t er
Tw o- m e t er
(900-95106-3)
(900-95106-3)(900-95106-3)
(900-95106-3) (900-95109)
(900-95109)(900-95109)
(900-95109) (900-46606)
(900-46606)(900-46606)
(900-46606)
Composite Video
Composite VideoComposite Video
Composite Video
Tw o -m e t er
Tw o -m e t erTw o -m e t er
Tw o -m e t er
(900-49706)
(900-49706)(900-49706)
(900-49706)
Cable
CableCable
Cable
Component
ComponentComponent
Component
Tw o- m e t er
Tw o- m e t erTw o- m e t er
Tw o- m e t er
(900-95205)
(900-95205)(900-95205)
(900-95205)
to RCA Cable
to RCA Cableto RCA Cable
to RCA Cable
9-pin RS-232 Cable
9-pin RS-232 Cable9-pin RS-232 Cable
9-pin RS-232 Cable
(900-95212)
(900-95212)(900-95212)
(900-95212)
Two-meter 15 pin to
Two-meter 15 pin toTwo-meter 15 pin to
Two-meter 15 pin to
Two-meter 9-pin to
Two-meter 9-pin toTwo-meter 9-pin to
Two-meter 9-pin to
User’s Guide
User’s GuideUser’s Guide
User’s Guide
Two 9-Vol t A C
Two 9-Vol t A CTwo 9-Vol t A C
Two 9-Vol t A C
1-Amp Power Adapters
1-Amp Power Adapters1-Amp Power Adapters
1-Amp Power Adapters 9-pin RS-232 Cable
9-pin RS-232 Cable9-pin RS-232 Cable
9-pin RS-232 Cable
(900-95207 US)
(900-95207 US)(900-95207 US)
(900-95207 US)
(010-0294-00)
(010-0294-00)(010-0294-00)
(010-0294-00)
(900-95209)
(900-95209)(900-95209)
(900-95209)
(900-95208 Europe)
(900-95208 Europe)(900-95208 Europe)
(900-95208 Europe)

What’s in the PL-300/PL-300E Accessories Box?
6 ProjectionLink User & Installation Guide
Additional parts are also included for mounting. These parts
are the:
• Table Mounting Bracket (140-01610)
• Rack Mounting Bracket (140-01611)
• Receiver Ceiling Mount Bracket (140-01612)
• Hardware Mounting Kit (080-03028) that contains:
• U-bolt assembly that includes the u-bolt, flat plate, and two
hex nuts
• eight 8 mm screws
• four #10-32 screws
Two-meter Mini-jack
Two-meter Mini-jackTwo-meter Mini-jack
Two-meter Mini-jack
to RCA Audio Cable
to RCA Audio Cableto RCA Audio Cable
to RCA Audio Cable
(900-95210)
(900-95210)(900-95210)
(900-95210)
Six-inch 9-pin to
Six-inch 9-pin toSix-inch 9-pin to
Six-inch 9-pin to
MiniDin 8 Cable
MiniDin 8 CableMiniDin 8 Cable
MiniDin 8 Cable
(301113)
(301113)(301113)
(301113)

What is ProjectionLink?
ProjectionLink User & Installation Guide 7
What’s in the BNDL-001
Accessories Box?
Make sure that all of the items with the associated part number
(P/N) listed below are included in your packaging:
User’s Guide
User’s GuideUser’s Guide
User’s Guide
One 9-Volt AC
One 9-Volt ACOne 9-Volt AC
One 9-Volt AC
1-Amp Power Adapter
1-Amp Power Adapter1-Amp Power Adapter
1-Amp Power Adapter (010-0294-00)
(010-0294-00)(010-0294-00)
(010-0294-00)
(900-95207 US)
(900-95207 US)(900-95207 US)
(900-95207 US)
100-Foot Category-5
100-Foot Category-5100-Foot Category-5
100-Foot Category-5
Unshielded Twisted
Unshielded TwistedUnshielded Twisted
Unshielded Twisted
Pair Cable
Pair CablePair Cable
Pair Cable
(210-0209-00)
(210-0209-00)(210-0209-00)
(210-0209-00)
VGA Cable
VGA CableVGA Cable
VGA Cable
Tw o- m e t er
Tw o- m e t erTw o- m e t er
Tw o- m e t er
(900-95106-3)
(900-95106-3)(900-95106-3)
(900-95106-3)
Two-meter 9-pin to
Two-meter 9-pin toTwo-meter 9-pin to
Two-meter 9-pin to
9-pin RS-232 Cable
9-pin RS-232 Cable9-pin RS-232 Cable
9-pin RS-232 Cable
(900-95209)
(900-95209)(900-95209)
(900-95209)
Two-meter Mini-jack
Two-meter Mini-jackTwo-meter Mini-jack
Two-meter Mini-jack
to RCA Audio Cable
to RCA Audio Cableto RCA Audio Cable
to RCA Audio Cable
(900-95210)
(900-95210)(900-95210)
(900-95210)

RS-232 Control Cables
8 ProjectionLink User & Installation Guide
Additional parts are also included for mounting. These parts
are the:
• Table Mounting Bracket (140-01610)
• Rack Mounting Bracket (140-01611)
• Hardware Mounting Kit (505-1043-00) that contains:
• eight 8 mm screws
• four #10-32 screws
RS-232 Control Cables
All cables required for various configurations are included with
ProjectionLink. However, you will only need a few of these
cables to make your actual connections. The following table
lists which cables are needed for RS-232 control:
Projector Cable(s) required Part
Number
(P/N)
Provided with
X350 N/A N/A
S520 HD15 to DB9 (15-pin to 9-pin) 900-95212 ProjectionLink
LX2, LS2 MiniDin8 to DB9 (8-pin to 9-pin) 900-95190 Projector
DP6150 9-pin to MiniDin
MiniDin8 to MiniDin8 (8-pin to 8-pin)
301.113
301.102
ProjectionLink
Projector
DP6850, DP6850+ HD15 to DB9 (15-pin to 9-pin) 900-95212 ProjectionLink
DP9240, DP9260,
DP9260+
MiniDin8 to DB9 (8-pin to 9-pin) 900-95190 Projector
Pro AV 9320,
Pro AV 9350
DB9 to DB9 RS-232 cable (9-pin to
9-pin)
900-95209 ProjectionLink
DP9280 MiniDin8 to DB9 (8-pin to 9-pin) 900-95190 Projector
Pro AV 9400,
Pro AV 9400+,
Pro AV 9410
DB9 to DB9 RS-232 cable (9-pin to
9-pin)
900-95209 ProjectionLink

ProjectionLink User & Installation Guide 9
Chapter 2:
Installing ProjectionLink
Installing ProjectionLink involves making connections
between your projector, transmitter, and receiver. These con-
nections are different based on the projector you are using
with ProjectionLink. Be sure to use the connections for your
particular unit.
Before Installing
Make sure to do the following prior to installing Projection-
Link:
1. Make sure you understand how to work with installed
projector applications. This Installation Guide only helps
configure a projector with the ProjectionLink system. For
help with projector installation, contact a Proxima sales
engineer.

Connecting the External PL-300 Receiver
10 ProjectionLink User & Installation Guide
2. Connect a computer source directly to your projector, ver-
ify the image quality, and make any adjustments.
Connecting the External
PL-300 Receiver
Before installing the receiver and cabling, we recommend you
test the cable and connections. This enables you to easily
make any adjustments to the receiver. It may be necessary to
match the receiver to the length of cable used in the installa-
tion. See “Connecting CAT-5 Cable” on page 27 for more
information.
The receiver has the following ports:
ProjectionLink receiver
1
11
12
22
23
33
34
44
47
77
76
66
6
5
55
5

Installing ProjectionLink
ProjectionLink User & Installation Guide 11
The receiver ports function as follows:
PORT CONNECTS…
1Computer video from the receiver to the projector.
2 Computer stereo audio from the receiver to the projector.
3Composite video from the receiver to the projector.
4 S-video from the receiver to the projector.
5Video stereo audio from the receiver to the projector.
6 Component video from the receiver to the projector.
7RS-232 control from the receiver to the projector.

Connecting the External PL-300 Receiver
12 ProjectionLink User & Installation Guide
To the DP6850 and DP6850+
Use the following illustration as a guide for connecting the
receiver to the DP6850 and DP6850+:
See “Appendix D: Operational Summary” on page
53 for an operational summary. It is only possible to
connect one type of video input at a time. You
cannot connect an S-video and a composite video
source at the same time. Choose either S-video or
composite video for your input source.
12
12
AUDIO IN AUDIO
OUT
RGB IN
RGB OUT
CONTROL
USB
VIDEO IN
S-VIDEO IN
AUDIO IN
MONO
Video
Cable
S-Video Cable
RS232 Control Cable
VGA
Cable
Video Audio Cable
Computer
Audio
Cable
