PSB CustomSound CW180R User manual

Be He ard, Not Seen
P S B C u s t o m S o u n d I n - W a l l S p e a k e r S y s t e m
The CW180R/CW180S provides a high performance in-wall CustomSound
solution for in-ceiling and space restricted installations. Clever engineering
and world-class industrial design combine in the PSB CW180 coaxial in-wall
loudspeakers. Special attention has been paid to the issue of aiming sonic
energy toward the listener without forfeiting sonic integrity. Available
in round or square versions (CW180R and CW180S) each employ the same
Platinum-derived eight-inch woofer and dome tweeter as the CW383, re-
engineered for a two-way layout. The PSB coaxial in-walls use a unique high
frequency, constant directivity SonicGuide™ that is gimbaled to angle in
any direction. The SonicGuide™ is a proprietary extensively adjustable and
aimable, multipart fl are attached to a 1” metal dome t weeter. Its contours
and dimensions are designed such that it provides very even response with
little variation both on and off axis. It also increases the directivity of
the tweeter so that the listener hears transparent, naturally focused
sound. Equally important, SonicGuide reduces “backwards” tweeter energy
that otherwise refl ects from the woofer cone, thus eliminating a serious
response error that plagues virtually every other “coax” speaker. The
SonicGuide can be tilted 30 degrees left or right and the whole assembly
turned through 90 degrees.
“Dog leg” style mounting clips insure quick and easy mounting. Two response
tailoring switches provide adjustment to midrange and tweeter levels.
Whether mounted in the wall or in the ceiling the system’s response can
be directed toward the listener for best possible sound. The result is very
natural sound quality and great installation versatility.
CW180R / CW180S 8” Coaxial Speaker System
11.125"
283mm
4"
102mm
9.875"
251mm
• Platinum-derived 8” woofer and 1” tweeter
• Unique high-frequency, constant directivity SonicGuide™
gimbals to provide a focused, even response both on and off
axis
• SonicGuide™ can be tilted 30° left or right and the whole
assembly turned through 90 degrees
• Fully enclosed back box NCB available
• Midrange and tweeter switches allow for response
adjustments
Frequency Range (-6dB): 38-21,000Hz
Recommended Power: 20-100 Watts
Impedance: 4 Ohms
Sensitivity (1W (2.83V) @1m)
Anechoic Chamber: 88dB SPL
Typical Listening Room: 90dB SPL
Drivers: 8” Woofer
1” Dome Tweeter
Overall Dimensions (W x D): 11 1/8 diameter x 4”
Cut-out Dimensions (W): 9 7/8” diameter
Overall Dimensions (W x H x D): 11 1/8 x 11 1/8 x 4”
Cut-out Dimensions (W x H): 9 7/8 x 9 7/8”
CW180R / CW180S 8” Coaxial Speaker System
www.psbspeakers.com
1 888 772 0000
PSB Speakers reserves the right to change specifications or features without notice.
© 2004 PSB Speakers, a division of Lenbrook Industries Limited.
PSB is a registered trademark of Lenbrook Industries Limited. Printed in Canada 09/04. All rights reserved.
No part of this publication may be reproduced, stored or transmitted in any form whatsoever without the written permission of PSB Speakers.
• Try to install the systems at a height
between seated and standing ear level.
• Distance between left and right speakers
should approximately equal the distance from
the listening area to the wall or ceiling.
• Make small exploratory hole and check for
obstructions in wall cavity before cutting
mounting hole.
• Use template provided and carefully mark and
cut mounting hole.
• Lightly fi ll wall cavity with fi berglass for 2
feet above and below system (CW180S). Use
standard 4” fi berglass split to half thickness.
Use 1” thick fi berglass behind system.
• Adjust electric screwdrivers to appropriate
torque. Tighten 4 mounting screws fi rmly but
do not over tighten!
• SonicGuide tweeter can be turned +- 45
degrees via the gimbal ring, then +- 30
degrees on its axis.
• Aim tweeter toward center of listening area.
• Switches give subtle balance adjustments
for midrange and treble. Set to suit room
acoustics and listener taste.
• See manual for more installation hints.
Installation Notes
11.125"
283mm
4"
102mm
9.875"
251mm

Other manuals for CustomSound CW180R

2

This manual suits for next models

1

Other PSB Speakers System manuals

PSB CustomSound CW383 User manual

PSB

PSB CustomSound CW383 User manual

PSB speaker system User manual

PSB

PSB speaker system User manual

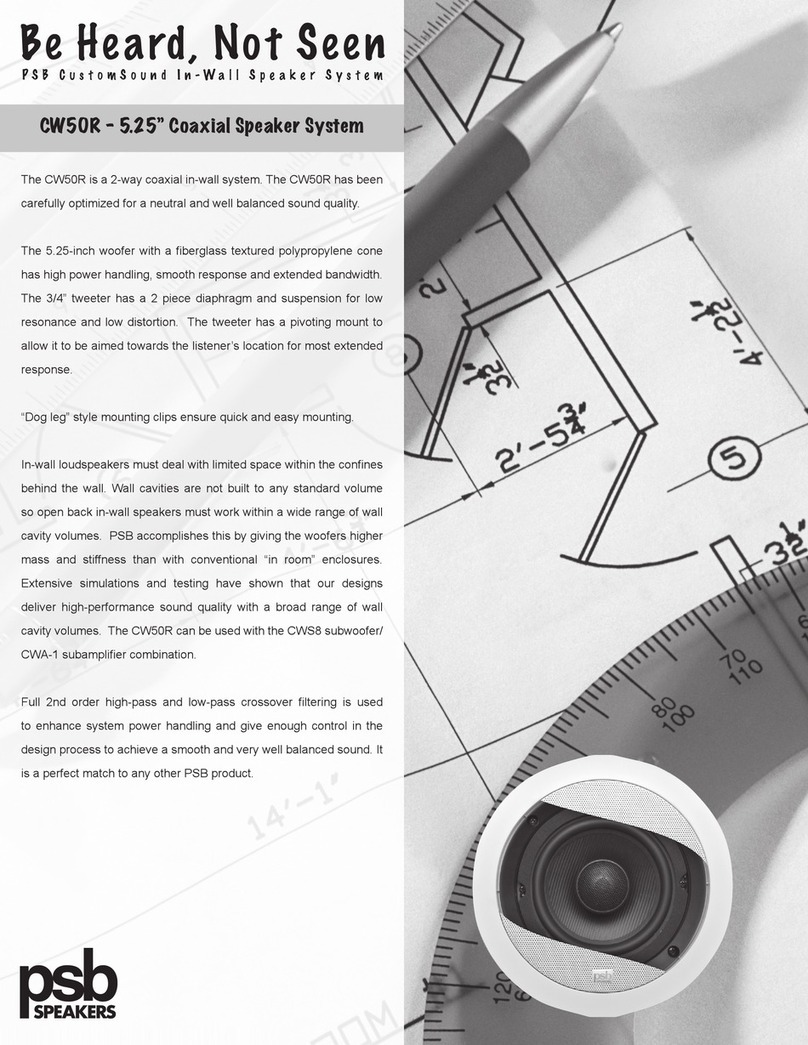

PSB CW50R User manual

PSB

PSB CW50R User manual

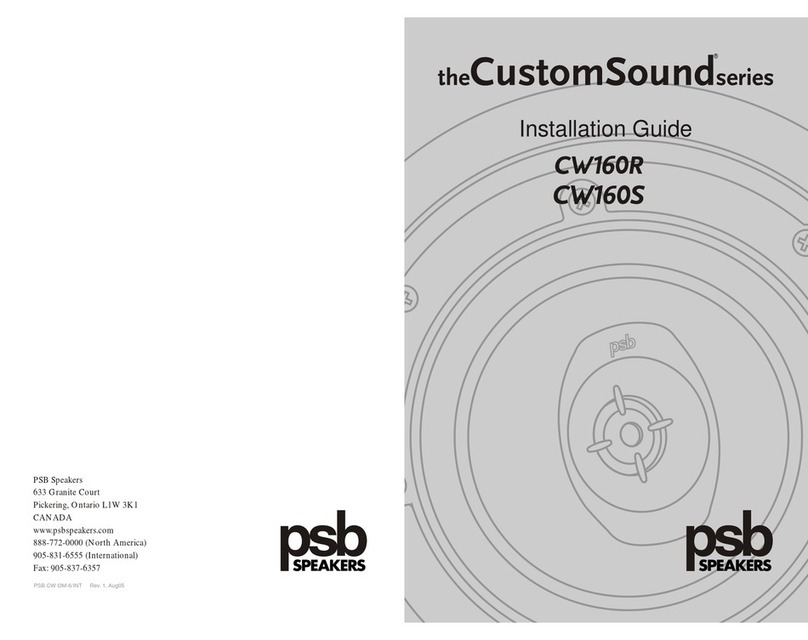

PSB CustomSound CW160R User manual

PSB

PSB CustomSound CW160R User manual

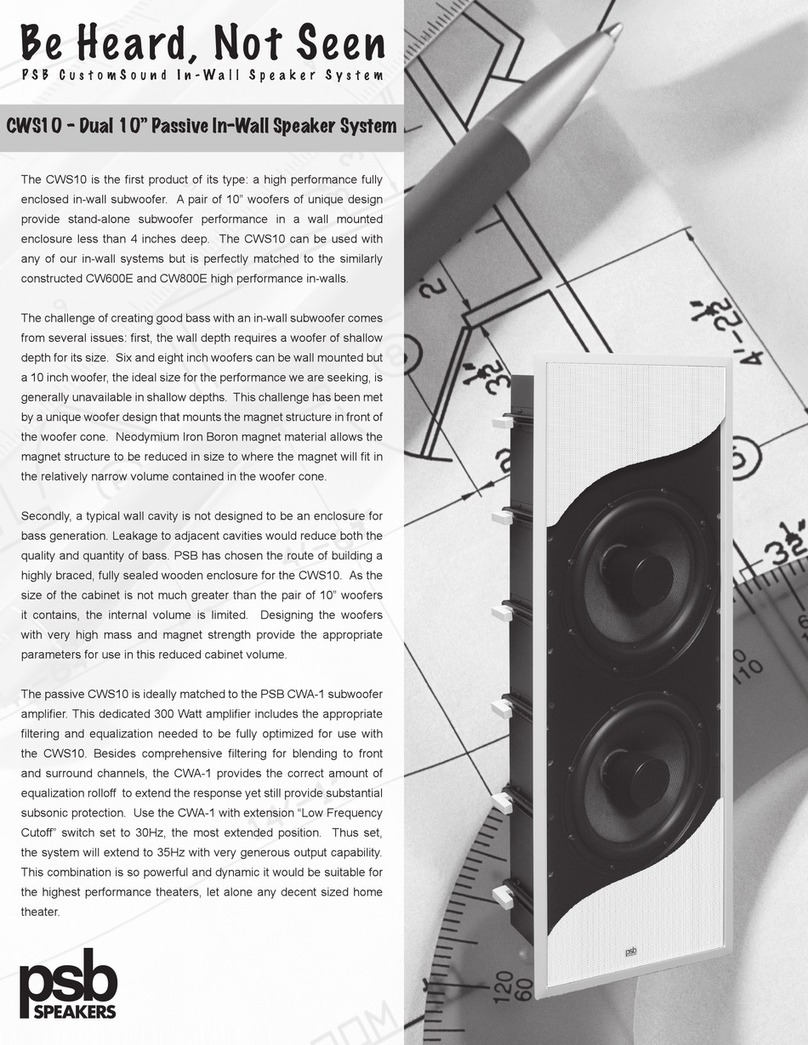

PSB CustomSound CWS10 User manual

PSB

PSB CustomSound CWS10 User manual

PSB CustomSound CW180R User manual

PSB

PSB CustomSound CW180R User manual

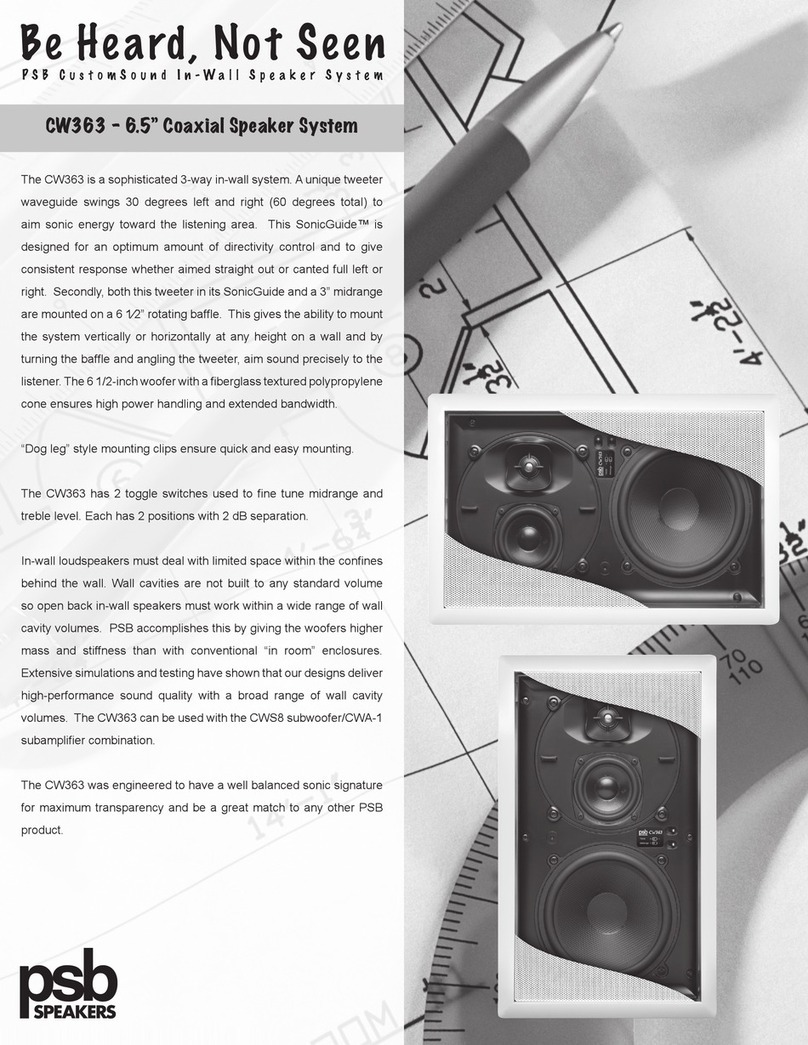

PSB CustomSound CW363 User manual

PSB

PSB CustomSound CW363 User manual

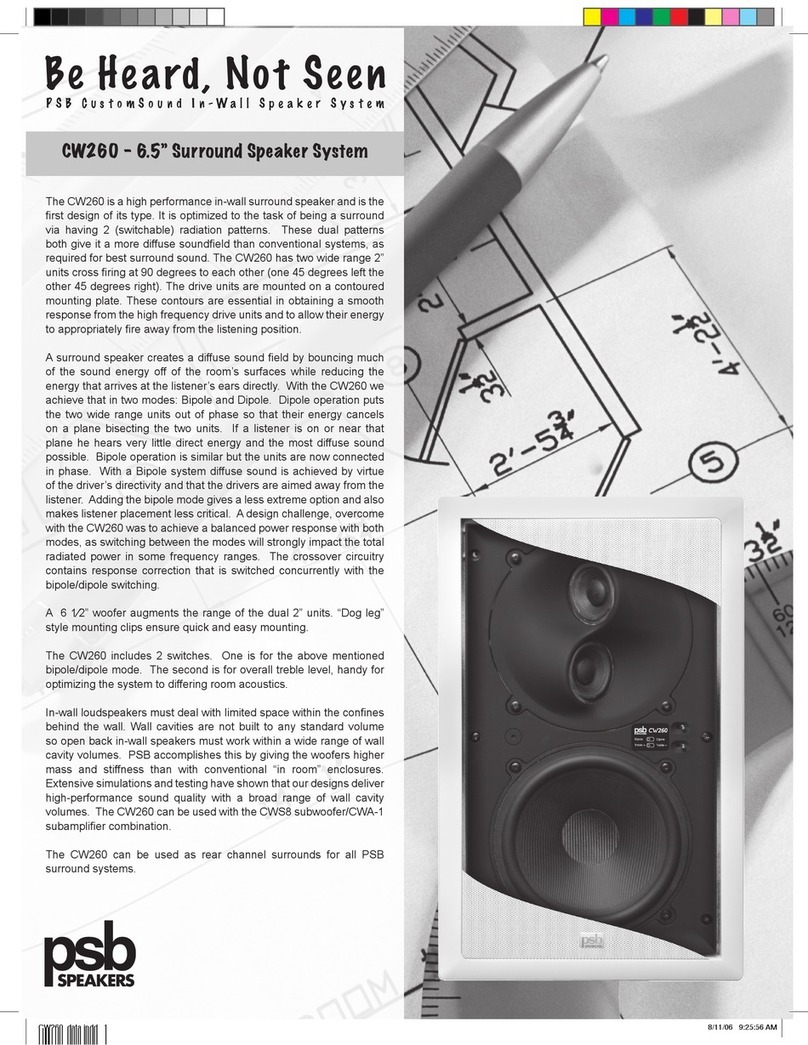

PSB CW260 User manual

PSB

PSB CW260 User manual

PSB CustomSound CW262 User manual

PSB

PSB CustomSound CW262 User manual

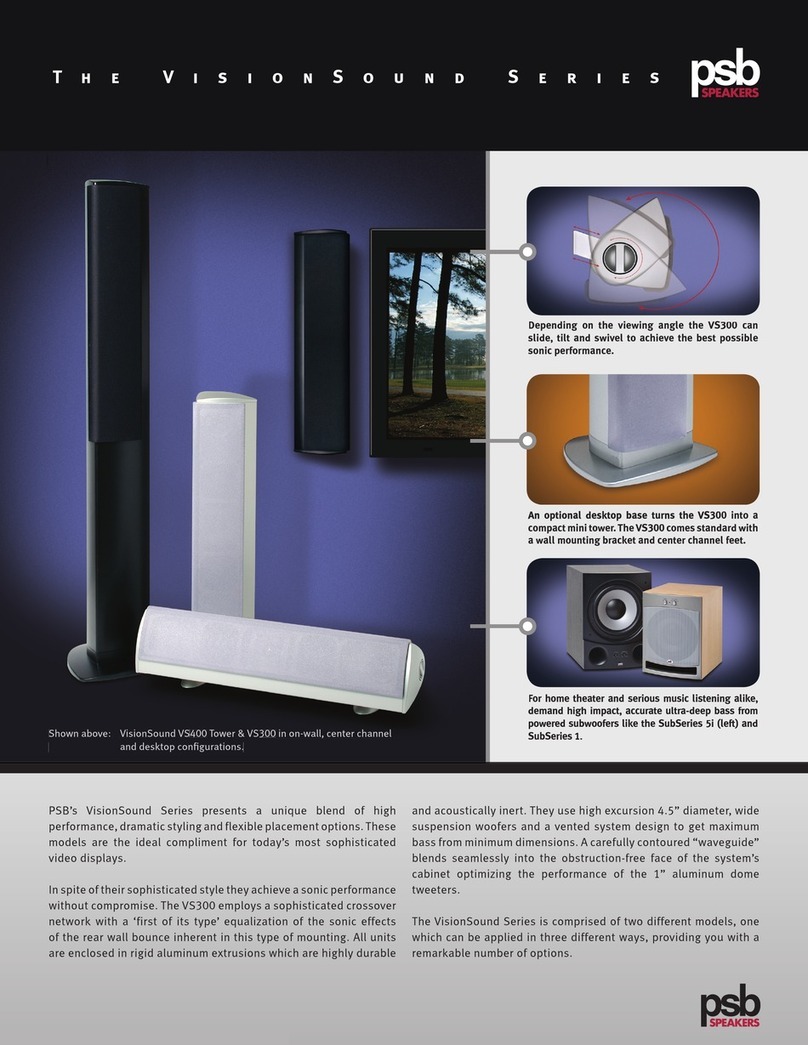

PSB VisionSound VS300 User manual

PSB

PSB VisionSound VS300 User manual

PSB CustomSound CW800E User manual

PSB

PSB CustomSound CW800E User manual

PSB CustomSound CW180R User manual

PSB

PSB CustomSound CW180R User manual

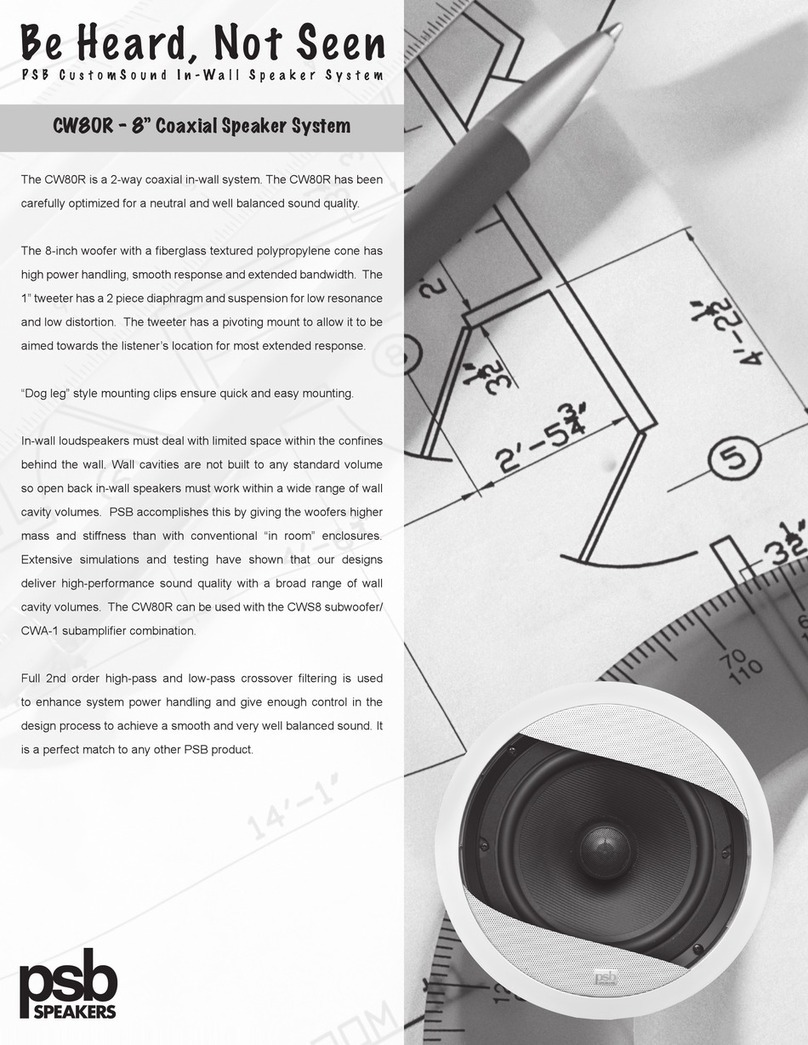

PSB CW80R User manual

PSB

PSB CW80R User manual

Popular Speakers System manuals by other brands

VM Audio VMHS511 Quick installation guide

VM Audio

VM Audio VMHS511 Quick installation guide

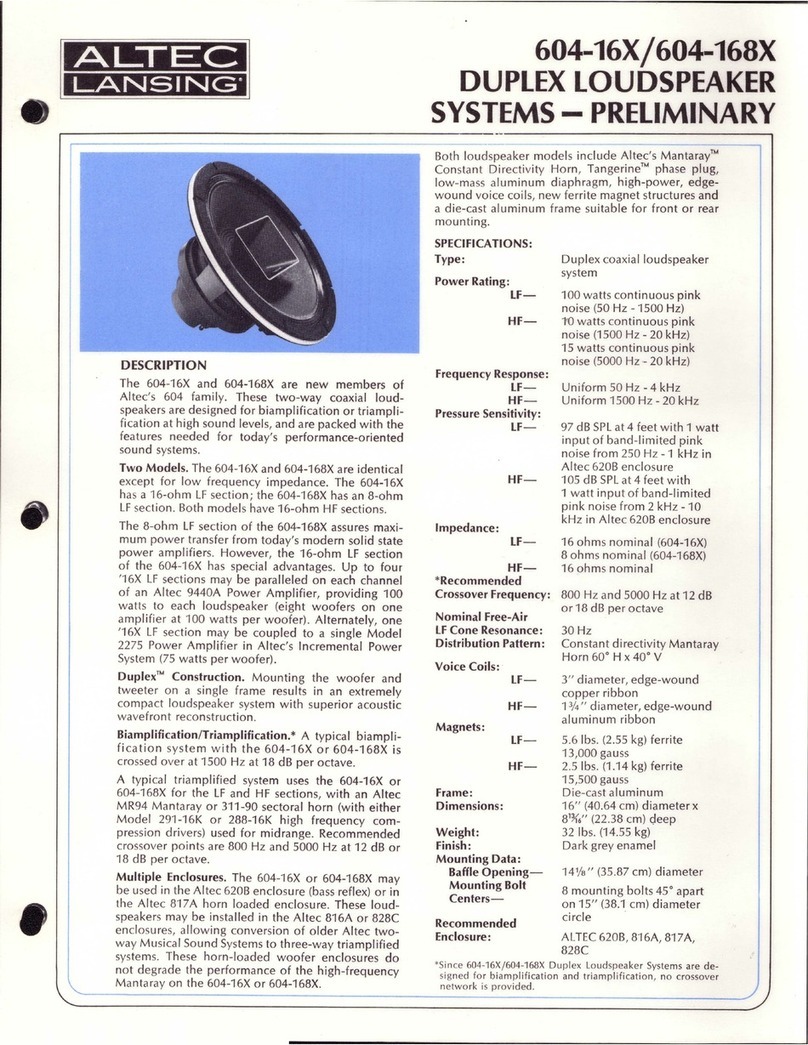

Altec Lansing 604-168X DUPLEX SPEAKER manual

Altec Lansing

Altec Lansing 604-168X DUPLEX SPEAKER manual

Harman Kardon HKTS 11 owner's manual

Harman Kardon

Harman Kardon HKTS 11 owner's manual

Sony SRS-ZX1 operating instructions

Sony

Sony SRS-ZX1 operating instructions

A&S 800 user manual

A&S

A&S 800 user manual

Onkyo D-N5 Service manual

Onkyo

Onkyo D-N5 Service manual

Logitech Z-640 Setup

Logitech

Logitech Z-640 Setup

BBK FSA-1806 Service manual

BBK

BBK FSA-1806 Service manual

Paradigm Cinema 100 CT owner's manual

Paradigm

Paradigm Cinema 100 CT owner's manual

EAW MK2196 Dimensions

EAW

EAW MK2196 Dimensions

Yamaha NX-B150 owner's manual

Yamaha

Yamaha NX-B150 owner's manual

Magnavox MHT860 user manual

Magnavox

Magnavox MHT860 user manual

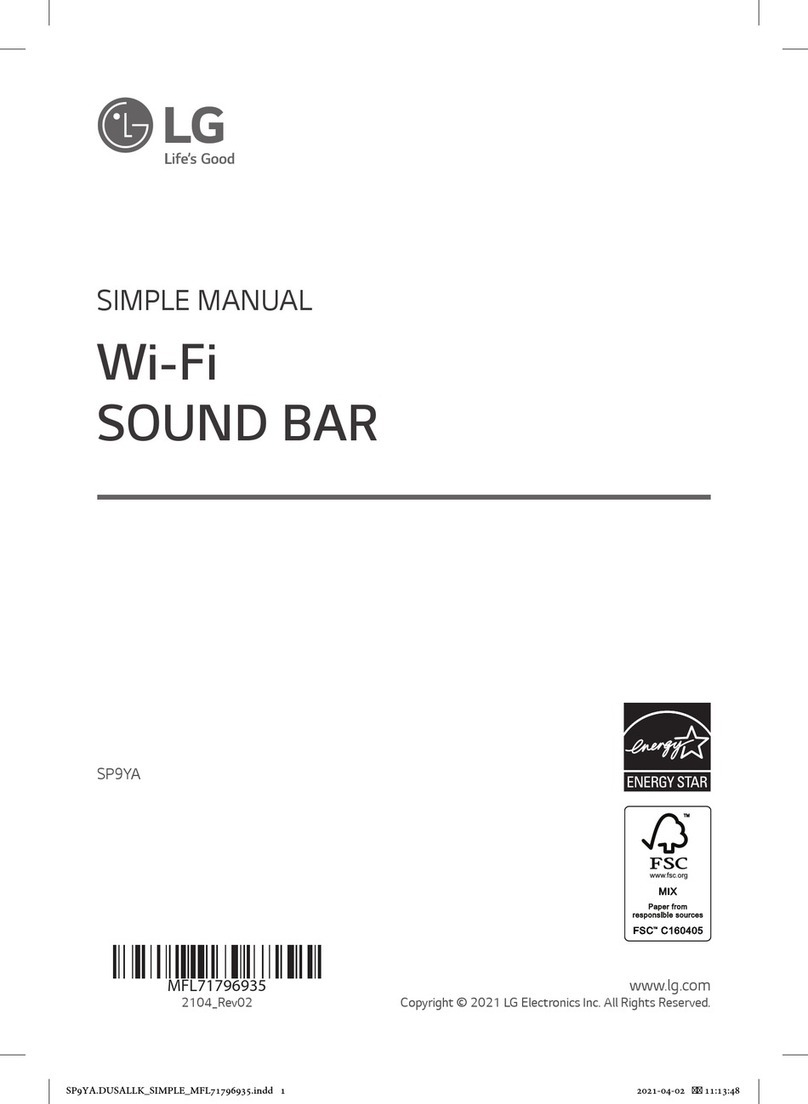

LG SP9YA Simple manual

LG

LG SP9YA Simple manual

LG SH6 Simple manual

LG

LG SH6 Simple manual

Yamaha YSP-3300 Firmware Updates

Yamaha

Yamaha YSP-3300 Firmware Updates

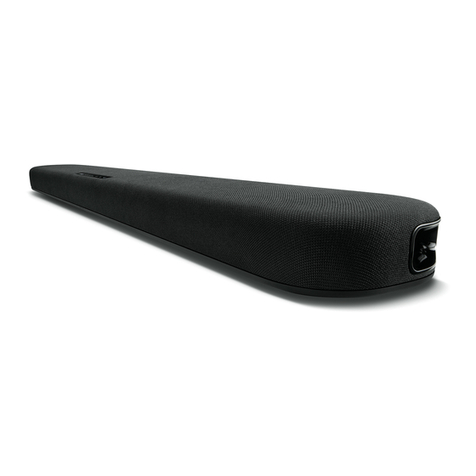

Yamaha SR-B20A quick start guide
