PSI Woodworking Products MLCUTOFF Instruction Manual

#MLCUTOFF PSI Woodworking Products
© 2020 PSI Woodworking Philadelphia PA 19115 - v10/20
WARRANTY
SPECIFICATIONS
Micro Pen Tube Cut O Saw
User Manual
The Micro Tube Saw and Sizing Jig is engineered and manufactured to the highest standards of quality. You will  nd this product an
essential accessory to your workshop. This saw is warranted against defects in material and workmanship for a period of two years
for all components. This warranty applies to the original purchaser of the product and is limited to the repair and/or
replacement of the product, or its parts at the discretion of PSI Woodworking Products. Excluded are parts which have been mis-
used, abused, altered, or consumed by normal operation of the saw. Also excluded are direct or consequential damages to persons,
properties, or materials. Your invoice serves as proof of purchase and must be referenced to authorize any warranty repair. Call your
PSI dealer for proper authorization.
• Power Source: 110VAC, 60HZ, .9AMP
• Blade: HSS 2” dia, .020”Thick
• Max RPM: 7800, Arbor 3/8”
Read Manual before operating
• Copy any pen tube exact length
• Ideal for quickly cutting single or
multiple pen tubes
• Integrated ruler for sizing

#MLCUTOFF PSI Woodworking Products
© 2020 PSI Woodworking Philadelphia PA 19115 - v10/20
GENERAL & SPECIFIC SAFETY RULES
1. KEEP GUARDS IN PLACE and in working order
2. KEEP WORK AREA CLEAN. Cluttered areas and benches invite accidents
3. DON’T USE IN DANGEROUS ENVIRONMENT. Don’t use power tools in damp or wet locations or expose them to rain. Keep
work area well lit.
4. KEEP CHILDREN AWAY. All visitors should be kept a safe distance from work area.
5. Make Workshop Kid Proof.
6. DO NOT FORCE TOOL. It will do a better and safer job at the rate for which it was designed.
7. USE THE RIGHT TOOL. Don’t force tool to do a job for which it was not designed.
8. WEAR PROPER APPAREL. Do not wear loose clothing, gloves, neckties, rings or other jewelry that can get caught in the
moving parts. Wear non-slip footwear. Tie back and/or cover long hair.
9. USE SAFETY GOGGLES OR FACE SHIELD. Everyday glasses are NOT safety glasses.
10. USE FACE OR DUST MASK for operations that generate particulates.
11. DON’T OVER-REACH. Keep balance and footing at all times.
12. MAINTAIN TOOLS. For best and safest performance keep tools clean, sharp, and lubricated.
13. DISCONNECT TOOLS BEFORE SERVICING or changing accessories.
14. USE RECOMMENDED ACCESSORIES to avoid risk of injury
15. NEVER STAND ON TOOL.
16. CHECK FOR DAMAGED PARTS. Before use check for damage and determine if it may interfere with proper operation of
tool. Check for binding and alignment. Damaged guards and parts should be properly replaced.
17. NEVER LEAVE TOOL RUNNING UNATTENDED! Make sure tool is off and has come to a complete stop.
SPECIFIC SAFETY RULES FOR MICRO TUBE CUTOFF SAW Read Manual
before Operating Saw
Warning - No adjustments should be made while Saw is in motion.
Warning – Do not use in area where Children may be present
Warning – Do not alter tool to remove Safety Features
Warning – Only cut pen kit tubes with this saw
A) Wear Eye Protection
B) Do not wear anything that can be caught in the moving parts
C) Tighten all locks before operating

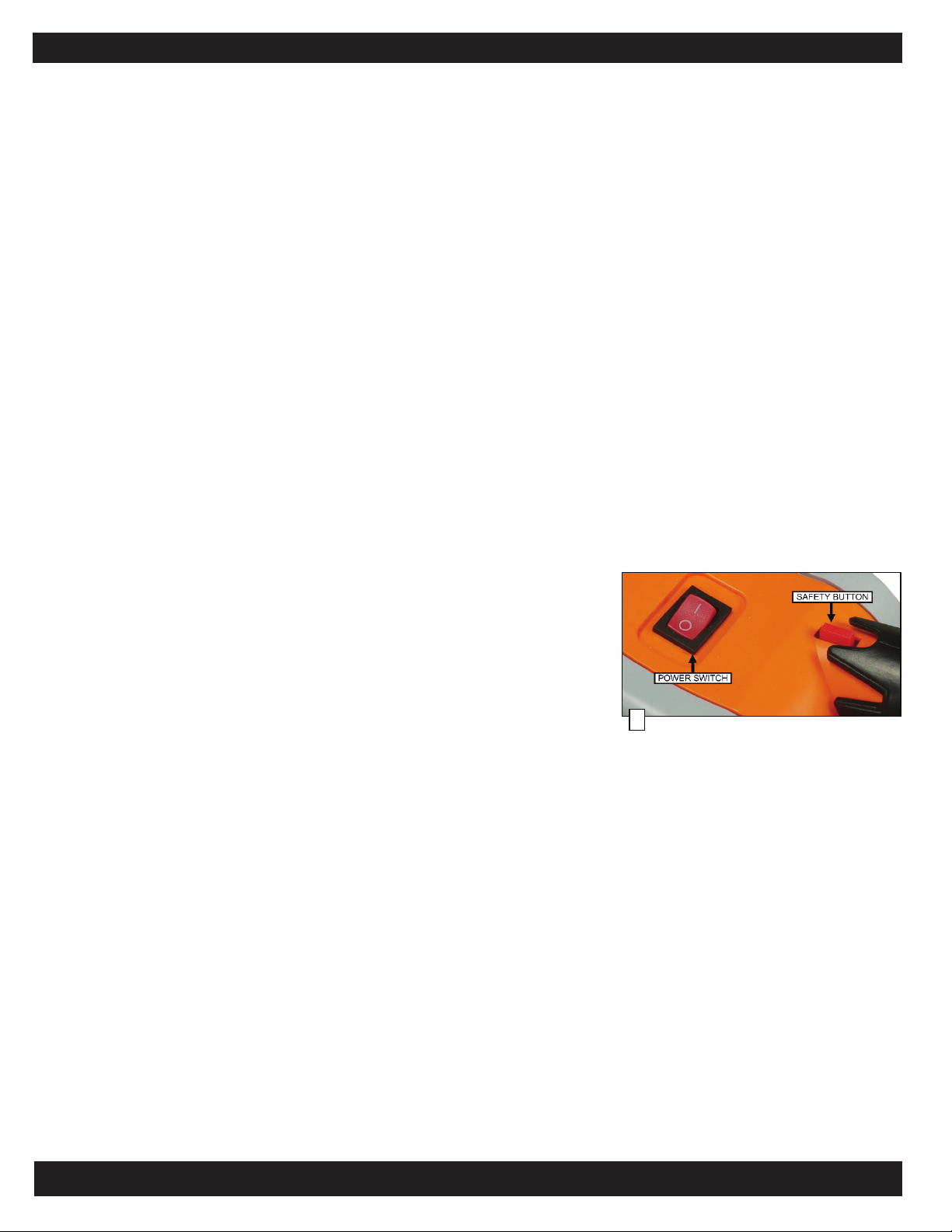

D) Do not press Safety Button prior to pressing Power Switch to on (Dia. A) or turn on saw if blade is already lowered.
E) Keep fingers away from cutting area when saw is powered on
F) For use with thin-walled, hollow tubes - do not use for wood blanks or solid rods.
G) Follow operating instructions in the manual when operating Saw
H) Do not try to hold tube in place by hand.
I) To prevent unsafe or crooked cuts, tube must be long enough to be gripped solidly by the Tube Holder.

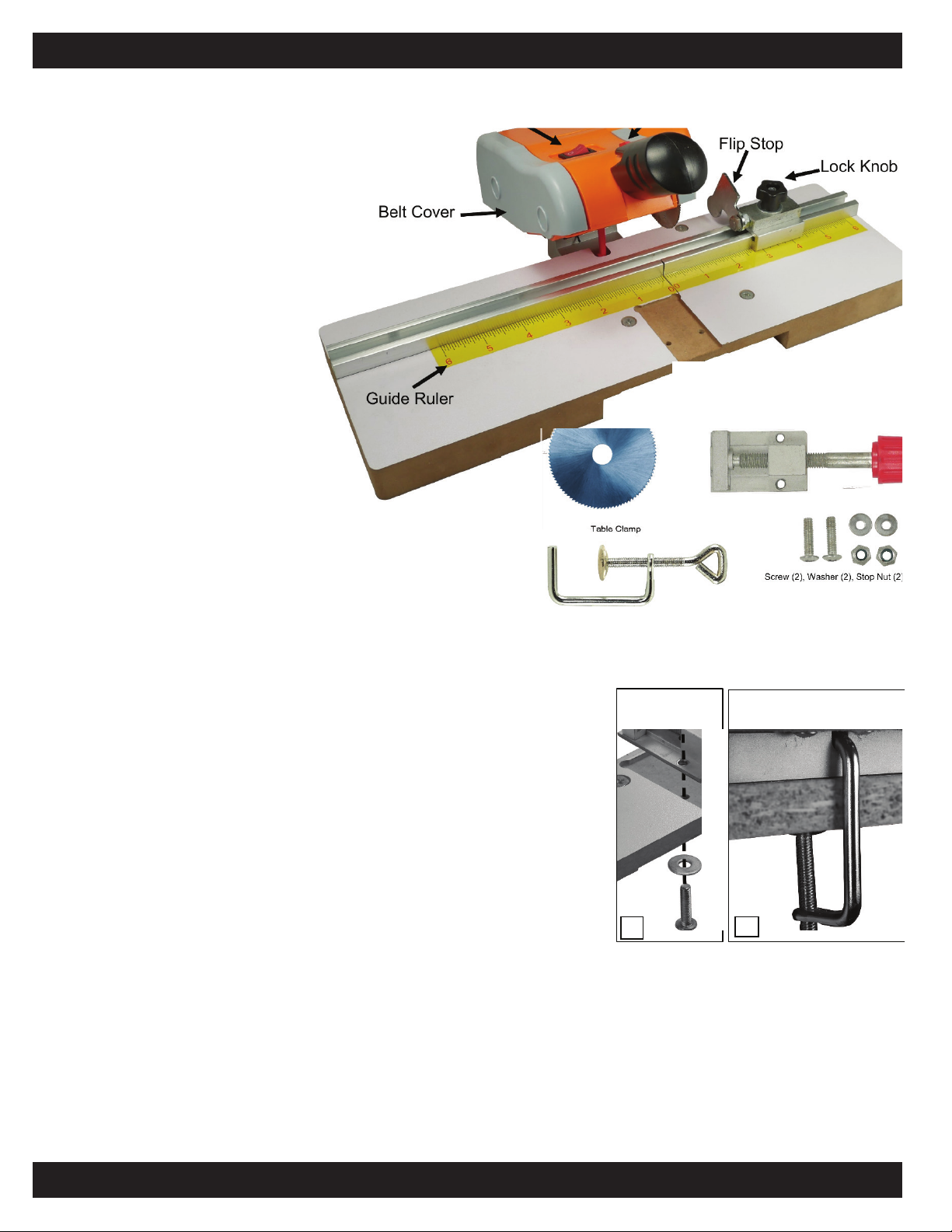

MICRO PEN TUBE CUTOFF SAW
WITH SIZING JIG

SPECIFICATIONS:
• Saw and Table Unit come
pre-assembled. Tube Holder
should be attached per Assembly
instructions below prior to use.
Check contents for accuracy
immediately upon receipt.
• Guide Ruler measures from
the Blade ascending to the right
and left. It can be used for
approximate cuts where exact
dimensions are not needed or to
estimate how many tubes can be
cut from remaining length.
• Saw can cut tubes up to
9/16” diameter tubes in a single
pass. Larger tubes would have to
be turned over for full cuts and
may not be as accurate.
ASSEMBLY:
To allow space for the Clamp to be attached Bolts should be inserted through
Washer and into bottom of table (B1)
Slide Tube Holder onto the Bolt threads
Use small wrench or pliers to hold Stopper Nuts while using Phillips screwdriver
to tighten the Bolts.
Clamping to Table:
Open the clamp (Max. 1-7/8”) and slide the top rod into the hole in the front of
the saw base (B2).
Place Saw on the edge of your table or bench and close the Clamp until saw is
secure
B2
Included Accessories
Saw and Table Unit
(Pre-assembled)
#MLCUTOFF
PSI Woodworking Products
© 2020 PSI Woodworking Philadelphia PA 19115 - v10/20
UNBOXING:

SETTING THE FLIP STOP FOR MEASURING:
• When measuring, the Stop must be down.
• Flip Stop can be set using a sample tube, Guide Ruler, or the locked jaws of digital calipers (see pictures below)
• With power off, press Safety Button and lower the Saw Blade down to the table. Place one side of tube or
caliper against the Saw Blade. Slide Stop against the other end and turn Knob to lock in place.
TUBE CUTTING PROCEDURE:
• Slide tube to be cut from the left side of table, under
Saw Blade, and against the Flip Stop.
• Turn Holder Knob to close Holder against tube just
enough to prevent movement – do not crush tube.
• To prevent unsafe or crooked cuts, tube must be
long enough to be gripped solidly by the Tube
Holder.
• IMPORTANT! Raise the Flip Stop before cutting tube – this allows space for tube
to separate without being grabbed by the blade.
• Switch power on and push Safety Button.
• For a cleaner cut, lower Saw at slow to moderate rate.
• Lower until Blade cuts completely through the tube into the slot in table.
• Turn off and raise saw before attempting to retrieve the cut length
To cut another matching tube:
• Lower Flip Stop, and release Tube Holder grip on the tube.
• Slide fresh length of tube against the stop.
• Tighten Holder, Raise Flip Stop and cut
• Repeat until you have as many tubes as needed.
• Deburr inner opening of the cut tubes using either #BGCAM or #MSDEBURR.
Deburr outside edge with sandpaper.
To Change blade: Lift blade cover to expose screw and turn counter-clockwise. Blade
will spin when loosening, lock it by pushing against object it can’t cut, such as a steel
nut (shown). New blade installation is reverse of removal. Belt cover on opposite side
can be lifted and the belt can be held to keep blade from moving while screw is
tightened.
WARNING: Only cut pen tube kits with this saw or warranty will be void
Tube Must Be Gripped Fully
Nut Stops Blade
Caliper Locked
at 2-1/32”
Sample Tube
Stop Down
Flip Up When Cutting
Stop Down
Turn Counter -
Clockwise
© 2020 PSI Woodworking Philadelphia PA 19115 - v10/20
#MLCUTOFF
PSI Woodworking Products
Saw Blade
