PSI Li-36 User manual

Manufacturer’s PN: PS36L-U7-2
P: +1 270 813 1110
E: [email protected]
PSI Vdc UPS Series
“The Revolution of Standby Power”
Power Any Vdc Device…
Anytime, Anywhere
Li-36 Micro UPS
- World’s Smallest 36 Watt Vdc UPS
- World’s Only Scalable Standby UPS
- Desktop, Wall Mount, or Portable
Standby UPS
- 10 Year Battery Design Life
- Up to 24 Hours of Standby Power
- Industries Highest Rated Surge
Protection
- Fully Functional Audible/Visual
Alarming
12Vdc 36 Watt Power Supply/Charger
Stackable Battery Packs - Stack 1 to 3
Battery Packs for up to 24 ours of Standby
Time
Wall Mountable Back Plate
PS36L-P7
PS36L-P7
NOTE:
to PowerTec Solutions Models PS36L-K7 (Next Generation FTTx Micro UPS)
and all package accessories as listed below.
The reference to "NXG-Vision" within this User Manual refers
NXG-Vision INTRODUCTION
(when ordered with optional Universal )DC power supply and battery
back up device for Indoor 12Vdc Optical Network Terminals (ONT).
The NXG-Vision not only provides constant supply of DC power during
normal operating conditions, but offers battery backup power in case of
electrical power outage. NXG-Vision also provides customer facing
Network Interface Reset Intelligence to provide integrated ONT reset
technology designed to reduce Provider OPEX.
NXG-Vision is designed and intended for use as Desktop or Wall-mount
Please verify all standard contents are accounted for upon receipt of
NXG-Vision. STANDARD: (1) Power Supply/Charger; (1) Li Ion Battery Pack;
(1) AC Power Cord; (1) 7-Pin Connector; (1) User's Manual;Optional:
(1) Universal Wall Mount Enclosure w/ Cover.
NOTE:
PS36L-P7

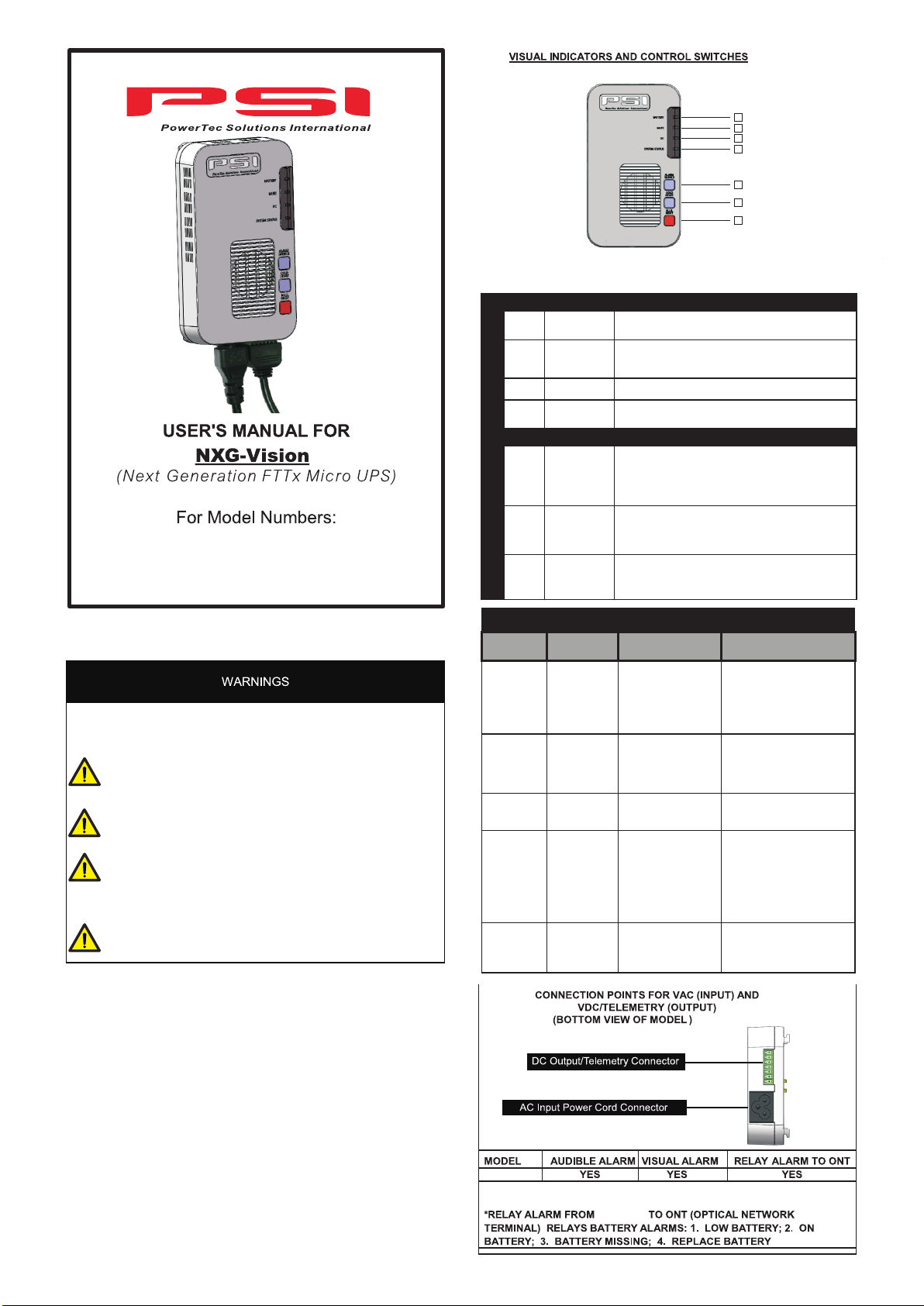

VISUAL INDICATORS
1
Battery
Color Red-
Service or replace battery or battery is not
installed in NXG-Vision.
,
2
Mute
Color-Yellow
Flashing Audible Alarm silenced for 24hrs.
Soid-Audible Alarm Silence Until manually
enable.
-
3
DC
Color Green-
NXG Vision is working off Standby Power.-
4
System
Status
Color- Green
NXG Vision is Recieving AC power load to
operate under normal conditions.
-
CONTROL SWITCHES
5
6
7
4
3
2
1
5
6
7
VISUAL AND AUDIBLE STATUS/ALARM SIGNALS
STATE
VISUAL
INDICATOR
AUDIBLE
INDICATOR
DESCRIPTION
Normal
System
Status
Indication On
Operating under normal AC
line power load and
conditions,
charges battery.Battery is
connected and in good
condition.
ON Battery
DC
Indicator On
AC line power failure
or AC cord
disconnection.NXG-
Vision is being supplied
with battery power.
Replace
Battery
Battery
Indicator On
1 2 second audible
indicator every 15
min.
/
Replace faulty or end of
life battery.
Battery
Missing
Battery
Indicator On
NXG Vision is operating
on AC line power only
without available
stanby power for outage
scenario.When battery
is removed from
unit,battery indicator will
illuminate after 5 sec.
-
Low Battery
DC Indicator
Flashes
1 2 second audible
indicator 4 times
per minute.
/
Battery has reached equal
to or less than 30%
remaining capacity on
battery discharge.
Review the following important safety warnings to avoid bodily injury or damage
to equipment during installation or operation of this device.
Read ALL instructions before attempting to install or operate this device.
This device is intended for indoor use only. To prevent the risk of fire or
eletrical shock, install in dry location free from damp or wet environment,
or potentially damp or wet environment.
Adhere to all acceptable operating environment limitations as listed to
prevent the risk of fire or electrical shock (see user specifications
within User's Manual)
Risk of fire or explosion if improper battery pack is installed and
attempted to operate with this device. Device is rated and approved for
use with PowerTec Solutions Internation Li Ion Battery Pack ONLY.
Follow User Manual instructions for proper installation and removal of
battery pack.
NO user-replaceable parts within this device. Do not remove cover for
any reason.
Allows NXG Vision to cold start power off
Battery Pack when AC line power is not
present and new or replacement pack is
connected,press and hold for 3 seconds.
-
Allows for DC line power reset of optical
Network terminal.Press and hold for 3
seconds to reset/reboot optical newwork
terminal.
Alarm
Silence
Cold
Start
N.I.R.
Reset
Disables Audible Alarm function. Press and release
to disable Audible Alarm for 24 hours. Press and hold
for 15 seconds to disable Audible Alarm indefinitely.
Press and hold for another 15 seconds in order to
re-enable Audible Alarm function.
TECHNICAL SPECIFICATION
INPUT
Voltage Range
100Vac 240Vac-
Frequency Range
50 60Hz/
Input Power ord C
NEMA 5 15 3 Prong Power Cord - / -
Intput Ground Reference
Earth Grounded
OUTPUT-ON AC
Output Voltage
12Vdc Nominal ( )
Continuous Power Capacity
3A 36WATT( )
OUTPUT-ON BATTERY
Output Voltage
12Vdc Nominal ( )
Continuous Power Capacity
3A 36WATT( )
BATTERY
Battery Type
Lithium lon Battery Pack
Design Life
10 15Years-
Battery Capacity
14 8V 5200mAh. /
Typical Recharge Time
<12 hrs
Replaceable Pack
Yes
SURGE PROTECTION AND
FILTERING
Lightning Surge Protection/
Yes IEC 61000 4 5 2005 LEVEL D( - - )
MANAGEMENT
Battery Auto Charge -
Yes
Remote Battery Alarming
Optional
Local Alarming Audible Visual ( / )
Yes
Alarm Silence
24 Hour Silence
Yes
Disable Indefinitely
Yes
ONT Reset
Yes
Cold Start
Yes
PHYSICAL
Maximum Dimensions ×W×D (L)
155mm×89mm×31mm
Weight lb( .)
1 76lb with battery pack.( )
ENVIRONMENT
Operating Temperature
-10℃ - 49℃( 14℉ - 120.2℉) at full power
Operating Humidity
0-95% noncondensing within enclosure
Max Operating Elevaion
10 000ft 3 000m,( , )
Storage Temperature
-30℃ - 65℃( -22℉ -149℉)

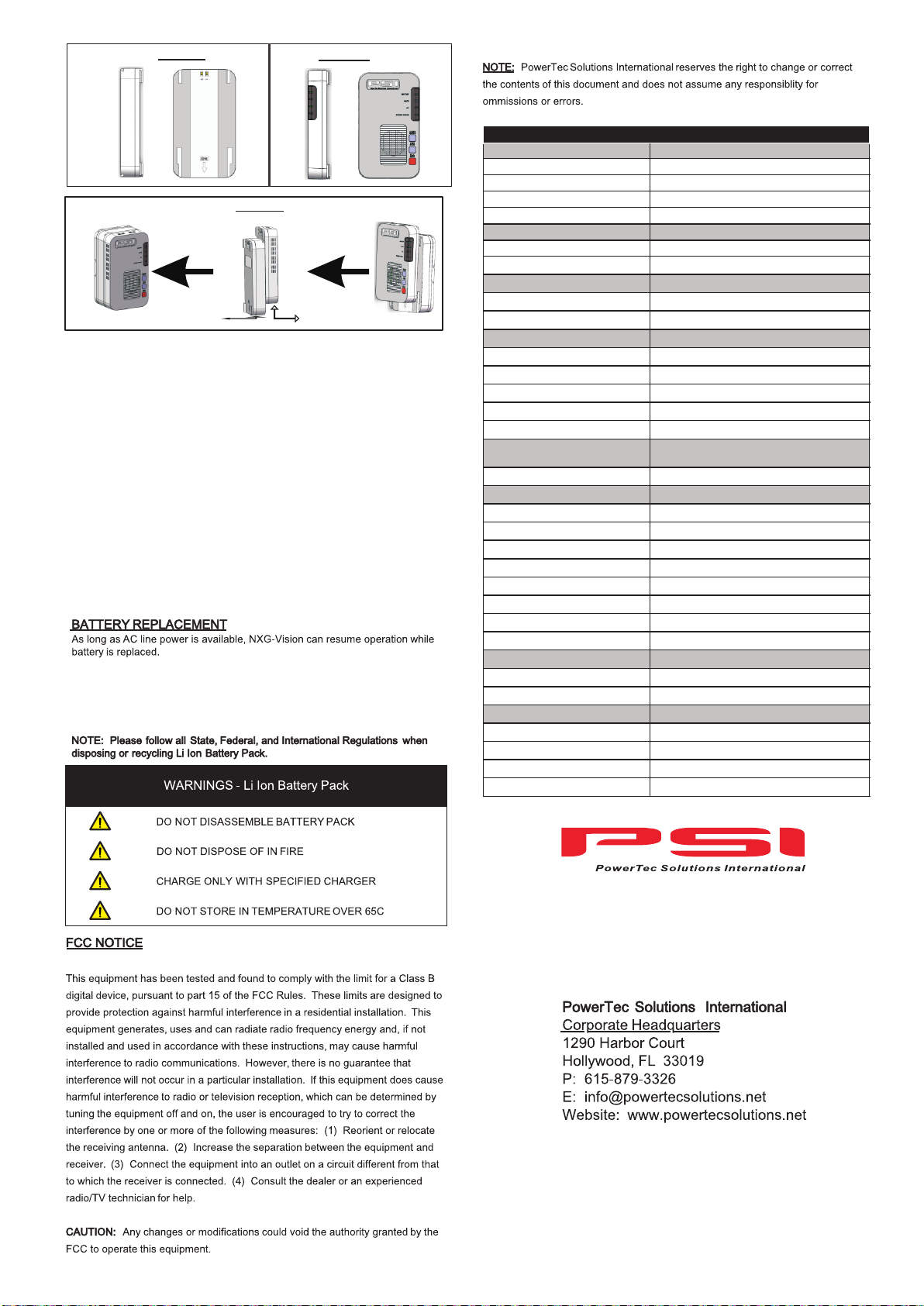

FIGURE 2
FIGURE 3
FIGURE 1
FIGURE 1FIGURE 2
PROCEDURE:
Remove the NXG-Vision Battery Pack by sliding off in opposite direction
of installation(FIGURE 3) and follow "Installation Step A." above for
installing new NXG-Vision Battery Pack.
INSTALLATION
A.Slide NXG-Vision Battery Pack (FIGURE 1) onto NXG-Vision Power Supply/
Charger (FIGURE 2) until NXG-Vision Battery Pack becomes fully flush with
NXG-Vision Power Supply/Charger. You should hear a "click" when NXG-Vision
Battery Pack is fully seated.
B.Connect provided AC Power Cord to AC Input Connector on bottom of
NXG- Vision Power Supply/Charger.
C.Connect 3 Prong AC Power Cord Plug End into standard 3 Prong AC Receptacle
rated for NEMA 5-15 3 Prong AC Plug.
D.Verify "System Status" LED is "On" with Green illumination.
E.Connect NXG-Vision to ONT (Optical Network Terminal).
F.Ensure "System Status" LED is the only illuminated LED on NXG-Vision.
If any additional LEDs are illuminated recheck NXG-Vision Battery Pack to make
sure it is fully seated and ensure that all wiring from NXG-Vision to ONT is installed
correctly as listed by ONT specific instructions.
