Mirage Model 4000
Mirage Model 3000
Hydraulic Paent Chair
Installaon, Operaon & User Manual
TPC
851 S. Lawson St.
City of Industry, CA 91748
Phone [phone] Fax [phone]
REV. 1-1-13

2
www.tpcdental.com
Important! It’s IMPERATIVE that you read
this page before continuing. Failure to do so will
result is wasted time during your installation…
·All patient chairs are pre-wired with low voltage
wiring.
·All patient chairs are pre-wired with touch pad
control cables.
·Patient chairs that are used for “swing mount
delivery”, are pre plumed with tubing to make
your installation process easier.
·If your installation requires the installation of a
touch pad DO-NOT install the upholstery seat
cushion till after your touch pad is installed.
Failure to do so will result in double work.
·If at any time you have questions regarding
your installation please don’t hesitate to
contact TPC toll free @ 800-560-8222 ext 103
or via E-mail @ [e-mail]

3
www.tpcdental.com
Table on Contents: Page
GENERAL INFORMATION 4
Transportation / Storage Information 4
Unpacking instructions 5
Installation and coordination 6
Operation instructions 11
Overview of foot controls 12

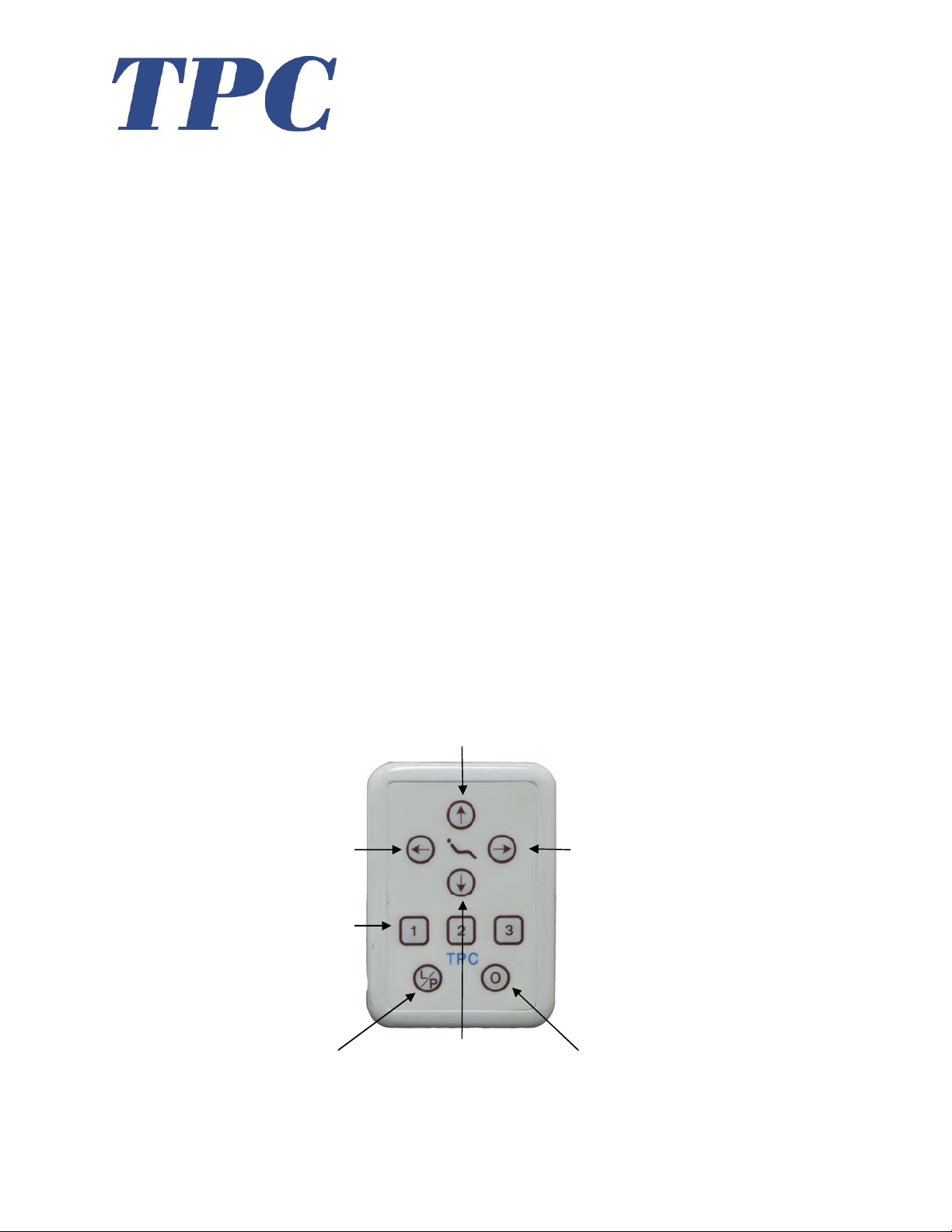

Overview of touchpad controls 13

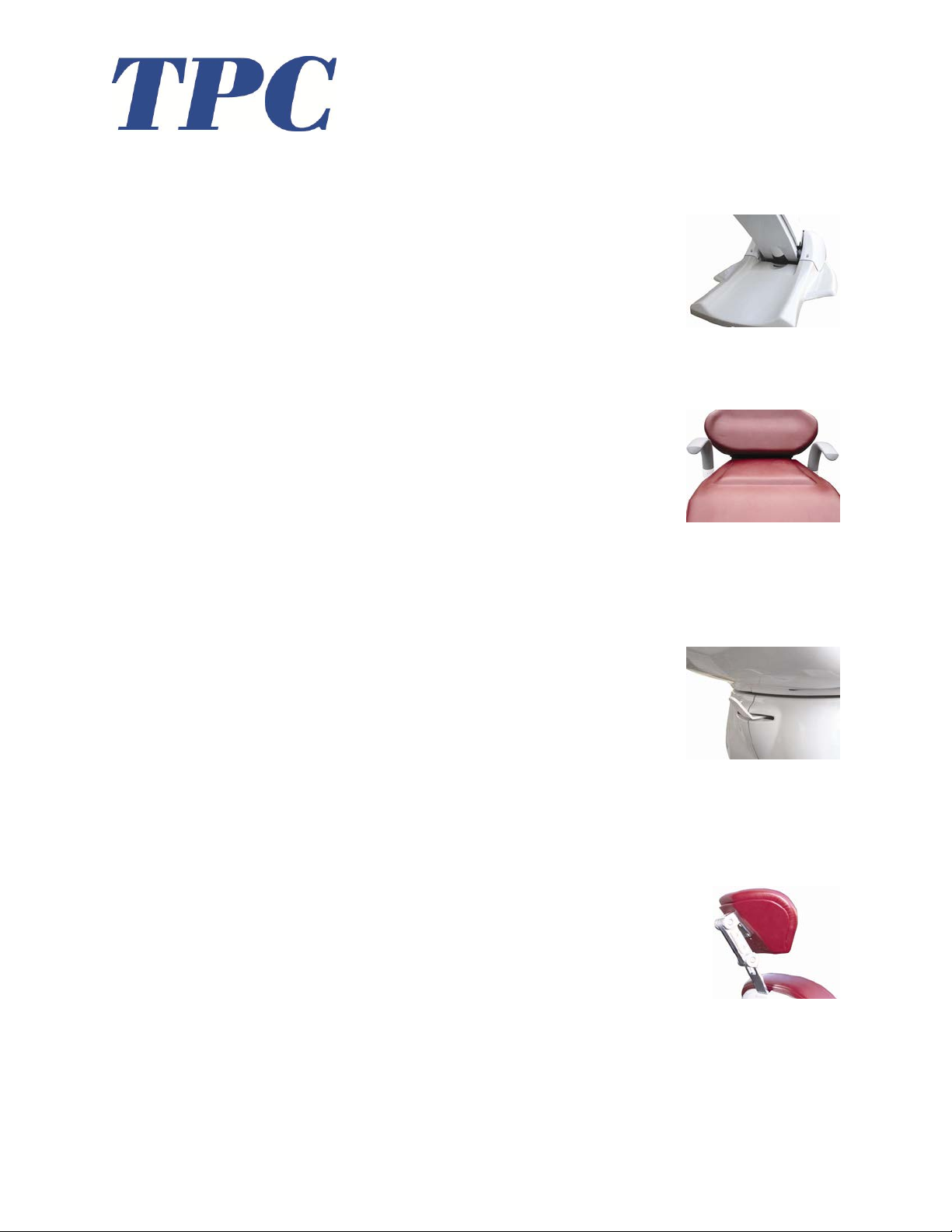

Features 14
Main PCB Board 16

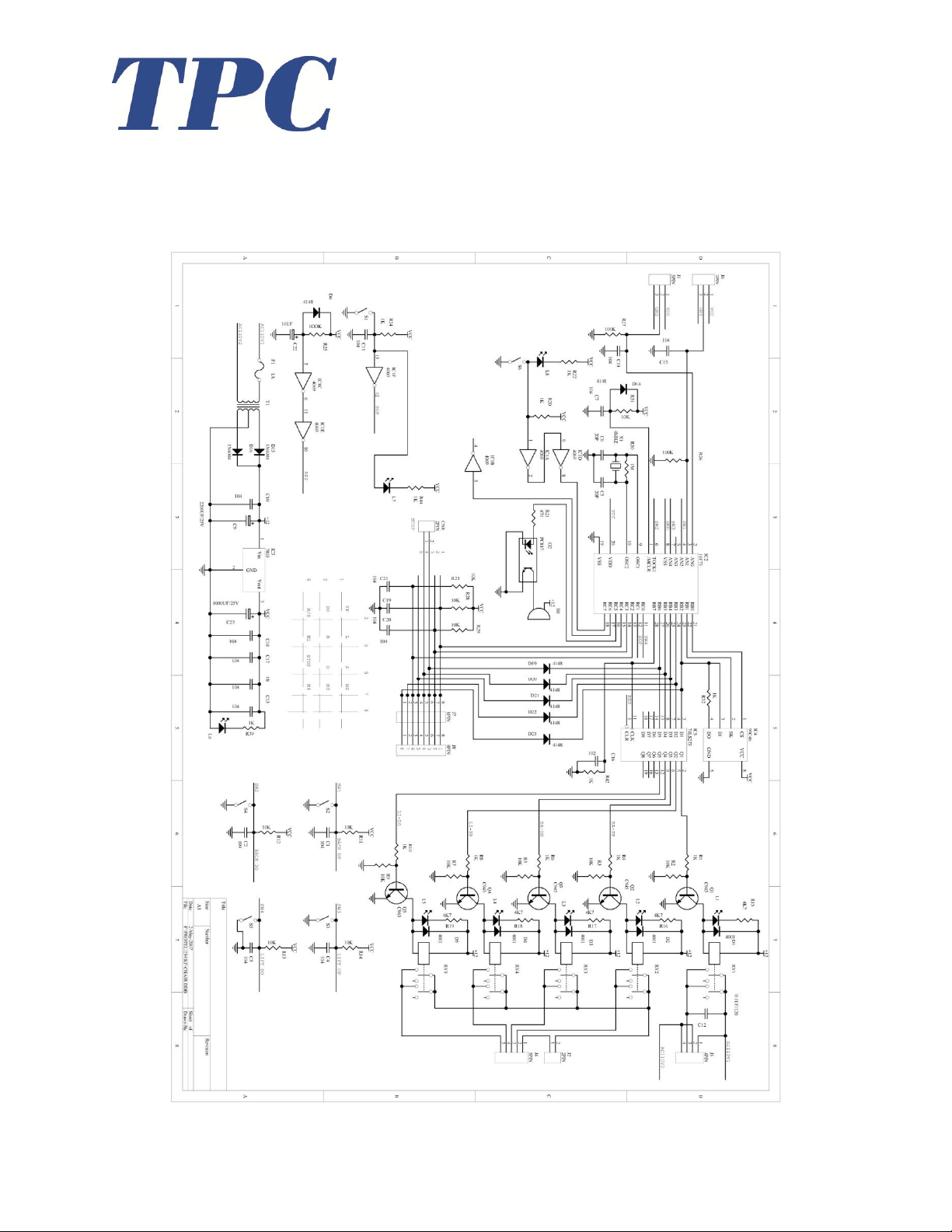

Wiring Schematic 1 17
Adjusting main flow control block 19
Replacement Parts List 20
CLEANING & DISINFECTING GUIDE 24
Warranty 25
TROUBLE SHOOTING GUIDE 26

4
www.tpcdental.com
GENERAL INFORMATION
Transportation / Storage Information
·Do not store the dental chair in temperatures exceeding 130 degrees.
·Do not store the dental chair on its side. Always store upright on pallet.
·Do not stack more than 5 packaged chairs at a time on top of each other.
·Use approved pallet jack or forklift to move the dental chair.
·Do not attempt to move stacked dental chairs.
·Only store the dental chair in dry cool place.
The dental chair is marked with a
product identification label
including manufacture, serial
number and date of manufacture.
This label is located on the front
lower left cover under the seat
cushion.
The dental chair is marked with a
caution symbol. This label is located
on the front of the dental chair base
next to the main power switch.
The dental chair is marked with a Risk
Class symbol. This label is located on
the front of the dental chair base next
to the main power switch.
The dental chair is marked with a
main electrical grounding point
symbol. This label is located on the
front left side of the dental chair
steel base frame, under the plastic
cover.
The dental chair is marked with a fuse
label symbol. This label is located
under the pump cover on the front
right side of the chair frame.
The fuse is a 6 amp time lag, Fuse, 3AG, 1
1/4" L x 1/4" Dia. (31.8mm x 6.4mm)

5
www.tpcdental.com
Mirage Model 4000 unpacking instructions
Remove the pump cover from the chair
base. To remove the pump cover you
must first remove the three safely screws.
Once screws are removed lift up on the
cover to remove it. Figure 2
Loosen
and remove the two packing
screws holding the chair to the pallet.
Figure 3
Place the chair carton close to the
planned area that you wish to install the
dental chair. Do not turn the carton on its
side as oil will drain out of the tank
reservoir. Damage may occur if the chair
is tipped over. Remove all the staples
securing the carton to pallet, or cut the
carton just above the staple line, and
remove Carton. Figure 1
When lifting the dental chair use extreme
caution. The chair weight is
approximately 310 LBS. Always use at
least two people when attempting to lift
the dental chair. See image below for use
of proper lift points. Never lift the dental
chair via the arm rests.
Upper lift location
Lower lift location
Figure 1
Figure 2
Figure 3
