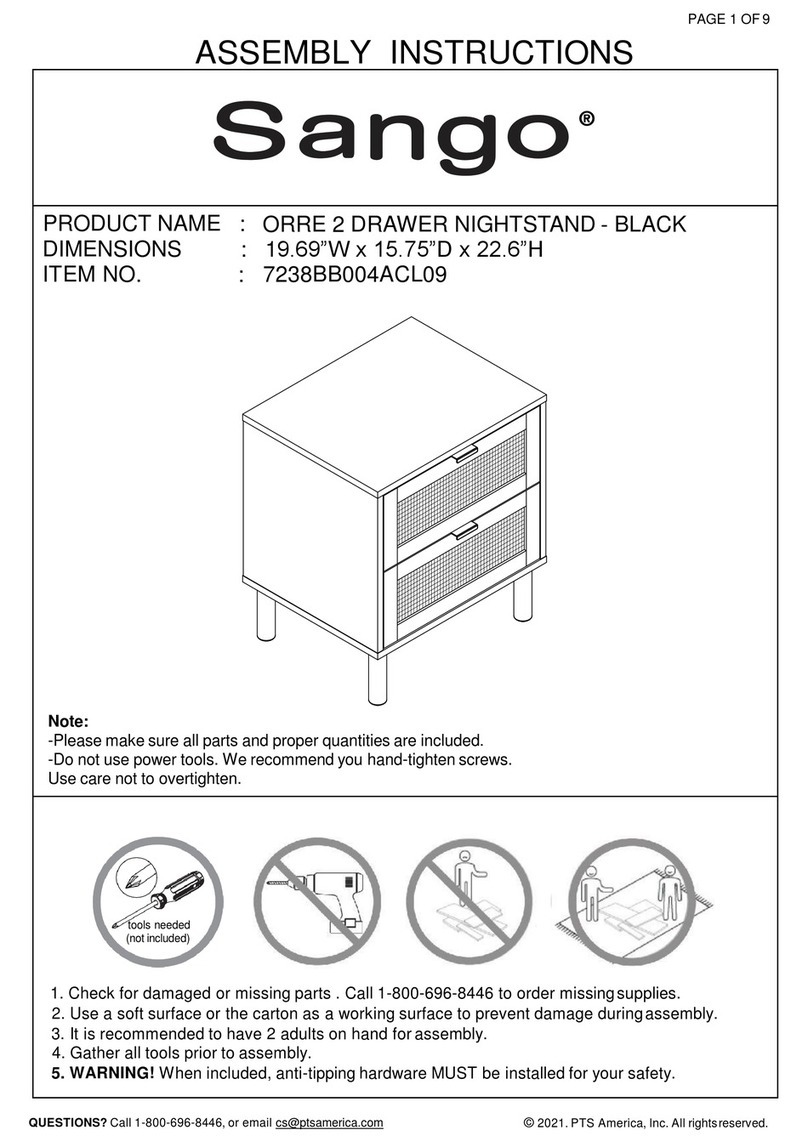

Pts Sango 7238BR004ACL09 User manual

PRODUCT NAME :
DIMENSIONS
: 19.69”W x 15.75”D x 22.6”H
ITEM NO. : 7238BR004ACL09
1. Check for damaged or missing parts . Call 1-800-696-8446 to order missingsupplies.
2. Use a soft surface or the carton as a working surface to prevent damage duringassembly.
3. It is recommended to have 2 adults on hand forassembly.
4. Gather all tools prior to assembly.
5. WARNING! When included, anti-tipping hardware MUST be installed for your safety.
ASSEMBLY INSTRUCTIONS
QUESTIONS? Call 1-800-696-8446, or email [email protected] © 2021.PTS America, lnc. All rightsreserved.
tools needed
(not included)
PAGE 1 OF9
ORRE 2 DRAWER NIGHTSTAND - BROWN
Note:
-Please makesure all parts and proper quantitiesare included.
-Do not use power tools. We recommend you hand-tightenscrews.
Use care not to overtighten.

QUESTIONS? Call 1-800-696-8446,or email [e-mail] c 2021. PTS America, lnc. All rights reserved.
PARTS LIST
:QTY
A
Top panel
1pc
B
Left side panel
1pc
C
Right side panel
1pc
D
Bottom panel
1pc
E
Drawer left side
2pcs
F
Drawer right side
2pcs
G
Drawer back side
2pcs
H
Drawer front
2pcs
I
Back panel
1pc
J
Drawer bottom
2pcs
PAGE 2 OF9

QUESTIONS? Call 1-800-696-8446,or email [e-mail] c 2021. PTS America, lnc. All rights reserved.
HARDWARE
:QTY
1
Cam
Bolt 8pcs
2
Cam
Lock 8pcs
3
Wooden
Dowel Ø 8x25mm 10pcs
4
Leg
Ø 38x140mm 4pcs
5
Leveler
4pcs
6
Slider
4pcs
7
Screw for Slider(outside)
4pcs
8
Screw for Slider(inside)
4pcs
9
Handle
2pcs
10
Screw for Handle
4pcs
11
Screw for Bottom
4pcs
12
Screw for Drawer Back
8pcs
13
Plastic Wedge Bracket
4pcs
14
Screw for Plastic Wedge Fixture
4pcs
15
Glue
1pc
16
Cover Sticker
4pcs
PAGE 3 OF9

how to use cam lock system
QUESTIONS? Call 1-800-696-8446,or email [e-mail] c 2021. PTS America, lnc. All rights reserved.
PAGE 4 OF9
tools needed (not
included)

STEP-1
STEP-2
QUESTIONS? Call 1-800-696-8446,or email [e-mail] c 2021. PTS America, lnc. All rights reserved.
A
1
1 x4
3 x6
6 x4
7 x4
PAGE 5 OF9
15
3
6
B
3
6
7
C

QUESTIONS? Call 1-800-696-8446,or email [e-mail] c 2021. PTS America, lnc. All rights reserved.
STEP-3
STEP-4
1 x4
3 x4
2 x4
12 x8
9 x2
10 x4
PAGE 6 OF9
F
E
12
G
9
H
x2
x2
x2
10
F
E
J
2
H
E
3
F
15
3
1
H
x2 x2
x2

QUESTIONS? Call 1-800-696-8446,or email [e-mail] c 2021. PTS America, lnc. All rights reserved.
STEP-5
STEP-6
2 x4
11 x4
PAGE 7 OF9
C
I
A2
21
B
D
C
11

PAGE 8 OF9
QUESTIONS? Call 1-800-696-8446,or email [e-mail] c 2021. PTS America, lnc. All rights reserved.
STEP-7
STEP-8
4 x4
5 x4
x4
16
16 x4
4
5
x4
D

PAGE 9 OF9
QUESTIONS? Call 1-800-696-8446,or email [e-mail] c 2021. PTS America, lnc. All rights reserved.
STEP-9
STEP-8
STEP-10
8 x4
13 x4
14 x4
Fully extend drawer rails then
align the rail’s smallest hole to
the drawer slide panel’s holes.
Secure with bolts.
8
H
13
14 x4
Lock p
on 4 corners of the back panel.
lastic wedge bracket
