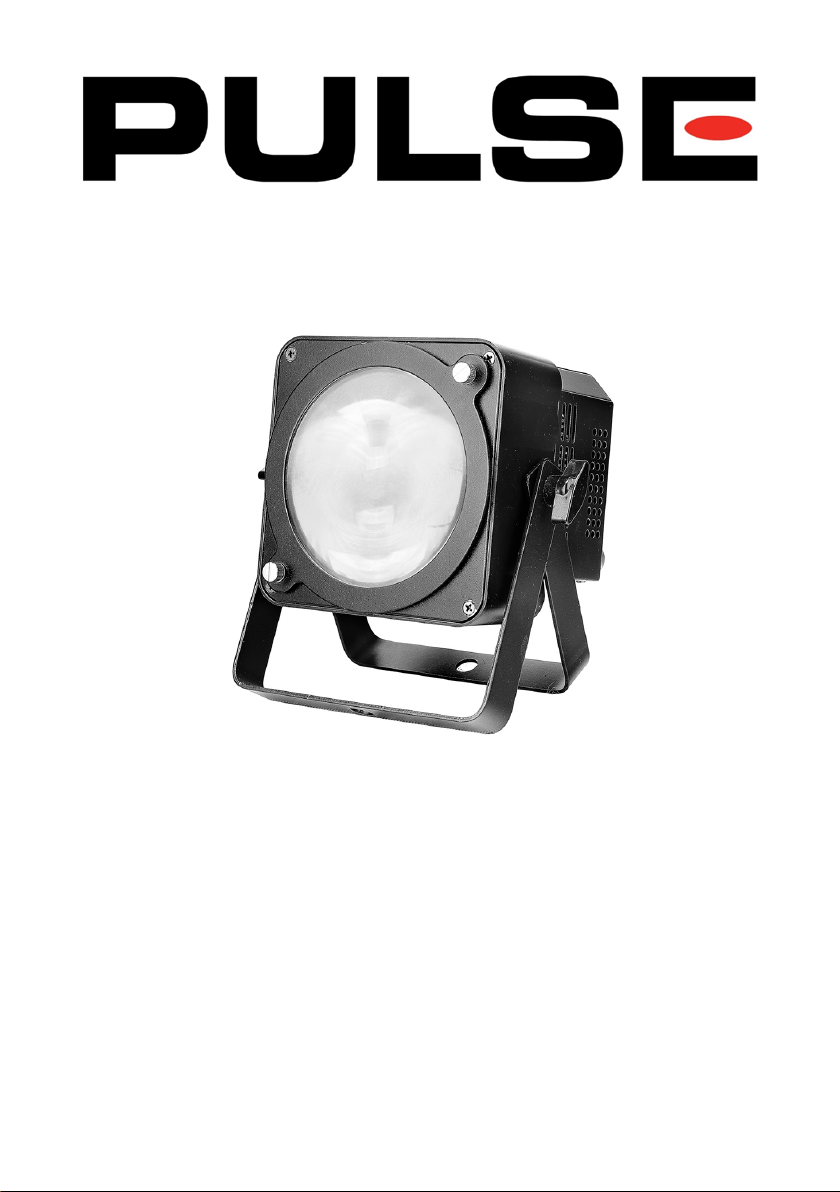

PULSE+ PAR30C User manual

1
Model: PAR30C
PAR LIGHT 30W COB LED RGB

2
IMPORTANT SAFETY INFORMATION
Please read these instructions carefully before use and retain for future reference.
• When using electrical appliances basic safety precautions should always be
followed.
• Check the product before use for any damage. Should you notice any damage on
the cable or casing, do not use.
• Check that the voltage indicated on the rating plate corresponds with that of the
local network before connecting the product to the mains power supply.
• Keep this product away from rain and moisture.
• For indoor use only.
Caution: Never look directly into the light source.
• Always disconnect from the mains when the product is not in use or before
cleaning.
• Do not operate or store in an environment of high humidity or where moisture may
enter the product as this can reduce insulation and lead to electric shock.
Safety Information for Installation and Operation
• When installing, make sure that the product is not exposed to extreme heat,
moisture or dust.
• If you’re using a smoke machine, make sure that the product is never exposed to
the direct smoke jet and is installed at least 0.5m away.
• The ambient temperature must always be between -5°C and 45°C. Keep away
from air-conditioning units and heaters.
• The relative humidity must not exceed 50% with an ambient temperature of 45°C.
• This product must only be operated in an altitude between -20 and 2000m above
sea level.
• The minimum distance between the light-output and the illuminated surface must
be more than 0.5m.
• This device is allowed to be installed via a mounting bracket. In order to have
sufcient ventilation, leave 50cm of free space around the device.
• The housing must not touch any surrounding surfaces or objects.
• Operate the product only after having familarised yourself with its functions. Do not
allow operation by persons unqualied.
• A secondary means of suspension must be provided, such that in the event of a
failure of the primary suspension, no part of the luminaire can fall.
• The operator must make sure that safety related matters are observed and that
the installation is approved by a qualied installer before taking into operation for
the rst time.

3
CONNECTION CABLES
DMX Input DMX Output
XLR mounting - socket XLR XLR mounting - socket
1. Ground 1. Ground
2. Signal (-) 2. Signal (-)
3. Signal (+) 3. Signal (+)
• DMX-512 connection / connection between xture.
• 3-pin XLR plugs connect the controller with the xture or one xture with another.
Screened twisted pair cable should be used.
• If you are using a controller with this xture, you can connect the DMX-output of
the controller directly with the DMX-input of the rst xture in the DMX chain. If you
wish to connect a DMX-controller using other XLR socket types you need to use
an adaptor cable.
DMX CONTROLLER MODE
• Note: the DMX-output of the rst xture in the DMX chain with the DMX-input of
the next xture. Always connect one output with the input of the next xture until all
xtures are connected.
• Maximum recommended serial data link distance: 500m (1640ft).
• Caution: At the last xture, the DMX-cable has to be terminated with the
terminator. Solder a 120Ω resistor between Signal (-) and Signal (+) into a 3-pin
XLR plug and plug it into the DMX output of the last xture.
DMX MASTER-SLAVE MODE
• Other LED lights operating as slaves will work synchronously when connected in a
chain using DMX cables.
BUILDING A SERIAL DMX CHAIN
MENU UP DOWN ENTER
• Use the MENU button to cycle through the functions (see table below).
• Use the UP and DOWN buttons to set the values for the brightness/speed of the
lights. Or in DMX controller mode, use UP and DOWN to give the light an address.
• Use the ENTER button to save the changes.

4
OPERATION MODES
LED Display
Manual Set Instruction
Addr A001gA512 DMX address
ChAn
3Ch
Channel modes
3Ch1
3Ch2
6Ch
SLnd
MASt Master Mode
SLaU Slave Mode
ShNd
ShoU Colours 1-7
CoLo Dimmer (colour/dimmer/strobe)
JuNP Jump modes (speed/dimmer/strobe)
FAde Fade mode (speed/dimmer/strobe)
SoUn
on Sound control on
oFF Sound control off
SenS ...1g100 Sound sensitivity
LEd
on LED on
oFF LED off
diSP dS1P Display screen (normal/inverted)
teSt teSt Test mode
hour ...0 - 9999 Working time
• There are two operation modes
Master/slave built-in program.
• Connect the lights in series, the rst light control the other lights as auto show,
sound control show etc.
• The rst light must be set as master.
• Choose random show or effect 1 to 16.
• If there are no DMX signals, the master mode LED will light up, the sound control
LED will strobe according to the music, the other lights will not work in slave mode.
• For a two light show choose SL 1 or SL 2 mode when connected using a DMX
cable, then the slave LED will light up.
• For the slave light, SL 1 operates the same as the master light, SL 2 displays
opposed to the master light.
DMX Controller
• If controlled by a DMX controller, you need to set the DMX address code to control
the light, the address code value is between 1-509, then the light will receive the
signal accordingly.
• Press MENU button and select Address menu, press ENTER button and the
address LED will strobe.
• Use r/sto select DMX512 address (default is 001).
• After setting DMX address, press ENTER button.

5

6
DMX MODE
2 Channel Mode
Channel Value Function
CH1 000-255 Full dimmer, 0-100%
CH2
000-036 R
037-073 G
074-110 B
111-255 Colour mixing
3 Channel 1 Mode
Channel Value Function
CH1 000-255 Red dimmer,0-100%
CH2 000-255 Green dimmer,0-100%
CH3 000-255 Blue dimmer,0-100%
3 Channel 2 Mode
Channel Value Function
CH1 000-255 Full dimmer, 0-100%
CH2 000-255 Strobe, speed from slow to fast
CH3
000-004 No function
005-080 Colour choose
081-150 Colour auto run, speed from slow to fast
151-220 Colour fade, speed from slow to fast
221-255 Sound active
6 Channel Mode
Channel Value Function
CH1 000-255 Full dimmer, 0-100%
CH2 000-255 Strobe, speed from slow to fast
CH3 000-255 Red dimmer, 0-100%
CH4 000-255 Green dimmer, 0-100%
CH5 000-007 Blue dimmer, 0-100%
CH6
000-004 No function
005-080 Colour choose
081-150 Colour auto run, speed from slow to fast
151-220 Colour fade, speed from slow to fast
221-255 Sound active

7
SPECIFICATIONS
Voltage AC 100-240V 50-60Hz
Power 30W
LED source 1pcs 30W COB RGB 3in1 LED
Fuse F3AL250V
DMX modes 2CH, 3CH1, 3CH2, 6CH channel
Operational Modes Sound activated, internal programme, DMX master/slave
Colour Mixing RGBW
Working environment -20°C - 40°C
Dimensions 200 x 200 x 150mm
Weight 1.5kg
CLEANING & MAINTENANCE
• Disconnect from the mains before starting the maintenance operation.
• Frequent cleaning is recommended. Use a soft lint-free moistened cloth.
• Do not use any chemicals, abrasives or solvents that could damage the device.
• There are no user-serviceable parts in this product. Refer all servicing to qualied
personnel.

8
Made in China. PR2 9PP
Man Rev 1.1
