Pure Pressure Bruteless User manual

Bruteless™ Hash
Washing Vessels
and Systems
User Manual Rev1

Table of Contents
1. Introduction
1.1. Warranty
1.2. What’s Included: Vessels
1.3. What’s Included: Systems
1.4. Technical Specifications
1.5. Warnings & Disclaimers
2. Setup
2.1. Unboxing
2.2. Fittings & Accessories
2.2.1. Accessories cont.
2.3. Ports
3. System Assembly Instructions
3.1. Base Configuration Assembly
3.2. Base Configuration Assembly Diagram
3.3. Pro System Assembly Image
3.4. Commercial System Assembly Image
3.5. Pro & Commercial System Assembly
Instructions

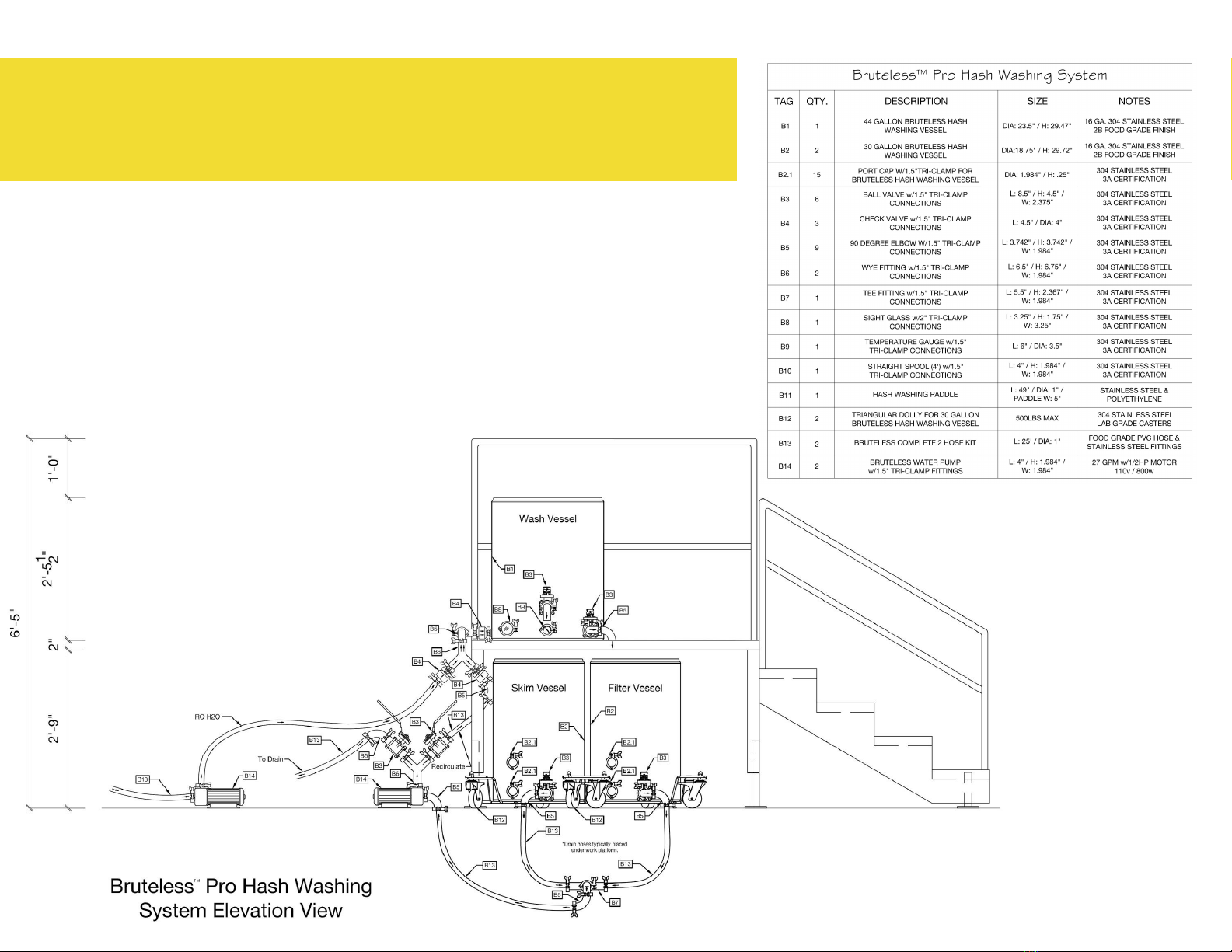

3.6. Pro System Assembly Diagram
3.7. Commercial System Assembly
Diagram
4. Washing Suggestions
4.1. Fresh Frozen vs. Dried Material
4.2. Washing Agitation Methods
4.3. Filtration & Collection
4.4. Filtration & Collection Cont.
4.5. Freeze Drying
4.6. Process Temperature Management
5. Fluid Management
6. Cleaning
7. FAQ
7.1. FAQ Continued
1

1. Introduction
From all of us here at PurePressure, thank you for your purchase!
Our ice water hash washing vessels are engineered to last for many years
with proper care. The following user manual covers virtually every topic,
including how to set up your equipment, how to use your washer,
maintenance, and much more.
The instructions in this user manual are specifically focused on our
Bruteless hash washing vessels, systems, and accessories. If you need
something else, please contact us and we’d be happy to help.
720-446-9565
Sales Inquiries:
[e-mail]
General Questions:
[e-mail]
Technical Support:
[e-mail]
purepressure.com
Contact:
We’re always here to help. Talk to us!
@gopurepressure
2

1.1 Warranty
PurePressure's Bruteless hash washing vessels are built to last for many years with proper care. We want you to be satisfied with your
equipment so if there are ever any concerns, please do not hesitate to contact us. PurePressure offers the following warranty coverage for all
Bruteless hash washing vessels (20 gallon, 30 gallon, 44 gallon, and 65 gallon vessels):
● Lifetime end-user support.
● 2 year limited warranty against manufacturing defects for stainless steel barrel, false bottoms, and water pumps.
● 1 year limited warranty against manufacturing defects for insulation jacketing, gaskets, clamps, and fittings.
Warranty Replacements: In event of an approved warranty replacement or service, PurePressure will supply the necessary part(s) and special
tools, if needed. Shipping costs may be covered by PurePressure at its discretion.
Replacement Parts: Replacement parts for various components are available at reasonable prices for customers directly from PurePressure.
Exclusions: Warranty coverage eligibility will be determined by PurePressure and at PurePressure's sole discretion. PurePressure's
warranty obligations do not include (i) reasonable wear and tear; (ii) damage or corrosion caused by operation outside of the product’s
intended use; (iii) use of unapproved parts or unproved alterations to components; (iv) defects or damage caused by misuse, improper
electrical power supply; (v) vandalism, negligence, misuse or Force Majeure Events; or (vi) gaskets & items expected to be consumed or
expended during the normal and routine operation and maintenance. This warranty is eligible for the original purchaser only and is not
transferable.
Disclaimer: Except as expressly set forth in this Limited Warranty and to the greatest extent allowed by law, PurePressure makes no other
representations, warranties or conditions, express or implied, including any implied representations, warranties or conditions of
merchantability, fitness for a particular purpose, non-infringement, and non-interference.
Warranty Procedures: If your equipment is covered under the warranty period, please contact us with detailed information regarding the issue
you are experiencing so that we can get you operational as soon as possible. If you are experiencing a problem and are outside of the warranty
period, we will do everything in our power to get you affordable replacement component(s) in a timely manner. Please send all warranty and
replacement part related inquiries to [e-mail]. All returned parts must be accompanied by an RMA number, which we will
supply.
PurePressure Factory Location: 2625 S Santa Fe Dr, Unit 1J, Denver CO 80223
3

1.2 What’s Included: Bruteless Vessels
What’s Included With Your Bruteless Vessel
Items may differ depending on your kit or model. See page 5 for what’s included with our Bruteless Base, Pro, and Commercial
systems. See section 2.2 for a full explanation of accessories and available addons.
●1.5” stainless steel ball valve
●Stainless steel 90° drain valve
●Gasket, cap and clamp for
every sanitary port on your
vessel
●Stainless steel lid with gasket
●Stainless steel removable false bottom
●Closed cell foam insulation with neoprene cover.
30 Gallon 44 Gallon
65 Gallon
20 Gallon
4

1.3 What’s Included: Bruteless Systems
What’s Included With Your Bruteless System
Items may differ depending on your kit or model. (Parentheses indicates quantity)
5
Base System
●30 Gallon Bruteless (1)
●4” Straight Piece (1)
●*30 Gallon Bruteless (1)
●Ball Valve 1.5” (4)
●Clamps & Gaskets
●90 Degree Elbow 1.5” (1)
●Hash Washing Paddle (1)
●30 Gallon Triangular Dolly (1)
●Sight Glass 1.5” (1)
●Bruteless™ Complete 2
Hose Kit (1)
Note: *Drain vessels come
without false bottoms.
Pro System
●Bruteless™ Temperature
Gauge 1.5” (1)
●44 Gallon Bruteless (1)
●*30 Gallon Bruteless (2)
●4” Straight Piece (1)
●Clamps & Gaskets
●Ball Valve 1.5” (6)
●Hash Washing Paddle (1)
●90 Degree Elbow 1.5” (9)
●30 Gallon Triangular Dolly (2)
●Check Valve 1.5” (3)
●Bruteless™ Complete 2
Hose Kit (2)
●Wye - Tri Clamp (2)
●Bruteless™ Water Pump
with Fittings (2)
●Tee - Tri Clamp (1)
●Sight Glass 2” (1)
Commercial System
●Bruteless™ Temperature Gauge
1.5” (1)
●65 Gallon Bruteless (1)
●*44 Gallon Bruteless (2)
●4” Straight Piece (1)
●Ball Valve 1.5” (6)
●Clamps & Gaskets
●90 Degree Elbow 1.5” (9)
●Hash Washing Paddle (1)
●Check Valve 1.5” (3)
●44 Gallon Triangular Dolly (2)
●Wye - Tri Clamp (2)
●Bruteless™ Complete 2 Hose
Kit (2)
●Bruteless™ Water Pump with
Fittings (2)
●Tee - Tri Clamp (1)
●Sight Glass 2” (1)

1.4 Technical Specifications
Specification 20 Gallon 30 Gallon 44 Gallon 65 Gallon
Weight (Empty & Full) 54 lb / 221 lb 54 lb / 304 lb 69 lb / 436 lb 87 lb / 629 lb
Overall Dimensions
(Height x Interior
Diameter)
Height: 21.25”
Diameter: 18.75”
Height: 28.5”
Diameter: 18.75”
Height: 28.25”
Diameter: 23.5”
Height: 23.25”
Diameter: 30”
Insulation 1” closed cell foam antimicrobial
neoprene
1” closed cell foam antimicrobial
neoprene
1” closed cell foam antimicrobial
neoprene
1” closed cell foam antimicrobial
neoprene
Vessel Metal Passivated 16GA 304 2B finish
stainless steel
Passivated 16GA 304 2B finish
stainless steel
Passivated 16GA 304 2B finish
stainless steel
Passivated 16GA 304 2B finish
stainless steel
False Bottom Metal Passivated 16GA 304 brushed
stainless steel
Passivated 16GA 304 brushed
stainless steel
Passivated 16GA 304 brushed
stainless steel
Passivated 16GA 304 brushed
stainless steel
Maximum Suggested
Capacity Per Wash
(fresh frozen)
2,500 fresh frozen grams or
500 dry grams
5,000 fresh frozen grams or
1,000 dry grams
10,000 fresh frozen grams or
2,000 dry grams
15,000 fresh frozen grams or
5,000 dry grams
6
30 Gallon 44 Gallon 65 Gallon
20 Gallon

1.5 Warnings & Disclaimers
WARNING: GRAVITY FILTERING, DO NOT ALLOW PUMP SUCTION TO DAMAGE FILTRATION MESH BAGS ON FALSE BOTTOM.
WARNING: CHECK WITH LOCAL REGULATORY AUTHORITIES FOR WASTEWATER REQUIREMENTS OR REGULATIONS.
WARNING: FULL BRUTELESS VESSELS WITH MATERIAL, ICE, AND WATER ARE EXTREMELY HEAVY. DO NOT TIP OR LET A
FULL VESSEL FALL. ALWAYS SUPPORT WITH A STRUCTURE OR PLATFORM THAT IS LOAD RATED APPROPRIATELY.
WARNING: COLD TEMPERATURES WHEN WASHING ICE WATER HASH ARE PRESENT. USE GLOVES OR OTHER INSULATIVE
CLOTHING WHENEVER POSSIBLE.
WARNING: ALWAYS WEAR EYE PROTECTION AS WELL AS INSULATED GLOVES FOR SAFE OPERATION.
WARNING: RISK OF ELECTRIC SHOCK. AVOID STANDING IN WATER WHILE OPERATING ELECTRICAL EQUIPMENT. FAILURE
TO COMPLY CAN RESULT IN SERIOUS INJURY AND OR DEATH.
DISCLAIMER: PUREPRESSURE, LLC IS NOT RESPONSIBLE FOR INJURY OR LOSS DUE TO IMPROPER USE OF EQUIPMENT.
WARNING: PUREPRESSURE IS NOT RESPONSIBLE FOR ANY REGULATORY VIOLATIONS OR FINES INCURRED BY THE
BUSINESS OUR INDIVIDUAL OPERATING THIS EQUIPMENT IN THEIR OWN MUNICIPALITY.
DISCLAIMER: THIS PRODUCT IS NOT INTENDED TO BE USED WITH SOLVENTS.
DISCLAIMER: RUNNING PUMPS OR DRAINING VESSELS WITHOUT MONITORING FLUID TRANSFER CAN RESULT IN
DAMAGED EQUIPMENT OR MATERIAL. PUREPRESSURE IS NOT LIABLE FOR OPERATOR NEGLIGENCE.
WARNING: ISOPROPYL ALCOHOL IS TOXIC. ALWAYS WORK IN A WELL VENTILATED AREA.
WARNING: ISOPROPYL ALCOHOL IS FLAMMABLE. EXTREME CARE SHOULD BE TAKEN WHILE USING THIS SOLVENT.
DISCLAIMER: CLEAN YOUR EQUIPMENT BEFORE FIRST TIME USE.
DISCLAIMER: PROPER ONGOING CLEANING MAINTENANCE IS REQUIRED IN ORDER TO ENSURE ALL SURFACES, PORTS,
GASKETS, AND EQUIPMENT CONTINUE TO WORK PROPERLY. PLEASE REFER TO THE CLEANING INSTRUCTIONS AT THE
END OF THIS USER MANUAL.
DISCLAIMER: REVERSE OSMOSIS (RO) PERMEATE IS MORE CORROSIVE THAN WATER PRODUCED BY THERMAL
DISTILLATION DUE TO ITS HIGH DISSOLVED SALTS (TDS) LEVEL, PARTICULARLY CHLORIDES (SOURCE). IF YOU LEAVE
STANDING WATER ON YOUR EQUIPMENT TO AIR DRY IT WILL CAUSE SURFACE CORROSION. PUREPRESSURE IS NOT
RESPONSIBLE FOR ANY DAMAGES CAUSED DUE TO IMPROPER MAINTENANCE, CLEANING, OR CARE OF YOUR
EQUIPMENT. CLEANING RECOMMENDATION SEE PAGE 28 FOR MORE DETAILS ON CLEANING YOUR EQUIPMENT PROPERLY.
7
Please review this
information
carefully prior to
system operation!

2. Bruteless Setup
Setting Up Your Bruteless Vessel
Setting up your Bruteless hash washing station is simple. A little planning and forethought will
go a very long way to ensure that your operation is set up as efficiently as possible. Before you
proceed, make sure you are fully aware of where your water source is and where you intend to
drain your waste water. Once a vessel is full of water, ice, and your material, it is can be very
difficult if not impossible to move until drained, unless using a PurePressure dolly.
There are a large variety of accessories and configurations that are possible with Bruteless hash
washers. This guide will explain first how to set up a single vessel, and then show you how to
set up a Base, Pro, or Commercial system.
Note: Ensure the work surface or
table you are using is rated for the
vessel you plan to use - a full vessel
may weigh up to 650lbs (for a full 65
gallon vessel).
8

2.1 Unboxing your Bruteless
Steps to Safely Unbox your Vessel
●Ensure that the box or pallet your Bruteless vessel or system
came in is on the floor or a level, sturdy surface.
●Carefully cut open boxes and packaging materials, being
careful not to damage your equipment.
○If your equipment was delivered on a pallet, take extra
care to cut the packing material without damaging
your insulating jacket.
●Remove all accessories and items from inside the vessel on
to a separate table or work area. Stage your equipment for
for assembly.
●Grab a friend and lift your Bruteless vessel off of the pallet or
out of the cardboard box and set it onto the floor.
Platform Setup
If you purchased our lab grade hash washing platform or hash
pump, please refer to the separate user manuals that are included
with these respective add-ons for detailed construction steps.
or
9

2.2 Fittings & Vessel Accessories
Your Bruteless Hash Washing Vessel or System Can be Customized in Numerous Ways
Multiple accessories are available to make your hash washing experience more productive. Below is a brief
explanation of each and how they can be utilized; many of these items attach directly to the ports on your
Bruteless washer simply using a gasket and clamp.
10
Sight Glass (2” or 1.5”)
Allows you to view your
trichome detachment and
wash in real time
Note: Accessory images are not to scale.
Ball Valve
Allows for flow control and
water transfer management
Check Valve
Allows you to fill your vessel
with a one-way valve;
prevents backflow
Sanitary Clamp
Allows you to attach various
accessories to your Bruteless
ports, requires a gasket
Port Gasket
Creates a watertight seal when
combined with a sanitary clamp
for your port attachment
Port Cap
Allows you to cap a
port when not in use
Wye
Allows you to split a fill or
drain connection
Tee
Allows you to split a fill or
drain connection

2.2.1 Accessories Cont.
11
Wash Paddle
Used for agitating the
material in your Bruteless
washer
Note: Accessory images are not to scale.
Water Pumps
Allows you to efficiently
move water in and out of
your Bruteless washer
Complete 2 Hose Kit
Gives you 25’ of water fill
and drain hose length, with
fittings
Pump Remote Controls
Allows you to quickly turn
your pumps on and off from
a distance
Bruteless Dollies
Enables you to quickly and
easily transport a filled
Bruteless wash vessel -
available in all 3 vessel
matching sizes
Temperature Gauge
This analog temperature
gauge, and digital
temperature gauges are also
available
220μm Open Wash Bags
Enables you to maximize your
batch capacity - available in all
3 vessel matching sizes
Extra Clamps & Gaskets
Additional clamps and gasket
packs help you swap
accessories quickly and can be
used for backups

2.3 Ports
Bruteless Ports
Your Bruteless vessel comes with strategically placed ports. The 20
gallon comes with 2 ports, the 30 gallon comes with 4 ports, and
both the 44 & 65 gallon vessels come with 5 ports. We recommend
using them the following configuration.
Vessel Front View
12
Note: Additional accessories are
suggested for optimal functionality.
For a full list of Bruteless add-ons,
visit our website at
www.purepressure.com.
Vessel Rear View
1.5” Skim Port
For pre-draining
debris.
1.5” Drain Port
For draining into
your filter vessel
& bags.
2” Sight Glass
For viewing your
wash progress.
(Not included on
30 gal vessel)
1.5” Fill Port
For filling your
vessel if using a
pump.
1.5” Temperature
Gauge Port
Digital or Analog
options available.
Your fill port
and drain port
are directly
across from
one another.
Vessel Top View
Fill
Drain

3. Bruteless Assembly Instructions
Assembling Your Bruteless System is Easy
The following instructions will show you how to set up your
Bruteless hash washing system. This covers the Base, Pro, and
Commercial setups.
While each system is designed to be used in a certain way,
there are opportunities to customize the set up to your liking as
you become more familiar with using it. Please refer to the
accessories on section 2.2 for more information on what kinds
of accessories and addons are available.
We strongly suggest laying out each gasket, tri-clamp,
accessories, and other components on a table before beginning
setup to ensure that you have all of the parts you’ll need in one
place.
Before running your first wash, you should first fully clean your
vessels, fittings, and hoses. Please see section 4.6 for detailed
cleaning instructions.
Lastly, if you need any help with assembly or want to talk to
someone on the team, please contact us at
[e-mail] or give us a call at 720-446-9565
during normal business hours.
13

3.1 Base System Assembly
Bruteless Base System Assembly Instructions
●Set up the platform and allow for 29” minimum platform height (from the floor to the
platform standing area). This is required for the downspout to clear the lower
filtration vessel. The false bottom goes into the upper vessel.
●The drain port needs to be oriented to drain into the lower filtration vessel.
●Place second vessel on triangular dolly and position directly under drain and skim
ports. The lower filtration vessel shall contain the micron filtration bags.
●Attach a ball valves and 90 degree elbows to the skim and drain ports to use both for
draining.
○There are options & alternatives for the skimport, sight glass, and temperature
gauge. You can also utilize the skim port for a site glass or filling.
○Do not use the temperature gauge in the upper skim port, it can damage the
temperature gage prope.
●The rear port is typically used for filling the vessel with a hose & ball valve assembly
from your pump.
○Alternatively it can also be an additional port for a sight glass or temperature
gauge. If you choose to use both the temperature gauge and the sight glass
top filling the vessel will be required.
●Be sure all additional unused ports are capped and ball valves closed before filling.
**REMEMBER TO CLEAN YOUR EQUIPMENT BEFORE USE*
14
Note: Gaskets must be used at every port
connection in order to form a seal between
the ports. The sanitary clamp holds the port
assembly together, hand tighten only.

3.2 Base System Assembly Cont.
Bruteless Base System Assembly Diagram
15

3.3 Pro System Assembly
16
Waste
Water
Hose
Supply
Water
Hose
Reclaim / Waste
Water Pump
Supply
Water
Pump

17
3.4 Commercial System Assembly

3.5 Pro & Commercial System
Assembly
18
UPPER WASH VESSEL SETUP
●Set up the platform and allow for 29” minimum platform height (from the floor to the platform standing area). This is required
for the downspout to clear the lower filtration vessels. The false bottom goes into the upper wash vessel.
●Gaskets must be used at every port connection in order to form a seal between the ports. The sanitary clamp holds the port
assembly together, hand tighten only.
●The drain and skim ports need to be oriented to drain into the lower filtration vessels.
●Attach 90 degree elbows & ball valves to the skim and drain ports.
●The sight glass goes on the larger 2” port.
●Attach the temperature gauge directly underneath the skim port.
●The rear port is used for filling the vessel with one of the two pumps.
○First attach the check valve on your fill port. The flow arrow should point toward the vessel.
○Attach the elbow, and Wye fitting next. The 2 ports on the Wye fitting also get check valves to prevent cross
contamination from one water supply to another. The flow arrows should point toward the vessel.
○Attach the two hoses to the splitter fitting. One will come from your supply water pump. The other will come from your
reclaim / waste water pump.
○The reclaim water pump is also used to recirculate water from the filtration vessels back to the upper wash vessel
during operation. This pump is also used to transfer the waste water to a drain or collection tank after the batch is
completed.
●Be sure any unused ports on the wash vessel are capped and ball valves closed before filling.
LOWER FILTRATION VESSEL SETUP
●Place the lower vessels on the assembled triangular dollies and position under the drain and skim ports. These filtration
vessels will contain the stack of micron filtration bags during operation.
●Attach a single ball valve, 90 degree elbow and hose to the drain port of each vessel. Those two hoses are attached to a Tee
fitting. A single hose will go from the Tee fitting to the inlet side of the pump used for waste water & recirculation.
●The outlet side of this pump gets a Wye fitting and 2 ball valves. One hose goes to waste water, the other goes back to the
upper wash vessel Wye fitting.
●Be sure any unused ports on the filtration vessels are capped and ball valves closed before filling.
*REMEMBER TO CLEAN YOUR EQUIPMENT BEFORE USE*
Note: Gaskets must be used at every port
connection in order to form a seal between
the ports. The sanitary clamp holds the port
assembly together, hand tighten only.

3.6 Pro System Assembly
Bruteless Pro System Assembly Diagram
19
