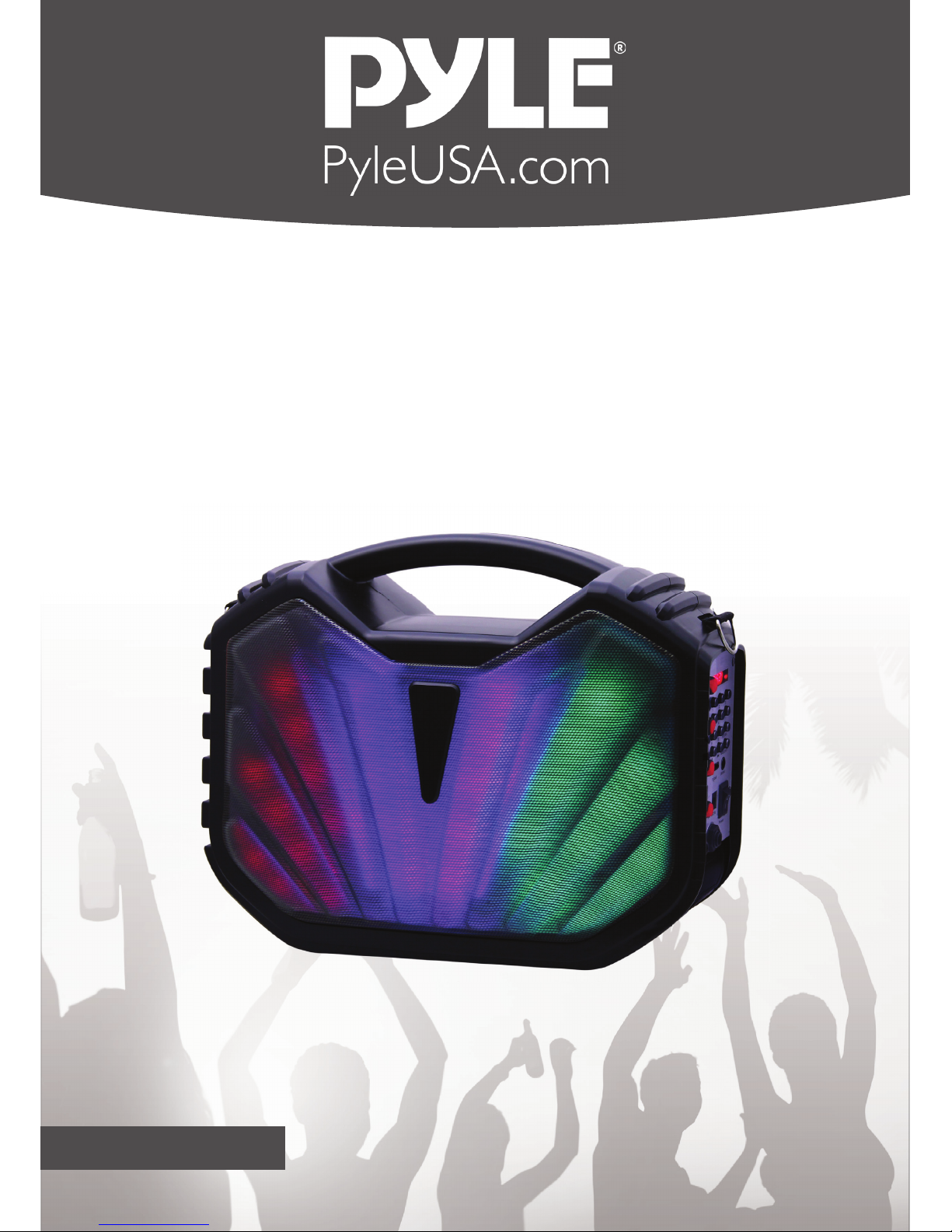

PYLE Audio PWMA285BT User manual

PORTABLE BLUETOOTH
KARAOKE SPEAKER SYSTEM
INSTRUCTION MANUAL
Model: PWMA285BT

I. FEATURES
1. Ultra-large magnetic circuit high-sensitivity speaker with high penetrating power, low-frequency
shock and perfect medium-/high-frequency representation
2. The latest decoding chips supporting stably playback of MP3 in up to 32GM U disk/SD card.
3. FM radio reception - high-quality digital radio with automatic channel search and storage of up to
60 channels.
4. 3. 5mm AUX audio input for each connection to a wide range of sound sources.
5. Built-in high-capacity battery for consecutive playback of up to 2 hours.
6. Connect the microphone, adjustable reverberation, voice and Karaoke function to present out-
standing performance.
7. Battery with built-in recharging protection to present a long and stable service life.
8. Built-in low battery and full recharging indication. Human-oriented use.
9. With belt/handle design for best choice of mobile speaker.
10. Outputs to earphone or external sound sources.
11. Record your favorite FM radio station or other AUX sound source to enjoy the music wherever you
like.
12. Microphone input recording to act as your personal business assistant.
13. With Bluetooth function.
II. RECORDING
Recording in AUX Mode:
Connect a storage device (USB/SD card) and press Mode key to enter AUX mode. Short press Record
key to start recording for a time depending on the storage capacity. During recording, the input signal
should be in proper strength as you like.
Recording in FM Receiving Mode:
Connect a storage device (USB/SD card) and press Mode key to enter FM mode. Select your favorite
radio station and short press record key to start recording for a time depending on the storage capac-
ity. During recording, keep the device in a proper location where the radio signal will be received best
to ensure optimized recording performance.
Recording via External Microphone:
Connect a storage device (USB/SD card) and short press RECORD key to start recording for a time
depending on the storage capacity. During recording, turn the“-ECHO+” knob to the minimum. It is
noticeable that the microphone should be located a proper distance away from the speaker to pre-
vent any howl-round or noise.
NOTE: This product starts recording from the time as displayed on the LED screen.
III. BLUETOOTH PAIRING OPERATION:
1. ON/OFF: switch the power to ON, press the key “MODE” to enter the Bluetooth mode, the display
screen will show“BLUE” indicating Bluetooth mode is active.
2. Make sure the Bluetooth function of the Mobile device is active and begin searching, when the Mo-
bile device shows“PyleUSA”, connect to it. Mobile device connections do not need password, how-
ever if prompted, input “0000” to go on pairing. After a successful pairing, the speaker will send out a
voice of prompt indicating it has successfully been paired with the mobile device.
3. Play the music from your mobile device directly and enjoy.

IV. FUNCTIONAL OPERATIONS AND FEATURES
1. LED Screen
2. Master Volume: In MP3/FM/AUX mode, use it to regulate volume output from the
speaker.
3. SD Port: Read audio les in MP3 format in SD card in capacity up to 32G (FAT32).
4. USB Port: Read audio les in MP3 format in USB storage device in capacity up to 32G
(FAT32).
5. : In FM receiving status, short press it to select the previous channel after a full
station search has been executed.
6. : In USB/SD card reading status, short press it to play/pause, or long press it to
select one of four playback sequencing modes (All - play all tracks in sequence; ONE -
repeat one track). In FM receiving status, long press it to execute a full search (it is rec-
ommended to execute at least one full search before using radio receiving function.
All founded stations will be saved even in power-o). In AUX input / FM radio status,
short press it to toggle between mute and normal volume.
7. : In USB/SD card reading status, short press it to go to the previous track. In FM
receiving status, short press it to select the next channel after a full station search has
been executed.
8. Mode/SHIFT: short press it to toggle between USB/SD and FM receiving modes. long
press it to toggle between recording folder and MP3 folder.
9. Recording/DEL: Short press it to enable recording (USB/SD storage device need be
connected rst). During recording, reverberation should be tuned to the minimum.
Long press it to delete a recording le. Recording in AUX or FM mode is available.
10. EAR MIC: headphone/MIC Port
11. LINE IN: External sound source input port (plug-and-play).
12. TREBLE: The control knob of treble
13. Reverberation: Microphone reverberation regulating knob.
14. Microphone volume: Microphone volume regulating knob.

V. OPERATION INSTRUCTIONS FOR REMOTE
CAUTION:
Please be sure to charge if music becomes distorted.
15. Power switch: “ ” - ON; “ ” - OFF.
16. DC 9V recharging: DC 9V recharging port.
17. Microphone input: Microphone input jack
18. Track selection via numeric key, used in the same way with 0~9 numeric keys on the
remote control. : Short Press “0” keys, choose the numeric key “0”; In MP3 mode,
Long press it to toggle between 6 kinds of ash modes/ the ash light switch. In FM/
MIC IN mode, Long press, it to control the ash light switch.
19. Recharging indicator light: When recharger is connected, the red light turns on. When
the device is fully recharged, the blue light turns on.
20. EQ: In USB/SD reading status, short press it to select an environment mode (from
Square, Meeting, Home, Hall and Personal)
