blue
wave
frequency response
power supply voltage
output power @ 14.4v DC, 1KHz
RMS Power @ 4 Ohms
RMS Power @ 2 Ohms
Maximum Power Output
input sensitivity
low level inputs
high level inputs
15 Hz-30 KHz
250mV
2.5V
14.4V DC Neg. Ground (10.5-16V)
PLA1485R
4 channel amplifier
105 Wattsx4
155 Watts x 4
400 Watts x 4
maximum current draw
dimensions (W x H x L)
mm
inches
2-4 Ohms
4-8 Ohms
matching speaker impedance
stereo mode
bridged mode
input impedance
low level inputs
high level inputs 10K Ohms
100 Ohms
features and specifications
4 ch amps PLA1485R
40 A
300 x 62 x 425
11.8 x 2.4 x 16.7
8
dual crossover mode selectors
dual input level controls
dual low pass frequency controls
dual high pass frequency controls
dual bass boost level controls
low level inputs
high level inputs
power LED
protection LED
Remote Bass Boost
power fuse
power terminals
speaker connections
whenused with normal, fullrange systems, setthese switches to “FULL.”
If you wish to use the internal crossovers to power a driver of specific
frequency range, use the “LOWPASS” or “HIGHPASS” settings.
usethese controls to match theoutputs of your head unit tothe amplifier.
Starting with your head unit set at about the 2 o’clock position, increase
theamp level controlsuntil distortion beginsto occur, andreduce slightly
from this point.
when one or both of the crossover selector switches is in “low pass”
mode, one can set the upper frequency limit for audio program sent to
the speakers.
whenthe one orboth ofcrossover selector switchis in “highpass” mode,
one can set the lower frequency limit for audio program sent to the
speakers.
this control permits adjustment of the bass level up to an increase of
approximately 18 dB in either or both pairs of channels.
this amp features gold-plated RCA input jacks for high impedance input.
Use these with car stereo output which uses RCA-type connector cables.
if your car stereo lacks RCA-type output jacks, you may connect speaker
output leads to these input connectors.
this indicator is illuminated when power is applied.
thisindicator is illuminated whenbuilt-in protection circuitry is activated.
Plug in the Remote Bass Boost Control wire in here.
the fuse protects the amplifier and your car’s electrical system from short
circuit conditions.
usethese connectorsto deliver power,ground and remoteturn-on control
to the amplifier.
these terminals are 14K gold plated to guarantee high conductivity and
minimum signal loss.
9
blue
wave

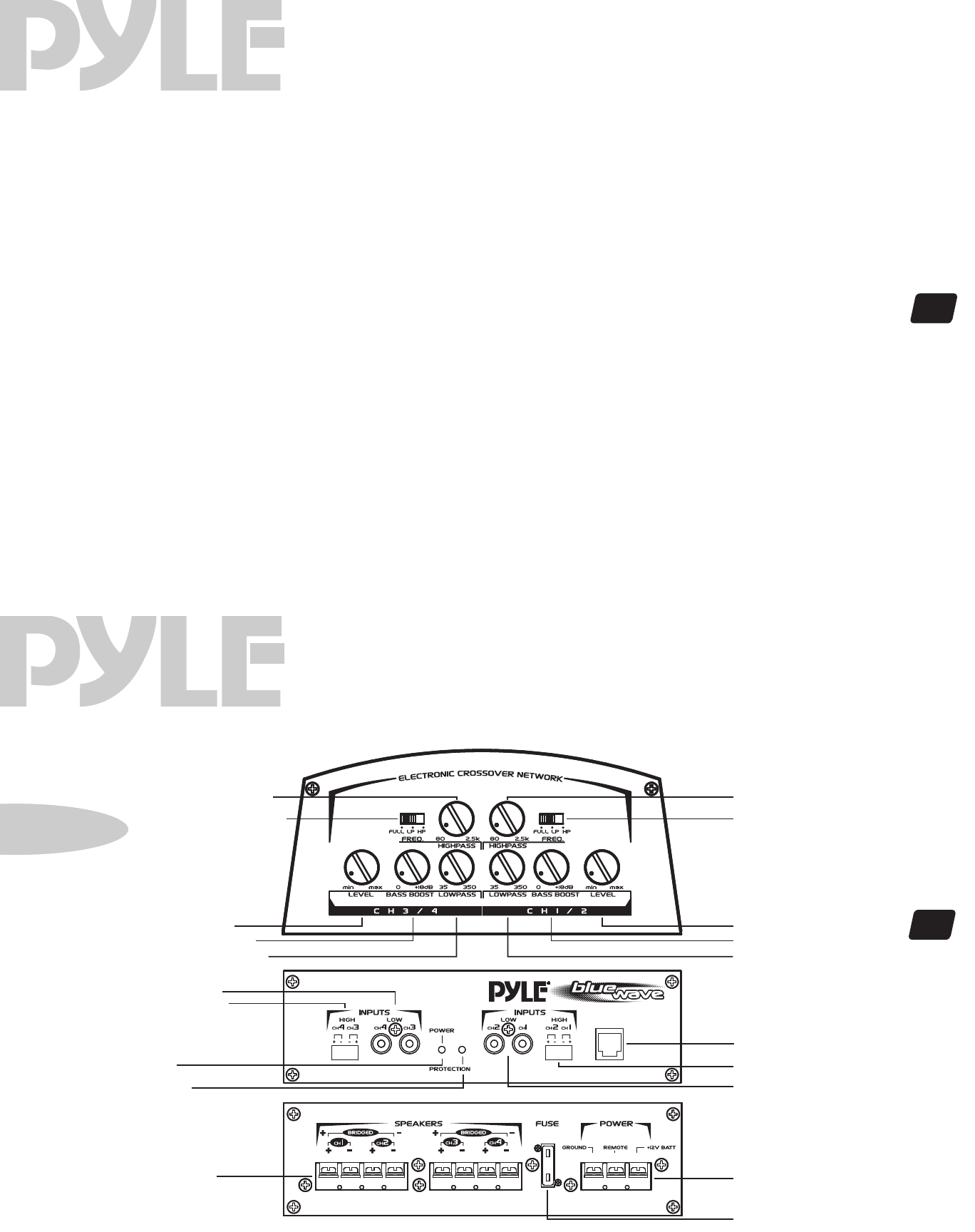

features and controls
4 ch amps PLA1485R
ch 1/2 crossover mode selector switch
ch 1/2 bass boost level control
ch 1/2 input level control
ch 1/2 high pass frequency control
ch 1/2 low pass frequency control
ch 3/4 crossover mode selector switch
ch 3/4 bass boost level control
ch 3/4 input level control
ch 3/4 high pass frequency control
ch 3/4 low pass frequency control
speaker connections
fuse
power terminals
pla1485R
ch 1/2 high level inputs
power LED
protection LED ch 1/2 low level inputs
ch 3/4 high level inputs
ch 3/4 low level inputs
Remote Bass Bost
REMOTE
BASS BOOST
