Pyle PMX8BU User manual

PMX8BU
Professional 3-Channel DJ Mixer
Built-in Wireless BT Music Streaming,
USB/Phono/Microphone and Line (3.5 mm) Inputs,
CUE Select for Pre-Listening with Digital LED Display

IMPORTANT SAFETY INSTRUCTIONS
CAUTION: To reduce the risk of electric shock, do not remove the
top cover (or the rear section). No user serviceable parts inside;
refer servicing to qualied personnel.
WARNING: To reduce the risk of re or electric shock, DO NOT expose this appliance
to rain and moisture. The apparatus shall not be exposed to dripping or splashing
and no objects lled with liquids, such as vases, shall be placed on the apparatus.
DETAILED SAFETY INSTUCTIONS
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with dry cloth.
7. Do not block any ventilation openings.
Install in accordance with the manufacturer’s instructions.
8. Do not install near any heat sources such as radiators, heat registers, stoves, or
other apparatus (including ampliers) that produce heat.
9. Do not defeat the safety purpose of the polarized or grounding-type plug.
A polarized plug has two blades with one wider than the other. A grounding type
plug has two blades and a third grounding prong. The wide blade or the third
prong are provided for your safety. If the provided plug does not t into your
outlet, consult an electrician for replacement of the obsolete outlet.
10. Protect the power cord from being walked on or pinched particularly at plugs,
convenience receptacles, and the point where they exit from the apparatus.
11. Only use attachments/accessories specied by the manufacturer.
12. Use only with the cart, stand, tripod, bracket, or table specied by the manufac
turer, or sold with the apparatus. When a cart is used, use caution when moving
the cart/apparatus combination to avoid injury from tip-over.
This symbol, wherever it appears, alerts you to the presence of uninsulated
dangerous voltage inside the enclosure-voltage that may be sucient to
constitute a risk of shock.
This symbol, wherever it appears, alerts you to important operation and
maintenance instructions in the accompanying literature. Please read the
manual.
www.PyleUSA.com
2
RISK OF ELECTRIC SHOCK. DRY LOCATION USE ONLY!

13. Unplug this apparatus during lightning storms or when unused for long periods
time.
14. Refer all servicing to qualied service personnel. Servicing is required when the
apparatus has been damaged in any way, such as power supply cord or plug in
damaged, liquid has been spilled or objects have fallen into the apparatus, the
apparatus has been exposed to rain or moisture, does not operate normally, or
has been dropped.
15. CAUTION: These service instructions are for use by qualied service personnel
only. To reduce the risks of electric shock do not perform any servicing other than
that contained in the operation instructions unless you are qualied to do so.
INTRODUCTION
With the PMX8BU, you have purchased an absolutely state-of-the-art DJ mixer. Its
extensive features open the door to new and creative ways of working, while
making it suitable for a variety of professional applications. At the same time, the
unit is extremely easy to operate, allowing you to completely unfold creativity.
The following instructions will give you a brief run-down on the terminology
and functions of the unit. After reading, please store this manual in a safe place
for future reference.
Your PRO MIXER was carefully packed in the factory and the packaging is designed
to protect the unit against rough handing. Nevertheless, we recommend that you
carefully examine packaging and contents for any signs of physical damage which
may have occurred during transit.
• If the unit needs to be shipped, please always use the original packaging to avoid
damage.
• Never let unsupervised children play with the unit or with its packaging.
• Please dispose of all packaging materials in an environmentally-friendly fashion.
Please take care to always ensure adequate ventilation. Do not place the PRO
MIXER near heating units or heat-generating devices in order to avoid over-
heating.
CAUTION!
We would like to point out that high volumes can permanently damage your
sense of hearing and/or your headphone or speaker systems. Therefore, please
turn the MAIN control in the MIC/MAIN section all the way to the left before
turning on the mixer. And please exercise caution and common sense when
setting volume levels.
www.PyleUSA.com
3

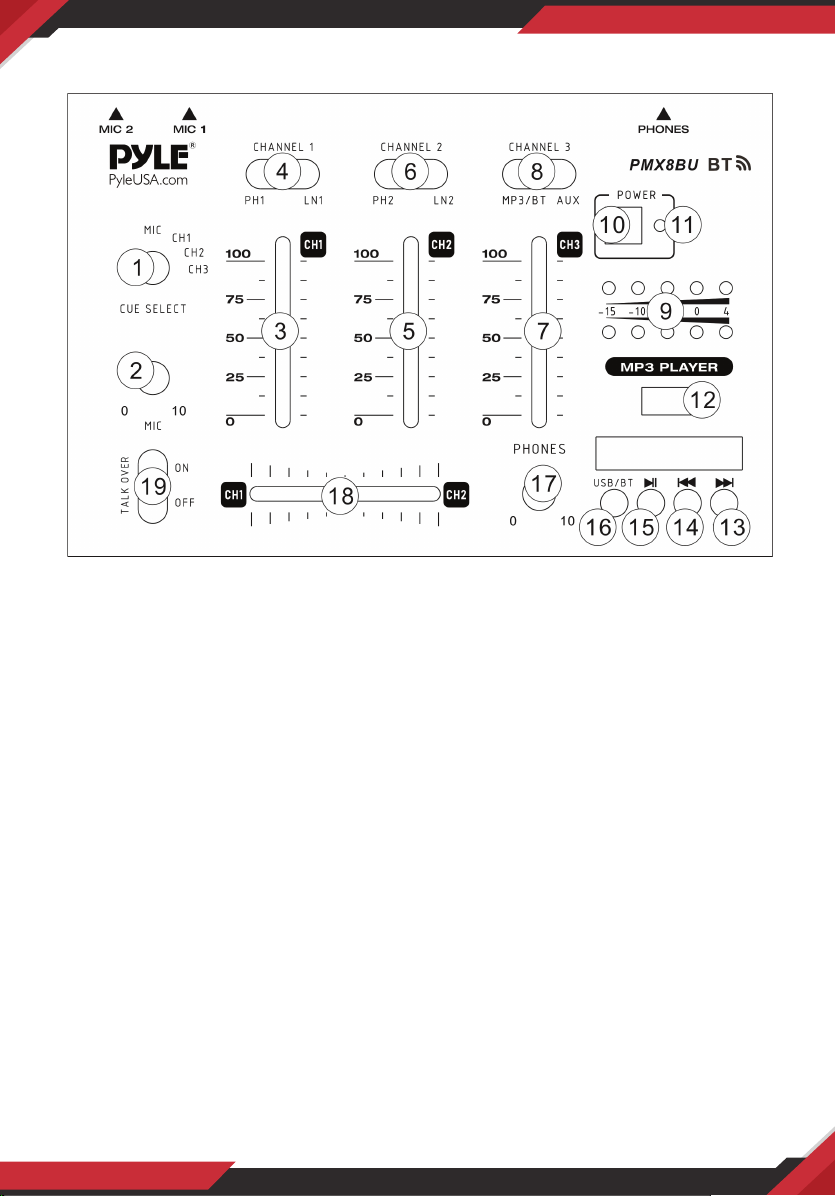

1. FRONT PANEL
1. The CUE SELECT monitoring each channel for MIC, Chanel 1, Channel 2 and
Channel 3.
2. The MIC LEVEL control adjusts the volume of the microphone signal.
3. The CHANNEL 1 fader adjusts the nal channel volume.
4. The PHONO/LINE switch selects one of the input pairs on the respective channel.
The “PH1”setting (and inputs) is intended for turntables; for all other signal sources,
i.e. a CD or MD player, use the “LN1” setting and inputs.
• Never connect line-level equipment to the highly sensitive PHONO inputs!
The output levels of PHONO cartridge systems are in the millivolt range, whereas
CD and MD players, as well as tape decks, provide outputs levels in the volt range.
In other words, the level of line signals is up to 100 times higher than PHONO
output levels.
• Do not turn up the volume when no turntable is connected to the PHONO input
terminals. Doing so will cause humming or noise.
When not connecting a turntable, keeps the “LINE” setting.
5. The CHANNEL 2 fader adjusts the nal channel volume.
6. The PHONO/LINE switch.
7. The CHANNEL 3 fader adjusts the nal channel volume.
8. The USB/BT and AUX switch.
9. Output Meter: Indicate the levels of Left and Right Master channels.
10. The POWER ON switch turns on the unit
www.PyleUSA.com
4

11. Power supply LED
12. USB port.
13. Next.
14. Previous
15. Play and Pause.
16. To choose play USB or BT source
17. The LEVEL control determines the volume of the headphones signal.
18. The CROSSFADER is used to fade between channels1 and 2.
19. MIC TALKOVER Allows you to lower the level of the input sources so you can talk
them using the DJ MIC

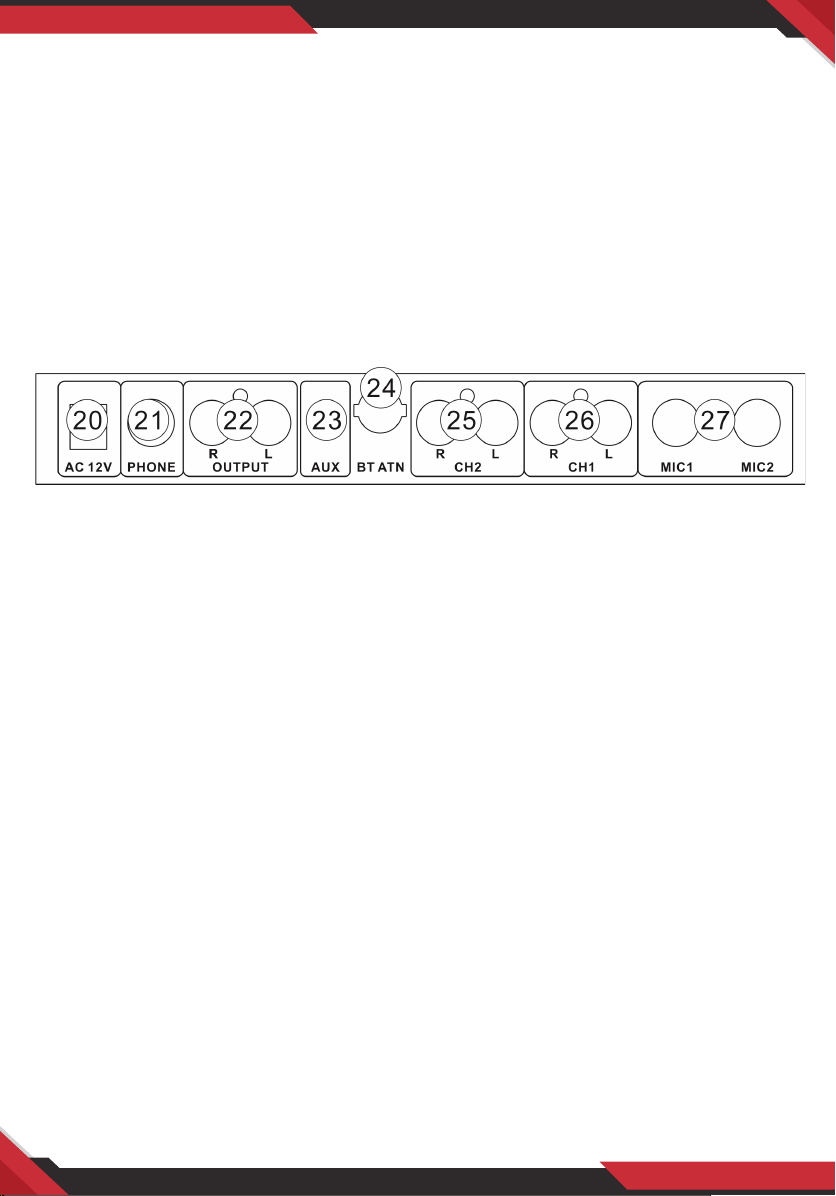

2. REAR PANEL
All of the unit’s audio connections are located on the rear panel and supplied as
RCA connectors.
20. Power supply: Only use the power adapter provided with the unit to power the
unit. When connecting and disconnecting the power cord, be sure the power of
the unit is o. Connect the cord to the rear of the unit and then connect it to the
outlet.
21. The HEADPHONES socket allows you to connect your headphones for pre-
listening (PFL signal). For best results, use headphones with an impedance rating
of at least 32 Ohms
22. Use the AMP output to connect the unit to an amplier.
• In order to avoid power-up thumps, which can damage your loudspeakers, please
power up your amplier last. There should be no signal present, e.g. no music
playing, when you turn on your amp. In addition, we suggest that you set all
volume-related controls to “zero” (down) before powering up your system.
Following these precautions will save you from unpleasant and potentially
dangerous surprises.
23. AUX inputs Jack for Line level signals.
24. WIRELESS BT ANTENNA: Please pull the antenna out when using Wireless BT
input.
25. The PHONO inputs for channel 2 and are only for turntable connection.
The LINE inputs may be used for connecting tape decks, CD or MD players etc.
26. The PHONO inputs for channel 1 and are only for turntable connection.
The LINE inputs may be used for connecting tape decks, CD or MD players etc.
www.PyleUSA.com
5

27. The MIC1 MIC2 INPUT connector is a balanced 1/4”TRS socket for microphone
connection.
BUTTON CONTROLS AND FUNCTIONS
A. MODE BUTTON: This button lets you toggle a working mode, USB play mode,
Wireless BT mode. This lets you choose which music source device will play.
B. PLAY BUTTON: This button has two functions depending on these dierent
modes as below.
a.USB Play Mode: Play
Each press of the PLAY BUTTON causes the operation to change from play to
pause or from pause to play.
b. Wireless BT mode: Play
Each press of the PLAY BUTTON causes the operation to change from play to
pause or from pause to play.
C. PREV BUTTON: This button has four functions depending on these dierent
modes as below.
a. USB Play Mode: PREV and Volume DOWN
Use this button to select previous track.
The volume of USB will turn down if press and holding the button for more
than 3 seconds.
b. Wireless BT mode: PREV and Volume DOWN
Use this button to select previous track. The BT volume will turn down by
pressing and holding the button for more than 3 seconds.
c. NEXT BUTTON: This button has four functions depending on these dierent
modes as below.
a. USB Play Mode: NEXT and FF
Use this button to select next track.
The volume of USB will increase if press and holding the button for more than 3
seconds
b. Wireless BT mode: PREV and Volume UP
Use this button to select previous track.
The volume of BT will increase if press and holding the button for more than
3 seconds.
Remark:
1.The unit will auto play that Insert into USB device (include mp3 les) in USB mode.
2. The unit will auto into Bluetooth mode when the unit turn on without USB.
www.PyleUSA.com
6

PMX8BU
Professional 3-Channel DJ Mixer
Built-in Wireless BT Music Streaming, USB/Phono/Microphone and Line (3.5 mm)
Inputs, CUE Select for Pre-Listening with Digital LED Display (200 Watt)
Features:
• Professional 3-channel DJ mixer
• Built-in BT for Wireless Music Streaming
• CUE select for PRE-listening
• Digital LED display
• Compatible with All of Your Favorite BT Devices
• Combine & Mix (2) Aux Input Sources with BT Audio or MP3
• AUX Inputs Switch between Line Level and Phono Input
• (2) Phono RCA Audio Line Inputs for Connecting External Devices
• (2) 1/4” Balanced TRS Microphone Jacks
• Microphone 1 and 2 Level Gain and Talk-over Control
• Mic Talk-over Ability to Speak Over Audio, Karaoke Style
• 1/4” Headphone Jack with Volume Control
• Amp Master Output (L/R)
• USB Flash Drive Reader
• Independent Channel Controls Cross Fader
• Easily Mix & Control MP3 and BT Connected Devices
• (L) and (R) RCA Master Output with Stereo
Technical Specications:
• LED Screen Size: 2.76’’ x 0.98’’
• Phono Inputs 1 and 2: 90mv 1 kHz, unbalanced inputs
• Line Inputs 1 and 2: 0.6V, unbalanced inputs
• Mic Input: 120mv, balanced inputs
• Headphones: 300mW @ 1% THD
• Signal-to-Noise Ratio (S/N) : > 78dB (Line in)
• Crosstalk: > 50dB (Line in)
• Distortion (THD): < 1%
• Frequency Response: 20Hz - 20kHz
• Power Consumption: Max 5 W
• Dimensions (H x W x D): 5.31'' x 9.25'' x 1.97'' inches
• Weight: 1.98 lbs.
www.PyleUSA.com
7
Questions? Issues?
We are here to help!
Phone: [phone]
Email: suppor[email protected]
This product can expose you to a chemical or group of checmicals, which
may include ”Nickel Carbonate” which is known in the state of California to
cause cancer, birth defects, or other reproductive harm. For more info, go to
https://www.p65warnings.ca.gov/.
