Pyle PTVDLED32 User manual

Modelnr:PTVDLED32 Modelnr:PTVDLED40
NTSC,ATSC
Statement:This document is reference manual,please confirm
with the specifically software if need translate or batch print
CCD
ZOOM SLEEP
VOL
FAV
GOTO ANGLE SLOW
STEP
FAV- FAV+ REPEAT
SUB-T A-B PROG DVD
MENU
DVD
SETUP
TITLE
CH
AUTO
DISPLAY
POWER
S.MODE
TV MENU
ENTER
MTS EXIT
P.MODE
+
EPG
SOURCE
MUTE

2
Contents

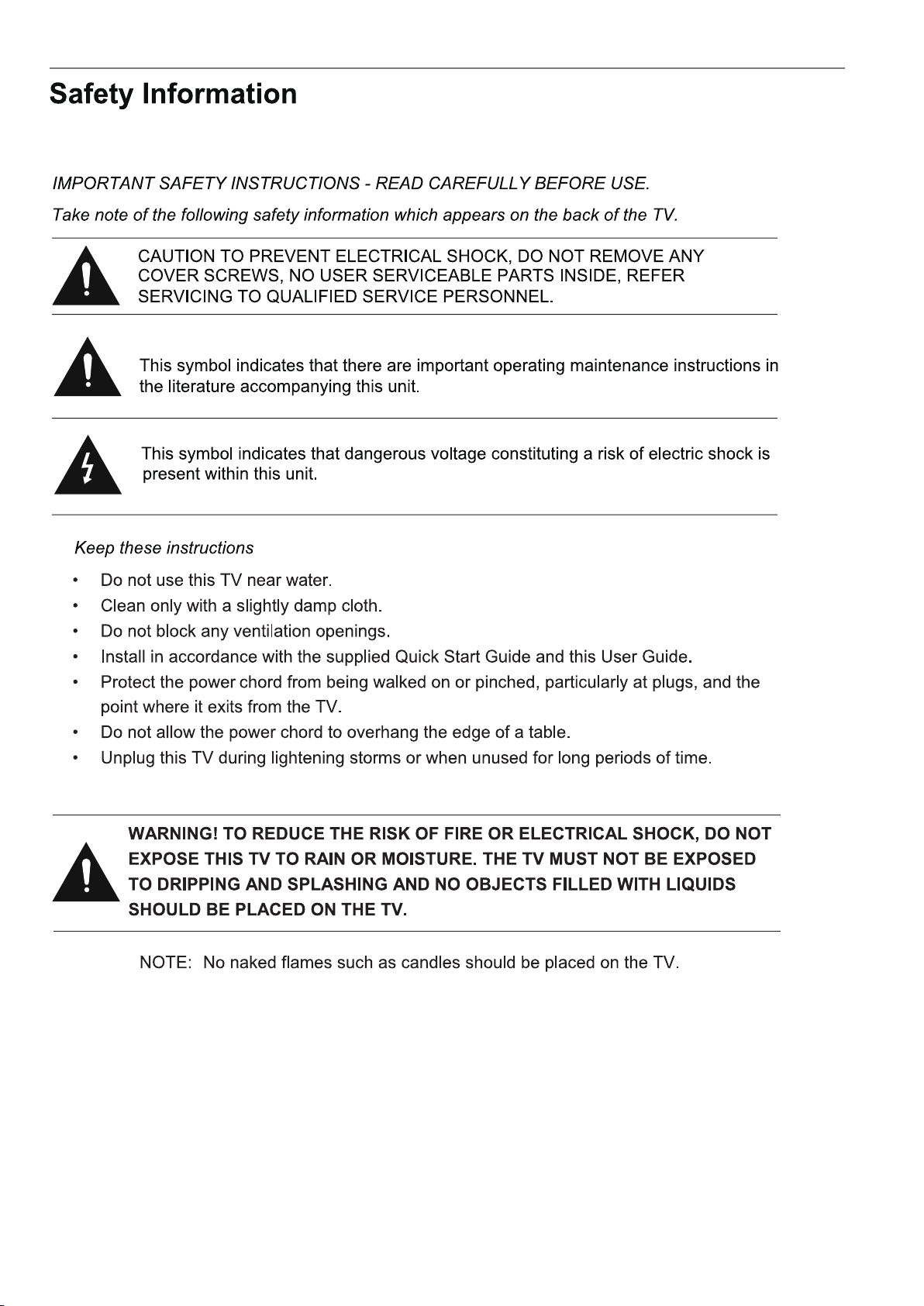

Caution .......................................................................................3 Safety Information .....................................................................3-5
Product Introduction .................................................................6
Technical Specification............................................................................ 5
Simple Troubleshooting
Connections ...............................................................................7
R
Setup Wizard
Select Input Source
Main Menu
e

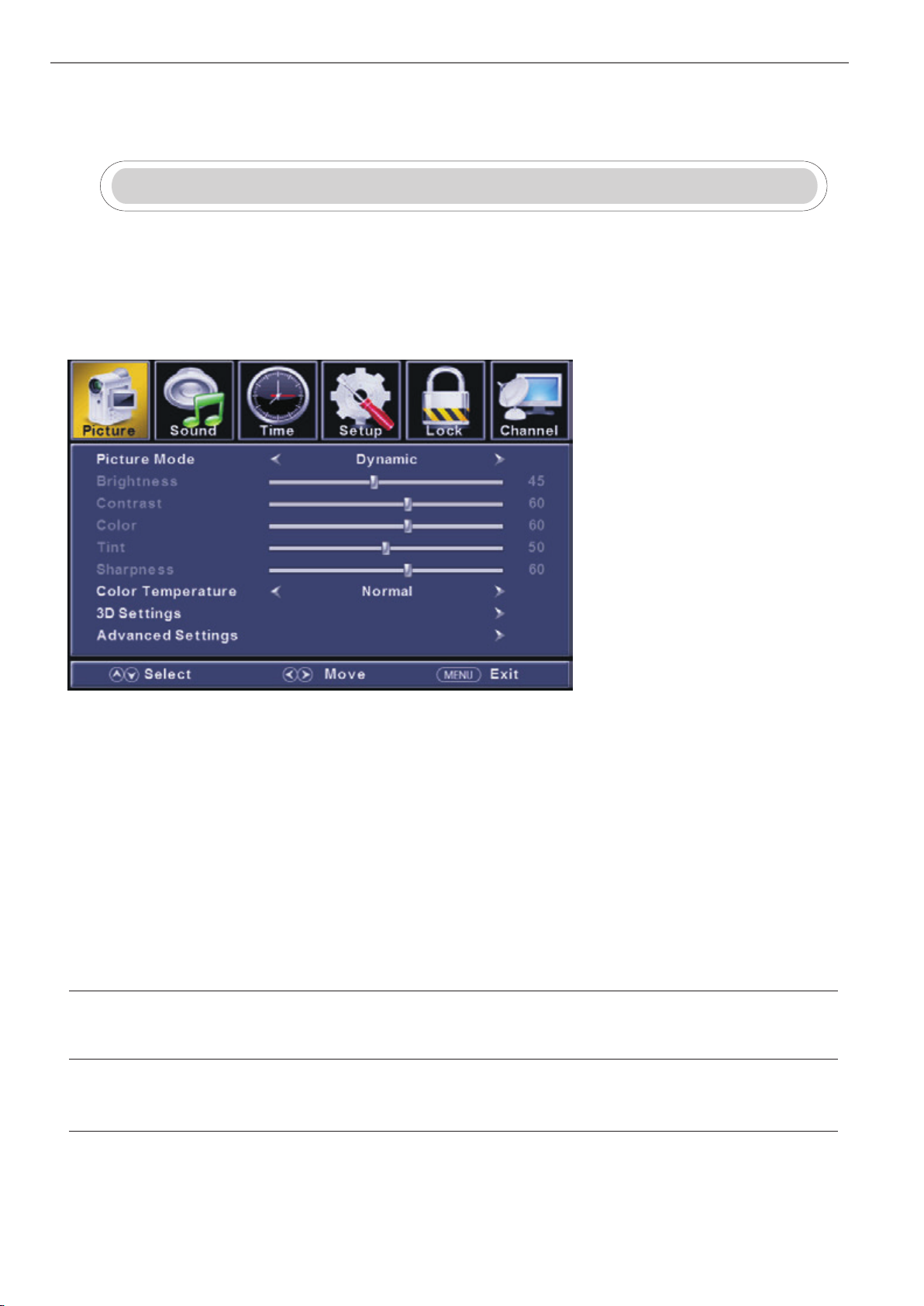

Picture Menu
mote Control..........................................................................8-9
10-11
12
12
.......................................................................13-14
Lock Menu ...........................................................................21-24
..........................................................25
Soud Menu .............................................................................15-16
Time Menu .................................................................................17

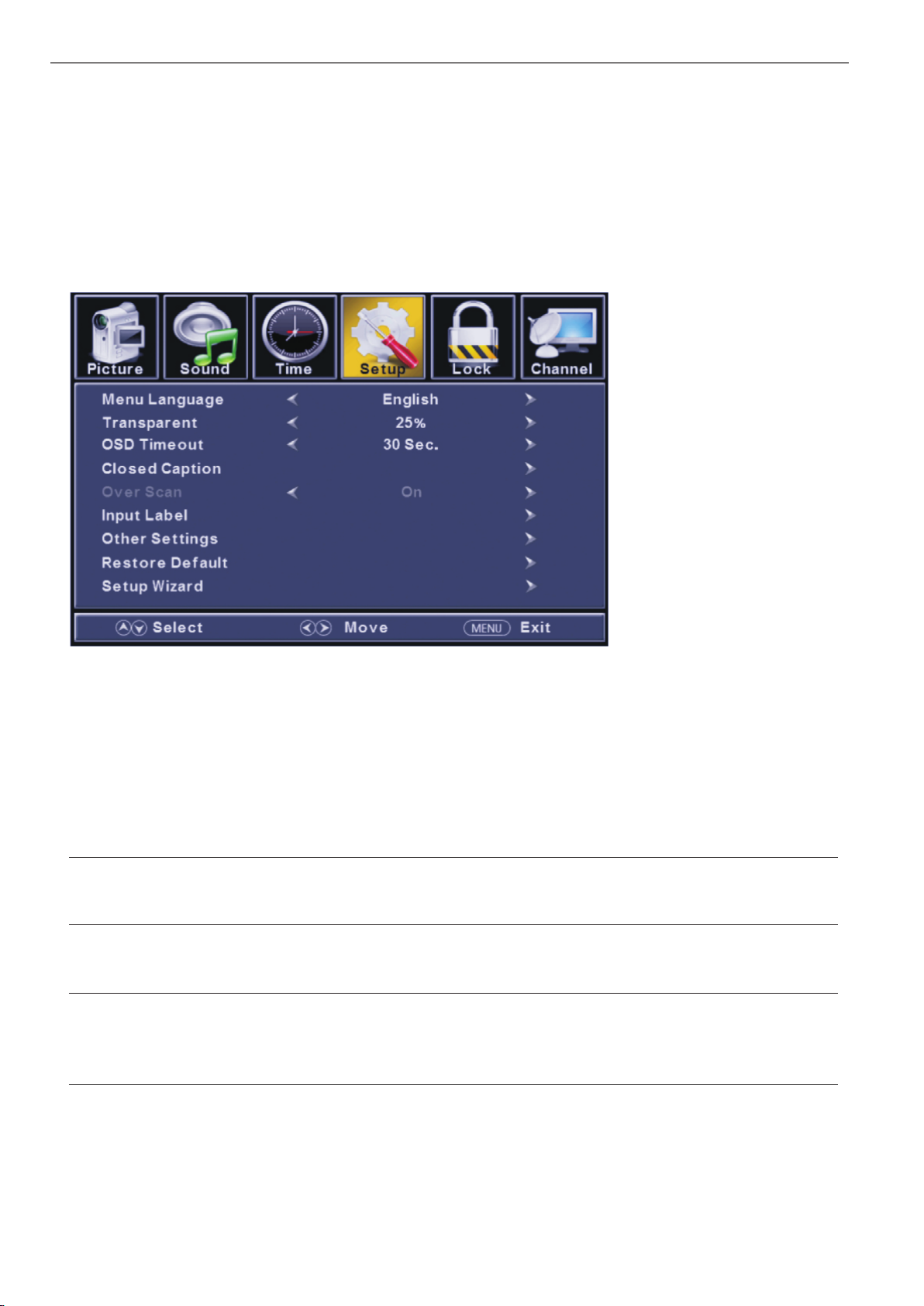

Setup Menu ................................................................................19-21
Close Caption ............................................................................18
Channel Menu..............................................................................25-26
PC Menu.......................................................................................27-28
DVD Operation.............................................................................29-33
SPECIFICACIONES......................................................................34
..............................................................................

3

4

5

6

7
1. Connect a stereo headphone (3.5mm) for private listening.
2/3/4. Connect it to the HDMI of DVD or other equipment.
5. Connect an optional VGA cable from your personal computer.
6. Connect an optional 3.5mm audio cable for sound when using VGA.
7. Connect antenna or cable for television reception.Note: Use an
8. Connect to an AV device that features compo-nent
video and audio output jacks.
9.Connect to an YPbPr device that features compo-nent
video and audio output jacks.
10/11. Audio output to connect power amplifier stereo equipment.
12. Connect an optional coaxial digital cable through a compatible
amp/receiver to enjoy superior audio sound.
13. For service technician use only.
1 2 3 4 5 6 7
8 9 10 11 12 13
RF L R Video/Y Pb Pr R
AUDIO OUT
L

8
CCD
ZOOM SLEEP
VOL
FAV
GOTO ANGLE SLOW
STEP
FAV- FAV+ REPEAT
SUB-T A-B PROG DVD
MENU
DVD
SETUP
TITLE
CH
AUTO
DISPLAY
POWER
S.MODE
TV MENU
ENTER
MTS EXIT
P.MODE
+
EPG
SOURCE
MUTE
POWER: Turn the TV on/standby.
MUTE
S.MODE: Select the sound mode.
P.MODE: Select the picture mode.
EPG: To show the Electronic Program Guide during no-menu
state only in DTV mode.
TV MENU: System setup menu.
SOURCE: Press to display the input source menu.
MTS: Press to select an alternate audio language (if applicable).
EXIT: Exit the OSD menu.
AUTO: When you connect the TV with a PC through VGA input, press to
adjust the screen resolution automatically.
DISPLAY: Provides information on the currently viewed program.
CCD: Select closed caption subtitles (if available) OFF > ON > CC on
Mute (pg. 22)
: Press to mute the sound, press again or press
VOL+ to unmute.
CURSOR KEYS ENTER
Allows you to navigate the on-screen menus and adjust the
system settings to your preference.
NUMBER BUTTONS：
Press0-9 to select a TV channel directly when you
are watching TV.
Return to the previous channel viewed.
CH / : Scan through channels.
: Load/eject DVD disc.
: Fast reverse.
: Fast forward.
: Previous chapter.
: Next chapter.
: Pause program.
: Play program.
VOL / : Adjust the volume.

9
CCD
ZOOM SLEEP
VOL
FAV
GOTO ANGLE SLOW
STEP
FAV- FAV+ REPEAT
SUB-T A-B PROG DVD
MENU
DVD
SETUP
TITLE
CH
AUTO
DISPLAY
POWER
S.MODE
TV MENU
ENTER
MTS EXIT
P.MODE
+
EPG
SOURCE
MUTE
ZOOM: Select viewable display options:
Normal > Wide > Zoom > Cinema. (pg. 27)
SLEEP: Press to activate the Sleep function to turn off the TV automatically;
5 Min > 10 Min > 15 Min > 30 Min > 45 Min > 60 Min > 90 Min >
120 Min > 180 Min > 240 Min > OFF.
FAV: Press to display a list of favorite TV channels you have added. (pg. 26)
FAV-: Press to scan to a lower channel from your list of favorites.
FAV+: Press to scan to a higher channel from your list of favorites.
REPEAT: Repeat playing the title or chapter
SUB-T: Turn on/off the subtitle display in DTV mode
and DVD mode.
A-B: Select and play the preferable paragraph of DVD program
by pressing this key twice at the beginning and end of it.
PROG: The track programming
DVD MENU: DVD to return to menu
TITLE: DVD title.
DVD SETUP: DVD menu Settings

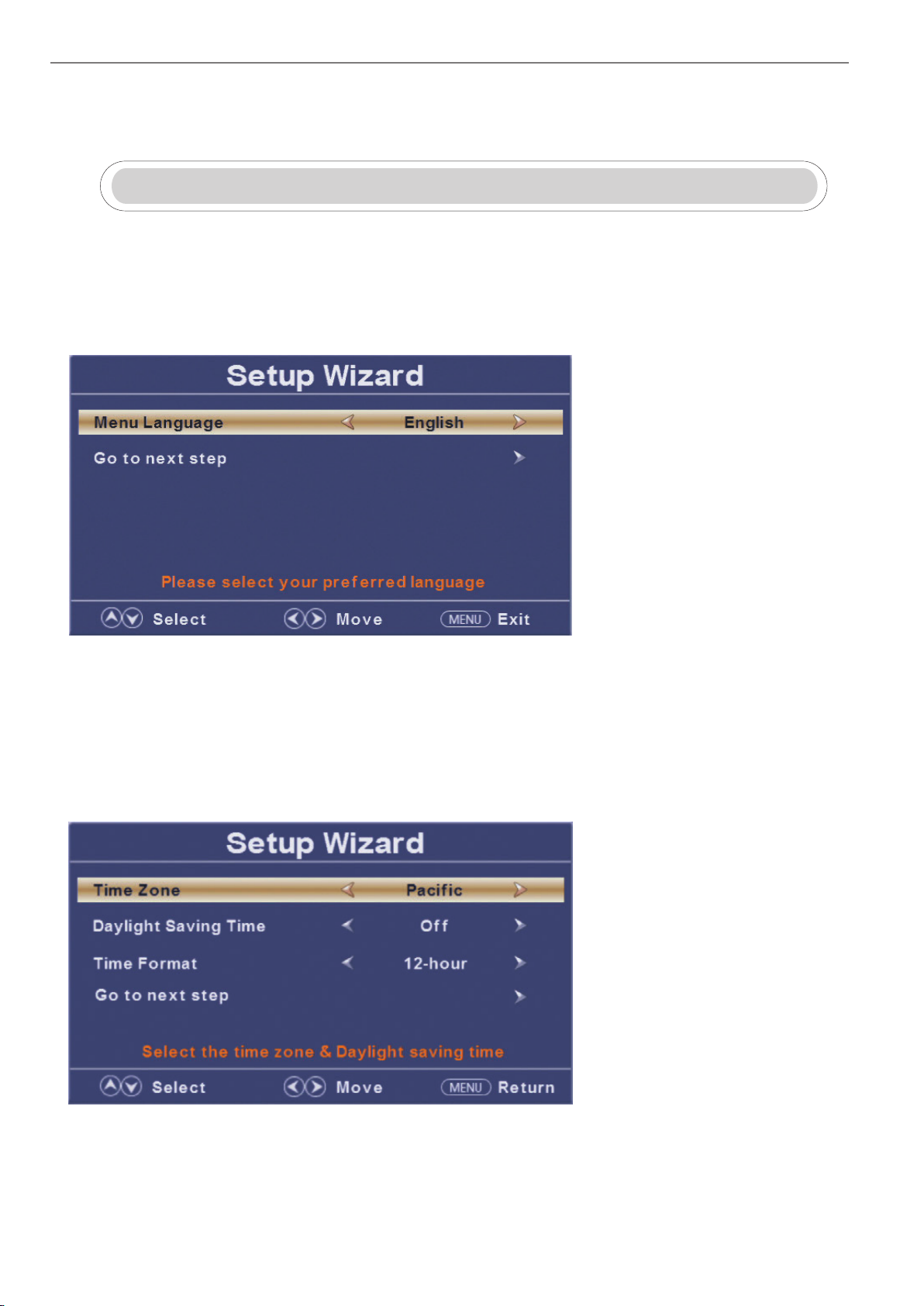

Setup Wizard
Connect an RF cable from the TV’s input called “RF-In” and to your TV Aerial socket.
Select Language
Press ◄ / ► button to select the language to be used for menus and message.
Press ▼ / ▲button to select go to next step and press ENTER/► button to go.
Select Time
Press ▼ / ▲button to select the time zone, daylight saving time and time format you want to.
Press ◄ / ► button on the remote control to adjust.
Press ▼ / ▲button on the remote control to select go to next step and press ENTER/► button to go.
10
