Congratulations
Congratulations on the purchase of your state-of-the-art remote start
and keyless entry system. Reading this Owner’s Guide prior to using
your system will help maximize the use of your system and its many
features. Please visit www.pythoncarsecurity.com – for general and
additional guide information. For any additional questions please
contact your authorized Directed dealer or contact Directed at 1-800-
753-0600. (U.S. only)
Additional Guide Information
Only basic commands, features and essential information are covered
in this compact guide. Your product has many advanced features
which are not discussed here, please consult the expanded online
version for information about these features at
www.pythoncarsecurity.com.
Most sections in this guide also contain additional information which
can be found in the expanded online version.
What you get
Welcome to the best generation of keyless entry with remote start.
Your system contains everything you need.
• Responder LC remote control with SST technology for superior
range and reliability (p/n 7754P)
• 1-way Companion remote control (p/n 7654P)
• AC adapter for charging your remote control (p/n 8602T)
• Owner’s guide
• Warranty registration card

Government Regulations and Safety information
Read the Government Regulations and Warning! Safety
First sections of this manual prior to operating this system.
Warning! Failure to heed this information can result in
death, personal injury or property damage and may also
result in the illegal use of the system beyond its intended
purpose.
Your Warranty
Your Responder LC system comes with a warranty. Make sure
you receive the warranty registration card and proof of pur-
chase from your dealer indicating the product was installed
by an authorized Directed dealer. Please validate it online at
www.prodregister.com/directed or complete and return the warranty
registration card.
Getting Started
Due to transit and storage time prior to your purchase, the battery
charge may have depleted. To ensure proper operation, check the
battery level and connect the battery charger if not fully charged.
Charging the remote control:
1. Plug the AC adapter into a 110V AC outlet. Insert the mini-USB
connector into the mini-USB port located on the side of the
remote control. The text field will display CHARGE to indicate
the remote control is charging (The remote remains operational
while charging and can command the system).
2. Once fully charged the text field will display FULL .

Contents
Remote Control Information.................................................................................. 2
Control Center..................................................................................... 3
Status Screen Icons.............................................................................................. 4
Using your System............................................................................................... 6
Commands and Confirmations .............................................................. 6
Performing Commands ......................................................................... 6
Basic commands ................................................................................................ 7
Lock ................................................................................................... 7
Unlock................................................................................................ 8
AUX/Trunk.......................................................................................... 8
Remote Start........................................................................................ 8
Configuring your System...................................................................................... 9
Navigating menus and options.............................................................. 9
Access menu items .............................................................................. 9
1-way Companion Remote Control..................................................................... 10
Battery Information (1-Way) ................................................................ 10
Battery Information (Responder LC)..................................................................... 11
Battery Disposal ................................................................................ 11
Government Regulations .................................................................................... 13
Warning! Safety First......................................................................................... 14
Installation ........................................................................................ 14
Remote Start Capable ........................................................................ 14
Manual Transmission Vehicles ............................................................. 15
Interference....................................................................................... 17
Upgrades and Batteries ...................................................................... 17
Water/Heat Resistance ...................................................................... 17
Limited lifetime consumer warranty ..................................................................... 18

2© 2012 Directed. All rights reserved.
Remote Control Information
Internal
Antenna
Display
Command
Buttons
Function Button
Mini USB Port
Feature Description
Internal Antenna Used for transmitting and receiving information
Display Status screen - the upper portion of the display contains status
icons for the System, Remote Start and Remote Control.
Text field - the lower portion of display - shows the Clock,
Runtime or Temperature
during Remote Start, as well as Command confirmations,
Page messages and programming menus
Command buttons (4) Used to perform Locking, Unlocking, auxiliary channel and
remote start commands
Function button Used to access function levels for commands, configura-
tion menus for programming, Car Selection, and to request
reports.
Mini-USB Port The battery charger plugs into this port.

3
© 2012 Directed. All rights reserved.
Control Center
Status LED Control button
The Control Center, typically located on the upper part of the front
windshield sends and receives commands or messages to and from
your system. It consists of:
• The In-vehicle system antenna, for 2 way communication.
• The Status LED, as a visual indicator of the system’s status.
• The Control button, for placing the system into Valet Mode*and
to perform the Emergency Override* operation.
* See the online guide for details.

4© 2012 Directed. All rights reserved.
Status Screen Icons
1
ALL
Text Field
Status Screen
Icons
The table below describes all the status screen icons.
Icon Description
System Status
Locked: The system is locked.
Locked: The system is Locked in Valet.
Unlocked: The system is Unlocked.
Unlocked: The system is Unlocked in Valet.
Remote Start
Remote start is active, the engine is running.
Timer mode is On; Remote Start is On.
Note: When the icon is without an arrow head: Timer mode is
enabled: Remote Start is Off

5
© 2012 Directed. All rights reserved.
Icon Description
Remote Start
+
Smart Start is On; Remote Start is On.
Note: When the icon is without an arrow head: Smart Start is
On; Remote Start is Off.
Manual Transmission Start mode is enabled, the engine can
be started
Displays the vehicle interior temperature
On during Remote Start after performing the Defogger On
command
Remote Control Status
Bars indicate battery level is Full, ¾,½,¼ or Empty
On while the remote control is transmitting a command
On while the remote control is receiving a message
On with Out of Range fault tone to indicate the remote failed to
receive a command confirmation
Pager on: The remote will wake up to listen for messages
Pager off: The remote will not wake up to listen for messages
The remote will Vibrate when messages are received
The remote will emit Beeps and Tones when messages are
received
Text field Displays the Clock, Runtime, Temperature, message text and
feature menus

6© 2012 Directed. All rights reserved.
Using your System
Commands and Confirmations
Commands, Basic or Advanced, are used to activate system features
and are performed by pressing one of the Command buttons. Basic
commands control the most often used and remote start features while
Advanced commands control more specialized features and request
reports. Confirmations for Basic or Advanced commands are indi-
cated first by horn honks and parking light flashes, and then by Text,
Icons and beeps or tones on the remote control. A description of each
feature confirmation is found in the online guide.
Performing Commands
Perform Basic commands by pressing one of the command buttons
while in the Direct Access level. Direct access is available while the
text field displays the Clock, Temperature or Runtime. Perform Ad-
vanced commands by pressing one of the command buttons after ac-
cessing one of the Function Levels. Function Levels are available when
the text field displays LEVEL 1,2,3 or 4.
Advanced command example: Silent Lock
1. Press the button once to access Function Level 1, the text
field will display LEVEL 1 .
2. Press the button while LEVEL 1 text is still on to perform the
Silent Lock command.
3. The Responder LC remote will display SILENT LOCKED in the
text field and update the status screen icons.

7
© 2012 Directed. All rights reserved.
Basic commands
Lock
Press and release
The doors lock and the horn honks (if connected) and
parking lights flash once. The LOCKED text and beeps play to confirm,
and the System Status Icons update. If Valet mode* is On the doors
lock and the VALET text and tone play. Exit Valet mode to Lock the
system normally.
If the door was open when locking, you are notified of an active zone
immediately after locking the system. The horn in the vehicle “honks”
again. The 2-way remote control sounds a short “error” tone, and the
LCD displays the door icon.
Note: the optional door input and horn honk must be connected for
the system to give notification.
To Lock and Panic
Press and hold
The system Locks (or Locks in Valet) and, after 2 seconds, sounds
the horn and flashes the parking lights. The PANIC text displays
and horn honks to confirm. Press the or button to stop the
output.
1
ALL
6:30

8© 2012 Directed. All rights reserved.
Unlock
Press and release
The doors unlock (if connected), and the horn honks (if connected)
and parking lights flash twice. The UNLOCKED text and beeps play to
confirm and the system status icons update. If Valet mode* is On the
doors unlock and the VALET text and tone play.
AUX/Trunk
Press and hold AUX
The Trunk opens (if connected) when this button is pressed for 2 sec-
onds. The TRUNK text and tones play to confirm.
Remote Start
Press and release
Activates (or if On, deactivates) the remote starter. The engine and
parking lights turn On and the REMOTE START ON text and tones play,
or the engine and parking lights turn Off and the REMOTE START OFF
text and tones play to confirm, the Remote Start status icons update.
The icon will display in the status screen and the text field will
display the Runtime, Temperature or Clock as programmed. If Remote
Start fails to activate, REMOTE START ERROR text and a fault tone play
while the parking lights flash to identify the reason.
*See the online guide for details.

9
© 2012 Directed. All rights reserved.
Configuring your System
You can customize the way the Responder LC remote communicates
information and adjust a variety of system features in the Main Menu.
Navigating menus and options
Navigating menus and features, changing options, and exiting are
performed using the remote control buttons. The following instructions
discuss how to access and configure the settings.
• To access menus, set options, and to perform actions that are
displayed in the text field, use the button.
• To scroll the menu lists in the text field use the AUX & buttons.
• To exit configuration: use the or buttons.
Access menu items
1. Press and hold the button for 8 seconds, the remote will beep
once, MAIN MENU is displayed. (If Car 2 is on, ignore the Car
Select text and beep after 3 seconds).
2. Release the button to display the Main Menu item list,
SETUP REMOTE is displayed.
3. The Main Menu has been accessed and configuring can begin.
Use the following process to view the Main Menu features, op-
tions and settings in the text field. The following actions are com-
monly used throughout the configuration operation.
• Press the AUX or buttons to change the feature or option
that is displayed in the text field.
• Press the button to choose the feature in the text field and
view its options. Press it when the desired feature or option
is in the text field to set it as the new setting.

10 © 2012 Directed. All rights reserved.

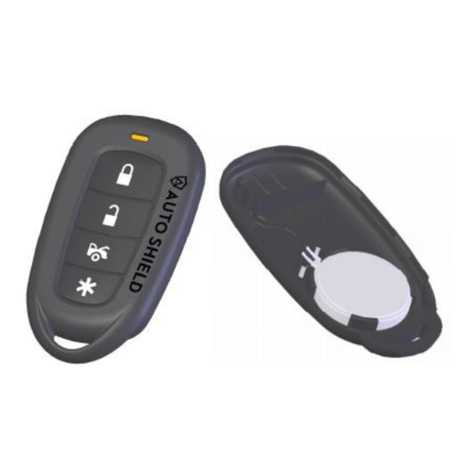

1-way Companion Remote Control
Antenna
Transmit LED
Command Buttons
Function Button
Button
Level Direct Access x 1
LEVEL 1
x 2
LEVEL 2
x 3
LEVEL 3
x 4
LEVEL 4
Lock
(Panic)
Silent Lock
Unlock Silent Unlock Remote Valet Car Finder
Remote Start Runtime
Reset
Timer Start Smart Start Defogger
A U XAux/Trunk AUX 1 AUX 2 AUX 3 AUX 4
Not Used Used to access function levels for Advanced Commands
(with multiplier in top row implies button presses)
Battery Information (1-Way)
The 1- way companion remote is powered by one 3V coin cell lithium
battery (P/N CR-2032) that will last approximately one year under
normal use.

11
© 2012 Directed. All rights reserved.
Battery Information (Responder LC)
The Responder LC remote control is powered by an internal recharge-
able battery that can be serviced only through an authorized Directed
Electronics dealer.
Warnings! NEVER connect the supplied AC adapter
to products other than the Responder LC remote con-
trol. It is a high current device designed specifically for
rapid charging of the Responder LC battery and may
cause severe damage or explosion when connected to
any other products.
Battery Disposal
Directed cares about the environment. If you need to dis-
pose of the battery, please do so in accordance with your
municipal requirements for battery disposal or return to Di-
rected.

12 © 2012 Directed. All rights reserved.
Patent Information
This product is covered by one or more of the following United States
patents:
Vehicle Security Patents
5,467,070; 5,532,670; 5,534,845; 5,563,576; 5,646,591;
5,650,774; 5,673,017; 5,712,638; 5,872,519; 5,914,667;
5,952,933; 5,945,936; 5,990,786; 6,028,505; 6,452,484
Remote Start
5,349,931; 5,872,519; 5,914,667; 5,952,933; 5,945,936;
5,990,786; 6,028,372; 6,467,448; 6,561,151; 7,191,053;
7,483,783
Other patents pending

13
© 2012 Directed. All rights reserved.
Government Regulations
This device complies with Part 15 of FCC rules. Operation is subject to the fol-
lowing two conditions: (1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference
that may cause undesirable operation.
This equipment has been tested and found to comply with the limits for a
class B digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates and can radiate radio fre-
quency energy and, if not installed and used in accordance with the instruction
manual, may cause harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a particular installa-
tion. If this equipment does cause harmful interference to radio or television,
which can be determined by turning the equipment OFF and ON, the user is
encouraged to try to correct the interference by one or more of the following
measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
• Consult the dealer or an experienced radio / TV technician for help.
Remote Controls
To satisfy FCC RF exposure compliance requirements, this device should be
used in hand-held, hand operated configurations only. The device and its an-
tenna must maintain a separation distance of 20 cm or more from the person’s
body, except for the hand and wrists, to satisfy RF exposure compliance. This
device is designed to be used in a person’s hands and its operating configu-
rations do not support normal transmissions while it is carried in pockets or
holsters next to a person’s body.

14 © 2012 Directed. All rights reserved.
Control Center
To satisfy FCC RF exposure compliance requirements, the device and its an-
tenna must maintain a separation distance of 20 cm or more from the person’s
body, except for the hand and wrists, to satisfy RF exposure compliance.
This device complies with the Industry Canada Radio Standards Specification
RSS 210. Its use is authorized only on a no-interference, no-protection basis;
in other words, this device must not be used if it is determined that it causes
harmful interference to services authorized by IC. In addition, the user of this
device must accept any radio interference that may be received, even if this
interference could affect the operation of the device.
WARNING! Changes or modifications not expressly approved by the party re-
sponsible for compliance could void the user’s authority to operate this device.
Warning! Safety First
Please read the safety warnings below before proceeding. Improper
use of the product may be dangerous or illegal.
Installation
Due to the complexity of this system, installation of this product must only be
performed by an authorized Directed dealer. If you have any questions, ask
your retailer or contact Directed directly at 1-800-753-0600.
Remote Start Capable
When properly installed, this system can start the vehicle via a command
signal from the remote control transmitter. Therefore, never operate the system
in an enclosed area or partially enclosed area without ventilation (such as a
garage). When parking in an enclosed or partially enclosed area or when
having the vehicle serviced, the remote start system must be disabled using the
installed menu wheel. It is the user’s sole responsibility to properly handle and
keep out of reach from children all remote control transmitters to assure that the

15
© 2012 Directed. All rights reserved.
system does not unintentionally remote start the vehicle. THE USER MUST IN-
STALL A CARBON MONOXIDE DETECTOR IN OR ABOUT THE LIVING AREA
ADJACENT TO THE VEHICLE. ALL DOORS LEADING FROM ADJACENT LIV-
ING AREAS TO THE ENCLOSED OR PARTIALLY ENCLOSED VEHICLE STOR-
AGE AREA MUST AT ALL TIMES REMAIN CLOSED. These precautions are the
sole responsibility of the user.
Manual Transmission Vehicles
Remote starters on manual transmission vehicles operate differently than
those with automatic transmission because you must leave your car in neutral.
You must read this Owner’s Guide to familiarize yourself with the proper proce-
dures regarding manual transmission remote starters. If you have any questions,
ask your authorized Directed dealer or contact Directed at 1-800-753-0600.
Before remote starting a manual transmission vehicle, be sure to:
• Leave the vehicle in neutral and be sure no one is standing in front or
behind the vehicle.
• Only remote start on a flat surface
• Have the parking brake fully engaged
WARNING! It is the responsibility of the owner to ensure the parking/emer-
gency brake properly functions. Failure to do so can result in personal injury or
property damage. We recommend the owner have the parking / emergency
brake system inspected and adjusted by a qualified automotive shop biannu-
ally.
Use of this product in a manner contrary to its intended mode of operation may
result in property damage, personal injury, or death. (1) Never remotely start
the vehicle with the vehicle in gear, and (2) Never remotely start the vehicle
with the keys in the ignition. The user must also have the neutral safety feature
of the vehicle periodically checked, wherein the vehicle must not remotely start
while the car is in gear. This testing should be performed by an authorized

16 © 2012 Directed. All rights reserved.
Directed dealer in accordance with the Safety Check outlined in the product
installation guide. If the vehicle starts in gear, cease remote start operation im-
mediately and consult with the authorized Directed dealer to fix the problem.
After the remote start module has been installed, contact your authorized dealer
to have him or her test the remote start module by performing the Safety Check
outlined in the product installation guide. If the vehicle starts when performing
the Neutral Safety Shutdown Circuit test, the remote start unit has not been
properly installed. The remote start module must be removed or the installer
must properly reinstall the remote start system so that the vehicle does not start
in gear. All installations must be performed by an authorized Directed dealer.
OPERATION OF THE REMOTE START MODULE IF THE VEHICLE STARTS IN
GEAR IS CONTRARY TO ITS INTENDED MODE OF OPERATION. OPER-
ATING THE REMOTE START SYSTEM UNDER THESE CONDITIONS MAY
RESULT IN PROPERTY DAMAGE OR PERSONAL INJURY. YOU MUST IMME-
DIATELY CEASE THE USE OF THE UNIT AND SEEK THE ASSISTANCE OF
AN AUTHORIZED Directed DEALER TO REPAIR OR DISCONNECT THE IN-
STALLED REMOTE START MODULE. DIRECTED WILL NOT BE HELD RESPON-
SIBLE OR PAY FOR INSTALLATION OR REINSTALLATION COSTS.
This product is designed for fuel injected vehicles only. Use of this
product in a standard transmission vehicle must be in strict accordance
with this guide.
This product should not be installed in any convertible vehicles, soft or
hard top with a manual transmission. Installation in such vehicles may
pose certain risk.

17
© 2012 Directed. All rights reserved.
Interference
All radio devices are subject to interference which could affect proper
performance.
Upgrades and Batteries
Any upgrades to this product and/or installation of batteries must be
performed by an authorized dealer. Do not attempt to perform any
unauthorized modifications to this product.
Water/Heat Resistance
This product is not designed to be water and/or heat-resistant. Please
take care to keep this product dry and away from heat sources. Any-
damage from water or heat will void the warranty.
