Q Garden QGBV2500 User manual

OPERATOR'S MANUAL AND PARTS LIST
BLOW VAC 2500 - QGBV2500
Spares & Support: 0l'793 333212
Before use please read & understand this manual, paying particular
attention to the safety instructions.
GARDEN
Page 1l6/04/20t2

Contents
DIAGRAM
SAFETY INSTRUCTIONS
SPECIFICATIONS AND ELECTRICAL REQUIREMENTS
ASSEMBLING THE BLOWER/VAC
USING THE BLOWER/VAC
CARE AND MAINTENANCE
TROUBLE SHOOTING
PARTS DIAGRAM
PARTS LIST
EC DECLARATION OF CONFORMITY
a
J
4
5
6
6
8
7
8
9
10
Page 2

DIAGRAM
/a
i0
.j t"a-\
,}
1Rear Handle
2On/Off Switch
3Main Bodv
4Front Handle
5Cable Strain Relief
6Chanqeover Switch
7Top Suction Tube
8Bottom Suction Tube
9Collection Bao
10 Mains Cable
Page 3

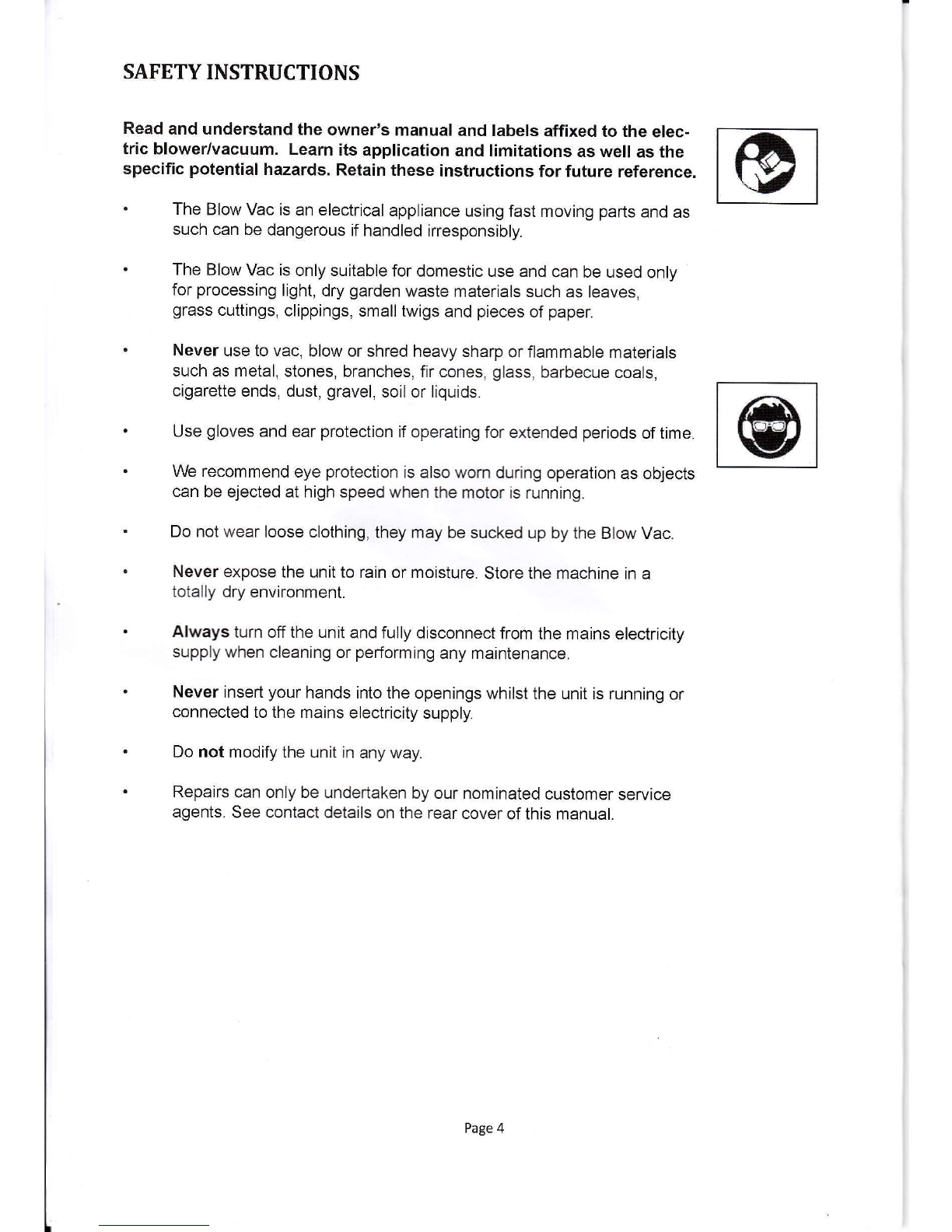

SAFETY INSTRUCTIONS
Read and understand the owner's manual and labels affixed to the elec-
tric blower/vacuum. Learn its application and limitations as well as the
specific potential hazards. Retain these instructions for future reference.
. The Blow Vac is an electrical appliance using fast moving parts and as
such can be dangerous if handled irresponsibly.
. The Blow Vac is only suitable for domestic use and can be used only
for processing light, dry garden waste materials such as leaves,
grass cuttings, clippings, small twigs and pieces of paper.
. Never use to vac, blow or shred heavy sharp or flammable materials
such as metal, stones, branches, fir cones, glass, barbecue coals,
cigarette ends, dust, gravel, soil or liquids.
. Use gloves and ear protection if operating for extended periods of time.
. We recommend eye protection is also wom during operation as objects
can be ejected at high speed when the motor is running
. Do not wear loose clothing, they may be sucked up by the BIow Vac.
. Never expose the unit to rain or moisture. Store the machine in a
totally dry environment.
. Always turn off the unit and fully disconnect from the mains electricity
supply when cleaning or performing any maintenance.
. Never insert your hands into the openings whilst the unit is running or
connected to the mains electricity supply
. Do not modify the unit in any way.
. Repairs can only be undertaken by our nominated customer service
agents. See contact details on the rear cover of this manual.
Page 4

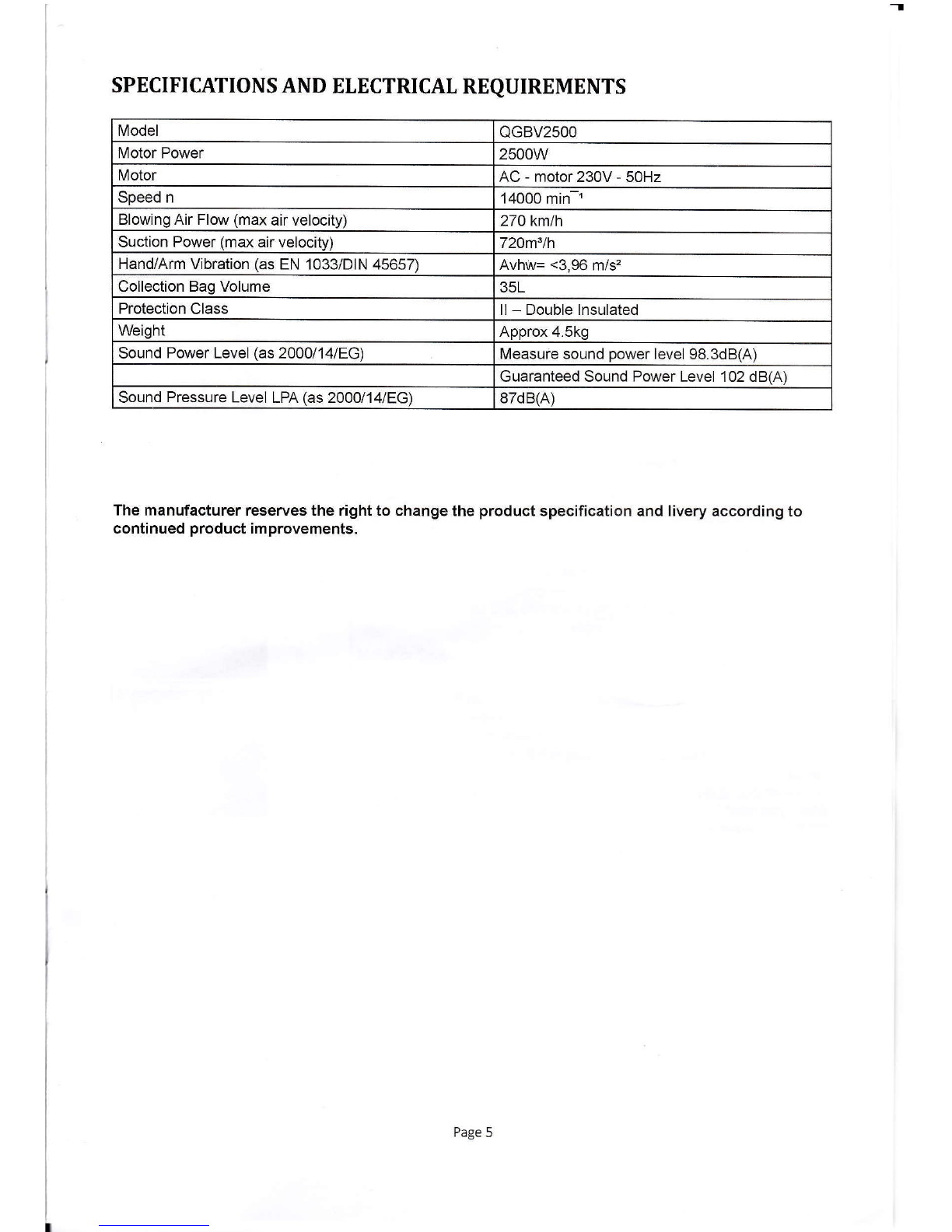

Model oGBV2500
Motor Power 2500w
Motor AC - motor 230V - 50Hz
Speed n14000 min-
Blowinq Air Flow (max air velocitv) 27O kmlh
Suction Power (max air velocitv) 72Om"lh
Hand/Arm Vibration (as EN 1033/DlN 45657) Avhw= <3,96 m/s'z
Collection Bag Volume 35L
Protection Class Il - Double lnsulated
Weioht Approx 4.5ko
Sound Power Level (as 20001141EG) Measure sound power level 98.3d8(A)
Guaranteed Sound Power Level 102 dB(A)
Sound Pressure Level LPA (as 2000i14/EG) 87dB(A)
SPECIFICATIONS AND ELECTRICAL REQUIREMENTS
The manufacturer reserves the right to change the product specification and Iivery according to
continued product improvements.
Page 5

ASSEMBLING THE BLOWER/VAC
1.
2.
4.
5.
o
7.
Connect the top suction tube to the bottom suction tube and screw
them together.
lnsert both suction tubes into the main body and screw together.
lnsert the front handle into the recess in the top ofthe main body.
Hook the front end of the collection bag onto the botiom suction tube,
hook the rear end of the collection bag onto the main body and slip the
square opening of the collection bag onto the square opening of the
main body. lt will snap into place.
Ensure the zip fastener is closed on the collection bag!
The strap is attached to the machine using the metal triangular clip.
Unscrew and fix this to the small moulded ring on the top handle.
Thread the cable through the strain relief feature forming a loop as
shown.
Ensurethat there is sufficient slack in the cable.
8. lt is recommended that a 30mA current safety cut-off switch is
employed when using the BloWVac. Ensure the tubes are flxed in
position and the collection bag is secure before connecting to the mains
electricity supply.
The On/Off switch is located on the underside of the rear handle and is
operated by pressing and holding the switch to turn On and releasing to turn Off.
Never use the BlowA/ac with wet hands or when it is raining.
Using as a Blower:
Move the switch to the blower setting as shown and move the BIow Vac genfly
from side to side a few centimetres above ground level.
Never point the Blow Vac at people or animals and take extra care when using
near sand, soil, loose gravel or shingle.
To convert to a Vacuum Shredder:
Move the switch to the vac/shredder setting as shown.
Adjust the length of the shoulder strap to suit and hold the machine with both
hands (one on the top handle, one on the rear handle).
Switch on and move the machine over the debris slowly.
Suction power decreases when the bag is full so ensure that it is emptied
regularly.
Before emptying disconnect the Blow Vac from the mains.
When you have finished your work vacuuming return the switch to the blow
mode to remove any material still lodged in the suction tubes.
Page 6

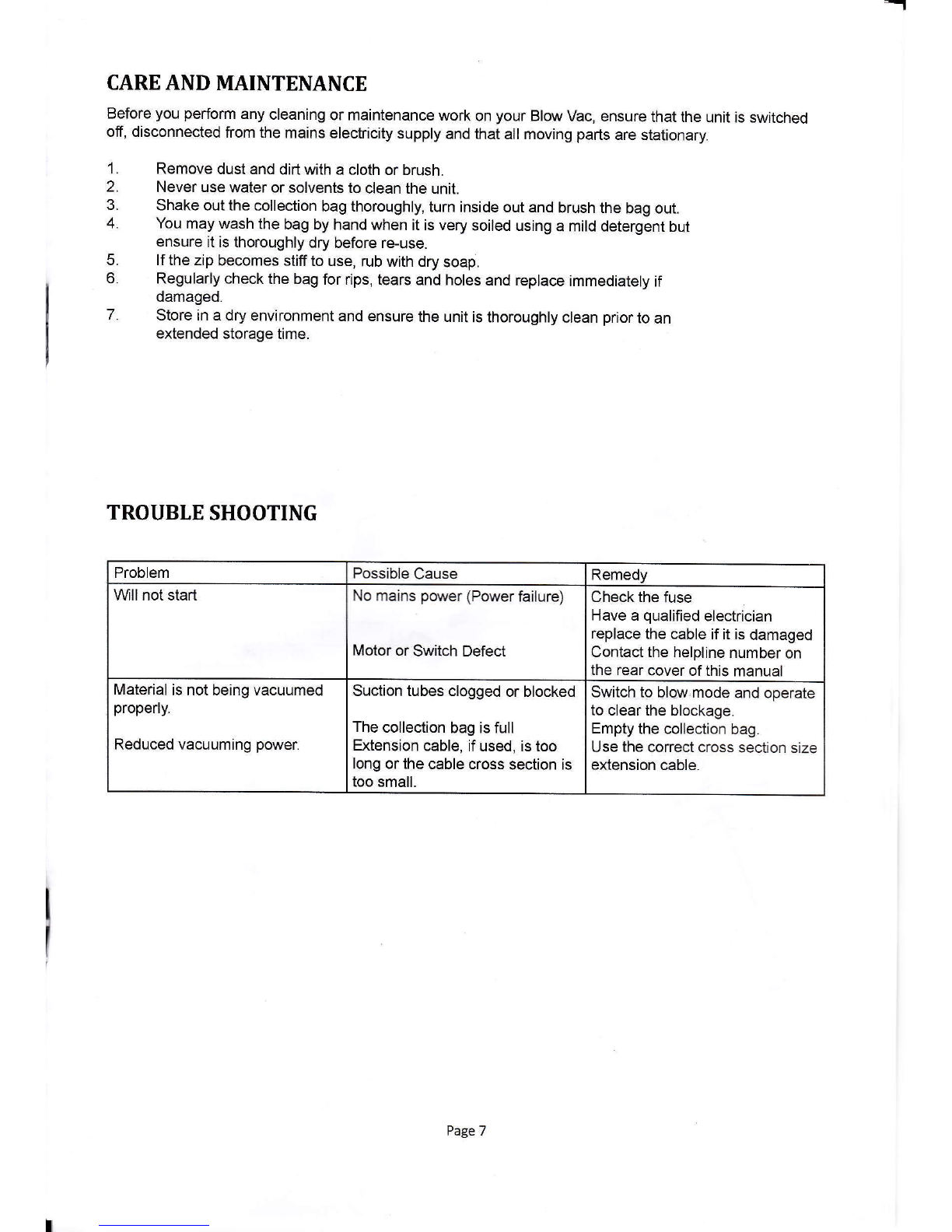

CAREAND MAINTENANCE
Before you perform any cleaning or maintenance work on your Blow Vac, ensure that the unit is switched
off, disconnected from the mains electricity supply and that all moving parts are stationary.
1. Remove dust and dirt with a cloth or brush.
2. Never use water or solvents to clean the unit.
3. Shake ouithe collection bag thoroughly, turn inside out and brush the bag out.
4. You may wash the bag by hand when it is very soiled using a mild detergent but
ensure it is thoroughly dry before re-use.
5. lf the zip becomes stiff to use, rub with dry soap.
6. Regularly check the bag for rips, tears and holes and replace immediately if
damaged.
7. Store in a dry environment and ensure the unit is thoroughly clean prior to an
extended storage time.
TROUBLE SHOOTING
Problem Possible Cause Remedy
Will not start No mains power (Power fuilure)
Motor or Switch Defect
Check the fuse
Have a qualified electrician
replace the cable if it is damaged
Contact the helpline number on
the rear cover of this manual
Material is not being vacuumed
properly.
Reduced vacuuming power.
Suction tubes clogged or blocked
The collection bag is full
Extension cable, if used, is too
long or the cable cross section is
too small.
Switch to blow mode and operate
to clear the blockage.
Empty the collection bag.
Use the correct cross section size
extension cable.
Page 7

PARTS DIAGRAM
|}-
#p,,-,,
{ lS,
,6rl
t---t$
r ---**{',
___ ..-...- ?1
a4
!l
*3rn
.{\
$r2 ?6
21
l
Page 8

PARTS IIST
No. PaflNo. Description Qty
TH 00-1 Screw 4
2OG 01-2 Front Handle Assemblv I
3TH 00-3 Screw :)
4QG 0i-4 Right Part ofFront Handle I
5OG 01 -5 Left Part ofFront Handle
6TH 00-6 Carry Strap i
,7 QG 0L-7 Rieht Main Housins
8TH 00-8 Sorins I
9TH 00-9 On/OffButton 1
10 TH 00 0 Switch I
ll TH 00- Caoacitor I
12 TH 00- 2Rubber Gaskel 2
13 TH 00- Motor Sub Assemblv I
t4 TH 00- 4Motor I
15 TH 00 5Fan I
tf, 00- 6Lock Nut I
l7 TH 00- 7lnsulated Can I
18 TH 00- 8Cord Clamo I
l9 THl00- 9Cord Guard I
20 TH 00-20 Terminal Block I
27 TH 00-2r Power Cable I
22 QG 0t-22 Left Main Housins
23 TH oo-23 VaclBlow Lever I
24 TH oo-24 Air Block Board
25 TH100-25 Board
ZO TH100-26 Bush I
27 TH100-27 Top Suction Tube
28 QGl01-28 Collection Bas I
29 THl00-29 Screw
30 THl00-30 Bottom Suction Tube
Page 9

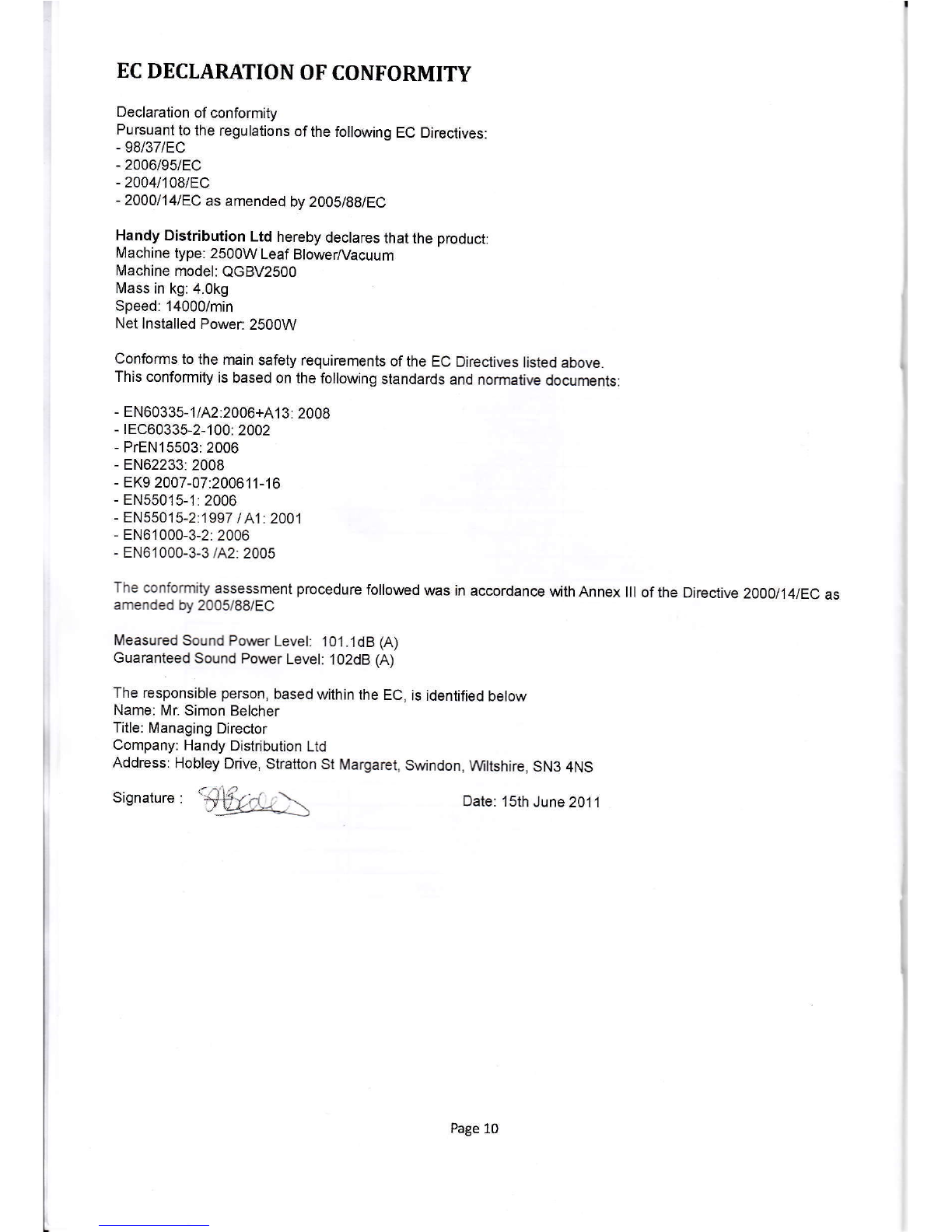

EC DECLARATION OF CONFORMITY
Declaration of conformity
Pursuant to the regulations of the following EC Directives:
- 98t37tEC
- 2006/95/EC
- 2004/108tEC
- 20001141EC as amended by 2005/88/EC
Handy Distribution Ltd hereby declares that the product:
Machine type: 2500W Leaf Blower/Vacuum
l\ilachine model: QGBV2500
Mass in kg: 4.0k9
Speed: 14000/min
Net lnstalled Power: 2500W
Conforms to the main safety requirements of the EC Directives listed above.
This conformity is based on the following standards and normative documents:
- EN60335-'1/A2:2006+A1 3: 2008
- 1EC60335-2-100: 2002
- PrEN15503: 2006
- EN62233: 2008
- EK9 2007-07:2006'l'l-'16
- EN55015-1:2006
- EN55015-2:1997 I A1:2001
- EN6'1000-3-2: 2006
- EN6'1000-3-3 /A2: 2005
The conformity assessment procedure followed was in accordance wilh Annex lll of the Directive 2OOOll4tEC as
amended by 2005/88/EC
Measured Sound Power Level: 101.1d8 (A)
Guaranteed Sound Povr,er Level: 102d8 (A)
The responsible person, based within the EC, is identified betow
Name: Mr. Simon Belcher
Title: Managing Director
Company: Handy Distribution Ltd
Address: Hobley Drive, Stratton St Margaret, Swindon, Wltshire, SN3 4NS
sisnature, &g\ Date: 1 sth June 201 1
Page 10

Spares & Support: 01793333212
