QANZ ZN-NH22XE Instruction manual


NC1202HDVer1.0
1
ZN-NH22XE QuickUserGuide


Thismanualhasbeendesignedtoguideyouthroughbasicinstallation,configurationandthewebpageaccess
settingsofthedevice.
 
Step1.Installthelens




























1.Placethelensmounttothecameraand
tightenthemountbyturningclockwise.

2.Connectthelenscabletothe4‐pinauto
irisconnectoronthesideofthecamera.

3.Manuallyadjustthezoomandfocusofthe
imagewiththezoomleverandfocusleveron
thelensmount.(Refertothemanual
providedwithyourlens.)
AutoIrisLens
ConnectorLightSensor
Makesurethatthelightsensorisnotblockedbylenscableorotherobjects.
Caution
!


NC1202HDVer1.0
2

Step2.Connectcables
Connectpropercablestothedevice.Toseethecorrectpositionsofallconnectors,refertothefollowing
imagebelow.

PowerAdaptorConnector(DC12V)

Thedeviceispolaritysensitive.Incorrectpowerconnection
maycausemalfunctionordamagetotheIPdevice.
Caution
!
*Modeldesignandappearancearesubjecttochangewithoutanypriornotice.
NOTE.Whenyouwanttocheckthevideooutputonananalogmonitorattheinstallationsite,makesureto
settheoutputconfigurationswitchtoNTSCorPALaccordingtothevideostandard.
PowerDC12V
BNCVideoOut
ResetButton
Network/POEPort
PAL/NTSCButton
ClampingCore
*Usetoprevent
electromagnetic
interference
*Useonlyforinstallation
tests.Thevideo‐outworks
for3minuteswhen
PAL/NTSCbuttonispushed.
RS‐485Termination
Switch
(
120ohm
)


NC1202HDVer1.0
3
Step3.Setupnetworkenvironment
ThedefaultIPaddressofthedeviceis192.168.XXX.XXX.UserscanidentifytheIPaddressofthedevicefrom
convertingtheMACaddress’shexadecimalnumbers,whichisattachedtothedevice.Besurethatthedevice
andPCareonasameareanetworkbeforerunningtheinstallation.

GenericIPEnvironment
IncaseofgenericprivatenetworkenvironmentwhereIPaddress192.168.XXX.XXXareused,usersmayview
thelivestreamingimagesonawebpageusingthedevice’sdefaultIPaddress:
1. Convertthedevice’sMACaddresstotheIPaddress.RefertotheHexadecimal‐DecimalConversionChart
attheendofthemanual.
(TheMACaddressofthedeviceisattachedonthesideorbottomofthedevice.)



2. StarttheMicrosoft®InternetExplorerwebbrowserandentertheIPaddressofthedevice.

3. WebstreaminganddeviceconfigurationsaresupportedthroughActiveXprogram.WhentheActiveX
installationpop‐upwindowappears,authorizeandinstalltheActiveXsetup.exe.

CustomIPEnvironment
IPAdminToolisprovidedwithSDKatthefollowingSDKpath.
{SDK root}\BIN\TOOLS\AdminTool\

IPAdminToolisamanagementtool,whichautomaticallyscansallofthenetworkproductsforuserstoperform
administrativetasks,whichincludesnetworkconfigurations,firmwareupdate,devicereboot,anddevice
organizations.




Tomodifythedevice’sdefaultIPaddressforcustomizednetworkarea;

1. FindthedevicefromtheIPAdminTool’slistandhighlightthedevice’sname.
MACaddress=00‐13‐23‐01‐14‐B1 →IPaddress=192.168.20.177
Convertthelasttwosetofhexadecimalnumberstodecimalnumbers.


NC1202HDVer1.0
4

2. Right‐clickthemouseandselect“IPAddress”;IPSetupwindowappears.



3. IntheIPSetup’swindow,informationunder‘LocalNetworkinformation’displaystheuser/PC’snetwork
areainformation.ThoseinformationneedtobeincorporatedtotheIPAddress,SubnetMask,Gateway,
andDNSboxes,exceptthelast2setsofIPAddress,whicharetobetheuniquenumbersforthedevice.
Refertotheimageaboveforthesetting

4. Click‘Setup’tocompletethemodification.

PCenvironmentInfo
GivenewuniqueIPaddressin
lasttwosetsandmirrorother
informationinotherboxes


NC1202HDVer1.0
5
Caution
!
Step4.Viewvideoonwebpage
OncethedevicehastheproperIPaddress,userscanviewthelivestreamingimagesthroughawebbrowser.

1. TypethecorrectIPaddressintheMicrosoft®InternetExplorer
Ifpopupwindowappearsandaskforusernameandpassword,typeroot/pass.


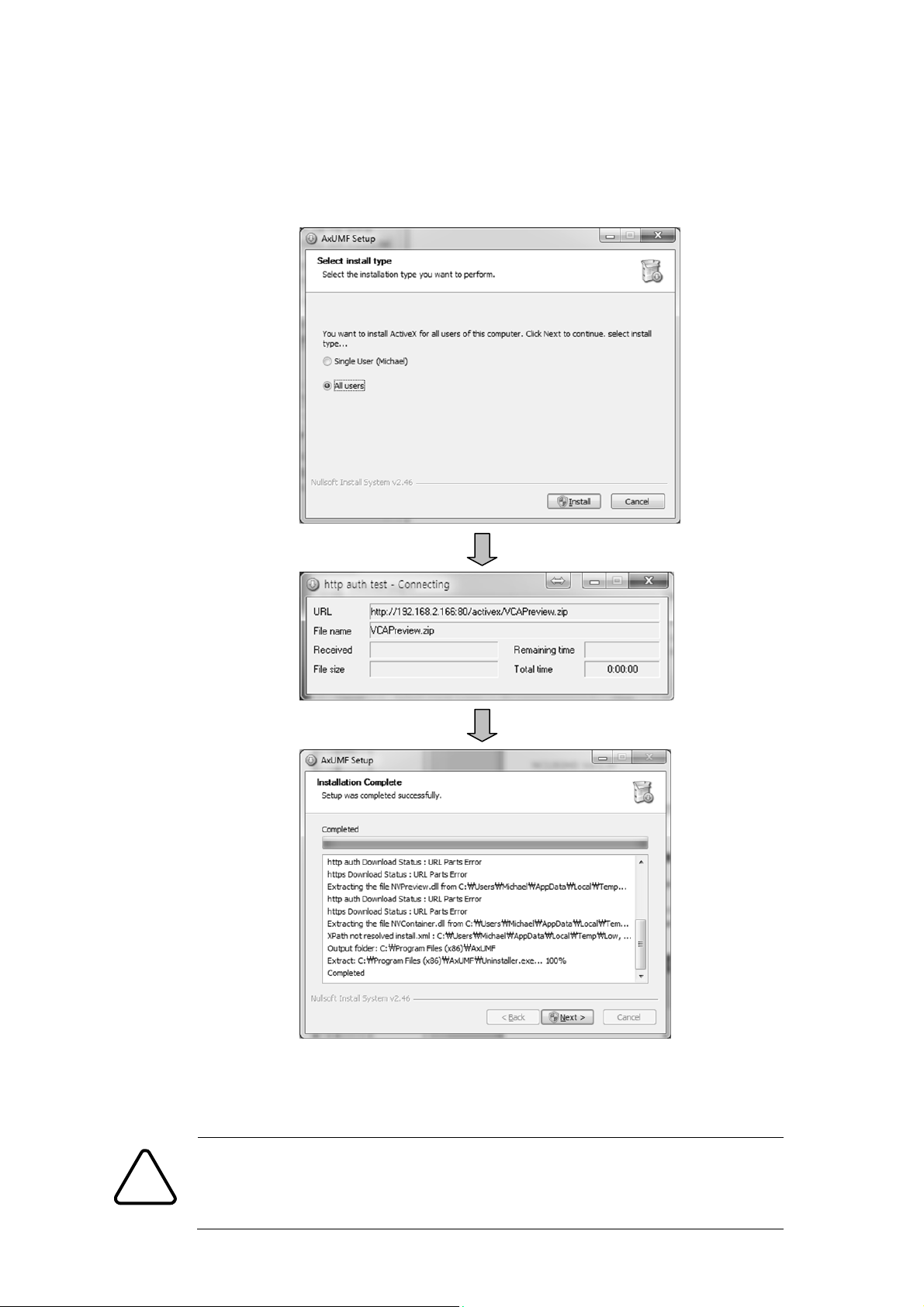

2. GranttheAxUMF.cabsetupandproceedwithinstallations.

3. Followtheinstructionsofthedialogboxesandcompletetheinstallation.Oncetheinstallationiscomplete,
thevideostreamisdisplayedinthemainviewframe.
Ifuserdoesn’tinstallActiveX,thejpegimageisshowninamainviewframeinstead.

If“ThissoftwarerequirestheMicrosoftXMLParserV6orhigher.Pleasedownload
MSXML6fromtheMicrosoftwebsitetocontinue.Errorcode:Cannotcreate
XMLDOMDocument.”messageappears,downloadandinstalltheMicrosoftCore
XMLServices(MSXML)6.0.


NC1202HDVer1.0
6
Step5. SettingIPAddress
TosetuptheNetworkconfiguration:

1. ClickSetupontheupperrightofthewebpage.Theloginpageisdisplayedasbelow.
2. Enterthedefaultusername(root)andthedefaultpassword(pass),andthenselectOK.



3. ClickNetworkConfigurationontheleftoftheSetuppage,andthenselectTCP/IPmenu.
4. InputthedatafortheIPaddressconfiguration,andclicktheApplybuttononthebottomofthepage.

WhenmodifyingtheIPaddress,beadvisedtohavethecorrectSubnetmaskandGatewayready.TouseDHCP,
selectObtainanIPaddressviaDHCP.

Tolearnhowtosetupthewebpageforadvancedconfiguration,refertotheWebPageUser'sManual,which
isavailableontheSDKatthefollowingpath.
{SDK root}\DOC\
Thedefaultusername
andpasswordare:
rootandpass.


NC1202HDVer1.0
7
Rebooting
Resetcanbecarriedoutasfollows:
1. Useapointedobjecttopushtheresetbuttonfor1~2seconds.
2. Waitforthesystemtoreboot.


ResettingtotheFactoryDefaultSettings
Resettingthedevicetothefactorydefaultwillresetallconfiguredparameterstotheinitialfactorysettings.
ToperformtheFactoryDefaultsettings:
1. Useapointedobjecttopushtheresetbuttonandholdfor5seconds.
2. ReleasetheResetbutton.
3. Waitforthesystemtoreboot.


MoreInformation
Tolearnmoreaboutusingotherfeaturesofyourdevices,refertothemanual,whichisavailableontheSDKat
thefollowingpath.
{SDK root}\DOC\


NC1202HDVer1.0
8
