Qbic MediQo Stealth User manual

MediQo Stealth
uuussseeerrr mmmaaannnuuuaaalll
Tel : [phone]

2Qbic Washrooms
Definitions and symbols
WARNING!:Not following the warning may result in death or serious injury
CAUTION!
Not following operating or maintenance procedure may result in personal injury or product damage
Strict Advice
No Disassembly
Prohibition
No touch
Not pour chemical agent or
inflammables
No Wet Hand
Not water to inside or outside the
product
Pull out the power supply cord from the
outlet
Precautions: «WARNING»
WARNING (Electric Power) :
•Plug in the power supply cord into a standardized outlet. Use a standardized cord and do
not insert many plugs at a time
•If the supply cord is damaged, it must be replaced by a special cord or assembly available
from the manufacturer its service.
•*Clean the power plug at all time and plug in the cord completely. Dust and incomplete plug
of the cord may cause fire.
•Be careful the power supply cord is not to be crushed at the back of the product. Place the
product at least 10mm away from the wall.
WARNING means that a serous injury may be caused unless use as directed

MediQo Stealth 3
Precautions: WARNING
WARNING (Handling and Maintenance) :
•Do not open the front cover. An electric shock ma be caused
•Do not put anything on the product. An injury may be caused by a falling
•Do not disassemble the product to repair by unautorized personnel. An injury, an electric shock
ar fire may be caused.
•Do not pour inflammables, such as ether, benzene, a chemical agent, alcohol, LP gas (butane
and propane), etc., into the product. Risk of electric explosion and/or fire.
•Mount the product far away from the heat of fire including an electric heater, candle light, etc.
Risk of fire
•Do not put any container filled with water, a vase, a cup, a chemical agent, etc., on the product.
Risk of fire or electric shock and its fall may cause an injury or the damage of the product.
•Do not pour water on the product.
•Do not hang on the product. Take special care to small children that they do not hang on the
product.
WARNING means that a serous injury may be caused unless use as directed
Precautions: CAUTION
CAUTION:
•Never touch the cord without Ne jamais toucher le fils without having the autorisation of the
service agent or any other authorized person.
•Do not touch the power plug with wet hands. Risk of electrocution
•Place and set up the product on a strong and straight wall. Setting up the product on uneven
wall may cause its falling or vibration.
•Do not put your hands inside the product at the bottom. An injury may be caused.
•When cleaning or handling the product, be sure to turn the power swich off. Risk of electric
shock or injury.
•Do not pull the air filter out while it is being operated: the air purifier and the motor may not be
working.
CAUTION: Means that a slight injury may be caused or the product may be damaged, unless use as
directed.

4Qbic Washrooms
Specifications et Electric Requirements
•Reference : Smart Air / SHD 100 / SHD
200 Series
•Voltage Supply : 230V
•Frequency 50~60 Hz
•Rated Power : 700 W-240 W (6A)
•Ingress Protection Ratio: Classe II /
IPX33
•Hand Dry Time : 6 to 10 seconds
•Air Velocity : 540km/h / RPM 33,000rpm
•Cord : 1.8m
•Dimension : 254mm X 214mm X 163mm
•Weight : 3 Kg
(1) Wire must follow the related standards. (A standardized wire must be used for interior
wiring)
(2) All electrical work have to be performed by a qualified electrician in strict compliance
with local safety regulations
(3) For safety and to prevent any incident, do not install the product in the following places:
•Temperature above 40°C.
•Exposed to direct rays or hard light and bumpy surface (the sensor may be damaged)
•Exposed to corrosive gas
•With a humidity level of more than 95%

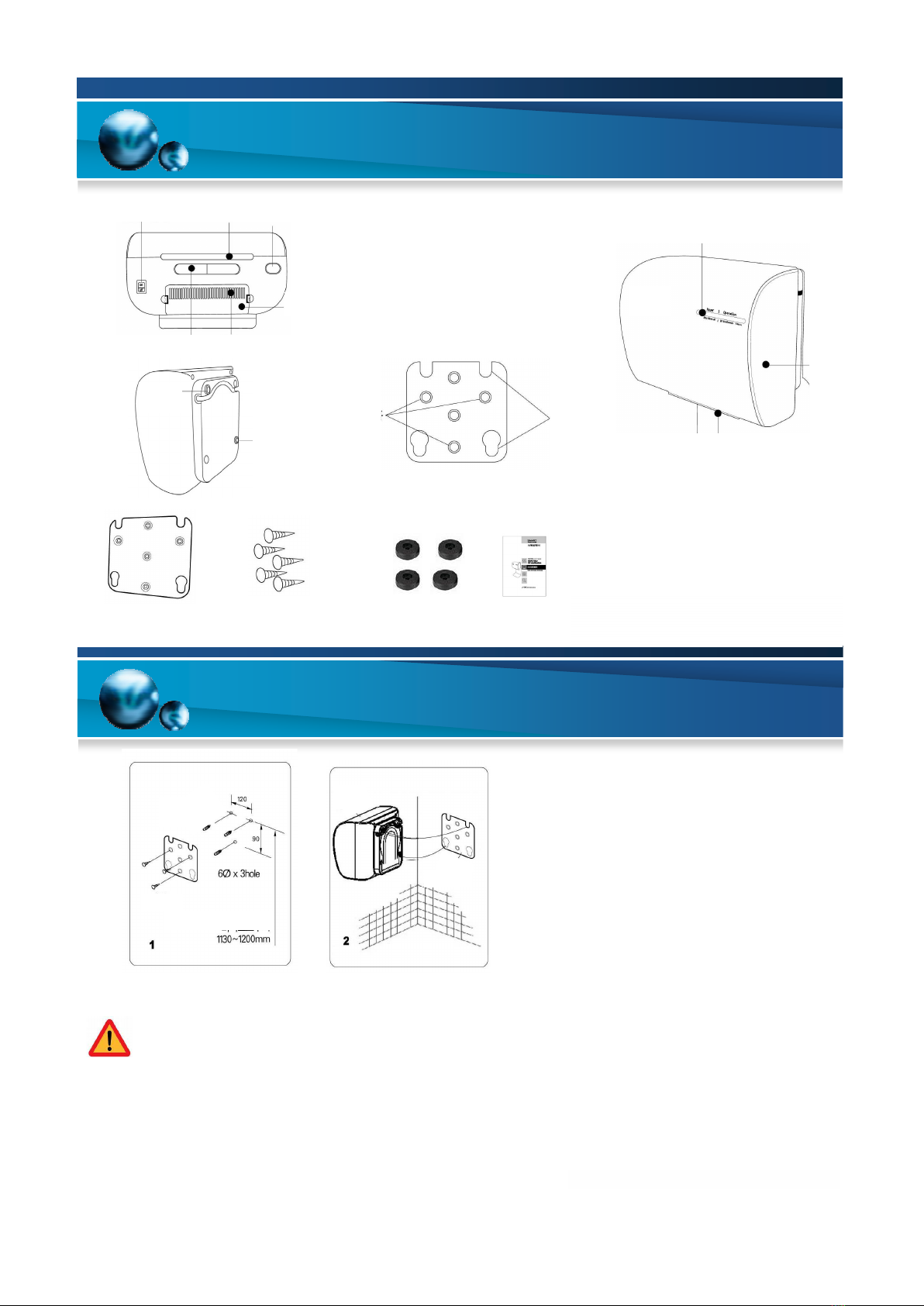

Components
Air Nozzles LED indicator for operations (Blue blinking LED
screen for a change of the HEPA filter and the
UV-C lamp) / Air speed adjusting volume
HEPA Filter Support
Case
Infrared sensor
Mounting Board
Mounting Board
Install Bracket
Air nozzles
Fixation between the
braquet and the wall Fixation between the
bracket and the
machine
Mounting Board (M4 x 38mm) Link Board-fixing Vibration-
absorbing Packing Manual

Mediqo Stealth 5
1. Preparation before Installation
(M4 x 38mm)
Link Board-Fixing HEPA Air Filter
Vibration-absorbing
Packing
Mounting Board
Ground
Wall
1200mm
10mm
Installation Position:
•Place the product at about 1300mm from the ground
•Place the product at least 10mm from the wall
(vibration-absorbing packing)
•Make sure the wall is strong and straight
•Place it away from the doorway or people bumping
easily
•Recommended Installation Height :
•Men = 1300mm
•Women = 1100mm
•Children = 700mm
Manual
2. Installation of the Mounting Board
(1) Fit the vibration-absorbing packings and tighten the
bracket with fixing screws.
Vibration-absorbing
Packing
Anchors
Drill three holes 55mm deep.
Insert the anchors into the hole
Etape 1 . Positionner à lʼendroit où vous souhaitez installer
Place the product at about 1300mm from the ground
Place the product at least 10mm from the wall
Fixing the mounting board: drill 3
holes
Impact Drill
•On a concrete wall, use metal-screws
•Place the product on a strong and straight wall
•On a weak wall, make sure toreinforce enough the
wall before setting up the product
•Place it away from the doorway or people bumping
easily

6Qbic Washroms
3. Installation of the hand dryer
Hand Dryer Mounting Board
1. Open the lid as shown below: 2. Putting up the product on the mounted bracket
(1) Put the back body of the machine in the slots and fix
the product by pushing it downwards
(1) Remove the 2 scews located on the top and back
of the machine
(2) Remove the lid by pushing it slightly downwards
(3) Remove the electric wire from inside the machine
4. Ground wire connection
This device operates with an AC 230V (50Hz) supply
(1) Remove the 2 screws, connect the machine respecting
the internal wires colors
(2) (Red : Phase, Blue : Neutral, Green-yellow : Ground),
and firmly tighten the screws terminals connection
(3) Replace the lid in reverse order and tighten the
2 screws

MediQo Stealth 7

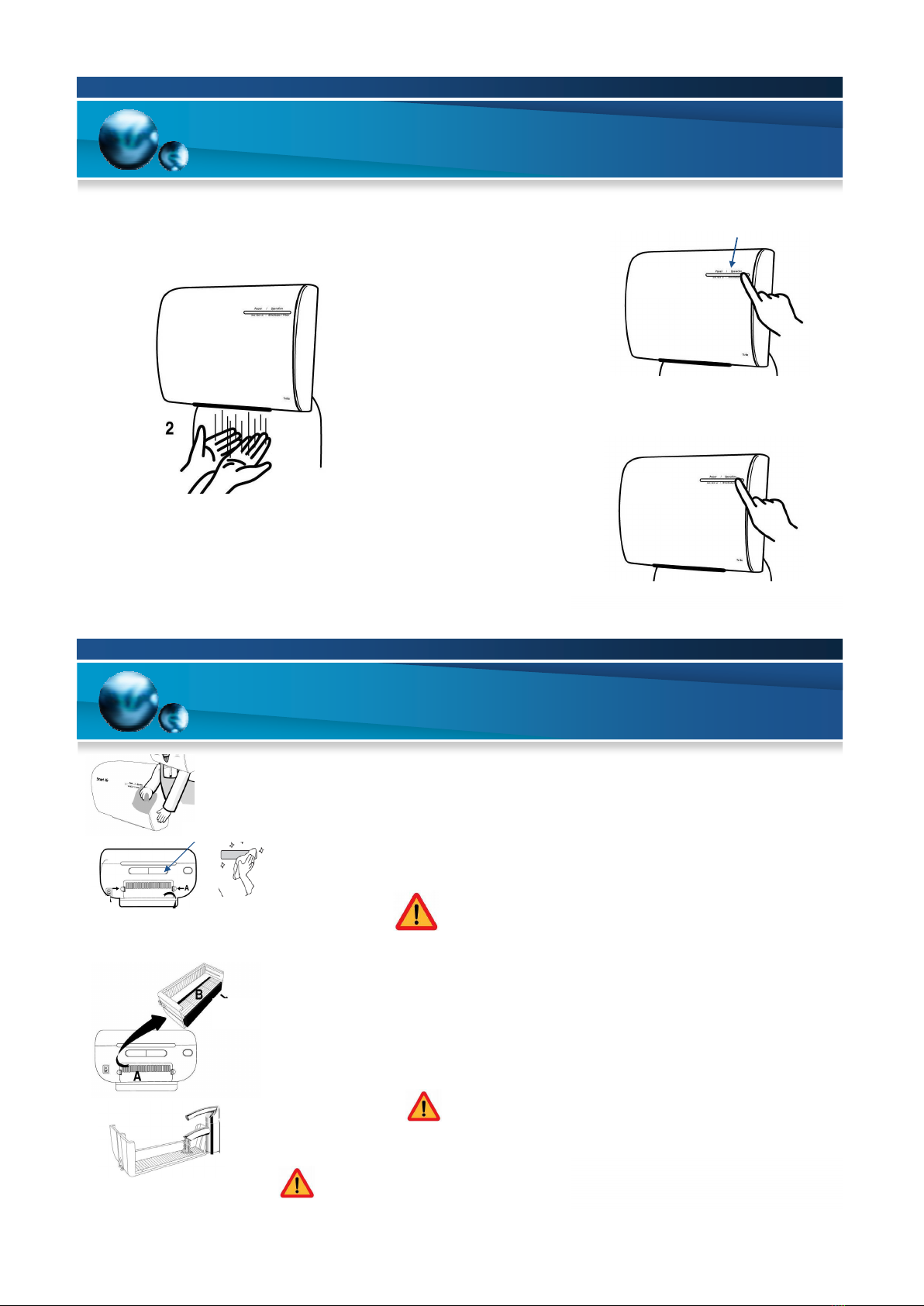

5. Test and Check Ups
After turning on the machine,
check wether the power lamp turns
on
After plug in the cord to a standardized outlet, check that it works
Dry your hand slowly to drain the water
downward thanks to a powerful automatic
sterilization of the air nozzles and HEPA
filter that kills all bacteria before use.
4 Speed Air Adjustment : Press
down the button for 1 second as
shown : Turbo / High / Normal /
Quiet
Indicator for changing the HEPA
filter every 30 000 cycles / Indicator
for changing the UV-C every 5 000
operating hours:
Blue blinking LED change
indicator
Maintenance
Do not use abbrasive, oil, benzene, thinner,
hydrochloric acid, hot water, rough brush, etc. Those
materials may damage the surface or parts of the
product.
1. Use a soft towel with warm water or soft detergent. After using a
neutral detergent, be sure to wipe it using a wet towel.
.
Do not pour water directly on the product. An electric
leak or a trouble may be caused.
2. Slide the HEPA filter support case to remove it. Pull out the
HEPA filter and clean only the case. Install the filter back and
insert the case into the main unit.
Do not clean the HEPA filter. This could damage the
motor.
Slide the HEPA filter
case to take it out
A : HEPA Filter Case
B : HEPA Filter
Slide the HEPA filter
case to take it out
Infrared Sensor
2. Use a soft towel with warm water or soft detergent to clean the
infrared sensor. After using a neutral detergent, be sure to wipe it
using a wet towel.
HEPA Filter support case
Depending on the condition of the installed place, it needs to be replaced at least
every 30 000 cycles. If not changed regularly it could damage the motor and the
warranty will not be covered.

8Qbic Washrooms
Warranty Policy
Model: SF01 Grey/SF02 White
Purchasing Date:
Dealer:
5 warranty or 700 000 cycles
Address:
Tel:
Customer:
Free repair can be provided only when the machine has troubles within 5 years after the purchasing date (warranty period)
In case of the following, you are charged with repairs:
•Troubles or damages caused by carelessness in use and improperrepair or remodeling.
•Troubles or damaged caused by act of vandalism, fire, earthquake, flood, abnormal climate conditions,
incorrect power supply or other natural disasters.
•Troubles or damages from careless transportation or handling after purchase
•Trouble or damages caused by faulty or incorrect installation
•Troubles or damages caused by inadequate or incorect maintenance
•Troubles or damages following maintenance or modifications carried out by a third party
•Troubles or damages from the use of foreign materials
