QFX TV-LED1911 User manual

19 FullColorLEDTV
MODELNO.:TV-LED1911
INSTRUCTIONMANUAL
BEFOREUSINGTHISPRODUCT,READ,UNDERSTAND
AND FOLLOWTHESEINSTRUCTIONS.
Savethisbooklet for future reference.

1
SAFETYINSTRUCTIONS
WARNING –TOREDUCETHERISKOFFIRE, ELECTRICSHOCK,OR
SERIOUSPERSONALINJURY:
Thisproductshallnot beexposedtodrippingorsplashingandthatnoobjectsfilled
withliquids, suchasvases,shallbe placed ontheapparatus.
Situatethisproductawayfromheatsourcessuchasradiators,heatregisters,
stoves, orother appliances(includingamplifiers)that produceheat.
Cleantheproduct onlyasrecommended bythemanufacturer (see Maintenance”)
sectionfor details). Unplugthepower cord fromthewall outlet before cleaning,
Unplugthepower cord fromthewall outletwhenleft unused for anextended
period.
Prevent objects/liquidsfromfallingorspilled ontheproduct.
Operatetheproductonlywiththesupplied power adapter.Routepower cordsso
theyare notlikelytobe walked onor pinched byitemsplaced uponor againstthem,
payingparticular attentiontoplugs, conveniencereceptacles, andthepoint where they
exit fromtheproduct.
Where theMAINSplugor anappliancecouplerisused asthedisconnectdevice,
thedisconnect deviceshallremainreadilyoperable.
Donot operatethisproductunder thefollowingconditions.
-Whenthepower-supplycord or plugisdamaged.
-Ifliquidhasbeenspilled intoorobjectshavefallenintotheproduct.
-Iftheproducthasbeenexposed torainor water.
-Iftheproduct doesnot operatewhenused accordingtotheoperatinginstructions.
-Iftheproducthasbeendropped or damaged inanyway.
Donotattempttoservicetheproduct; takeittotheelectronicsrepairshop ofyour
choicefor anyservicingor repair.
Donot overload walloutlets, extensioncords, or integralconveniencereceptacles.
IMPORTANTINSTRUCTIONS

2
CAUTION-TO REDUCETHERISKORPERSONALINJURYOR
PRODUCT/PROPERTYDAMAGE:
Thisproductisintendedsolelyfornon-commercial,non-industrial,personaluseasa
portabletelevision. Donotusethisproductforanyotherpurpose.
Donotsubjecttheproducttoviolentshocks,extremetemperatures,orlengthyperiods
ordirect sunlight.
Keeptheproductawayfrommagneticobjects, motors, andtransformers.
Donotuseoutdoorsininclementweather.
DonotusetheTVwhiledriving;thisisdangerousandisillegalinsomeareas.
BATTERYHANDLINGANDUSAGE:
KEEPBATTERIESAWAYFROMCHILDRENAND PENTS.ONLYADULTS
SHOULDHANDLEBATTERIES.
NEVERTHROWBATTERIES INTO AFIREOREXPOSETHEMTOFIREOROTHER
HEATSOURCES.
FOLLOWTHEBATTERYMANUFATURES’SSATIETYANDUSAGEINSTRUCTIONS.

3
All thepicturesinthisinstructionmanualare justfor yourreference,specification
shouldrefer toactualaccessories.
ACCESSORIES
Instruction
manual
………………….....1
Remotecontrolwith
battery ……………..1 Carcord
…………
1
DesktopAC adaptor
and powercord
………
…………
……
1

4
TABLEOFCONTENTS
GETTINGSTARTED
IMPORTANTINSTRUCTIONS...................................................................................1-2
ACCESSORIES……….......................................................................................................3
FEATURES....................................................................................................................5
GENERALPARTS.................................................................................................................6
REMOTECONTROL..........................................................................................................7-8
REMOTECONTROLPREPARATION...................................................................................9
BASICCONNECTION....................................................................................................10-12
OPERATIONS
BASICOPERATIONS.............................................................................................13-17
MAINMENU...........................................................................................................18-28
TVMODE....................................................................................................................18-27
PCMODE………........................................................................................................27-28
FORREFERENCE
MAINTENANCE...........................................................................................................29
SPECIFICATIONS...............................................................................................................29
TROUBLESHOOTING.........................................................................................................30

5
19"TFT DISPLAY
Thisplayerhasabuilt-in19”TFTdisplaywindowtoprovide clearvision andlow
radiation.
SUPPORTAUTO TVSCANNING
SUPPORT DIGITALBROADCASTINGRECEPTION
SUPPORTELECTRONICPROGRAMGUIDE
SUPPORT USBMULTIMEDIAPLAYBACK
SUPPORTMULTI-LANGUAGESONSCREENDISPLAY
SUPPORTFULLFUNCTIONREMOTECONTROL
SUPPORTPCAUDIO,ANT,VGA,VIDEO,AUDIO R/L,HDMIAND YPBPRINPUT
WITHHEADPHONESAND COAXIALOUTPUTJACK
WITHEXTERNALANTENNAJACK
WITHBUILT-INSPEAKERS
WITHWEAKSIGNAL ENHANCEMENTFUNCTION
WITHNOISE REDUCTIONFUNCTION
FEATURES

6
MAINUNIT
1.TFTdisplayscreen
2. Remotecontrolsensor
3. Powerindicator-Instandbymodethe
indicatorlight willdisplayredcolor;when
switchingon theunittheindicatorlight will
displaybluecolor.
4. Stand holder
5.SOURCEbutton-Toselecttheinputsource.
6. MENU button-Toentermenu setting page.
7. CH-button-Toselect previouschannelor
movedown.
8. CH+button-Toselect next channelormove
up.
9. VOL-button-Todecreasethevolumelevel
ormoveleft.
10. VOL+button-Toincreasethevolumelevel
ormoveright.
11. POWERbutton-ToswitchON/OFF theTV.
12. USBslot-Forsoftwareupdatingand
music/photoplayback.
13.YPbPrinputjack
14. COAXOUTjack
15. HEADPHONEoutput jack
16. PCAUDIO inputjack
17.ANTinput jack-Toconnecttheantenna.
18. VGAinputjack
19. VIDEOinputjack
20.AUDIOL/R-Toconnect theaudiooutput
jackof DVDorVCR.
21. HDMIinputjack
22. POWERinput
GENERALPARTS

7

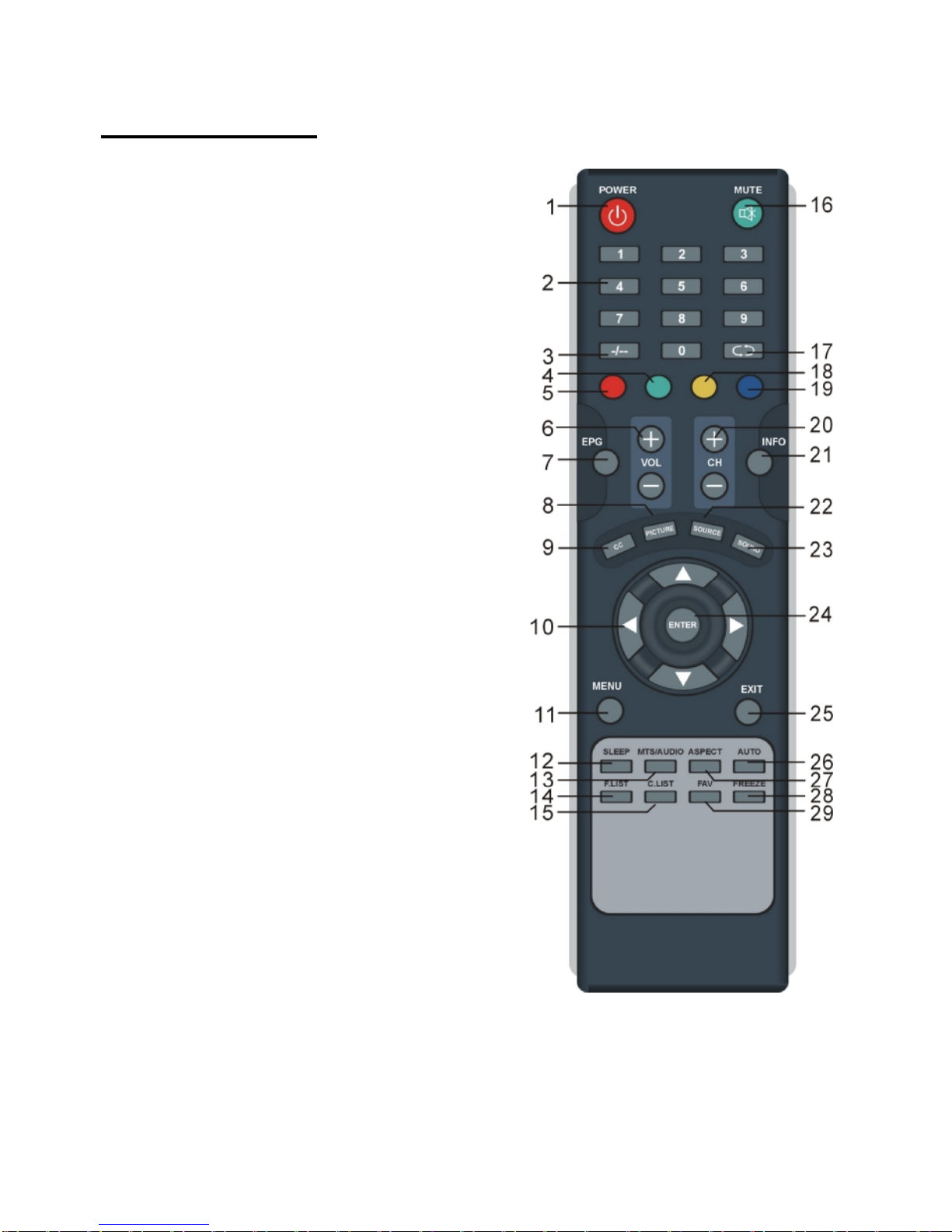

REMOTECONTROL
1. POWER: Tosettheunitinstandbymode;
press itagaintoswitchit on.
2. NUMBERICBUTTONS(0-9): Toinputthe
numberinformation,suchaschannelnumberand
soon.
3. -/--: Toselectadditionalchannels(digital)being
broadcastbythesamestation.Forexample,to
select channel 15-3”,press 1”and 5”, then
press -/--”and 3”.
4.GREENbutton
5. REDbutton
6. VOL+/-: PressVOL+ buttontoincreasethe
volume, orpress VOL-buttontodecreasethe
volume.
7.EPG: Todisplayelectronicprogramguide
information.
8. PICTURE: Toswitchthepicturemode.
9. CC: TosetCC function OnorOffinTVmode.
10. Navigation buttons: Press ▲/▼/◄/►
buttonstomoveup/down/left/right.
11. MENU: Todisplaythemainmenu. Press it
againtoreturntopreviousmenupage.
12. SLEEP: Toselect desiredSleepTimer.
13.MTS/AUDIO: Toselectdesiredsoundtrackin
TVmode.
14.F.LIST: Todisplaythefavoritechannelslist
pageinTVmode.
15. C.LIST: Todisplayavailablechannelslist pageinTVmode.

8
16.MUTE: Tomutethesound.
17. : Toreturntopreviouschannelorinput
source.
18.YELLOWbutton
19. BLUEbutton
20. CH+/-: Press CH+button toplaynext channel,
orpress CH-button toplaypreviouschannel.
21.INFO: Todisplaycurrentprograminformation.
22. SOURCE: Toswitchtheinputsource.
23. SOUND: Toswitchthesound modeinTV
mode.
24. ENTER: Toconfirmaselection.
25. EXIT: Toexit menu page.
26. AUTO: Toadjustthescreenautomatically(in
PCmode).
27. ASPECT: Toselect desireddisplayingmode.
28.FREEZE: Toholdthepictureduringnormal
playing.
29.FAV: Tolabelcurrentprogramasafavorite
oneornot.

9
REMOTECONTROLPREPARATION
BATTERYINSTALLATION
Installthebatteriesasthefollowingpictures.Besure+and –terminalsarepositionedas
indicatedinthebatterycompartment(Fig1).
SERVICELIFEOFBATTERIES
-Thebatteriesnormallylastforoneyearalthoughthisdependsonhowoftentheremote
controlisused.
-Iftheremotecontrolfailstoworkevenwhenitisoperatedneartheplayer,replacethe
batteries.
-UsetwosizeAAAdrybatteries.
NOTE:
Donotdrop,steponorotherwiseimpacttheremotecontrol.Thismaydamagethe
partsorlead tomalfunction.
If theremotecontrolisnotgoingtobeusedforalong time, removethebatteries.
REMOTECONTROL
OPERATION
Pointtheremotecontrolfromnomore
thanabout6mfromtheremotecontrol
sensorandwithinabout60°ofthe
frontoftheplayer(Fig2).
NOTES:
-Theoperatingdistancemayvary
accordingtothebrightness ofthe
room.
-Donot pointbrightlight atremote
controlsensor.
-Donot placeobjectsbetweenthe
Remotecontroland theremotecontrol
sensor.
-Donot usethisremotecontrolwhile
simultaneouslyoperating theremote
controlofanyotherequipments.
Fig1Fig2
Push
Open
Press
RemoteControl
Sensor

10
Ensureallthecablesaredisconnected fromthemainunitbeforeconnectingtoAC
powersourcebyACpoweradaptor.
Read throughtheinstructionsbeforeconnectingotherequipments.
CONNECTING TOACPOWERSOURCE
CONNECTEXTERNALANTENNATO UNIT
Installexternalantenna intoantennajackforbestpicture.
BASICCONNECTION
Mainunit
ToDC 12Vjack
AC adaptor Topoweroutlet
Outdoor
antenna
amplifier
Indoor
antenna
amplifier
Powerplug
ofantenna
amplifier
75 OHM
antenna
plug
Antenna

11
PC/VGACONNECTION
COMPOSITEAVCONNECTION
COAXIALOUTCONNECTION
BackofDVD/VCR
Headphones
(Optional) AVcable (Optional)
BackofPC
VGAcable
(Optional)
Audiocable
(Optional)
Use VGAcableand Audio
cabletoconnecttheunit
with TVorPC,anduse this
productasamonitor.
Use coaxialcableto connecttheunitwithamplifierorotheraudio
decoding devicesforcoaxial audiosignaloutput.

12
HDMICONNECTION
YPbPrCONNECTION
CONNECTING TO USBMEMORYDEVICE
BackofDVD/VCR
HDMIcable
(Optional)
Use HDMIcabletoconnectthe
unitwithotherdevicestoreceive
high-definitionmultimediasignal.
F
orsoftwareupdating
andmusic/photo
p
layback
.
BackofDVD/VCR
YPbPrcable
(Optional)

13
MAKESUREALLTHEEQUIPMENTSAND ACADAPTORARE
CONNECTEDPROPERLYANDTHEUNITISSETINCORRECTMODE
BEFOREKINDSOFOPERATIONS.
-Press POWERbuttononthetopofthisunittoPOWERONtheunit(indicatorlight
displays inblue),press itagaintoPOWEROFF theunit(indicatorlightdisplays in
red).Orpress POWERbuttononremote controltoPOWERONtheunit(indicator
lightdisplays inblue),press itagaintoSTANDBYmode(indicatorlightdisplays in
red).
-Press SOURCEbutton on unittop orremote controltoset theunitinTVmode.
SELECT WANTEDPROGRAM
1. Press CH+buttontoplaynext channel.
2. Press CH-button toplaypreviouschannel.
3. Press numericbuttonsontheremotecontroldirectlytoselect wantedprogram.
Example: Track9, press ＂9＂, three secondslateritwillturntotrack 9automatically, or
press ENTERbuttontoconfirmdirectly.
Track12,press ＂1＂and ＂2＂,three secondslateritwillturntotrack12 automatically,
orpress ENTERbuttontoconfirmdirectly.
NOTE: If onefrequency dothasmorethanonechannel,forexample,track15-3,
press ＂1＂and ＂5＂, thenpress ＂-/--＂and ＂3＂,three secondslaterit will turnto
track15-3automatically,orpress ENTERbuttontoconfirmdirectly.
VOLUME CONTROL
-Press VOL+orVOL-toadjustthelevelofcurrentvolume.
Availablerange:0-100.
MUTECONTROL
-Press MUTEbuttontomutethesound,press it againtoturnon thesound.
SOURCESETTING
-Press SOURCEbutton onremotecontroltodisplaythesourceslist.
-Press UPorDOWNnavigationbuttontoselectdesiredinputsource,thenpress ENTER
button toconfirmselection.
-Orpress SOURCEbutton on unittoprepeatedlytoselect desiredinputsource.
Availableoptions:TV,AV,YPbPr,HDMI, PC, Media.
BASICOPERATIONS

14

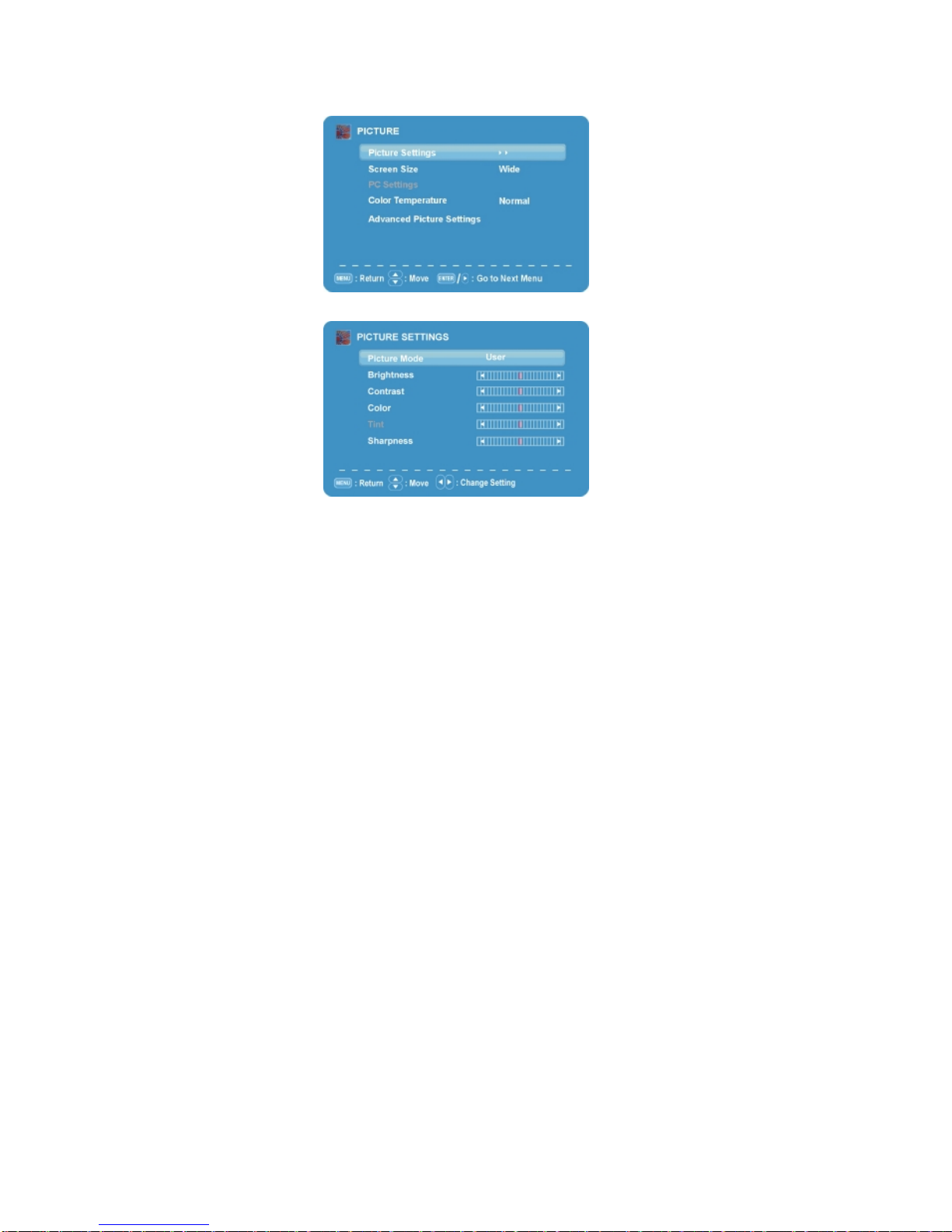

PICTUREMODE
-Press PICTUREbuttononremotecontrolrepeatedlytoselectdesiredpicturemode.
Availableoptions: User, Dynamic,Standard, Movie.
SOUND MODE
-Press SOUND button on remotecontrolrepeatedlytoselectdesiredsoundmode.
Availableoptions: User, Dynamic,Standard, Soft.
CLOSEDCAPTION
-Press CC buttonon remotecontrolrepeatedlytoset theCLOSEDCAPTIONfunctionOn
orOff.
SLEEPTIME SETTING
-Press SLEEPbuttonon remotecontrolrepeatedlytoselect desiredsleeptime.
Availableoptions:Off, 15min, 30min, 60min, 90min,120min.
VIDEOSIZESETTING
-Press ASPECTbutton on remotecontrolrepeatedlytoselect desiredvideosize
Availableoptions: Normal, Wide, Cinema,Zoom.
MTS/AUDIOSETTING
-Press MTS/AUDIObuttonon remotecontroltoenterSoundmenu page,thenuseUPor
DOWNnavigationbuttontoselectdesiredoption.Options: Mono,Stereo, SAP.
(Notavailableinallchannels)
-Orpress MTS/AUDIO buttonon remotecontroltodisplayDigitalSound language.
(Notavailableinallchannels)
INFORMATIONDISPLAY
-Press INFObuttononremotecontroltodisplayinformation ofcurrent program.
EPG(ELECTRONICPROGRAMGUIDE)
-Press EPG buttonon remotecontroltoenterintoElectronicProgramGuidemenu page.
(Not availableinall channels)
-Press LEFTorRIGHTnavigationbuttontoviewpreviousor next page.

15
FAVOURITELIST
-Press F.LISTbuttononremotecontroltoenterFAVORITELISTmenupage.
-Press navigation buttonstoselect desiredchannel.
-Press ENTERbuttontoconfirmselection.
NOTE: During normalplaying, press FAVbutton onremotecontroltolabelcurrent program
asafavoriteoneornot.
CHANNELLIST
-Press C.LISTbuttononremotecontroltoenterCHANNELLISTmenupage.
-Press navigation buttonstoselect desiredchannel.
-Press ENTERbuttontoconfirmselection.
FREEZEFUNCTION
-Duringnormalplaying,pressFREEZEbutton onremotecontroltoholdthepicture,and
press itagaintoresumenormalplaying.
MUSICPLAYBACK
-Beforefollowingoperations, insertaUSB memorydevicefirst.
-Press SOURCEbutton onunittoporremotecontroltoset theunit inMediamode.

16
1. Press LEFTorRIGHTnavigationbutton toselect Musicitem.
2. Press ENTERbutton toenterit, thenusenavigation buttonstoselectthemusicfilethat
wanttoplay.
3. Usenavigationbuttonstoselectwhichsong toplay,thenrepeatthesecondsteptoplay
desiredsong.
4. Press EXITbutton toreturntopreviousmenu.
PHOTO PLAYBACK
1. Press LEFTorRIGHTnavigationbutton toselect Photoitem.
2. PressENTERbuttontoenterit, thenusenavigationbuttonstoselectthephotofilethat
wanttoplay.
3. Press ENTERbuttonandbelowicon willappearonthescreen.
3.1Open
-Selectthisitem, thenpressENTERbutton toopenselectedfile.
-Press navigation buttonstoselect whichphototoplay.
-Press ENTERbutton toplaytheselectedphoto,thenpress UP/DOWNnavigationbuttons
torotatethephotoclockwise/counterclockwise90,180,270degrees;pressLEFT/RIGHT
navigationbuttonstoplayprevious/next photo.
-Press ENTERbuttontoviewthephotoinfullscreen.
-Press navigation buttonstomoveup/down/left/right.
3.2Thumbnail
-Selectthisitem, thenpressENTERbutton toplayall thephotosinthumbnailmode.
-Press UPorDOWNnavigationbuttontoviewpreviousornext page.
-Press ENTERbutton,andayellowframewill appearonthefirstphoto,thenpress
navigationbuttonstoselect whichphototoplay.
3.3Slideshow
-Selectthisitem, thenpressENTERbutton toplaythephotosinslideshowmode.
MediaSetting
-Press LEFTorRIGHTnavigationbutton toselect MediaSettingitem.
1. Slideshow Interval
Availableoptions:1s,5s,10s.

17
2. SlideshowEffect
Availableoptions:Off, WipeRight,WipeLeft, WipeUp,WipeDown,CombSide,Comb
UpDown, Checker,Mosaic,Fade, BlindRight, Blind Left,BlindUp,Blind Down,BoxIn,Box
Out,SlideinRight,SlideinLeft,SlideinUp,SlideinDown.
3. SlideshowRepeat
Availableoptions:On,Off.
4.MusicPlayMode
Availableoptions:Once, PlayAll, Random.
5.MusicPlayRepeat
Availableoptions:On,Off.
6.MusicAutoPlay
Availableoptions:On,Off.
NowPlaying
-Press LEFTorRIGHTnavigationbutton toselect NowPlaying item.
-Press ENTERbuttontoenterbelowmenupage.
-Press LEFTorRIGHTnavigationbutton toselect wantedoption.

18
Theunit containsdifferent settingmenus.Oncetheinitialprogramming isentered, itwill
beremaininthememoryuntilchange,andtheunit can alwaysbeoperatedunderthesame
conditions.
Thesettingswillberemainedinthememoryuntilthesettingsarechanged,evenafter
settingtheplayertostandbymode.
Commonprocedure forinitial settings
-Press MENU button on unittoporremotecontroltodisplaythemainmenu.
-Press LEFTorRIGHTnavigationbutton toselect wanteditem.
-Press ENTERorRIGHTnavigationbuttontoentersubmenupage.
-Press UPorDOWNnavigationbuttontoselecttheoptionthat wanttoadjust.
-Press LEFTorRIGHTnavigation buttontoadjustselectedoption todesiredvalue.Then
press ENTERbuttontoconfirmtheselection.
-Press MENU button toreturntopreviousmenu page.
-Press EXITbuttontoexit menu page.
TVMODE
-Press SOURCEbuttonon unit top orremotecontroltoset theunitinTVmode. Thenthe
screenwill displaybelowmenupage,if firsttimeusing:
Menu Language
-Press UPorDOWNnavigationbuttontoselect Menu Languageitem.
-Press LEFTorRIGHTnavigationbutton toselect wantedlanguage.
SignalType
-Press UPorDOWNnavigationbuttontoselect SignalTypeitem.
-Press LEFTorRIGHTnavigationbutton toselect wantedSignalType.
AutoChannelSearch
- Press UPorDOWNnavigationbuttontoselectAutoChannelSearchitem.
-Press ENTERbuttontostart channelsearching.
MAINMENU

19
1. PICTURE
1.1Picture Settings
1.11PictureMode
Availableoptions: User, Dynamic,Standard, Movie.
1.12Brightness
Thevalueof Brightnesscanbeadjustedfrom0-100.
1.13Contrast
Thevalueof Contrast can beadjustedfrom0-100.
1.14Color
Thevalueof Colorcan beadjustedfrom0-100.
1.15Tint
ThevalueofTintcanbeadjustedfrom-50to50.
(OnlyavailableforcertainTVsystem)
1.16Sharpness
Thevalueof Sharpnesscanbeadjustedfrom0-100.
NOTE: IfthevalueofBrightness,Contrast, Color,Tint, andSharpness isadjustableonly
whenthePictureModeisset asUser.
1.2Screen Size
Availableoptions: Normal, Wide, Cinema,Zoom.
1.3PCSettings
NOTE: ThisitemisavailableonlyinPCmode.
1.4ColorTemperature
Availableoptions: Normal,Warm,Cool.
