Qlight SPK User manual

1

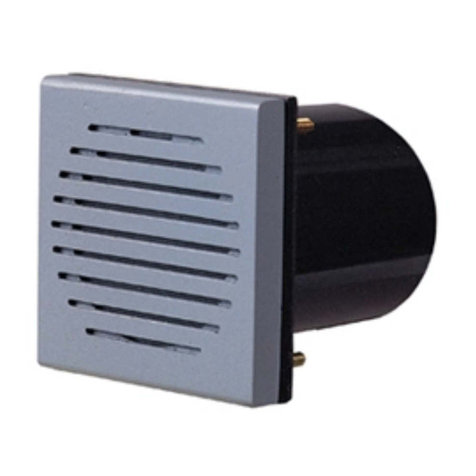

Panel Mounted Speaker
SPK
Model
number Voltage Current Built-in sound Certicate Weight
Sound type Ch Sound pattern dB
SPK
DC12V
DC24V
AC110V
AC220V
0.288A
0.155A
0.036A
0.018A
WS-
Warning
sounds
1Fire.A- ANG
85dB
DC-
0.19kg
AC-
0.21kg
2Emergency WA-
U(Yelp)
85dB
3
Ambulance PI-
PO(Hi-low)
85dB
4Machinery Fault
85dB
5High Expansion
83dB
WM-
Melodies
1Sweet Home
85dB
2For Elise
85dB
3Cuckoo's Waltz
85dB
4Piano Sonata
85dB
5Turkish March
85dB
WA-
Alarms
1Beep Intermittent
83dB
2Door Chime
83dB
3Phone Ring
85dB
4PI.PI.PI Short
85dB
5Tripping Beat
85dB
23
5025
85d B
• Protection rating : IP23
• Ambient operating temperature : -25°C to +50°C
※CE compliant : DC24V
SPK - WM - 220
[Model
number] [Sound] [Voltage]
| | |
• SPK • WS-Warning
sounds
• WM- Melodies
• WA-Alarms
• 12-DC12V
• 24-DC24V
• 110-AC110V
• 220-AC220V
Ordering Specications Specications
Thank you for purchasing Qlight’s products. Please read this user manual carefully
prior to installation and operation to ensure safe and correct use.
Precautions for Safety
Failure to follow the instructions below may cause a loss of life or serious physical injury.
1. Please remove any objects that can interrupt ventilation around the product.
2. Please turn o󰀨 the power of the product immediately if it fails to operate properly.
3. Carefully wire the product according to each product’s specication.
4. Please be careful in preventing chemicals such as thinner, benzene, etc. in contact with the surface of the product.
5. Do not apply excessive force/impact to the product.
6. Failure to follow any of the instructions above may cause malfunction or damage to the product, re, and electric shock.
Precautions for Correct Use
Failure to follow the proper instructions may cause damage to property, the product, and or malfunction of the
product that would void the warranty.
1. During wiring or maintenance, please completely turn o󰀨 the power of the product. (Failure to follow this may lead to an electric shock.)
2. Do not install the product in locations that subjects it to excessive dust or water other than the conditions designated by the IP protection
ratings indicated for each product. (Failure to follow these instructions may cause a re to the product, electric shock, physical injury,
malfunction or damage to the product.)
3. Do not alter or repair this product. If maintenance or repair service is required, please contact your local Qlight contact point. (Failure to
follow these instructions may lead to re, electric shock, or product damage.)
4. Please apply the correct voltage to the product. (Failure to follow these instructions may lead to re, electric shock, or product damage.)
5. When the product is applied to a condition that may impact lives or property, please make sure to have a double safety device. (Failure to
follow this may cause damage to property, re, electric shock and loss of life.)
Please scan the QR code for more
detailed product information.
www.qlight.com

2
Ø65
4-M4 BOLT 62
62
80
75
15 60
80
SPK
• First, machine taps or holes on the mounting surface①.
• The mounting hole of this product bracket is 4.5mm in diameter.
• When machining taps, fasten the bolt through the mounting hole of the bracket.
• When machining holes, insert the bolt through the hole of the bracket, and tighten the nut from the opposite side of the mounting surface.
62
62
4-Ø4.5 HOLES
Ø66 HOLES
Ch1
Ch2
Ch3
Ch4
Ch5
COM
Ch1
Ch2
Ch3
Ch4
Ch5
COM
DC AC
0V 0V
12V 110V
24V 220V
DC AC
0V 0V
12V 110V
24V 220V
SPK-DC/AC
SPK-DC/AC
EXTERNAL CONTACT
EXTERNAL TRANSISTOR-NPN
Ch 1 Sound Pattern
Ch 1 Sound Pattern
Ch 2 Sound Pattern
Ch 2 Sound Pattern
Ch 3 Sound Pattern
Ch 3 Sound Pattern
Ch 4 Sound Pattern
Ch 4 Sound Pattern
Ch 5 Sound Pattern
Ch 5 Sound Pattern
Common
Common
Power
Power
Volume Dial
Volume Dial
Sound Channel Selection Switch
Sound Channel Selection Switch
Front cover(ABS)
①
Bolt
Housing
(ABS)
Packing
• Wiring terminal on the back side of the product.
• When wiring with power line, please check the voltage at the terminals.
Dimensions
(Units : mm)
Wiring Instructions
Parts Denition/ Installation / Mounting Hole Specications
• Machine holes on the mounting surface referring to
the diagram below.
■
Mounting Hole Specications
■
Parts Denition/ Installation

3
Sound Setting
• Select between built-in sounds using the sound selection switch.
• Please be conscious of the number selected for your desired sound option.
-Switch 1,2 and 3
How to select melodies/alarms(WM,WA) products
Sound composition(5Ch)
No. 1 2 3
Ch1 Ch2 Ch3 Ch4 Ch5
11 100
Sweet home For elise Cuckoo's Waltz Piano Sonata Turkish March
12 0 1 0
Beep Intermittent Door Chime Phone Ring PI.PI.PI Short Tripping Beat
13 1 1 0
Sweet home Piano Sonata Magic Flute Door Chime PI.PI.PI Short
14 0 0 1
Magic Flute Badinerie Pineapple Rag Sweet home For elise
15 1 0 1
Cuckoo's Waltz Piano Sonata Door Chime Phone Ring Tripping Beat
16 0 1 1
Sweet home Turkish March Beep Intermittent Door Chime Phone Ring
17 1 1 1
Sweet home Piano Sonata Turkish March Door Chime PI.PI.PI Short
18 0 0 0
Sweet home Turkish March Magic Flute Beep Intermittent Phone Ring
■ Select Built-in Voice Group
• This is used when built-in sound mode is selected.
• Warning sounds(WS,WP) products and melodies/alarms(WM,WA) products can be selected according to your reference.
8 combinations are available.
How to select warning sounds(WS, WP) products
Sound composition(5Ch)
No. 1 2 3
Ch1 Ch2 Ch3 Ch4 Ch5
1 1 0 0
Fire A-Ang Emergency Ambulance Machinery Fault High Expansion
2 0 1 0
Fire A-Ang Pi-ik Pi-ik Machinery Fault High Expansion 7 Short Pi./ 1 Long
3 1 1 0
Fire A-Ang Emergency Pi-ik Pi-ik Machinery Fault High Expansion
4 0 0 1
Fire A-Ang Ambulance Machinery Fault High Expansion 7 Short Pi./ 1 Long
5 1 0 1
Emergency Ambulance Pi-ik Pi-ik Machinery Fault High Expansion
6 0 1 1
Fire A-Ang Emergency Ambulance Pi-ik Pi-ik 7 Short Pi./ 1 Long
7 1 1 1
Fire A-Ang Ambulance Pi-ik Pi-ik High Expansion 7 Short Pi./ 1 Long
8 0 0 0
Emergency Ambulance Pi-ik Pi-ik Machinery Fault 7 Short Pi./ 1 Long
ON(1)
OFF(0)
ON(1)
OFF(0)
• Melodies/alarms(WM,WA) products
• Warning sounds(WS,WP) products
Volume Dial
VOL.
MIN.
MAX.
Volume Adjustment
• The volume output of this product is adjustable.
• Turn the volume dial clockwise to increase the volume, and turn counterclockwise to decrease
the volume.
• There will be no sound when the dial is put at MIN.
Installation Environment and Protection Rating
• This product is designed for use with protection rating of IP23.
• In case of outdoor applications, install the product in the upright position. Do not install the product horizontal or upsidedown
positions where water can potentially penetrate into the product and impact it’s operation.
• For further information, please visit our website (www.qlight.com).
