Qlightec QAP100H-N User manual
1
5025
65
100
HORN
115
HORN
QAP100H-N/ QAP125H-N
QAP100H-N - 110/220
[Model number]
[Voltage]
||
• QAP100H-N
• QAP125H-N • 12/24-DC12V-24V
• 110/220- AC110V-220V
Model
number Voltage Current Sound pattern and
volume Certi¿cateWeight
QAP100H-N
DC12
-24V Max.
1.100A
• Bit Input : 5Ch
• Binary Input : 30Ch
• Built-in sounds
: Max.100dB
(Based on WA-Ch4)
0.60Kg
AC110V
-220V Max.
0.160A 0.63Kg
QAP125H-N
DC12
-24V Max.
0.830A
• Bit Input : 5Ch
• Binary Input : 30Ch
• Built-in sounds
: Max.115dB
(Based on WA-Ch4)
0.70Kg
AC110V
-220V Max.
0.170A 0.73Kg
Electric Horn
Thank you for purchasing Qlight’s products. Please read this user manual carefully
prior to installation and operation to ensure safe and correct use.
Precautions for Safety
Failure to follow the instructions below may cause a loss of life or serious physical injury.
1. Please remove any objects that can interrupt ventilation around the product.
2. Please turn o-• the power of the product immediately if it fails to operate properly.
3. Carefully wire the product according to each product’s speci¿cation.
4. Please be careful in preventing chemicals such as thinner, benzene, etc. in contact with the surface of the product.
5. Do not apply excessive force/impact to the product.
6. Failure to follow any of the instructions above may cause malfunction or damage to the product, ¿re, and electric shock.
Precautions for Correct Use
Failure to follow the proper instructions may cause damage to property, the product, or malfunction of the
product that would void the warranty.
1. During wiring or maintenance, please completely turn o-• the power of the product. (Failure to follow this may lead to an electric shock.)
2. Do not install the product in locations that subjects it to excessive dust or water other than the conditions designated by the IP protection
ratings indicated for each product. (Failure to follow these instructions may cause a ¿re to the product, electric shock, physical injury,
malfunction or damage to the product.)
3. Do not alter or repair this product. If maintenance or repair service is required, please contact your local Qlight contact point. (Failure to
follow these instructions may lead to ¿re, electric shock, or product damage.)
4. Please apply the correct voltage to the product. (Failure to follow these instructions may lead to ¿re, electric shock, or product damage.)
5. When the product is applied to a condition that may impact lives or property, please make sure to have a double safety device. (Failure to
follow this may cause damage to property, ¿re, electric shock and loss of life.)
Ordering Specications
• Protection rating : IP65
• Ambient operating temperature : -25°C to +50°C
Product Specications
Please scan the QR code for more
detailed product information.
www.qlight.com

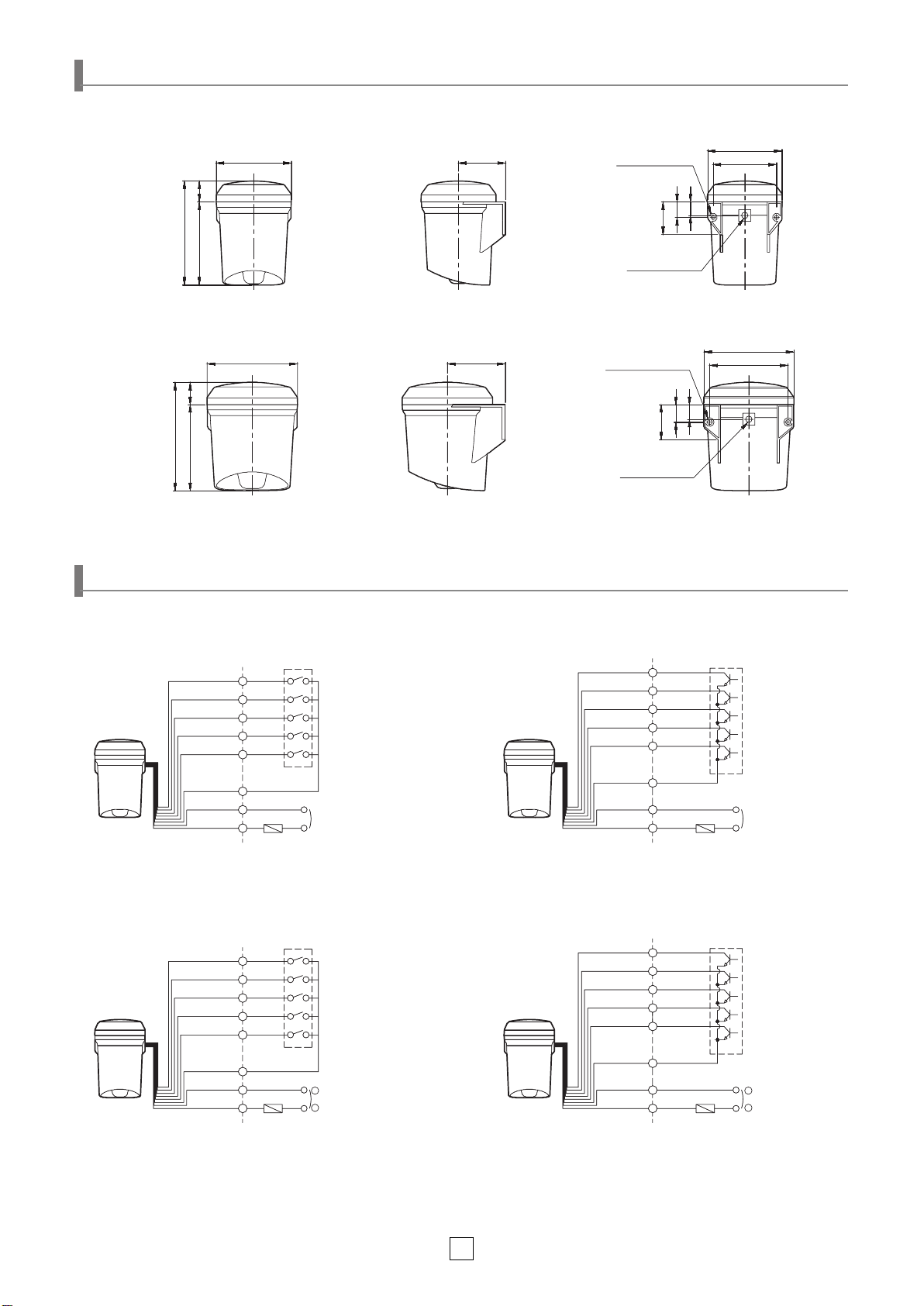

2
Ø97
2-Ø5.6
FITTING HOLES
Ø10
CABLE ENTRY
110
42
18
20
60 82
96
27
137
Ø116 2-Ø6.5
FITTING HOLES
Ø10
CABLE ENTRY
120
45
18
23
74 101
115
29
149
Ø97
2-Ø5.6
FITTING HOLES
Ø10
CABLE ENTRY
110
42
18
20
60 82
96
27
137
Ø116 2-Ø6.5
FITTING HOLES
Ø10
CABLE ENTRY
120
45
18
23
74 101
115
29
149
QAP100H-N
QAP125H-N
Dimensions
(Units : mm)
+
-
+
-
• External power line - UL1015 AWG18(0.75sq) x 2C 400mm
External signal line - UL1007 AWG22(0.3sq) 400mm
• QAP100H-N : This product can be wired regardless of polarity.
• QAP125H-N : Black output line is negative(-).
QAP100H-N
QAP125H-N
Wiring Instructions
Ch 1
EXTERNAL CONTACT
Ch 2
Ch 3
Ch 4
Ch 5
Fuse
Common
Power
Red
Amber
Green
Blue
White
White or Red
Black
Black
EXTERNAL CONTACT
Ch 1
Ch 2
Ch 3
Ch 4
Ch 5
Fuse
Common
Power
Red
Amber
Green
Blue
White
White or Red
Black
Black
Ch 1
Ch 1
Ch 2
Ch 2
Ch 3
Ch 3
Ch 4
Ch 4
Ch 5
Ch 5
EXTERNAL TRANSISTOR-NPN
EXTERNAL TRANSISTOR-NPN
Fuse
Fuse
Common
Common
Power
Power
Red
Amber
Green
Blue
White
White or Red
Black
Black
Red
Amber
Green
Blue
White
White or Red
Black
Black
3
•
First, machine taps or holes on the mounting surface.
•
The mounting hole of this product is 6mm in diameter.
•
When machining taps, fasten the bolt through the mounting
hole of the product.
•
When machining holes, insert the bolt through the hole of the
product, and tighten the nut from the opposite side of the mounting
surface.
•
Instal a at washer and a spring washer to the bolt if the product
can experience severe vibration and shock.
• Machine holes on the mounting surface
referring to the diagram below.
Housing(ABS)
Cover(ABS)
Sound switch
Sound volume
switch
2-Ø6 HOLES
Min. Ø5 CABLE ENTRY
Min. Ø5 CABLE ENTRY
2
82
2-Ø6 HOLES
5
101
2-Ø6 HOLES
Min. Ø5 CABLE ENTRY
Min. Ø5 CABLE ENTRY
2
82
2-Ø6 HOLES
5
101
QAD100H-N
QAD125H-N
■Parts Denition/ Installation ■Mounting Hole Specications
•
Bit input mode(using external line) allows you to select
one of ¿ve sound options by switching on one of the 5
channels (Ch1 - Ch5).
• Total of 5 sound options are con¿gurable.
•
Binary input mode(using external line) allows you to
receive multiple inputs by using the 5 channels
(Ch1 - Ch5) to con¿gure one of 30 sound options.
• Total of 30 sound options are con¿gurable.
■
Bit Input Mode
■
Binary Input Mode
No. 1 2 3 4 5
0 0 0 0 0 0
1 1 0 0 0 0
2 0 1 0 0 0
3 0 0 1 0 0
4 0 0 0 1 0
5 0 0 0 0 1
0 0 0 0 0 0
1 0 0 0 0 1
2 0 0 0 1 0
29 1 1 1 0 1
30 1 1 1 1 0
Ch 1 Ch 2 Ch 3 Ch 4 Ch 5
COM
Ch1 Ch2 Ch3 Ch4 Ch5
ON(1)
OFF(0)
※
The channel selection method
using a transistor is the same
as the external contact method,
please refer to the ¿gure on
the right.
※
The switch ¿gure to the right
explains how to wire the exter-
nal
contacts of a signal line
product. If the product is not a
signal line product, use the
channel selection switch
attached
inside the product.
Binary input mode
Can select up to 30 sound options
Bit input mode
Can select up to 5 sound options
Bit/ Binary Input Method Depending on Wiring Method
Parts Denition/ Installation/ Mounting Hole Specications
Installation Environment and Protection Rating
• This product is designed for use with protection rating of IP65.
• If the product is installed in locations that subject it to excessive dust or water other than the designated IP protection rating
indicated(IP65), it may cause malfunction or damage to the product.
• For further information, please visit our website(www.qlight.com).
4
Top Control Conguration
Volume switch
Sound switch
• Built-in sounds can be selected by using
a switch either bit or binary sounds.
• Please be conscious of the number selected
for your desired sound option.
- Switch No. 1 : Select Bit or Binary
- Switch No. 2,3,4 : Select Built-in sound group
■ Select built-in Bit sound group
■
Select built-in Bit sound group or Binary sound group
• It is being used when built-in sound is selected.
• Select between the six sound groups.
• Every group has 5 type of sounds.
• In bit input mode, Please set switch no.1 to
o-•(0).
• In binary input mode, Please set switch no.1
to ON(1).
How to select bit type sound group
Sounds
No. 2 3 4
1 0 0 1
5 Warning Sounds
2 0 1 0
5 Special Warning Sounds (1st Group)
3 0 1 1
5 Melodies
4 1 0 0
5Alarms
5 1 0 1
5 Special Warning Sounds (2nd Group)
6 1 1 0
5 Special Warning Sounds (3rd Group)
ON(1)
OFF(0)
Sound Setting
• The volume output of this product is adjustable.
• Turn the volume dial clockwise to increase the volume, and
turn counter clockwise to decrease the volume.
• There will be no sound when the dial is put at MIN.
Volume Adjustment
Volume Dial
VOL.
MIN.
MAX.
Bit input method sound con¿guration
Type of sound
(WS group as an example)
No. 1 2 3 4 5
0 0 0 0 0 0 No sound
1 1 0 0 0 0 Fire.A-ANG(560Hz-1.5kHz)
2 0 1 0 0 0 Emergency WA-U
(600Hz-1.5kHz)
3 0 0 1 0 0 Ambulance PI-PO
(450Hz-900Hz)
4 0 0 0 1 0 Machinery Fault(820Hz)
5 0 0 0 0 1 High Expansion(1kHz)
※ Please be noted that the con¿guration chart above is ex-
plaining how to wire terminal blocks. The actual product
does not have a switch.
ON(1)
OFF(0)
• In bit input mode, you can chooses one sound from 1
sound by con¿guring the 5 channels.
• For sound con¿gurations, refer to the table below.
■ Bit Input - Playing Built-in Sound
Sound Type and Combination Manual
5
■ Sound Type by Group
Bit input method sound con¿guration
Group
Channel
Type of sound
WS
5 Warning
Sounds
Ch1
Fire.A-ANG (560Hz-1.5kHz)
Ch2
Emergency WA-U (600Hz-1.5kHz)
Ch3
Ambulance PI-PO (450Hz-900Hz)
Ch4
Machinery Fault (820Hz)
Ch5
High Expansion (1kHz)
WP
5 Special
Warning
Sounds
(1st Group)
Ch1
Fire.A-ANG (560Hz-1.5kHz)
Ch2
Abandon Alarm (820Hz)
Ch3
Machinery Fault (820Hz)
Ch4
High Expansion (1kHz)
Ch5
7 Short PI. / 1 Long (1kHz)
WM 5 Melodies
Ch1
Sweet Home
Ch2
For Elise
Ch3
Cuckoo's Waltz
Ch4
Piano Sonata
Ch5
Turkish March
WA 5 Alarms
Ch1
Beep Intermittent
Ch2
Door Chime
Ch3
Phone Ring
Ch4
PI.PI.PI Short
Ch5
Tripping Beat
WO
5 Special
Warning
Sounds
(2nd Group)
Ch1
Rel rel rel (730Hz-920Hz)
Ch2
Slow Ambulance PI-PO
(820Hz-1.05kHz)
Ch3
Wye yong Wye yong (770Hz-1.2kHz)
Ch4
Phone ring 2 (740Hz-910Hz)
Ch5
Fire.A-ANG (770Hz-1.11kHz)
WN
5 Special
Warning
Sounds
(3rd Group)
Ch1
Oit Oit (500Hz-1.11kHz)
Ch2
Pi o Pi o (940Hz-2.19kHz)
Ch3
Slow Di o Di o
(680Hz-840Hz)
Ch4
Li long Li ling (420Hz-470Hz)
Ch5
911 Siren (150Hz-1kHz)
Sound Type and Combination Manual
Binary input method sound con¿guration
Type of sound
No. 1 2 3 4 5
0 0 0 0 0 0 No sound
1 0 0 0 0 1 Fire.A-ANG (560Hz-1.5kHz)
2 0 0 0 1 0 Emergency WA-U (600Hz-1.5kHz)
3 0 0 0 1 1 Ambulance PI-PO (450Hz-900Hz)
4 0 0 1 0 0 Pi-ik Pi-ik (800Hz)
5 0 0 1 0 1 Machinery Fault (820Hz)
6 0 0 1 1 0 High Expansion (1kHz)
7 0 0 1 1 1 Alarm (1kHz)
8 0 1 0 0 0 Sweet Home
9 0 1 0 0 1 For Elise
10 0 1 0 1 0 Cuckoo's Waltz
11 01011Piano Sonata
12 0 1 1 0 0 Turkish March
13 0 1 1 0 1 Magic Flute
14 0 1 1 1 0 Badinerie
15 0 1 1 1 1 Pineapple Rag
16 1 0 0 0 0 Beep Intermittent
17 1 0 0 0 1 Door Chime
18 1 0 0 1 0 Phone Ring
19 1 0 0 1 1 PI.PI.PI Short
20 1 0 1 0 0 Tripping Beat
21 1 0 1 0 1 Rel rel rel (730Hz-920Hz)
22 1 0 1 1 0 Slow Ambulance PI-PO
(820Hz-1.05kHz)
23 1 0 1 1 1 Wye yong Wye yong
(770Hz-1.2kHz)
24 1 1 0 0 0 Phone ring 2 (740Hz-910Hz)
25 1 1 0 0 1 Fire.A-ANG (770Hz-1.11kHz)
26 1 1 0 1 0 Oit Oit (500Hz-1.11kHz)
27 1 1 0 1 1 Pi o Pi o (940Hz-2.19kHz)
28 1 1 1 0 0 Slow Di o Di o (680Hz-840Hz)
29 1 1 1 0 1 Li long Li ling
(420Hz-470Hz)
30 1 1 1 1 0 911 Siren (150Hz-1kHz)
•
In binary input mode, you can chooses one sound from
30
sounds by con¿guring the 5 channels.
• For sound con¿gurations, refer to the table below.
• Please be aware that the con¿guration for sound using
the binary input method is di-•erent from the bit input method.
■ Binary Input - Playing Built-in Sound
ON(1)
OFF(0)
6
Operation Method and Setting
When Using a Built-in Sound Source
Bit input Binary input
Play one of ¿ve sounds from
6 groups Play one of 30 sounds
■ When using a built-in sound source in bit input mode
1. Please set switch no. 1 to o-•.
- For more information, see page 4
‘Sound Selection’
section.
2. Use one of the SOUND setting switches 2, 3 and 4 to select one of the
6 groups.
- For more information, see page 4
‘Sound Selection’
section.
3. Use the terminal block on the back to select one of the ¿ve built-in
sounds.
- For more information, please refer to page 4
‘Sound Type and Combi-
nation for Built-in Sound’ - ‘Bit Input’
section.
※Sound switch setting → Channel selection
■ When using a built-in sound source in binary input
mode
1. Please set switch no. 1 to ON.
- For more information, see page 4
‘Sound’
section.
2. Use the terminal block on the back to select one of the 30 built-in
sounds.
- For details, please refer to page 5
‘Sound Type and Combination for
Built-in Sound’ - ‘Binary input’
section.
※Sound switch setting → Channel selection
7
Product installation direction
■ Install the product in accordance with the manual. Otherwise rainwater or moisture may penetrate into the product.
ㆍ ELECTRONIC SOUNDER/SIGNAL HORN
Sounder part shall not be facing the sky.
Sounder part shall not be facing the sky.
ㆍBEACON/SIGNALING LIGHT
Power cord inlet part shall not be facing the sky.
Power cord inlet part shall not be facing the sky.
ㆍSIGNAL TOWER LIGHTS
ㆍHEAVY-DUTY & EXPLOSION PROOF SIGNALINGS
※ For products with a protection rating of less than IPX4, please install it vertically.
※ For products with a protection rating of less than IPX4, please install it vertically.
Head O-ce | Suite #1510, STX-V Tower, 128 Gasan digital 1-ro, Geumcheon-gu, Seoul, Korea
Tel. +82-2-2679-6152(Toll free. +82-80-328-2222) Fax. +82-2-2679-6154
Factory | 185-25, Mukbang-ro, Sangdong-myeon, Gimhae-si, Gyeongsangnamdo, Korea Tel. +82-55-328-1111(Toll free. +82-80-328-1111)
Qlight OverSEAs Sales Dept |
704 Nakdong-daero, Sasang-gu, Busan, Korea(Eomgung-Dong) Tel : +82-51-620-4100
Qlight Public Relations & Marketing Team O-ce | 704 Nakdong-daero, Sasang-gu, Busan, Korea(Eomgung-Dong) Tel. +82-51-245-0017
3003 North First Street, Suite #341, San Jose, CA 95134 USA Tel. +1 - 408 - 519 - 5740 Fax. +1 - 408 - 519 - 5739
China Factory/ Shanghai Sales O-ce | #19, Nanda Road, Baoshan Area, Shanghai, China Tel. +86
-
21
-
6651
-
7100 Fax. +86
-
21
-
6315
-
3929
China Factory Site 2 (Qidong) | #33, Haiyan Road, Qidong High-tech Industrial Development Zone, Qidong, Jiangsu Province, China
Tel +86
-
513
-
8384
-
9999 Fax +86
-
513
-
8384
-
9910
Product Operation Inquiry / Customer Support +82-51-620-4100
You can expect prompt service if you have exact information such as model name, symptom, telephone number and address.
※ALL PRODUCT, PRODUCT SPECIFICATIONS AND DATA ARE SUBJECT TO CHANGE WITHOUT NOTICE TO IMPROVE
RELIABILITY, FUNCTION OR DESIGN OR OTHERWISE.
Head office : Suite #1510, STX-V Tower, 128 Gasan digital 1-ro, Geumcheon-gu, Seoul, Korea (Postal Code : 08507)
Factory : 185-25, Mukbang-Ro, Sangdong-Myeon, Gimhae-Si, Gyeongsangnam-Do, Korea ( Postal Code : 50805)
For your safety
Speci¿cation and dimensions listed in this catalogue subject to change without notice for product quality improvement.
The newest product information is available on our website.(www.qlight.com)
Please read the instruction manual attached to the product carefully before installation and use.
www.qlight.com
EN - QAP100H-N - 2305A
This manual suits for next models
1
Table of contents
Other Qlightec Horn manuals
