QM-products SPM-2011 User manual

QM-Products 2016 v1.0
1
SPM-2011
2 x HDMI/AV to 1 x DVB-T/C
Operation Manual

QM-Products 2016 v1.0
2
1. IMPORTANT SAFETY PRECAUTIONS INFORMATION
READ THE FOLLOWING WARNINGS BEFORE YOU USE
YOUR DEVICE
WARNING
The following safety precautions must be observed to prevent fire or electric
shock hazard. Safety precautions include but are not restricted to the following:
Power supply / Mains cord
Operate the unit only within the voltage range defined as appropriate by the
manufacturer.
Occasionally check the power connector and remove dirt or dust that may
have accumulated.
Use only the mains cord that comes with your unit.
Do not operate the unit or plug in the mains cord if it is broken, split, or
damaged in any way.
Do not place the mains cord next to heating devices. Do not pull it, place
heavy objects on it or damage it in any way. Keep it out of reach of children.
Ensure that the device is plugged in a proper grounded socket. Insufficient
grounding may cause electrocution.
Always carefully disconnect all plugs by taking off the plug and strictly
forbitten to pull the cord in order to disconnect the unit . Make sure the unit's
power switch is turned off before removing the cord from an outlet.
Disconnect the mains cord when the unit is not in use for long periods of time
or during storms.
Do not connect the unit to a multiple-outlet to avoid plug overheating.
Disassembling
This unit contains parts that cannot be repaired by the user. Do not
disassemble or try to repair it as this will void all warranties. Please contact
the manufacturer if you experience any problems with your unit.
Water/humidity
Do not keep the unit in a humid place or near water.
Do not plug/unplug the unit with wet hands.
Fire
Never place a candle or another source of fire on the unit as it may fall and
start a fire.
If the mains cord or the power connector is damaged or destroyed, or if there
is a sudden loss of picture during operation, or if you notice a strange smell or
there is smoke, immediately switch the unit off, disconnect the mains cord and
contact the manufacturer’s technical support department.

QM-Products 2016 v1.0
3
Installation / Storage
This unit contains high precision pieces of electronics. To ensure optimal
performance and avoid damage, do not store it in any location where it may
collect dirt, duct, lint, etc. Do not expose it to extreme heat or cold (e.g. in
direct sunlight, near a heater or in the car during the day). Place the unit in a
secure place to avoid falls.
Before moving the unit, always unplug all cords first.
When installing the unit, make sure that an outlet is within easy reach. In case
of malfunction, switch the unit off and unplug the power cord. When the unit
is not in use for a long period of time, make sure that the mains cord is
disconnected.
Connectivity
Before connecting the unit to other electronic devices, always switch off and
unplug all devices.
Maintenance
Do not spill liquids on the unit. Do not use any diluents or volatile liquid to
clean the unit. Instead, use a soft slightly damp cloth and allow the unit to dry
completely before using again.
Handling
Do not poke your finger into the openings on your unit.
Never put paper, metal parts or other objects into the openings of your unit. If
you suspect that there are foreign parts in your unit, switch it off and unplug
the mains cord. Contact the manufacturer’s technical support department.
Do not step on or place heavy objects on top of the unit. To avoid hardware
damage, handle all buttons, connectors and switches gently.

QM-Products 2016 v1.0
4
2. INTRO
Congratulations on purchasing the SPM-2011. You now own a high quality,
semiprofessional DTV modulator. To get the most out of your purchase, please take
the time to read carefully through this manual.
3. INSTRUCTIONS
3.1 DESCRIPTION
The SPM-2011 is a very powerful, all-in-one device, able to receive up to 2
independent HDMI/AV sources and to convert them in 1 x DVB-T/C RF output
channel. The embedded web server of the SPM-2011 provides a very friendly user
interface as well as the ability of remote or local control of the device via Ethernet.
Its small size and its powerful features makes the SPM-2011 the ideal solution to
distribute HDMI/AV sources coming from eg. a STB or DVD player to a CATV
installation using the DVB-T/C signals.
3.2 FEATURES
2 x independent HDMI/AV inputs
1 x RF output DVB-T/C (software selectable)
Full NIT Configuration
Low power consumption
MER value > 40dB
Very clean RF spectrum
PCR re-stamping
Very friendly user interface
Wall mountable
Compact size
5 year warranty
3.2.1 Auto-reset functions and watchdog
During the normal operation of the SPM-2011 , the main CPU monitors all the
internal parts in order to ensure that the device works normally. In case of an internal
error or module failure, the SPM-2011 immediately initiates the recovery procedure
by resetting the appropriate module or the device. Finally, watchdog timers ensure
that the device will be reset in case of CPU failure.
3.2.2 DVB-T or DVB-C compliant
The user is able to software select the modulation standard, between DVB-T and
DVB-C, of the SPM-2011 without the need of any firmware upgrade.

QM-Products 2016 v1.0
5
SPM-2011
1. Reset button
2. Status LED
3. IP LAN control
4. RF output
5. RF input
6. HDMI/AV inputs

QM-Products 2016 v1.0
6
4. INSTALLATION
4.1 General
The SPM-2011 has a very friendly interface for programming and monitoring
purposes. The user is able to gain access to the embedded webserver, by opening an
Internet browser (eg. Internet Explorer, Firefox or Chrome) and type the following
static IP: 192.168.1.200.
The default username and password are the following:
Username: admin
Password: 12345
4.2 Embedded Webserver
Status
4.2.1 “General” page
Figure No 1
Every time that the user is connected to the device, the “General” page (Figure No 1)
is loaded providing a current general status information of the device.

QM-Products 2016 v1.0
7
Status - Inputs 1.2.
In these fields, the user is able to see the status of each HDMI/AV input eg. if the
H.264 encoder is running or if it is in idle state, its Service name, its Service ID,
video/audio PID and LCN number.
Output –Modulator
In these fields, the user is able to see the status of all the RF output of the device such
as modulator state, RF output frequencies and modulation settings.
System
This section provides general information of the device, like internal status of all
device’s modules, CPU temperature and fan state as well as error codes for
troubleshooting purposes.
Setup
4.2.2 “Input”page
Figure No 2

QM-Products 2016 v1.0
8
In the “Input page” ( Figure No 2) the user is able to setup each HDMI/AV input
independently. There are two tabs including all the 2 HDMI inputs. For each input the
user needs to program the following fields:
1. Input Enabled/Disabled - Enable or disable the specific HDMI input
2. Service Name –Insert the preferred service name
3. Service ID –Insert the service ID number
4. Video Bitrate –Set the video bitrate (2000-19000 Kbps)
5. Audio Bitrate –Set the audio bitrate (64,96,128,192,256,320 Kbps)
6. Audio encoding –Set the audio encoding (AAC, AC3, Mpeg2)
7. HDCP –Enable/disable the HDCP function
8. LCN –Set the LCN number
9. PMT PID –Set the PMT PID
10. Video PID –Set the Video PID
11. Audio PID –Set the Audio PID
Once all settings are being written, the user must click the “Apply” button for the
settings to be saved.
4.2.3 “RF Output” page
Figure No 3

QM-Products 2016 v1.0
9
In the “RF Output” page (Figure No 3) the user is able to setup the RF output settings
of the SPM-2011.
With the use of the radio buttons the user is able to select the mode that the
SPM-2011 will operate as follows:
DVB-T: modulator working in DVB-T standard
DVB-C: modulator working in DVB-C standard
For each modulator in DVB-T mode the user is able to setup the following
parameters:
Frequency –The output frequency
Constellation –The constellation
Code Rate –The coder rate
Guard Interval - The guard interval
Channel Bandwidth –The channel bandwidth
Modulation –The modulation type
Enable/Disable –Enable or disable the modulator
Output level –Adjust the output level from 70-90dΒμV.
The status section provides a general idea to the user of the current payload
(according to the selected programs) comparing to the max. output payload.
It is recommended that the user must not exceed the 85% from each output, since all
the bitrate are variable according to their specific content.

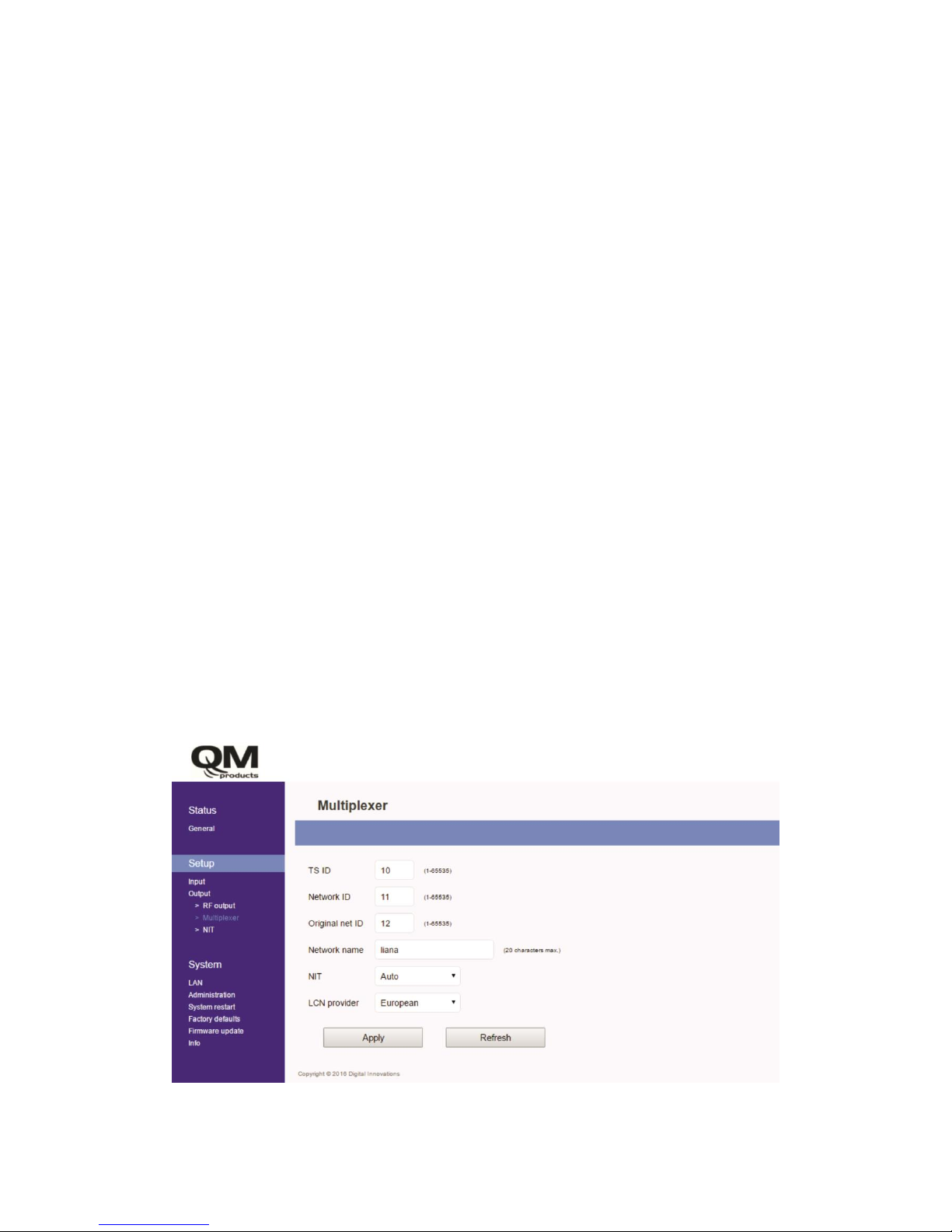

4.2.3 “Multiplexer” page
In this section (Figure 4), the user is able to setup all the TS settings of the multiplexer
in SPM-2011 output.
Figure No 4

QM-Products 2016 v1.0
10
The user can setup the following settings:
TS ID: Which is the ID No of the specific multiplex. (1…65535)
Net ID: Which is the Net ID No of the specific multiplex. (1…65535)
Original Net ID: Which is the Org. Net ID No of the specific multiplex. (1…65535)
Network Name: Which is the network name of the specific multiplex
NIT: User can choose the following options (Off , Basic , Auto , Custom)
LCN provider: Choose the appropriate LCN provider (EACEM, ITC, Nordig, APN)

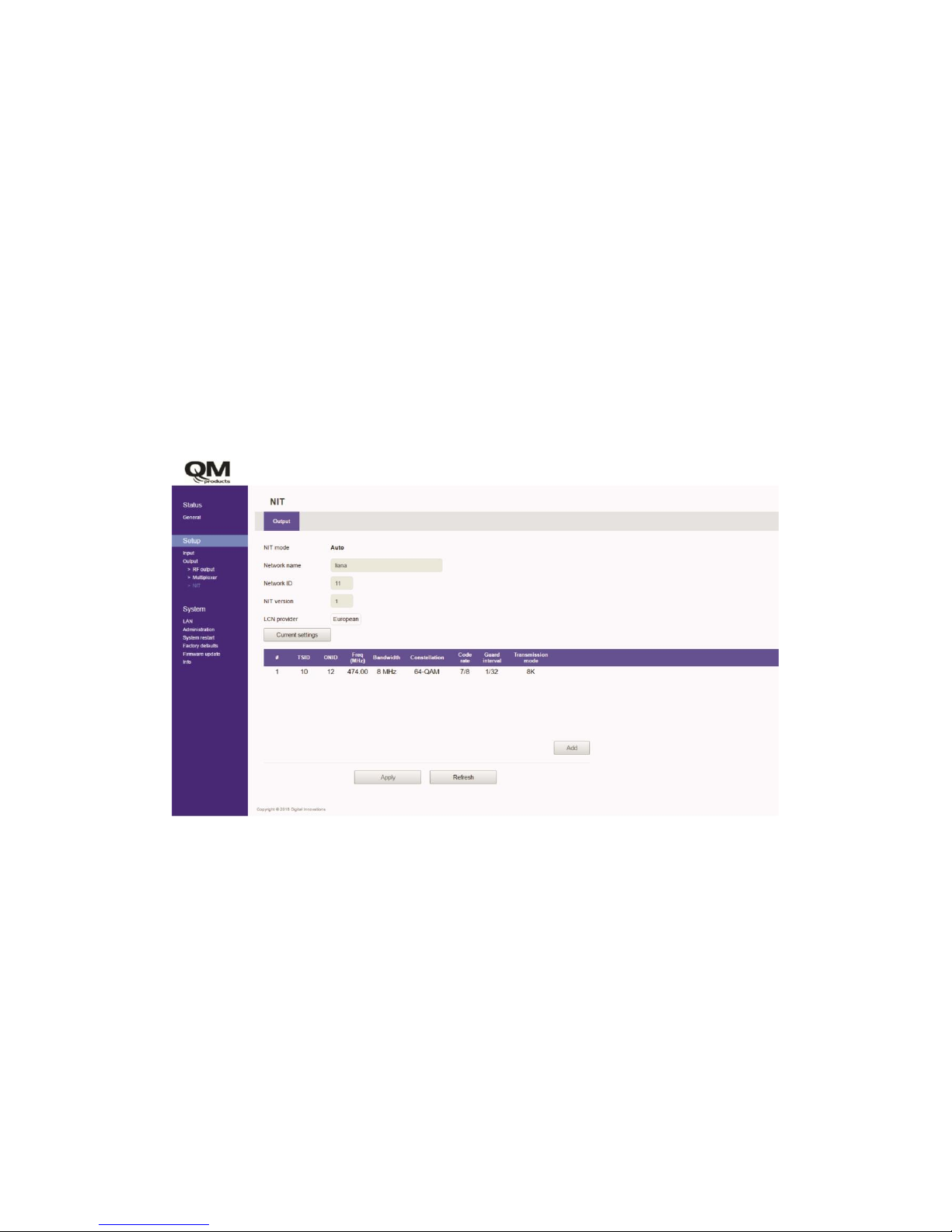

4.2.4 “NIT” page
In “NIT” page (Figure No 5) the user is able to create a full customize NIT table
Figure No 5

QM-Products 2016 v1.0
11
System

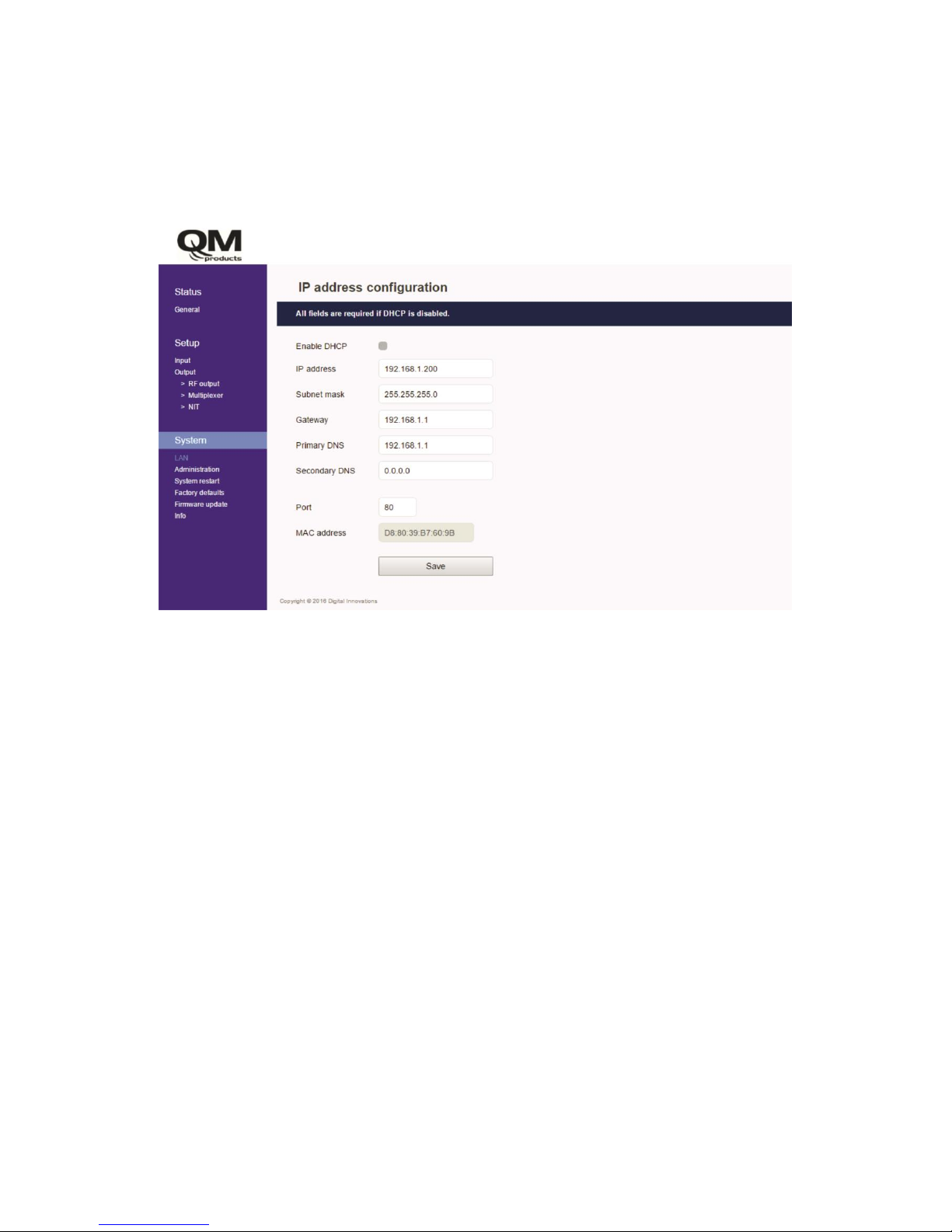

4.2.5 “LAN” page
In “LAN” page (Figure No 6) the user is able to setup all the parameters of the LAN
control of the device as follows:
Figure No 6
DHCP –Enable or disable DHCP
IP address: Set a static IP address for controlling the device
Subnet mask: Set the specific Subnet mask
Gateway: Set the gateway’s IP address
Primary DNS: Set the IP address of the primary DNS
Secondary DNS: Set the IP address of the secondary DNS
Port: Assign the control port
MAC address: Depicts the MAC address of the LAN control

QM-Products 2016 v1.0
12
4.2.6 “Administration” page
In “Administration” section the user is able to change the default password of the
webserver.
Figure No 7
4.2.7 “System restart” page
Figure No 8
In “System restart” section (Figure No 8) the user is able to apply a full reset to the
device.

QM-Products 2016 v1.0
13

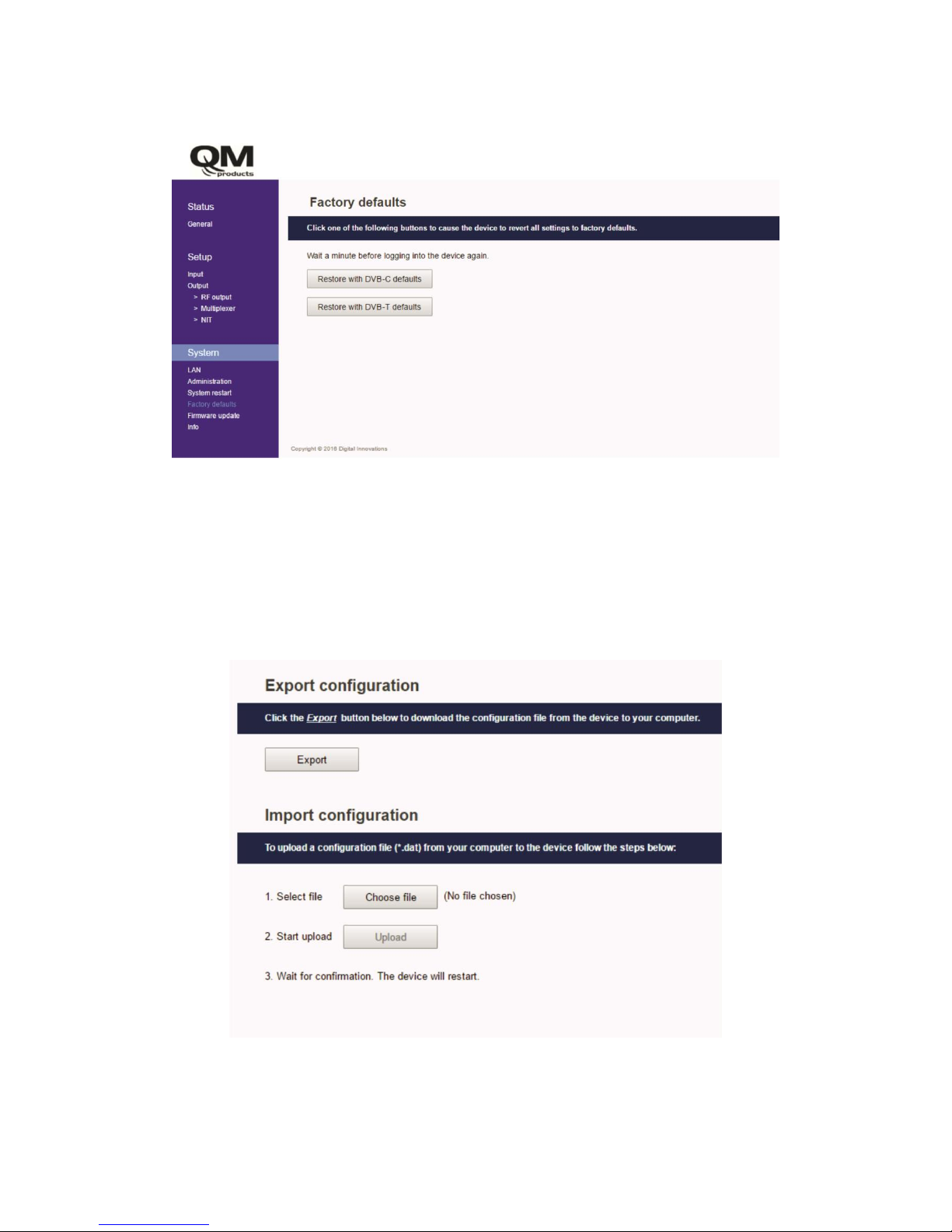

4.2.8 “Factory default” page
Figure No 9
In “Factory default” section (Figure No 9) the user is able to apply a factory default
reset either as DVB-T or DVB-C.
4.2.9 “Import/Export Config” page
In “Import/Export Config” section (Figure No 10) the user is able to do the following:
Figure No 10
1. Export: Save all the configuration is a specific file
2. Import: Upload a previously save configuration file.

QM-Products 2016 v1.0
14
4.2.10 “Firmware update” page
In “Firmware update” (Figure No 11) section the user is able to upload a new
firmware update using the appropriate file.
Figure No 11
4.2.11 “Info” page
Figure No 18
In “Info” (Figure No 18) section the user is able to see the serial No of the device as
well as the firmware and MAC address.

QM-Products 2016 v1.0
15
5. TECHNICAL SPECIFICATIONS
Input Specifications
HDMI Input
Type
2 x HDMI inputs
Video coding
MPEG-4 AVC/H.264
Profile
High profile 4.0
Input resolution
Up to 1920x1080 - 50/60 p & i
Output resolution
Up to 1920x1080 - 30p
HDCP support
Yes
Audio
Audio
HDMI
Standard
MPEG-1 Layer II
Audio Bit Rate
64,96,128,192,256,320 Kbps
Format
Mpeg2, AAC, AC3
H.264 encoder
Standard
MPEG-4 AVC/H.264
Bit Rate
1 –19 Mbps adjustable
Configurable Parameters
Service Name, Service ID
LCN processing
Yes
Output Specifications
DVB-T
Bandwidth 5,6,7,8MHz
Mode 2K,8K
Constellation QPSK,16QAM,64QAM
Guard Interval 1/4,2/3,3/4,5/6,7/8
Code Rate 1/2,2/3,3/4,5/6,7/8
DVB-C
Bandwidth 5,6,7,8MHz
Mode 2K,8K
Constellation 16QAM,32QAM,64QAM,128QAM,256QAM
Symbol Rate 1-7.2Ms/s
RF Output
Type
1 x RF out
Output Frequencies
36…950MHz (1 Hz step)
Output Level
90dbµV
Connector
75Ω - F, female
Output Attenuator
0…-20dB
MER
>40dB
Output loop-through loss
<1dB

QM-Products 2016 v1.0
16
Transport Stream Processing
Services
User selection by service
names
Automatic Regeneration
PAT,CAT,SDT,PMTs,
EITs tables
NIT
Off , Basic , Auto , Custom
PCR
re-stamping
LCN support
Yes
Programming Interface
Ethernet webserver Yes, embedded webserver
Speed: 10/100 Mbps
Connector: RJ45
Compatible browsers: IE Edge, Firefox, Chrome
General
Power Supply: 12 VDC 50/60Hz
Power supply consumption: 1.2A
Operating Temperature: 0 ºC to 40 ºC
Storage Temperature: -10 ºC to +70 ºC
Humidity: Up to 90%

QM-Products 2016 v1.0
17
7. QM-Products LIMITED WARRANTY
This “QM-products”is guaranteed against defects in workmanship and materials for a
period of five (5) years beginning on the date of the purchase of the product. During
the applicable warranty period, Digital-Innovations BV will repair or replace at our
own cost and without charges, any defective component parts of the purchased unit.
The unit must be packed in adequate packing, and send to us, only AFTER receiving
an authorization to allow the return of the product.
The owner’s responsibilities are to use the instrument in accordance with its written
instructions, to provide transport to and from our facilities in the event service is
required, and to provide proof of purchase if requested.
Our warranty does not cover any problem resulting from:
(a) accident; abuse; neglect; shock; electrostatic discharge; heat or humidity beyond
product specifications; improper installation, operation, maintenance or modification
(b) any misuse contrary to the instructions in the user manual
(c) malfunctions caused by other equipment.
WARNING!!
Our limited warranty is considered void if a product is returned with removed,
damaged or tampered labels or any alterations (including removal of any component
or external cover) carried out by unauthorized personnel.
OUT OF WARRANTY SERVICING
We repair and service units of our production even once the warranty has expired, if
this is economically the best solution to the customer.
The mechanical and electronic spare parts are replaceable for a five-year period after
production when the circuits are assembled with discrete components. When
integrated circuits are used, the supply of spare parts is guaranteed up to the depletion
of our stock and, depending on the possibility of procuring them on the worldwide
market.
To avoid any unnecessary loss of time, it is very important that the instrument be
returned to our premises accompanied by a proper delivery note, duly completed with
all the required information, as per the legal dispositions currently enforced.
Content warning
This document contains preliminary information about a product of Digital-
Innovations BV. Digital-Innovations BV reserves the right to make any changes or
modifications at any time without prior notice.

QM-Products 2016 v1.0
18
APPENDIX A
DVB-T bitrates(Mbit/s) for 8 MHz bandwidth (non-hierarchical systems)
Modulation
Coding
Rate
Guard Interval
1/4
1/8
1/16
1/32
QPSK
1/2
4.976
5.529
5.855
6.032
2/3
6.635
7.373
7.806
8.043
3/4
7.465
8.294
8.782
9.048
5/6
8.294
9.216
9.758
10.053
7/8
8.709
9.676
10.246
10.556
16-QAM
1/2
9.953
11.059
11.709
12.064
2/3
13.271
14.745
15.612
16.086
3/4
14.929
16.588
17.564
18.096
5/6
16.588
18.431
19.516
20.107
7/8
17.418
19.353
20.491
21.112
64-QAM
1/2
14.929
16.588
17.564
18.096
2/3
19.906
22.118
23.419
24.128
3/4
22.394
24.882
26.346
27.144
5/6
24.882
27.647
29.273
30.160
7/8
26.126
29.029
30.737
31.668

QM-Products 2016 v1.0
19
DVB-T bitrates(Mbit/s) for 7 MHz bandwidth (non-hierarchical systems)
Modulation
Coding
Rate
Guard Interval
1/4
1/8
1/16
1/32
QPSK
1/2
4.354
4.838
5.123
5.278
2/3
5.806
6.451
6.830
7.037
3/4
6.532
7.257
7.684
7.917
5/6
7.257
8.064
8.538
8.797
7/8
7.620
8.467
8.965
9.237
16-QAM
1/2
8.709
9.676
10.246
10.556
2/3
11.612
12.902
13.661
14.075
3/4
13.063
14.515
15.369
15.834
5/6
14.515
16.127
17.076
17.594
7/8
15.240
16.934
17.930
18.473
64-QAM
1/2
13.063
14.515
15.369
15.834
2/3
17.418
19.353
20.491
21.112
3/4
19.595
21.772
23.053
23.751
5/6
21.772
24.191
25.614
26.390
7/8
22.861
25.401
26.895
27.710

QM-Products 2016 v1.0
20
DVB-T bitrates(Mbit/s) for 6 MHz bandwidth (non-hierarchical systems)
Modulation
Coding
Rate
Guard Interval
1/4
1/8
1/16
1/32
QPSK
1/2
3.732
4.147
4.391
4.524
2/3
4.976
5.529
5.855
6.032
3/4
5.599
6.221
6.587
6.786
5/6
6.221
6.912
7.318
7.540
7/8
6.532
7.257
7.684
7.917
16-QAM
1/2
7.465
8.294
8.782
9.048
2/3
9.953
11.059
11.709
12.064
3/4
11.197
12.441
13.173
13.572
5/6
12.441
13.824
14.637
15.080
7/8
13.063
14.515
15.369
15.834
64-QAM
1/2
11.197
12.441
13.193
13.572
2/3
14.929
16.588
17.564
18.096
3/4
16.796
18.662
19.760
20.358
5/6
18.662
20.735
21.995
22.620
7/8
19.595
21.772
23.053
23.751
