QMS SC-110 User manual

SC-110
User's Manual
(D/N: 250-0250-E Rev. 1.0)

-ii
Trademarks
Microsoft is a U.S. registered trademark of Microsoft Corporation.
Windows and MS-DOS are trademarks of Microsoft Corporation.
IBM, PC, AT, XT are registered trademarks of International Business
Machines Corp.
Other brands and product names herein are trademarks or registered
trademarks of their respective holders.
Copyright
All rights reserved. No part of this publication may be reproduced,
transmitted, transcribed, stored in a retrieval system, or translated into
any language or computer language, in any form or by any means,
electronic, mechanical, magnetic, optical, chemical, manual, or
otherwise, without the prior written permission of the manufacturer.
Material scanned by this product may be protected by governmental
laws and other regulations, such as copyright laws, the customer is
solely responsible for complying with all such laws and regulations.
Warranty
The information contained in this document is subject to change
without notice.
The manufacturer makes no warranty of any kind with regard to this
material, including, but not limited to, the implied warranties of fitness
for a particular purpose.
The manufacturer shall not be liable for errors contained herein or for
incidental or consequential damages in connection with the furnishing,
performance, or use of this material.

iii
FCC Radio Frequency Interference Statement
This equipment has been tested and found to comply with the
limits for a Class B digital device, pursuant to Part 15 of the FCC
rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This
equipment generates, uses, and can radiate radio frequency
energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio
communication. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the
following measures:
* Reorient or relocate the receiving antenna.
* Increase the separation between the equipment and receiver.
* Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.
* Consult the dealer or an experienced radio/TV technician for help.
FCC CAUTION: To assure continued compliance,(example- use only
shielded interface cables when connecting to computer or peripheral
devices). Any changes or modifications not expressly approved by the
party responsible for compliance could void the user's authority to
operate the equipment.
This device complies with Part 15 of the FCC Rules. Operation is
subject to the following two conditions: (1) This device may not cause
harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.
Responsible Party: QMS, Inc.
1 Magnum Pass Mobile, AL 36618
Telephone No.: USA [phone]

-iv
EC Declaration of Conformity
According to EN45014
Manufacturer's Name: QMS, Inc.
Manufacturer's Address: QMS , Inc.
1 Magnum Pass
Mobile, AL 36618
334-633-4300
declare that the product
Model Number : SC-110
conforms to the following Product Specifications:
Emission: EN 50081-1 (1992)
EN 55022 (Class A)
(Conducted Radiated) (1994)
Immunity: EN 60555-2 (Harmonics) (1987)
EN 60555-3 (Flicker) (1987)
EN50082-1 (1992)
IEC 1000-4-2 (ESD) (1995)
IEC 1000-4-3 (RS) (1995)
IEC 1000-4-4 (EFT/Burst) (1995)
IEC 1000-4-5 (SURGE) (1995)

v
Table of Contents
1. INTRODUCTION.............................................................................................1-1
2. INSTALLATION..............................................................................................2-1
2.1 PRECAUTIONS...........................................................................................2-1
2.2 UNLOCKING THE SC-110.........................................................................2-2
2.3 CONNECTING THE CABLE......................................................................2-3
2.3.1 CONNECTING SC-110 TO WORK AS A COPIER.....................2-3
2.3.2 CONNECTING SC-110 TO WORK AS A SCANNER/COPIER..2-4
2.4 DOCUMENT PLACEMENT......................................................................2-5
3. USING SC-110 AS A COPIER......................................................................3-1
3.1 THE CONTROL PANEL............................................................................3-1
3.2 BEFORE MAKING COPIES.......................................................................3-4
3.3 MAKING SIMPLE COPIES VIA THE FLATBED....................................3-9
3.4 MAKING COPIES WITH COPY FEATURES.........................................3-10
3.4.1 REMOVING ORIGINAL BACKGROUND...................................3-10
3.4.2 ENLARGING OR REDUCING YOUR ORIGINAL......................3-11
3.4.3 AUTO ZOOMING YOUR ORIGINAL............................................3-12
3.4.4 CHANGING YOUR COPY DENSITY............................................3-13
3.4.5 CHOOSING YOUR COPY QUANTITY.........................................3-13
3.4.6 ENHANCING YOUR COPY QUALITY.........................................3-14
3.4.7 MAKING COPIES OF A 3D OBJECT..........................................3-15
3.4.8 AUTOMATIC POWER SAVING....................................................3-16
3.4.9 FOCUS ON PHOTO COPY, TEXT COPY, OR MIXED PHOTO &
TEXT COPY................................................................................................3-17
4. USING SC-110 AS A SCANNER..................................................................4-1
4.1 INSTALLATION PROCEDURE.................................................................4-1
4.2 UNINSTALLING THE SC-110 DRIVER....................................................4-3
5. SCANNER OPERATION & DOCUMENT PRINTING...............................5-1
5.1 IMAGE TYPE...............................................................................................5-3
5.2 SCANNING PARAMETERS & IMAGE CONTROL...............................5-5

-vi
5.3 SCANNING................................................................................................5-10
5.4 PRINTING..................................................................................................5-11
6. MAINTENANCE...............................................................................................6-1
7. TROUBLESHOOTING...................................................................................7-1
7.1 QUESTIONS AND ANSWERS...................................................................7-1
7.2 TECHNICAL SERVICE...............................................................................7-5
8. SPECIFICATIONS ..........................................................................................8-1
9. SC-110 AUTOMATIC DOCUMENT FEEDE (ADF) USER’S GUIDE......9-1
9.1 INSTALLING THE ADF.............................................................................9-1
9.1.1 UNPACKING THE ADF...................................................................9-1
9.1.2 INSTALLING THE ADF....................................................................9-2
9.1.3 UNLOCKING THE SC-110.............................................................9-4
9.1.4 CONNECTING THE CABLES.........................................................9-5
9.2 USING THE ADF.........................................................................................9-6
9.2.1 BEFORE YOU BEGIN ......................................................................9-6
9.2.2 LOADING THE PAPER....................................................................9-7
9.2.3 STARTING YOUR FIRST COPY......................................................9-7
9.2.4 STARTING YOUR FIRST SCAN......................................................9-9
9.3 MAINTAINING THE ADF......................................................................9-13
9.3.1 CLEANING THE ADF....................................................................9-13
9.3.2 REPLACING THE ADF SNAP-IN PAD MODULE.....................9-15
9.4 HOW TO CLEAR THE PAPER JAM.......................................................9-17
9.5 ADF SPECIFICATION..............................................................................9-18

1-1
1. INTRODUCTION
Congratulations on your purchase of SC-110.
The SC-110 produces better printing quality and is free from
maintenance, compared with traditional copy machines. Its high
printing quality, maintenance-free operation and affordability make SC-
110 the best convenience copier solution for office.
The following sections introduce the unpacking, hardware and software
installation, operation, and maintenance information. Please spend a
few minutes reading through them to help you maintain quality scanning
results.
Figure 1-1 shows the package contents. Please check all the items
against Figure 1-1. If there is any missing or damaged, please contact
your nearest dealer immediately for the replacement.
1. Software CD
2. Power Adapter
3. SC-110 Parallel Cable
4. Quick Installation Guide
5. SC-110 main unit
Figure 1-1 SC-110 packing
1
5
2
3
4

2-1
2. INSTALLATION
2.1 PRECAUTIONS
Ÿ Keep the SC-110 out of direct sunlight. Direct exposure to
the sun or excessive heat may cause damage to the unit.
Ÿ Do not install the SC-110 in a humid or dusty place.
Ÿ Be sure to use the proper AC power source.
Ÿ Place the SC-110 securely on an even, flat surface. Tilted or
uneven surfaces may cause mechanical or paper-feeding
problems.
Ÿ Retain the SC-110 box and packing materials for shipping
purposes.

-2-2

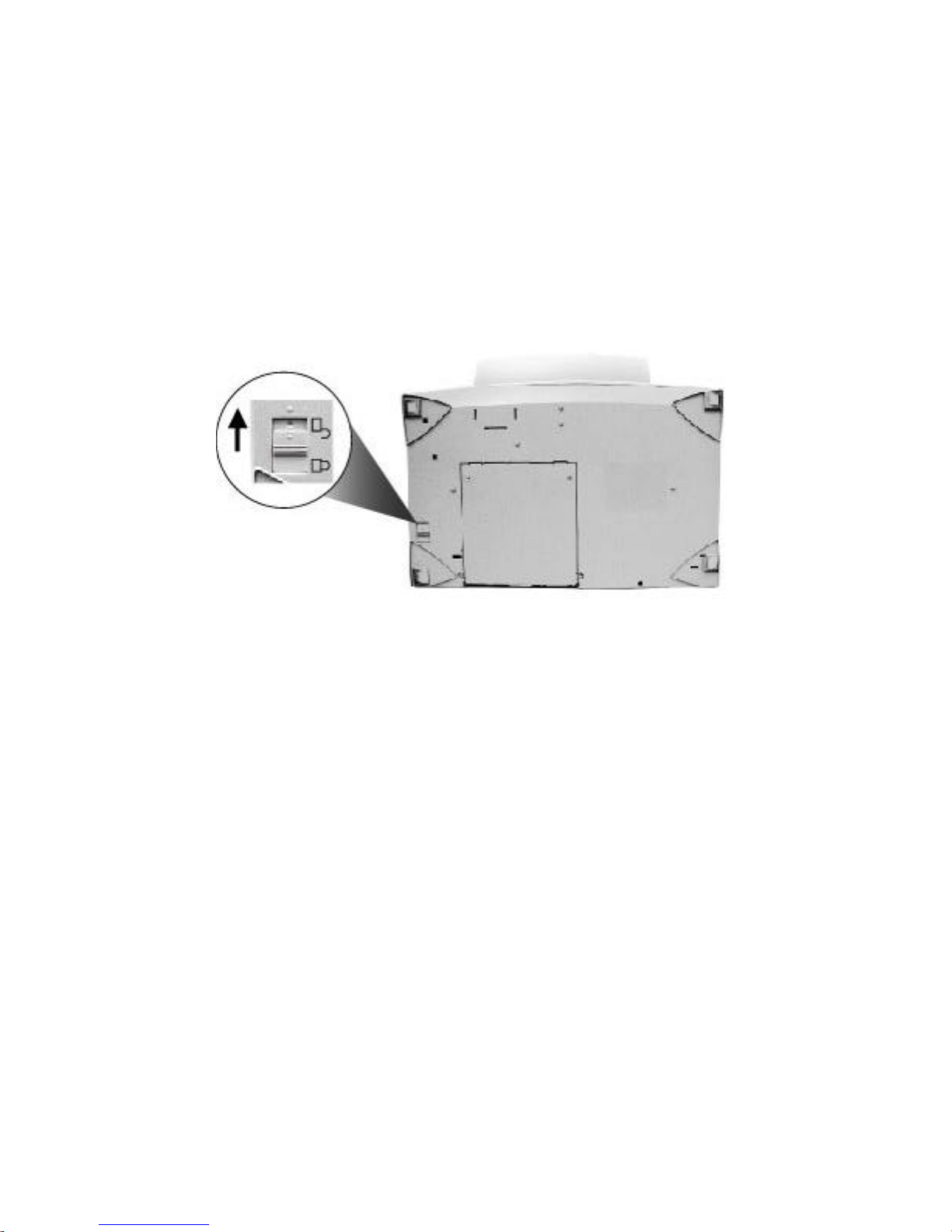

2.2 UNLOCKING THE SC-110
To protect the scanning head from damage during shipment,
the SC-110 is designed with a lock switch beneath the main
unit. Therefore, before using the SC-110, it is required to
unlock SC-110 by moving the lock switch to the Use
position.(See Figure 2-1)
1. “Shipping” Position 2. “Use” Position
Figure 2-1 Unlocking the SC-110
À
Á

2-3
2.3 CONNECTING THE CABLE
2.3.1 CONNECTING SC-110 TO WORK AS A COPIER
Connect the power cable and signal cable as shown below.
Figure 2-2 Connect SC-110 to a printer
To Printer To Power Outlet
Power Cable
Printer Cable
