Quartek DC-715DX User manual

ENGLISH
DC-715DX
USER’S MANU
A
L
DVD PLAYER
DviX/MPEG-4 - MULTI-CARD READER 6 in 1
USB FRONT PANEL DVD/CD PLAYER
www.quartek-system.com
PLEASE CAREFULLY READ THIS MANUAL BEFORE OPERATING THIS UNIT

TABLE OF CONTENTS
SAFETY INFORMATION ………………………………………………………………… 4
DVD PLAYER USER’S MANUAL …………………………………………………….. 5
1 – Types of discs your DVD Player will play ……………………………………………. 5
2 – Front and rear panel illustration …………………………………………………………. 6
3 – Remote controller …………………………………………………………………………….. 7
SYSTEM CONNECTION …..………………………………………………………….. 9
1 – System connection …………………………………………………………………………….. 9
2 – System connection to a TV set ………………………………………………………… 10
3 – System connection to an Amplifier …………………………………………………… 11
CHAPTER 1–BASIC OPERATION ……………………………………………..…… 12
1 – Turn on your DVD player …………………………………………………………………. 12
2 – Place a disc into the tray …………………………………………………………………. 12
3 – Playing discs ………………………………………………………………………………. 12
a – Menu Play …………………………………………………………………………….. 12
b – Title Play …………………………………………………………………………….. 13
c – Sequence Play …………………………………………………………………………….. 13
d – Program Play …………………………………………………………………………….. 13
CHAPTER 2–ADDITIONAL OPERATION …………………………………………….. 14
1 – Selecting tracks …………………………………………………………….………………….. 14
2 – Skipping tracks …………………………………………………………….………………….. 14
3 – Multispeed fast motion playback ……………………………………………………….. 14
4 - Multispeed slow motion playback ……………………………………………………….. 15
5 – Freez frame and frame advance ……………………….……………………………….. 15
6 – Using the repeat feature ………………………………….……………………………….. 15
7 - Using the display feature …………………………………………………………………….. 16
8 - Using the search feature ………………………………………………………………….. 16
9 - Using the browse / scan / index feature …………………………………………… 17
10 – Changing the soundtrack …………………………………………………………………… 17
11 – Changing the audio language ……………………………………………………….. 18
12 – Subtitles ……………………………………………………………………………………….. 18
13 – Changing the camera angle …………………………………………………………….. 18
14 – Changing the TV system ………………………………………………………………….. 19
15 – Mute the audio output …………………………………………………………………….. 19
16 – Zoom in the Video Image ……………………………………………………………… 19
17 – Repeat a specific segment on the disc that you define ……………………… 19
18 – 3D Surround mode …………………………………………………………………….. 20
19 – Volume control …………………………………………………………………………….. 21
CHAPTER 3–PLAYING MP3 AND JPEG DISCS ………………………………….. 22
CHAPTER 4–MPEG-4 AND DIVX ……………………………………………….. 23
QUARTEK USA TradeMark DC-715DX - User Manual– English V.2 2/33

CHAPTER 5–CARD READER AND USB ………………………………………….. 23
CHAPTER 6–THE SETUP MENU SYSTEM ………………………………………….. 24
1 – General steps of setup menu ……………………………………………………………….. 24
2 – Setup items introduction …………………………………………………………………….. 25
a – System setup …………………………………………………………………………….. 25
b – Language setup …………………………………………………………………………….. 27
c – Audio setup …………………………………………………………………………….. 28
d – Video setup …………………………………………………………………………….. 29
e – Speaker setup …………………………………………………………………………….. 29
f – Digital setup …………………………………………………………………………….. 30
HOW TO IDENTIFY DISC WITH HUB ………………………………………………… 31
TROUBLE SHOOTING …………………………………………………………………. 32
SPECIFICATIONS …….…………………………………………………………… 33
ACCESSORIES …………….…………………………………………………… 33
HOW TO CONTACT US …………………………………………………………………. 33
QUARTEK USA TradeMark DC-715DX - User Manual– English V.2 3/33

SAFETY INFORMATION
The light flash with an arrowhead symbol, within an equilateral triangle, is intend to alert the user to the presence
of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to
constitute a risk of electric shock to persons.
The exclamation point within the equilateral triangle is intented to alert the user to the presence of important
operating and maintenance (servicing) instructions in the literature accompanying the appliance.
The digital video disc player employs a laser System.
Use of controls, adjustment or the performance of procedures other than specified may result here in hazardous radiation
exposure.
Visible laser radiation when open and interlocks defeated.
DO NOT STARE INTO BEAM
FCC NOTICE :
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC
rule. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However, this is no guarantee that interference will not
occur in a particular installation.
If this equipement does cause harmful interference to radio or television reception, which can be determined by turning the
equipment off or on, the user is encouraged to try to correct the interference by one or more of the follow measures.
-Reorient or relocate the receiving antenna,
-Increase the separation between the equipment and receiver,
-Connect the equipment into an outlet on a circuit different from that to which the receiver is connected,
-Consult the dealer or an experienced radio/TV technician for help.
This product incorporates copyright protection technology that is protected by method claims of certain U.S.
patentes and other intellectual property rights owned by macrovision corporation and other rights owners. Use
of this copyright protection technology must be authorized by Macrovision Corporation, and is intended for
home and other limited viewing uses only unless otherwise authorized by Macrovision Corporation. Reverse
engineering or disassembly is prohibited.
IMPORTANT SAFETY INSTRUCTIONS
1) Read these instructions.
2) Keep these instructions.
3) Heed all warnings.
4) Follow all instructions.
5) Do not use this apparatus near water.
6) Clean only with dry cloth.
7) Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.
8) Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatys (including amplifiers) that
produce heat.
9) Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider
than the other. A grounding type plug has two blades and a third grounding prong.
The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an
electrician for replacement of the obsolete outlet.
10) Protect the power cord from being walked on or pinched particulary at plugs, convenience receptacles,
and the point where they exit from the apparatus.
11) Only use attachments/accessories specified by the manufacturer.
12) Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the
apparatus. When a cart is used, use cautin when moving the cart/apparatus combination to avoid injury from
tip-over.
13) Unplug this apparatus during lightning storms or when unused for long periods of time.
14) Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way,
such as power-supply cord or plug is damaged, liquid has been spiled or objects have fallen into the apparatus, the apparatus
has been exposed to rain or moisture, does not operate normallu, or has been dropped.
15) “WARNING” To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture.
16) “CAUTION” These servicing instructions are for use by qualified service personnel only. To reduce the risk of electric
17) shock do not perform any servicing other than that contained in the operating instructions unless you are qualified to do
so.
THE MANUFACTURER SAVES HIMSELF THE RIGHT TO MODIFY WITHOUT ANY PRELIMINARY OPINION TECHNICAL
SPECIFICATIONS OF THE PRODUCT
QUARTEK USA TradeMark DC-715DX - User Manual– English V.2 4/33

DVD USER’S MANUAL
TYPES OF DISCS YOUR DVD PLAYER WILL PLAY
Types of discs Diameter Playback Time Data Format Remark
USB & Card
Reader
USB 2.0, MMC SD, MS,
MS-Pro, CF, SMC,
MircoDriver
12cm 74min
MPEG-4
8cm 20min MPEG-4
1 layer: 12min
12CM 2 layers: 240 min
1 layer: 80min
DVD
8cm 2 layers: 180 min
DVD format disc:
Compressed Digital Audio
Compressed Digital Video
(Moving picture)
SVCD 12cm 45min
MPEG-2
Compressed Digital Audio
Compressed Digital Video
(Moving picture)
Includes:
SVCD,
CVD
12cm 74cm
VCD 8cm 20cm
MPEG-1
Compressed Digital Audio
Compressed Digital Video
(Moving picture)
Include:
VCD2.0,
VCD1.1,
VCD1.0?
DVCD
12cm 74min
CD
8cm 20min
CD-DA: Digital Audio
HD-CD
12cm 74min HD-CD: Digital Audio
MP3/JPEG
12cm 600min Compressed Digital Audio
Note: DVD-R, CD-R, CD-RW discs can be played in this DVD player.
QUARTEK USA TradeMark DC-715DX - User Manual– English V.2 5/33

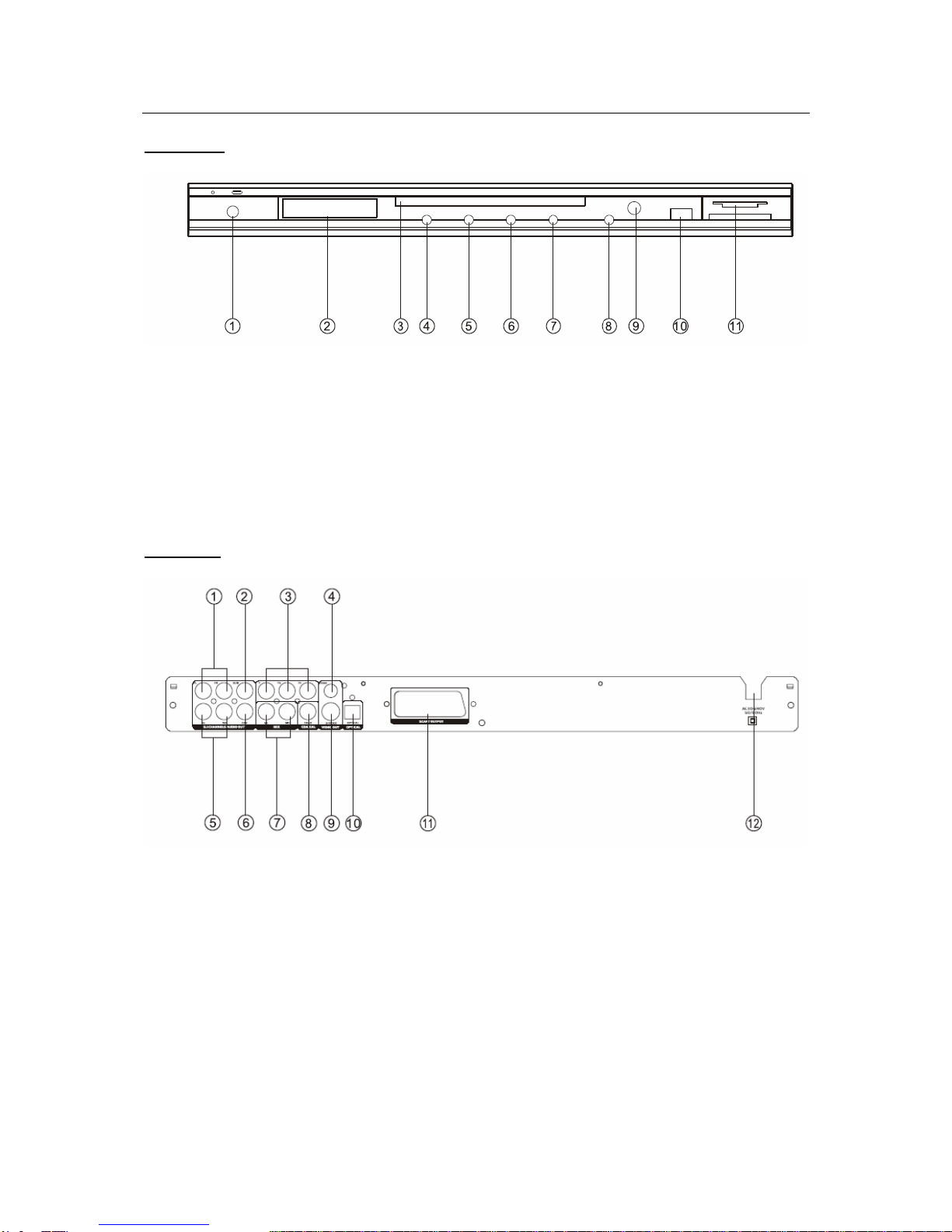

FRONT AND REAR PANEL ILLUSTRATION
Front Panel
1. Power (On/Off)
2. VFD
3. Disc Tray
4. Play/Pause Button
5. Stop Button
6. Fast backward
7. Fast farward
8. Eject button
9. Remote receiver
10. USB jack
11. CF/SD/MMC/MS/SMC/MD card jack
Rear Panel
1. 5.1 Channels front (left/right) Audio
Out
2. 5.1 Channels Subwoofer Audio Out
3. YPbPr Component Video Out
4. Composite Video Out
5. 5.1 Channels Surround (left/right)
Audio Out
6. Channels Center Audio Out
7. DownMix left/right Audio Out
8. Coaxial output
9. S-Video output
10. Optical output
11. Scart output (optional)
12. AC 110-240V 5060Hz
QUARTEK USA TradeMark DC-715DX - User Manual– English V.2 6/33

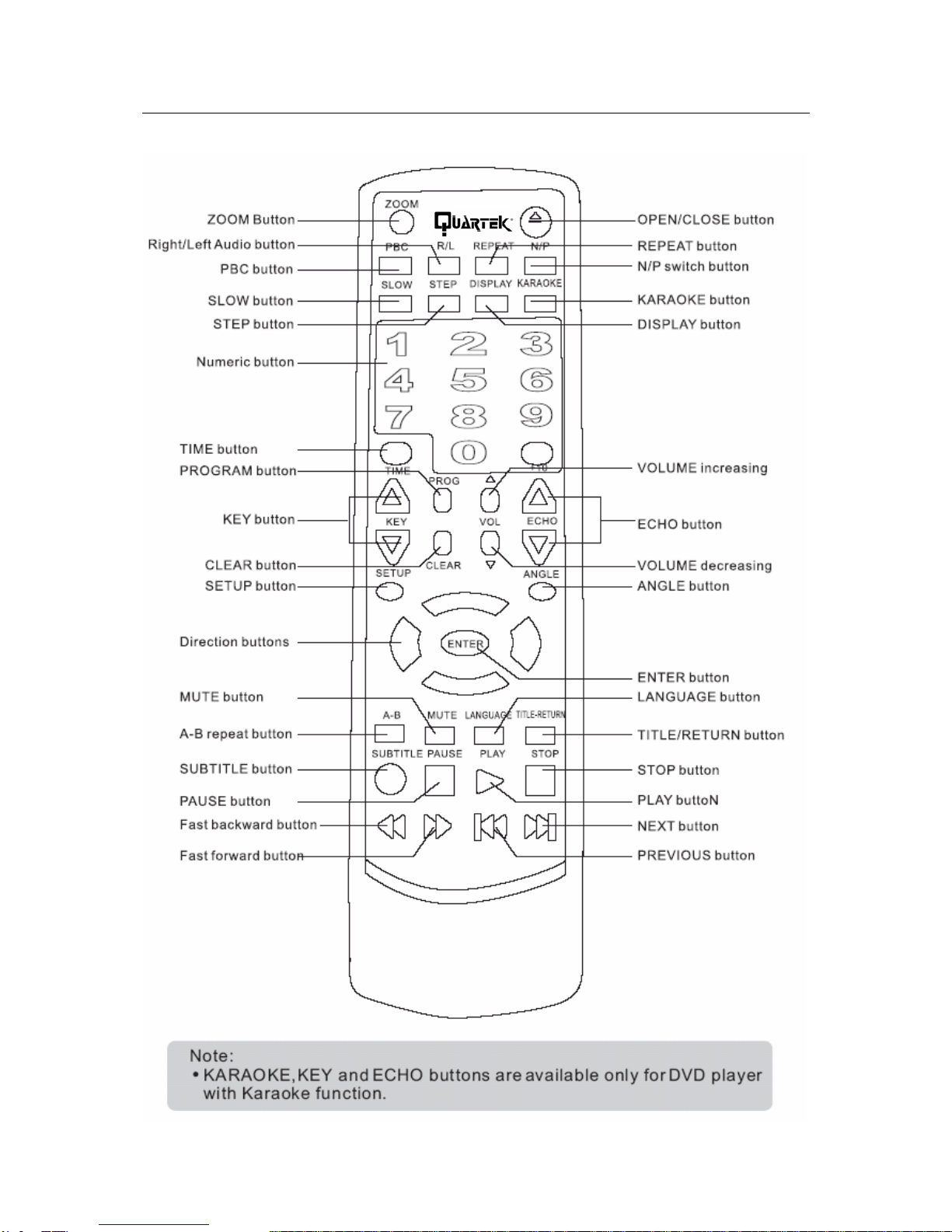

REMOTE CONTROLLER
QUARTEK USA TradeMark DC-715DX - User Manual– English V.2 7/33

Battery installation
1 – Push downward and outward the leaf spring to
remove the battery compartment cover.
2 – Insert two size AAA batteries according to the “+”
and “-“ markings.
Note:
A – Do NOT mix different types together, or old batteries
with new batteries
B – While the remote con roller will not be used for an
o prevent
move
the remote
the remote
replace
d with th
t
extended period of time, remove the batteries t
possible corrosion.
C – To prevent corrosion resulting in damage, re
exhausted batteries immediately. Where
exhausted batteries imediately. Where
controller doesn’t appear to operate normally,
both of the batteries.
D – Typical life for the batteries provide is
product is about 6 months. The life expectan
according to the use status.
Use of the remote controller
Point the remote controller toward the remote se
y
f
accordingly.
T on the buttons on
t
r
Note
place this equipment in a place exposed to
t source like inverting
oller is used in the
operation of this remote controller may occur.
C – Do not place any object on the remote controller or
e glazed with
nd
– The operating range between the remote controller
replace the batteries with the new ones
.
ce may vary
nsor on
our DVD home theater center. Upon receipt of the signal
rom the remote controller, the equipment will operate
he description in this manual is based
he equipment. You may use the counterparts on the
emote controller to do the same.
:
A – Do not
direct sunlight or strong ligh
fluorescent light, or else, it may interfere with correct
operation of the remote controller.
B – When other similar remote contr
same room, or when this product is used near other
equipment using infrared ray, interference with the
else it may cause unintentional depression of the buttons
and waste the batteries unnecessarily.
D – The front of the chassis should not b
color glass, or else, it may cause interference with normal
operation of the remote controller.
E – Any barrier between the remote controller a
remote sensor will inactivate any operation of the remote
controller.
F
and the equipment shall be no more than 5 meters (16
feet). When the operating
range becomes shorter,
QUARTEK USA TradeMark DC-715DX - User Manual– English V.2 8/33

SYSTEM CONNECTION
SYSTEM CONNECTION
DO NOT Connect the AC power socket to the wall outlet before the system connection is
completed.
QUARTEK USA TradeMark DC-715DX - User Manual– English V.2 9/33

SYSTEM CONNECTION TO A TV SET
1– The player is equiped with composite
A/V outputs at the rear of the player. Your
TV will require at least one set of A/V
inputs. The patch cord supplied with the
player will connect the A/V output jack of
your player to your TV’s inputs.
2– To view the DVD signal, please press
‘AV/TV’ button on the TV or remote contro
of your TV to switch TV’s mode from
broadcast reception mode to one of the
A/V signals, your TV should have more
than one A/V input.
3– The player is equiped for stereo
playback. To fully realize 2 channel sound,
a Stereo TV or A/V receiver is necessary.
However, a Mono TV may be used
providing the TV one set of A/V inputs.
The A/V inputs on a Mono TV will only
include one Audio input for Mono sound.
You may connect either the Left or Right
audio channel from the DVD Composite
audio output to the Mono TV audio input.
QUARTEK USA TradeMark DC-715DX - User Manual– English V.2 10/33

SYSTEM CONNECTION TO AN AMPLIFIER
Audio connecting to a stereo Amplifier
Digital audio connection to a digital Amplifier
QUARTEK USA TradeMark DC-715DX - User Manual– English V.2 11/33

CHAPTER I-BASIC OPERATION
TURN ON YOUR DVD PLAYER
Press the power button on the Player or remote controller, and ‘Read’ appears on the TV
screen. If there hasn’t a disc in the DVD player, ‘No Disc’ will be displayed on both the
screen and the VFD.
PLACE A DISC INTO THE TRAY
Press the Open/Close button on the remote controller or the front of the DVD player, and
‘Open’ appears on the screen. Then place a disc gently into the tray with the disc’s label
facing up (double-sided discs have content on both sides, so you can place either side up),
and press the Open/Close button again to close the disc tray, ‘Close’ appears and the player
starts to read. Then the disc starts playing automatically. (
No e O some ce ain type discs,
after reading out the type, the Play or Enter bu on should be pressed to start playing.)
t : f rt
tt
PLAY DISCS
The contents of each disc menu vary according to how the disc was authored and what
features are included. The disc menu will be turned on for you to select, when Menu button
pressed. Also play and pause can be switched with the Pause button on the remote.
Moreover, such as menu play, title play, sequence play, etc., these different play modes are
offered.
Menu Play (compatible with DVD, SVCD, VCD2.0 discs)
1 – Press Menu button
-TV screen displays the DVD root menu when a DVD disc is loaded
-When a SVCD or VCD2.0 disc is loaded, SVCD or VCD2.0 menu will be displayed on the
screen (when PBC is off) – At this moment, press PBC button once to display current PBC
state.
-PBC is initialized on when a SVCD or VCD2.0 disc is loaded.
2 – When a DVD disc is loaded, you can press Arrow buttons to highlight the menu items
you want to choose; as SVCD or VCD2.0, you can press Numeric buttons to select a track to
play.
3 – Press Enter or Play button, you can begin play with the highlighted.
4 – Return when playing: When a DVD disc is playing, press Menu (PBC) button, and you
can return to Root menu; as SVCD, VCD2.0, and PBC is on, press Menu (PBC) button, you
can return to the menu.
5 – Stop:
-When you press Stop button for the first time, the player turns into quasi stop state. At
the same time the OSD appears ‘Quasi Stop’. To begin the title over, press stop twice.
-In quasi stop state, the player remembers where you stopped, when you start playing
the disc again, the DVD player picked up where you left off.
-In stop state, when you press Play, the player enteeers sequence playback mode.
For the disc protection, before you press Open/Close button to eject the disc tray
when playing, please press Stop button at first. After taking out the disc, press
Open/Close again to close the tray.
If you’re not going to use the DVD player for a long time, be sure to remove the
electronic plug.
QUARTEK USA TradeMark DC-715DX - User Manual– English V.2 12/33

Title Play (compatible with DVD discs only)
1 – During DVD playback, press Title button to display the DVD title content.
2 – Press the Arrow buttons to highlight the title you want to choose, and press Enter. Also
you can press numeric buttons to choose.
3 – The DVD player begins with the chapter 1 of the chosen title.
Sequence Play (compatible with DVD, SVCD, VCD, CD, CD-G, DTS-CD, HD-CD, MP3/JPEG
discs)
1 – When a SVCD or VCD disc is loaded and PBC is on, one PBC button pressed, PBC
switches off. Then the player can play in sequence playback mode; when PBC button
pressed twice, PBC swiches on.
2 – Except for SVCD or VCD discs, in the stote state, when press Play button, the player then
enters sequence playback mode. This feature is effective to all the compatible discs.
Program Play (compatible with DVD, SVCD, VCD, CD, CD-G, DTS-CD, HD-CD, MP3/JPEG
discs)
The Program Playback option allows you to enter the order in which you wwant chapters or
tracks to play, maximum to 16.
1 – Program Menu:
DVD, MP3/JPEG discs: SVCD, VCD, CD, CD-G, HD-CD, DTS-CD
discs:
If PBC is on, this operation will turn PBC off while the chapters / tracks plays in programmed
order.
2 – According to the highlight, use the Numeric buttons to enter the chapters / tracks in the
order you want them to play. Then press Play or use Arrow buttons to highlight the ‘Play’
item and press enter. The chapters / tracks will play in the programmed order.
You can program maximum 16 titles/chapters/tracks.
3 – According to the direction indicator on the menu, you can press Arrow buttons to
highlight where you want to enter.
4 – During program Playback, if program button pressed, the programmed order and the
contents will be displayed on the screen, and the program playback will be stopped; Also you
can press Stop and Play to resume normal playback.
5 – Notes:
- To clear the programmed order, use Arrow bu ons to highlight the ‘CLEAR’ item, then
press Enter. tt
tr r t
- To modify the programmed order, use Arrow buttons to highlight the modifying item and
enter the new chapter / ack you want to p ogram direc ly.
6 – Meanwhile the program indicator in the VFD illuminate, and the playing chapter/track
also illuminate.
QUARTEK USA TradeMark DC-715DX - User Manual– English V.2 13/33

CHAPTER II –ADDITIONAL OPERATION
SELECTING TRACKS
(compatible with DVD, SVCD, VCD, CD, CD-G, DTS-CD, HD-CD, MP3/JPEG discs)
1 – When playing a DVD disc, press Numeric buttons, on the menu or title page to select
tracks; During DVD playback, you can input desired title number directly.
2 – As a SVCD or VCD discs, during sequence playback, press numeric buttons to select
tracks. (During program playback and PBC is on, you can only press Prev/Next button to
select).
3 – As for CD, CD-G, HD-CD, DTS-CD discs, press numeric buttons directly to select tracks.
4 – When playing MP3/JPEG discs, press numeric buttons to select different tracks on
current track list.
Notes: To select track from 1 to 10, press corresponding numeric buttons (1-9, 10)
To select tracks above 10, press 10+ button. For example, to select the track 15,
press 10+ and 5 button.
If the selected tracks is not available, the input would be invalid.
SKIPPING TRACKS
(compatible with DVD, SVCD, VCD, CD, CD-G, DTS-CD, HD-CD, MP3/JPEG discs)
1 – To skip forward to the beginning of the next title/chapter/track on a disc, press Next on
the remote or the front of the player.
2 – To skip backward to the beginning of the preceding title/chapter/track on a disc, press
Prev on the remote or the front of the player.
When playing the last chapter/track on a SVCD or VCD disc with PBC off, pressing Next
button will stop the playback; when playing the first chapter/track, pressing Prev button will
stop the playback; When stop, pressing Next/Prev button will be invalid.
If a DVD disc is loaded, it varies according to how the disc was configured.
MULTISPEED FAST MOTION PLAYBACK
(compatible with DVD, SVCD, DviX, MPEG-4, VCD, CD, DTS-CD, MP3/JPEG discs)
You can search in forward or reverse mode during playback.
1 – Press the F.F button on the remote during playback to search through a disc. Press the
button again on the remote to search at the next speed. Fast Forward playbarck has four
speed : x2, x4, x8, x20. With each, consecutive press of the button, the search speed
increases. If you press the button five times, Fast Forward playback cycles back to normal
playback.
During DVD playback, when Fast Forward Playback gets to the beginning of the next
title/chapter, it resumes normal playback; During SVCD or VCD playback with PBC on, when
Fast Forward Playback gets to the beginning of the next track, it resumes normal playback.
Press Play button to resume normal playback.
During CD, HD-CD, MP3 playback, with the speed FF x2, the player has audio output.
QUARTEK USA TradeMark DC-715DX - User Manual– English V.2 14/33

2 – Press the FR button on the remote during playback to search through a disc. Press the
button again on the remote to search at the next speed. Fast Reverse playbarck has four
speed : x2, x4, x8, x20. With each, consecutive press of the button, the search speed
increases. If you press the button five times, Fast Reverse playback cycles back to normal
playback.
During DVD playback, when Fast Reverse Playback gets to the beginning of the next
title/chapter, it resumes normal playback; During SVCD or VCD playback with PBC on, when
Fast Reverse Playback gets to the beginning of the next track, it resumes normal playback.
Press Play button to resume normal playback.
During CD, HD-CD, MP3 playback, with the speed FF x2, the player has audio output.
MULTISPEED SLOW MOTION PLAYBACK
(compatible with MPEG-4, DviX, DVD, SVCD, VCD, CD, CD-G, DTS-CD, HD-CD, MP3/JPEG
discs)
Press slow button when pictures moving, you can enter slow motion playback mode.
Press the slow button on the remote during playback. Press the button again on the remote
to play at the next speed. Slow motion playback has six speeds: ½, 1/3, ¼, 1/5, 1/6, 1/7.
with each consecutive press of the button, the play speed decreases. If you press the button
seven times, slow motion playback cycles back to normal playback.
Press play button to resume normal playback.
FREEZE FRAME AND FRAME ADVANCE
(compatible with MPEG-4, DviX, DVD, SVCD, VCD, CD, CD-G, DTS-CD, HD-CD, MP3/JPEG
discs)
1 – During CD, CD-G, HD-CD, DTS-CD or MP3/JPEG playback, press pause once to freeze
playback; press the pause button again or Play button to resume norma playback.
2 – During DVD, SVCD or VCD playback, press pause once to freeze playback; Press of the
Pause button again to advance the picture one frame at a time; Press play to resume normal
playback.
USING THE REPEAT FEATURE
(compatible with DVD, SVCD, VCD, CD, CD-G, DTS-CD, HD-CD, MP3/JPEG discs)
While a disc is playing, press repeat button once, and the repeat banner appears to showw
current repeat mode.
1 – In SVCD, VCD, CD, CD-G, HD-CD, DTS-CD or MP3/JPEG sequence playback mode, press
repeat button again to turn on repeat mode.
Press the button again on the remote to turn to the next repeat mode. There are three
repeat options: Off, Track Repeat, and Disc Repeat. With each consecutive press of the
button, the repeat mode switches. If you press the button four times, repeat mode cycles
back to off.
2 – In DVD playback, press repeat button again to turn on repeat mode.
There are three repeat options: Off, Chapter repeat, and Title repeat. With each consecutive
press of the button, the repeat mode switches. If you press the button four times, repeat
mode cycles back to off.
3 – In MP3/JPEG playback, press repeat button again to turn on repeat mode.
There are four repeat options: Off, Track repeat, Directory repeat, and Disc Repeat. With
each consecutive press of the button, the repeat mode switches. If you press the button five
times, repeat mode cycles back to off.
QUARTEK USA TradeMark DC-715DX - User Manual– English V.2 15/33

USING THE DISPLAY FEATURE
(compatible with DVD, SVCD, VCD, CD, CD-G, DTS-CD, MP3/JPEG discs)
1 – Loading and playing DVDs (two pages)
-Press Display button once to show the first page:
‘Disc type, title */* (the playing title / total titles), chapter */* (the playing chapter / total
chapters), Elapsed time of the disc’.
-Press the button again to show the second page:
‘Language */* (the serial number of playing language / the amount of optional
languages) or Off, Language type, Auio type, Subtitle */* (the serial number of playing
subtitle / the amount of optional subtitles) or Off, Angle */* (the serial number of playing
angle / the amount of optional angles) or Off’.
-Press the button for the third time, the display menu fades out.
2 – Loading and playing SVCD disc (two pages)
-Press display button once to show the first page:
‘Disc type, track */* (the playing track / total tracks), Mute, PBC, repeat mode, elapsed
time of the playing track’.
-Press the button again to show the second page:
‘Language */* (the serial number of playing language / the amount of optional
languages) or Off, Language type, Auio type, Subtitle */* (the serial number of playing
subtitle / the amount of optional subtitles) or Off, Angle */* (the serial number of playing
angle / the amount of optional angles) or Off’.
-Press the button for the third time, the display menu fades out.
3 – Loading and playing VCDs
-Press display button once to show the page:
‘Disc type, track */* (the playing track / total tracks), Mute, PBC, repeat mode, elapsed
time of the playing track’.
-Press the button again, the display menu fades out.
4 – Loading and playing CD, CD-g, DTS-CD, HD-CD, MP3/JPEG discs:
-Press display button once to show the page:
‘Disc type, track */* (the playing track / total tracks), Mute, repeat mode, elapsed time
of the playing track’.
-Press the button again, the display menu fades out.
USING SEARCH FEATURE
(compatible with DVD, MPEG-4, DviX, SVCD, VCD, CD, HD-CD discs)
You can use Search feature to select a title/chapter/track number or go to a specific point in
a title. Firstly, press search (GoTo) button on the remote to bring up the search menu and
enter the edit state; Secondly, press Arrow buttons to highlight the title/chapter/track
number or the time option; Thrirdly, use numeric buttons to enter the title/chapter/track you
want to play or the elapsed time you want to go to in that title; At last, press enter button to
start playback. For example, entering 01:23:56 will start playback one hour, twenty-three
minutes and fifty-six seconds into the title. If the input number is illegal, the error
information INVALID KEY will be displayed on the screen.
Note : This fea ure does not work in Program Play modet
t
If PBC is on, it will turn off automatically when search playback s arts. When playing MP3/JPEG discs, search feature does not work.
QUARTEK USA TradeMark DC-715DX - User Manual– English V.2 16/33

USING THE BROWSE /SCAN /INDEX FEATURE
(compatible with SVCD, VCD discs; the scan feature is also compatible with CD, CD-G, DTS-CD, HD-
CD discs)
1 – Press preview button during stop state
-When a SVCD or VCD disc is loaded, the screen displays small pictures or ‘thumbnails’ of
the available tracks. According to the tracks’ sequence on the disc, up to nine thumbnails
are displayed per screen, and each thumbnail plays 3 seconds.
-If PBC is on, it will turn off automatically when browse playback starts.
-To view the next nine thumbnails, press next button to go forward and the Prev
button to go the previous page.
-To exit the digest and resume normal playback from current track, press the play
button.
-Each thumbnail has a number in the corner. You can select and play a track by press
that number on the remote.
-When a CD, CD-G, DTS-CD, or HD-CD disc is loaded, according to the tracks’sequence on
the disc, each track play 15 sec.
-You can select a track to start Scan playback by press numeric buttons on the
remote.
-To exit the scan playback, and resumes normal playback from the scanning track,
press the play button.
-During normal playback, press preview button to start scan playback from current
track (if the track has played for more than 15 sec, it will start from the next track)
2 – Press the preview button again, that is to press the button during browse playback, the
screen displays big pictures instead of thumbnails. According to the tracks’ sequence on the
disc, each picture plays 15 sec.
-You can select a track to start Index playback by press numeric buttons on the remote.
-To exit the digest and resume normal playback from current track, press the play button.
3 – During normal playback, press the preview button to show thumbnails of the currently
selected track.
-if PBC is on, it will turn off automatically when browse playback starts.
-To view the next nine thumbnails, press the next button to go forward and the Prev
button to go to the previous page.
-To exit the digest and resume normal playback from current track, press the play button.
-Each thumbnail has a number in the corner. You can select and play a track by press that
number on the remote.
CHANGING THE SOUNDTRACK
(compatible with SVCD, VCD, CD, CD-G, HD-CD, MP3/JPEG discs)
Press the L/R button to display current soundtrack.
1 – Press the button can switch soundtracks
2 – Press the button again on the remote to turn the next soundtrack.
-When playing a SVCD or VCD disc, there are five soundtracks: stereo (L/R), L/L, R/R, L/L
Auto A/D detect, and R/R Auto A/D detect. With each consecutive press of the button, the
soundtrack cycles back to stereo.
-When playing a CD, CD-G, DTS-CD, HD-CD or MP3 disc, there are three: stereo (L/R),
L/L, R/R.
Notes: Switch to L/L Auto A/D detect or R/R Auto A/D Detect to have various antis rophes (you
can have an antistrophe xith the singing on the disc), according to the contents on the disc).
t
When playing a dual language VCD movie disc, press the L/R button to select the
desired language.
QUARTEK USA TradeMark DC-715DX - User Manual– English V.2 17/33

CHANGING THE AUDIO LANGUAGE
(compatible with DVD, SVCD discs)
during disc playback, press language on the remote once, and the audio language info
banner appears.
When a DVD or SVCd is recorded with multiple soundtracks, you can use the Language
feature to temporarily change the audio language (the language of the soundtrack).
There are 8 supported languages: English, French, Spanish, Germany, Portuguese, Chinese,
Japanese and Latin. With each consecutive press of the langugage button, the audio
language switches and the corresponding serial number appears on the screen. For example,
‘Language Icon: [1 English DTS 6CH] or [Off]’ (the availability of the languages are disc-
dependent).
SUBTITLES
(compatible with MPEG-4, DviX, DVD, SVCD discs)
Press the subtitle button on the remote once, and the subtitle info banner appears.
When a DVD or a SDVC is recorded with subtitles, you can use the subtitle features to view
subtitles on-screen. By default, subtitles are off. The info banner will display subtitle off.
To display subtitles, press the subtitles button again. The default language with its
corresponding serial number will be displayed in the info banner and subtitles will be
displayed in that language.
There are 8 supported subtitles: English, French, Spanish, Germany, Portuguese, Chinese,
Japanese and Latin. With each consecutive press of the subtitles button, the subtitles
switches. For example, ‘Language Icon: [1 English DTS 6CH] or [Off]’ (the availability of the
subtitles are disc-dependent).
To turn subtitles off, press the subtitles button until subtitle off is displayed.
CHANGING CAMERA ANGLE
(compatible with DVD discs)
during disc playback, press angle on the remote once, and the angle icon appears. Somme
DVDs contain multiple angles of a particular scene or sequence, so you can use the angle
feature to view.
Press the angle button again to go to the next camera angle. If multiple camera angles are
available, the angle icon displays the current angle number and the number angle avalaible.
For example: ‘Angle icon [*/*] or [Off]’; ¼ indicates that angle one is being displayed, and
there are four different angles avalaible. (This feature is disc-dependent. If no additional
camera angles are available, INVALID KEY will be displayed.)
QUARTEK USA TradeMark DC-715DX - User Manual– English V.2 18/33

CHANGING THE TV SYSTEM
(compatible with DVD, SVCD, VCD, CD, CD-G, DTS-CD, HD-CD, MP3/JPEG discs)
press P/N button on the remote to display current TV system.
Press P/N button again to change to the next TV system. There offers four systems: NTSC,
PAL60, PAL and AUTO. With each consecutive press of the P/N button, the TV system
switches. If you press the button five times, the TV system cycles back.
Notes: If AUTO TV system selected, it can auto reach the highest definition depends on
the disc.
t
t t
t f t
If it isn’t full screen state (note: Wide screen program would never reach full screen
state) or in black and white, press P/N but on to adapt TV system to the TV set of
NTSC or PAL.
When playing in different TV sys em, some discs may not have their fea ures
entirely fulfilled in some certain standard.
Au o system o TV se is recommended.
MUTE THE AUDIO OUTPUT
(compatible with MPEG-4, DviX, DVD, SVCD, VCD, CD, CD-G, DTS-CD, HD-CD, MP3/JPEG
discs)
pressing the mute button allows you to reduce sound to an inaudible level, and ‘MUTE’ will
be displayed on screen. Press the button again or press the Vol +/- button to return to the
normal condition.
Notes: When mute, the microphone also has no audio output.
If the player playback disc without sound, please try to press Mute button to
resume.
ZOOM IN THE VIDEO IMAGE
(compatible with MPEG-4, DviX, DVD, SVCD, VCD, JPEG discs)
1 – The zoom function allows you to enlarge or zoom out the video image and to pan though
the image. Press zoom repeatedly to activate the function and choose the required zoom
factor: Zoom1, Zoom2, Zoom3, Zoom1/2, Zoom1/3, Zoom1/4, Zoom Off.
Notes: This feature does not work when the Disc menu appears.
2 – Use the arrow buttons to pan across the screen when the zoom factor is 1, 2 or 3.
REPEAT A SPECIFIC SEGMENT ON THE DISC THAT YOU DEFINE
(compatible with MPEG-4, DviX, DVD, SVCD, VCD, CD, CD-G, DTS-CD, HD-CD, MP3 discs)
1 – During the normal or fast motion playback, press the A-B button once, and ‘REPEAT A-‘
will appears on the screen. This indicates the start of the loop to be repeated.
2 – During the normal or fast motion playback, press A-B again, and ‘REPEAT A-B’ will
appears on the screen. It indicates the end of the loop.
Looping will run from set point A to set point B until you turn off repeat.
3 – Press A-B again to cancel A-B loop mode.
-when playing a SVCD, VCD or CD disc, you can repeat a specific segment only in one
track. When the next track begins, A-B repeat turns off automatically.
-When playing a DVD disc, you can repeat a specific segment only in one title/chapter.
QUARTEK USA TradeMark DC-715DX - User Manual– English V.2 19/33

3D SURROUND MODE
(compatible with SVCD, VCD, CD, CD-G, HD-CD, MP3 discs)
Press the 3D button on the remote once, and current 3D surround mode info will be
displayed on the screen. Press the arrow buttons to highlight the 3D surround setup menu
items; Press the 3D button again to turn off the menu.

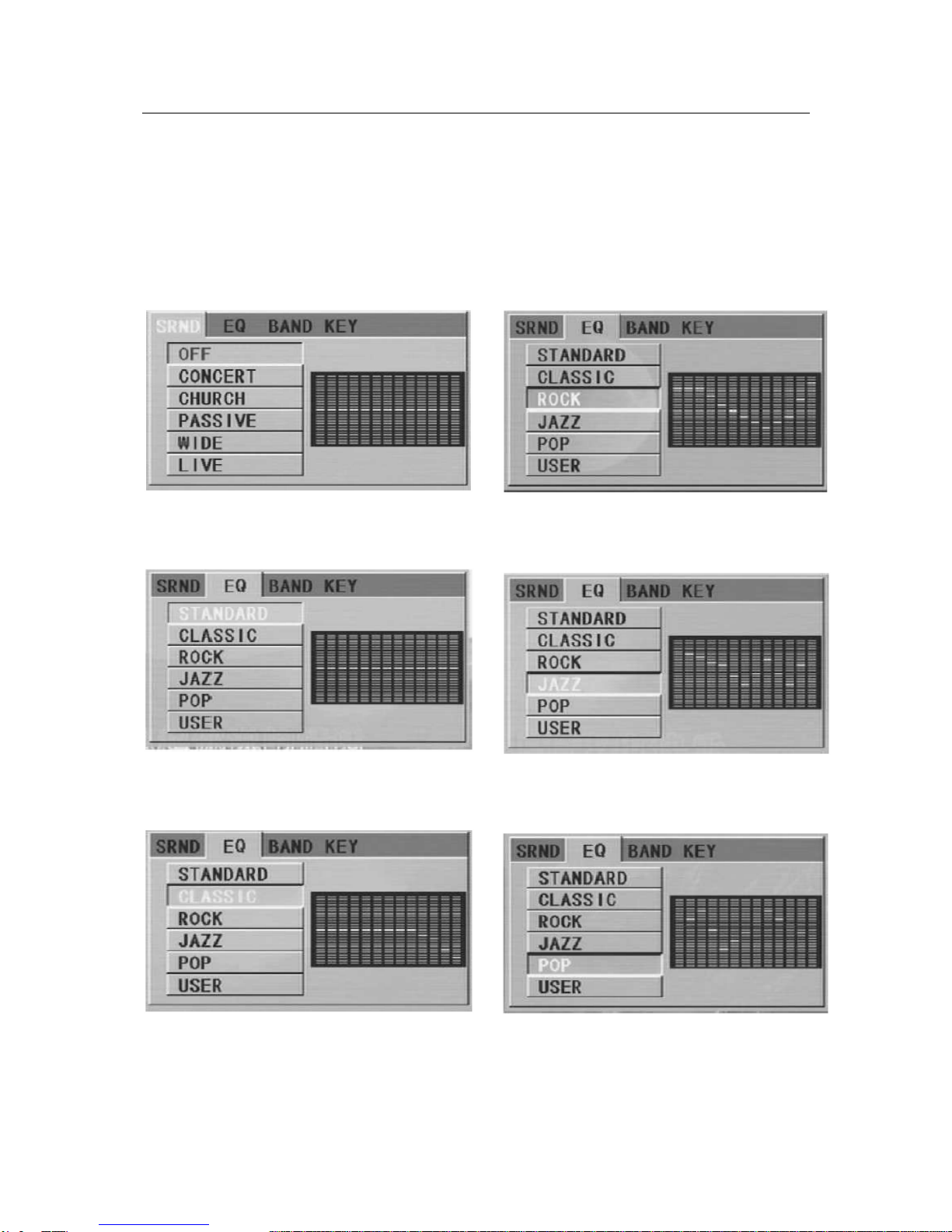

Use the Up/Down arrow buttons and press
Enter to choose surround mode
‘EQ:[STANDARD]’ is highlighted, as the
graph showed below:
‘EQ:[CLASSIC]’ is highlighted, as the graph
showed below:
‘EQ:[ROCK]’ is highlighted, as the graph
showed below:
‘EQ:[JAZZ]’ is highlighted, as the graph
showed below:
‘EQ:[POP]’ is highlighted, as the graph
showed below:
QUARTEK USA TradeMark DC-715DX - User Manual– English V.2 20/33
