Questyle Audio QP1R User manual

Contact us
旷世音响技术有限公司 | Questyle Audio Technology Co.,Ltd
Add:12D, Block B, Xuesong Building, No.52, The 6th Tairan Road,
Futian District, Shenzhen, China 518040
Tel:+86-755-82835670;+86-755-82840732
Wechat:questyleaudio
旷世北美有限公司 | Q uestyle North America Inc.
Add: 7848 West Sahara Ave. Las Vegas, NV 89117, USA
Tel: +1-(702)751 9978
Email: [email protected]
Facebook:QuestyleAudio
Twitter:QuestyleAudio

Questyle Audio is dedicated to the design and manufacture of high resolution
music player for portable and car use, and State of the Art audio equipment for
studio monitoring and top-tier players, as well as wireless audio for home and
customized installation. Questyle Audio products range covers: High Resolution
Portable Music Players (DAPs), Current Mode Headphone Amplifiers, True DSD
DACs, High Resolution Multi-channel Wireless Audio Systems, etc. Questyle
Audio is devoted to the new generation High-res audio design with valuing both
sound aesthetics and technology.
The Questyle Audio family consists of Questyle Audio Technology Co. Ltd, China,
and Questyle North America Inc., USA. Questyle has a great engineering team and
a talented sales team located in China and USA, and all products are assembled
in our strategy partner manufacturing center—Foxconn. With many globally
patented technologies and the philosophy of no compromise on sound control,
About Questyle
industrial design and techniques, Questyle ensures a precise and authentic
listening experience and a unique brand value.
A continuing search for new avenues to achieve higher levels of perfection in
high-end audio reproduction is the “Style” of our “Quest”.

Thank you for choosing to purchase your Questyle Audio QP1R. We are sure that, with it,
you will enjoy many hours if incomparable music pleasure.
With a unique arc body and helm design, featuring support for DSD64, DSD128 and PCM
24/192kHz, coupled with a Current Mode, pure Class A, discrete component all-transistor
Amplifier, bringing a warm and vivid sound, making the QP1R outstanding amongst all
other portable players.
Note: Before using this product, please read this manual carefully to know more about its
functions and usage.
- Display screen: 2.35” IPS (400*360) LCD screen.
- Internal memory: 32GB
- Output: 3.5mm earphone output, 3.5mm line output and optical output.
- External Micro SD card slot: supporting external 2*128GB Micro SD cards.(Some
UHS-1 high-speed Micro SD cards have the capacity of 200G)
- Battery: 3300mAh Lithium-ion polymer battery can be used for 8-10hours continuously.
- Charging by computer USB @ 450mA, Approx charge time 8 hrs.
Charging by 2A USB charger @ 1.3A, Approx charge time 4 hrs.
- Headphone amp output power
Gain = High
Max output amplitude: Vout=1.88V rms
Output power: Pout=40mW @32Ω;Pout=12mW @300Ω
Gain=Middle
Max output amplitude : Vout=1V rms
Output Power: Pout=31mW @32Ω;Pout=3.5mW @300Ω
Gain=Low
Max output amplitude : Vout=0.53V rms @32Ω;Vout=0.51V rms @16Ω
Output Power: Pout=8.8mW @32Ω;Pout=16.3mW @16Ω
- Audio format supported: WAV, FLAC, APE, AIFF, ADPCM, LPCM, MP3, WMA ,OGG,
AAC, DFF, DSF.
- PCM supporting sampling rate: FLAC, WAV, ALAC, AIFF: 44.1kHz ~ 192kHz (16/24bits
per Sample).
- DSD source code supported: DSD64 (1bit 2.8MHz) / DSD128 (1bit 5.6MHz)
- Color: Space Grey / Gold
- Body material: aluminum alloy, high-hardness curved tempered glass.
- Dimension: 134mm(L) X 65.2mm(W) X 14.5mm(H)
High-Res DAP Quest · Style

Check List
User’s manual and
VIP card
3.5mm to 3.5mm
converting cable (50cm)
Optical adapter
Cloth bag
USB cable (for charging)
User’s guide: downloadable from Questyle’s official Website: www. questyleaudio.com
Note: Accessories may be changed without prior notice.
QP1R device
Cloth bag
User’s manual and VIP card
USB cable (for charging)
3.5mm to 3.5mm converting cable
Optical adapter
1pc
1pc
1pc
1pc
1pc
1pc
Step volume
control knob
IPS display screen
Back menu/Playing
(Long press) touch button
Mechanical helm
- up/down/left/right
OK/pause/play button
Main menu/shortcut menu
(Keep pressing it) touch button
Previous song/fast backward
(keep pressing it)/up/left
Touch button
Next song/fast forward
(keep pressing it)/down/right
Touch button
device
Overview

3.5mm earphone output jack
3.5mm line output jack/optical fiber output interface
Step volume
control knob
Power/Lock screen/Reset
button (Restart by pressing
the key for 10 seconds if
the system crashes. See
"Reset")
Micro SD card slot 1 Micro SD card slot 2
Micro USB slot (PC connection and charging)
( Micro SD card, load with the positive side of the card faced down)
Power management
Charging
Connect the adapter (Not included. Please use an adapter, 5V/2A) and player with the
USB connecting line. Allow 4 hrs to achieve full charge, the icon will show
Usage of external memory card ( Micro SD card)
This product supports two 128GB Micro SD cards in addition to the internal memory of
32GB. We suggest using high speed Micro SD cards to avoid data errors. It is
suggested that Micro SD cards be formatted to FAT 32 or inserted into the player for
formatting. (See Formatting)
Micro SD Card install / uninstall:
Face the positive side of the Micro SD card downward and insert
it into the Micro SD card slot (It is recommended that the
QP1R be powered off before inserting card).
Press the card again after inserting and the card will pop out
automatically. As shown in the figure to the right.
Note: Never insert Micro SD card forcefully to avoid damaging it.
100%

USB connection
Songs can be copied to the internal memory and Micro SD cards by connecting a
computer using a micro USB connecting line (the QP1R will start automatically from
shutdown state). The internal storage and the two Micro SD cards (if installed) will show
in your computer as 3 separate storage devices. These storage devices can be
navigated like external hard drives. Songs, folders containing songs or folders
containing folders of songs can be dragged and dropped to the desired location on one
of the storage devices. Songs and folders can also be deleted from your computer.

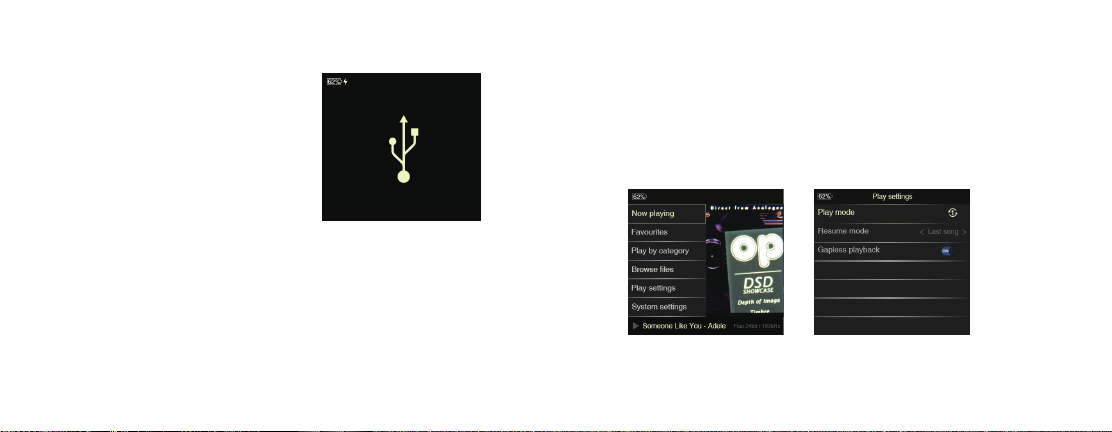

(Fig. 1)
(Fig. 2) (Fig. 3)
Main Menu Interface
Please select the menu language when starting this product for the first time by using
Disconnect the USB connection by pressing the “OK” key
on the player. If “Update media lib" in the "System
settings" is set to “Automatic”, the media library will be
updated automatically after disconnection; never
reconnect the computer before the completion of the
update process. (see Fig. 1)
Note: if you want to play music with QP1R while charging
it via USB connecting to a PC or a car, just touch and hold
on the Main Menu for 3 seconds to enter the menu.
the "Mechanical helm" or the "Left" and "Right" keys to highlight the language of your
choice, then press the "OK" key to select, at which point the display will continue to the
"Main" menu interface after startup. The sub-menus such as“Now playing”, “Favorites",
“Play by category”, "Browse files", "Play settings" and “System settings” can then be
selected. Use the "Mechanical helm" or the "Left" and "Right" keys to select a
sub-menu, then press the "OK" key to enter the menu.
Now playing: view the song currently being played or the previous play list. (see Fig. 2)
Press the "Main menu" or “Back Menu” to return to the "Main" menu.

Favorites: view the list of songs saved as Favorites. Select a song and press the “OK”
key to play the songs listed. Save your favorite songs from the "Now playing" screen
during playback. See "Shortcut menu" for details. Press the "Main menu" or “Back
Menu” to return to the "Main" menu.
Play by category: Playlist Categories; "Songs", "Album", "Artist", "Genre" and
"Playlists" (User Created). Press the “OK” key to enter the "Play by category" menu
then press the "OK" key to enter subfolders as necessary, select a song and press the
"OK" key to play. Press the "Back menu" key to return to previous menu, the "Main
menu" to change categories.
Browse files: browse the internally and externally saved folders and songs. Use the
"Mechanical helm" or the "Left" and "Right" keys to select a storage folder then press
the "OK" key to enter, then use the "Mechanical helm" or the "Left" and "Right" keys to
select a folder or song then press the “OK” key to enter the folder or play the song after
selection (all songs in a given folder will play). To switch storage folder, press the
“Shortcut menu” key or press the "Back menu" key after entering a storage folder.
Permanently delete songs using the “Shortcut menu”. Press the "Back menu" key to
return to previous menu, or the "Main" menu.
Play settings: (see Fig. 3)
Play mode — "sequence", "repeat list", "repeat a single song" and "random". Press the
"OK" key to select. Press the "Main menu" or “Back Menu” to return to the "Main" menu.
Resume Mode (Break-point memory playing) —"song" (starts at the beginning of the
last song played), "location" (continues the song where it left off) and "off". Press the
"OK" key to enter edit mode, then use the "Helm" or the "Left" and "Right" keys to
change selection, then press the "OK" key to select. Press the "Main menu" or “Back
Menu” to return to the "Main" menu.
Note: In case “Off” is enabled, the player will enter the "Main" menu interface after
restart. If "song" or “location” is selected, it will directly play the last song played before
the previous shutdown.
gapless play — "On" or "Off". Press the "OK" key to select. Press the "Main menu" or
“Back Menu” to return to the "Main" menu.
Seamless connection of songs when "On" is selected.

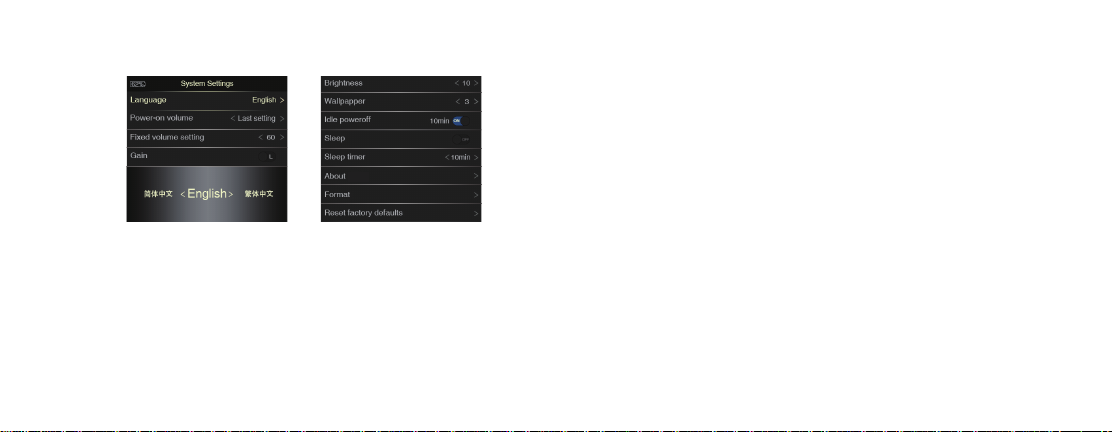

System setting: (see Fig. 4)
Language — select the menu language you want (Chinese, English, German, French,
Korean, Japanese, Russian and Arabic). Press the "OK" key to enter edit mode, then
use the "Mechanical helm" or the "Left" and "Right" keys to change selection, then
press the "OK" key to select. Press "Back menu" key to return to "Main" menu. Menu

(Fig. 4)
language selection will be prompted automatically when starting this product for the first
time.
Volume Control — uses can define the rotating direction of the volume knob for volume
up or down. (Available for software version 1.0.5 and higher.)
Volume Lock — when the Volume Lock is “ON”, volume can’t be adjusted; when the
Volume Lock is “OFF”, volume can be adjusted. (Available for software version 1.0.5
and higher.)
Fixed volume setting (Startup volume) — "last setting" (remains the same volume as
before shutdown), "fixed" (predetermined startup volume. See "Power on volume" )
Press the "OK" key to enter edit mode, then use the "Helm" or the "Left" and "Right"
keys to change selection, then press the "OK" key to select. Press the "Main menu" or
“Back Menu” to return to the "Main" menu.
Power-on volume — 1~60 (See "Startup volume" if it is set to "Memory", this parameter
can not be adjusted). Press the "OK" key to enter edit mode, then use the "Helm" or the
"Left" and "Right" keys to change selection, then press the "OK" key to select. Press the
"Main menu" or “Back Menu” to return to the "Main" menu.
Line out volume — "Maximum" or "Adjustable". Press the "OK" key to enter edit mode,
then use the "Helm" or the "Left" and "Right" keys to change selection, then press the
"OK" key to select. Press the "Main menu" or “Back Menu” to return to the "Main" menu.
Gain-"H",”M” or "L" (High, Medium or Low). Press the "OK" key to enter edit mode,
then use the "Helm" or the "Left" and "Right" keys to change selection, then press the
"OK" key to select. Press the "Main Menu" or "Back Menu" key to return to the "Main"
menu.
EQ Setting-“OFF”, “EQ 1” or “EQ 2”. (Toggles between bypass, EQ 1 and EQ 2. Note:
There will be a 6 db drop in volume when EQ1 or EQ2 are engaged) Press the "OK" key
time (See "Sleep timer"). Press the "OK" key to change selection. Press the "Main
menu" to return to "Main" menu.
EQ 1- (Equalizer settings) Press the "OK" key to enter edit mode, then use the "Left"
and "Right" keys to select band, then use the "Helm" to raise or lower setting. Press the
"Main Menu" or "Back Menu" key to exit or return to the "Main" menu.
EQ 2- (Equalizer settings) Press the "OK" key to enter edit mode, then use the "Left"
and "Right" keys to select band, then use the "Helm" to raise or lower setting. Press the
"Main Menu" or "Back Menu" key to exit or return to the "Main" menu.
Update media lib — "Manual" or "Auto". Updates the media library after inserting a
Micro SD card or the player is connected to a computer. To update manually press the
"OK" key to enter edit mode, then use the "Helm" or the "Left" and "Right" keys to select
"Manual", then press the "OK" key to begin update. Under automatic mode the media
library is automatically updated when the unit is disconnected from a computer. To
update automatically press the "OK" key to enter edit mode, then use the "Helm" or the
"Left" and "Right" keys to select "Auto", then press the "OK" key to select. Never
reconnect the computer during the upgrading process. Press the "Main menu" or "Back
Menu" to return to the "Main" menu.
Flip Function — "on" or "off". When "on", the "Next song" and "Previous song" keys
become page advance keys for navigating long song lists. Press the "OK" key to
change selection. Press the "Main menu" or "Back Menu" to return to the "Main" menu.
OK key to wake up — "on" or "off". When "on", pressing the "OK" key will activate the
display backlight if off. Press the "OK" key to change selection. Press the "Main menu"
or "Back Menu" to return to the "Main" menu.
Screen shutdown — "On" or "Off". When set to "On" the backlight for the display will
shut off automatically (see “Screen shutdown time”). When set to "Off" the display
backlight will remain on unless turned off manually by pressing the "Power" key. Press
the "OK" key to change selection. Press the "Main menu" to return to the "Main" menu.
Note: When the backlight is off, the player is in "Lock screen" mode, and all function
keys are disabled. To exit "Lock screen" mode press the "Power" key.
Screen shutdown time — "10s", "20s", "30s", "60s", "120s" (measured in seconds). (If
“Screen shutdown” is set as “Off”, this parameter can not be adjusted). Press the "OK"
key to enter edit mode, then use the "Helm" or the "Left" and "Right" keys to change
selection, then press the "OK" key to select. Press the "Main menu" or "Back Menu" to
return to "Main" menu.
Brightness — 1~10. Adjusts display backlight brightness. Press the "OK" key to enter
edit mode, then use the "Helm" or the "Left" and "Right" keys to change selection, then
press the "OK" key to select. Press the "Main menu" or "Back Menu" to return to "Main"
menu.
Home Screen Mode — 1~4. Select different default display backgrounds. Shows when
songs without cover art play. Press the "OK" key to enter edit mode, then use the
"Helm" or the "Left" and "Right" keys to change selection, then press the "OK" key to
select. Press the "Main menu" to return to "Main" menu.
Vibrate — "On" or "Off". When set to "On", the four touch keys will give a vibration
prompt when activated. Press the "OK" key to change selection. Press the "Main
menu" to return to "Main" menu.
Idle poweroff — "On" or "Off". When set to “On”, the system will shut down automatical-
ly when the earphone output, line output or optical fiber output are not connected and
no operation is made for 10 minutes in order to save power. Press the "OK" key to
change selection. Press the "Main menu" to return to "Main" menu.
Sleep—"On" or "Off". When set to "On", unit will shut down automatically after a preset
time (See "Sleep timer"). Press the "OK" key to change selection. Press the "Main
Menu" or "Back Menu" key to return to "Main" menu.
Sleep timer — 10, 20, 30, 60, 120 minutes. Press the "OK" key to enter edit mode, then
use the "Helm" or the "Left" and "Right" keys to change selection, then press the "OK"
key to select. Press the "Main Menu" or "Back Menu" key to return to "Main" menu.
About QP1R — information about firmware version, storage information and
instructions for firmware upgrading via Micro SD card. Press the "OK" key to view.
Press the "Main Menu" or "Back Menu" key to return to "Main" menu.
Storage formatting — format the internal memory and external Micro SD cards. Press
the "OK" key to enter edit mode, then use the "Helm" or the "Left" and "Right" keys to
select "Internal Storage", "TF Card1" or "TF Card 2" to be formatted, then press the
"OK" key, then use the "Helm" or the "Left" and "Right" keys to select “Yes” (will
highlight in blue) and then press the "OK" key to begin format (the process may take
several minutes). Warning: formatting will erase all files permanently, there is no
"undo". Press the "Main Menu" or "Back Menu" key to return to "Main" menu.
Factory restore-Reset to factory defaults. Press the "OK" key, then use the "Helm" or
the "Left" and "Right" keys to select “Yes” (will highlight in blue) and then press the "OK"
key.
Upgrade —To upgrade firmware; Shut down the player by pressing the "Power" key
until the "Questyle" logo appears and begins to fade out. Copy the q1.fw (do not
rename file) document to a blank Micro SD card and then insert it into the TF card 1 slot
of the player. Start the player by pressing the "power" key until you feel a slight
vibration. Use the "Helm" or the "Left" and "Right" keys to select “System settings” and
press the "OK" key, then use the "Helm" or the "Left" and "Right" keys to select
“Upgrade” and press the "OK" key, then use the "Helm" or the "Left" and "Right" keys
to select “Yes” (will highlight in blue) and then press the "OK" key, wait until the firmware
upgrade is finished (a progress bar will appear, do not power off during upgrade
process, the player will automatically reboot, may take several minutes). Press the
"Main Menu" or "Back Menu" key to return to "Main" menu.
Playing control and shortcut menu
Press the “Back Menu” key while in the "Now Playing" interface, to enter the list of
songs to be played.
Press the “Menu” key under the "Now Playing" interface and it will return to the "Main"
menu interface. If a song is playing, press the “Back Menu” key and it will return to the
"Main" menu interface and then press the “Back Menu” key and it will return to the "Now
Playing" interface.
While in the "Now Playing" interface, press and hold the “Menu” key and the "Shortcut
menu" will pop up showing the “Favorites”, “Add to playlist” and “Delete song” icons.
Select the "Favorites" icon using the "Helm" or the "Left" and "Right" keys, then press
the "OK" key to add the song to the "Favorites" menu. Select the "Add to playlist" icon
using the "Helm" or the "Left" and "Right" keys, then press the "OK" key to add the song
to a "Playlist". Select the "Delete song" icon using the "Helm" or the "Left" and "Right"
keys, then press the "OK" key to permanently delete the song from the internal memory
or Micro SD card. Press the "Menu" key to exit the "Shortcut menu".
If a song is being played, keep pressing the “Back Menu” key and it will return to the
"Now Playing" interface.
Cautions and reset
Attention
This product does not resist water and dust, never use in extremely hot or extremely
cold environments. The safe environmental temperature for this product is between 0℃
~40℃. To avoid damage, do not drop this product. Charge this product at least once a
month, to maintain battery life.
This product will shut down automatically if the charge drops below 2% on the battery
indicator (if the charge drops below 10%,the battery icon will turn red). Please charge
it immediately.
Reset
In case of system crash, (or if the function keys do not work after pressing), please
press and hold the “Power” key for more than 10 seconds to reset the system. After
reset, restart the player by pressing the "Power" key until the unit vibrates. If no songs
appear on song lists, power off the unit, remove the Micro SD cards, then power the unit
back on. Once normal function is restored, power off the unit, reinstall the Micro SD
cards, power on the unit, then manually upgrade the media library.
QP R
1

language selection will be prompted automatically when starting this product for the first
time.
Volume Control — uses can define the rotating direction of the volume knob for volume
up or down. (Available for software version 1.0.5 and higher.)
Volume Lock — when the Volume Lock is “ON”, volume can’t be adjusted; when the
Volume Lock is “OFF”, volume can be adjusted. (Available for software version 1.0.5
and higher.)
Fixed volume setting (Startup volume) — "last setting" (remains the same volume as
before shutdown), "fixed" (predetermined startup volume. See "Power on volume" )
Press the "OK" key to enter edit mode, then use the "Helm" or the "Left" and "Right"
keys to change selection, then press the "OK" key to select. Press the "Main menu" or
“Back Menu” to return to the "Main" menu.
Power-on volume — 1~60 (See "Startup volume" if it is set to "Memory", this parameter
can not be adjusted). Press the "OK" key to enter edit mode, then use the "Helm" or the
"Left" and "Right" keys to change selection, then press the "OK" key to select. Press the
"Main menu" or “Back Menu” to return to the "Main" menu.
Line out volume — "Maximum" or "Adjustable". Press the "OK" key to enter edit mode,
then use the "Helm" or the "Left" and "Right" keys to change selection, then press the
"OK" key to select. Press the "Main menu" or “Back Menu” to return to the "Main" menu.
Gain-"H",”M” or "L" (High, Medium or Low). Press the "OK" key to enter edit mode,
then use the "Helm" or the "Left" and "Right" keys to change selection, then press the
"OK" key to select. Press the "Main Menu" or "Back Menu" key to return to the "Main"
menu.
EQ Setting-“OFF”, “EQ 1” or “EQ 2”. (Toggles between bypass, EQ 1 and EQ 2. Note:
There will be a 6 db drop in volume when EQ1 or EQ2 are engaged) Press the "OK" key
time (See "Sleep timer"). Press the "OK" key to change selection. Press the "Main
menu" to return to "Main" menu.
EQ 1- (Equalizer settings) Press the "OK" key to enter edit mode, then use the "Left"
and "Right" keys to select band, then use the "Helm" to raise or lower setting. Press the
"Main Menu" or "Back Menu" key to exit or return to the "Main" menu.
EQ 2- (Equalizer settings) Press the "OK" key to enter edit mode, then use the "Left"
and "Right" keys to select band, then use the "Helm" to raise or lower setting. Press the
"Main Menu" or "Back Menu" key to exit or return to the "Main" menu.
Update media lib — "Manual" or "Auto". Updates the media library after inserting a
Micro SD card or the player is connected to a computer. To update manually press the
"OK" key to enter edit mode, then use the "Helm" or the "Left" and "Right" keys to select
"Manual", then press the "OK" key to begin update. Under automatic mode the media
library is automatically updated when the unit is disconnected from a computer. To
update automatically press the "OK" key to enter edit mode, then use the "Helm" or the
"Left" and "Right" keys to select "Auto", then press the "OK" key to select. Never
reconnect the computer during the upgrading process. Press the "Main menu" or "Back
Menu" to return to the "Main" menu.
Flip Function — "on" or "off". When "on", the "Next song" and "Previous song" keys
become page advance keys for navigating long song lists. Press the "OK" key to
change selection. Press the "Main menu" or "Back Menu" to return to the "Main" menu.
OK key to wake up — "on" or "off". When "on", pressing the "OK" key will activate the
display backlight if off. Press the "OK" key to change selection. Press the "Main menu"
or "Back Menu" to return to the "Main" menu.
Screen shutdown — "On" or "Off". When set to "On" the backlight for the display will
shut off automatically (see “Screen shutdown time”). When set to "Off" the display
backlight will remain on unless turned off manually by pressing the "Power" key. Press
the "OK" key to change selection. Press the "Main menu" to return to the "Main" menu.
Note: When the backlight is off, the player is in "Lock screen" mode, and all function
keys are disabled. To exit "Lock screen" mode press the "Power" key.
Screen shutdown time — "10s", "20s", "30s", "60s", "120s" (measured in seconds). (If
“Screen shutdown” is set as “Off”, this parameter can not be adjusted). Press the "OK"
key to enter edit mode, then use the "Helm" or the "Left" and "Right" keys to change
selection, then press the "OK" key to select. Press the "Main menu" or "Back Menu" to
return to "Main" menu.
Brightness — 1~10. Adjusts display backlight brightness. Press the "OK" key to enter
edit mode, then use the "Helm" or the "Left" and "Right" keys to change selection, then
press the "OK" key to select. Press the "Main menu" or "Back Menu" to return to "Main"
menu.
Home Screen Mode — 1~4. Select different default display backgrounds. Shows when
songs without cover art play. Press the "OK" key to enter edit mode, then use the
"Helm" or the "Left" and "Right" keys to change selection, then press the "OK" key to
select. Press the "Main menu" to return to "Main" menu.
Vibrate — "On" or "Off". When set to "On", the four touch keys will give a vibration
prompt when activated. Press the "OK" key to change selection. Press the "Main
menu" to return to "Main" menu.
Idle poweroff — "On" or "Off". When set to “On”, the system will shut down automatical-
ly when the earphone output, line output or optical fiber output are not connected and
no operation is made for 10 minutes in order to save power. Press the "OK" key to
change selection. Press the "Main menu" to return to "Main" menu.
Sleep—"On" or "Off". When set to "On", unit will shut down automatically after a preset
time (See "Sleep timer"). Press the "OK" key to change selection. Press the "Main
Menu" or "Back Menu" key to return to "Main" menu.
Sleep timer — 10, 20, 30, 60, 120 minutes. Press the "OK" key to enter edit mode, then
use the "Helm" or the "Left" and "Right" keys to change selection, then press the "OK"
key to select. Press the "Main Menu" or "Back Menu" key to return to "Main" menu.
About QP1R — information about firmware version, storage information and
instructions for firmware upgrading via Micro SD card. Press the "OK" key to view.
Press the "Main Menu" or "Back Menu" key to return to "Main" menu.
Storage formatting — format the internal memory and external Micro SD cards. Press
the "OK" key to enter edit mode, then use the "Helm" or the "Left" and "Right" keys to
select "Internal Storage", "TF Card1" or "TF Card 2" to be formatted, then press the
"OK" key, then use the "Helm" or the "Left" and "Right" keys to select “Yes” (will
highlight in blue) and then press the "OK" key to begin format (the process may take
several minutes). Warning: formatting will erase all files permanently, there is no
"undo". Press the "Main Menu" or "Back Menu" key to return to "Main" menu.
Factory restore-Reset to factory defaults. Press the "OK" key, then use the "Helm" or
the "Left" and "Right" keys to select “Yes” (will highlight in blue) and then press the "OK"
key.
Upgrade —To upgrade firmware; Shut down the player by pressing the "Power" key
until the "Questyle" logo appears and begins to fade out. Copy the q1.fw (do not
rename file) document to a blank Micro SD card and then insert it into the TF card 1 slot
of the player. Start the player by pressing the "power" key until you feel a slight
vibration. Use the "Helm" or the "Left" and "Right" keys to select “System settings” and
press the "OK" key, then use the "Helm" or the "Left" and "Right" keys to select
“Upgrade” and press the "OK" key, then use the "Helm" or the "Left" and "Right" keys
to select “Yes” (will highlight in blue) and then press the "OK" key, wait until the firmware
upgrade is finished (a progress bar will appear, do not power off during upgrade
process, the player will automatically reboot, may take several minutes). Press the
"Main Menu" or "Back Menu" key to return to "Main" menu.
Playing control and shortcut menu
Press the “Back Menu” key while in the "Now Playing" interface, to enter the list of
songs to be played.
Press the “Menu” key under the "Now Playing" interface and it will return to the "Main"
menu interface. If a song is playing, press the “Back Menu” key and it will return to the
"Main" menu interface and then press the “Back Menu” key and it will return to the "Now
Playing" interface.
While in the "Now Playing" interface, press and hold the “Menu” key and the "Shortcut
menu" will pop up showing the “Favorites”, “Add to playlist” and “Delete song” icons.
Select the "Favorites" icon using the "Helm" or the "Left" and "Right" keys, then press
the "OK" key to add the song to the "Favorites" menu. Select the "Add to playlist" icon
using the "Helm" or the "Left" and "Right" keys, then press the "OK" key to add the song
to a "Playlist". Select the "Delete song" icon using the "Helm" or the "Left" and "Right"
keys, then press the "OK" key to permanently delete the song from the internal memory
or Micro SD card. Press the "Menu" key to exit the "Shortcut menu".
If a song is being played, keep pressing the “Back Menu” key and it will return to the
"Now Playing" interface.
Cautions and reset
Attention
This product does not resist water and dust, never use in extremely hot or extremely
cold environments. The safe environmental temperature for this product is between 0℃
~40℃. To avoid damage, do not drop this product. Charge this product at least once a
month, to maintain battery life.
This product will shut down automatically if the charge drops below 2% on the battery
indicator (if the charge drops below 10%,the battery icon will turn red). Please charge
it immediately.
Reset
In case of system crash, (or if the function keys do not work after pressing), please
press and hold the “Power” key for more than 10 seconds to reset the system. After
reset, restart the player by pressing the "Power" key until the unit vibrates. If no songs
appear on song lists, power off the unit, remove the Micro SD cards, then power the unit
back on. Once normal function is restored, power off the unit, reinstall the Micro SD
cards, power on the unit, then manually upgrade the media library.

language selection will be prompted automatically when starting this product for the first
time.
Volume Control — uses can define the rotating direction of the volume knob for volume
up or down. (Available for software version 1.0.5 and higher.)
Volume Lock — when the Volume Lock is “ON”, volume can’t be adjusted; when the
Volume Lock is “OFF”, volume can be adjusted. (Available for software version 1.0.5
and higher.)
Fixed volume setting (Startup volume) — "last setting" (remains the same volume as
before shutdown), "fixed" (predetermined startup volume. See "Power on volume" )
Press the "OK" key to enter edit mode, then use the "Helm" or the "Left" and "Right"
keys to change selection, then press the "OK" key to select. Press the "Main menu" or
“Back Menu” to return to the "Main" menu.
Power-on volume — 1~60 (See "Startup volume" if it is set to "Memory", this parameter
can not be adjusted). Press the "OK" key to enter edit mode, then use the "Helm" or the
"Left" and "Right" keys to change selection, then press the "OK" key to select. Press the
"Main menu" or “Back Menu” to return to the "Main" menu.
Line out volume — "Maximum" or "Adjustable". Press the "OK" key to enter edit mode,
then use the "Helm" or the "Left" and "Right" keys to change selection, then press the
"OK" key to select. Press the "Main menu" or “Back Menu” to return to the "Main" menu.
Gain-"H",”M” or "L" (High, Medium or Low). Press the "OK" key to enter edit mode,
then use the "Helm" or the "Left" and "Right" keys to change selection, then press the
"OK" key to select. Press the "Main Menu" or "Back Menu" key to return to the "Main"
menu.
EQ Setting-“OFF”, “EQ 1” or “EQ 2”. (Toggles between bypass, EQ 1 and EQ 2. Note:
There will be a 6 db drop in volume when EQ1 or EQ2 are engaged) Press the "OK" key
time (See "Sleep timer"). Press the "OK" key to change selection. Press the "Main
menu" to return to "Main" menu.
EQ 1- (Equalizer settings) Press the "OK" key to enter edit mode, then use the "Left"
and "Right" keys to select band, then use the "Helm" to raise or lower setting. Press the
"Main Menu" or "Back Menu" key to exit or return to the "Main" menu.
EQ 2- (Equalizer settings) Press the "OK" key to enter edit mode, then use the "Left"
and "Right" keys to select band, then use the "Helm" to raise or lower setting. Press the
"Main Menu" or "Back Menu" key to exit or return to the "Main" menu.
Update media lib — "Manual" or "Auto". Updates the media library after inserting a
Micro SD card or the player is connected to a computer. To update manually press the
"OK" key to enter edit mode, then use the "Helm" or the "Left" and "Right" keys to select
"Manual", then press the "OK" key to begin update. Under automatic mode the media
library is automatically updated when the unit is disconnected from a computer. To
update automatically press the "OK" key to enter edit mode, then use the "Helm" or the
"Left" and "Right" keys to select "Auto", then press the "OK" key to select. Never
reconnect the computer during the upgrading process. Press the "Main menu" or "Back
Menu" to return to the "Main" menu.
Flip Function — "on" or "off". When "on", the "Next song" and "Previous song" keys
become page advance keys for navigating long song lists. Press the "OK" key to
change selection. Press the "Main menu" or "Back Menu" to return to the "Main" menu.
OK key to wake up — "on" or "off". When "on", pressing the "OK" key will activate the
display backlight if off. Press the "OK" key to change selection. Press the "Main menu"
or "Back Menu" to return to the "Main" menu.
Screen shutdown — "On" or "Off". When set to "On" the backlight for the display will
shut off automatically (see “Screen shutdown time”). When set to "Off" the display
backlight will remain on unless turned off manually by pressing the "Power" key. Press
the "OK" key to change selection. Press the "Main menu" to return to the "Main" menu.
Note: When the backlight is off, the player is in "Lock screen" mode, and all function
keys are disabled. To exit "Lock screen" mode press the "Power" key.
Screen shutdown time — "10s", "20s", "30s", "60s", "120s" (measured in seconds). (If
“Screen shutdown” is set as “Off”, this parameter can not be adjusted). Press the "OK"
key to enter edit mode, then use the "Helm" or the "Left" and "Right" keys to change
selection, then press the "OK" key to select. Press the "Main menu" or "Back Menu" to
return to "Main" menu.
Brightness — 1~10. Adjusts display backlight brightness. Press the "OK" key to enter
edit mode, then use the "Helm" or the "Left" and "Right" keys to change selection, then
press the "OK" key to select. Press the "Main menu" or "Back Menu" to return to "Main"
menu.
Home Screen Mode — 1~4. Select different default display backgrounds. Shows when
songs without cover art play. Press the "OK" key to enter edit mode, then use the
"Helm" or the "Left" and "Right" keys to change selection, then press the "OK" key to
select. Press the "Main menu" to return to "Main" menu.
Vibrate — "On" or "Off". When set to "On", the four touch keys will give a vibration
prompt when activated. Press the "OK" key to change selection. Press the "Main
menu" to return to "Main" menu.
Idle poweroff — "On" or "Off". When set to “On”, the system will shut down automatical-
ly when the earphone output, line output or optical fiber output are not connected and
no operation is made for 10 minutes in order to save power. Press the "OK" key to
change selection. Press the "Main menu" to return to "Main" menu.
Sleep—"On" or "Off". When set to "On", unit will shut down automatically after a preset
time (See "Sleep timer"). Press the "OK" key to change selection. Press the "Main
Menu" or "Back Menu" key to return to "Main" menu.
Sleep timer — 10, 20, 30, 60, 120 minutes. Press the "OK" key to enter edit mode, then
use the "Helm" or the "Left" and "Right" keys to change selection, then press the "OK"
key to select. Press the "Main Menu" or "Back Menu" key to return to "Main" menu.
About QP1R — information about firmware version, storage information and
instructions for firmware upgrading via Micro SD card. Press the "OK" key to view.
Press the "Main Menu" or "Back Menu" key to return to "Main" menu.
Storage formatting — format the internal memory and external Micro SD cards. Press
the "OK" key to enter edit mode, then use the "Helm" or the "Left" and "Right" keys to
select "Internal Storage", "TF Card1" or "TF Card 2" to be formatted, then press the
"OK" key, then use the "Helm" or the "Left" and "Right" keys to select “Yes” (will
highlight in blue) and then press the "OK" key to begin format (the process may take
several minutes). Warning: formatting will erase all files permanently, there is no
"undo". Press the "Main Menu" or "Back Menu" key to return to "Main" menu.
Factory restore-Reset to factory defaults. Press the "OK" key, then use the "Helm" or
the "Left" and "Right" keys to select “Yes” (will highlight in blue) and then press the "OK"
key.
Upgrade —To upgrade firmware; Shut down the player by pressing the "Power" key
until the "Questyle" logo appears and begins to fade out. Copy the q1.fw (do not
rename file) document to a blank Micro SD card and then insert it into the TF card 1 slot
of the player. Start the player by pressing the "power" key until you feel a slight
vibration. Use the "Helm" or the "Left" and "Right" keys to select “System settings” and
press the "OK" key, then use the "Helm" or the "Left" and "Right" keys to select
“Upgrade” and press the "OK" key, then use the "Helm" or the "Left" and "Right" keys
to select “Yes” (will highlight in blue) and then press the "OK" key, wait until the firmware
upgrade is finished (a progress bar will appear, do not power off during upgrade
process, the player will automatically reboot, may take several minutes). Press the
"Main Menu" or "Back Menu" key to return to "Main" menu.
Playing control and shortcut menu
Press the “Back Menu” key while in the "Now Playing" interface, to enter the list of
songs to be played.
Press the “Menu” key under the "Now Playing" interface and it will return to the "Main"
menu interface. If a song is playing, press the “Back Menu” key and it will return to the
"Main" menu interface and then press the “Back Menu” key and it will return to the "Now
Playing" interface.
While in the "Now Playing" interface, press and hold the “Menu” key and the "Shortcut
menu" will pop up showing the “Favorites”, “Add to playlist” and “Delete song” icons.
Select the "Favorites" icon using the "Helm" or the "Left" and "Right" keys, then press
the "OK" key to add the song to the "Favorites" menu. Select the "Add to playlist" icon
using the "Helm" or the "Left" and "Right" keys, then press the "OK" key to add the song
to a "Playlist". Select the "Delete song" icon using the "Helm" or the "Left" and "Right"
keys, then press the "OK" key to permanently delete the song from the internal memory
or Micro SD card. Press the "Menu" key to exit the "Shortcut menu".
If a song is being played, keep pressing the “Back Menu” key and it will return to the
"Now Playing" interface.
Cautions and reset
Attention
This product does not resist water and dust, never use in extremely hot or extremely
cold environments. The safe environmental temperature for this product is between 0℃
~40℃. To avoid damage, do not drop this product. Charge this product at least once a
month, to maintain battery life.
This product will shut down automatically if the charge drops below 2% on the battery
indicator (if the charge drops below 10%,the battery icon will turn red). Please charge
it immediately.
Reset
In case of system crash, (or if the function keys do not work after pressing), please
press and hold the “Power” key for more than 10 seconds to reset the system. After
reset, restart the player by pressing the "Power" key until the unit vibrates. If no songs
appear on song lists, power off the unit, remove the Micro SD cards, then power the unit
back on. Once normal function is restored, power off the unit, reinstall the Micro SD
cards, power on the unit, then manually upgrade the media library.

language selection will be prompted automatically when starting this product for the first
time.
Volume Control — uses can define the rotating direction of the volume knob for volume
up or down. (Available for software version 1.0.5 and higher.)
Volume Lock — when the Volume Lock is “ON”, volume can’t be adjusted; when the
Volume Lock is “OFF”, volume can be adjusted. (Available for software version 1.0.5
and higher.)
Fixed volume setting (Startup volume) — "last setting" (remains the same volume as
before shutdown), "fixed" (predetermined startup volume. See "Power on volume" )
Press the "OK" key to enter edit mode, then use the "Helm" or the "Left" and "Right"
!
keys to change selection, then press the "OK" key to select. Press the "Main menu" or
“Back Menu” to return to the "Main" menu.
Power-on volume — 1~60 (See "Startup volume" if it is set to "Memory", this parameter
can not be adjusted). Press the "OK" key to enter edit mode, then use the "Helm" or the
"Left" and "Right" keys to change selection, then press the "OK" key to select. Press the
"Main menu" or “Back Menu” to return to the "Main" menu.
Line out volume — "Maximum" or "Adjustable". Press the "OK" key to enter edit mode,
then use the "Helm" or the "Left" and "Right" keys to change selection, then press the
"OK" key to select. Press the "Main menu" or “Back Menu” to return to the "Main" menu.
Gain-"H",”M” or "L" (High, Medium or Low). Press the "OK" key to enter edit mode,
then use the "Helm" or the "Left" and "Right" keys to change selection, then press the
"OK" key to select. Press the "Main Menu" or "Back Menu" key to return to the "Main"
menu.
EQ Setting-“OFF”, “EQ 1” or “EQ 2”. (Toggles between bypass, EQ 1 and EQ 2. Note:
There will be a 6 db drop in volume when EQ1 or EQ2 are engaged) Press the "OK" key
time (See "Sleep timer"). Press the "OK" key to change selection. Press the "Main
menu" to return to "Main" menu.
EQ 1- (Equalizer settings) Press the "OK" key to enter edit mode, then use the "Left"
and "Right" keys to select band, then use the "Helm" to raise or lower setting. Press the
"Main Menu" or "Back Menu" key to exit or return to the "Main" menu.
EQ 2- (Equalizer settings) Press the "OK" key to enter edit mode, then use the "Left"
and "Right" keys to select band, then use the "Helm" to raise or lower setting. Press the
"Main Menu" or "Back Menu" key to exit or return to the "Main" menu.
Update media lib — "Manual" or "Auto". Updates the media library after inserting a
Micro SD card or the player is connected to a computer. To update manually press the
"OK" key to enter edit mode, then use the "Helm" or the "Left" and "Right" keys to select
"Manual", then press the "OK" key to begin update. Under automatic mode the media
library is automatically updated when the unit is disconnected from a computer. To
update automatically press the "OK" key to enter edit mode, then use the "Helm" or the
"Left" and "Right" keys to select "Auto", then press the "OK" key to select. Never
reconnect the computer during the upgrading process. Press the "Main menu" or "Back
Menu" to return to the "Main" menu.
Flip Function — "on" or "off". When "on", the "Next song" and "Previous song" keys
become page advance keys for navigating long song lists. Press the "OK" key to
change selection. Press the "Main menu" or "Back Menu" to return to the "Main" menu.
OK key to wake up — "on" or "off". When "on", pressing the "OK" key will activate the
display backlight if off. Press the "OK" key to change selection. Press the "Main menu"
or "Back Menu" to return to the "Main" menu.
Screen shutdown — "On" or "Off". When set to "On" the backlight for the display will
shut off automatically (see “Screen shutdown time”). When set to "Off" the display
backlight will remain on unless turned off manually by pressing the "Power" key. Press
the "OK" key to change selection. Press the "Main menu" to return to the "Main" menu.
Note: When the backlight is off, the player is in "Lock screen" mode, and all function
keys are disabled. To exit "Lock screen" mode press the "Power" key.
Screen shutdown time — "10s", "20s", "30s", "60s", "120s" (measured in seconds). (If
“Screen shutdown” is set as “Off”, this parameter can not be adjusted). Press the "OK"
key to enter edit mode, then use the "Helm" or the "Left" and "Right" keys to change
selection, then press the "OK" key to select. Press the "Main menu" or "Back Menu" to
return to "Main" menu.
Brightness — 1~10. Adjusts display backlight brightness. Press the "OK" key to enter
edit mode, then use the "Helm" or the "Left" and "Right" keys to change selection, then
press the "OK" key to select. Press the "Main menu" or "Back Menu" to return to "Main"
menu.
Home Screen Mode — 1~4. Select different default display backgrounds. Shows when
songs without cover art play. Press the "OK" key to enter edit mode, then use the
"Helm" or the "Left" and "Right" keys to change selection, then press the "OK" key to
select. Press the "Main menu" to return to "Main" menu.
Vibrate — "On" or "Off". When set to "On", the four touch keys will give a vibration
prompt when activated. Press the "OK" key to change selection. Press the "Main
menu" to return to "Main" menu.
Idle poweroff — "On" or "Off". When set to “On”, the system will shut down automatical-
ly when the earphone output, line output or optical fiber output are not connected and
no operation is made for 10 minutes in order to save power. Press the "OK" key to
change selection. Press the "Main menu" to return to "Main" menu.
Sleep—"On" or "Off". When set to "On", unit will shut down automatically after a preset
time (See "Sleep timer"). Press the "OK" key to change selection. Press the "Main
Menu" or "Back Menu" key to return to "Main" menu.
Sleep timer — 10, 20, 30, 60, 120 minutes. Press the "OK" key to enter edit mode, then
use the "Helm" or the "Left" and "Right" keys to change selection, then press the "OK"
key to select. Press the "Main Menu" or "Back Menu" key to return to "Main" menu.
About QP1R — information about firmware version, storage information and
instructions for firmware upgrading via Micro SD card. Press the "OK" key to view.
Press the "Main Menu" or "Back Menu" key to return to "Main" menu.
Storage formatting — format the internal memory and external Micro SD cards. Press
the "OK" key to enter edit mode, then use the "Helm" or the "Left" and "Right" keys to
select "Internal Storage", "TF Card1" or "TF Card 2" to be formatted, then press the
"OK" key, then use the "Helm" or the "Left" and "Right" keys to select “Yes” (will
highlight in blue) and then press the "OK" key to begin format (the process may take
several minutes). Warning: formatting will erase all files permanently, there is no
"undo". Press the "Main Menu" or "Back Menu" key to return to "Main" menu.
Factory restore-Reset to factory defaults. Press the "OK" key, then use the "Helm" or
the "Left" and "Right" keys to select “Yes” (will highlight in blue) and then press the "OK"
key.
Upgrade —To upgrade firmware; Shut down the player by pressing the "Power" key
until the "Questyle" logo appears and begins to fade out. Copy the q1.fw (do not
rename file) document to a blank Micro SD card and then insert it into the TF card 1 slot
of the player. Start the player by pressing the "power" key until you feel a slight
vibration. Use the "Helm" or the "Left" and "Right" keys to select “System settings” and
press the "OK" key, then use the "Helm" or the "Left" and "Right" keys to select
“Upgrade” and press the "OK" key, then use the "Helm" or the "Left" and "Right" keys
to select “Yes” (will highlight in blue) and then press the "OK" key, wait until the firmware
upgrade is finished (a progress bar will appear, do not power off during upgrade
process, the player will automatically reboot, may take several minutes). Press the
"Main Menu" or "Back Menu" key to return to "Main" menu.
Playing control and shortcut menu
Press the “Back Menu” key while in the "Now Playing" interface, to enter the list of
songs to be played.
Press the “Menu” key under the "Now Playing" interface and it will return to the "Main"
menu interface. If a song is playing, press the “Back Menu” key and it will return to the
"Main" menu interface and then press the “Back Menu” key and it will return to the "Now
Playing" interface.
While in the "Now Playing" interface, press and hold the “Menu” key and the "Shortcut
menu" will pop up showing the “Favorites”, “Add to playlist” and “Delete song” icons.
Select the "Favorites" icon using the "Helm" or the "Left" and "Right" keys, then press
the "OK" key to add the song to the "Favorites" menu. Select the "Add to playlist" icon
using the "Helm" or the "Left" and "Right" keys, then press the "OK" key to add the song
to a "Playlist". Select the "Delete song" icon using the "Helm" or the "Left" and "Right"
keys, then press the "OK" key to permanently delete the song from the internal memory
or Micro SD card. Press the "Menu" key to exit the "Shortcut menu".
If a song is being played, keep pressing the “Back Menu” key and it will return to the
"Now Playing" interface.
Cautions and reset
Attention
This product does not resist water and dust, never use in extremely hot or extremely
cold environments. The safe environmental temperature for this product is between 0℃
~40℃. To avoid damage, do not drop this product. Charge this product at least once a
month, to maintain battery life.
This product will shut down automatically if the charge drops below 2% on the battery
indicator (if the charge drops below 10%,the battery icon will turn red). Please charge
it immediately.
Reset
In case of system crash, (or if the function keys do not work after pressing), please
press and hold the “Power” key for more than 10 seconds to reset the system. After
reset, restart the player by pressing the "Power" key until the unit vibrates. If no songs
appear on song lists, power off the unit, remove the Micro SD cards, then power the unit
back on. Once normal function is restored, power off the unit, reinstall the Micro SD
cards, power on the unit, then manually upgrade the media library.

Current Mode Amplification technology and ID design are used under license from
Questyle Audio Technology Co. Ltd.
Current Mode Amplification technology has applied for
PCT Application No. PCT/CN2014/075775
China Intellectual Property Office Application No. 201420119514.4
ID design have applied for
United States Patent & Trademark Office Application No. 29/514,770
European Patent Office Application No. 002617274-0001
China Intellectual Property Office Application No. 201530001353.9
Thanks for purchasing Questyle Audio product High-Res DAP.
Before using this product, please read this manual carefully to know more about the functions
and usage of .
旷世音响(Questyle Audio),专注于便携无损播放器和车用无损播放器,录音
棚监听与顶级个人玩家系列,家用和定制安装的无线音频系列产品的设计与制造。产
品包括:无损便携播放器,电流模耳机放大器,音频解码器,无损多声道无线音响系
统等。旷世音响致力于声音美学和科技并重的新一代无损音响系统的设计。
旷世音响包括旷世音响技术有限公司和旷世音响北美有限公司。旷世音响在中国
和美国均有工程技术团队及市场销售团队,产品全部由战略合作伙伴富士康科技集团
制造。旷世音响创新的多项全球专利级技术,永不妥协的声音调校理念和工业设计以
及工艺要求,确保我们能够提供高精准度、权威、可靠的聆听体验和独特的品牌价
值。
追求(Quest)在当今高端音响领域的独立思考和独特品味(Style),正是
Questyle的初衷“Quest · Style - 为追求制造!"

过目难忘的弧线机身和舵轮设计,支持DSD128及192K母带级音频文件,电流模纯A类全
晶体管耳机放大器带来的温暖雄浑的声音表现,让QP1R成为便携随身播放器领域的旷世
之作。
- 显示屏:2.35”IPS (400*360) LCD屏
- 内置存储器:32GB
- 输出:3.5mm耳机输出, 3.5mm线路输出及光纤输出
- 外置Micro SD卡槽:支持外置2*128G Micro SD卡 (部分UHS-1高速Micro SD卡可支持
扩展到200G)
- 电池容量:3300mAh锂聚合物电池, 可连续使用8-10小时
- 充电电流:电脑USB充电时电流约450mA, 充满电时约8小时
2A充电器充电时电流约1.3A, 充电时间约4小时
- 耳机部分输出功率:
高增益模式下
耳机放大器最大输出幅度Vout=1.88V rms
耳机部分输出功率RL=32Ω,Pout=40mW; RL=300Ω, Pout=12mW
中增益模式下
耳机放大器最大输出幅度: Vout=1Vrms
耳机部分输出功率RL=32Ω, Pout=31mW; RL=300Ω,Pout=3.5mW
低增益模式下
耳机放大器最大输出幅度:
RL=32Ω,Vout=0.53V rms ; RL=16Ω,Vout=0.51V rms
耳机部分输出功率:
RL=32Ω,Pout=8.8mW ; RL=16Ω,Pout=16.3mW
- 支持音频格式:
WAV, FLAC, APE, AIFF, ADPCM, LPCM, MP3, WMA , OGG, AAC, DFF, DSF
- PCM支持采样率:FLAC, WAV, ALAC, AIFF: 44.1kHz ~ 192kHz (16/24bits per Sample)
- 支持DSD源码:DSD64 (1bit 2.8MHz) / DSD128 (1bit 5.6MHz)
- 机身颜色:深空灰色 / 金色
- 机身材质:铝合金机身, 高硬度曲面钢化玻璃
- 尺寸:134mm(长) X 65.2mm(宽) X 14.5mm(高)
无损便携播放器,为追求制造。

说明书和保修卡、
VIP卡
QP1R主机
主机保护袋
说明书和保修卡 、VIP卡
USB数据线(充电线)
3.5mm转3.5mm音频线
光纤转接头
主机保护袋
3.5mm转3.5mm音频线
(长度:50cm ) 光纤转接头USB数据线(充电线)
1台
1个
1份
1条
1条
1个
用户手册:可从旷世音响官方网站 www. questyleaudio.cn 下载。
注:旷世音响可能为升级产品而修改或增加附件及软件,恕不另行通知(CN-UM001-QP1RV2)。
包装和配件
主机

Micro SD卡1插槽(卡正面朝下) Micro SD卡2插槽(卡正面朝下)
电源管理
充电
使用随机配送的USB连接线连接适配器(标准配件不含适配器。适配器规格:输出直流
电压5V、输出电流不小于2A)和播放器,约4小时充满,充满显示图标为“ ”。
100%
使用外部Micro SD卡
本机支持2*128GB外部存储卡(机身内部存储容量为32GB)。为保证音乐播放的流畅
性,推荐使用高速Micro SD卡,文件格式FAT32。
Micro SD卡安装/拆卸:
卡正面朝下,从卡槽插入。
插入后再按一次卡,卡会自动弹出。
如右图:
注意:插入Micro SD卡时请勿用力过度,以避免损坏。

USB连接
通过配件中的USB数据线连接电脑后(关机状态下会
自动启动机器),可以拷贝歌曲到内部存储和Micro
SD卡内。可以通过按播放器的“确认”按键断开
USB连接。如果系统配置中“更新媒体库”设置为
“自动”模式,断开连接后会更新媒体库,这个过程
完成前请不要再次连接电脑。(见图一)
提示:当QP1R在使用USB线连接电脑或汽车充电的
情况下,想要使用QP1R播放音乐,只要长按Menu
键3秒就可以直接进入菜单界面。
界面描述
首次开机需要对菜单语言进行选择,开机后将进入主界面。可以选择“正在播放”、
“收藏”、“分类播放”、“系统设置”等子项。
- 正在播放:进入正在播放歌曲或上次播放列表。(见图二)
- 收藏:进入收藏歌曲列表,选择好歌曲文件后按“确认”键开始播放。播放中可以对
(图一)
(图三)
(图二)
- 分类播放:支持所有歌曲,专辑,艺术家,风格,自定义列表等分类播放。进入自己
想要的分类播放子项,选择好歌曲文件后按“确认”键开始播放。
- 文件浏览:对内部和外部存储歌曲进行浏览,进入存储后可以通过“快捷菜单”切换
存储,和对歌曲进行删除。选择好歌曲后也可以直接按“确认”键开始播放歌曲。
播放配置(见图三)
播放模式 — 顺序、列表循环、单曲循环、随机
自己喜欢的歌曲进行收藏,具体操作见后面介绍。

QP R1
(图四)
音量调节 — 用户可以自行定义旋转音量旋钮时,音量变化的方向。(要求软件版本在
1.0.5及以上)
音量锁定 — “ON”表示在机器锁定状态下,无法调节音量大小;“OFF”则表示在
机器锁定状态下,仍然可以调节音量大小。(要求软件版本在1.0.5及以上)
开机音量 — 记忆(保持前次关机前音量)、自定义(每次开机使用自定义音量)。
自定义开机音量 — 1~60。
线路输出音量 — 有“可调”和“最大”两种选择。
增益 — 高、中、低增益切换控制,驱动高灵敏度入耳式耳塞时推荐使用低增益模式,
驱动头戴式耳机推荐使用高增益模式。
EQ设置 —“OFF”、“EQ1”和“EQ2”。本机EQ为10段双倍频(31Hz~16KHz),
调节范围为12dB(±6dB)。
EQ1 — 进入“EQ1"设置界面。触摸按键“<”、“>”调整频率,用机械舵轮调整增
断点记忆播放 — 曲目、位置、关闭
注:在选择“关闭”的情况下,再次开机后系统将进入到主界面,选择“曲目”或“位
置”的情况下,再次开机后将直接开始播放上次关机前的歌曲。
无缝播放 — 开、关。“开”状态下实现播放歌曲间的无缝连接。
系统配置:(见图四)
语言 — 选择自己需要的菜单语言(简体中文、繁体中文,英文,德语,日文,韩文,
法文,俄文,阿拉伯文),首次开机时,系统自动提示选择。

益;调整完后按“ ”健可回到主菜单。
EQ2 — 进入“EQ2”设置界面,操作方法同上。
更新媒体库 — 手动、自动。插卡或换卡或播放器连接电脑后,如需要对媒体库进行更
新,手动模式下需要自己进入菜单更新,自动模式下系统会自动更新。在更新的过程中
请勿再次连接电脑。
翻页设置—选择“ON”时,“<”和“>”分别代表“上一曲”和“下一曲”;选择
“OFF”时,“<”和“>”则表示“上一页”和“下一页”。
“OK”唤醒— 选择“ON”时,机器在锁定状态下,按确认键(OK键)可直接解除锁
定。
背光关闭 — 开、关。“开”状态下,在没有操作的情况下,系统会依据已设定的“背光
时间”来关闭屏幕背光;“关”状态下,屏幕将持续亮光,可以用“电源”键来强制关
闭屏幕背光。
背光时间 — 10、20、30、60、120秒。(当“背光关闭“设置为”关“时候,无法调
整该参数)。
背光亮度— 1~10, 出厂设置默认为“6”。
背景 — 1~4。没有歌曲封面时,可选择系统自带的播放背景图片。
震动 — 开、关。“开”状态下,四个触摸按键会有震动提示;“关”状态下,此功能
失效。
节电关机 — 开、关。“开”状态下,没有连接耳机或线路输出或光纤输出并且无操作
达到10分钟的时候系统会因节电自动关机;“关”状态下,此功能失效。
睡眠关机 — 开、关。选择“睡眠关机时间”设定倒计时,定时关机。
睡眠关机时间 — 10、20、30、60、120分钟。
QP1R信息 — 固件版本信息,存储信息,Micro SD卡升级固件方法介绍等。
格式化 — 可以对内部存储,外部Micro SD卡进行格式化。

注意事项和复位
- 注意事项
请勿在极热、极冷、多尘环境下使用;播放器正常使用温度为0℃~40℃;防止高空跌
落损坏机身。如长期不使用,建议1个月充电一次。
!
感谢您购买由旷世音响出品的 无损便携播放器。
请您仔细阅读此快速入门手册,以便更多的了解 的功能及使用方法。
更新固件 — 更新固件入口。将FW文件拷贝到Micro SD卡后插入播放器Micro SD卡1
位置,开机进入“系统设置”—“更新固件”—“是”,直到固件更新完成。
播放控制及快捷菜单
在正在播放界面下短触“返回”或旋转“机械舵轮”会进入当前播放歌曲列表。
在正在播放界面下短触“菜单”会回到主界面,短触“返回”会逐层返回到“主界面”,
再短触“返回”又回到正在播放界面。
在正在播放界面下,长触“菜单”会弹出“收藏”、“添加到列表”、“删除歌曲”菜
单。可以选中子项后按提示操作。
如有歌曲正在播放,长触“返回”会直接回到正在播放界面。
电池电量低至2%时会自动关机(电量低于10% ,电池图标显示红色),请及时充电。
- 复位
在系统操作任何按键均无效的情况下,长按“电源”侧按键10秒后系统复位,重新开机
即可。
Table of contents
