Radicson HDR-510 User manual
Technology
Radicson
www.radicson.com
Various Video Input Signals (HDMI,VGA,AV,YPbPr)
Instant Video Playback after Recording
Record Videos to the USB Storage
Schedule Recording
Record Live Voice
Proffesional Full HD Recorder
HDR-510
Technology
Radicson
1
Technology
Radicson
www.radicson.com
Safety Notices ............................................................................................................. 2
Product Specifications ............................................................................................... 3
Supported Resolutions .............................................................................................. 3
Remote Control .......................................................................................................... 4
How to record videos to the USB storage device ................................................... 5
1. Connect ................................................................................................................. 5
Tips on selecting a proper USB flash drive ..................................................... 5
2. Record ................................................................................................................... 6
3. Schedule Recording ............................................................................................. 6
4. Playback ................................................................................................................ 8
5. Menu Navigation ................................................................................................ 10
TIME Submenu ................................................................................................ 10
PICTURE Submenu .......................................................................................... 11
SOUND Submenu ............................................................................................ 11
OPTION Submenu ........................................................................................... 12
Frequently Asked Questions ................................................................................... 13
Contact Us ................................................................................................................. 13
Disclaimer ................................................................................................................. 13
Contents
Technology
Radicson HDR-510
Full HD Recorder
2
Technology
Radicson
www.radicson.com
HDR-510 User Manual
This documentation describes how to use HDR-510 device.
Copyright Notice
Copyright Redicson Technology Inc. All rights reserved.
Documentation Version 1.0
No part of this publication may be reproduced, transmitted, transcribed, stored
in a retrieval system, or translated into any language or computer language, in
any form or by any means, electronic, mechanical, magnetic, optical, chemical,
manual, or otherwise, without the prior written permission of Radicson Inc.
Safety Notices
Before using HDR-510 device, please ensure that you read and understand the
safety precautions below:
- Do not attempt to open the case of HDR-510 or modify it in any way, as this
will void the warranty.
- Keep the HDR-510 away from water and other liquids, as this may cause the
unit to malfunction.
- HDR-510 may become warm during use. This does not indicate malfunction.
Technology
Radicson HDR-510
Full HD Recorder
3
Technology
Radicson
www.radicson.com
Input
4K (3840x2160) (30p)
1920x1080 (60p), 1920x1080 (50p), 1920x1080 (30p)
1920x1080 (25p), 1920x1080 (24p)
1920x1080 (60i) , 1920x1080 (50i)
1280x1024 (60p), 1360x768 (60p), 1280x800 (60p)
1280x768 (60p), 1280x720 (60p), 1024x768 (60p)
720x576 (50p), 720x480 (60p), 640x480 (60p)
720x480 (60i), 720x480 (50i)
Output
1920x1080 (60p), 1280x800 (60p), 1280x720 (60p)
1360x768 (60p), 1024x768 (60p)
Recording (USB)
1920x1080 (30p), 1280x800 (60p), 1280x720 (60p)
1360x768 (60p), 1024x768 (60p)
Recording (PC)
1920x1080 (30p), 1280x720 (60p), 720x480 (60p)
Supported Resolutions
Output Format
MP4 (H.264)
Video Standards (Input)
NTSC, PAL, PAL-60
Supported Disk Formats
FAT32, NTFS
Input Signals
HDMI, VGA, YPbPr, AV, Audio L/R
Output Signals
HDMI (Pass-Through), USB, Micro USB
Bitrate
Max: 16Mbps
Max Storage Capacity
2TB
Power Supply
DC 5V, 2A
Suppoted File Format
for Playback
Image Formats: BMP, JPG, PNG
Audio Formats: MP3, WAV, FLAC, AAC, M4A
Video Formats: MP4, AVI, VOB, MKV, MOV, MPG
Video Codec: MPEG-2, MPEG-4, H.264, VC-1
Text Format: TXT
Product Specifications
Technology
Radicson HDR-510
Full HD Recorder
4
Technology
Radicson
www.radicson.com
Tips: The remote control must be powered by two AAA
batteries, which are not included in the packing box.
Power on / Power off
Capture an image
Select HDMI as the input signal
Select VGA as the input signal
Select YPbPr as the input signal
Select AV as the input signal
Mute
Switch to the aspect ratio of 4:3
Switch to the aspect ratio of 16:9
Microphone mute
Start recording
Stop recording
OK button
Adjust the volume of MIC input
Show the main menu
Back to the previous interface
Set the system time
Play back the contents in USB storage device
Set the recording frequency, starting & recording time
Back to the previous page
Go to the next page
Play or stop playing
Fast backward
Delete the recording video
Fast forward
Set the output resolution to 720p
Select the recording resolution for PC
Adjust the volume of the source video
Then videos will be recorded automatically
Set the output resolution to 1080p
including 1920x1080, 1280,720 and 720x480
Remote Control
Technology
Radicson HDR-510
Full HD Recorder
5
Technology
Radicson
www.radicson.com
1. Connect
- Connect the video source to IN port on HDR-510 via HDMI cable
- Connect HDR-510 from OUT port to Monitor via an HDMI Cable
- Plug the USB storage device into the “Storage” port of HDR-510
- Plug the power adapter into the power socket (5V/2A)
Tips:
- If you want to connect devices via VGA/AV/YPbPr to cable, please connect the
video source to MMI IN port on HDR-510.
- Please use a premium USB flash drive or mobile hard disk with high speed to
avoid unexpected problems such as file loss.
Tips on selecting a proper USB flash drive:
- Recommended brands: Toshiba, SanDisk, Kingston
- Interface specifications: USB 2.0, USB 3.0
- Connector type: Type A
- Make sure the actual reading speed is not less than 30Mbps, and the writing
speed is not less than 10Mbps.
- It is recommended that you format the USB flash drive or erase data before
connecting it to our product.
- It is recommended that you use a USB flash drive with LED indicator, so that
you can easily understand that working status of the USB flash drive.
- Don’t unplug the USB drive in the process of reading and writing, otherwise
your data will be damaged.
- FAT32 format is recommended, Due to the special properties of FAT32, the
single video file will be 2GB at most, and the recorded video will be split into
multiple files but more stable (You can use applications to combine them into
on file easily). For NTFS, the recorded video will be stored as a single large file
but will be more prone to error than FAT32, resulting in unsuccessful storage
or file corruption. Therefore, it is strongly recommended that you format the
USB flash drive to FAT32 in order to get a better experience.
How to record videos to the USB storage device
Technology
Radicson
Full HD Recorder
HDR-510
6
Technology
Radicson
www.radicson.com
- After formatting the USB flash drive using PC, please make sure to safely
remove USB device instead of unplugging it directly, otherwise the USB flash
drive will be damaged and not work properly.
- If the recorded video is 0KB or can not play back normally, please reformat
your flash drive.
2. Record
- After all devices are connected properly, press and hold the “ON/OFF” button
for a few seconds to switch on the HDR-510 and turn on other devices.
- Press the REC/STOP button on the device or press REC button on the remote
control to start recording.
- After recording for a period of time,press the REC/STOP button again on the
device or press the STOP button on the remote control to stop recording.
3. Schedule Recording
- Press the TIME button on the remote control, set the system time by using
the four buttons of volume control on the remote, then select save to finish.
Technology
Radicson
Full HD Recorder
HDR-510
7
Technology
Radicson
www.radicson.com
- Press the “SCHEDULE” button on the remote control, Set the recording
frequency, start time and recording time by using the four buttons of volume
on the remote control, Then select Save to finish the setting.
- After finishing the setup, press on the remote control and return to the
video playback interface, then device will start to record video automatically
at the scheduled time.
IMPORTANT: if you set the recording frequency to “Once”, please make sure
to create a schedule task at least 3 minutes in advance. if you set the recording
frequency to “Every day”, please make sure to create a schedule task at least
1 minute in advance. Then recording will be start at the scheduled time.
Technology
Radicson
Full HD Recorder
HDR-510
8
Technology
Radicson
www.radicson.com
4. Playback
- after all devices are connected properly, plug the USB storage device into
HDR-510 and press the Playback button on the remote control to enter the
playback menu interface.
- Select one category and press OK, Then you can select a partition.
Technology
Radicson
Full HD Recorder
HDR-510
9
Technology
Radicson
www.radicson.com

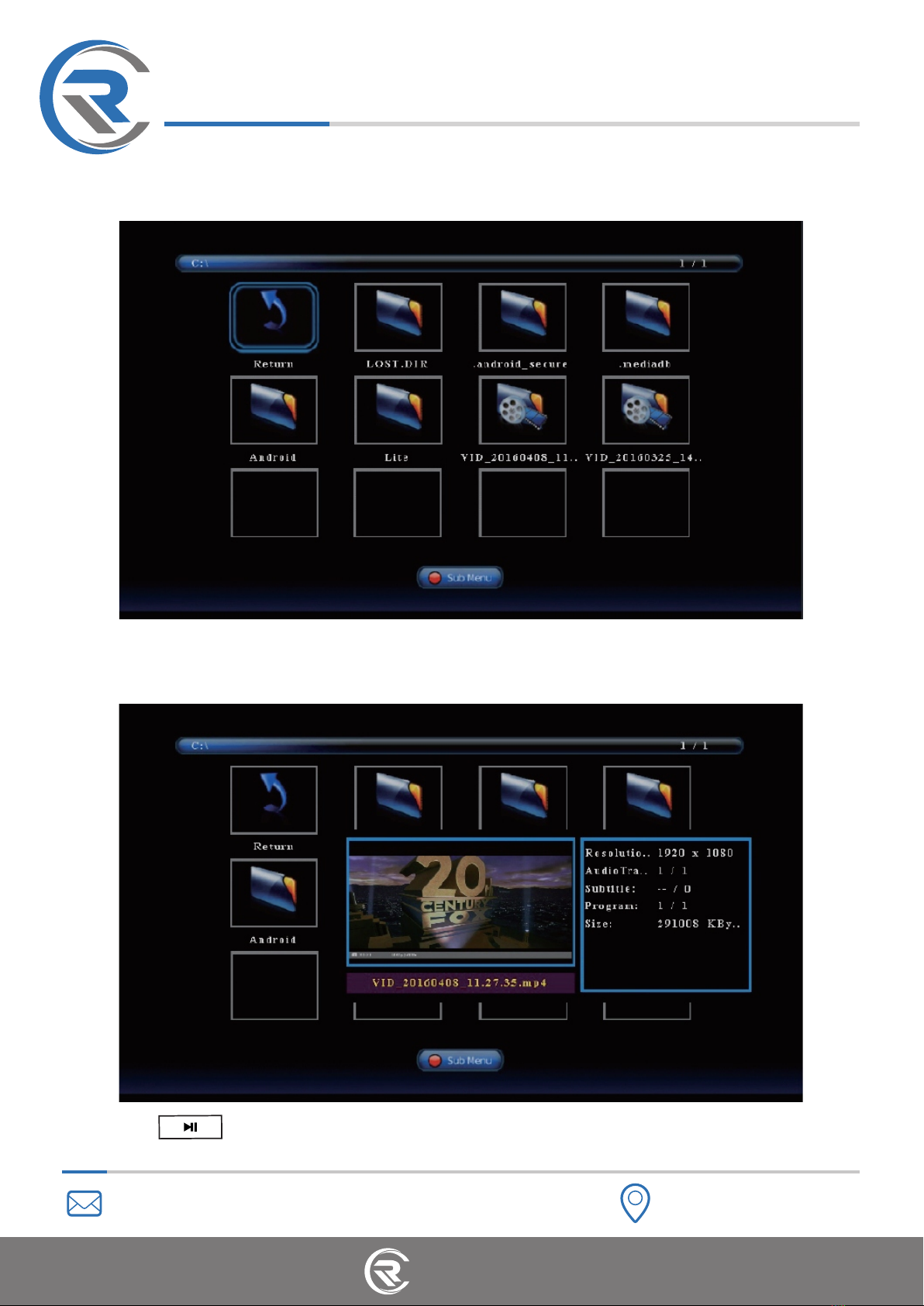

- You will see the file list.
Select your desired file by using the four buttons of volume control on the
remote control. You can preview the files & press OK to select multiple files.
- Press on the remote control to play the selected file(s).
Technology
Radicson
Full HD Recorder
HDR-510
10
Technology
Radicson
www.radicson.com
5. Menu Navigation
Press on the remote control to browse the menu setting of HDR-510,
which are TIME, PICTURE, SOUND and OPTION.
- Under the TIME column, there are four aspects:
System Time, Schedule Recording, Recording Bitrate and Frimware Update.
System Time: Set the time by year, month, day, hour, minute and second.
Schedule Recording: Set the recording frequency, start & recording time.
Then video will be recorded automatically according to your setting.
Recording Bitrate: Set the recording bitrate by High, Middle and Low.
Frimware Update: Upgrade the frimware when a new version is available.

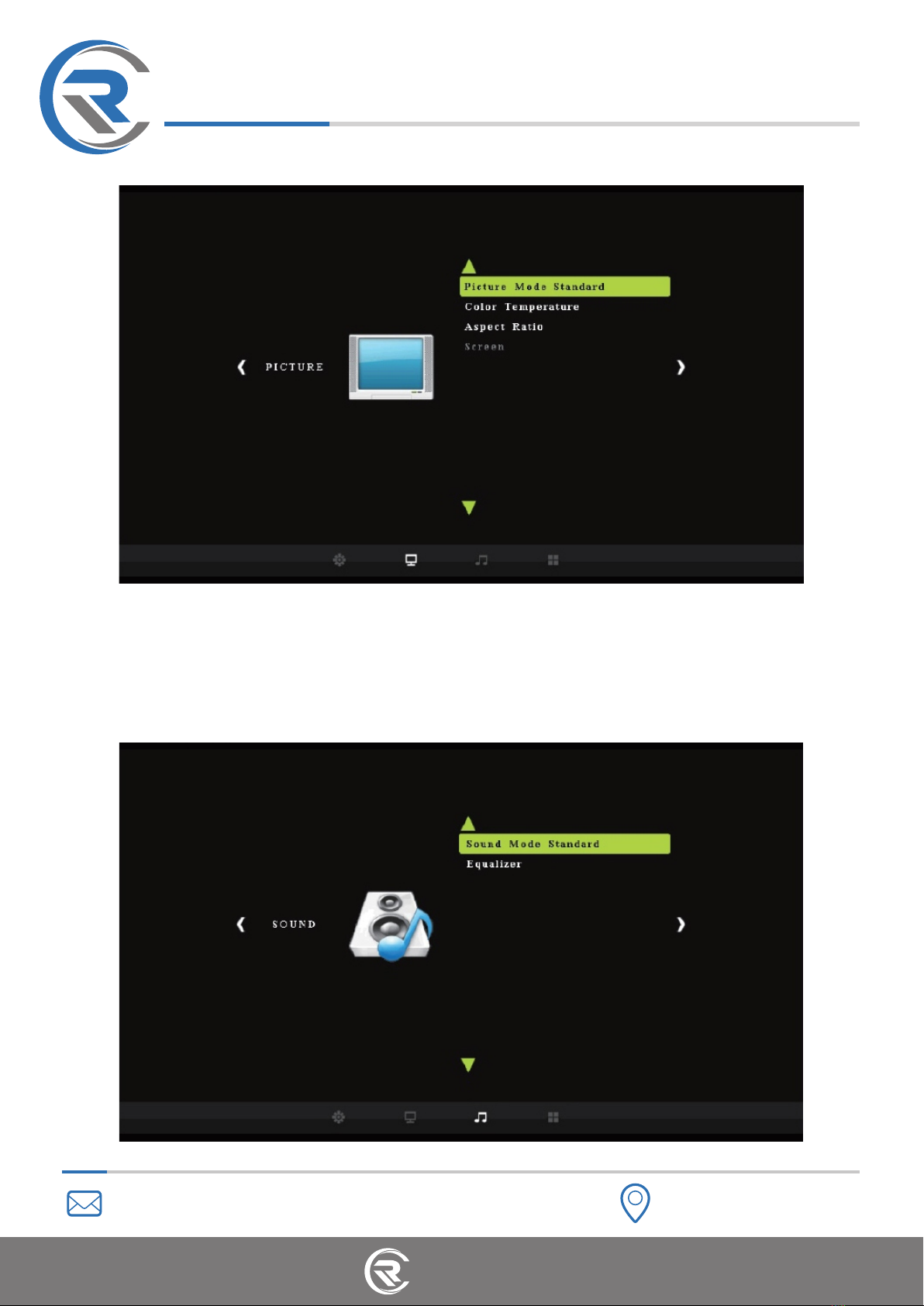

- Under the Picture column, there are three aspects:
Picture Mode, Color Temperature and Aspect Ratio.
Technology
Radicson
Full HD Recorder
HDR-510
11
Technology
Radicson
www.radicson.com
Picture Mode: Mild, User, Dynamic and Standard are available.
Color Temperature: Medium, Warm, User and Cool are available.
Aspect Ratio: Auto, 4:3, 16:9 (default), Zoom 1, Zoom 2, Just Scan are available.
- Under the SOUND column, there are 2 aspects: Sound Mode and Equalizer.
Technology
Radicson
Full HD Recorder
HDR-510
12
Technology
Radicson
www.radicson.com
Sound Mode: Standard, Music, Movie, Sport and User are available.
Equalizer: 120 Hz, 500 Hz, 1.5 Khz, 5 Khz and 10 KHz are available.
- Under the OPTION column, there are five aspects: OSD Language, Restore
Factory Default, OSD Transparency, OSD Duration and Firmware Version.
OSD Language: Set the language to be displayed on the menu.
English, Japanese, Simplified Chinese and Traditional Chinese are available.
Restore Factory Default: Restore the factory settings.
OSD Transparency: Set the transparency of menu by High, Mid, Low & OFF.
OSD Duration: Set the duration of menu display by 5s, 10s, 15s and OFF.
Firmware Version: Shows the current firmware version number.
Tips: The parameter of options may change as the firmware upgrades.
Please refer to the next description.
If you have any question about this, please contact us by email.
Technology
Radicson
Full HD Recorder
HDR-510
13
Technology
Radicson
www.radicson.com
- What kinds of mobile hard disks do HDR-510 support?
2TB capacity or below.
Less than 500mA current (Under dependent power sources).
10MB/s read-write speed or above (You can use CrystalDiskMark to test speed).
FAT32 or NTFS file system on Windows 7 operating system or above.
Make sure your mobile hard disk is in the MBR partition style.
- Why is there a prompt “No Signal”?
Please switch to the proper input signal by:
Pressing one of the four video source buttons on the remote control
(HDMI, VGA, YPbPr, AV).
Pressing the “SOURCE” button on the HDR-510.
- Why is there a prompt “Can’t Detect USB Device”?
Please format your USB stick or unplug the USB stick from the USB port and
plug it into HDR-510 again. If the solutions don’t work, please send an email to
for direct help.support@radicson.com
Contact Us
- If you encounter any problem when using our products, please contact us by
and we will serve you with utmost satisfaction. support@radicson.com
- We’ll offer a satisfying discount on batch purchase and affiliate program. If you
are interested, please contact us by email address.info@radicson.com
Disclaimer
HDMI is a registered trademark of HDMI Licensing, LLC.
USB is a registered trademark of USB Implementers Forum.
HDMI and USB are registered trademarks of their respective companies.
Radicson Inc. is not affiliated with those companies.
Frequently Asked Questions
Technology
Radicson
Full HD Recorder
HDR-510
Table of contents
